MPPT 10A 20A 30A Solar Charge Controller 12V 24V Solar Panel Controller For 100W 200W 300W 400W Solar Panel For Lithium Lifepo4

Name: MPPT 10A 20A 30A Solar Charge Controller 12V 24V Solar Panel Controlle
Brand: BestSolarPanel
SKU: 3256804341242034-PWM 10A-Auto 12V 24V
Price: 19.56 USD
Availability: InStock

MPPT 10A 20A 30A Solar Charge Controller 12V 24V Solar Panel Controller For 100W 200W 300W 400W Solar Panel For Lithium Lifepo4

$19.56 USD

Sale Sold out

Shipping calculated at checkout.

117 orders in last 30 days

Color PWM 10A PWM 20A PWM 30A MPPT 10A MPPT 20A MPPT 30A

Rated Voltage Auto 12V 24V

Product variants

Quantity

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

Free Shipping：Ships within 3days, arrives within 9-15 days
Paid Express: Ships within 2days,arrives within 5-8 days
Money back guarantee: Quality problems, return and exchange within 30 days
12-month warranty, long-term after-sales service
No need to register account, Order tracking url will send to your email
More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

charging method: MPPT Or PWM

USB output: 5V2A

Suggestion solar panel Current: 10A,20A,30A

Origin: Mainland China

Model Number: MPPT 10A 20A 30A solar charge controller

Maximum Current: 30A

Max. PV input: 50V(24V battery) 25V(12V battery)

Is Smart Device: No

Compatibled With battery voltage: 12V or 24V

Compatibled With battery type: Lifepo4 Lithium GEL Lead Acid battery

Certification: CE,FCC,RoHS

Brand Name: HXCONTROLLER

Application: Charger Controller,Voltage Controller,Solar System Controller

please check product video

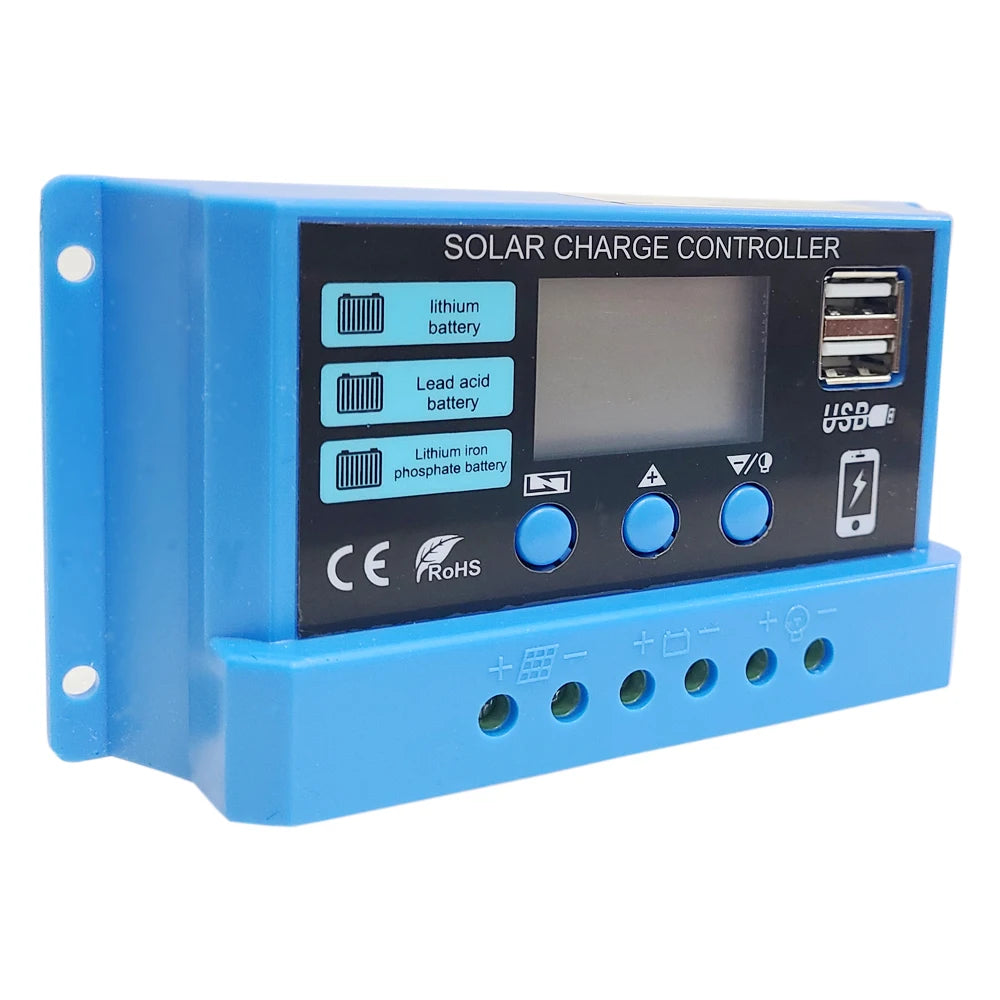

Blue controller can be used in ternary lithium battery, lithium iron phosphate and Lead-acid battery, MPPT controller just can be used in lead acid and GEL battery, not used in lithium and lifepo4 battery

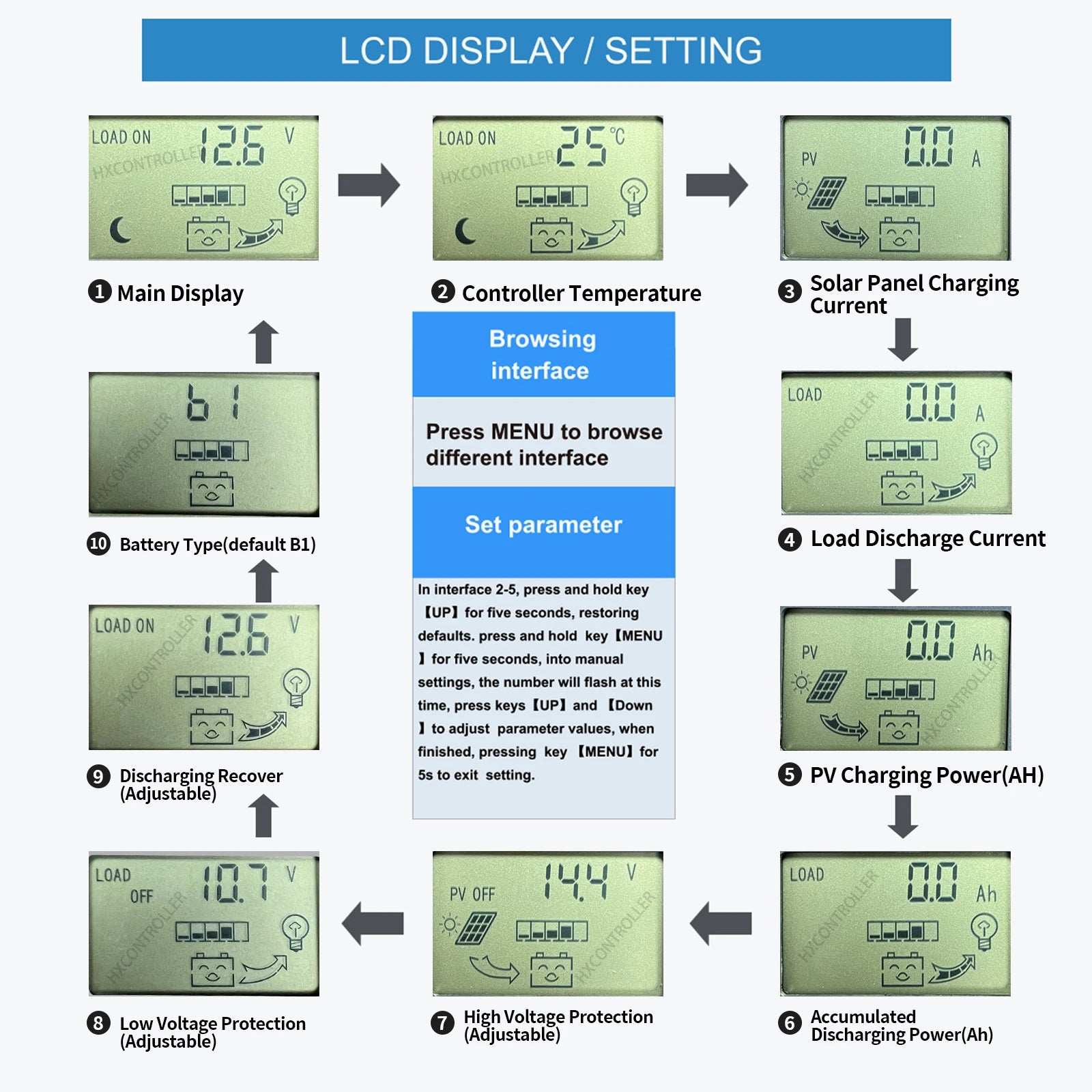

This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recognize 12V and 24V Lead acid ,Gel battery, nickel metal hydride, lthium ions , Lifepo4 or other batteriesautomatically.

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V 120W

if your battery is 24V ,the max solar panel input is 50V 240W

20A:

if your battery is 12V, the max solar panel input is 25V 240W

if your battery is 24V, the max solar panel input is 50V 480W

30A

if your battery is 12V ,the max solar panel input is 25V 360W

if your battery is 24V ,the max solar panel input is 50V 720W

If you want to buy 60A solar controller, please check our new product, one is with wifi, another is not wifi

Features:

1.Build-in industrial micro controller.

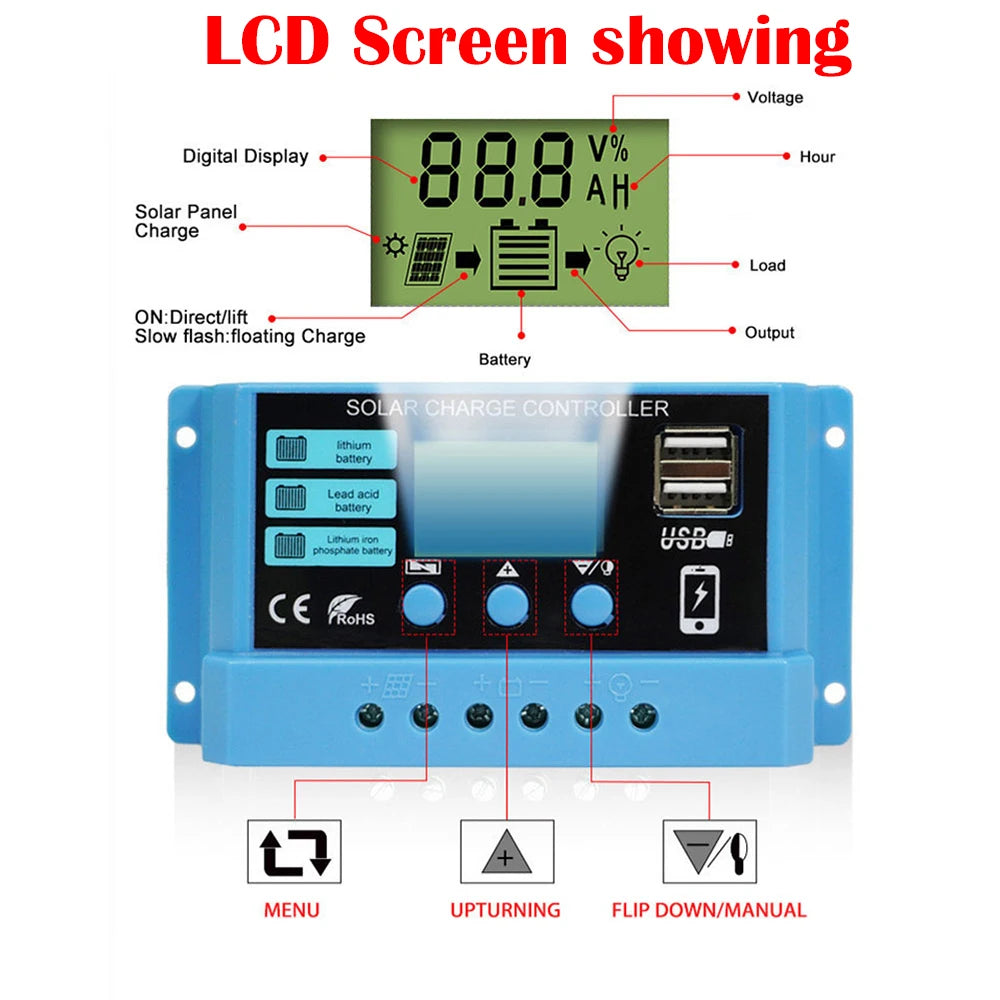

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

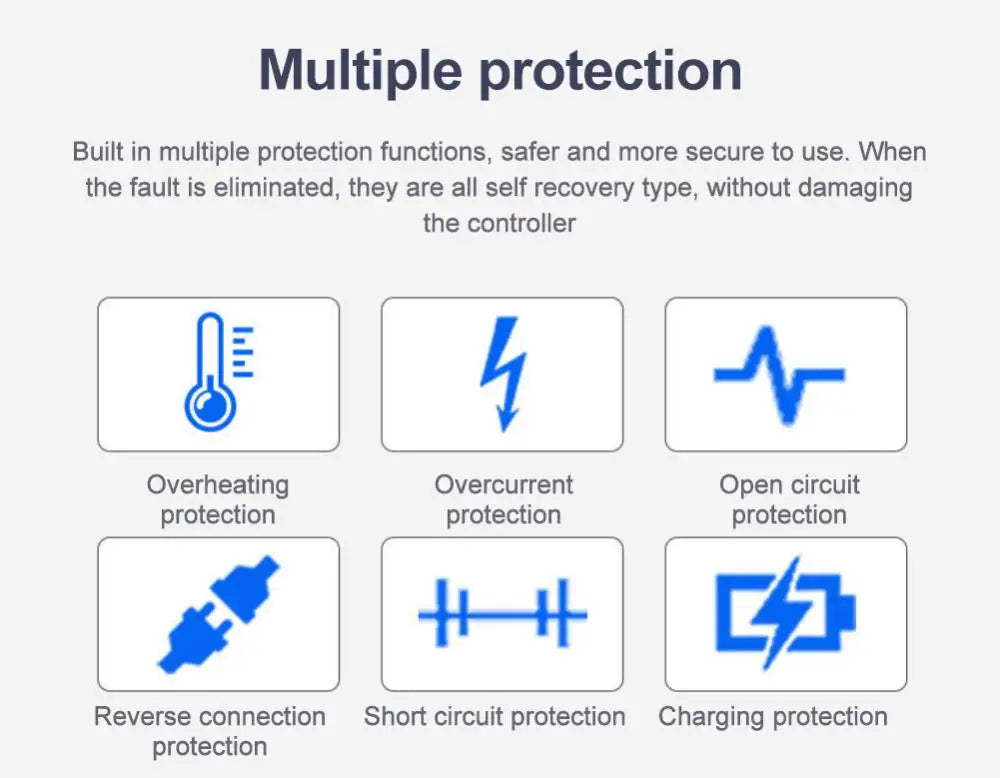

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

PWM Controller Parameter table

Model	PV-10A	PV-20A	PV-30V
Rated charging current	10A	20A	30A
Rated discharge current	10A	10A	10A
MAX PV Volt	12V system < 25V/24V system < 50V
The USB output	5V2AMAX
Stand-by Current	< 10ma

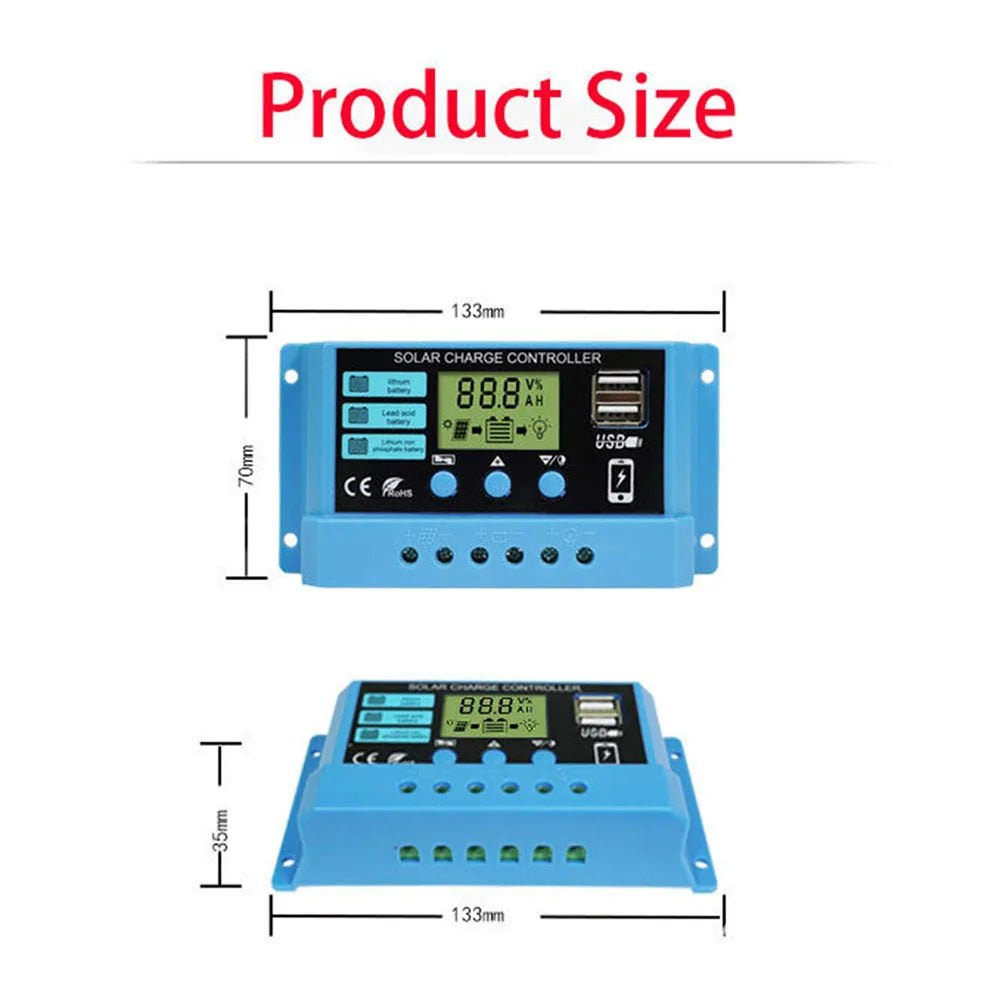

Dimensions/Weight	133 70*35mm/132g
Work Temperature	0~60C

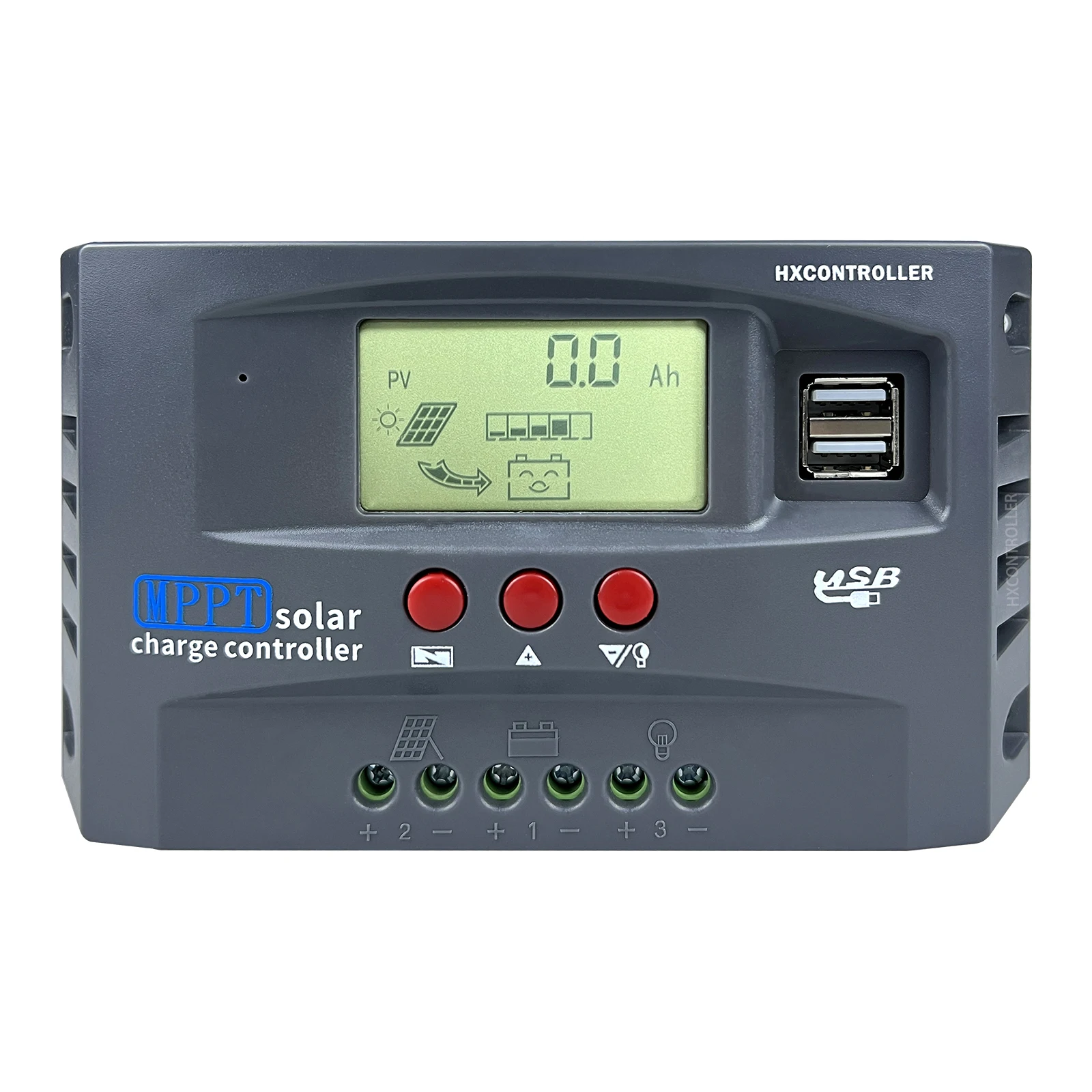

MPPT Solar Controller parameter table

Model	MPPT10	MPPT20	MPPT30
System Voltage	12V/24V Automatic adaptation
Rated Charge Current	10A	20A	30A
Rated Discharge Current	10A
Max PV Voltage Input	12V System <25V/24V System <50V System
Float Charge Voltage	b1/14.4V,b2/14.2V/b314.6V(Adjust Range：13V-15V)
Low Votage Disconnected Volatge(LVD)	10.7V(Adjust Range：9.5V-11V)
Discharge recovery voltage	12.6V(Adjust Range：11.5V-13V)
Stand-by current	<10mA
USB Port	5V/2A Max
Working Temperature	一36 ～ +60℃

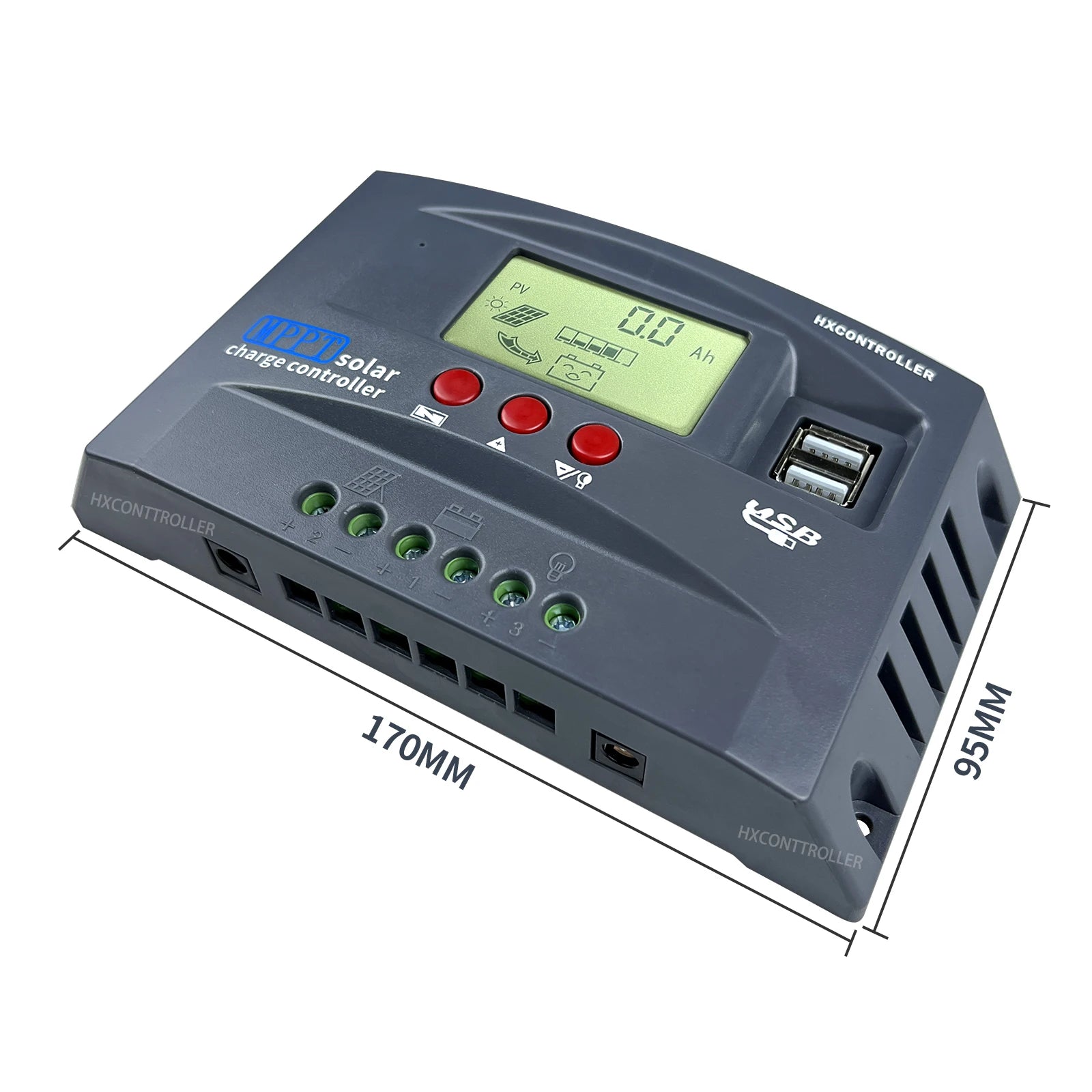

Size/G.W	1709540mm/250G

*Thevoltagemarkedinredfontonlycor「espondsto 12V system. If 24V system is used, please x2

Battery Parameter

Lead-acid battery /BAT/ B1
System Volt	12V system		24Vsystem		48Vsystem
Float charging Volt	Default 14.4V	adjustable range 13-15V	Defaut 28.8V	adjustable range 26-30V	Defaut 57.6V	adjustable range 52-60V
Discharge cut-off Volt	Default 10.7V	adjustable range 9.5-11V	Dofaut 21.4V	adjustable range 19-22V	Defaut 42.8V	adjustable range 38-44V
Discharge recovery Volt	Defaut 12.6V	adjustable range 11.5-13V	Defaut 25.2V	adjustable range 23-26V	Defaut 50.4V	adjustable range 46-52V
Ternary lithium battery /LIT1/ B2
System Volt	12V system 3 strings		24V system 7 strings		48V system 13 strings
Float charging Volt	Defaut 12.6V	Unadjustable	Defaultl 29.4V	Unadjustable	Default 54.6V	Unadjustable
Discharge cut-off Volt	Defaut 9V	adjustable range 9-10.5v	Detfault21V	adjustable range 21-24.5V	Default 39V	Adlustable range 39-45.4
Discharge recovery Volt	Defaut 10.5V	adjustable range 10.5-11.7v	Default24. 5V	adjustable range 24.5-27.3V	Defaut 45.4V	Adjustable range 45.5-50.7V
Lithium iron phosphate battery /LIT2/ B3.
System Volt	12V system 3 strings		24V system 7 strings		48V system 13 strings
Float charging Volt	Defult 14.6V	Unadjustable	Default 29.2V	Unadustable	Default 58.4V	Unaqustable
Discharge cut-off Volt	Detaut 11.8V	Adjustable range 11.8-12.5V	Default 23.6V	Adjustable range 23.6-25V	Detaut. 47.2V	Adustable range 47.2-50V
Discharge recovery Volt	Default 12.5V	Adyustabie range 12.5-13.5V	Defaut 25V	Adjustable range 25-27V	Default 50V	Adjustable range 50-54V
