BestSolarPanel

MPPT 3500W Solar Charge Controller Pure Sine Wave AC230V 48VDC 500VDC with WiFi Hybrid Inverter 100A 24V

MPPT 3500W Solar Charge Controller Pure Sine Wave AC230V 48VDC 500VDC with WiFi Hybrid Inverter 100A 24V

$467.00 USD
$467.00 USD
Sale Sold out
Shipping calculated at checkout.

81 orders in last 30 days

Ships From
Color
Input Voltage|Output Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

With WIFI Monitor: YES

Weight: 11KG

Waveform: pure sine wave

Warranty: 1 year

Type: DC/AC Inverters

Surge power: 7000w

Size: 440*310*132mm

Rated Output power: 3500W

PV Charging current: 100A

Output Type: single

Output Power: 1 - 200KW

Output Frequency: 50HZ60HZ

Origin: Mainland China

Model Number: VMII-3524

Maximum PV array open circuit voltage: 500VDC

MPPT Range Operating Voltage: 120-450VDC

Display: LCD display

Certification:: CE/RoSH

Certification: CE,RoHS

Brand Name: Jesudom

AC voltage regulation (Batt. mode): 230VAC±5%

3.5KW Hybrid Inverter MPPT 100A 24V Solar Charge Controller Pure Sine Wave Solar Inverter AC230V 48VDC 500VDC Off-Grid with WiFi
Solar inverter for off-grid systems, producing a pure sine wave and offering WiFi connectivity.

pure sine wave inverter

Max. 5000W MPPT solar panels for 3500WMax. MPPT solar panels from 6000W to 5500W

Solar charger maximum charging current is 100A

Wide PV input from 120-500V 150VDC for starting voltage,240VDC is the best for 3500W.360VDC is the besr for 5500W.
Lithium battery /lead-acid battery/ Gel battery
can work without battery

Generates power from PV directly to supply load, even without battery

PV to AC efficiency is much higher

MPPT solar charge controller for charging batteries and powering AC devices.

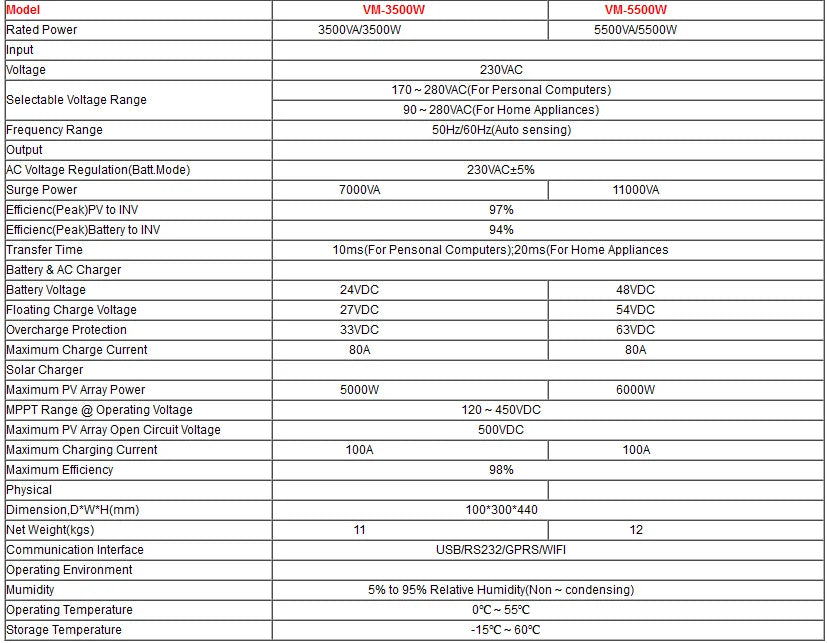

MPPT solar charge controller with pure sine wave AC, WiFi hybrid inverter and 100A capacity.

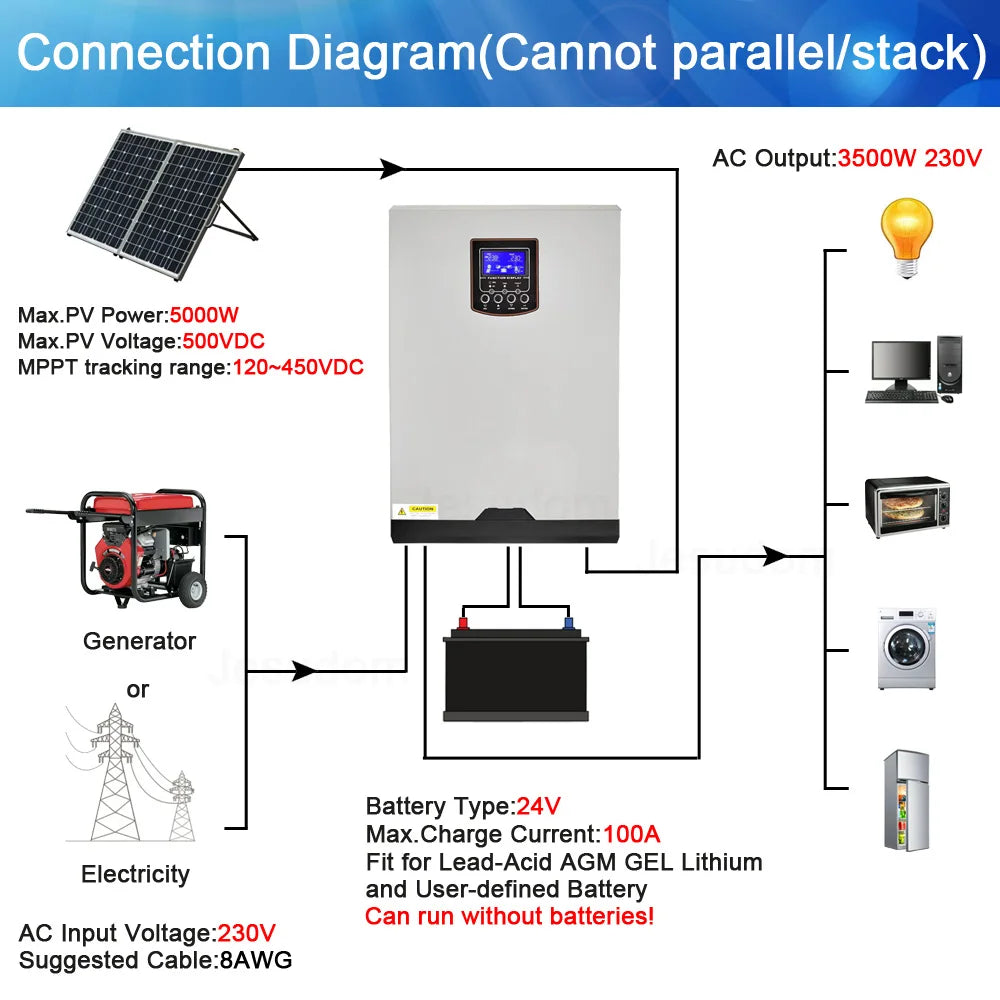

Solar charge controller and hybrid inverter for charging batteries and powering devices, with WiFi connectivity.

MPPT solar panels with max charging current 100A and wide input range (120-500V)

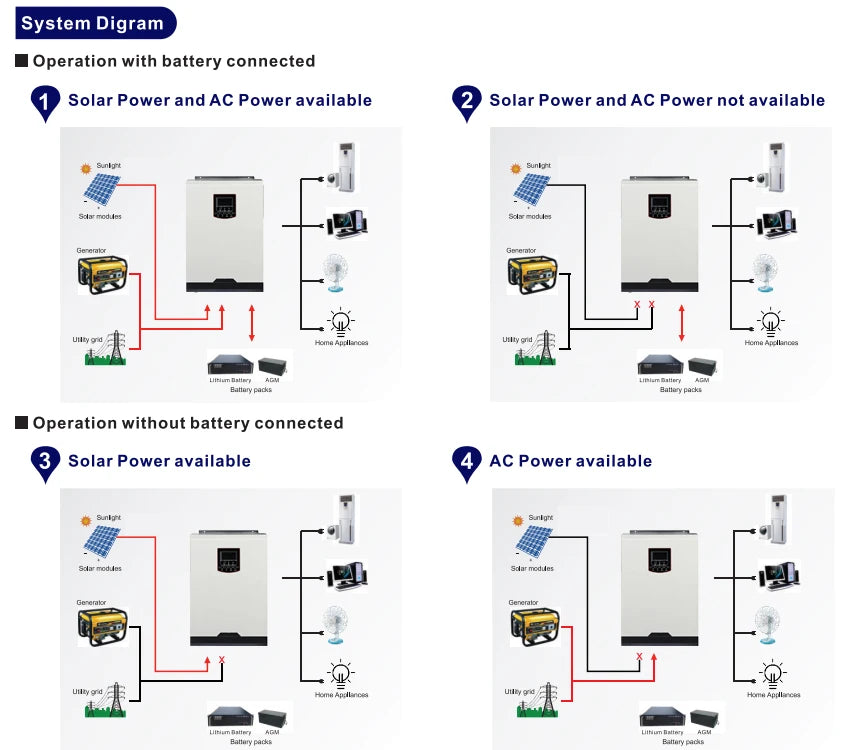

System modes: battery connected/solar/AC, battery disconnected/no solar/AC, and no connections.

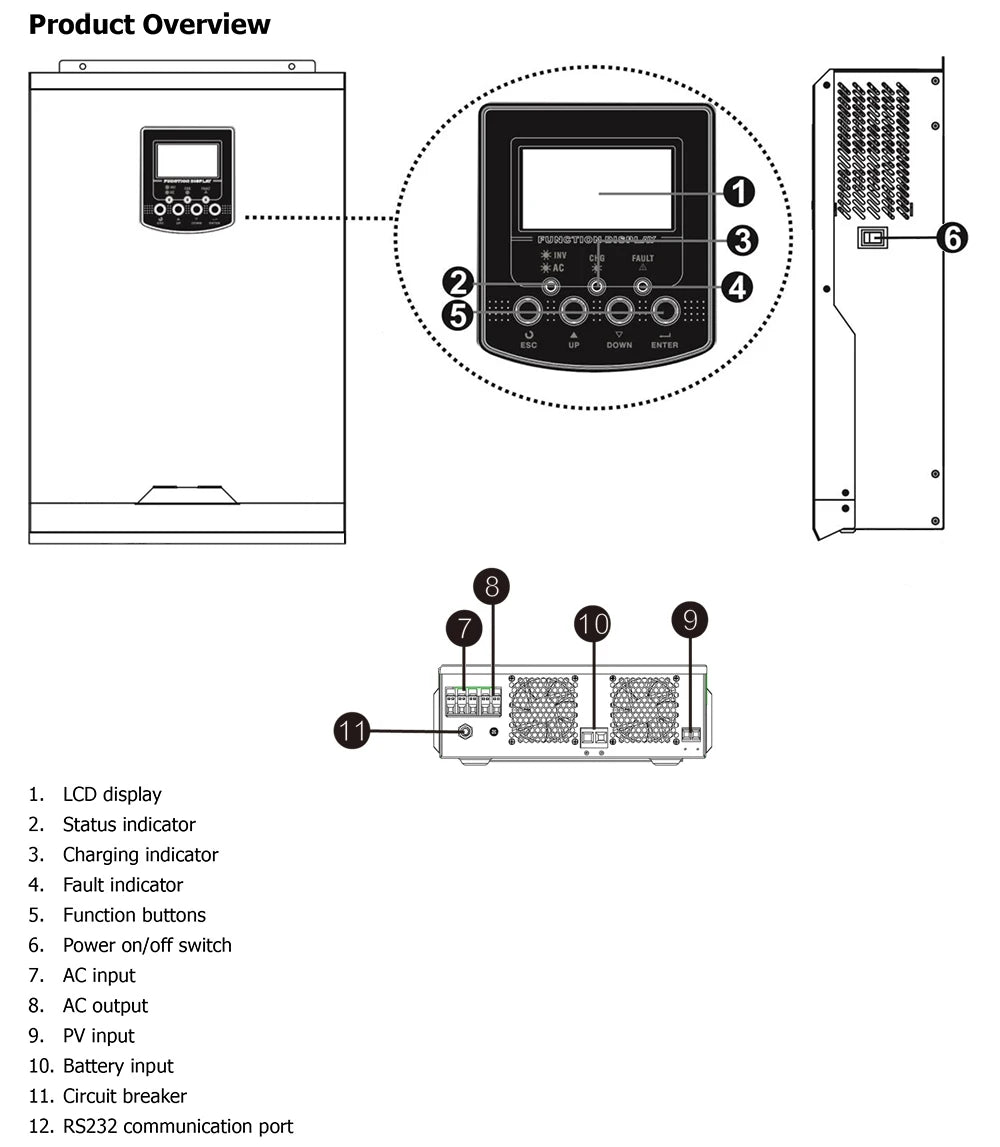

MPPT 3500W Solar Charge Controller with WiFi and pure sine wave inverter, LCD display, and indicator lights.

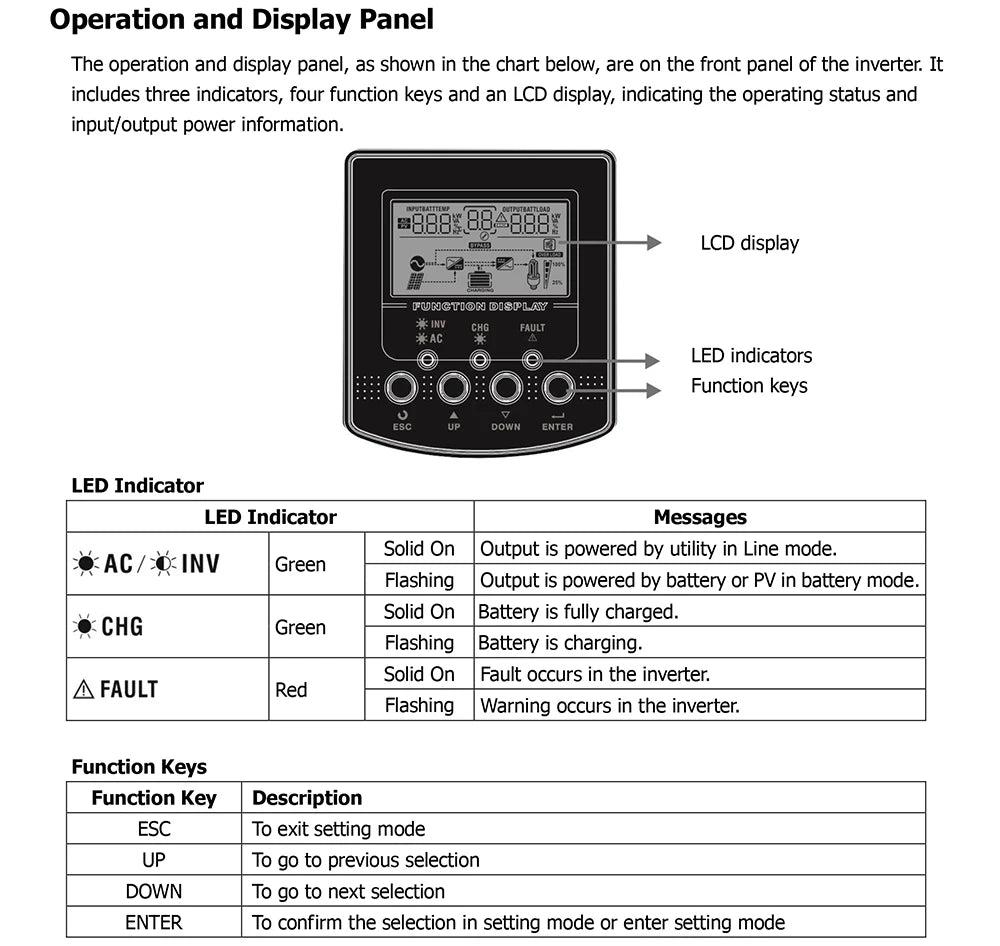

LCD display with indicators and function keys for monitoring system status.

Hybrid inverter with three modes: Utility First, Solar First, and Battery Priority for stable power supply.Acerca del WIFI:

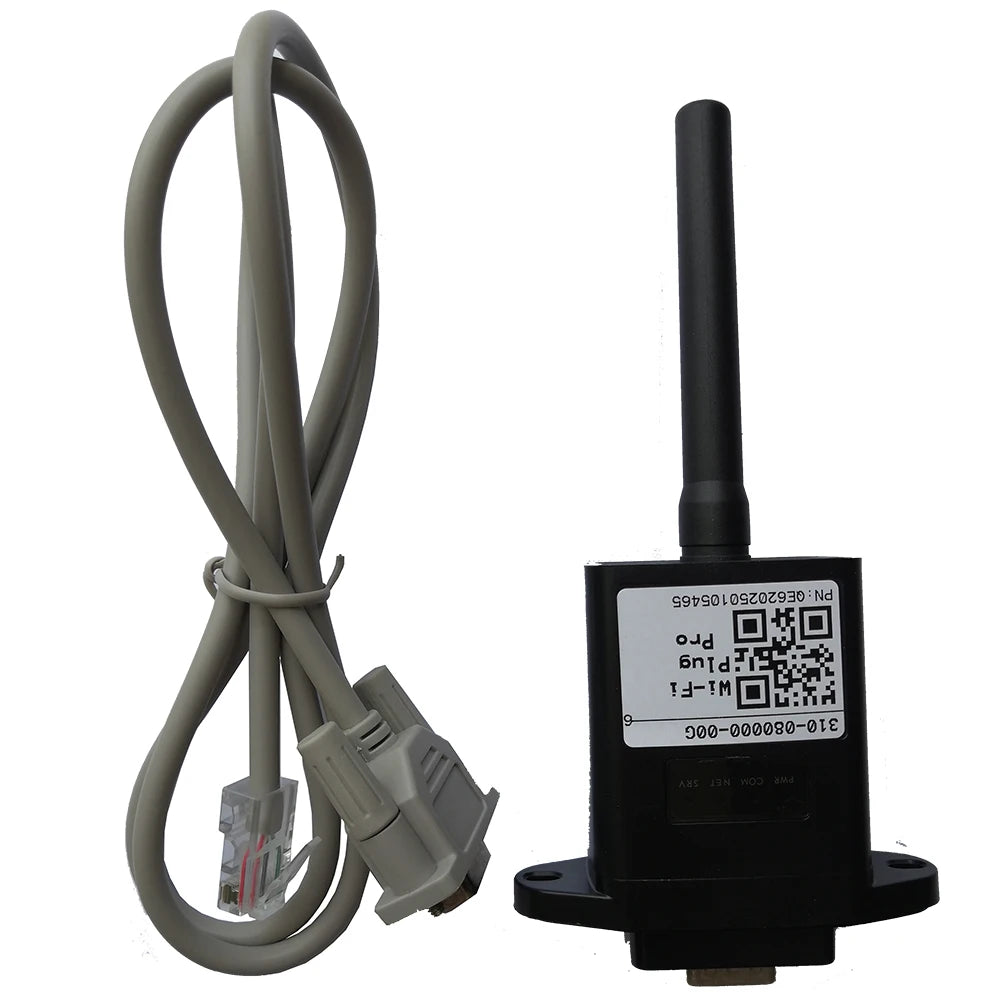

Pure sine wave solar inverter for off-grid use, capable of handling 3.5kW and 230VAC output.

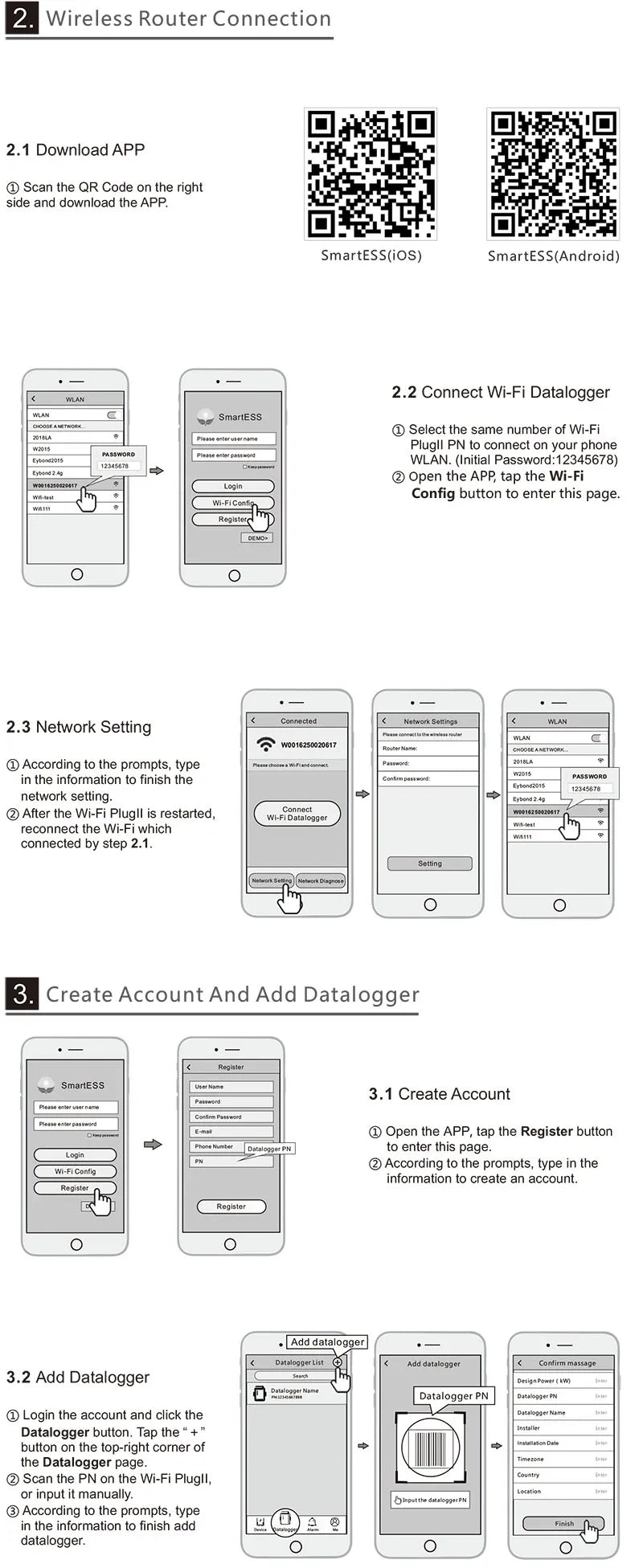

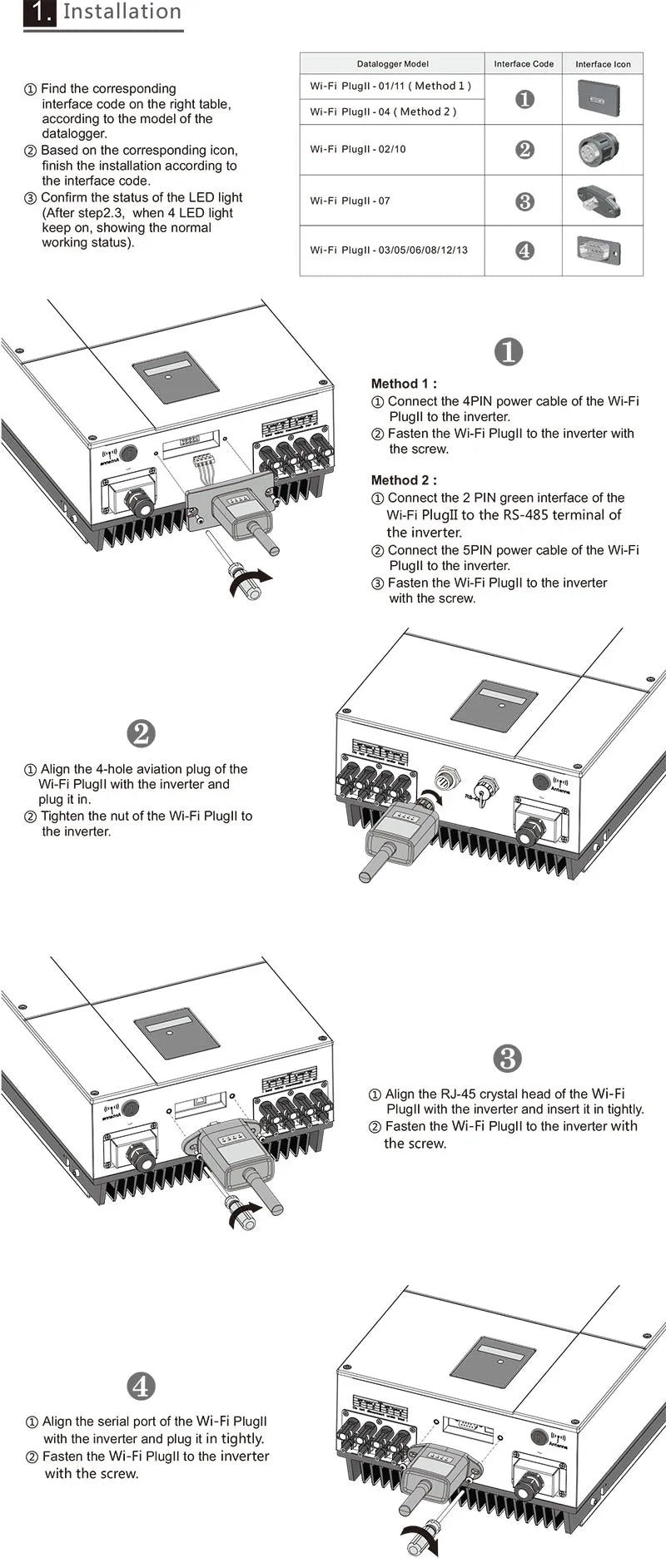

Solar charge controller with MPPT, pure sine wave inverter, and WiFi connectivity for efficient and monitored energy conversion.Register,


Factory tested with CE certification (Europe) for safe use in electrical systems.

Factory tested with CE certification (Europe) for safe use in electrical systems.
