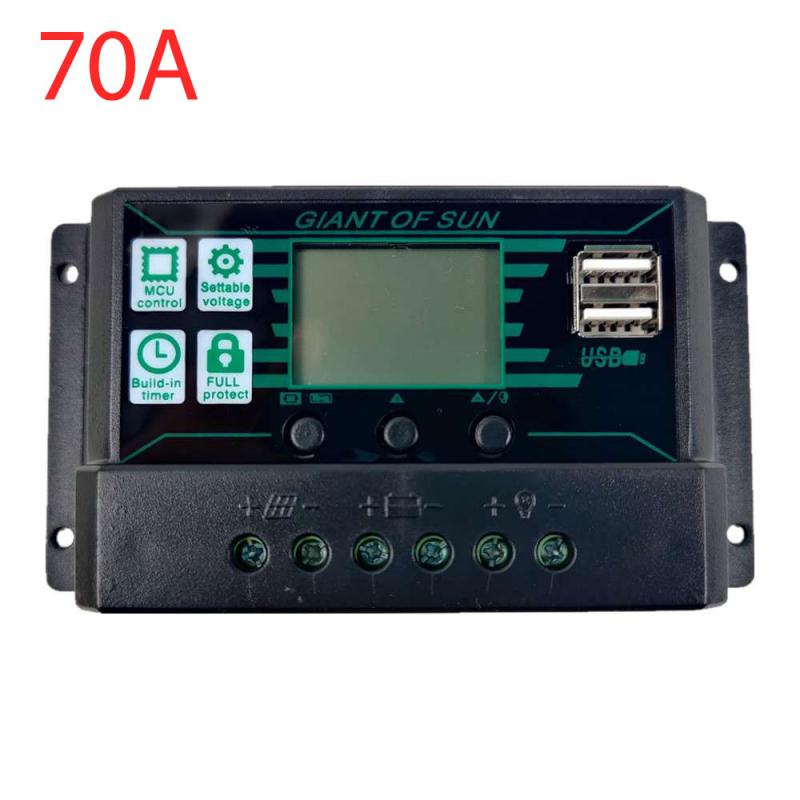

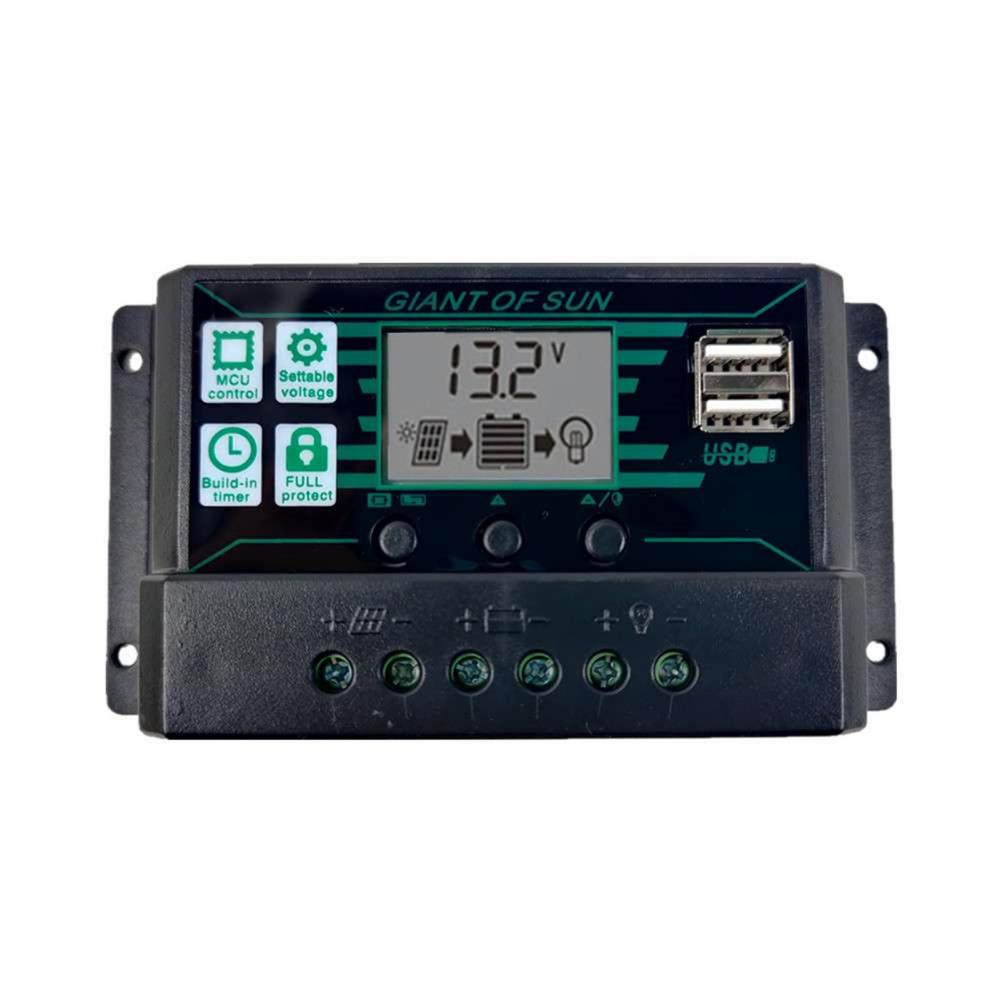

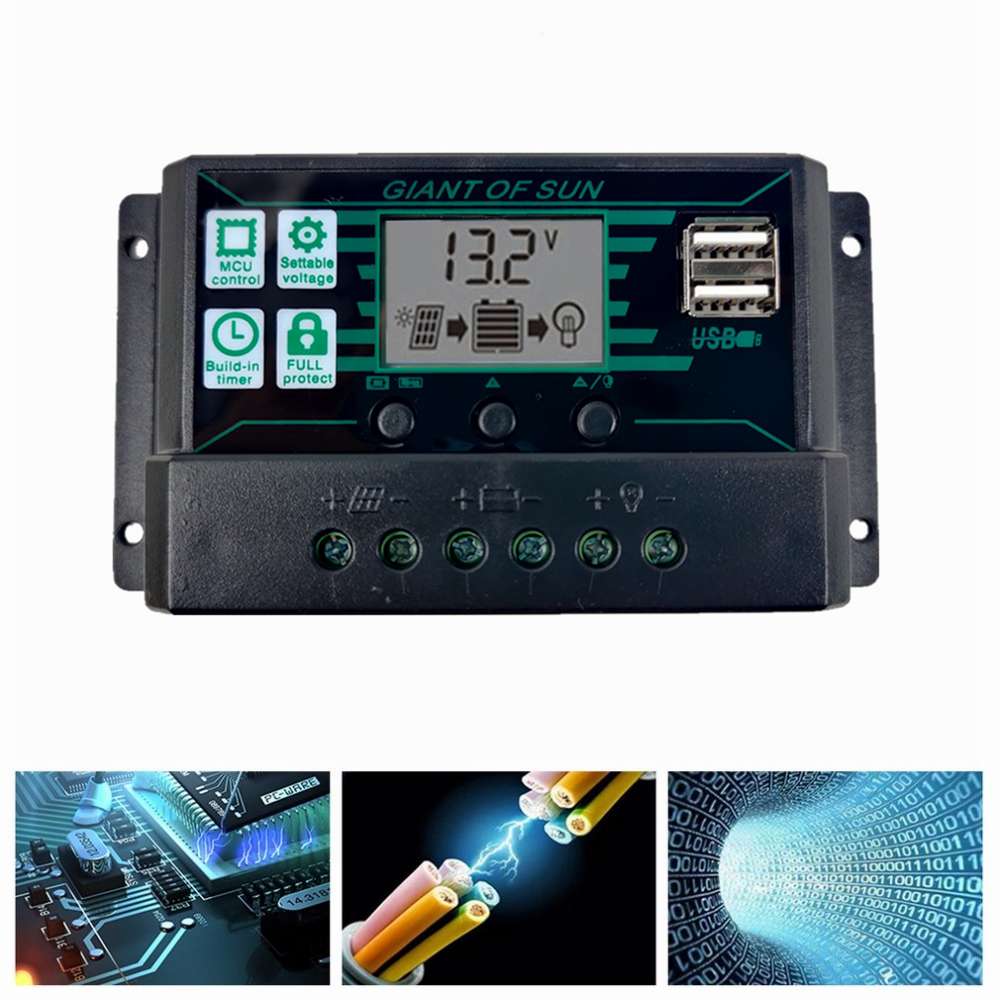

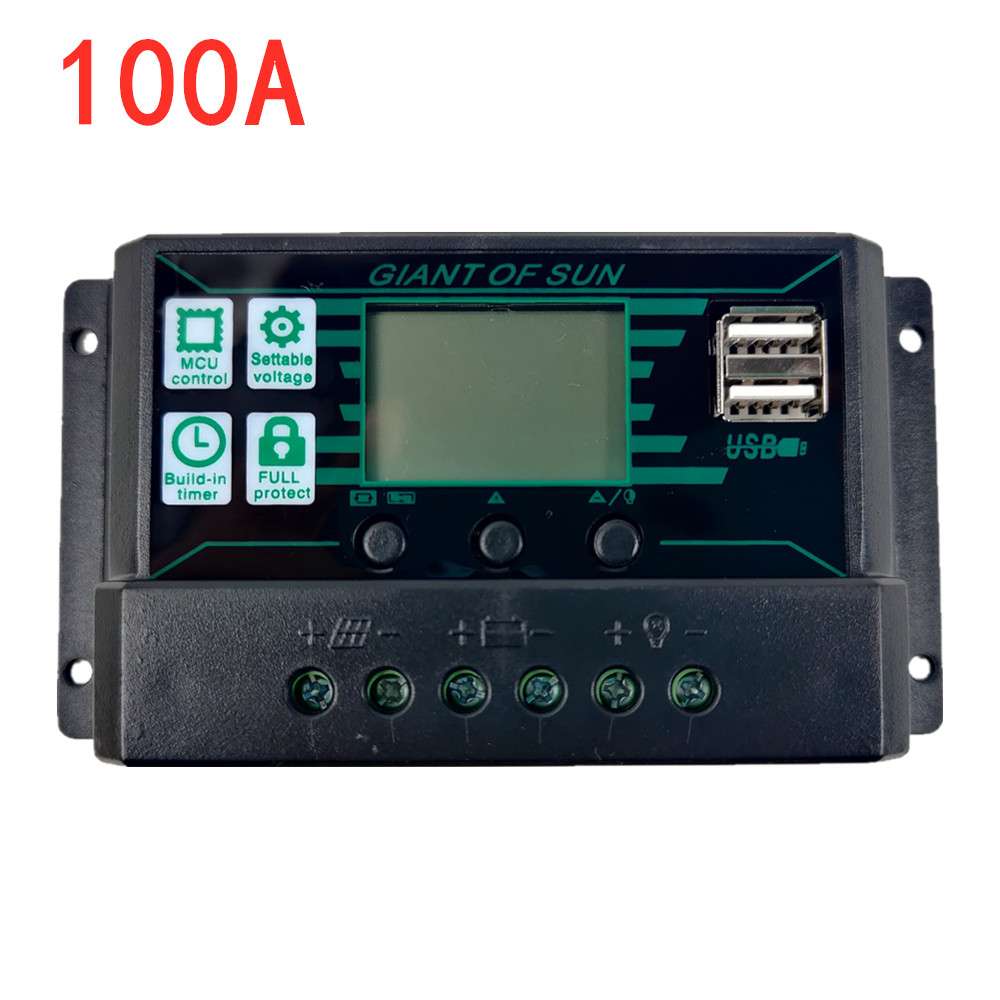

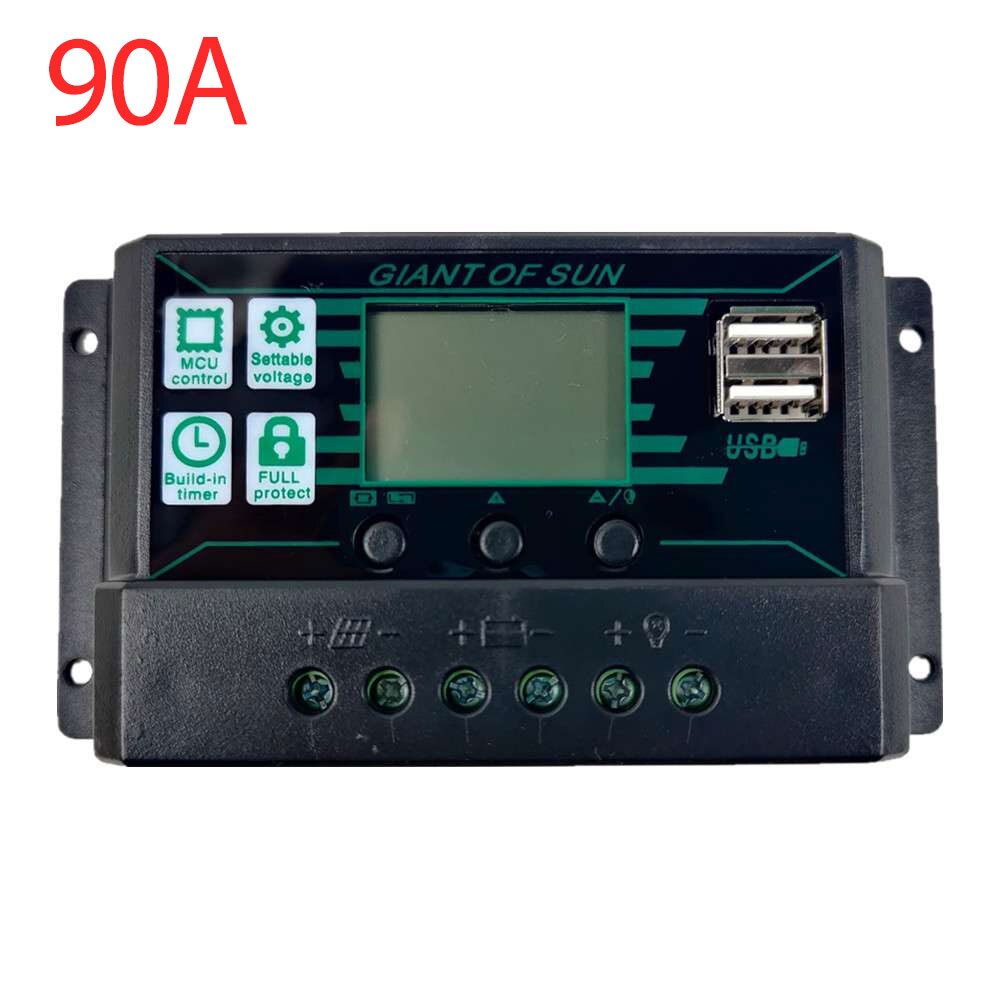

MPPT/PWM Solar Charge Controller 100A/50A/40A/30A/20A/10A 12V 24V Solar Panel Battery Regulator With 2 USB Ports LCD Display

Description:

- Advanced maximum power point tracking (MPPT/PWM) technology, the efficiency is not less than 99.5%. High-quality components improve the system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.

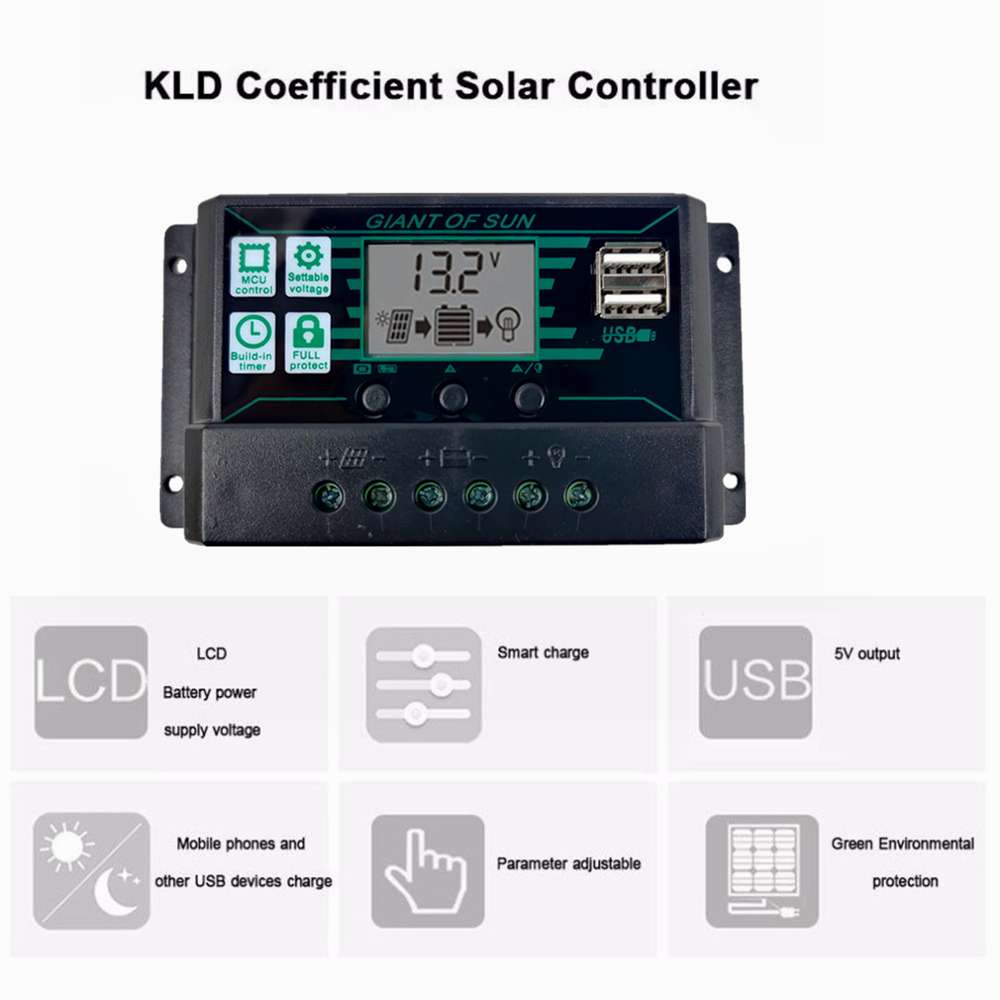

- Large screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control delay control; adjustable charge and discharge parameters, with power-off memory and other functions.

- Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

- Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with self-recovery function, will not damage the controller.

- Real-time display of temperature, charging current and discharge current. Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.

Specifications:

Voltage: DC 12V / 24V

Display: LCD screen

Self-consumption: <10MA

Overcharge protection: 14.4V / 28.8V

Overcharge Float charge: 13.7V / 27.4V

Charge recovery voltage: 12.6V / 25.2V

Over discharge protection: 10.7V / 21.4V

Over discharge recovery: 12.6V / 25.2V

Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)

Working temperature: -35 ℃ -60 ℃

12V fits 18V solar panel, 24V fits 36V solar panel

12.0 volt lead acid battery corresponding

The float voltage is set to: 13.6

The recovery discharge voltage is set to: 12.6

The discharge cut-off voltage is set to: 10.7

12.8 volt lithium iron phosphate battery corresponding

The float voltage is set to: 14.6

The recovery discharge voltage is set to: 13.6

The discharge cut-off voltage is set to: 11.0

11.1 volt lithium battery corresponding

The float voltage is set to: 12.6

The recovery discharge voltage is set to: 11.6

The discharge cut-off voltage is set to: 9.6

The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).

PV system power Description:

10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 12V photovoltaic system: power is respectively 100-1000W

10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 24V photovoltaic system: power is respectively 200-2000W

Package Included:

1X Solar Panels Battery Charge Controller

1X User Manual

GIANTOE Sun 12V/24V MPPT/PWM Charge Controller with built-in full protection, USB ports, and LCD display for solar panel charging.

MPPT/PWM Solar Charge Controller regulates 12V/24V solar panel battery charging. Features include 2 USB ports, LCD display, smart charge control, overcharge protection, and adjustable parameters for optimal power supply to mobile phones and other devices.

OESUN MCU Solar Charge Controller, 32V, control voltage 584mV, full-time LCD display, 2 USB ports. Product features: MPPT/PWM solar charge controller with adjustable current output (10A/20A/30A/40A/50A/100A).

MPPT/PWM solar charge controller with adjustable parameters, 12V/24V input and 10A/20A/30A/40A/50A/100A output. Features include LCD display, USB ports, and built-in protections like overcharge protection.

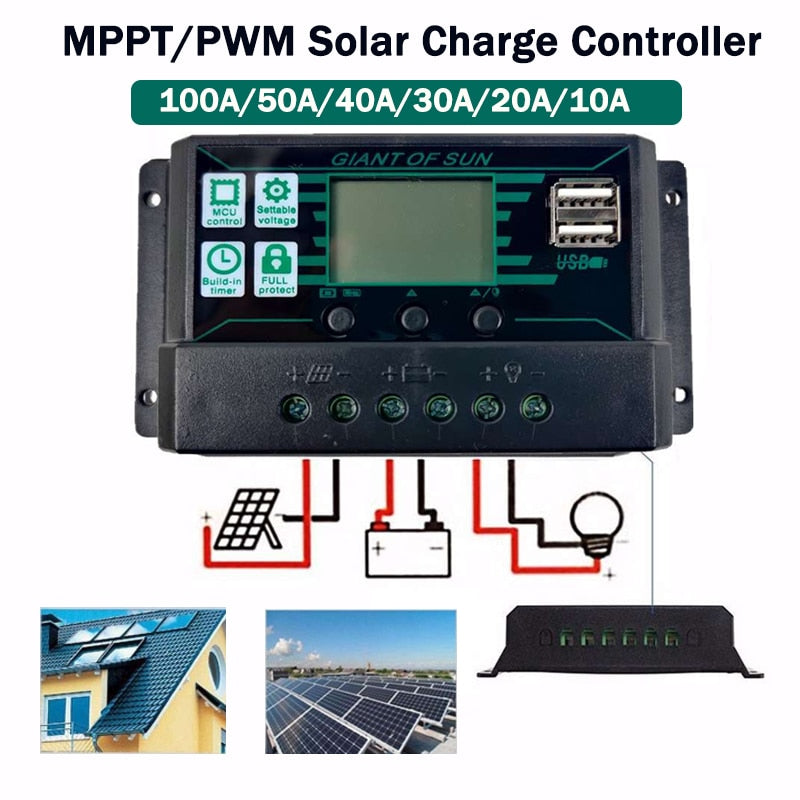

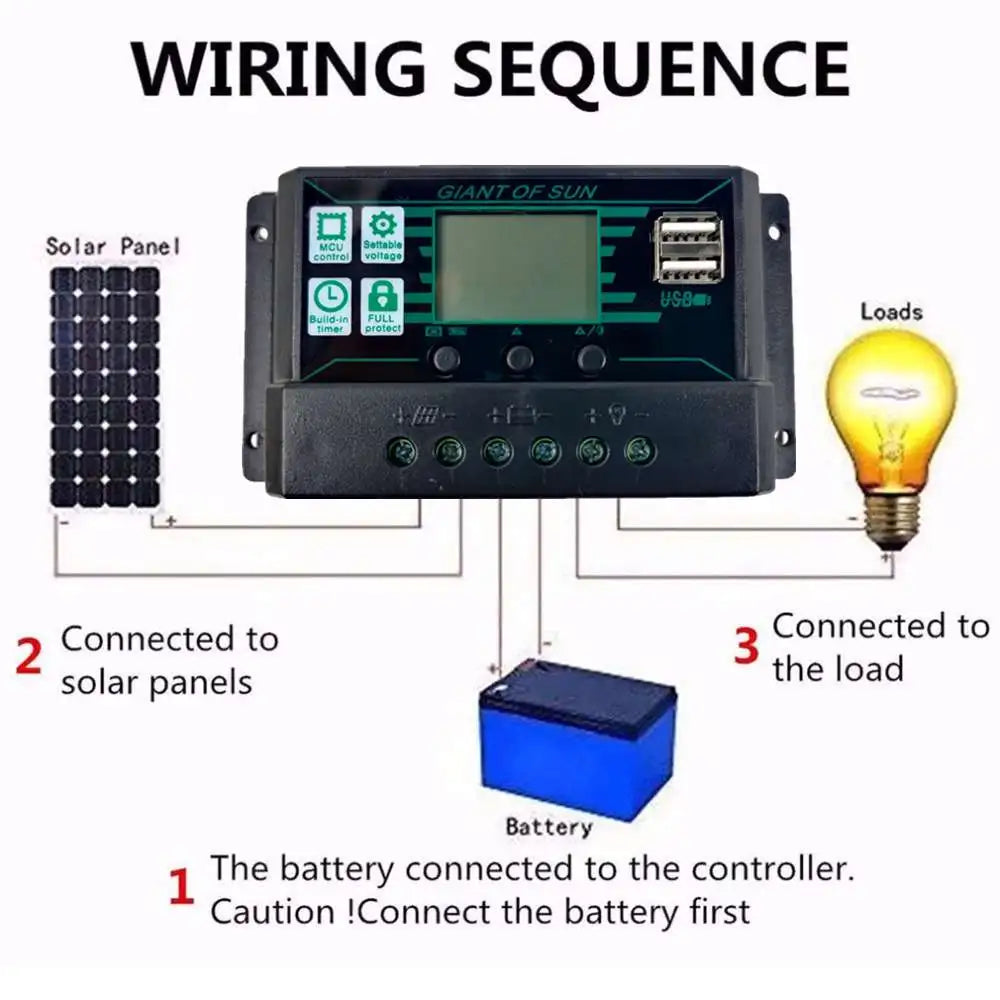

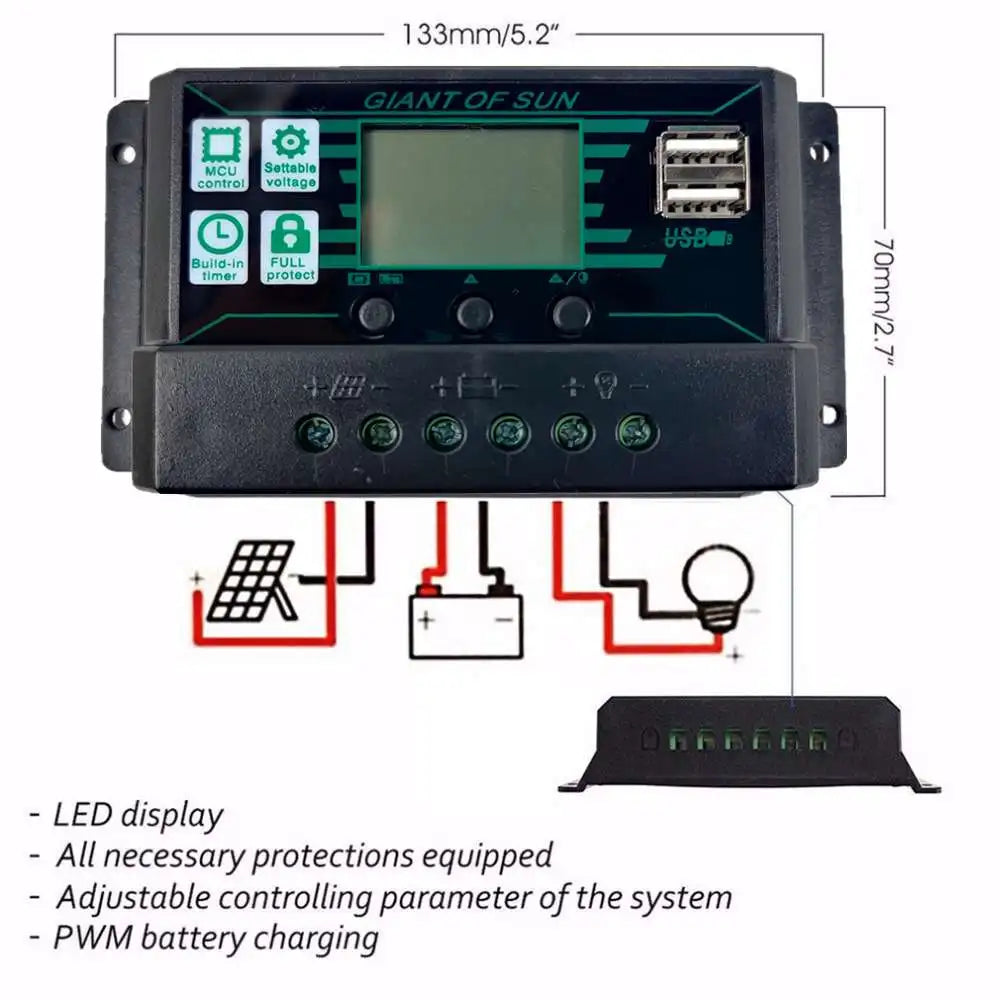

Important note: Connect the battery first. Follow this wiring sequence: connect solar panels to the MPPT/PWM controller, then connect the battery to the controller and finally attach loads (up to 3) or USB devices (2 ports available).

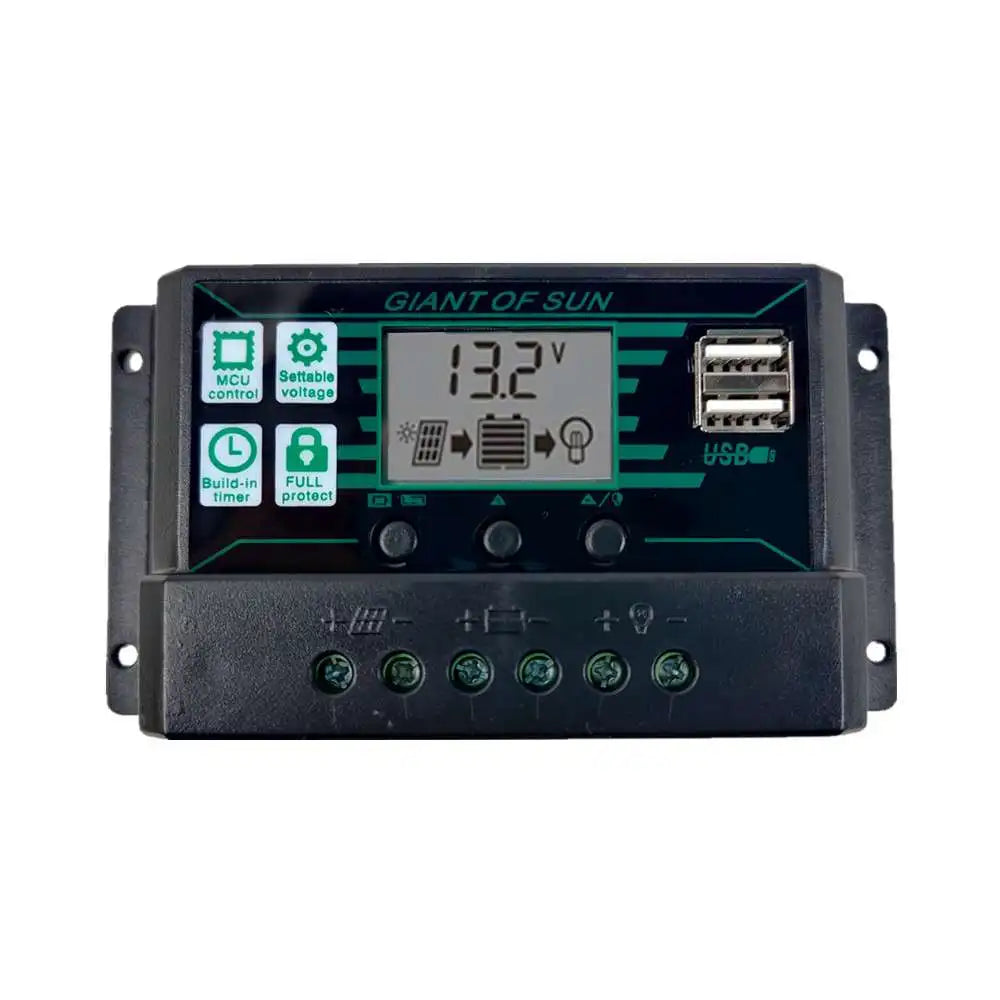

Gianto's SUM 0 MCU sets table to 32V, controlling voltage, with built-in full timer and two USB ports.
