MPPT Solar Charge Controller with Bluetooth Solar Panel Charge Regulator GEL/AGM/Flooded/LiFePO4(12.8V)/Lithium ion(NCM)
MPPT Solar Charge Controller with Bluetooth Solar Panel Charge Regulator GEL/AGM/Flooded/LiFePO4(12.8V)/Lithium ion(NCM)
Regular price
$75.52 USD
Regular price
Sale price
$75.52 USD
Unit price
per
Shipping calculated at checkout.
186 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Origin: Mainland China
Model Number: Solar Controller
Maximum Current: 10A
Is Smart Device: YES
Application: Charger Controller
Solar Controller:
Function description:

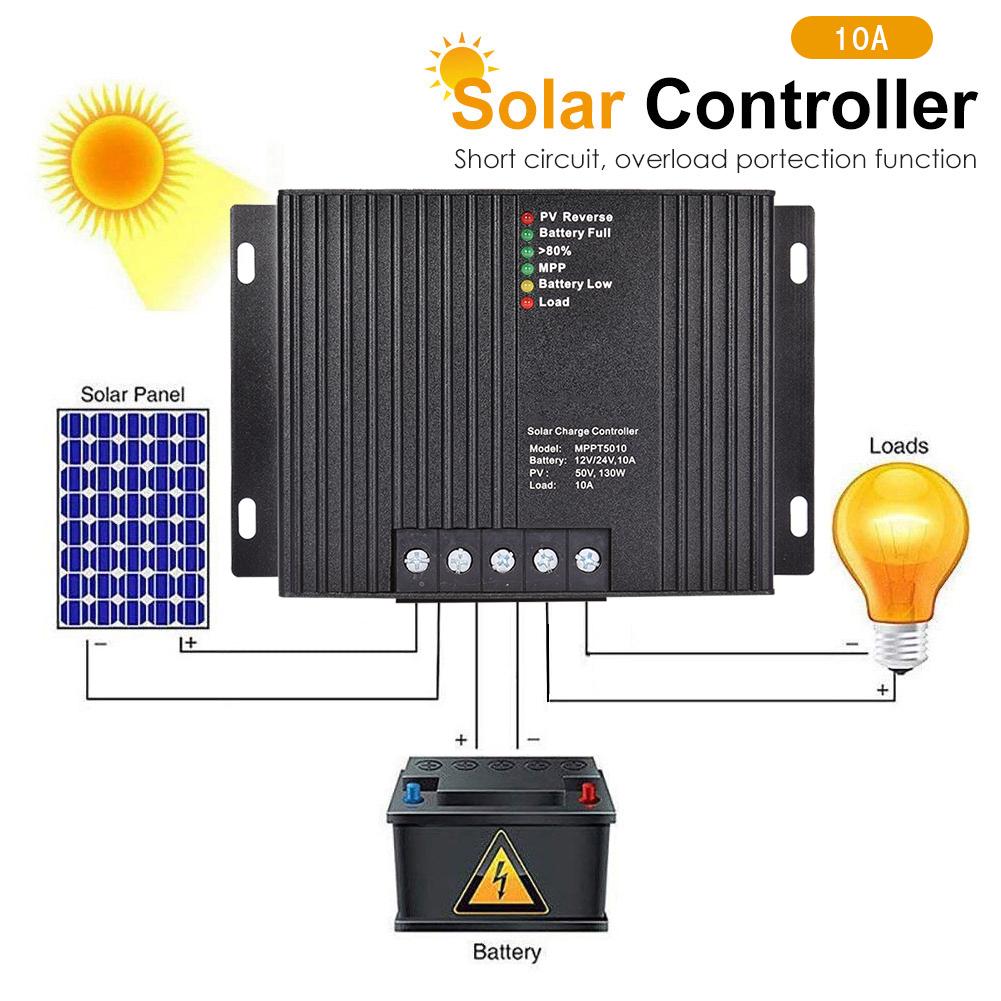

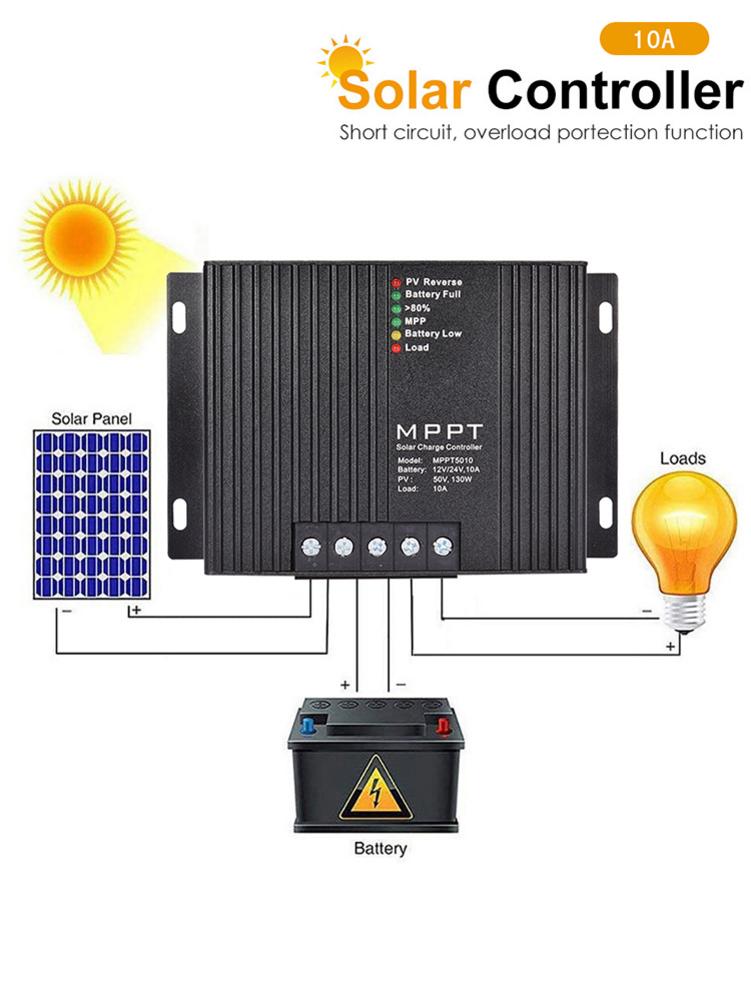

1. Mainly suitable for small off-grid solar power systems, such as: home solar power systems, solar RV power generation, ships, unattended base stations, outposts, etc..
2. System voltage: 12V/24V automatic adaptation.
3. You can choose a variety of batteries, including lead-acid batteries, ternary lithium batteries, lithium iron phosphate batteries.
4. Adopt three-stage MPPT charging method. Effectively improve the charging efficiency of solar panels.

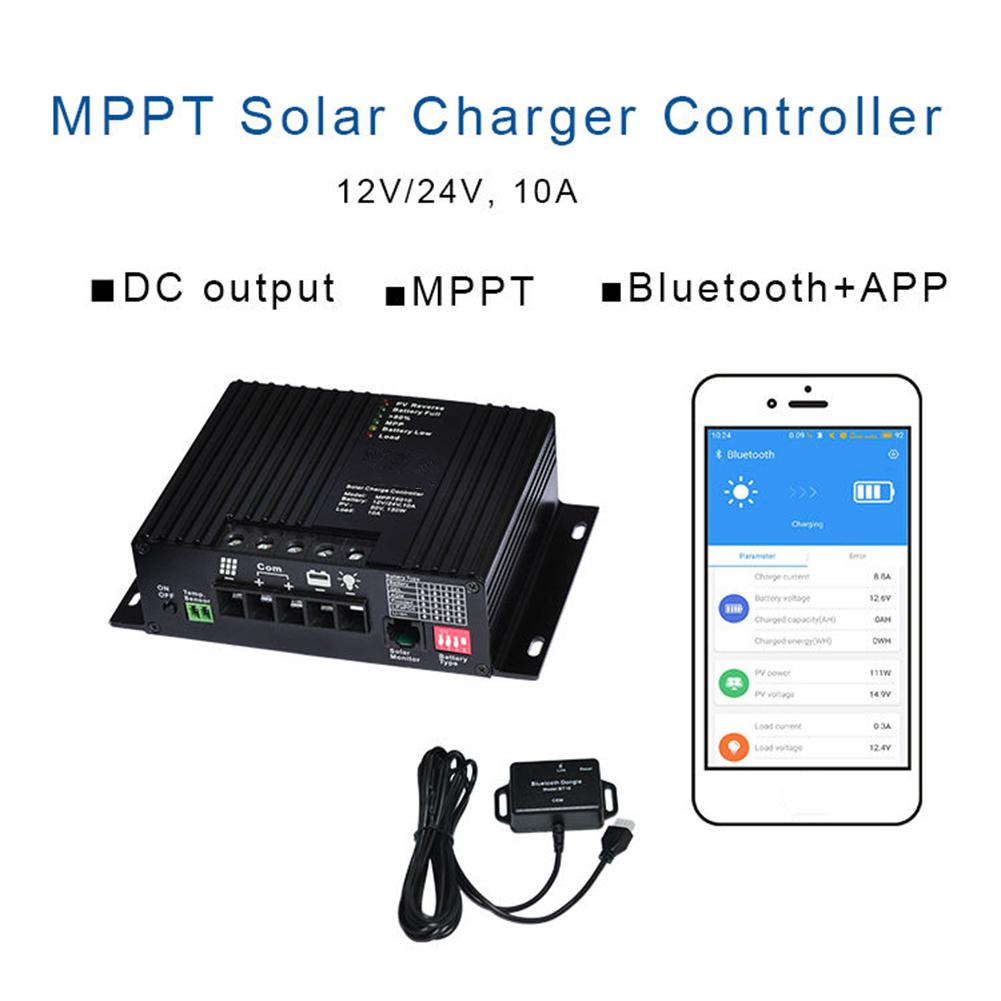

5. An external Bluetooth module can be connected, and various working parameters of the solar controller can be viewed from the mobile phone through the free APP, and the communication range is less than 10 meters
6. Can connect externally LCD display.
6. This product is designed with intelligent single-chip microcomputer, and all working processes are controlled by software, which can achieve high precision and high reliability.

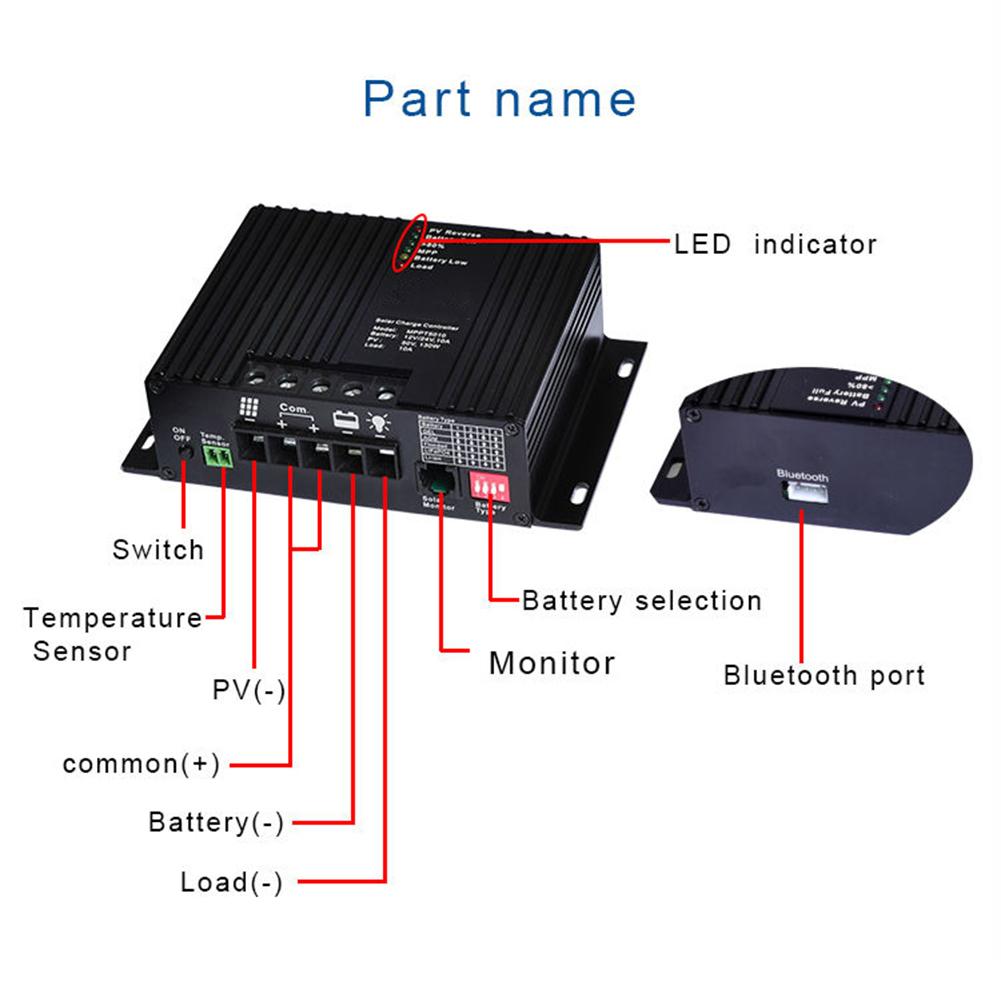

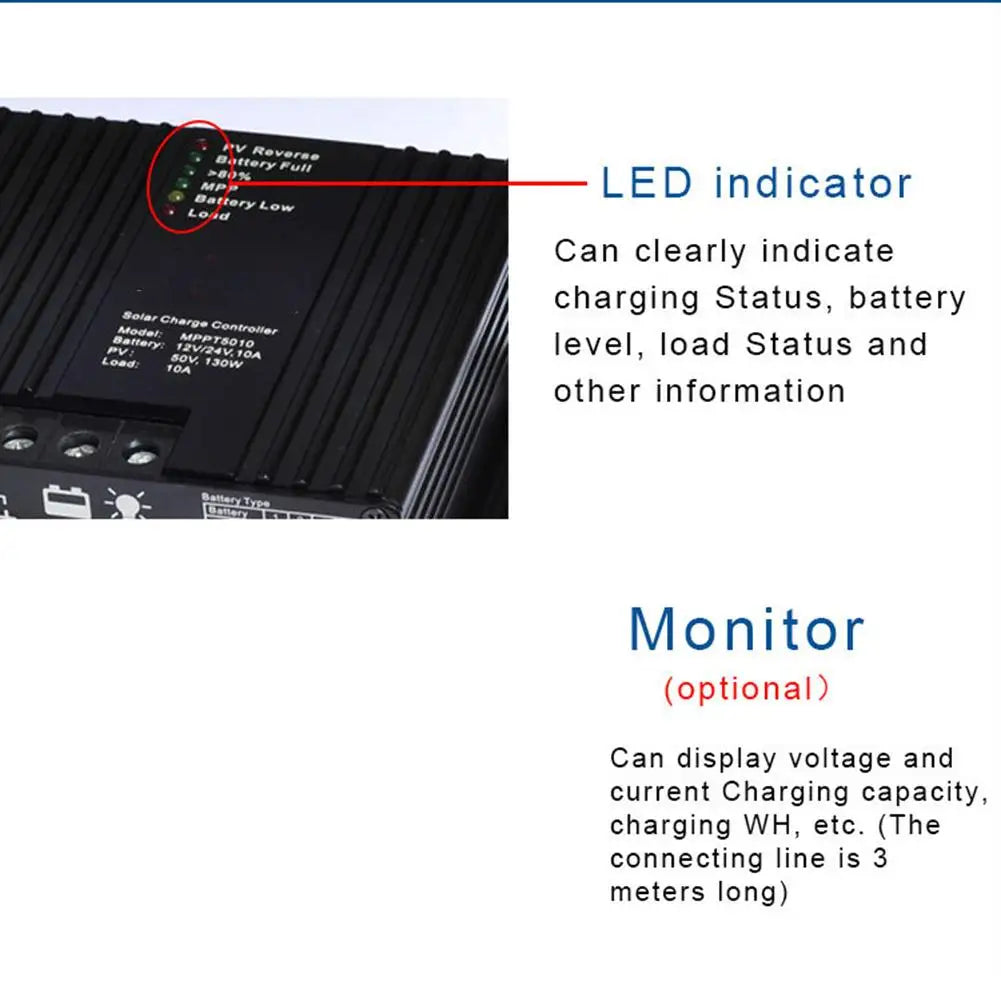

7. The load output can be manually turned on and off by pressing the button.

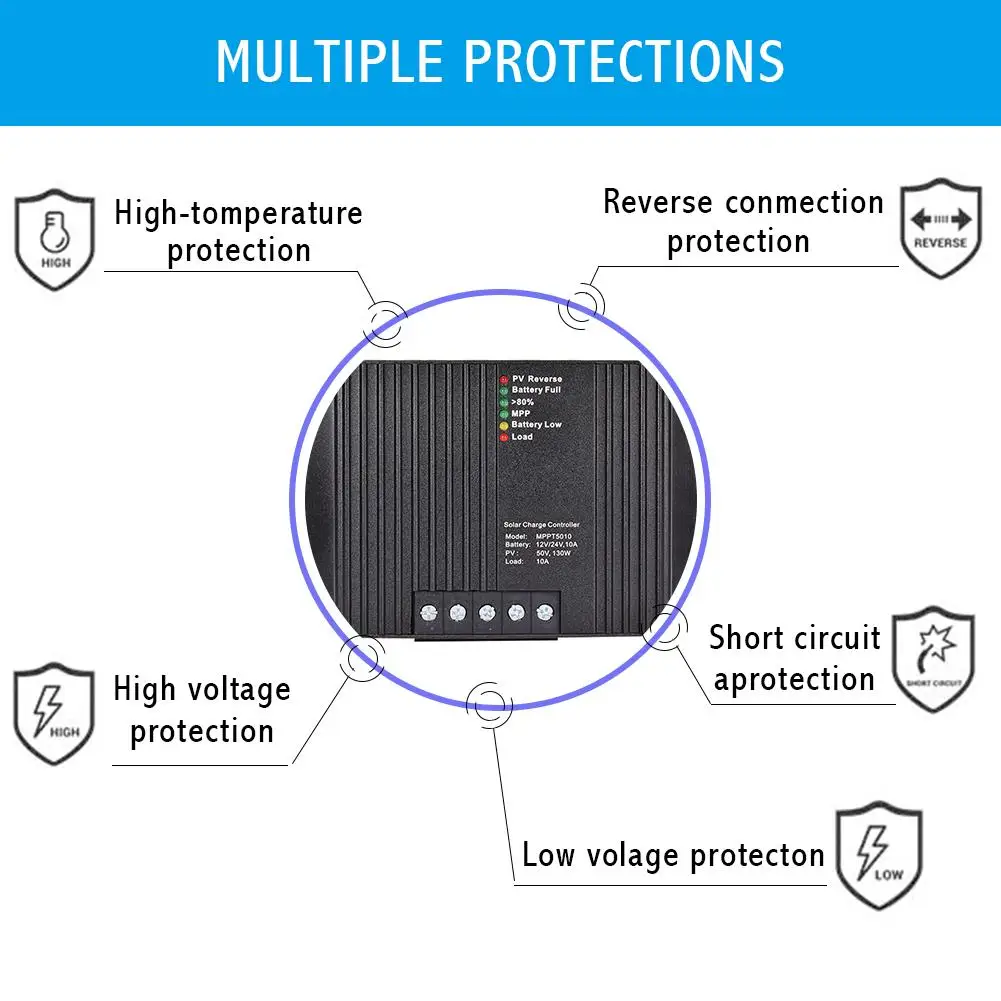

8. With automatic control of overcharge, overdischarge, overload protection, anti-reverse connection protection, etc.

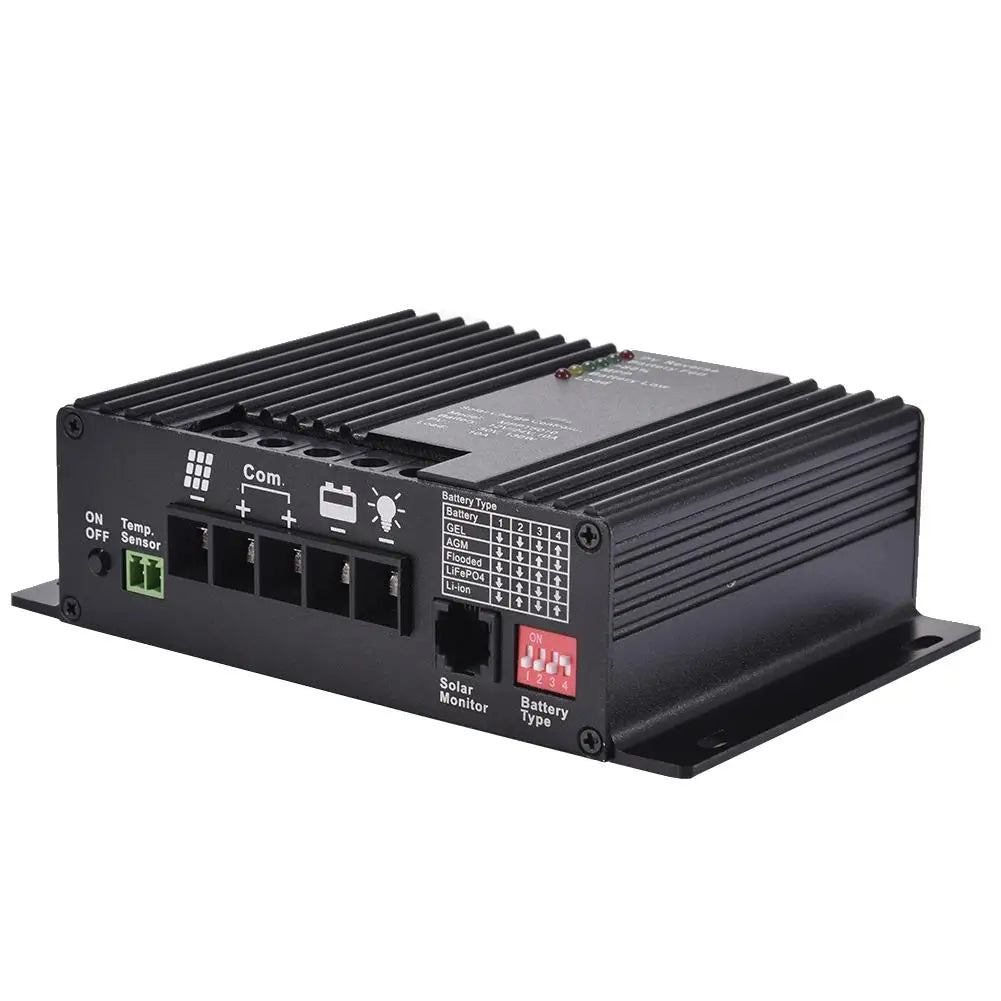

Specification:

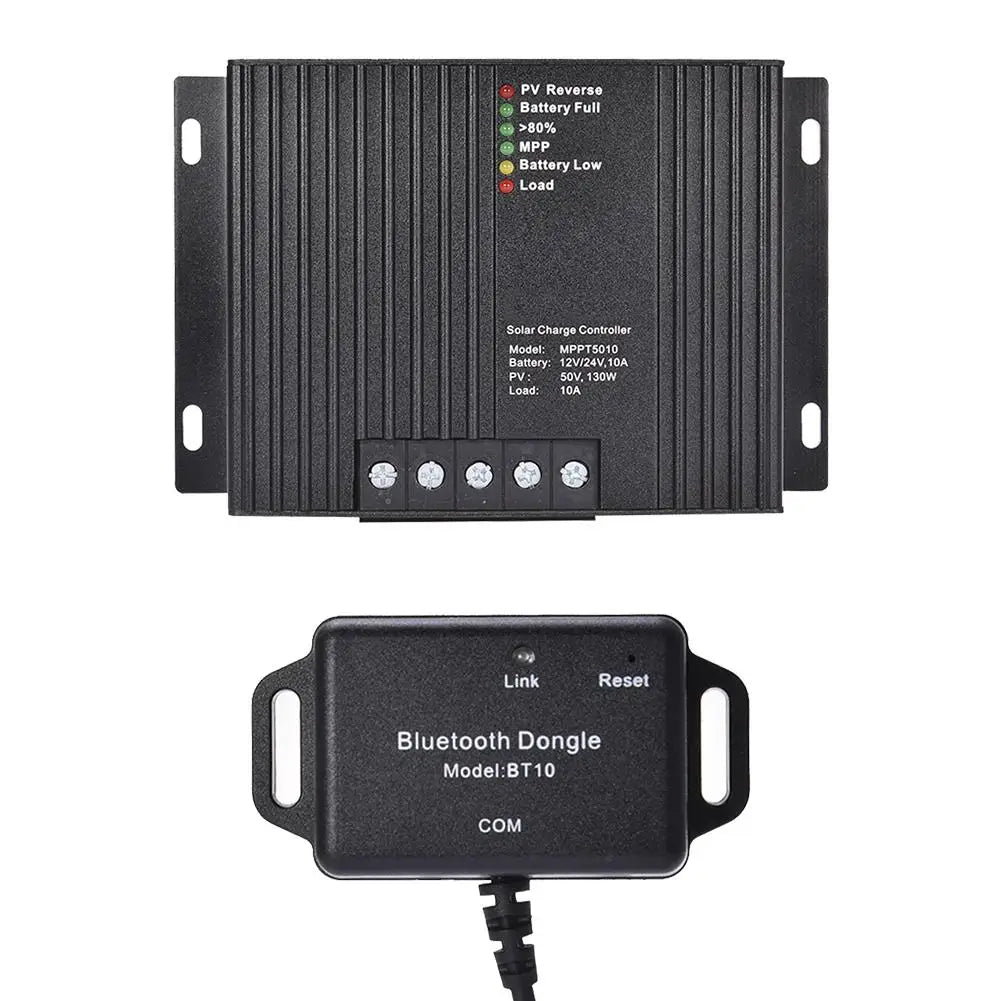

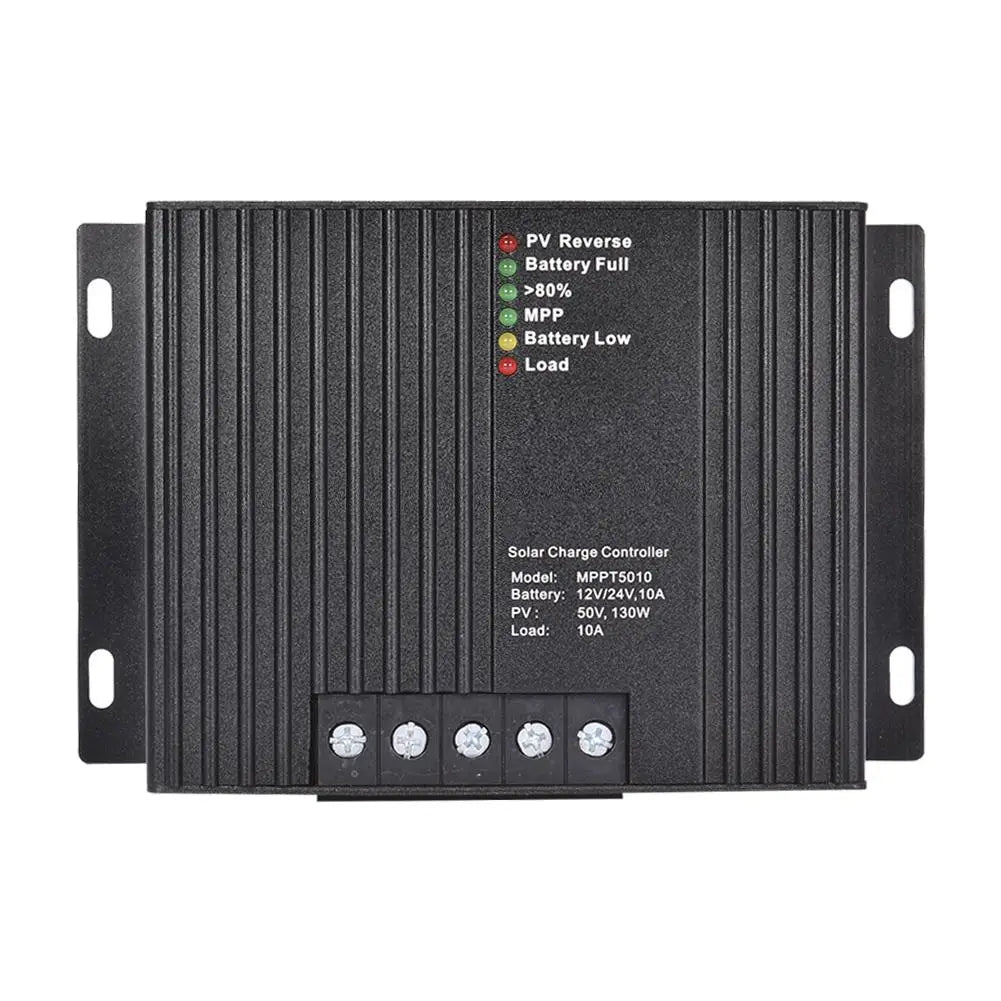

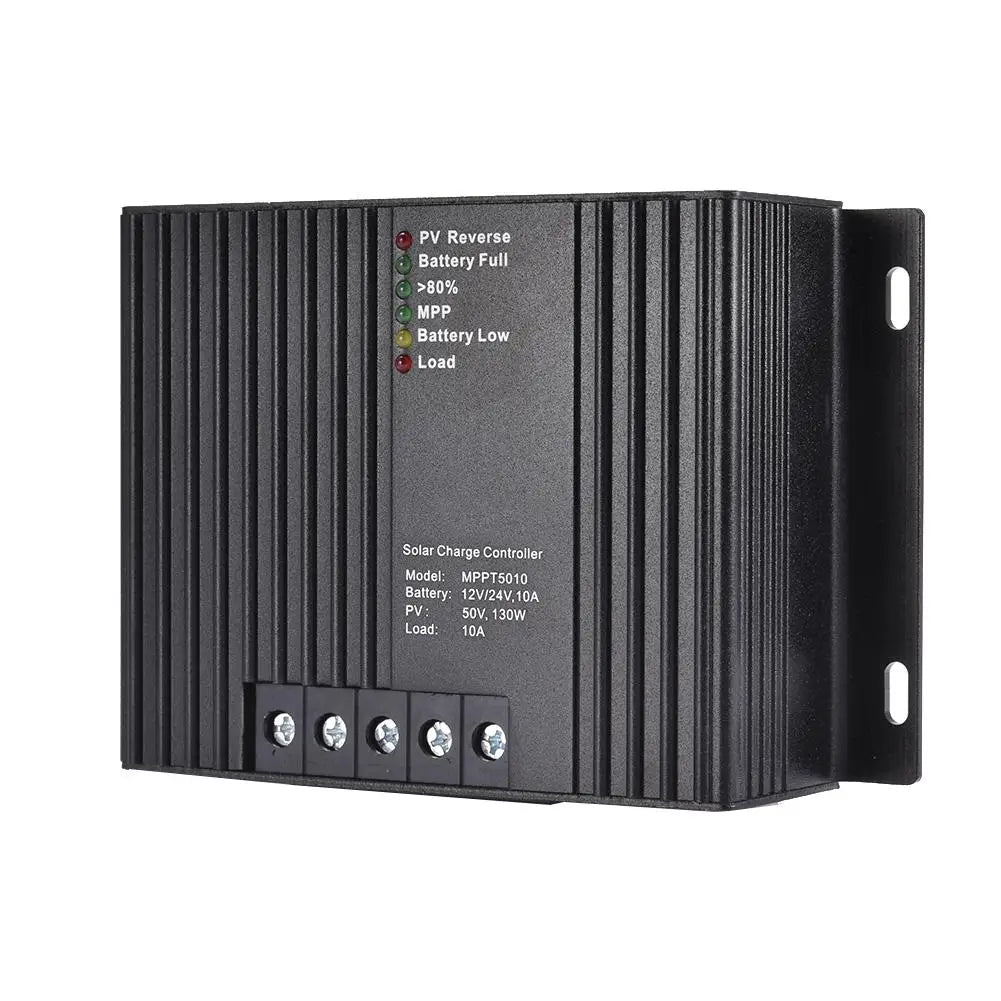

Model: MPPT5010
Rated voltage: 12V/24V automatic identification
Battery voltage range: 12V: 0-16V /24V: 16V-32V
Maximum charging current: 10A
Maximum load current: 10A
Maximum solar panel input voltage: 50V
Maximum solar panel input power: 130W/260W

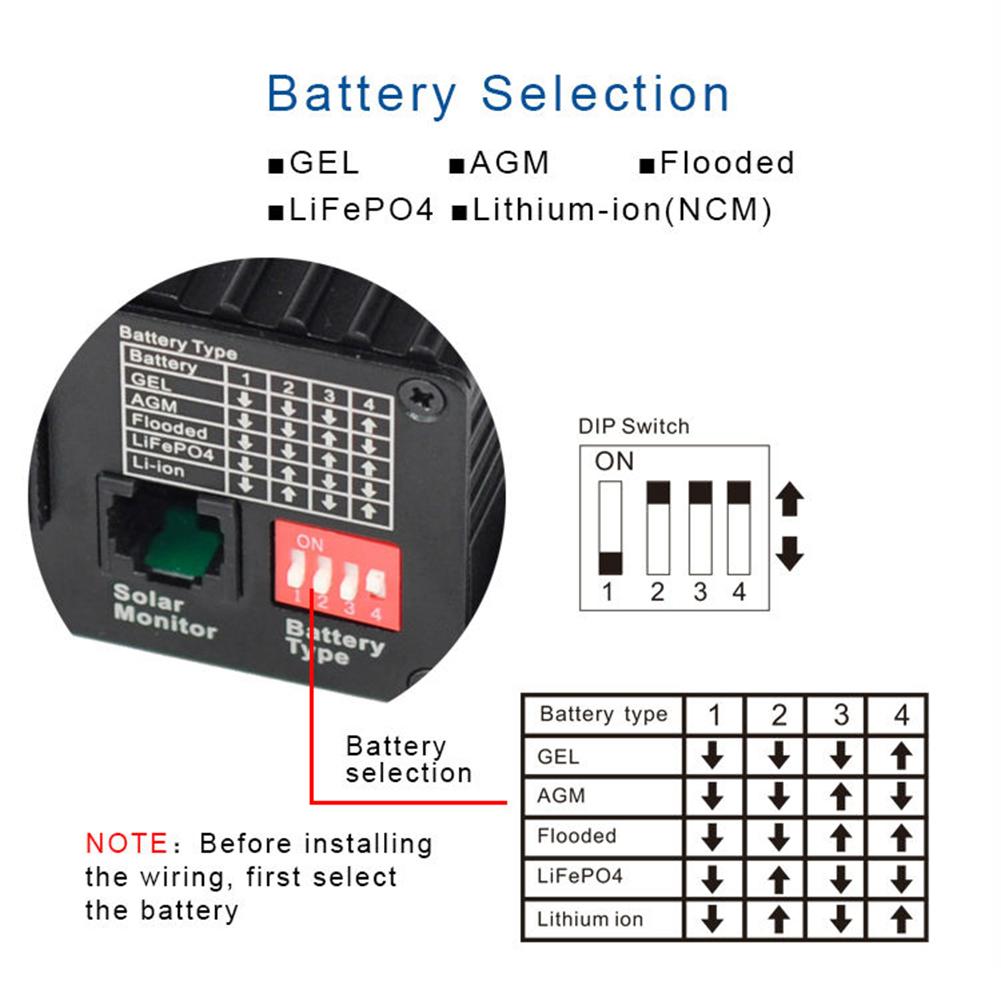

Battery type: GEL/AGM/Flooded/LiFePO4(12.8V)/Lithium ion(NCM)(11.1V)
Temperature compensation: -3mv/℃/2V
Note: Lithium battery has no temperature compensation
Self-consumption current: <25mA
Grounding: common positive design, only positive grounding is allowed
Working environment temperature: -20℃-+50℃

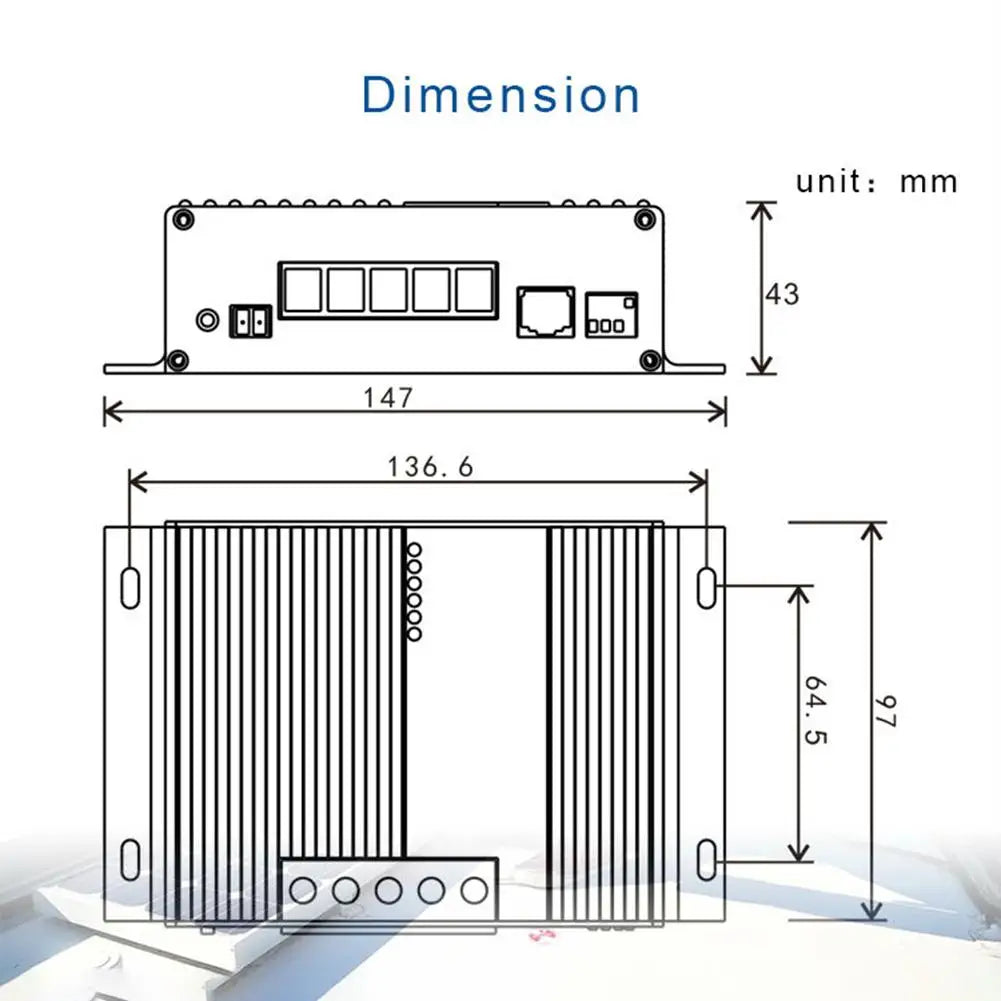

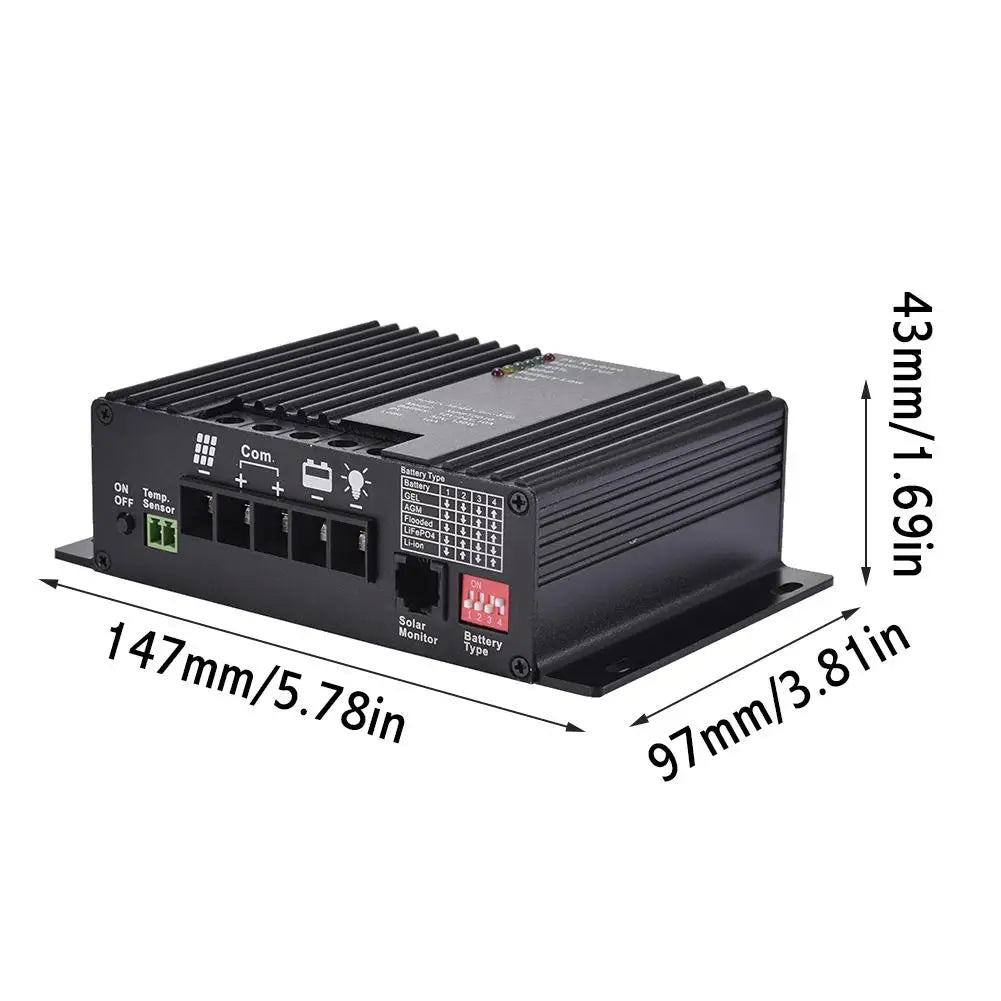

Size: about 147×97×43mm/5.79*3.82*1.69inch
Weight: about 0.38kg
Protection level: IP30
Use safety notes:
1. Solar cell modules will generate current under the light, even in the case of weak light, they can also generate high voltage, before installation, you must make preparations to cover the solar panels.
2. Before installing the controller, please confirm whether the voltage on the solar panel and the battery voltage match the controller.
3. During the installation process, do not touch all bare wires
4. The positive and negative poles of the battery must not be short-circuited. It is recommended to connect a fuse in series with the positive pole when installing the battery.
5. Please do not use inferior raw materials. Such as wires, screws.
6. Maintain the ventilation and heat dissipation effect of the controller installation position. The controller will generate heat when it is working. If it does not get good heat dissipation conditions, it may cause malfunction and fire.
7. Do not install the controller in a humid environment. If it is necessary to install it, please do a moisture-proof and waterproof .
8. Keep children away from the photovoltaic system.
Packing List:
1*Solar controller
1*Instructions
Bluetooth Accessories:
Features:

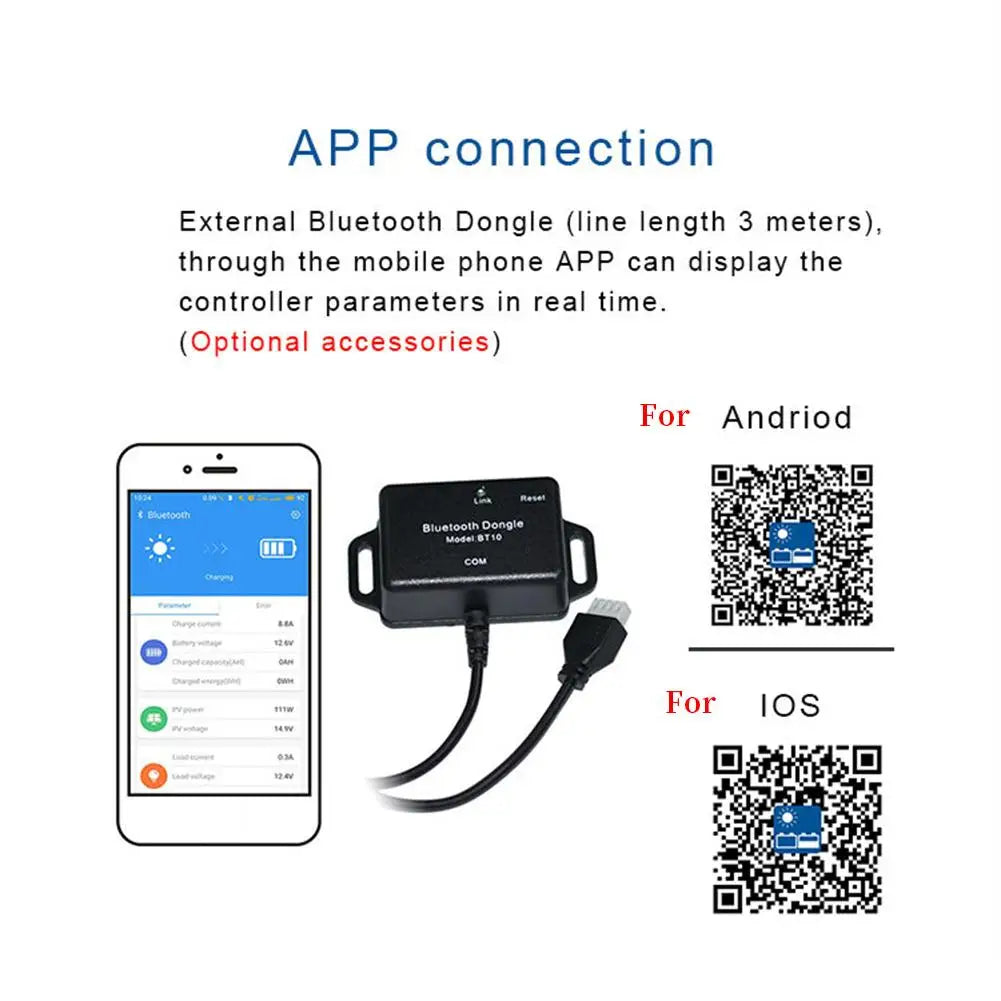

This Bluetooth module is an accessory of the solar controller. When the user needs to display the working parameters of the controller through the APP, the Bluetooth module needs to be purchased separately, and the controller sends the working parameters to the mobile phone through the Bluetooth module, through a dedicated APP show.
Connection method:
Insert the connection line of the Bluetooth module into the dedicated Bluetooth interface of the solar controller with Bluetooth communication function, and then fix the module in any position.
Note: The Bluetooth module cannot be installed in a metal shielded place, and the distance from the mobile phone is less than 10 meters
Notes:
1. Mobile phone operating system requirements: for Android version 5.0 or above, for IOS version iphone4.0 or above.
2. The Bluetooth adapter cannot be installed in a metal shielded environment
3. Make sure that the Bluetooth function and location information of the mobile phone are turned on
4. The APP must be run before the device is connected, the APP will automatically search for the device, click the device name to connect to Bluetooth
5. The distance between the Bluetooth adapter and the mobile phone must be less than 106. Only one mobile phone is allowed to connect to Bluetooth at the same time, and the mobile phone needs to be connected, and the connected mobile phone must be exited from the APP
7. Some mobile phones may need to search repeatedly to find the device

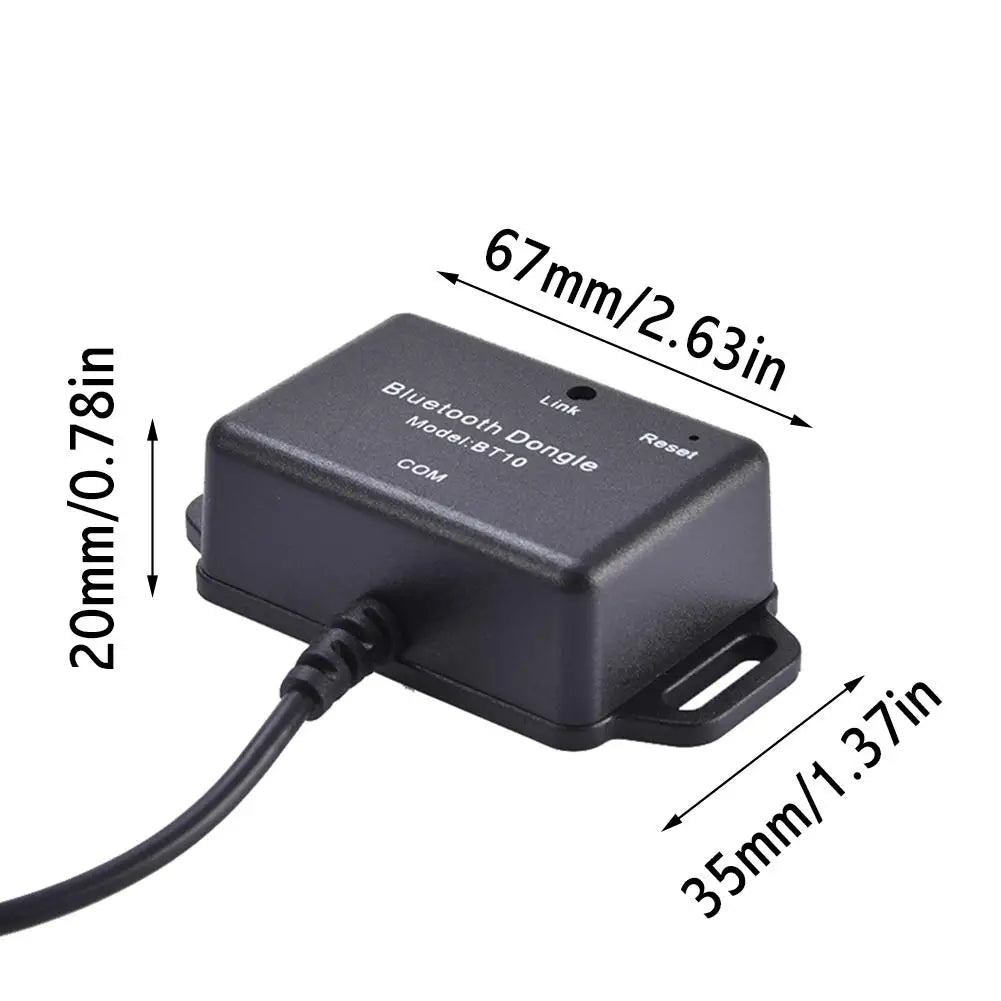

Specification:

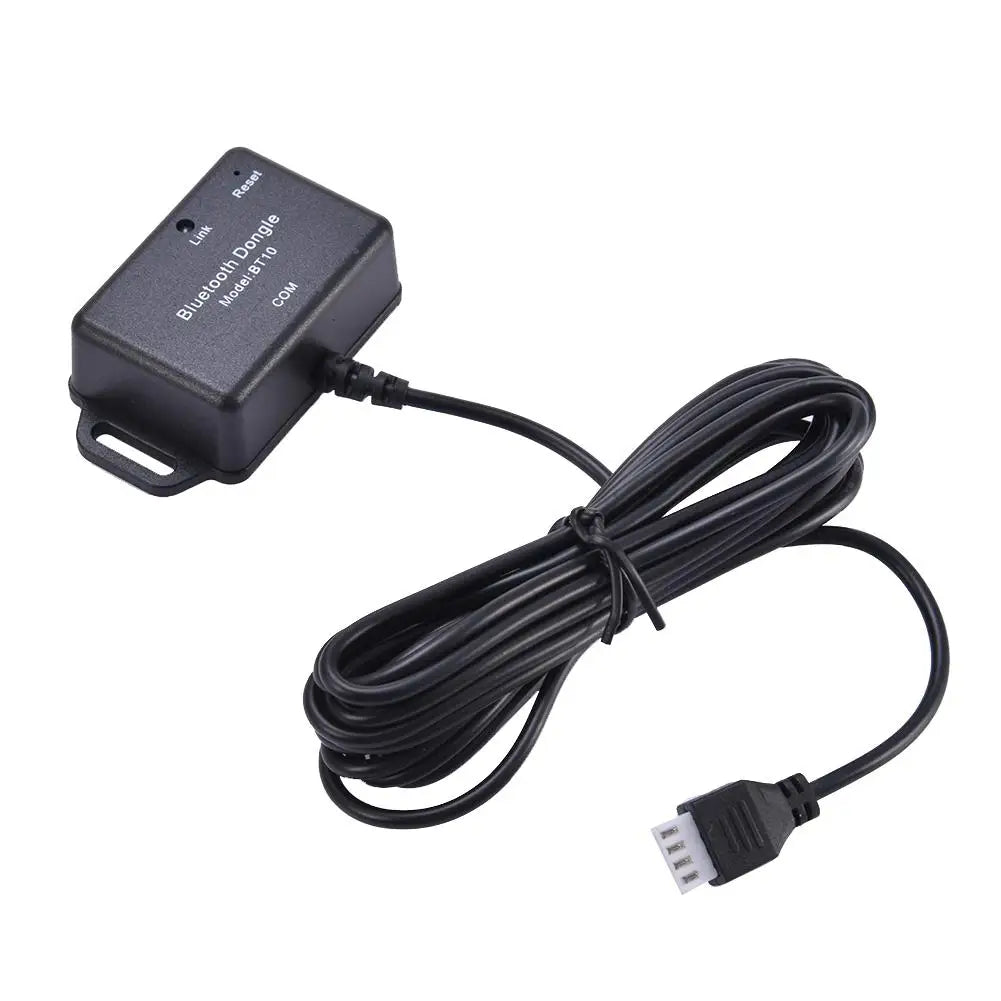

Model: BT10
Bluetooth version: Bluetooth 4.2
Working voltage: 5V (provided by the controller)
Standby power consumption: <500uA
Length of connection line: 3 meters
Bluetooth distance <10 meters
Interface type XH2.54-4P
Size: about 67*35*20mm/2.64*1.38*0.79inch
APP name: Charger Connect
Packing List:
Function description:
1. Mainly suitable for small off-grid solar power systems, such as: home solar power systems, solar RV power generation, ships, unattended base stations, outposts, etc..
2. System voltage: 12V/24V automatic adaptation.
3. You can choose a variety of batteries, including lead-acid batteries, ternary lithium batteries, lithium iron phosphate batteries.
4. Adopt three-stage MPPT charging method. Effectively improve the charging efficiency of solar panels.
5. An external Bluetooth module can be connected, and various working parameters of the solar controller can be viewed from the mobile phone through the free APP, and the communication range is less than 10 meters
6. Can connect externally LCD display.
6. This product is designed with intelligent single-chip microcomputer, and all working processes are controlled by software, which can achieve high precision and high reliability.
7. The load output can be manually turned on and off by pressing the button.
8. With automatic control of overcharge, overdischarge, overload protection, anti-reverse connection protection, etc.
Specification:
Model: MPPT5010
Rated voltage: 12V/24V automatic identification
Battery voltage range: 12V: 0-16V /24V: 16V-32V
Maximum charging current: 10A
Maximum load current: 10A
Maximum solar panel input voltage: 50V
Maximum solar panel input power: 130W/260W
Battery type: GEL/AGM/Flooded/LiFePO4(12.8V)/Lithium ion(NCM)(11.1V)
Temperature compensation: -3mv/℃/2V
Note: Lithium battery has no temperature compensation
Self-consumption current: <25mA
Grounding: common positive design, only positive grounding is allowed
Working environment temperature: -20℃-+50℃
Size: about 147×97×43mm/5.79*3.82*1.69inch
Weight: about 0.38kg
Protection level: IP30
Use safety notes:
1. Solar cell modules will generate current under the light, even in the case of weak light, they can also generate high voltage, before installation, you must make preparations to cover the solar panels.
2. Before installing the controller, please confirm whether the voltage on the solar panel and the battery voltage match the controller.
3. During the installation process, do not touch all bare wires
4. The positive and negative poles of the battery must not be short-circuited. It is recommended to connect a fuse in series with the positive pole when installing the battery.
5. Please do not use inferior raw materials. Such as wires, screws.
6. Maintain the ventilation and heat dissipation effect of the controller installation position. The controller will generate heat when it is working. If it does not get good heat dissipation conditions, it may cause malfunction and fire.
7. Do not install the controller in a humid environment. If it is necessary to install it, please do a moisture-proof and waterproof .
8. Keep children away from the photovoltaic system.
Packing List:
1*Solar controller
1*Instructions
Bluetooth Accessories:
Features:
This Bluetooth module is an accessory of the solar controller. When the user needs to display the working parameters of the controller through the APP, the Bluetooth module needs to be purchased separately, and the controller sends the working parameters to the mobile phone through the Bluetooth module, through a dedicated APP show.
Connection method:
Insert the connection line of the Bluetooth module into the dedicated Bluetooth interface of the solar controller with Bluetooth communication function, and then fix the module in any position.
Note: The Bluetooth module cannot be installed in a metal shielded place, and the distance from the mobile phone is less than 10 meters
Notes:
1. Mobile phone operating system requirements: for Android version 5.0 or above, for IOS version iphone4.0 or above.
2. The Bluetooth adapter cannot be installed in a metal shielded environment
3. Make sure that the Bluetooth function and location information of the mobile phone are turned on
4. The APP must be run before the device is connected, the APP will automatically search for the device, click the device name to connect to Bluetooth
5. The distance between the Bluetooth adapter and the mobile phone must be less than 106. Only one mobile phone is allowed to connect to Bluetooth at the same time, and the mobile phone needs to be connected, and the connected mobile phone must be exited from the APP
7. Some mobile phones may need to search repeatedly to find the device
Specification:
Model: BT10
Bluetooth version: Bluetooth 4.2
Working voltage: 5V (provided by the controller)
Standby power consumption: <500uA
Length of connection line: 3 meters
Bluetooth distance <10 meters
Interface type XH2.54-4P
Size: about 67*35*20mm/2.64*1.38*0.79inch
APP name: Charger Connect
Packing List:
1*Bluetooth Module
1*Instruction
