BestSolarPanel
MUST Energy PV1800 VPM 1KW 12V 230V Home MPPT Hybrid Solar Inverter MPPT 60A PV 105V Ship From EU Pure Sine Wave Solar System
MUST Energy PV1800 VPM 1KW 12V 230V Home MPPT Hybrid Solar Inverter MPPT 60A PV 105V Ship From EU Pure Sine Wave Solar System
34 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 5..6KG
Type: Solar Inverter
Surge Power: 2KVA
Standby Power Consumption: 2W
Size: 272*355*100mm
Rate Power: 1KW
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz
Output Current: MAX 13.63A
Output: 220V-240V
Origin: Mainland China
Model Number: PV18-1012 VPM
Model: PV1800 VPM
Max PV Input: 105V
MPPT: 60A
Is Smart Device: YES
Certification: CE,RoHS
Brand Name: must energy
AC Charge: 20A
MUST Energy PV1800 VPM Series High Frequency Home Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, MPPT50A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Rated power 1KW to 5KW
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Bult in MPPT50A/80A solar charge controller
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function with free CD
WIFI remote monitoring (optional)
Compatible to generator
3KW-5KW 48V support parallel function(optional)
MODEL |
PV18-1012 VPM |
PV18-2024 VPM |
PV18-3024 VPM |
PV18-3048 VPM |
PV18-4048 VPM |
PV18-5048 VPM |
Default Battery System Voltage |
12VDC |
24VDC |
48VDC |
|||
INVERTER OUTPUT | ||||||
Rated Power |
1000VA / 1000W |
2000VA / 2000W |
3000VA / 3000W |
3000VA / 3000W |
4000VA / 4000W |
5000VA / 5000W |
Surge Power |
2000VA |
4000VA |
6000VA |
6000VA |
8000VA |
10000VA |
Waveform |
Pure sine wave |
|||||
AC Voltage Regulation (Batt.Mode) |
220VAC~240VAC(Setting) |
|||||
Inverter Efficiency(Peak) |
90%~93% |
|||||
Transfer Time |
10ms(UPS / VDE4105) / 20ms(APL) |
|||||
AC INPUT | ||||||
Voltage |
230VAC |
|||||
Selectable Voltage Range |
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
|||||
Frequency Range |
50Hz / 60Hz (Auto sensing) |
|||||
BATTERY | ||||||
Normal voltage |
12VDC |
24VDC |
48VDC |
|||
Floating Charge Voltage |
13.7VDC |
27.4VDC |
54.8VDC |
|||
Overcharge Protection |
15VDC |
30VDC |
60VDC |
|||
SOLAR CHARGER & AC CHARGER | ||||||
Maximum PV Array Open Circuit Voltage |
105VDC |
145VDC |
145VDC |
|||
PV Array MPPT Voltage Range |
15~105VDC |
30~120VDC |
60~130VDC |
|||
Standby Power Consumption |
2W |
|||||
Maximum PV Array Power |
720W |
1500W |
4000W |
|||
Maximum Solar Charge Current |
60A |
80A |
||||
Maximum Efficiency |
98% |
|||||
Maximum AC Charge Current |
10A or 20A |
20A or 30A |
60A |
|||
Maximum Charge Current |
70A |
80A |
140A |
|||
MECHANICAL SPECIFICATIONS | ||||||
Machine Dimensions (W*H*D)(mm) |
225*355*92 |
272*355*100 |
297.5*468*125 |
|||
Package Dimensions (W*H*D)(mm) |
410*300*78 |
485*393*251 |
638*395*241 |
|||
Net Weight(kg) |
5 |
7.4 |
14 |
|||
Gross Weight(kg) |
5.5 |
9.5 |
16.4 |
|||
OTHER | ||||||
Humidity |
5% to 95% Relativ Humidity (Non-condensing) |
|||||
Operating Temperature |
0°C~50°C |
|||||
Storage Temperature |
-15°C -60°C |
|||||

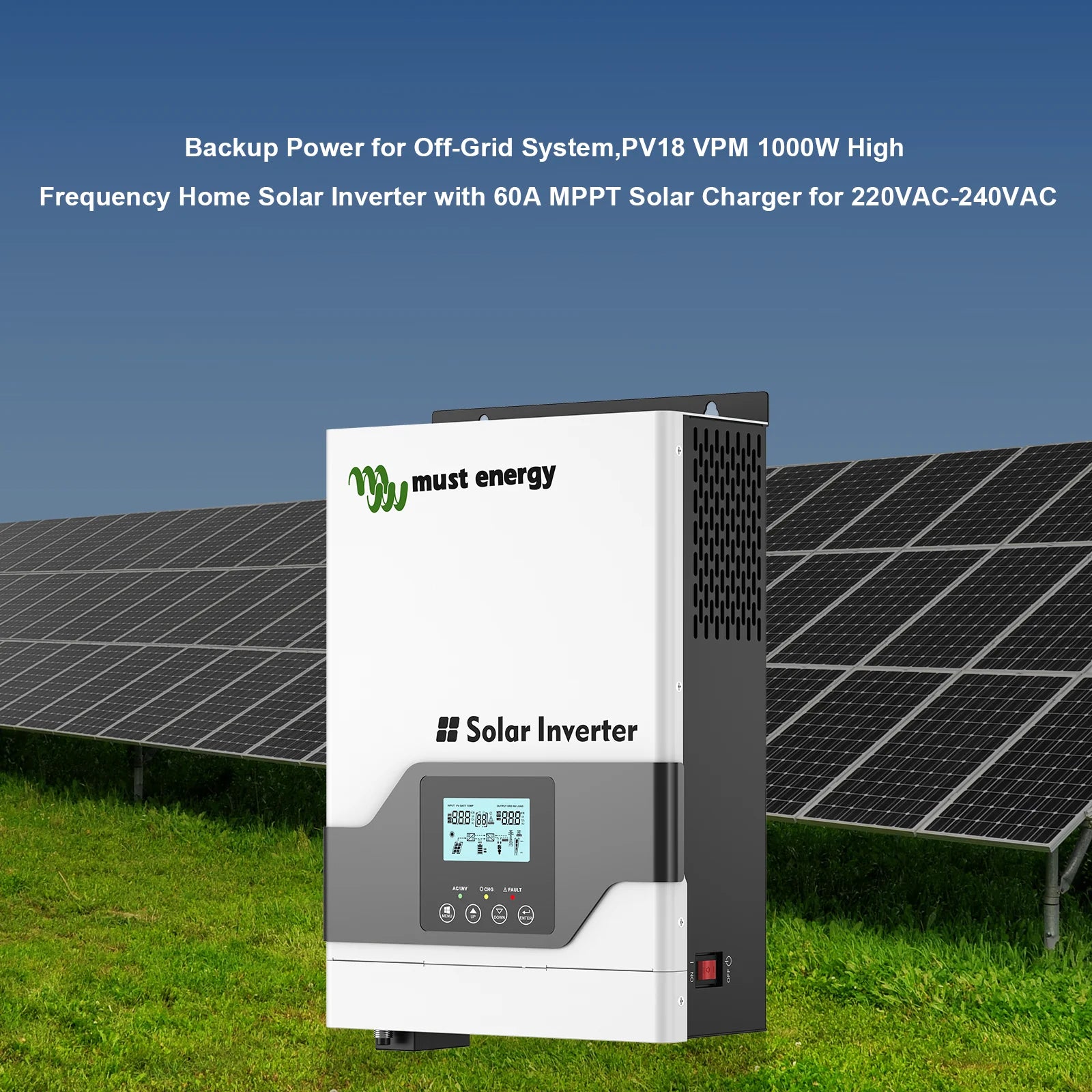

MUST Energy's PV1800 hybrid solar inverter provides backup power for off-grid systems, featuring a high-frequency design with 60A MPPT charging and compatibility with 220VAC or 24VAC loads. Model number: 988841884.

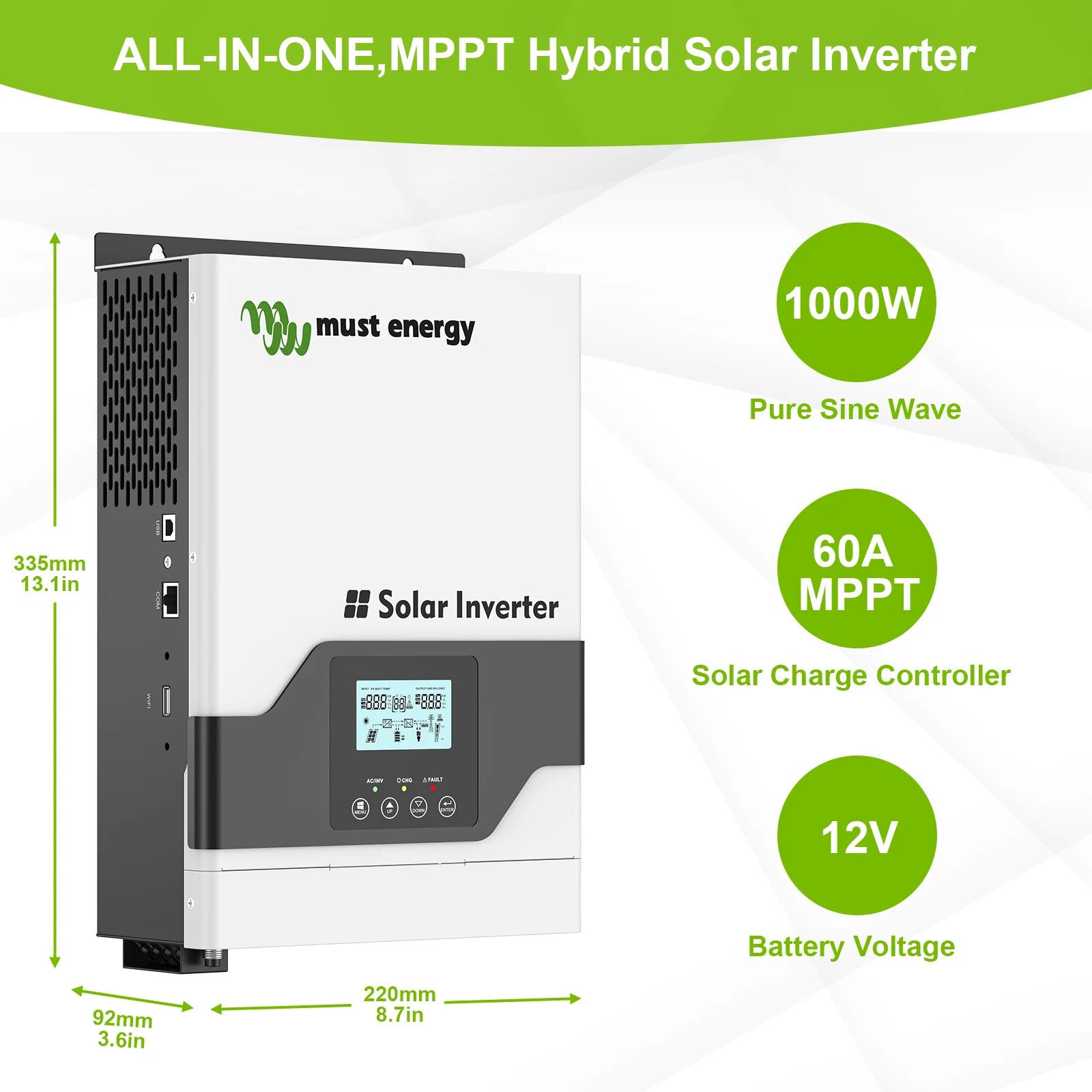

ALL-IN-ONE MPPT Hybrid Solar Inverter from Must Energy, featuring Pure Sine Wave technology, measures 335mm x 13.1in and supports up to 1000W solar input. It's a comprehensive system that includes an MPPT solar charge controller and can work with 12V batteries at 220mm depth.
This solar inverter is suitable for powering various appliances, including laptops, grills, drills, cameras, and more, making it a versatile and reliable power source.

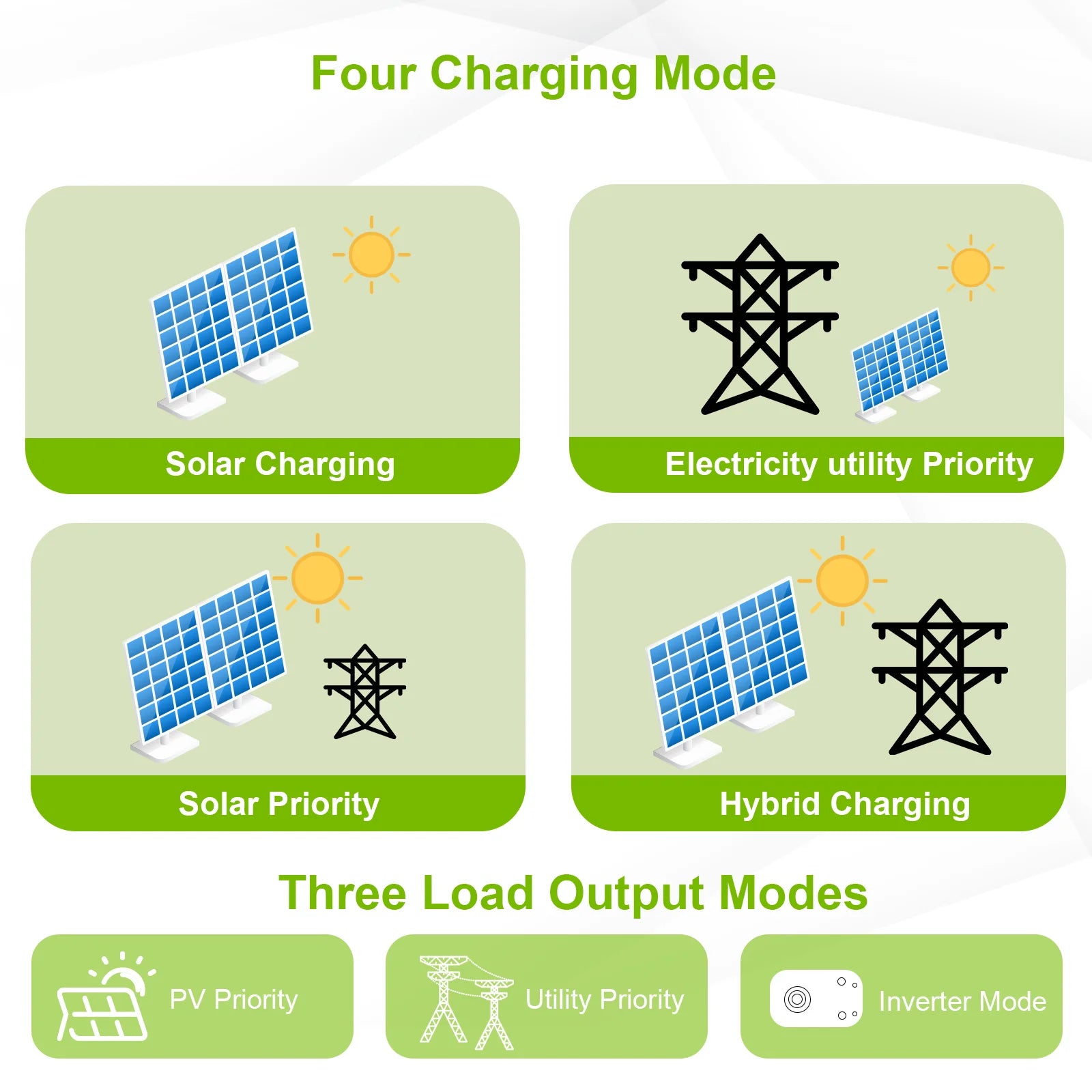

Features four charging modes, including solar priority and hybrid charging, with three load output modes and an inverter mode for optimized energy use.
FAQ：
Q: What is the MUST Energy brand?
A: A sub-brand belonging to the manufacturer of the MUST brand, dedicated to providing convenient services for C-tier customers
Q: Where do you ship from?
A: At the moment we only have a warehouse in Poland, we can only ship from Poland to the surrounding EU countries, we cannot ship outside the EU.
Q: How long is the delivery time?
A: Usually within 5 days
Q: The difference between the same model and the MUST brand
A: The same model is functionally the same as the MUST brand, only the brand and appearance are different.
Q：Warranty Policy
A：The MUST products we sell are covered by a one-year warranty. In case of product failure, contact our after-sales engineers for help in the first instance. If necessary, we will send you free parts (within the warranty period),need to pay for shipping.
Wrong way of operation may cause the product to burn out, such as not following the standard installation when connecting cables. Please read the manual carefully when installing
