Introduction of the MPPT

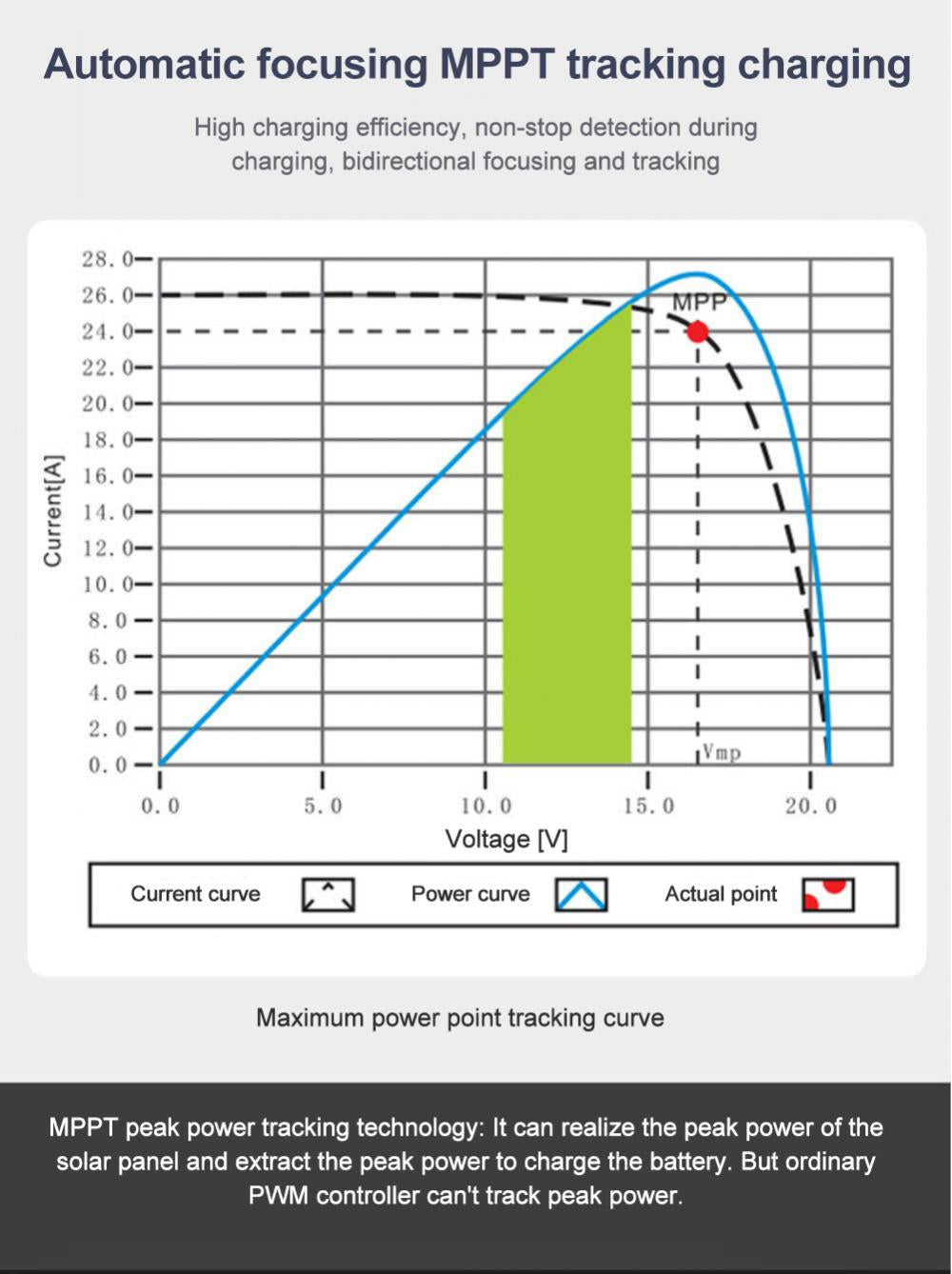

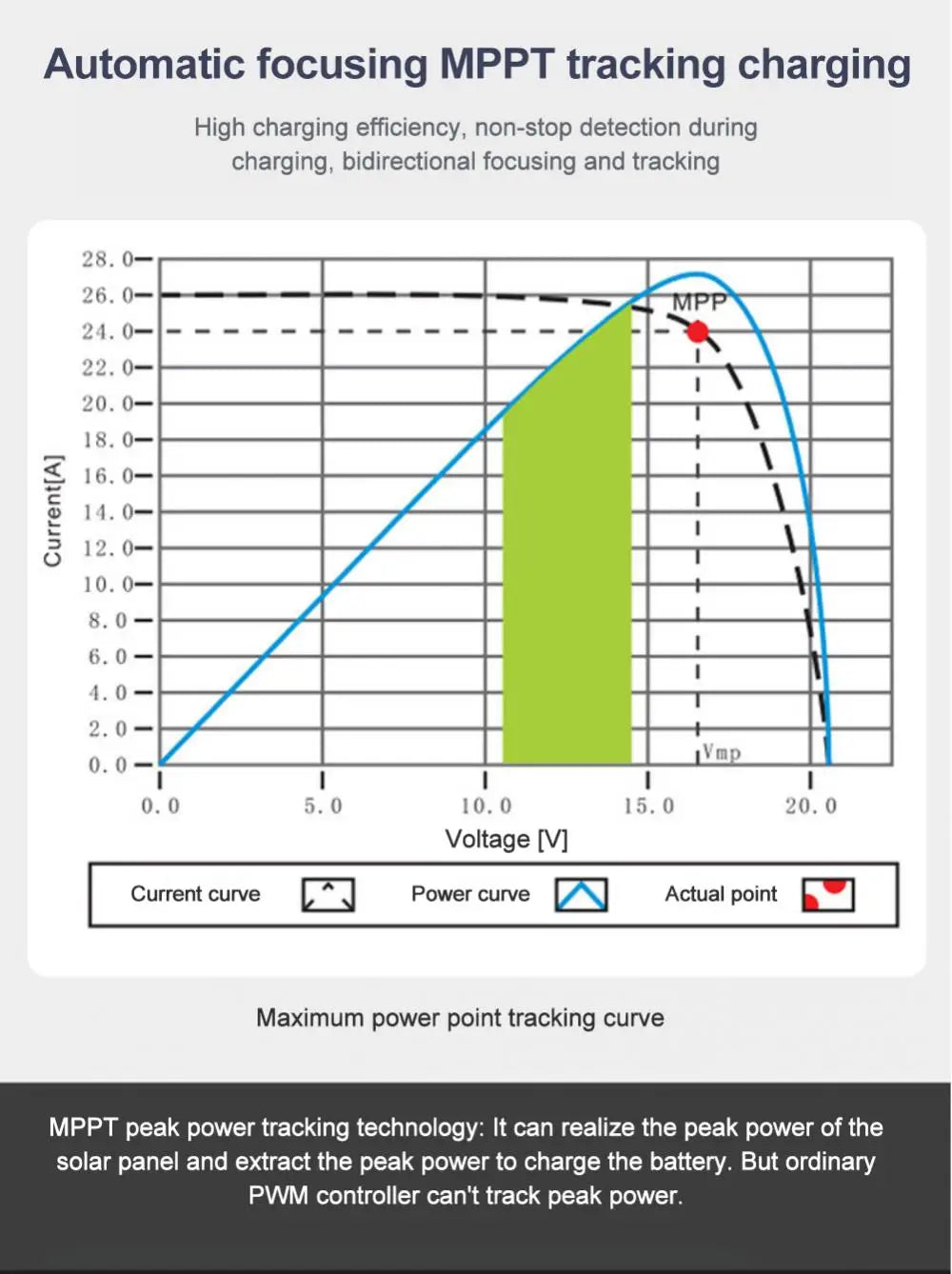

The Maximum Power Point Tracking (MPPT) system is an advanced charging technology that enables solar panels to output more power by adjusting the working state of electrical modules. Due to the non-linearity of a solar array,there is a maximum energy output point (maximum power point) on the curve of the array. Traditional solar charge controllers (switch charging technology and PWM charging technology) cannot charge batteries at this point, thus unable to obtain the maximum energy of solar panels. However, the solar energy charge controller equipped with the MPPT control technology can track the maximum power point of a solar array at any time in order to gain maximum energy for battery charging.Take the 12V system for example. The peak voltage of solar panels (Vpp) is around 17V and battery voltage is about 12V. Generally, when the solar charge controller is charging a battery, the voltage of solar panel is maintained at about 12V, indicating that the maximum power is not used. MPPT solar charge controllers provide a solution to that problem by constantly adjusting the input voltage and current of solar panels, therefore maximizing input power.

Compared with conventional PWM solar charge controllers, MPPT solar charge controllers bring out the maximum power of solar panels and provide greater charging current. Generally speaking, MPPT solar charge controllers can improve energy utilization rate by 15% ~ 20% over PWM solar charge controllers

Advantage of controller

1.Adopt industrial-grade main controlchip, 16-level AD sampling accuracy, temperature, chargingcurrent, accurate real-timed isplay, and power generation at a glance.

2.Auto-focus MPP tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focus tracking.

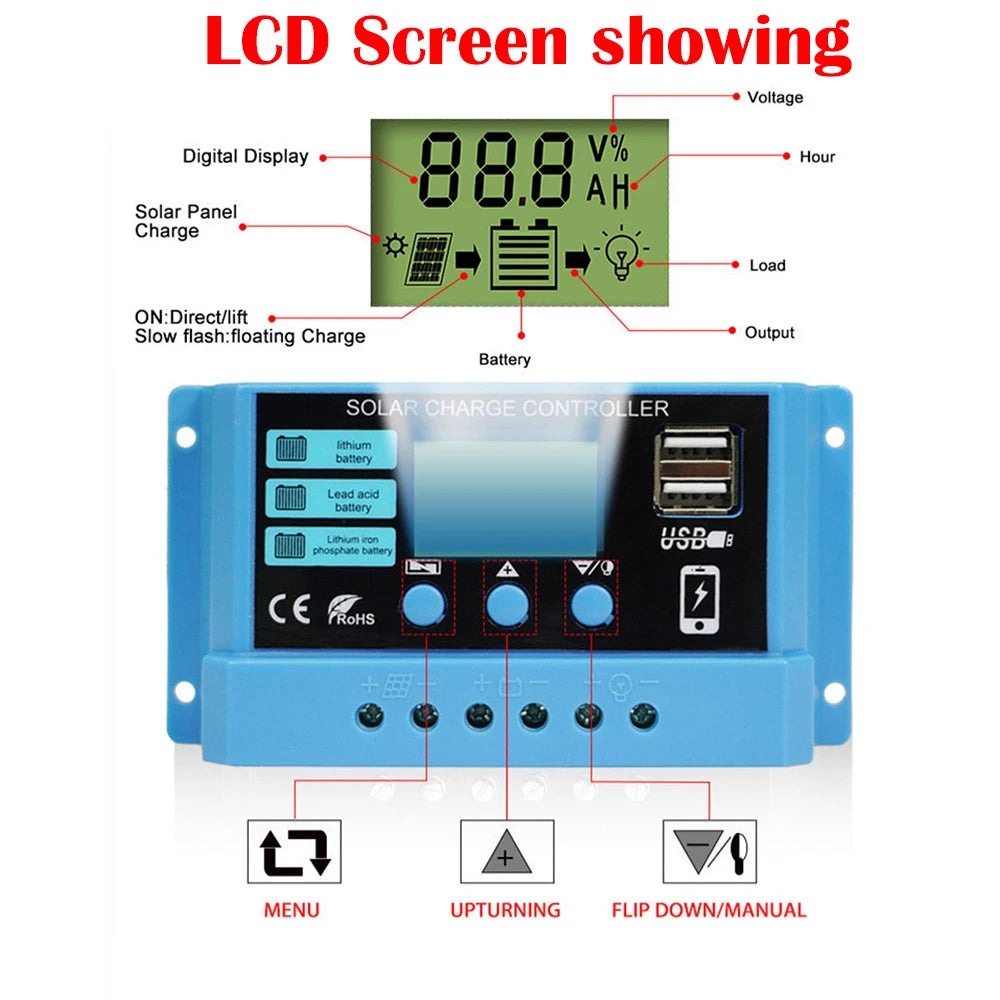

3. LCD display largescreen, adjustable charging and discharging parameters. The ultra-wide charge and discharge are adjustable, as long as you understand the battery characteristics and set the corresponding charging parameters,you can charge all kinds battery（Lithium and Lifepo4 battery）, please set correct charging parameter.

4.Completely 3-stage charging management. Effectively protecting the battery, make battery more durable.

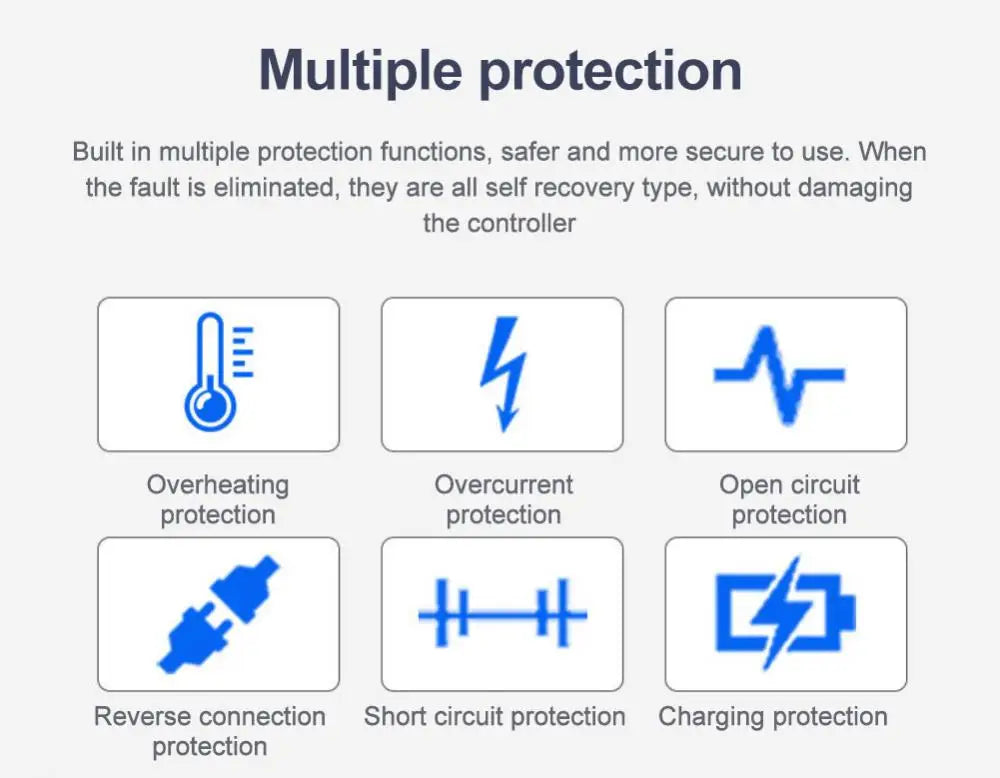

5.Built-inoverheat protection. overcurrent protection. short circuit protection.

open c『, cuit protection, reverse connection protection, whenthe fault is eliminated. it will selfty recovery . without damage to the controller

6.Bidirectional MOS tube anti-backftowcircuit, high-power charging mode,

ultra-low heat generation.

7.Dual DCS.O DC load output. easy to connect

MPPT Solar Controller parameter table

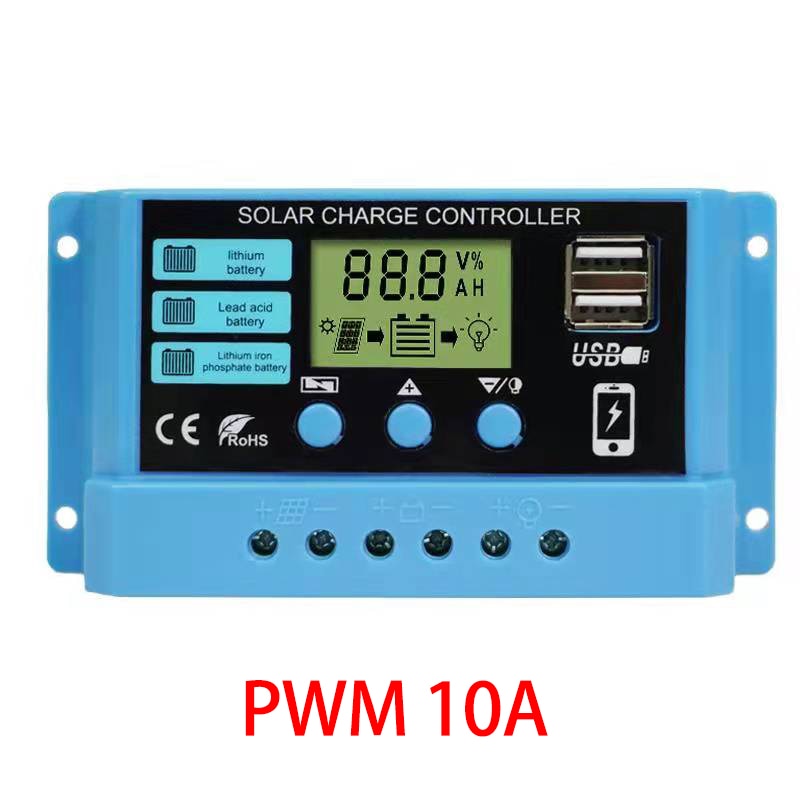

Blue PWM Controller

PWM controller can be used in lithium battery, lifepo4 and Lead acid battery

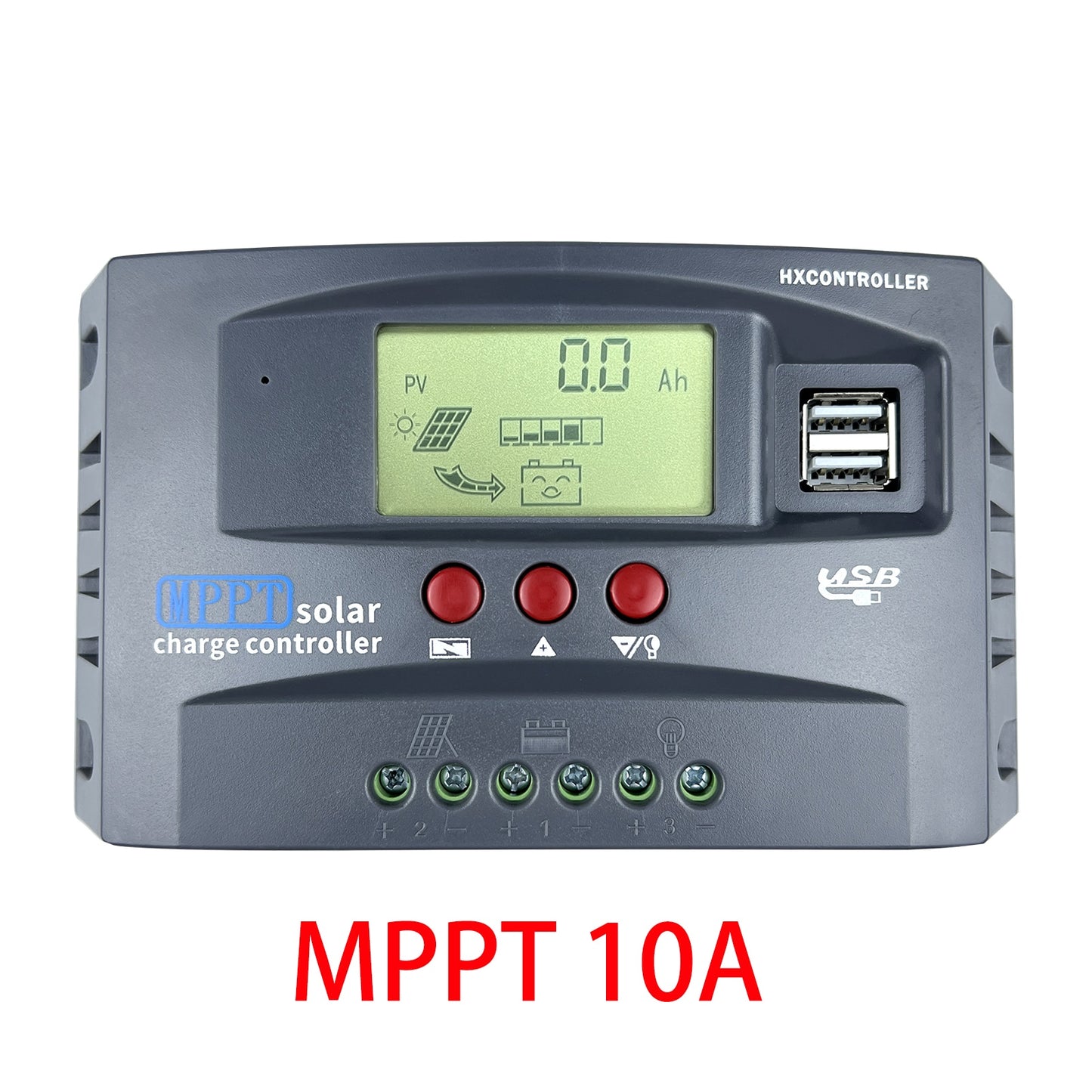

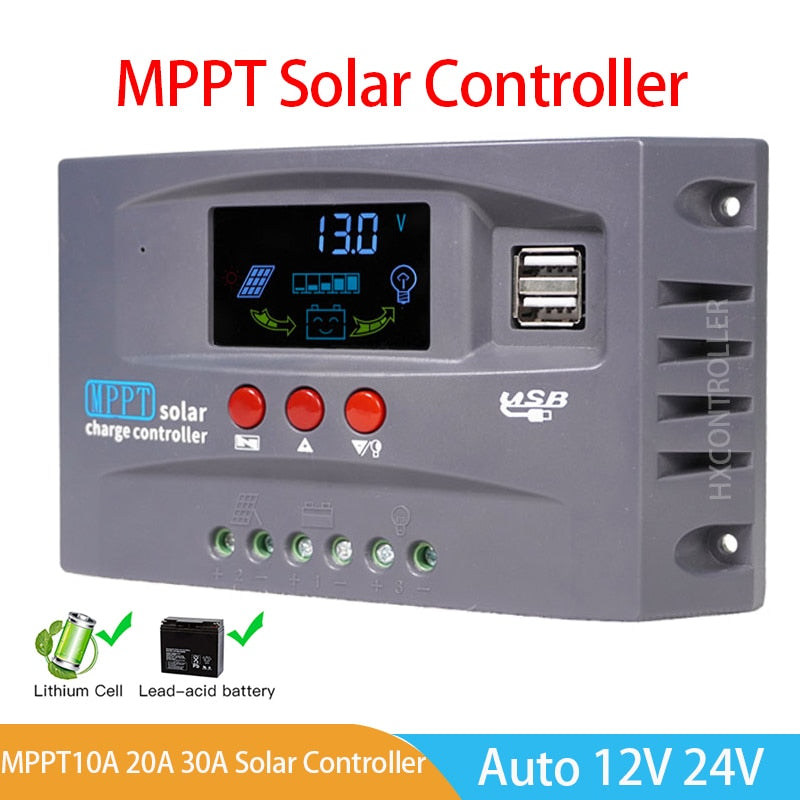

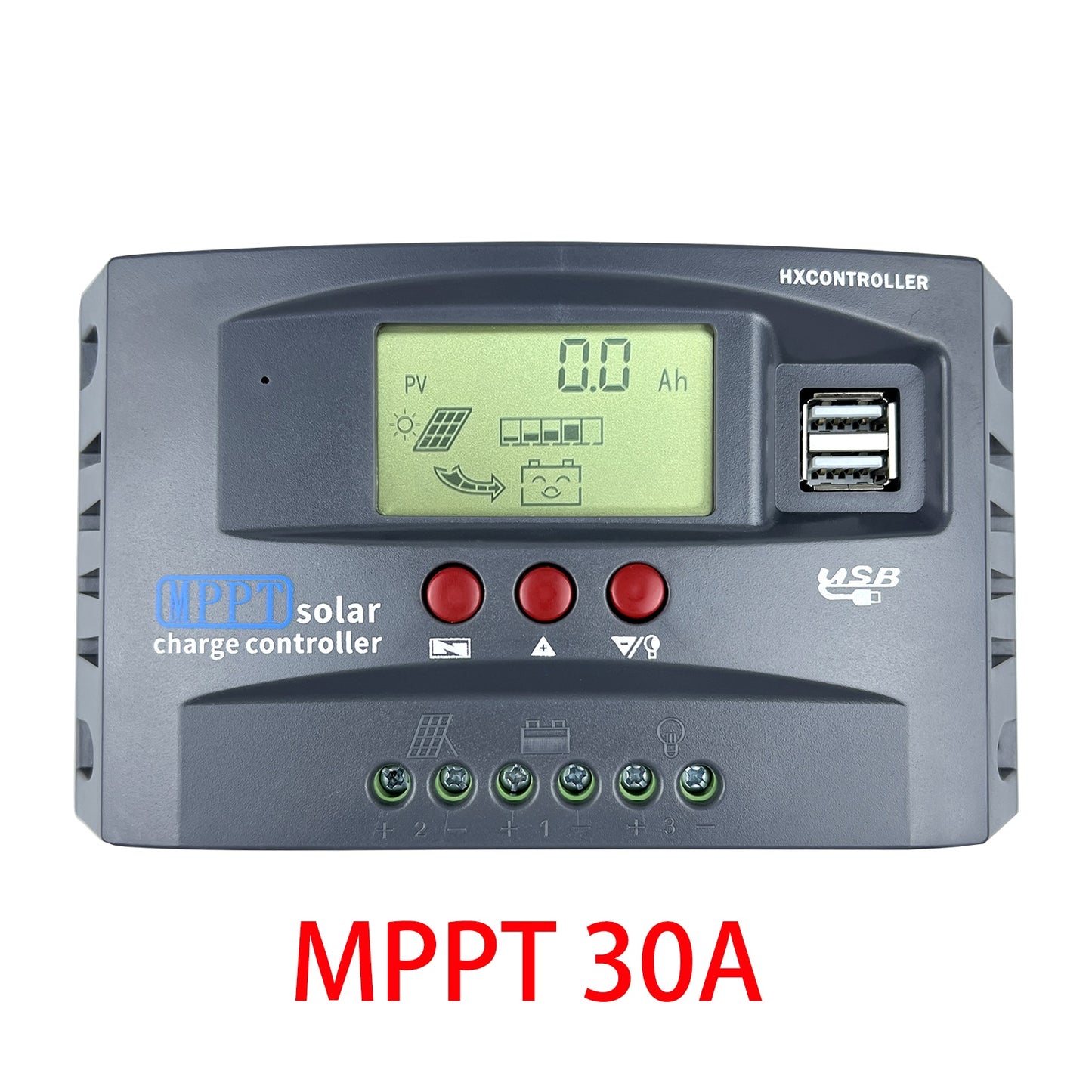

10A 20A 30A MPPT Solar Charge Controller

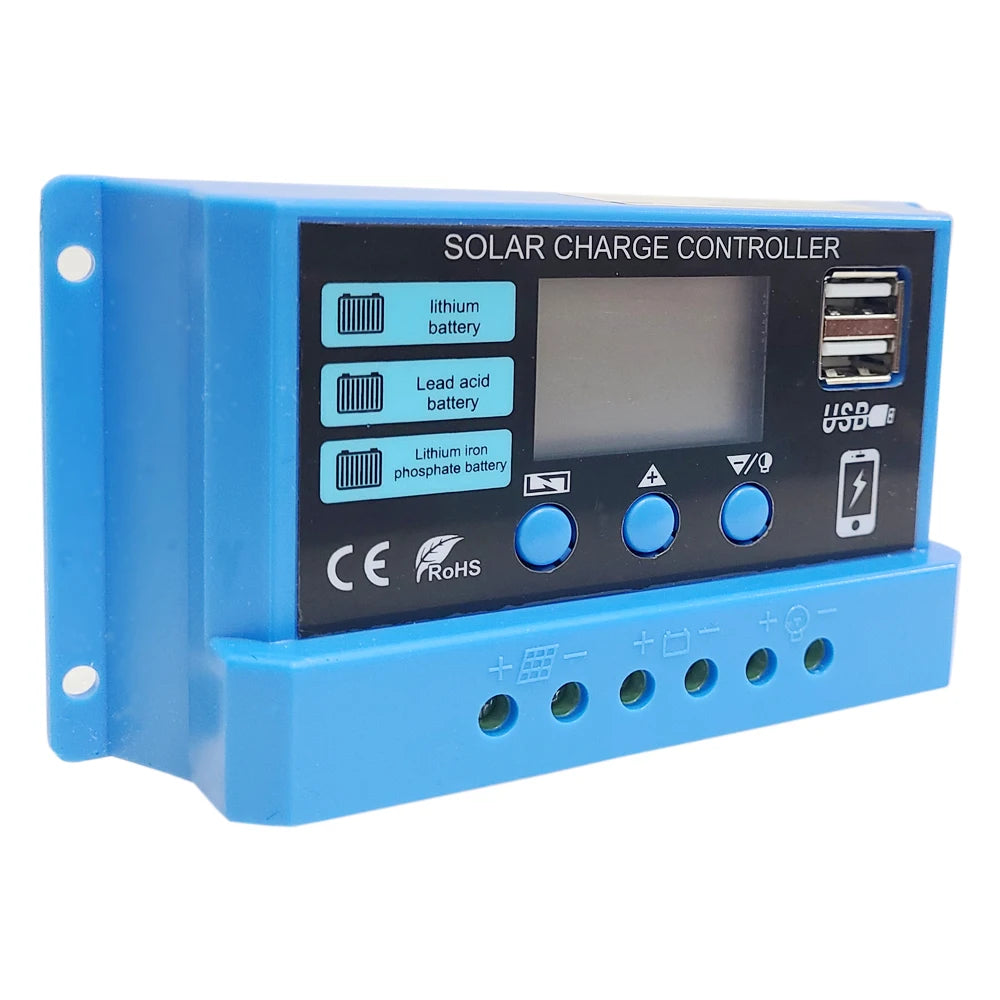

PWM Solar Charge Controller picture
