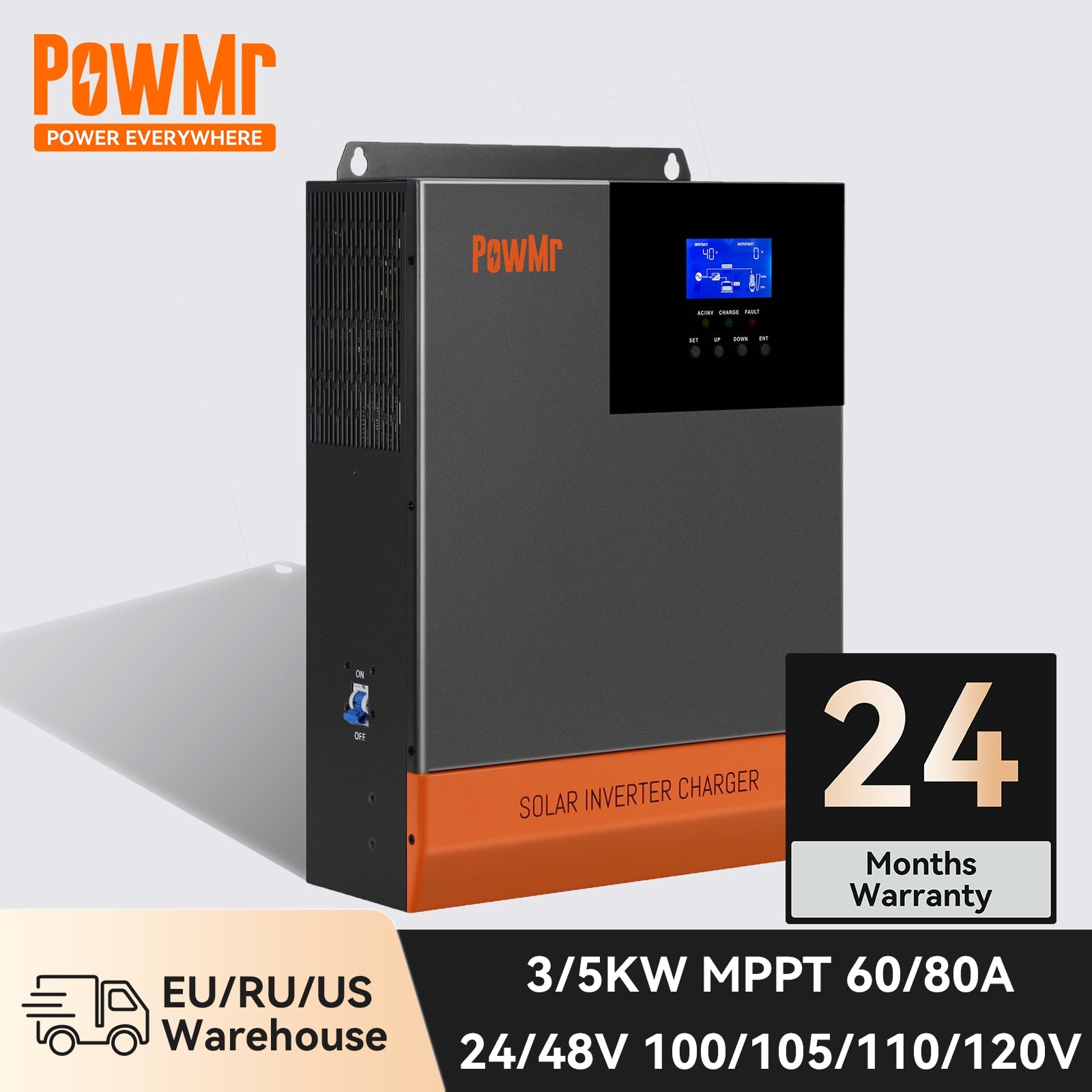

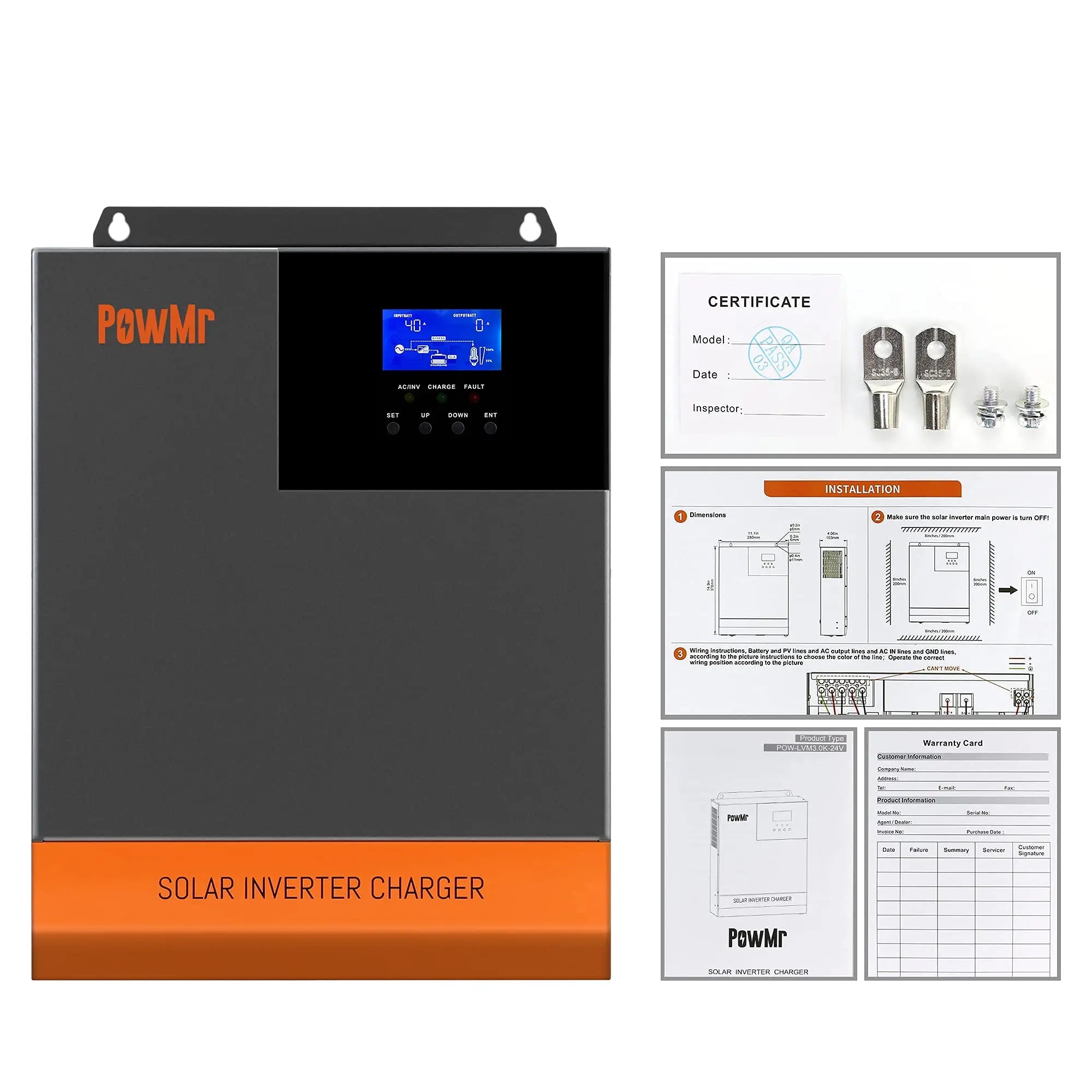

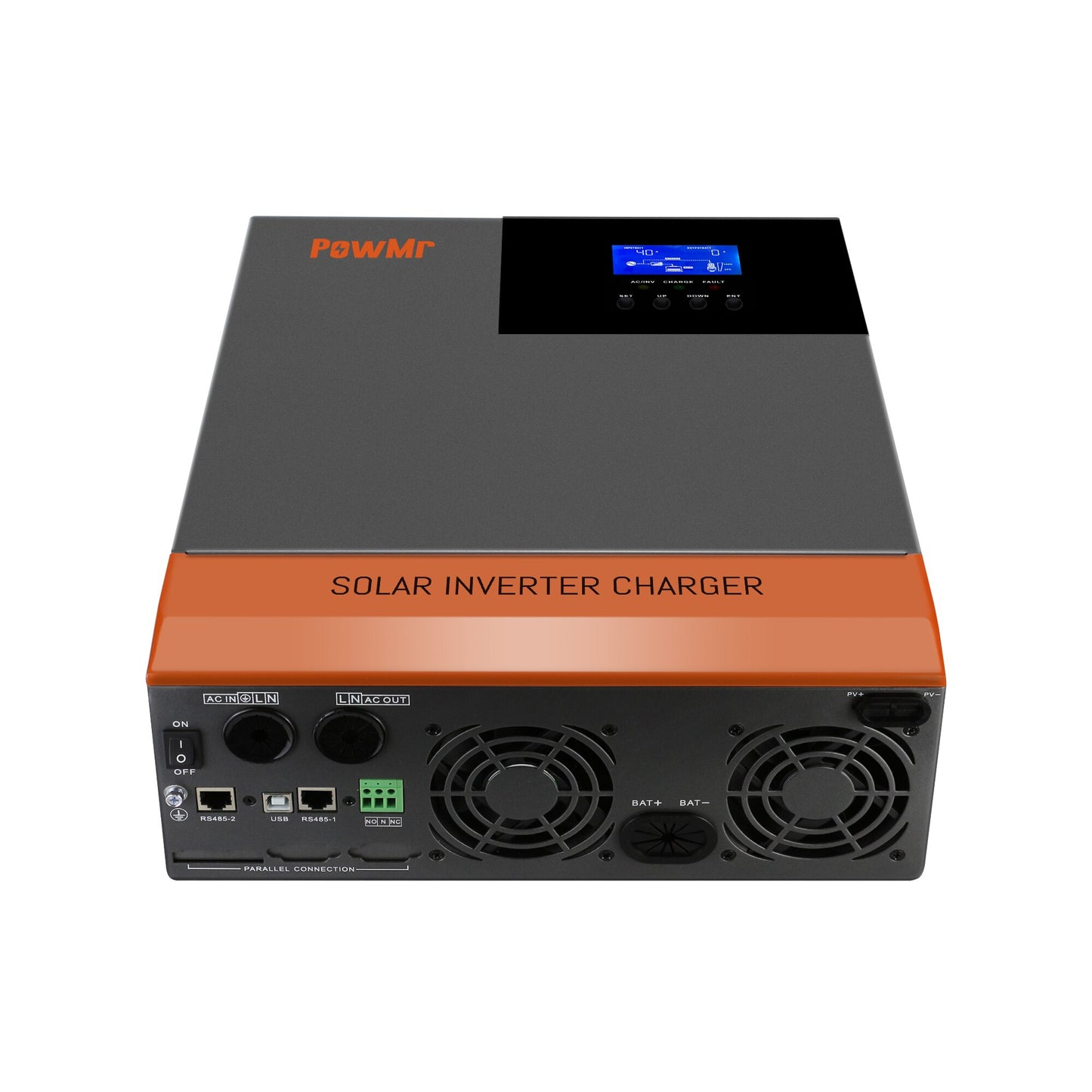

PowMr 110V Solar Inverter Hybrid 48V 24V 5KW 3KW MPPT Build-In 80A 60A Charger Pure Sine Wave Hybrid Inverter 100V to 120V
PowMr 110V Solar Inverter Hybrid 48V 24V 5KW 3KW MPPT Build-In 80A 60A Charger Pure Sine Wave Hybrid Inverter 100V to 120V
63 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 13KG
Wave Form: Pure Sine Wave
Solar Charge Controller: MPPT 60A 80A
Size: 51X41X20CM
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50/60Hz
Output Current: 60A 80A
Output AC Voltage: 100V 110V 120V
Origin: Mainland China
Model Number: POW-LVM-H
Is Smart Device: YES
Inverter 3000 Watt 5000 Watt: Hybrid Solar Inverter
Certification: CE,FCC,RoHS
Brand Name: PowMr
Battery type: Lead Acid or Lithium Battery
Battery Voltage: 24V 48V
Escape the Hassle of Power Cuts

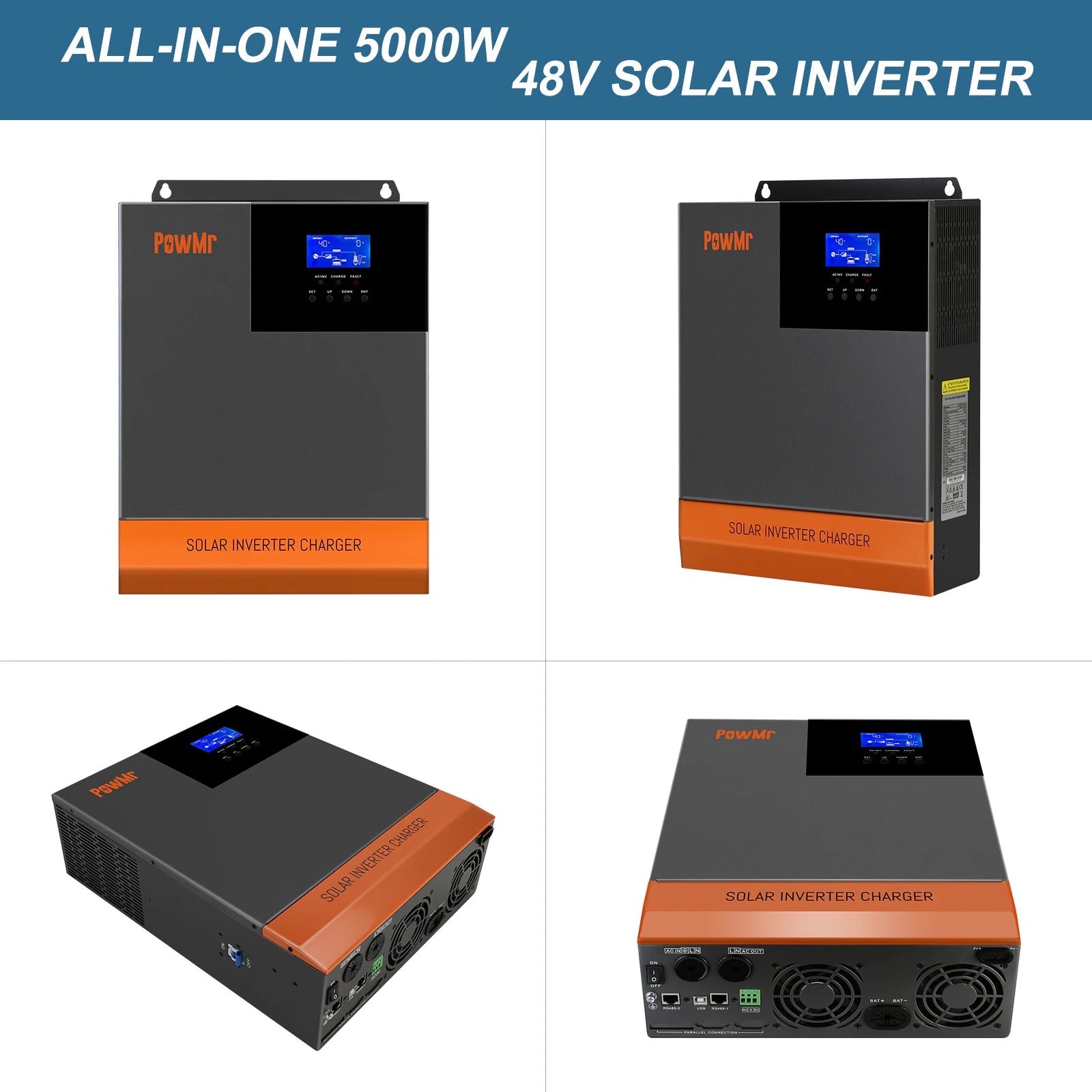

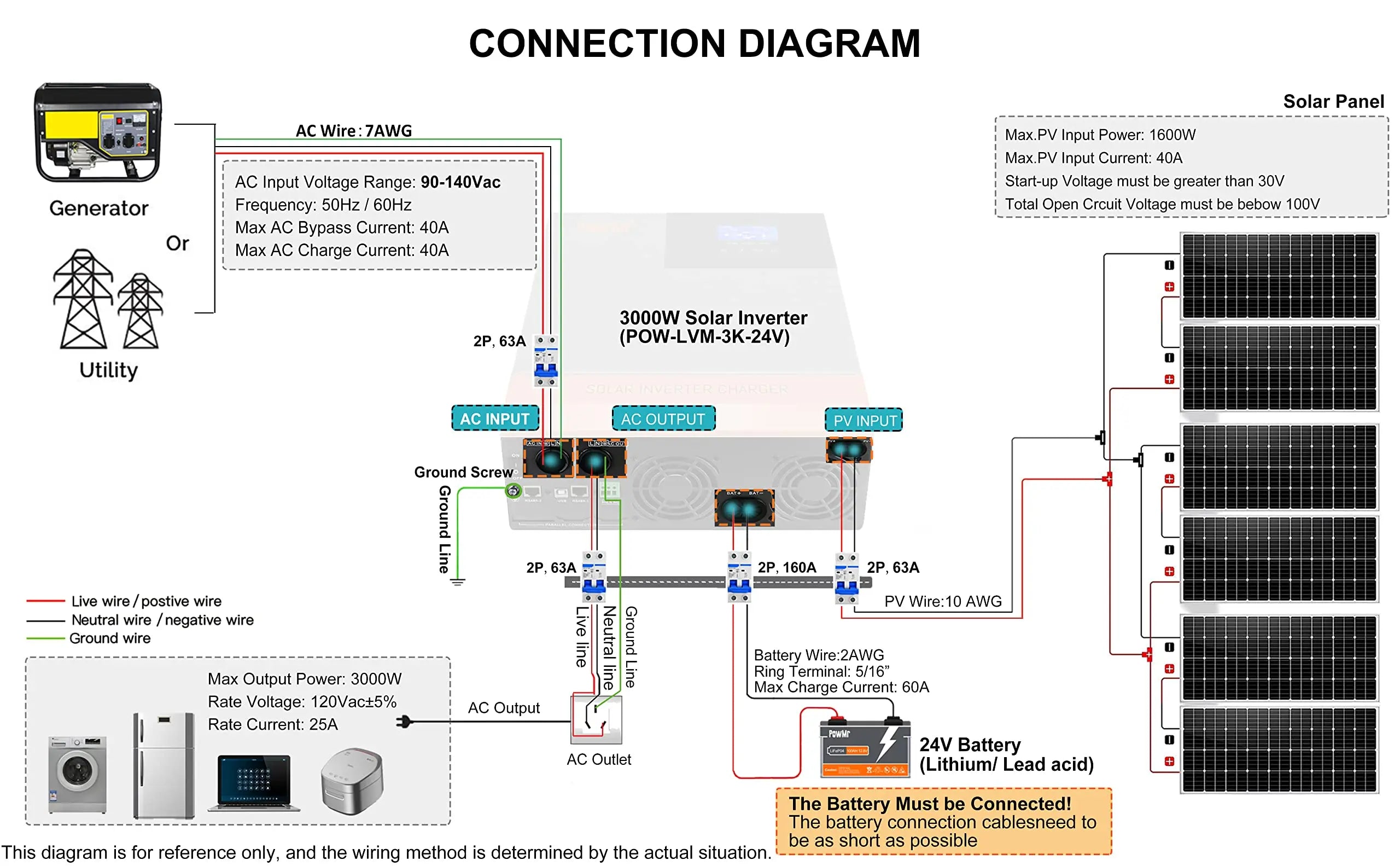

It is a Hybrid Solar Inverter with 110V, which integrates solar energy storage &means charging energy storage and AC sine wave output. A bi-directional DC-DC converter supplies it, which can either charge the battery when excess solar power is available or convert from the battery when it is needed.

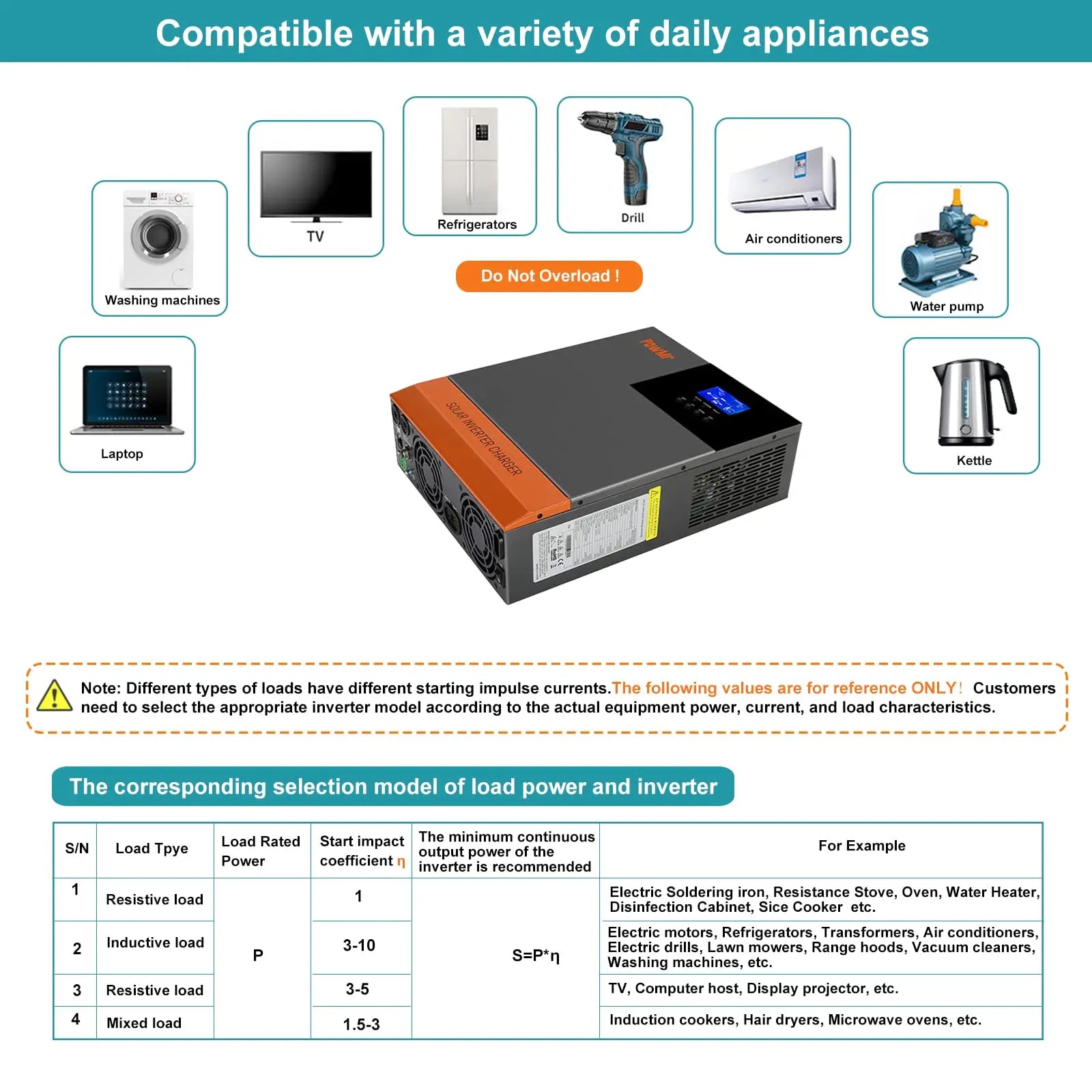

Can be accessed by a variety of household appliances and office loads, power tools, industrial equipment, and electronic audio and video equipment, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads
Features:
Full digital voltage, current double closed-loop control, advanced SPWM technology, and pure sine wave output.
Lithium battery activation by PV solar or mains, allowing access to the lead-acid battery and lithium batteries.
Two output modes: mains bypass and inverter output; uninterrupted power supply. (Load Working Mode can set Solar or Utility to provide priority )

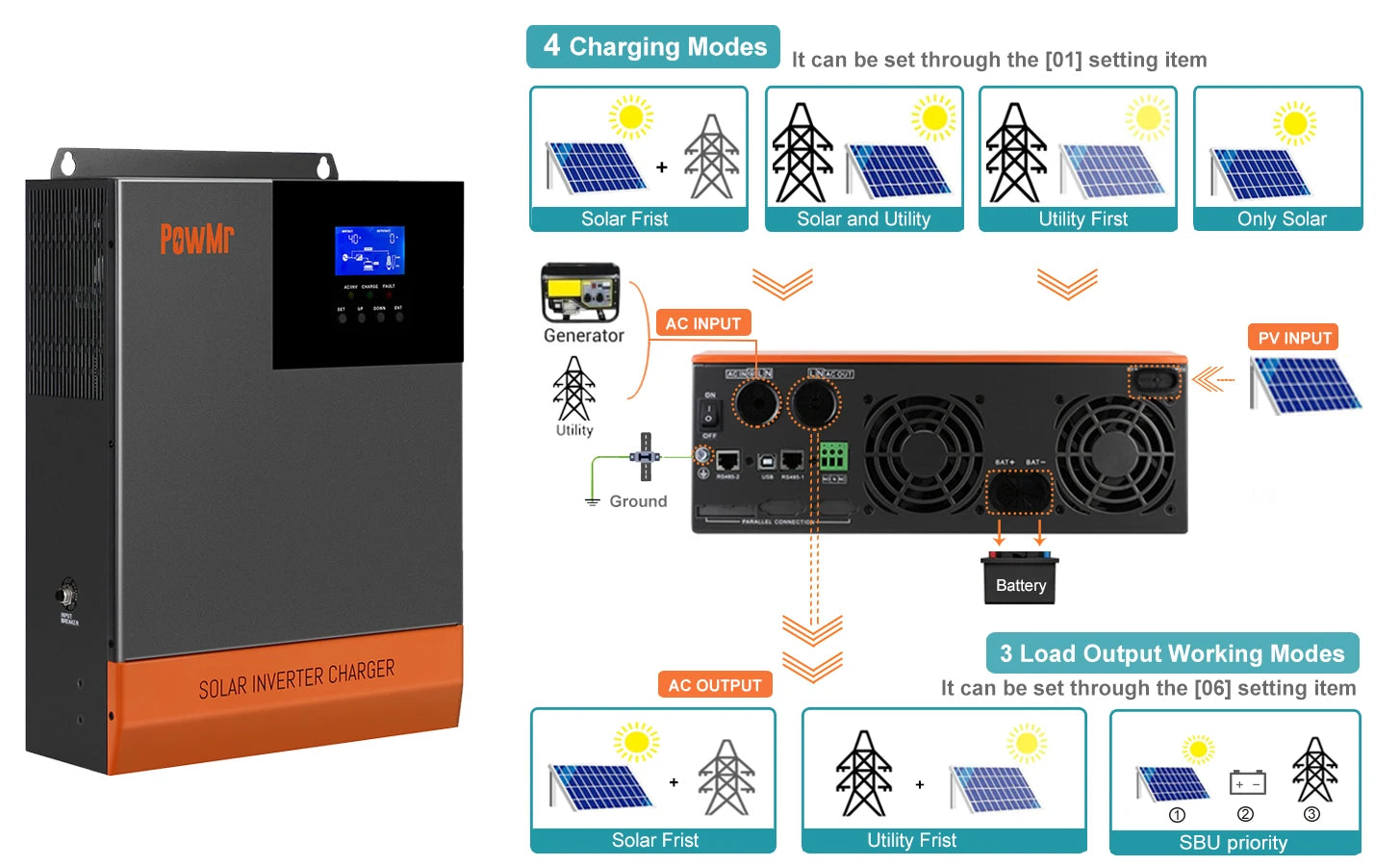

Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid charging, and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.
Advanced MPPT technology with an efficiency of 99.9%. Built-in 80amp MPPT controller

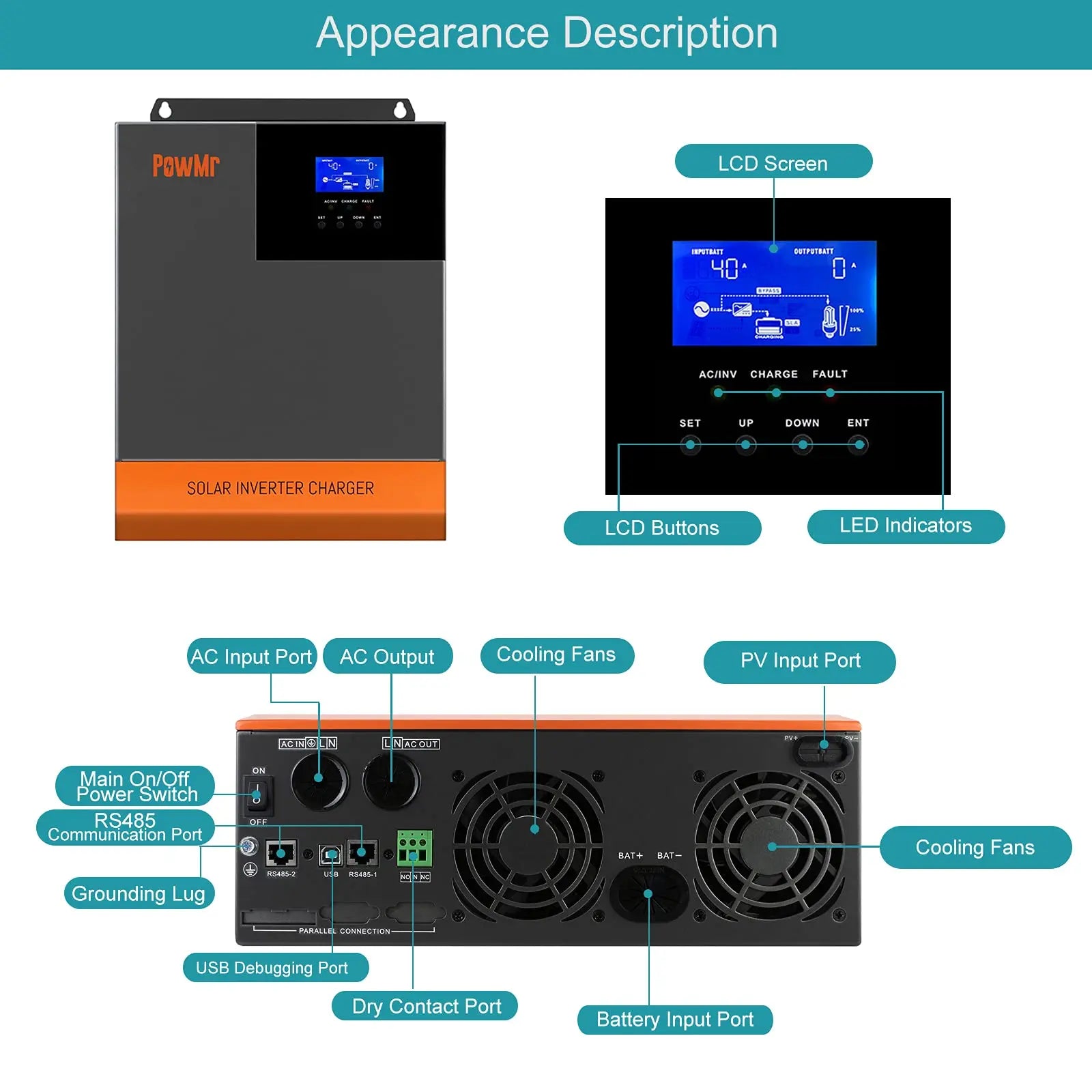

It is designed with an LCD screen and 3 LED indicators for a dynamic display of system data and operating status.
Power saving mode available to reduce no-load loss.
Intelligent variable speed fan to efficiently dissipate heat and extend system life.
ON/OFF rocker switch for AC output control.
Complete protections, including short circuit protection, over-voltage and under-voltage protection, overload protection, reverse protection, etc.
Technical Specifications | |||
Model |
3KW 24V |
3.5KW 48V |
5KW 48V |
Utility/Grid |
|||
Rated input Voltage |
110/120Vac |
||
Input voltage range |
(90Vac~140Vac) ±2% |
||
Frequency |
50Hz/ 60Hz (auto detect) |
||
Max Bypass Current load |
40A |
40A |
63A |
Inverter |
3KW 24V |
3.5KW 48V |
5KW 48V |
Waveform |
Pure Sine Wave |
||
Rated Output (VA) |
3000VA |
3500VA |
5000VA(4100/4300/4500VA) |
Rated Output (W) |
3000W |
3500W |
5000W(4100/4300/4500W) |
Peak power |
6000W |
7000W |
10000W |
Motor Capability |
2HP |
2HP |
4HP |
Rated Battery Voltage |
24V (Min Start-Up Voltage 22V) |
48V (Min Start-Up voltage 44V) |
|
Power Saving Mode Self-Consumption |
≤50W |
||
Output AC Voltage |
120Vac±5% |
120Vac±5% |
120Vac(100/105/110Vac Settable) |
Utility/Grid Charging |
3KW 24V |
3.5KW 48V |
5KW 48V |
Battery type |
Lead Acid or Lithium |
||
Maximum Charging Current (AC) |
40A |
||
Charging Voltage Range |
20 – 33Vdc |
40–60Vdc |
|
Overcharge Protection |
Yes; Automatically alerts and then turns off charging after 1 minute |
||
Solar (PV) Charging |
3KW 24V |
3.5KW 48V |
5KW 48V |
Recommended PV Max |
100Vdc |
145Vdc(150Vdc Actual) |
500Vdc |
Maximum Input Power |
1600W |
4400W |
5500W |
Maximum Input Current |
60A |
80A |
80A |
Maximum Output Power |
1400W |
4200W |
5000W |
PV Charging Current Range |
0-60A |
0-80A |
|
General |
3KW 24V |
3.5KW 48V |
5KW 48V |
Noise |
≤60dB |
||
Cooling |
Fans, Forced cooling with adjustable air speed |
