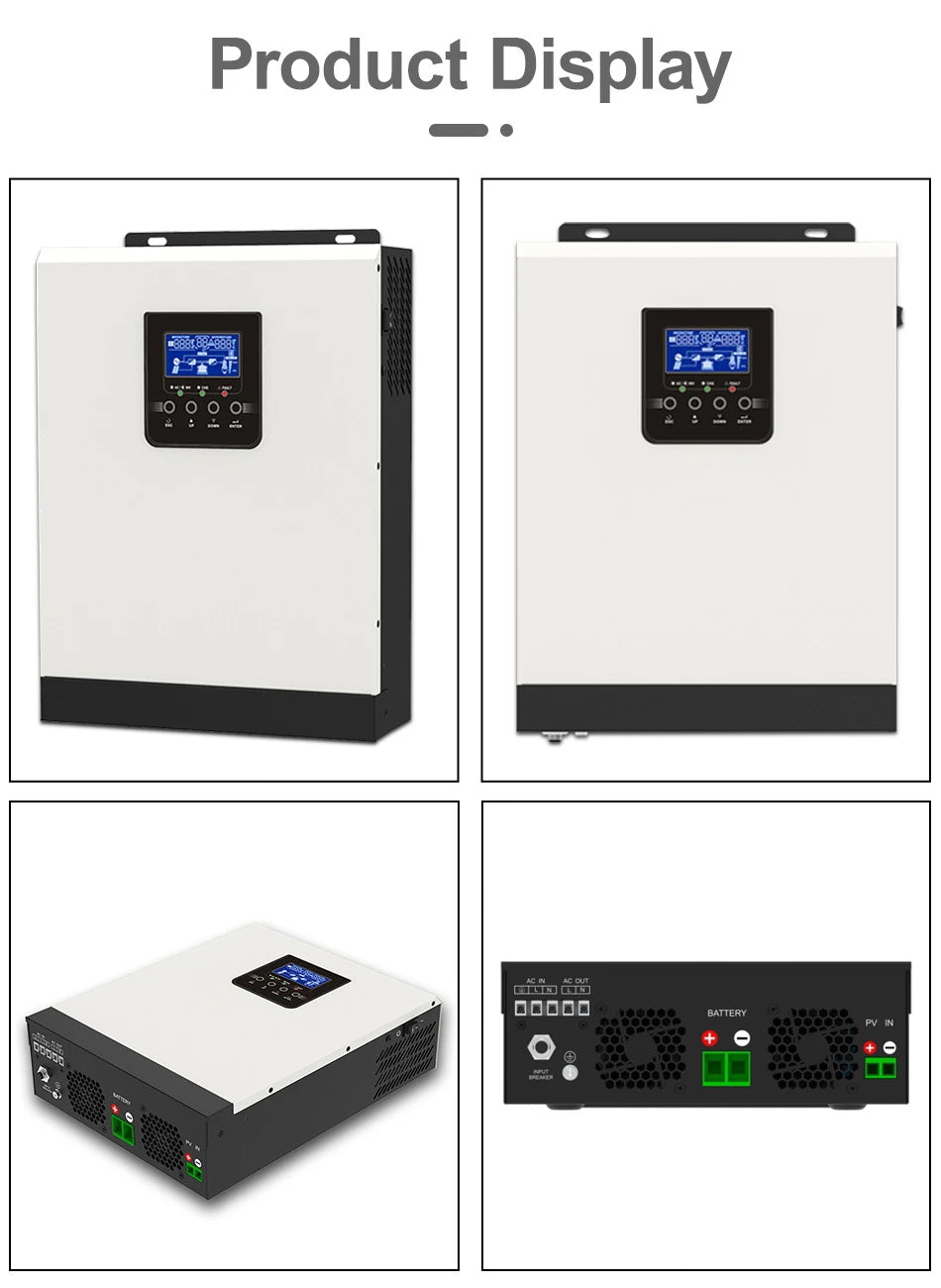

PowMr 2.4KW Hybrid Inverter 24V 3KVA Solar Inverter Pure Sine Wave MPPT PWM 70A 80A 230VAC 50Hz/60Hz Inversor
PowMr 2.4KW Hybrid Inverter 24V 3KVA Solar Inverter Pure Sine Wave MPPT PWM 70A 80A 230VAC 50Hz/60Hz Inversor
92 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 6.5KG
Wave form: Pure sine wave
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
Size: 42.5X35.5X19.5CM
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50/60Hz
Output Current: MPPT PWM 70A 80A
Origin: Mainland China
Model Number: HS-3K-24V
Is Smart Device: YES
Certification: CE,FCC,RoHS
Brand Name: PowMr
Battery voltage: 24VDC
Escape the Hassle of Power Cuts
NOTICE:
The equipment software is currently upgraded to be available via internet download and the actual package does not include the CD!!!Software Download Link, https://www.mediafire.com/file/5arbrngeysfo29i/HPS%25E5%2585%2589%25E7%259B%2598%25E5%2586%2585%25E5%25AE%25B9.zip/file

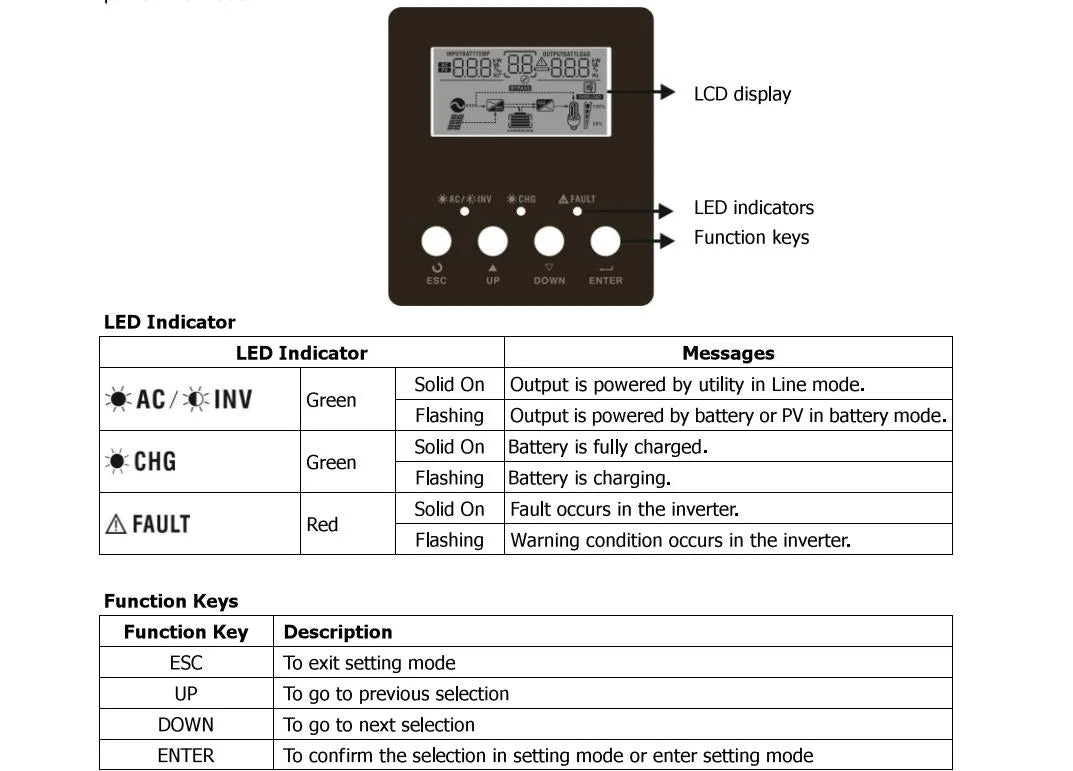

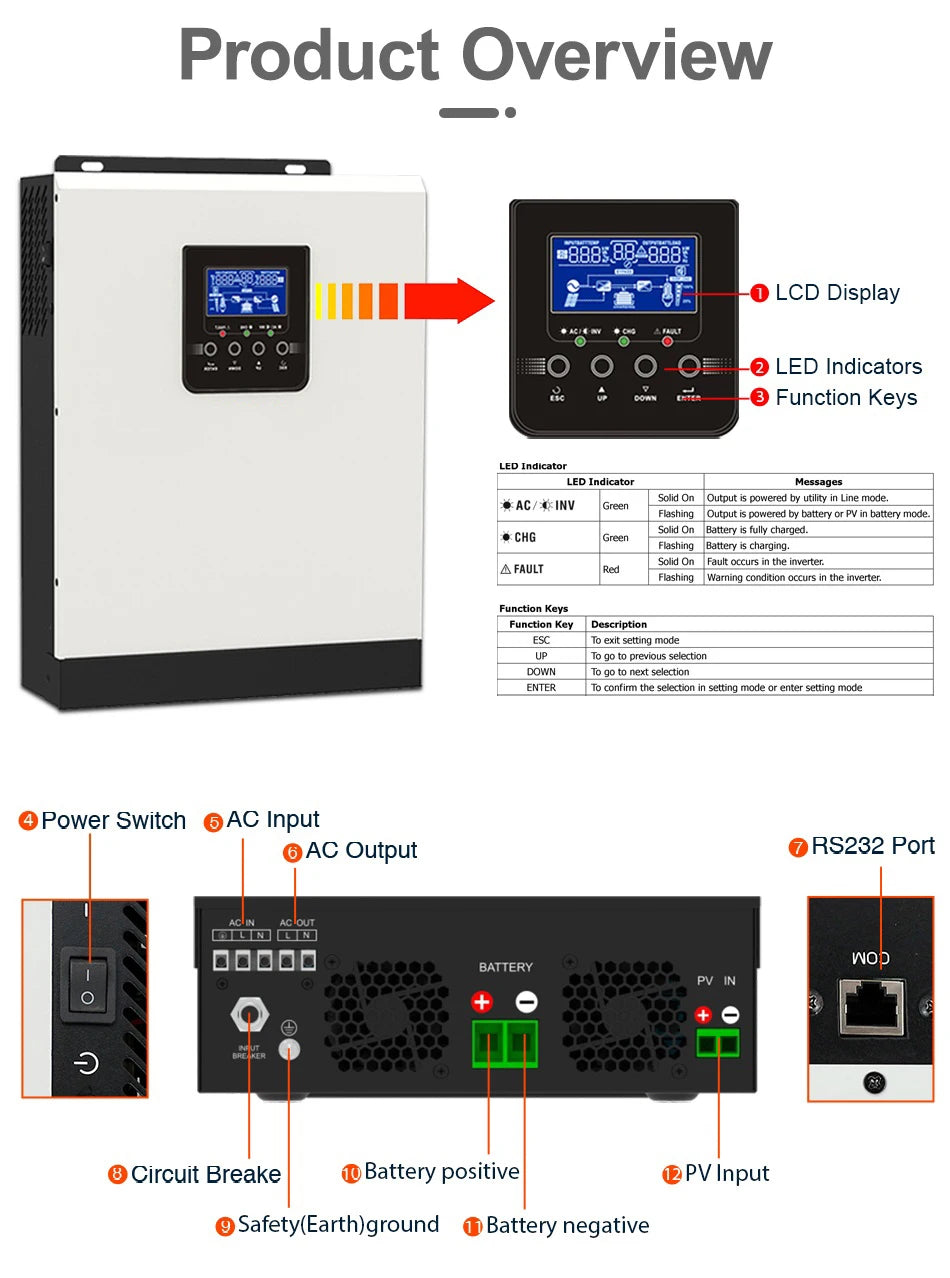

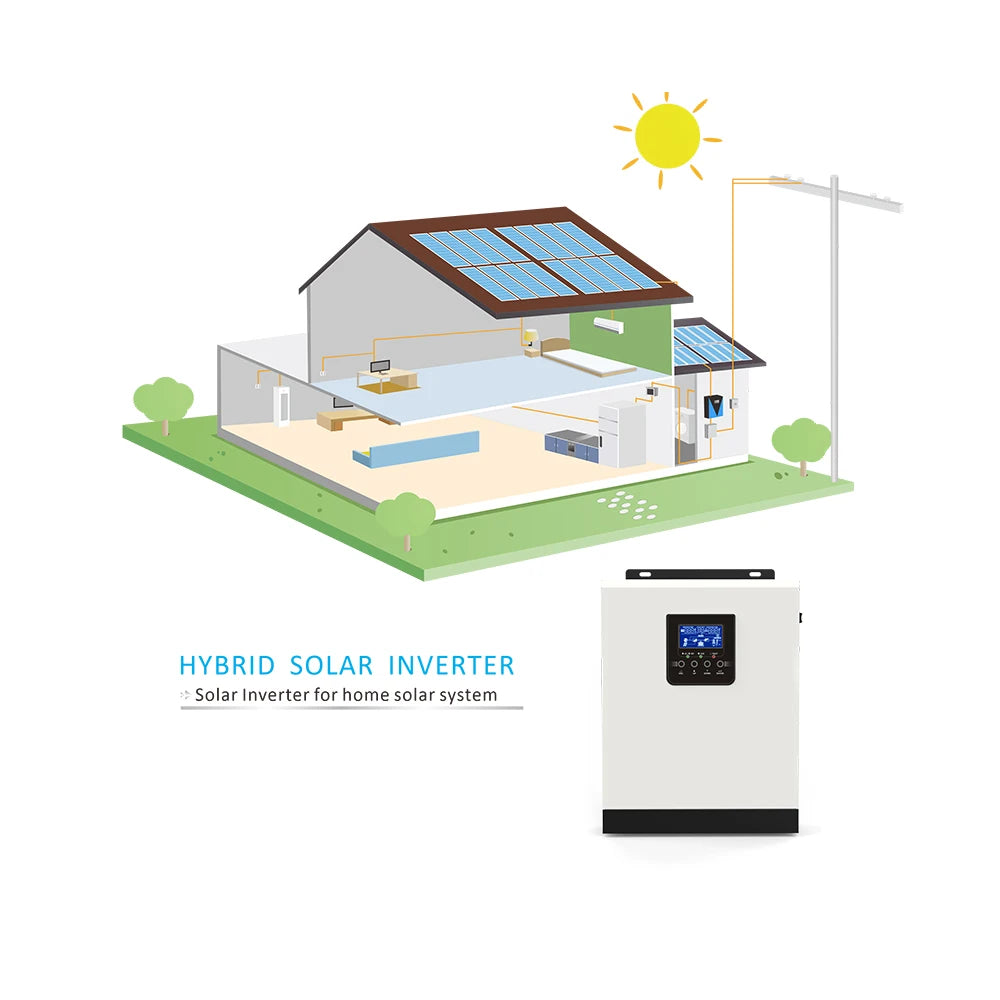

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
●Pure sine wave inverter
●Buit-in MPPT solor charge controlier
●Selectable input voltage range for home appliances and personalcomouters.
●Selectable charging current based on applications
●Configurable AC/Solar input priority via LCD setting
●Compatible to mains voltoge or generotor power
●Auto restart while AC is recovering
●Overfoad ond short circuit protection
●Smart battery charger design for optimized battery performance
●Cold start funtion
INVERTER MODEL |
MPPT SOLAR INVERTER |
PWM SOLAR INVERTER |
Rated Out Power |
24V |
24V |
Charging Current |
40A MAX |
50A MAX |
MAX PV Array Open Circuit Voltage |
102V |
80Vdc |
MAX Charging Current(Utility Charging+Solar Charging) |
70A |
80A |
INVERTER MODE |
24V 3KVA |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Nominal Input Frequency |
50Hz/ 60Hz(Auto detection) |
|
Rated Output Power |
2400W |
|
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Peak Efficiency |
95% |
|
Nominal DC Input Voltage |
24Vdc |
|
Cold Start Voltage |
23.0Vdc |
|
High DC Cut-Off Voltage |
31Vdc |
|
No Load Power Consumption |
<20W |
|
Saving Mode Power Consumption |
<10W |
|
Utility Charging Mode |
||
Charging Algorithm |
3-Step |
|
AC Charging Current |
20/30Amp(@V I/p=230Vac) |
