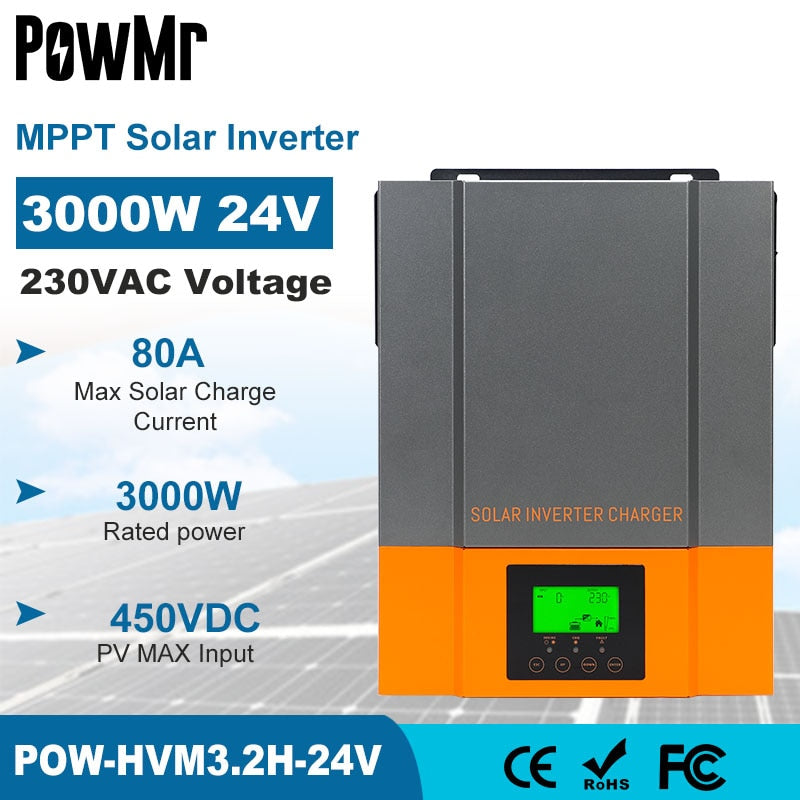

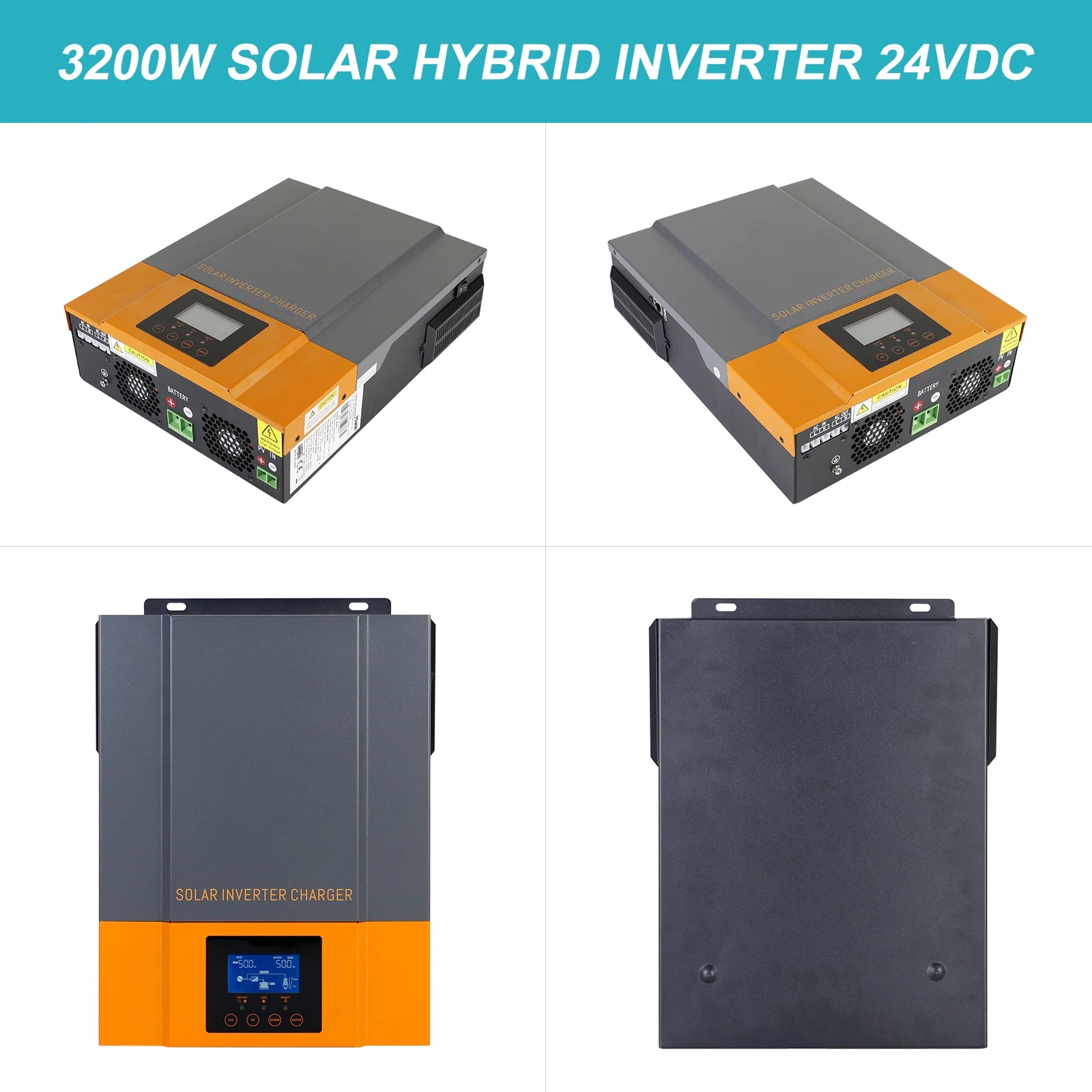

PowMr 3200VA 3000W Solar Inverter 24V Built in MPPT 80A Solar Controller 230VAC Out-put Voltage Max PV 450VDC Support WIFI
PowMr 3200VA 3000W Solar Inverter 24V Built in MPPT 80A Solar Controller 230VAC Out-put Voltage Max PV 450VDC Support WIFI
13 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 5.8KG
System Configuration:: Hybrid Solar Inverter
Size: 348*270*95mm
Rated Load Power:: 3200W
Output Voltage:: 230Vac
Output Voltage Waveform:: Pure Sine Wave
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/ 60Hz (Auto-detection)
Output Current: MPPT 80A
Origin: Mainland China
Model Number: POW-HVM3.2H-24V
Max. PV Array Open Voltage:: 500Vdc
Max Solar Panel Input Power:: 3000W
Is Smart Device: YES
Certification: CE,FCC,RoHS
Brand Name: PowMr

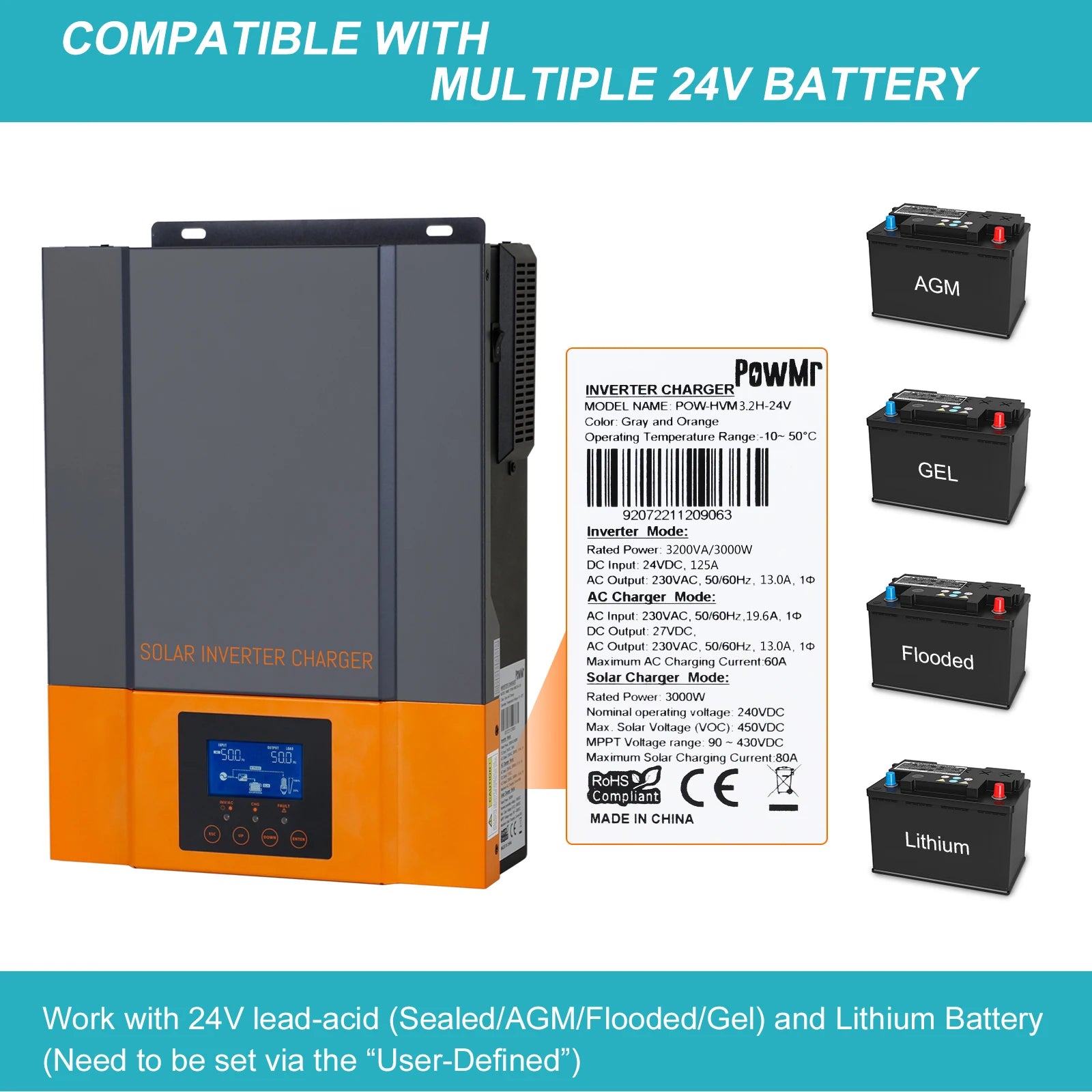

Battery Type 2:: Lead-acid Batteries, AGM Batteries
Battery Type 1:: Lithium Batteries, Flooded Batteries, Gel Batteries
Feature:
1.Pure sine wave inverter

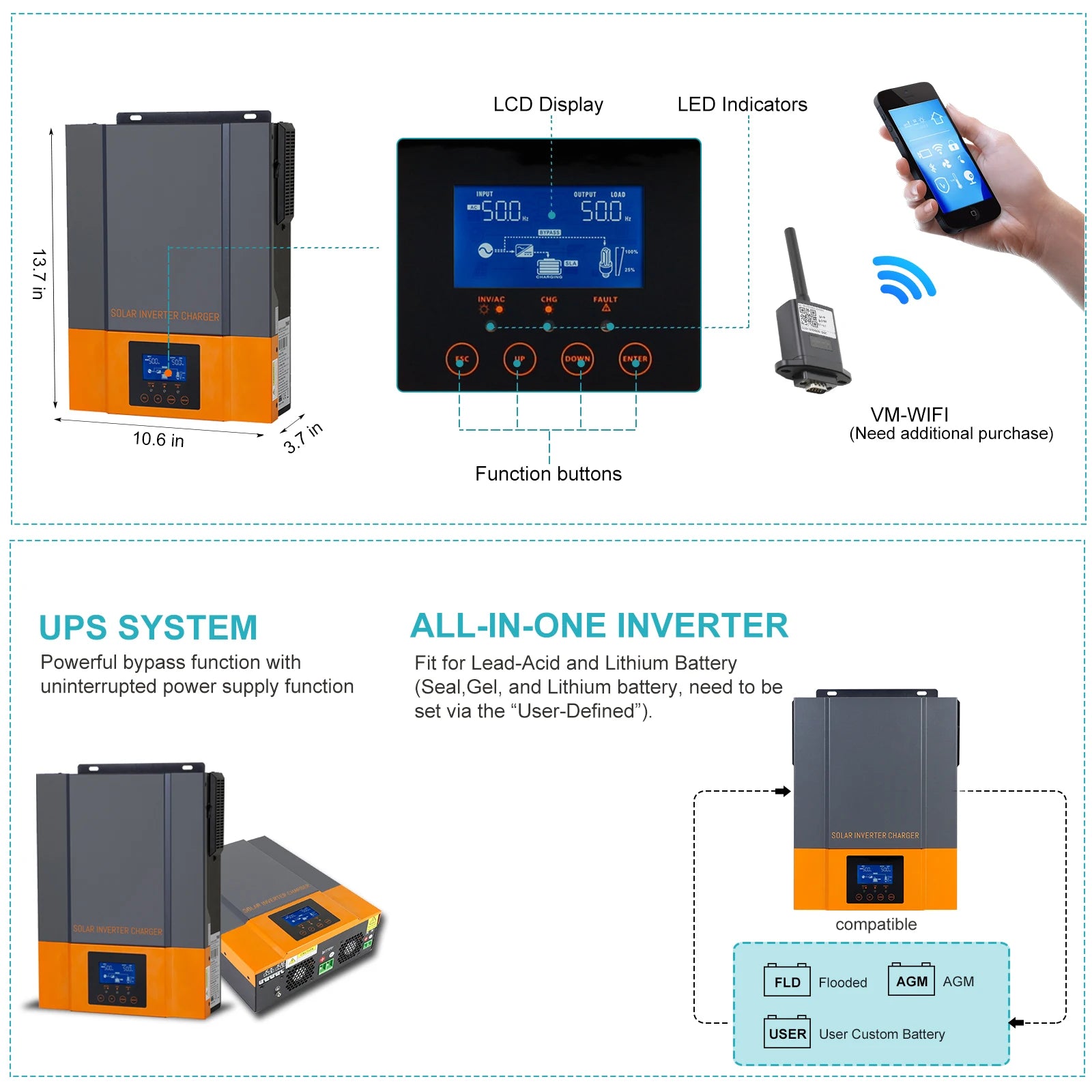

2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
10.WIFI/GPRS(Option)
11.Can connect to lithium battery
MODEL |
POW-HVM3.2H-24V |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
Nominal Input Voltage |
230Vac |
Max AC Input Voltage |
300Vac |
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
Output Short Circuit Protection |
Circuit Breaker |
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
Rated Output Power |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
Peak Efficiency |
94% |
Nominal DC Input Voltage |
24Vdc |
Utility Charging Mode | |
Charging Algorithm |
3-Step |
AC Charging Current (Max) |
60 Amp |
Bulk Charging Voltage | |
Flooded Battery |
29.2 |
AGM / Gel Battery |
28.2 |
Floating Charging Voltage |
27.0Vdc |
MPPT Solar Charging Mode | |

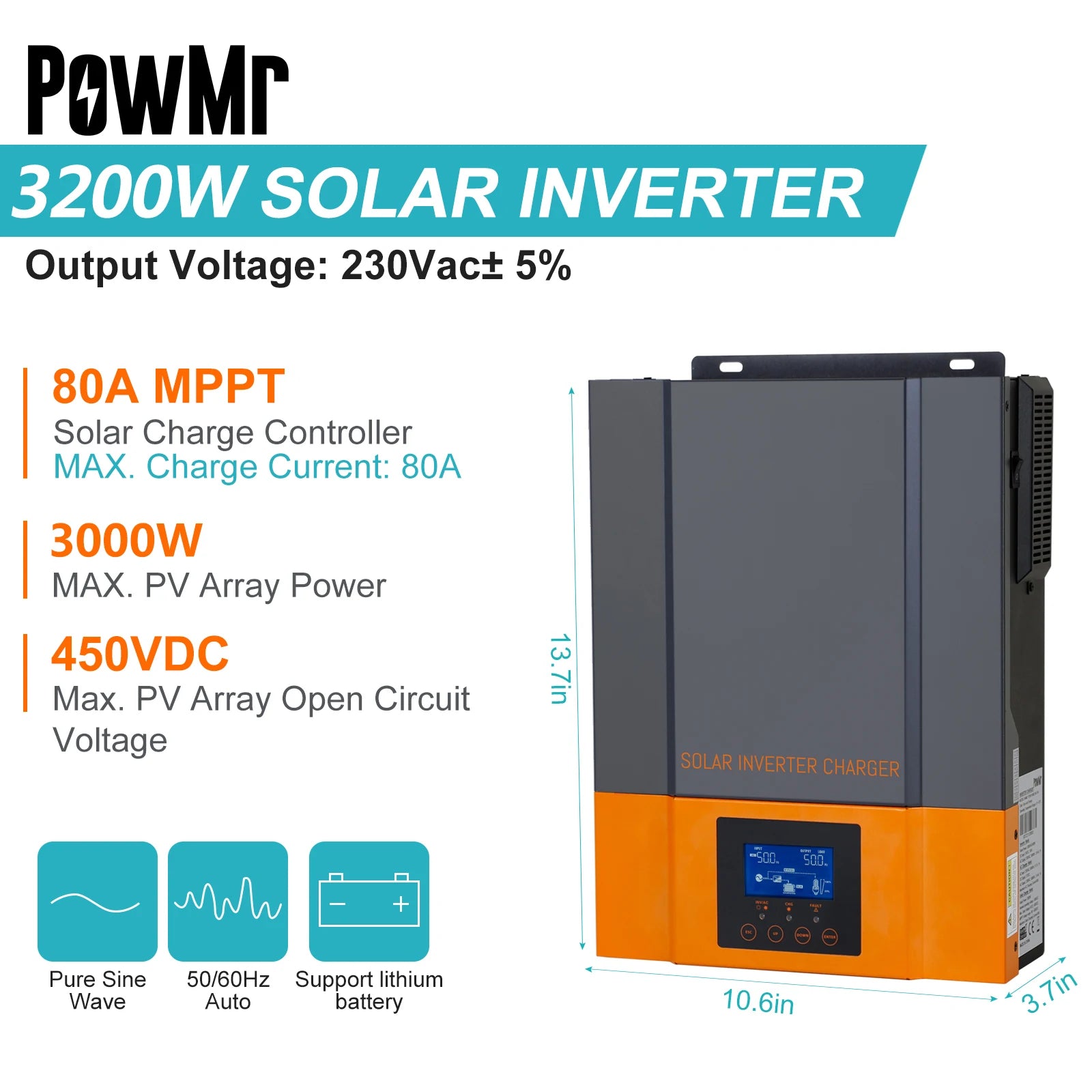

Max. PV Array Power |
3000W |
Nominal PV Voltage |
240Vdc |
PV Array MPPT Voltage Range |
90~430Vdc |
Max. PV Array Open Circuit Voltage |
450Vdc |
Max Charging Current (AC charger plus solar charger) |
80Amp |

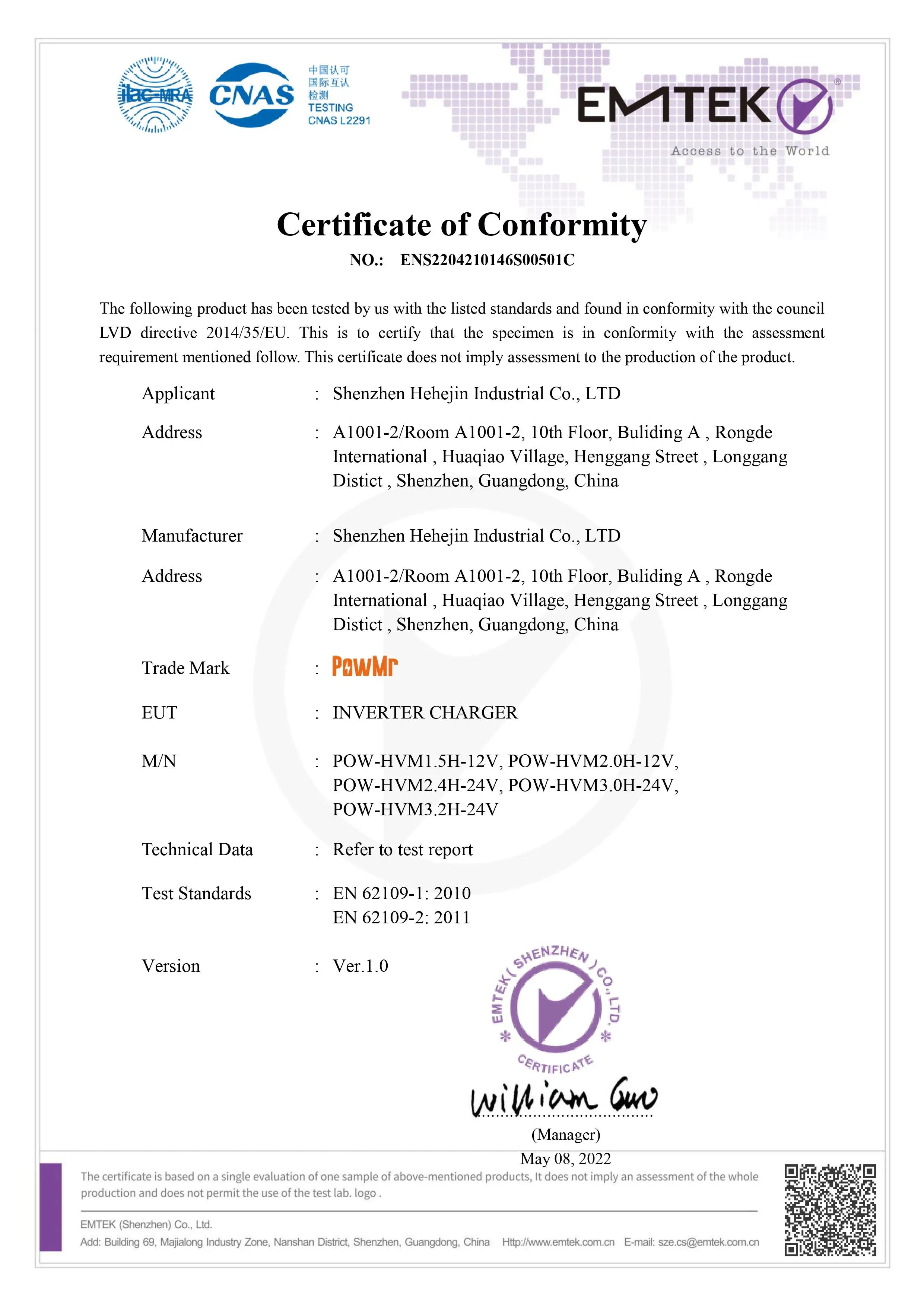

Safety Certification |
CE |
Operating Temperature Range |
-10°C to 50°C |
Storage temperature |
-15°C~ 60° C |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
Dimension (D*W* H), mm |
348X270X95 |
Net Weight, kg |
6.5 |
