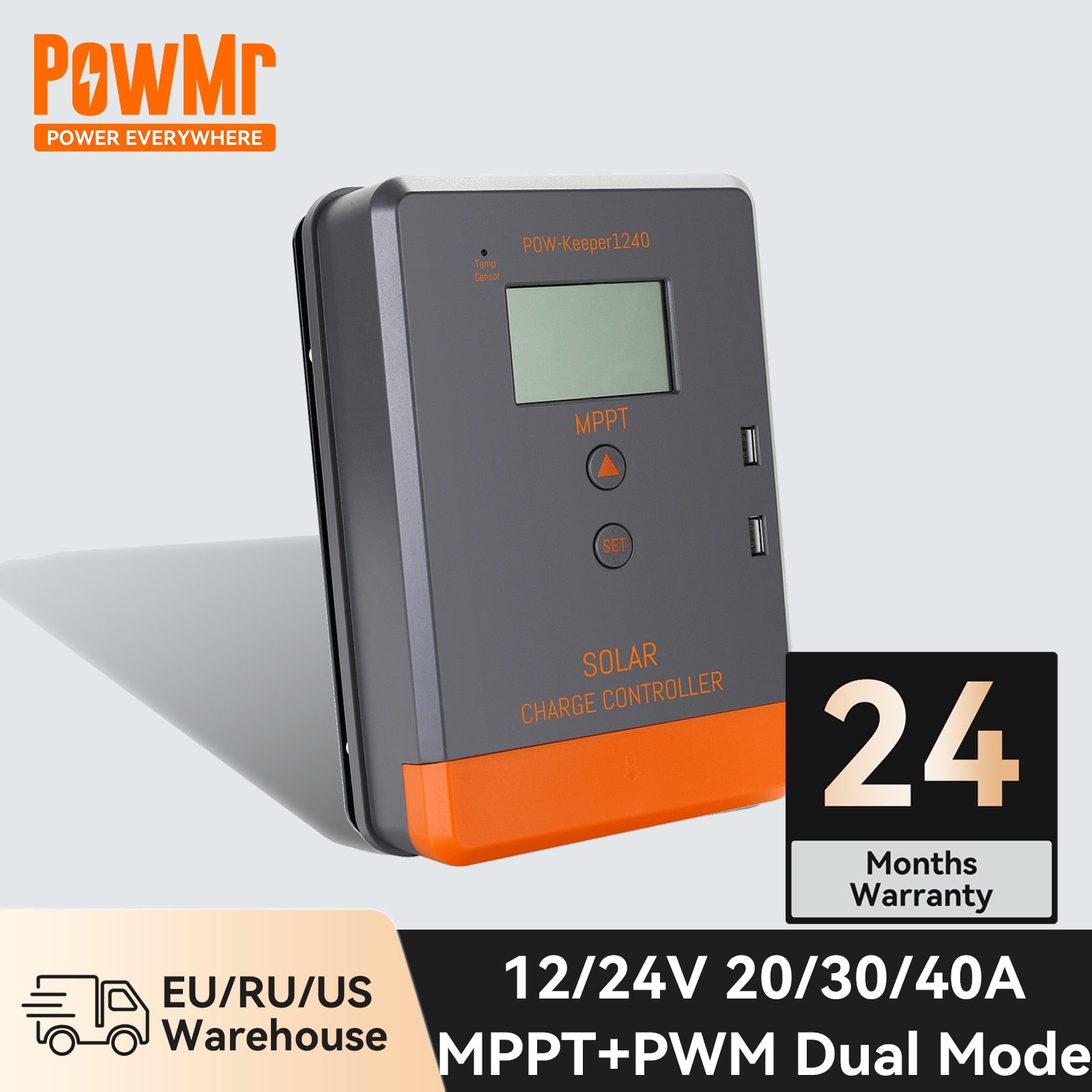

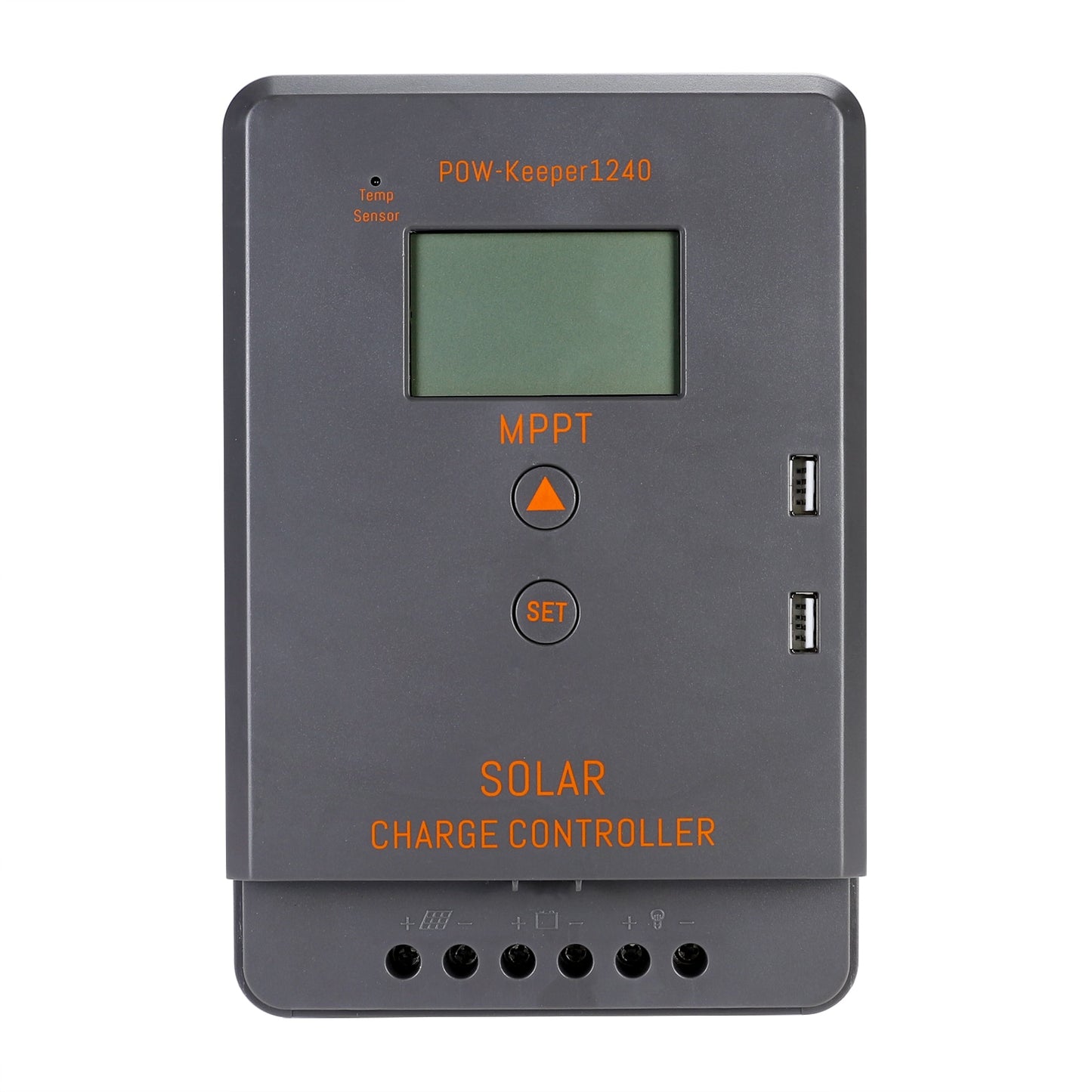

PowMr 40A 20A 30A Solar Charge Controller 12V 24V MPPT PWM Dual Mode Solar Charge Regulator to Lead Acid Lifepo4 Lithium Battery
PowMr 40A 20A 30A Solar Charge Controller 12V 24V MPPT PWM Dual Mode Solar Charge Regulator to Lead Acid Lifepo4 Lithium Battery
199 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Type: MPPT Solar Charge Controller
Protection Class: IP30
Origin: Mainland China
Model Number: POW-Keeper20/30/40A
Maximum Current: 20A/30A/40A
Max PV Input: 55V 75V 100V
Is Smart Device: YES
High voltage disconnection(HVD): 16V(24V*2)
Feature 4: Support PC monitor
Feature 3: LCD Disply
Feature 2: Various load control modes
Feature 1: Real-time data
Current: MPPT 20A 30A 40A
Certification: CE,FCC,RoHS
Brand Name: PowMr
Battery Voltage: 12/24V 12V 24V Auto work
Battery Type: Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process
Application: Charger Controller,Solar System Controller
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
$69-$10 CODE NAME: HBD10

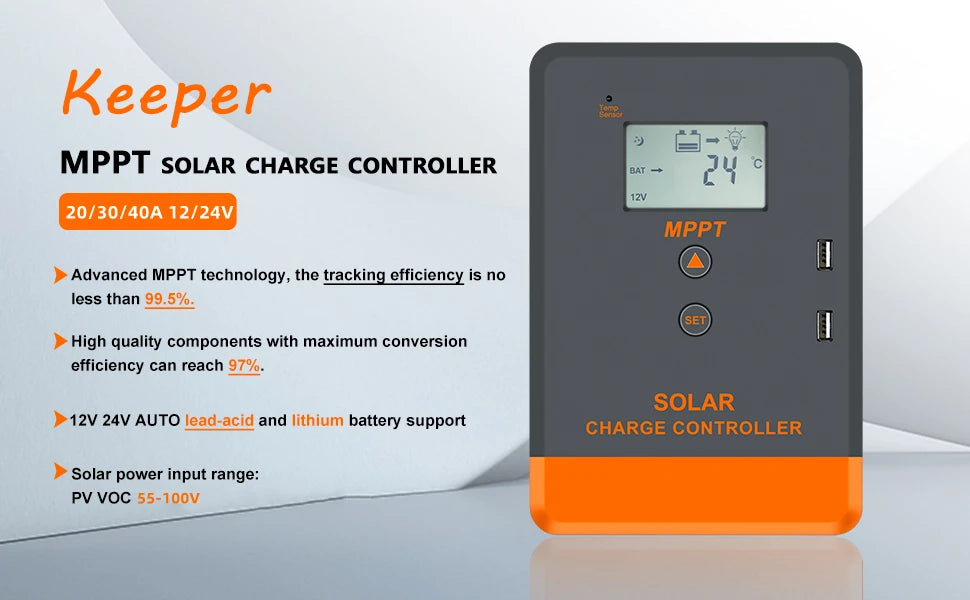

MPPT+PWM Dual Mode Solar Controller POW-KEEPER Series
Advanced MPPT maximum power point tracking technology charge controller with tracking efficiency is no less than 99.5%.
High quality components solar charger the maximum conversion efficiency can reach97%.
Super fast maximum power tracking speed controller while ensuring tracking efficiency.
Accurate identification and tracking of the maximum power point of multi-wave peak.
Reliable maximum input power of PV array to ensure the safety of equipment.
12 24v AUTO voltage identification, wide PV array maximum power point operating voltage range.
The charger's LCD is designed to dynamically display the operation data and working status of the equipment.
Various load control modes: general mode, light control mode, dual-time mode, pure charger mode and timing mode.
Lead-acid and lithium charging processes can be selected.
Dual USB port charging
NOTE: The controller will start PWM function at high voltage disconnection (HVD) voltage point, which limits voltage rising to protect battery.
Rated Charge Current |
20A |
30A |
40A |
System rated voltage |
12V/24VAuto work |
||
Voltage range of battery |
8-32V |
||
Max open voltage of PV module |
55V |
75V |
100V |
Battery Type |
User default，Sealed，Flooded，GEL，LiFePO4 |
||
Equalized charging voltage |
Maintenance-fee lead acid battery 14.6V, GEL: No; Lead acid flooded battery:14.8V |
||
Absorption charging voltage |
Maintenance-fee lead acid battery 14.4V, GEL:14.2; Lead acid flooded battery:14.6V |
||
Floating charging voltage |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:13.8V |
||
Low voltage re-connection(LVR) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:12.6V |
||
Low voltage disconnection(LVD) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:10.8V |
||
Static loss |
≤9.2mA 12V; ≤11.7mA24V |
||
High voltage disconnection(HVD) |
16V(24V×2) |
||
Duration of absorption charging |
2 Hours |
||
Light control voltage |
5V |
||
Charge loop voltage drop |
≤0.29V |
||
LCD Temperature |
-20℃~+70℃ |
||
Operating Temperature |
-20℃~+55℃(To run at full rated current continuously) |
||
Working humidity |
≤95% No condensation |
||
Protection class |
IP30 |
||
Dimension(LxWxH)mm |
123×178×48 |
133×195×55 |
150×220×67 |
Installation hole size(LxW)mm |
108×120ȼ5 |
116×140ȼ5 |
132×130ȼ5 |

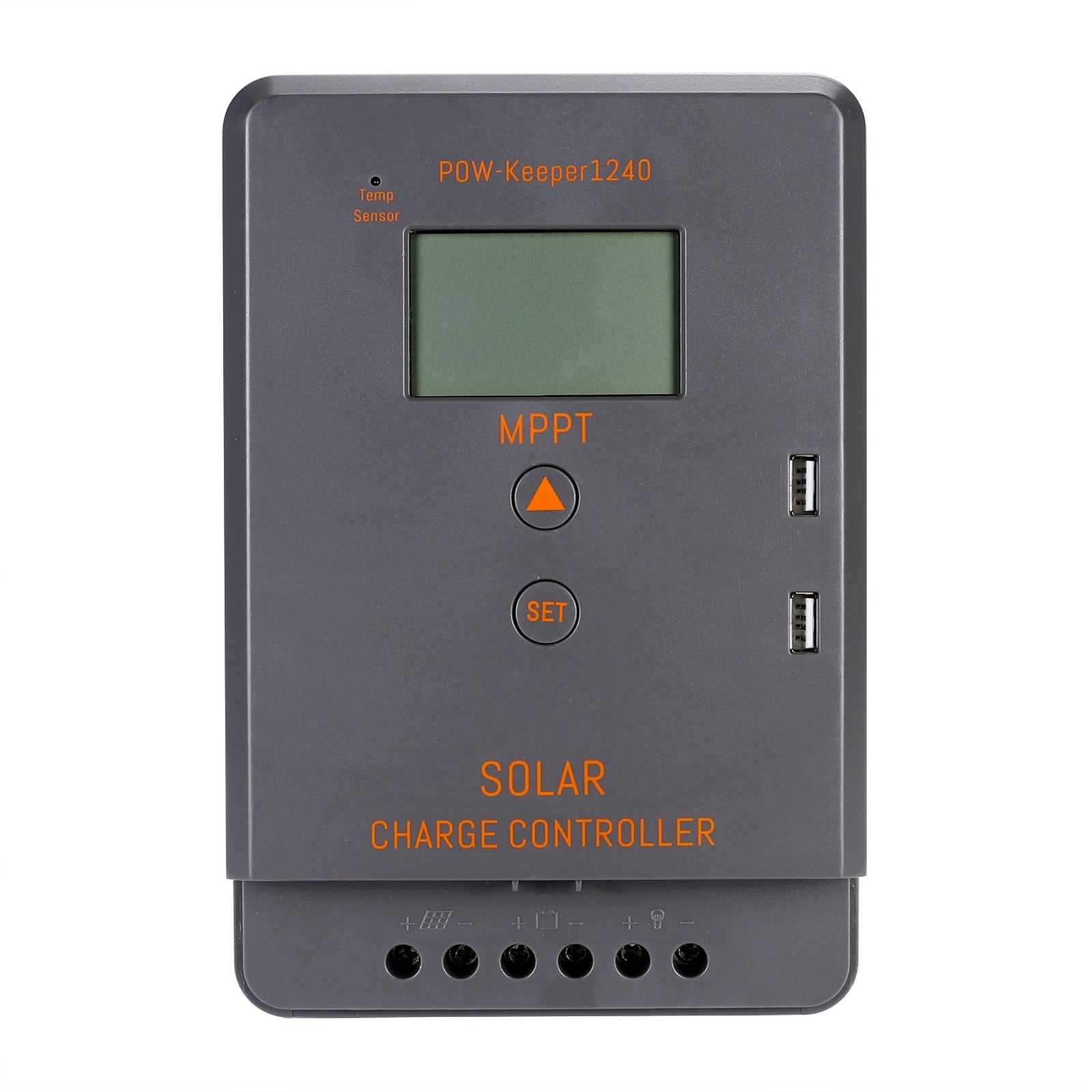

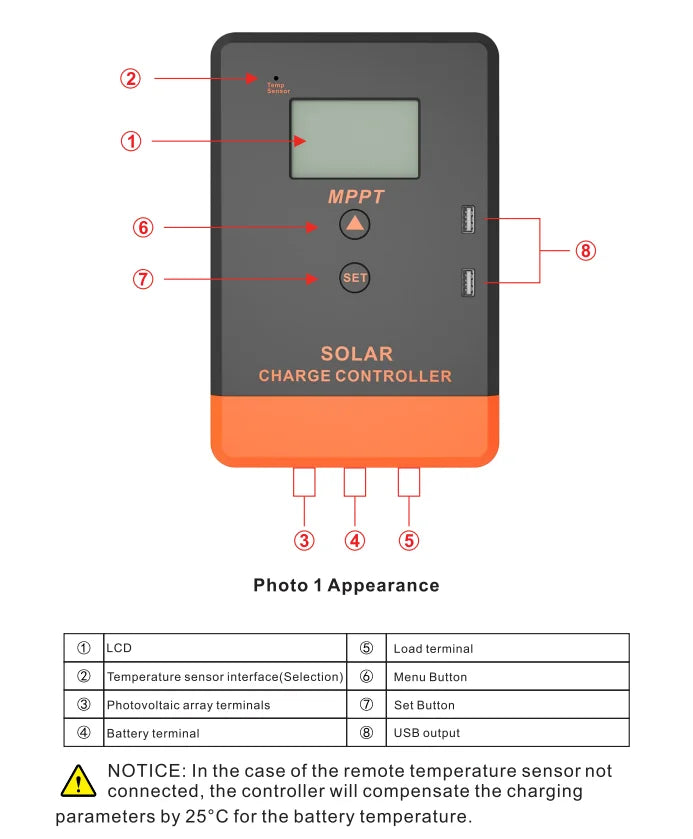

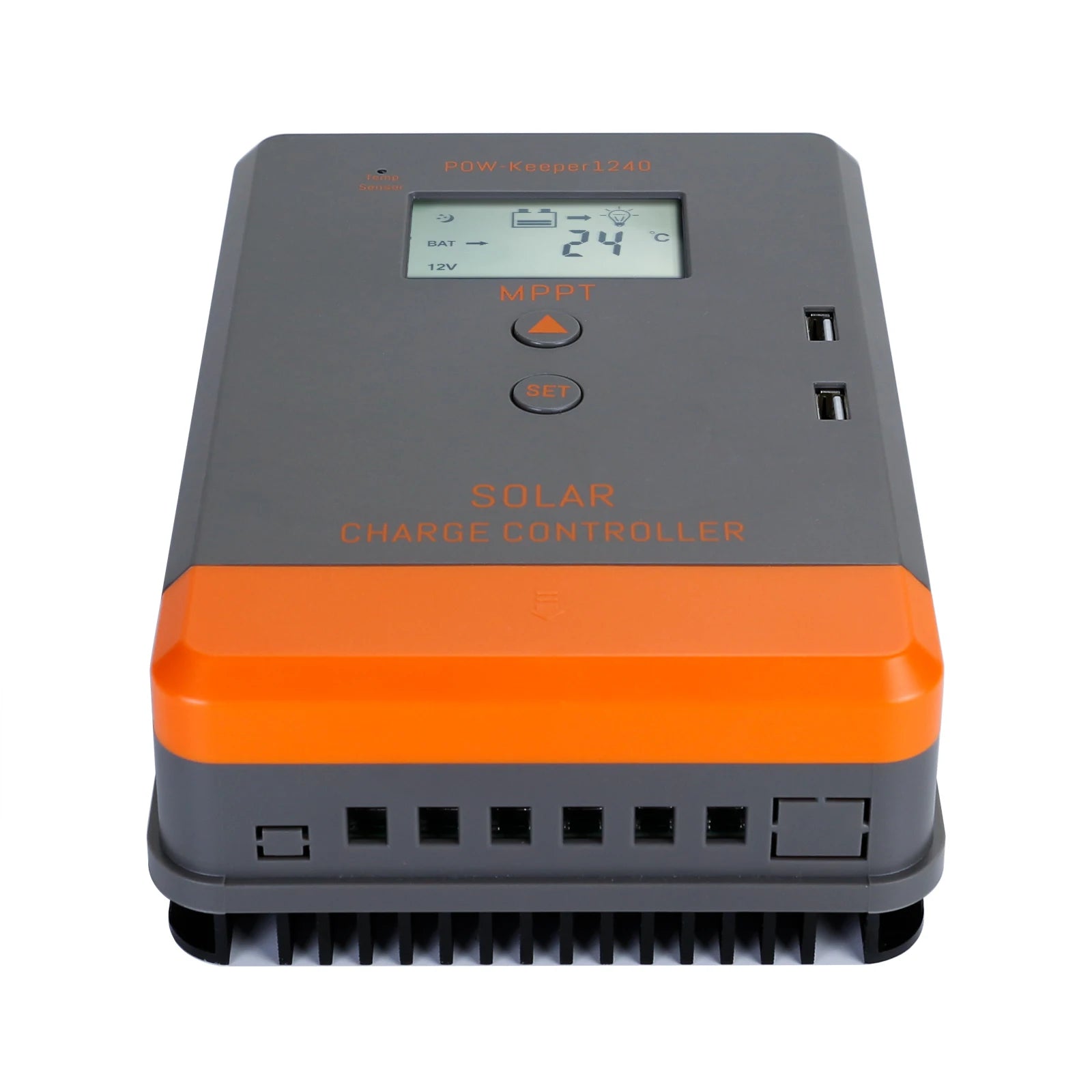

Clear display and Simple wiring to use

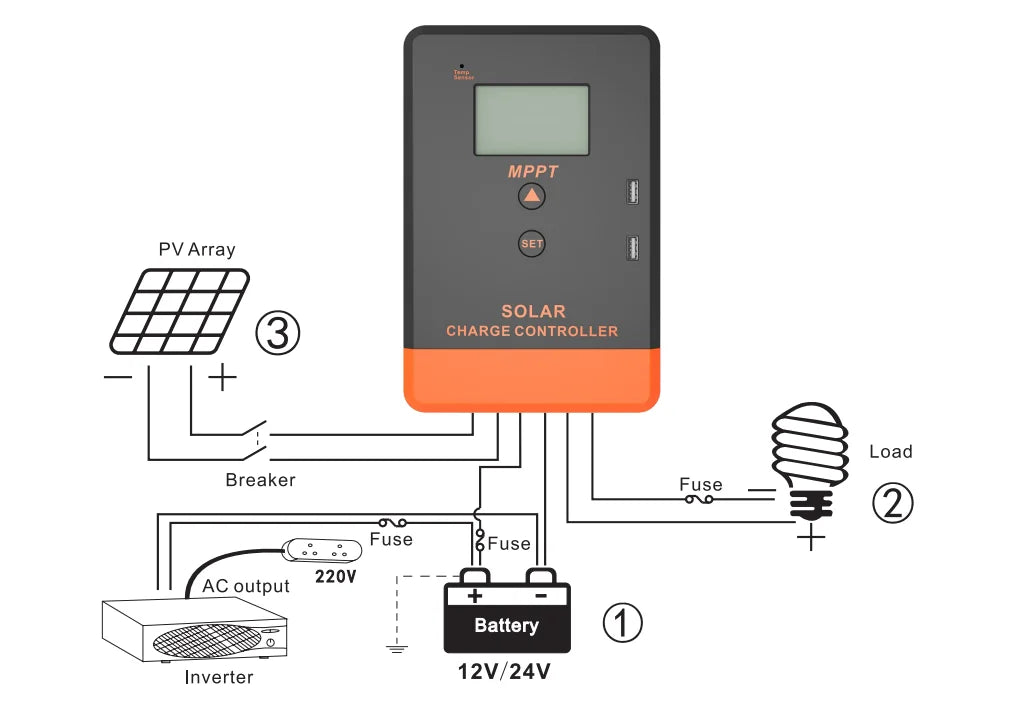

EASY WIRING: Press and push forward controller's cover first, then insert your battery cable and PV cable,
Clear display: Use Menu and Set, view controller's charging parameter.

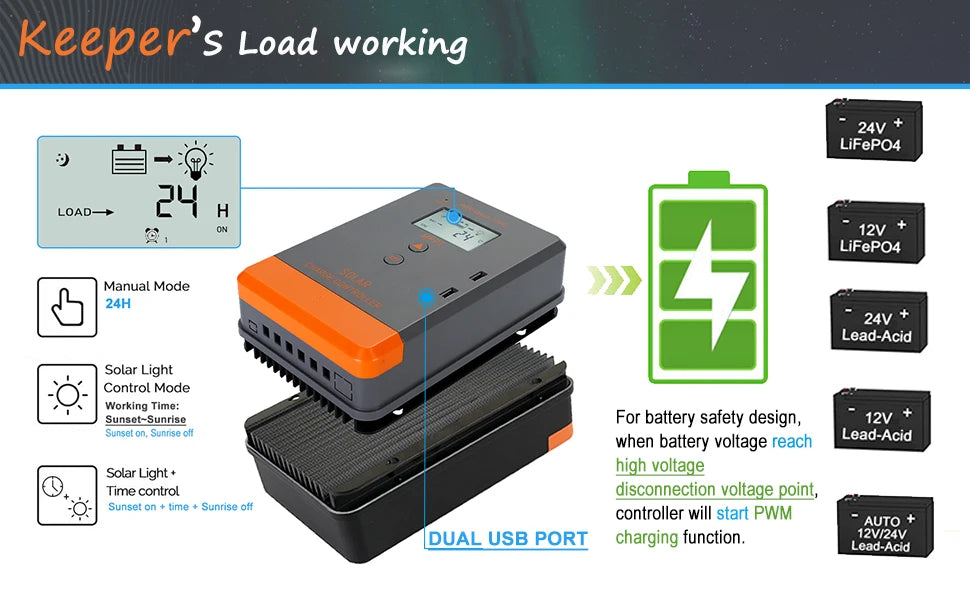

3 modes load working design:
Manual mode: you can turn on/off your LOAD manual.
Solar light control Mode: When PV voltage drop to 5V, controller is identified as sunset, then turns on the LOAD; Morning PV voltage raise to 5V, controller identified as Sunrise will turn off your Load.
Solar light+Time Control Mode: Sunset turns on Load, then set a working time, controller will turn off at specified time which set by yourself.
