PowMr 5000W 3000W Hybrid Solar Inverter 48V 24V 220V Pure Sine Wave Inverter with MPPT 80A Solar Charger Max PV Input 500VDC
PowMr 5000W 3000W Hybrid Solar Inverter 48V 24V 220V Pure Sine Wave Inverter with MPPT 80A Solar Charger Max PV Input 500VDC
26 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 9KG/10KG
Usage B: Solar Inverter 24V 48V
Usage A: inverter 3000W 5000W
Solar Charging: MPPT 80A
Size: 115 x 300 x 400cm
Power: 3000W/5000W
Output Voltage: 230VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ/60HZ (Auto)
Output Current: MPPT 80A
Origin: Mainland China
Max Solar Panel Watts Input: 500W
Max Solar Panel Voltage Input: 500VDC
Is Smart Device: YES
Function 5: inversor hibrido mppt
Function 4: inversor hibrido
Function 3: Hybrid Inverter
Function 2: inverter 24v 220v
Function 1: inverter 48v 220v
Description 1: inverter charger

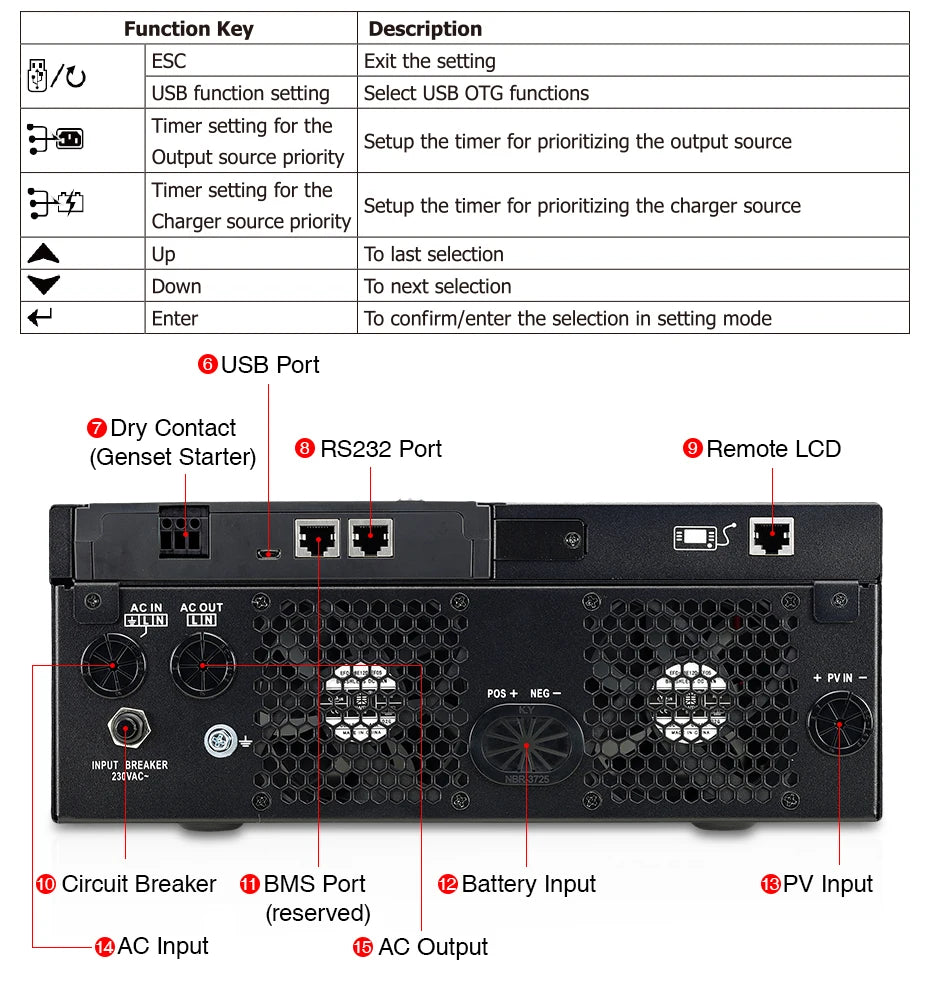

Communication Interface: USB/RS232/RS485/Dry-Contact
Communication: Bluetooth-compatible
Certification: CE
Brand Name: PowMr
Battery Voltage: 24V/48V
AC Charging: 60A
PowMr 5000W 3000W Hybrid Solar Inverter 48V 24V 220V Pure Sine Wave Inverter with MPPT 80A Solar Charger Max PV Input 500VDC
Features:
* Pure sine wave inverter
* Configurable input voltage range for home appliances and personal computers via LCD control pane
* Configurable battery charging current based on applications via LCD control panel
* Configurable AC/Solar Charger priority via LCD control panel

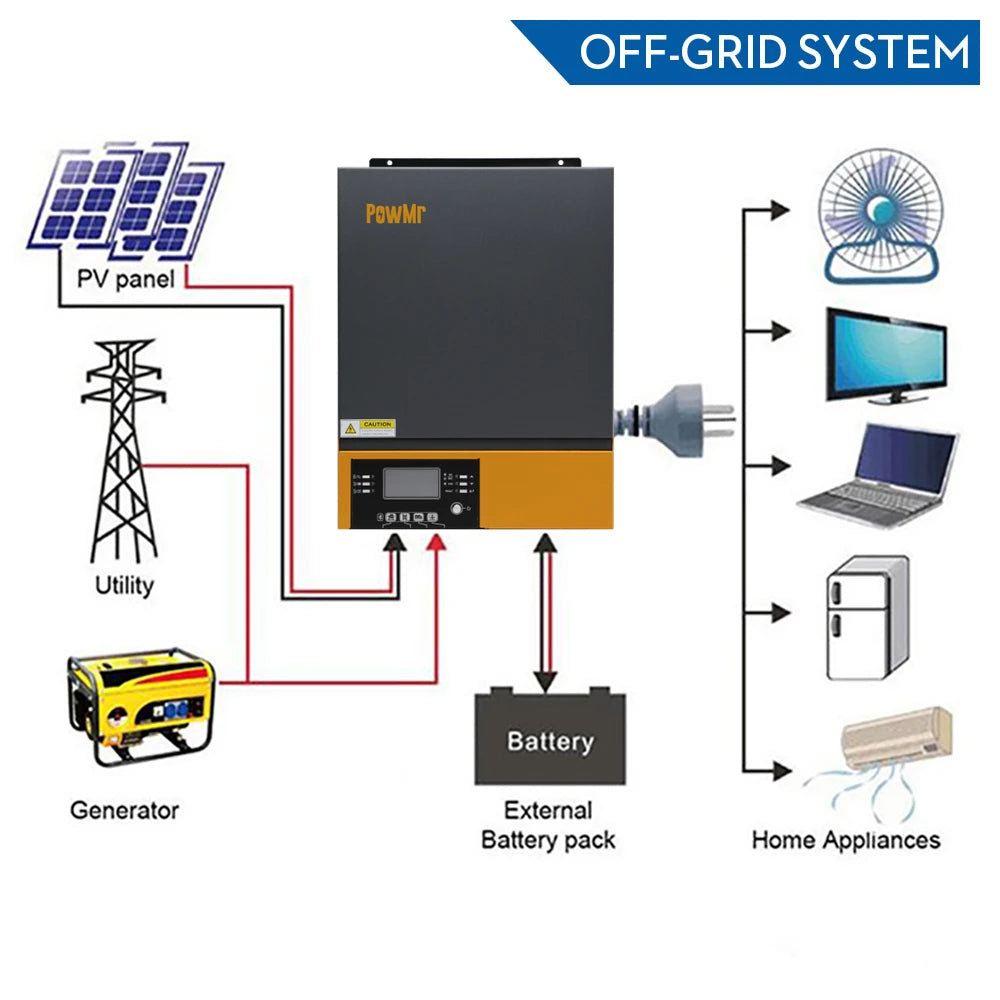

* Compatible to utility mains or generator power
* Auto restart while AC is recovering
* Overload/ Over temperature/ short circuit protection
* Smart battery charger design for optimized battery performance
* Cold start function

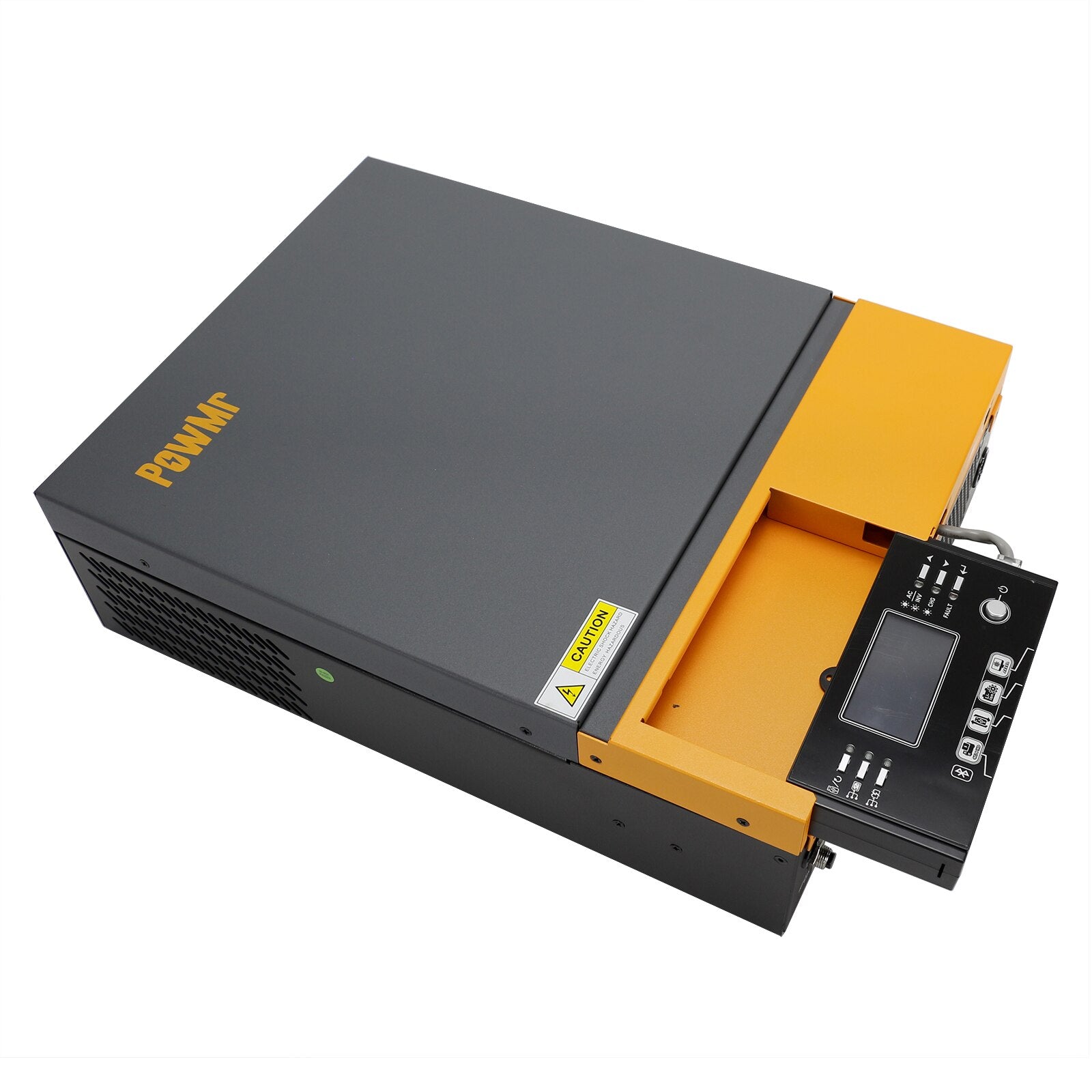

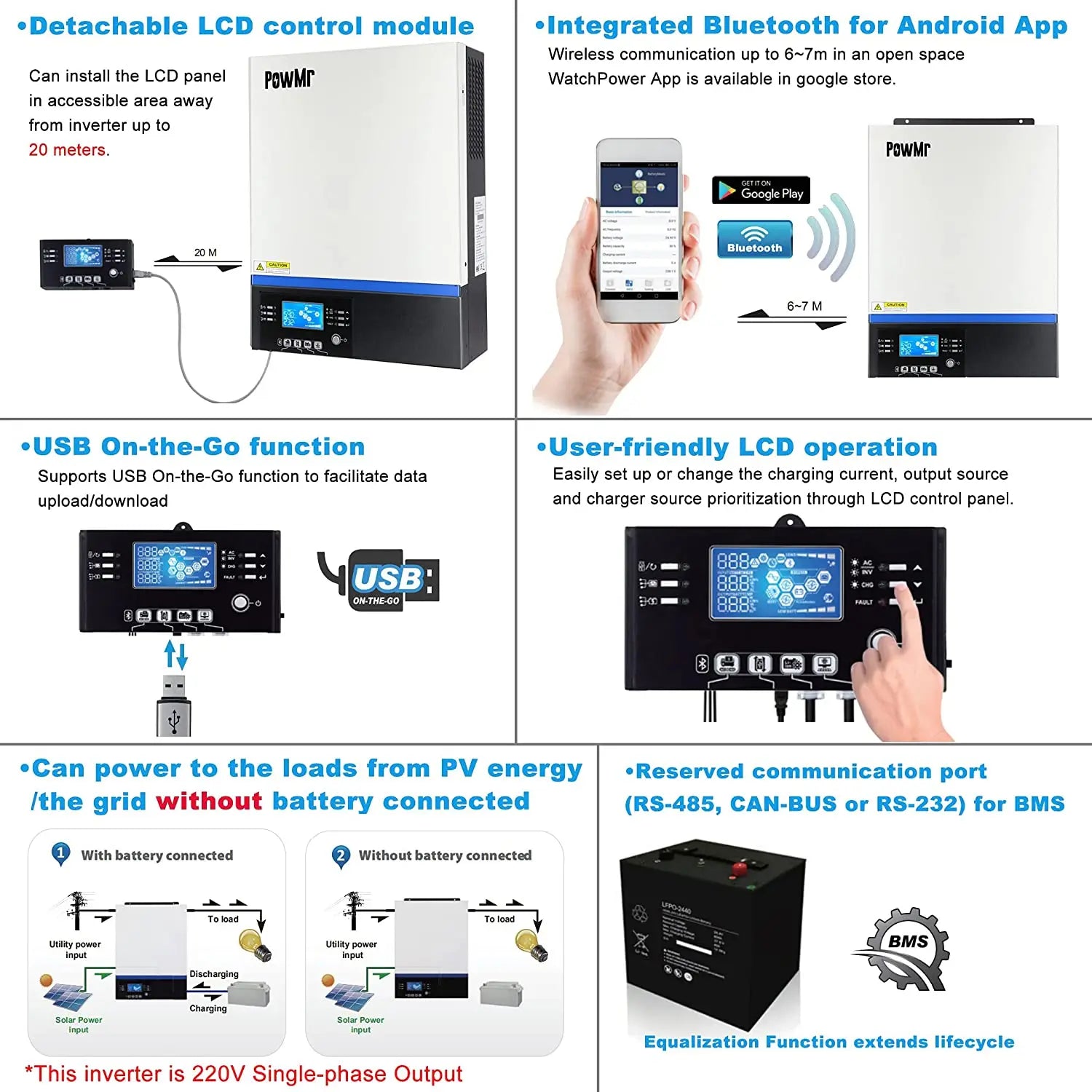

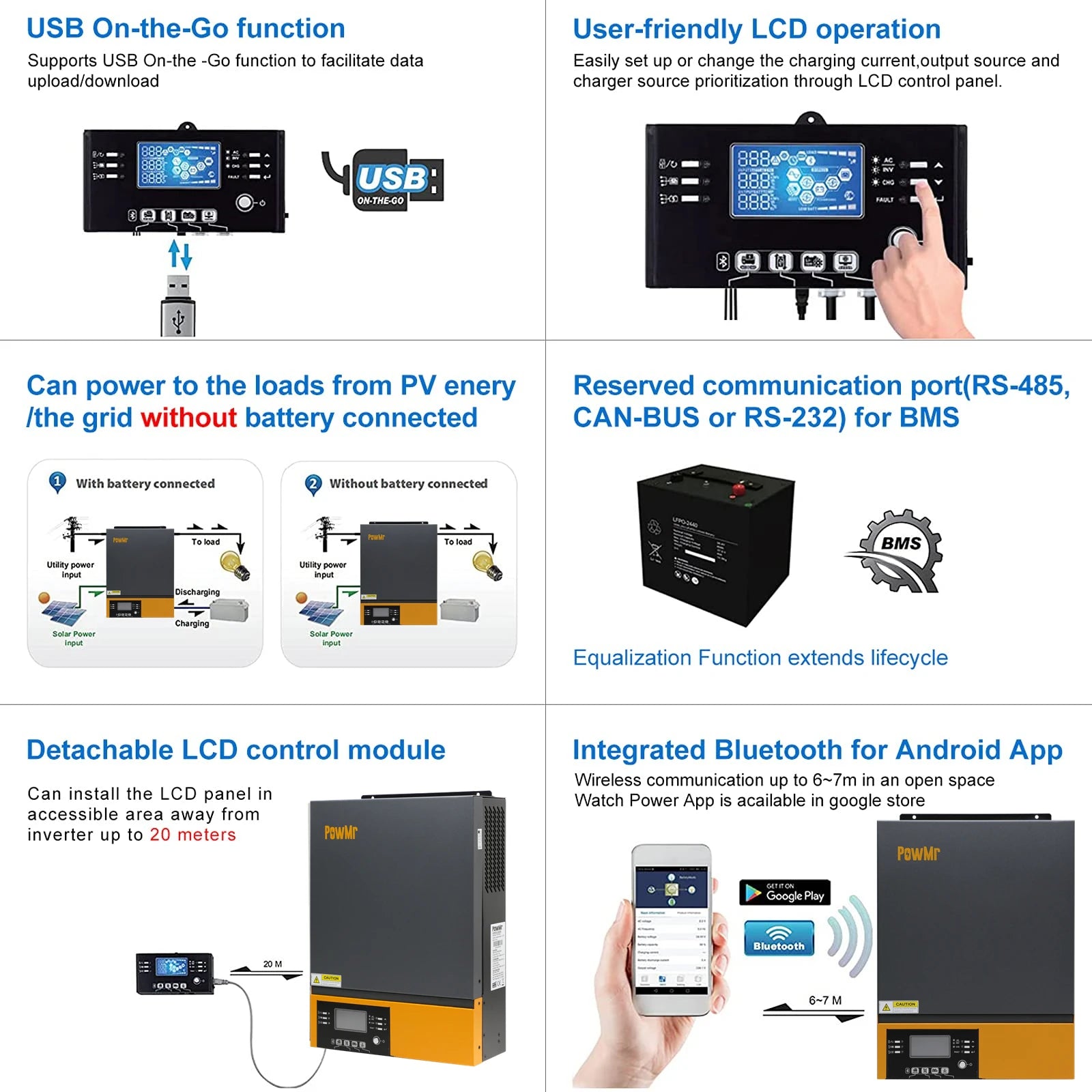

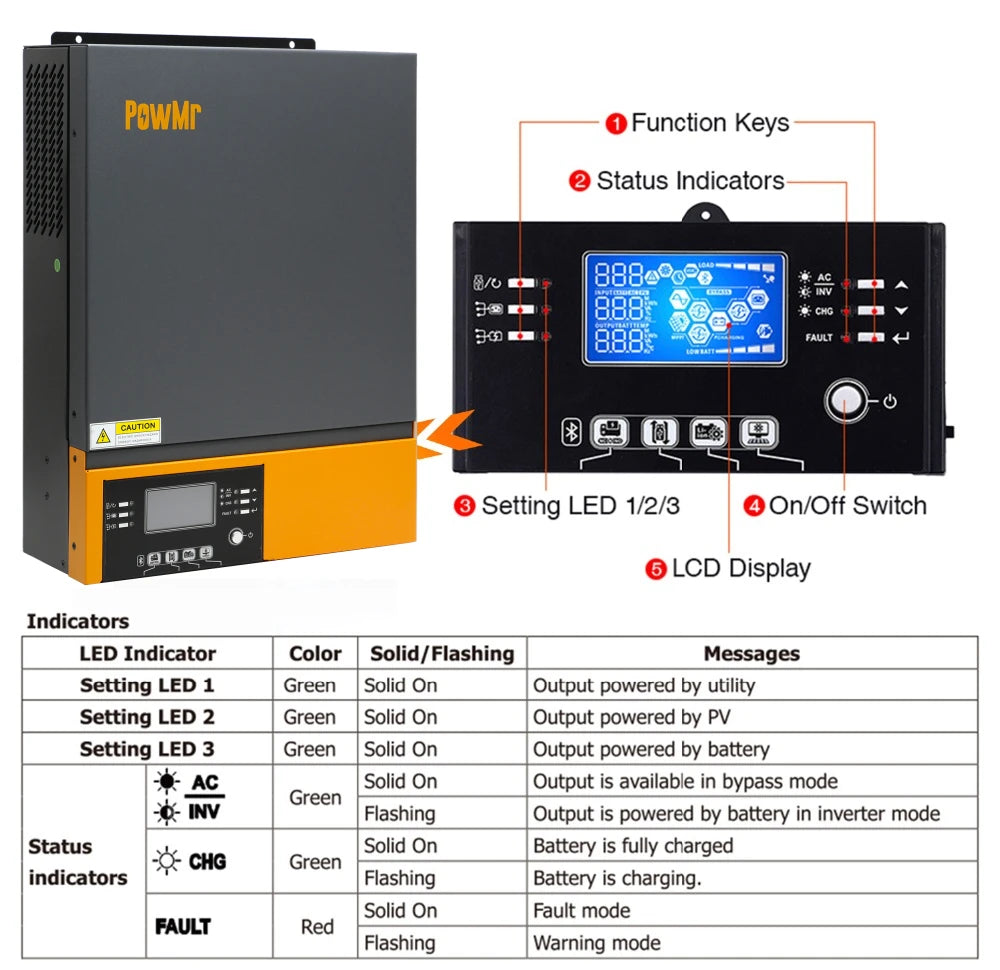

* Removable LCD Ccontrol module
* Multiple communication ports for BMS(RS485,CAN-BUS,RS232)

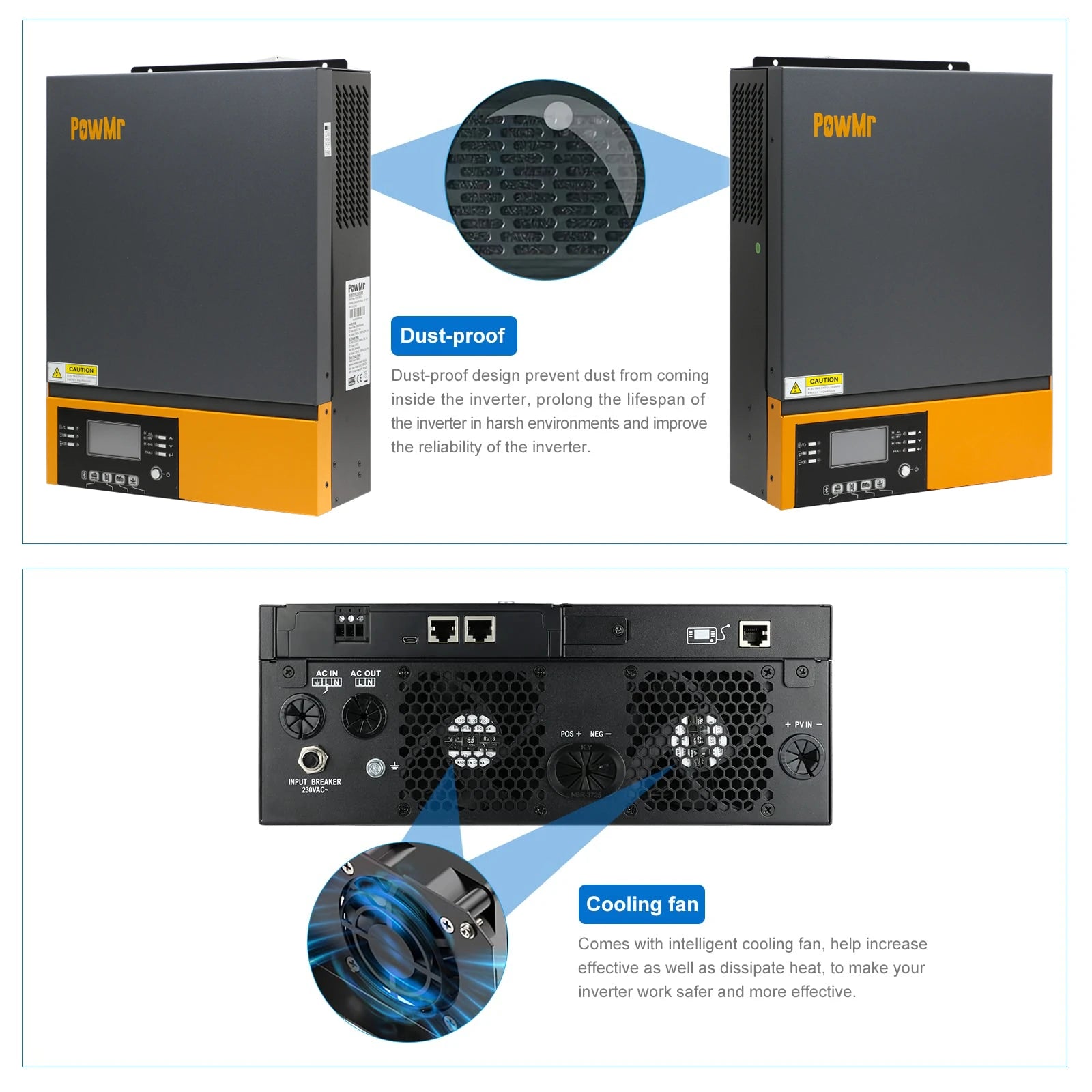

* Built-in Bluetooth-Compatible for mobile monitoring(Requires App),OTG USB function, dusk filters
* Configurable AC/PV Output usage timer and prioritization
Note:
This is a wide voltage hybrid inverter, the minimum of MPPT operating voltage should be 150V to make sure that the device start working, 360V is the best.

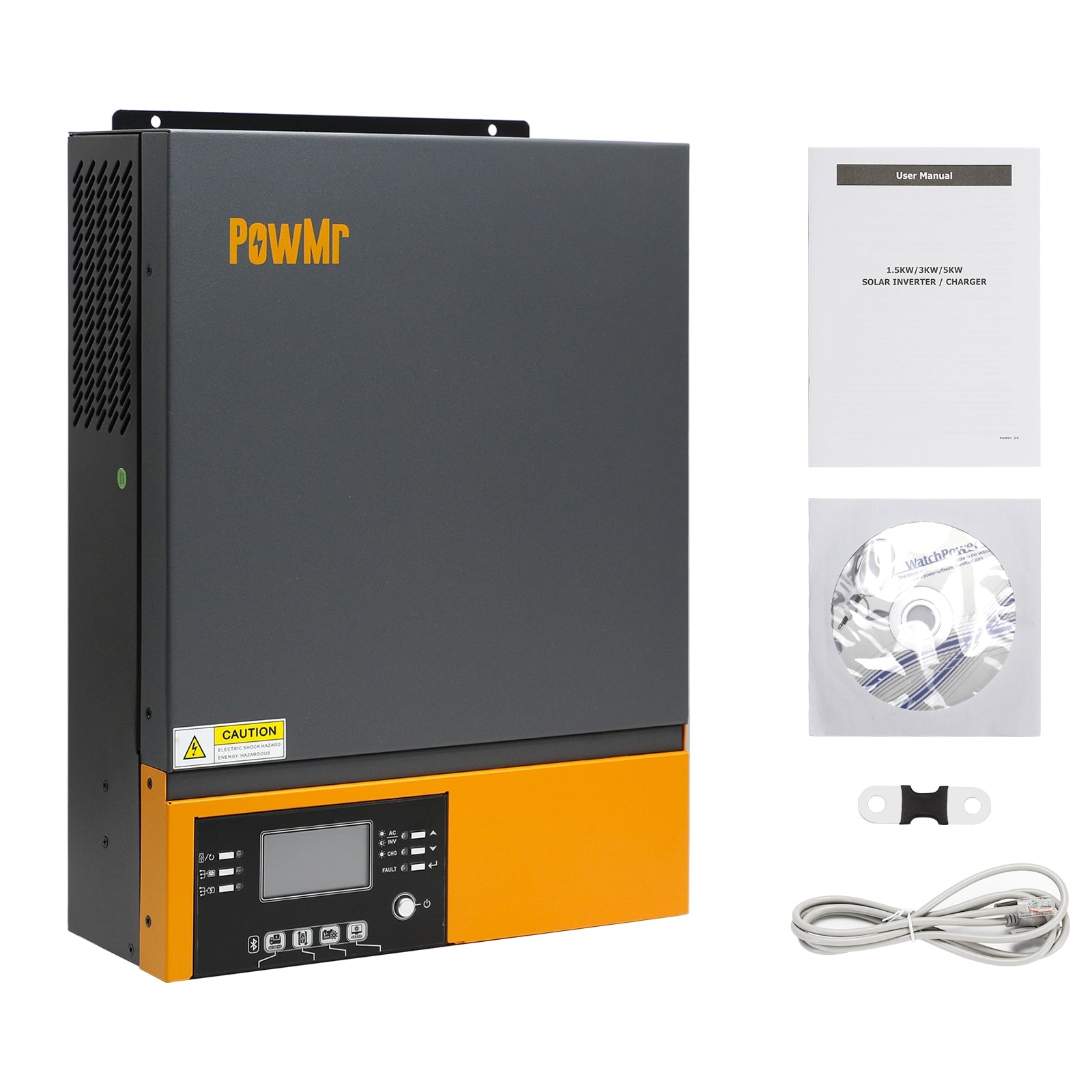

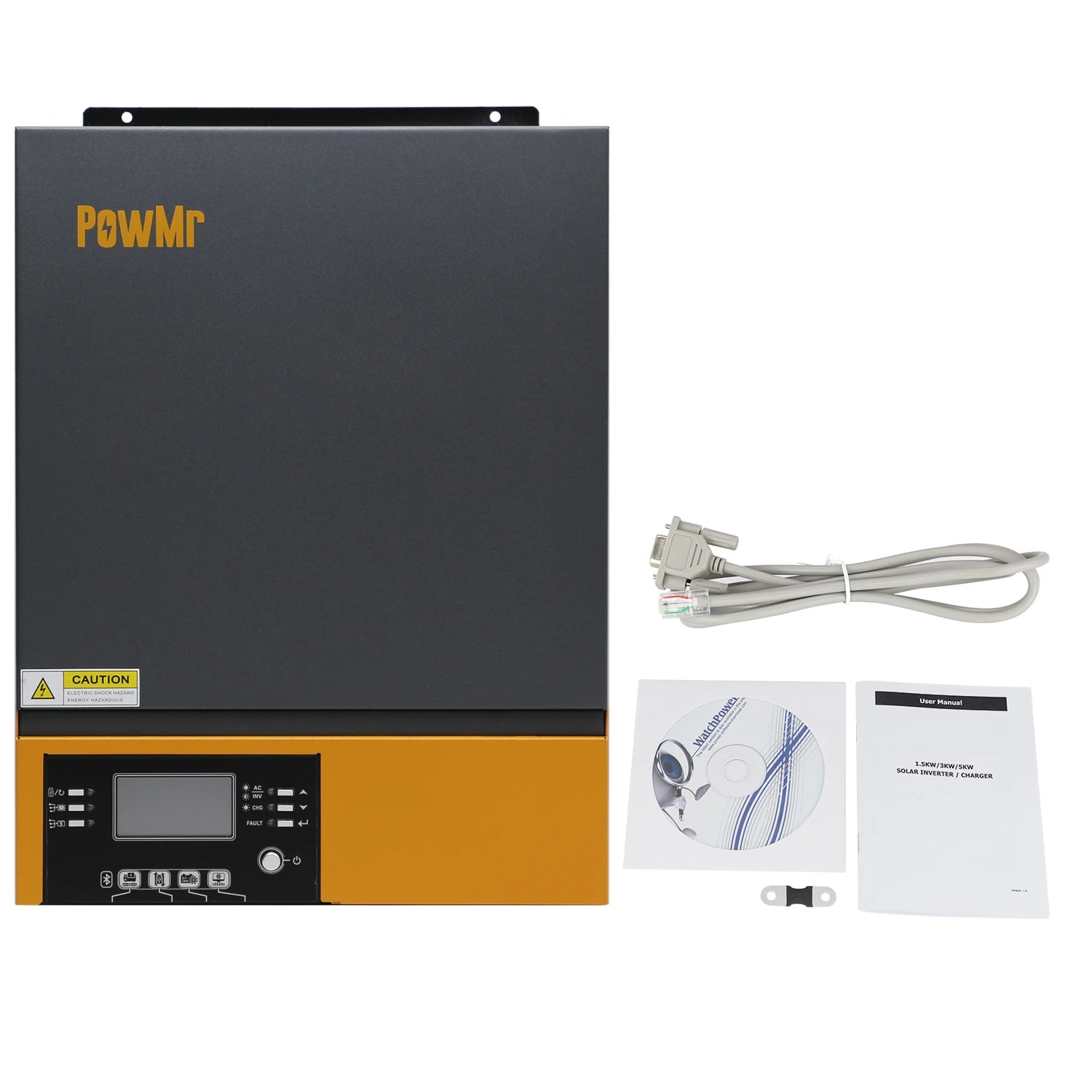

Packing list:
5KW/3KW MPPT Solar Inverter 48v x 1
User manual x 1
RS232 Communication cable x 1
DC Fuse x 1
Inverter Model |
POW-VM3K-III |
POW-VM5K-III |
|
Input voltage Waveform |
Sinusoidal(Utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V(UPS)90Vac±7V(Appliances) |
||
Low Loss Return Voltage |
180Vac±7V(UPS)100Vac±7V(Appliances) |
||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
||
Low Loss Frequency |
40±1Hz |
||
Low Loss Return Frequency |
42±1Hz |
||
High Loss Frequency |
65±1Hz |
||
High Loss Return Frequency |
63±1Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency(Line Mode) |
﹥95%(Rated R load,battery full charged) |
||
Transfer Time |
10ms typical (UPS);20ms typical(Appliances) |
||
Output Power derating: |
When AC input voltage drops to 170V,the output power will be derated;When AC input voltage to 90V, the output power will be 50% |
||
Rated Output Power |
3KVA/3KW |
5KVA/5KW |
|
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5V |
||
Peak Efficiency |
93% |
||
Overload Protection |
5s@≧130%load;10s@105~130%load |
||
Surge Capacity |
2*rated power for 5 seconds |
||
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
|
Low DC Warning Voltage@load﹤50%@load≧50% |
23.0Vdc22.0Vdc |
46.0Vdc44.0Vdc |
|
Low DC Warning Return Voltage@load﹤50%@load≧50% |
23.5Vdc23.0Vdc |
47.0Vdc46.0Vdc |
|
Low DC Cut-off Voltage@oad﹤50%@oad≧50% |
21.5Vdc21.0Vdc |
43.0Vdc42.0Vdc |
|
High DC Recovery Voltage |
32 Vdc |
62 Vdc |
|
High DC Cut-off Voltage |
33Vdc |
63Vdc |
|
No Load Power Consumption |
﹤35W |
﹤50W |
|
Utility Charging Mode |
|||
Charge Algorithm |
3-Step |
||
AC Charge Current(Max) |
40Amp(@V i/p=230Vac) |
60Amp(@V i/p=230Vac) |
|
Bulk ChargingVoltage |
Flooded Battery |
29.2 |
58.4 |
AGM/GEL Battery |
28.2 |
56.4 |
|
Floating Charging Voltage |
27Vdc |
54Vdc |
|

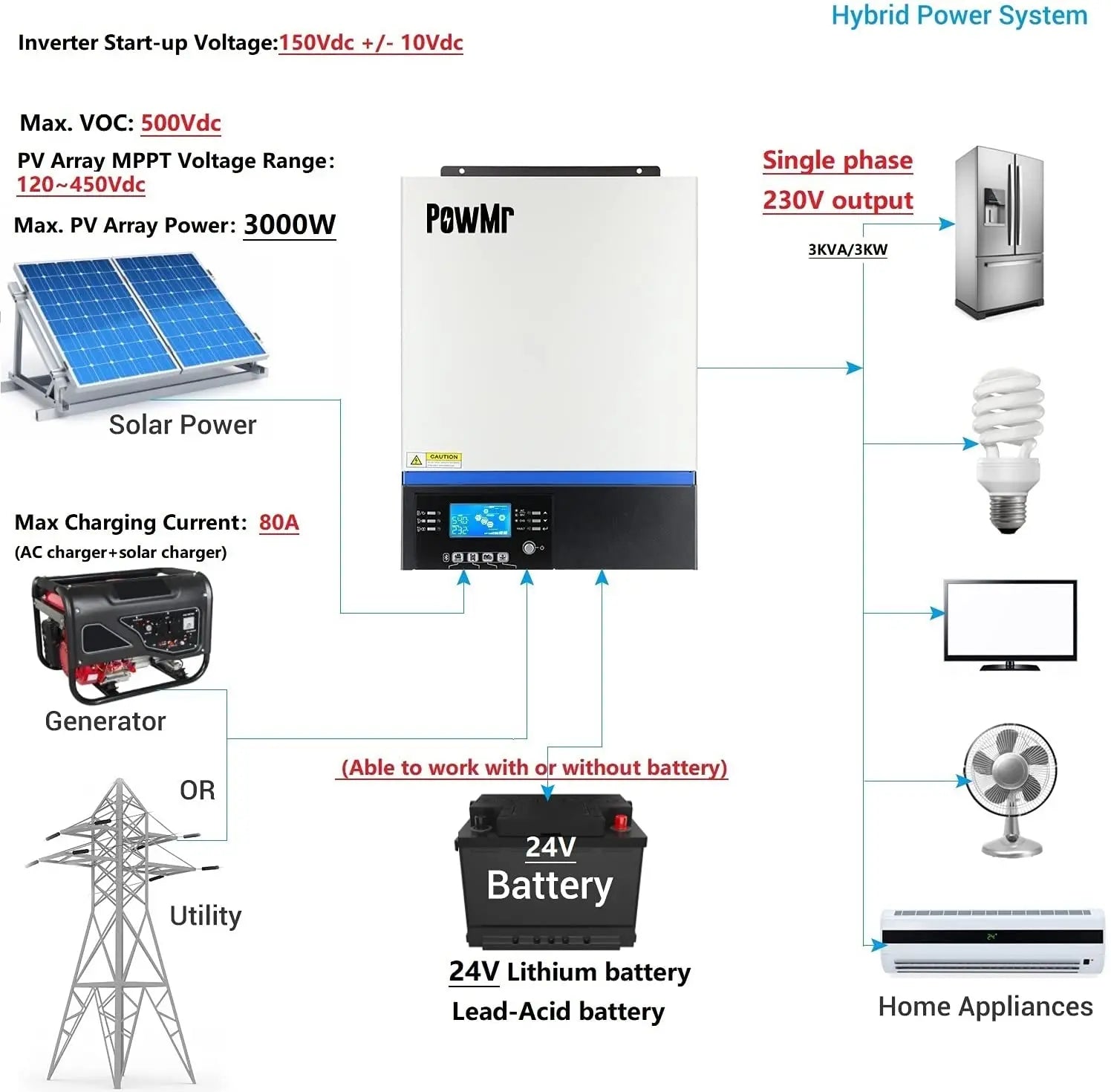

MPPT Solar Charging Mode | |||
Max PV Array Power |
4000W |
5000W |
|
Nominal PV Voltage |
240Vdc |
320Vdc |
|
Start-up Voltage |
150Vdc±10Vdc |
||
PV Array MPPT Voltage Range |
120~450Vdc |
||
Max PV Array Open Circuit Voltage |
500Vdc |
||
Max Charge Current(AC Charger plus solar charger) |
80Amp |
||
Operating Temperature Range |
-10℃ to 50℃ |
||
Storage temperature |
-10℃ to 60℃ |
||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
||
Dimension(D*W*H),mm |
115*300*400 |
||
Net Weight |
9kg |
10kg |

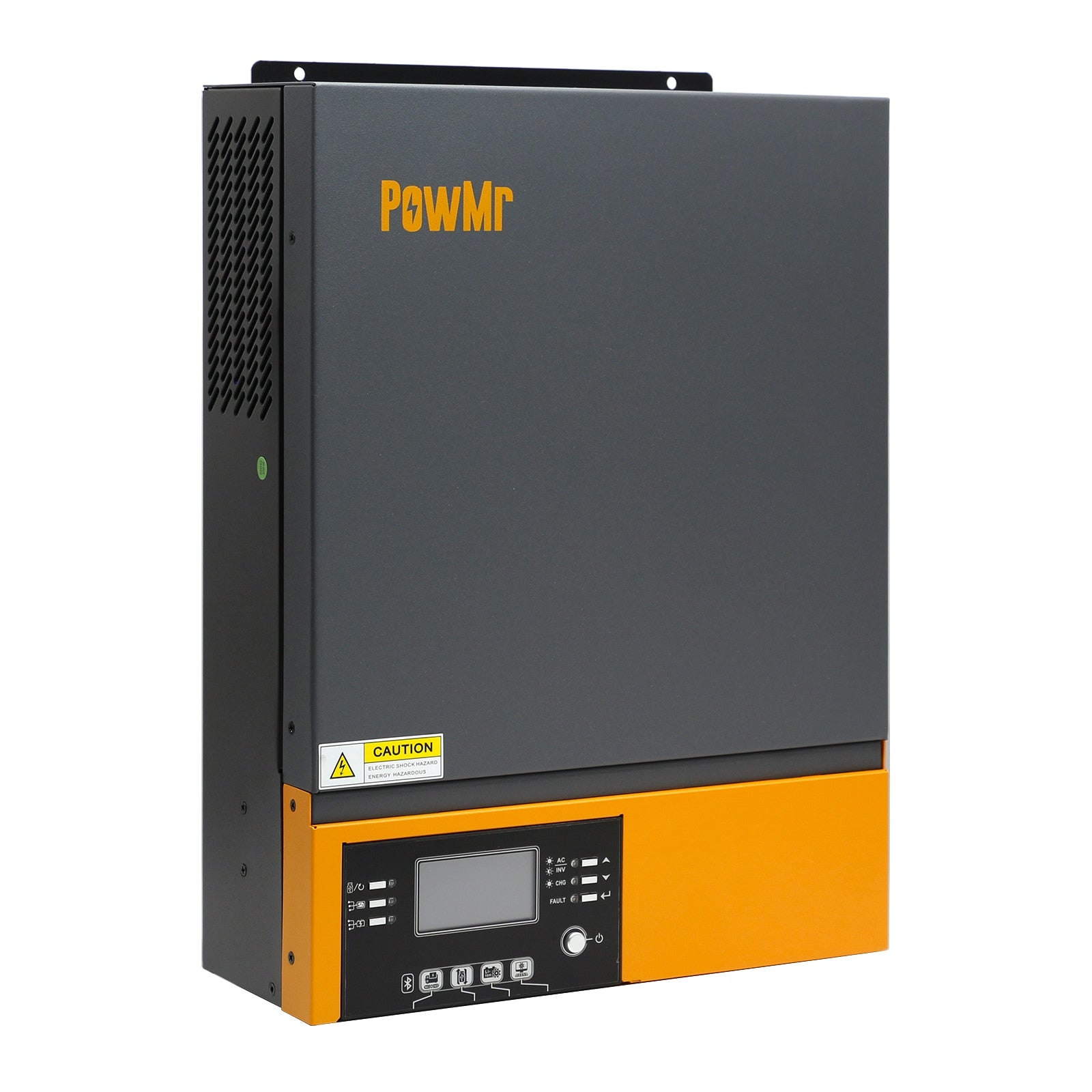

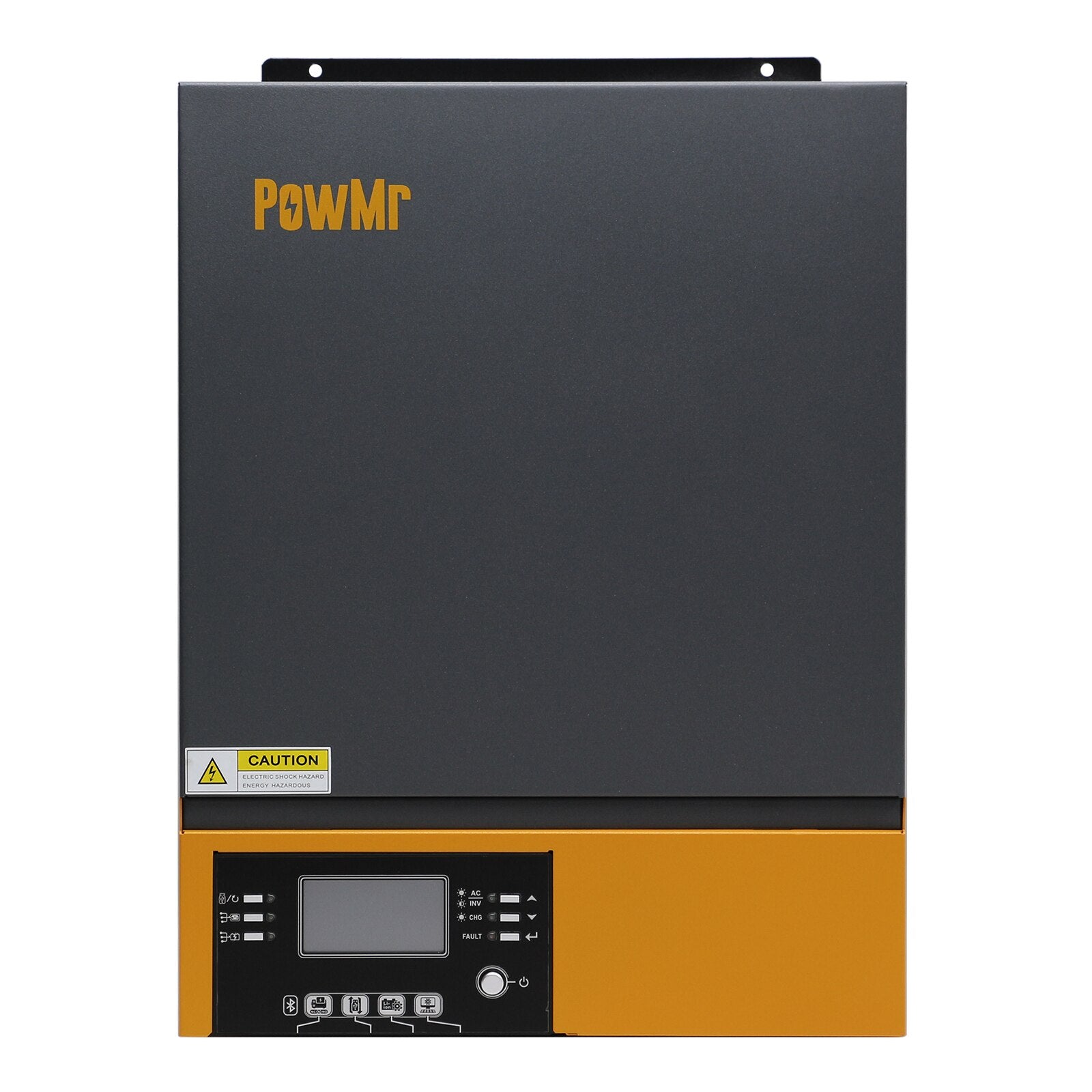

Photo:
