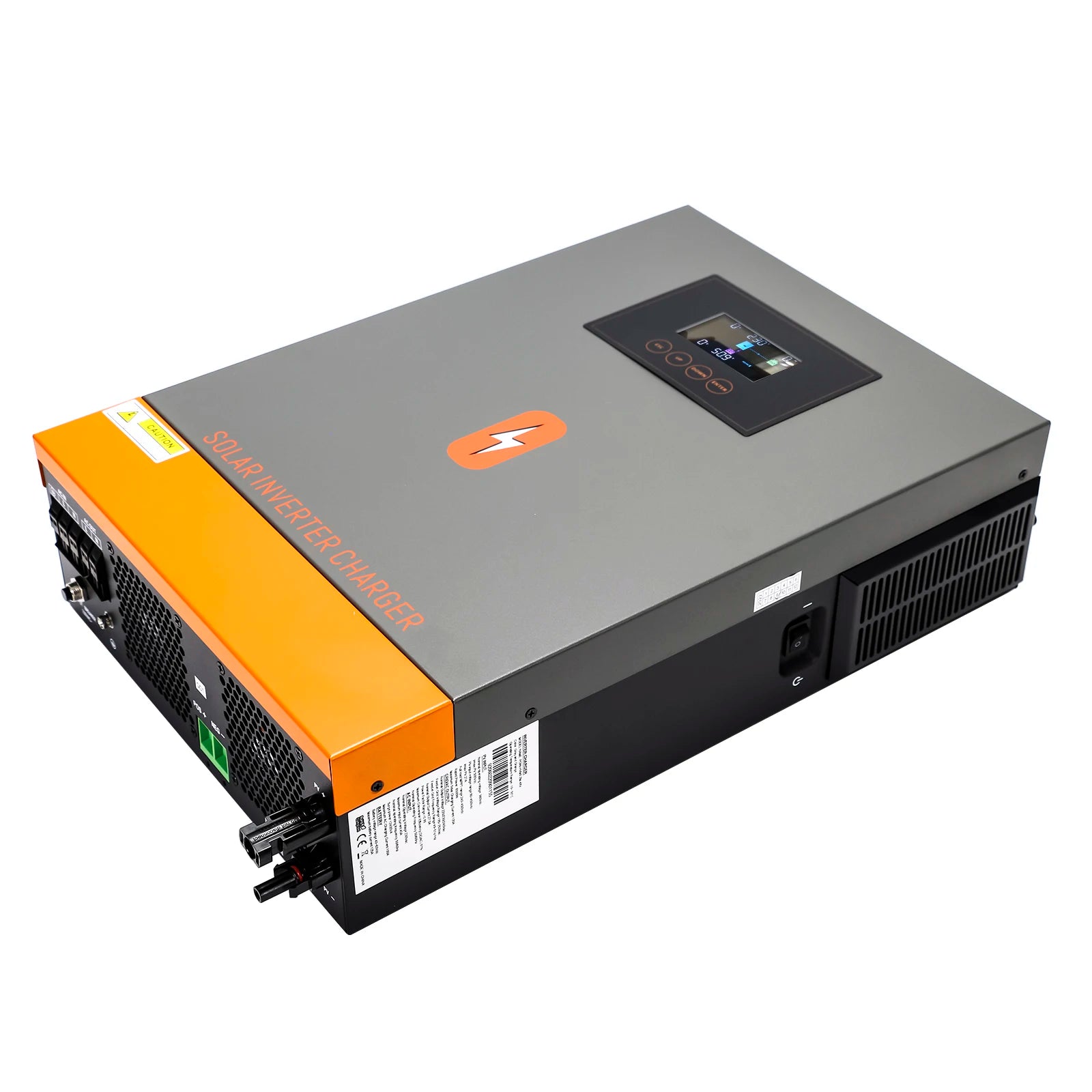

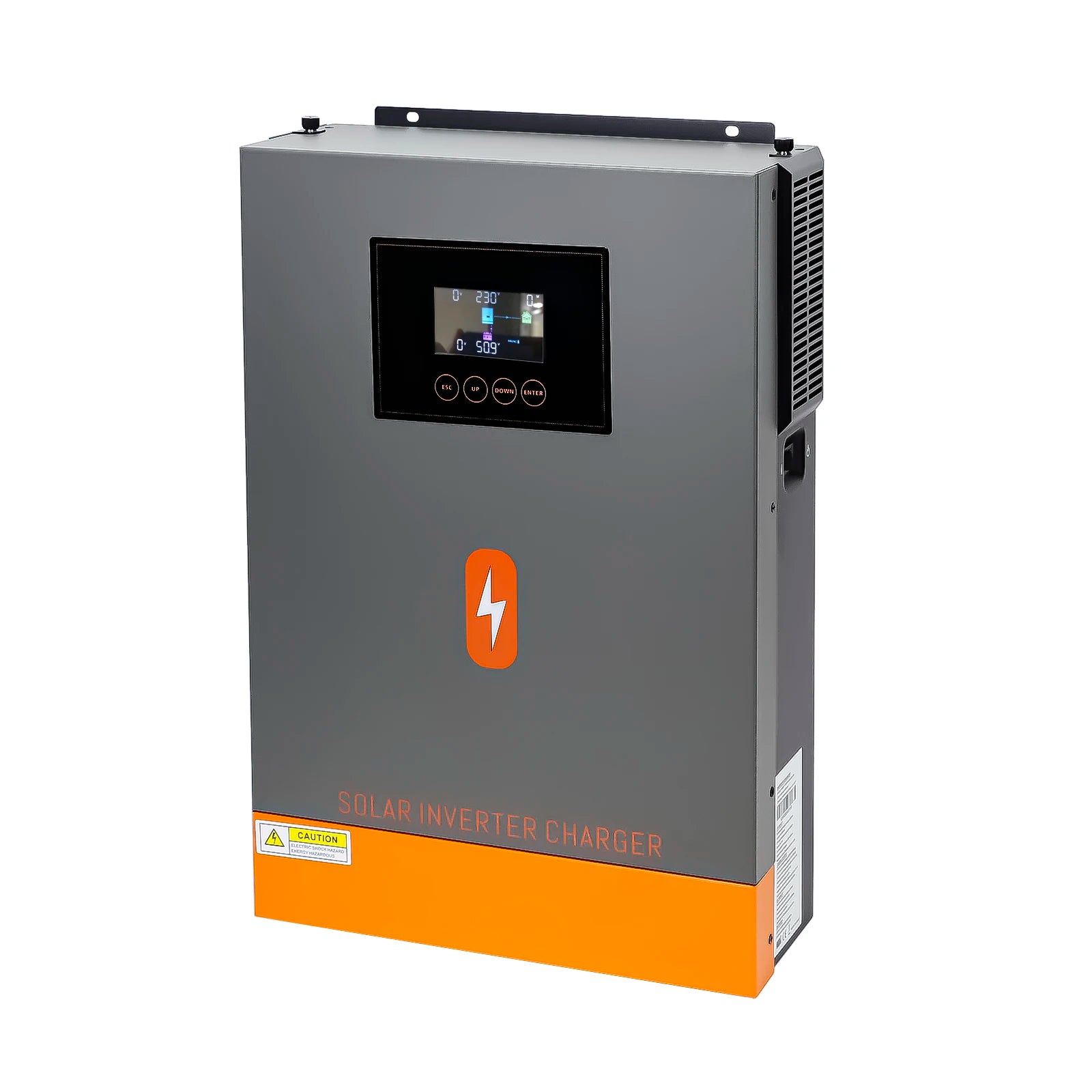

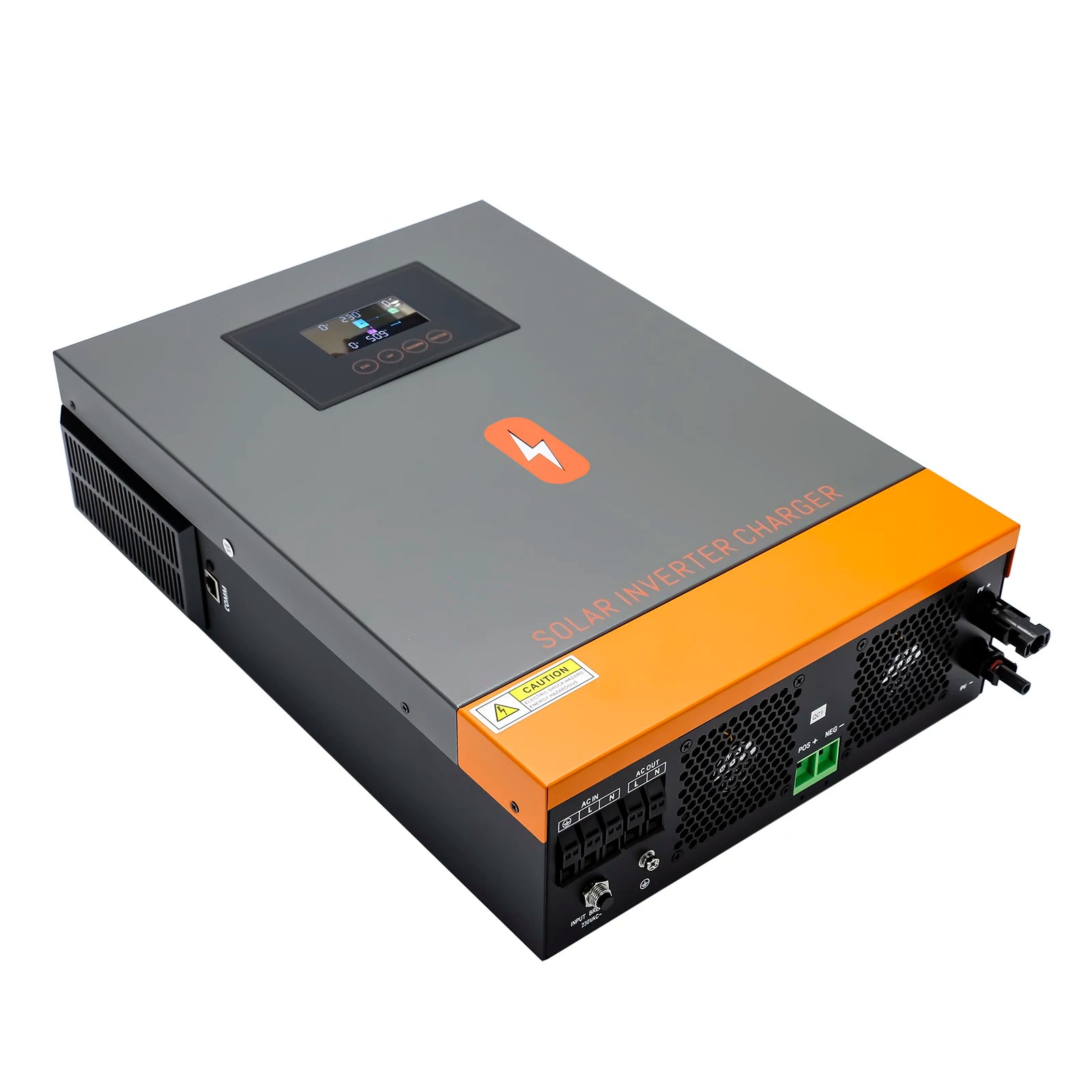

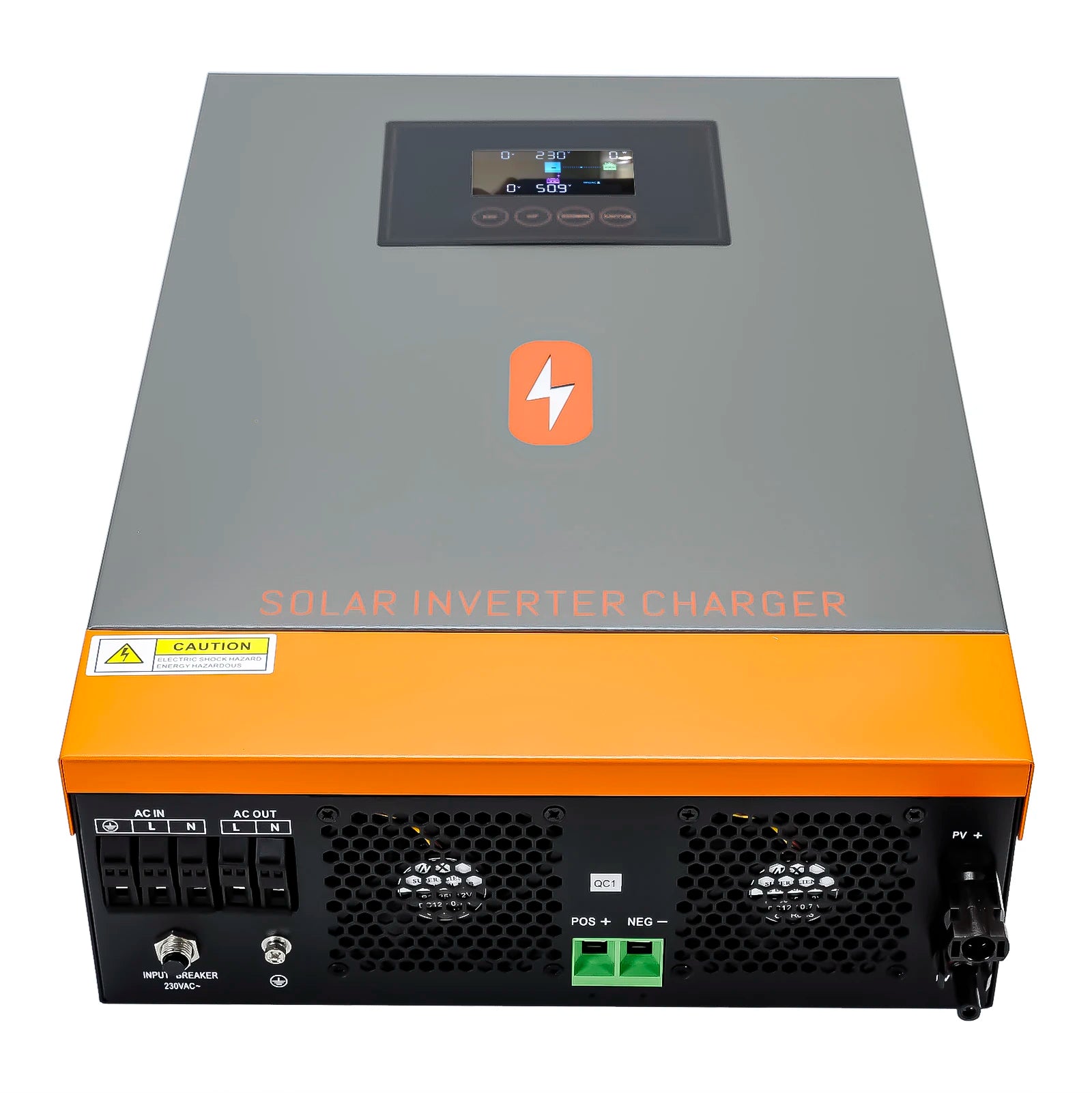

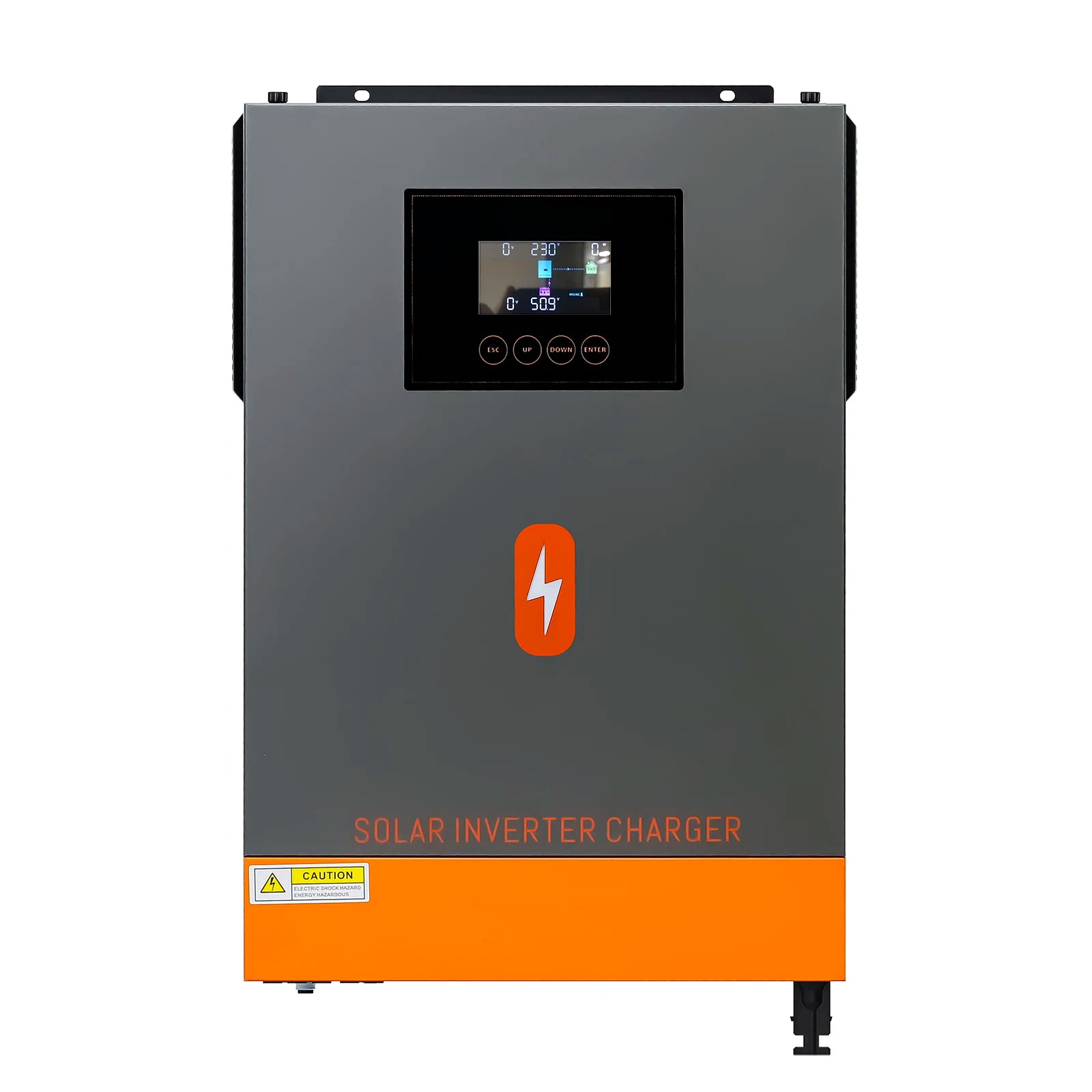

PowMr 6.2KW On-grid&Grid Tied Inverter 48V to 230VAC MPPT 120A Output And Max Solar Panel 500VDC Input for Lifepo4 Solar Battery
PowMr 6.2KW On-grid&Grid Tied Inverter 48V to 230VAC MPPT 120A Output And Max Solar Panel 500VDC Input for Lifepo4 Solar Battery
19 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Working efficiency: >95%
Weight: 10.1KG
Size: 444x300x100 mm
Shipping 2: Within 3-7 days, the package arrive.
Shipping 1: EU customers purchase from China, and the system automatically sends packages from Europe.
Rated output power: .6KW/4.2KW/6.2KW output
Product: hybrid solar inverter 48V 220V
PV operating voltage: 120VDC-450VDC
Output voltage range: 220-240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ
Output Current: MPPT 120A/140A
Origin: Mainland China
Model Number: POW-HVM Grid Tied Inverter
Maximum PV input voltage: 500VDC
Maximum PV input power: 6200W(3.6KW/4.2KW); 6500W(6.2KW)
Maximum PV input current: 18A
Load type: Household appliances, farm tools, farm tools
Item: Grid tied inverter/ off grid inverter
Is Smart Device: YES
Equipment: Factory equipment, commercial load, industrial machinery
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Certification: CE
Brand Name: PowMr
Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
PowMr 6.2KW On-grid&Grid Tied Inverter 48V to 230VAC MPPT 120A Output And Max Solar Panel 500VDC Input for Lifepo4 Solar Battery With Movable Screen 2022 New Model
Overviwe:

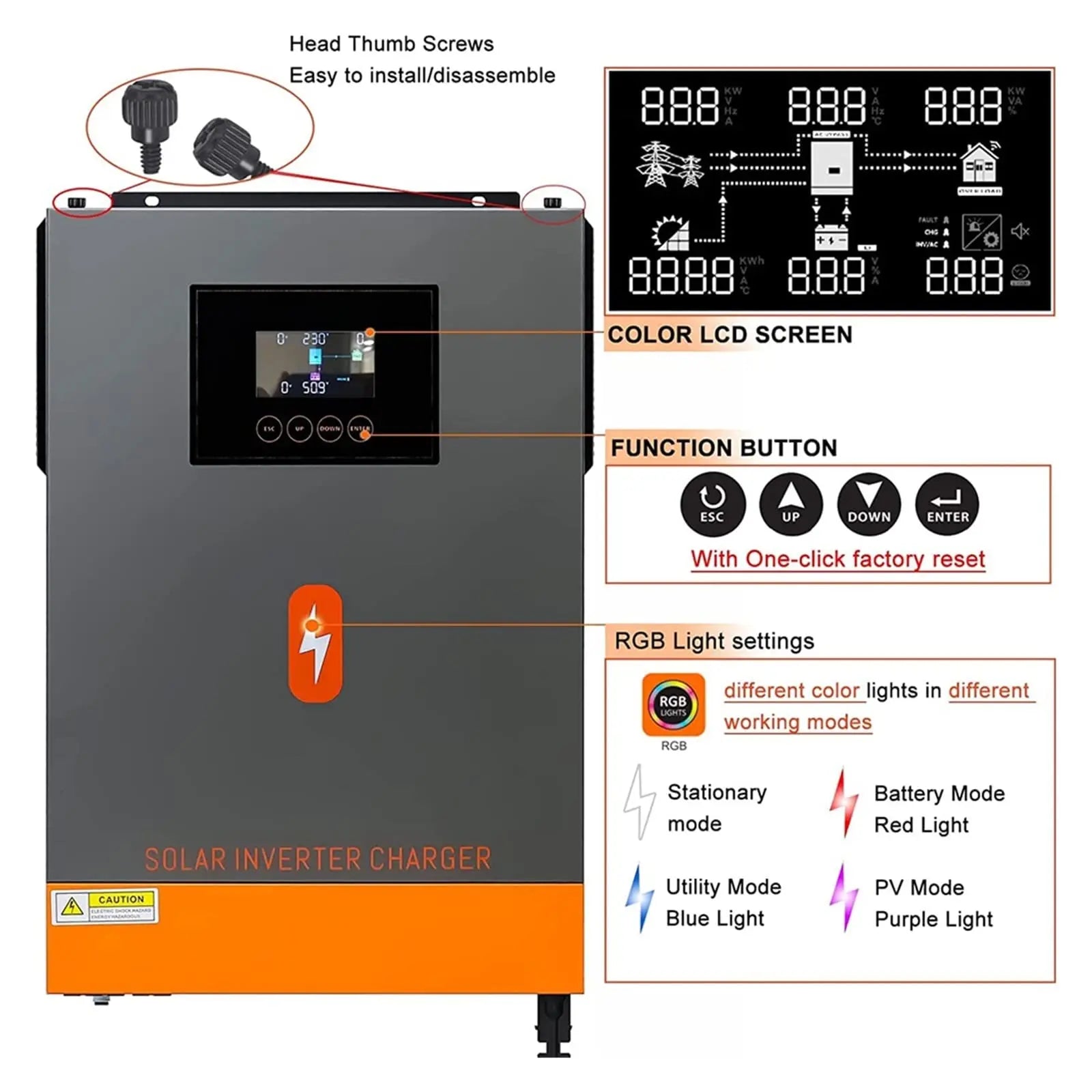

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

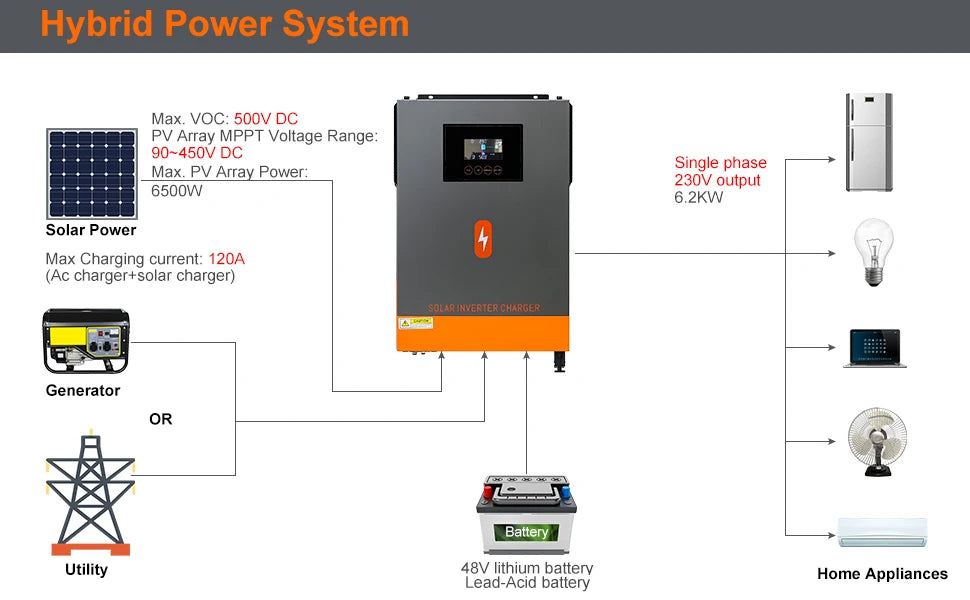

When the MPPT input voltage of PV modules is within an acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge the battery.
Features:
1.Pure sine wave inverter/on-grid inverter/off grid inverter.
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
Product Details:
MODEL |
POW-HVM3.6M-24V |
POW-HVM6.2M-48V |
Phase |
1-phase |
|
Maximum PV Input Power |
6200W |
|
Rated Output Power |
3600W |
6200W |
Maximum Charging Power |
6200W |
|
GRID-TIE OPERATION | ||
PV Input(DC) |
||
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
GRID OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5-253VAC |
|
Nominal Output Current |
15.7A 26.1A |
|
Power Factor |
>0.9 |
|
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) |
97% |
|
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Anto Restart Voltage |
120-140VAC/180VAC |
|
Acceptable Input Voltage Range |
90-280VAC OR170-280VAC |
|
Maximum AC Input Current |
30A |
40A |
PV Input(DC) | ||
Nominal DC Voltage |
500VDC |
|
MPPT Voltage Range |
90VDC-450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
24VDC 48VDC |
|
Output Waveform |
Pure sine wave |
|
Efficiency(DC to AC) |
94% |
|
HYBRID OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
90VDC-450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
GRID OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5-253VAC |
|
Nominal Output Current |
15.7A 26.1 A |
|
AC INPUT | ||
AC Start-up Voltage/Anto Restart Voltage |
120-140VAC/180VAC |
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
Maximum AC Input Current |
30A |
40A |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Efficiency (DC to AC) |
94% |
|
BATTERY & CHARGE | ||
Nominal DC Voltage |
24VDC |
48VDC |
Maximum Solar Charging Current |
120A |
|
Maximum AC Charging Current |
80A |
|
Maximum Charging Current |
120A |
|
PHYSICAL |
||
Dimension D *W *H |
420*310*120 |
|
Net Weight(kgs) |
11 |
13 |
INTERFACE | ||
Communication Port |
RS232/WIFI/BMS |
|
ENVIRONMENT | ||
Humidity |
0-90% |
|
Operating Temperature |
-10 to 50 °C |
