PowMr Hybrid Solar Inverter 1500W 3000W 12V 24V 230V Built in 80A 100A MPPT Solar Controller PV Max 450V Pure Sine Wave Inversor
PowMr Hybrid Solar Inverter 1500W 3000W 12V 24V 230V Built in 80A 100A MPPT Solar Controller PV Max 450V Pure Sine Wave Inversor
72 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 6KG
Type1:: DC/AC Inverters
Type 2:: MPPT Solar Inverter
Size: 348*270*95mm
Rated Output Power:: 1500W/3000W
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ 60HZ
Output Current: MPPT 80A/100A
Origin: Mainland China
Nominal Output Voltage:: 220/230/240VAC
Model Number: POW-HVM1.5H-12V/POW-HVM3.2H-24V
Maximum Solar Charging Current:: 80A/100A
Maximum AC Charging Current: 80A: 80A
Max Panel Input Voltage:: 450V-500V
Is Smart Device: YES
Function 3:: Solar inverter
Feature:: Pure Sine Wave Inversor
Certification: CE
Capacity:: 1.5KW/3000KW
Brand Name: PowMr
Battery Voltage:: 24V/48V
Battery Type:: Lifepo4 Batteries, Lithium Batterie
Production：
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.

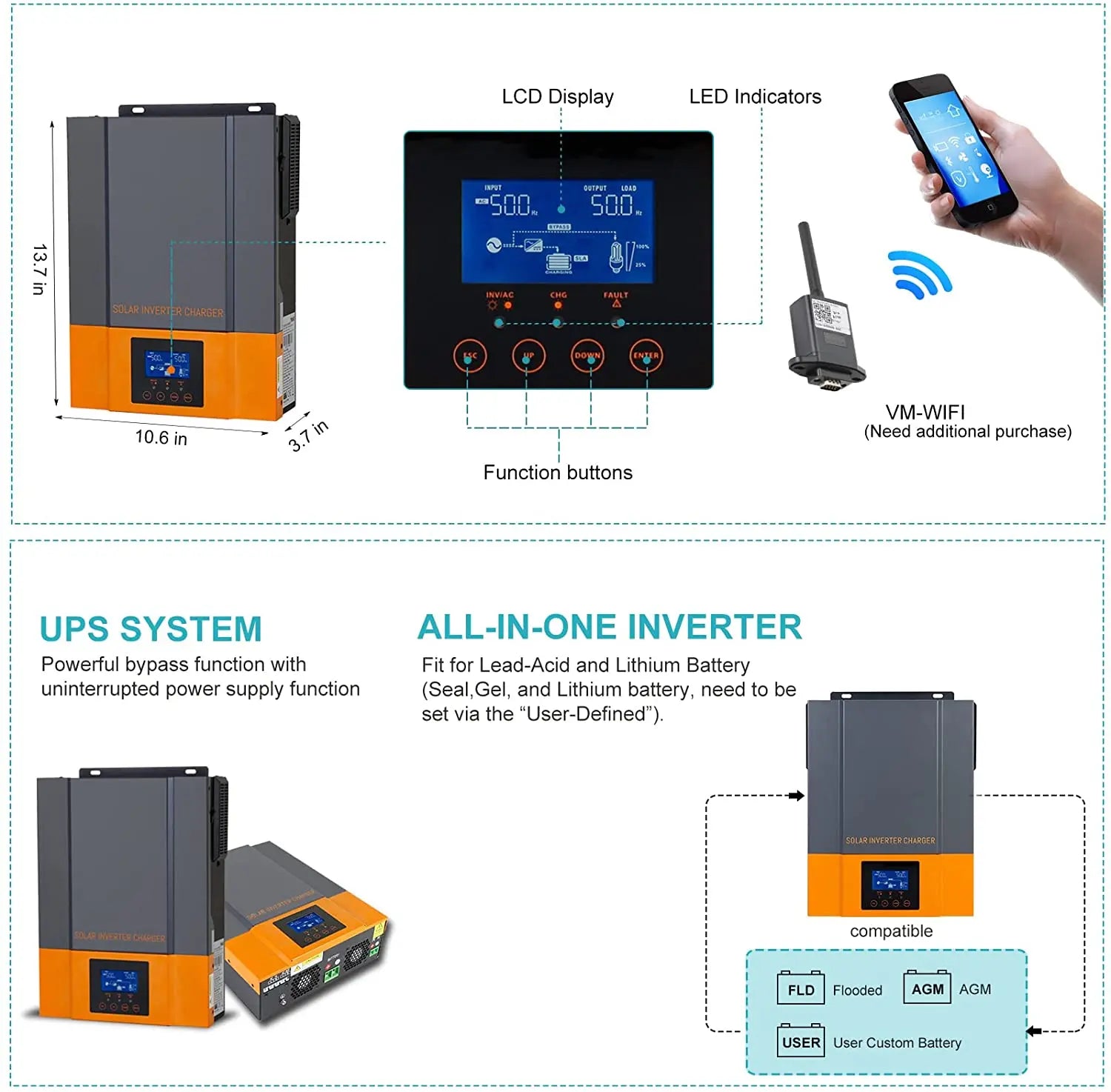

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting

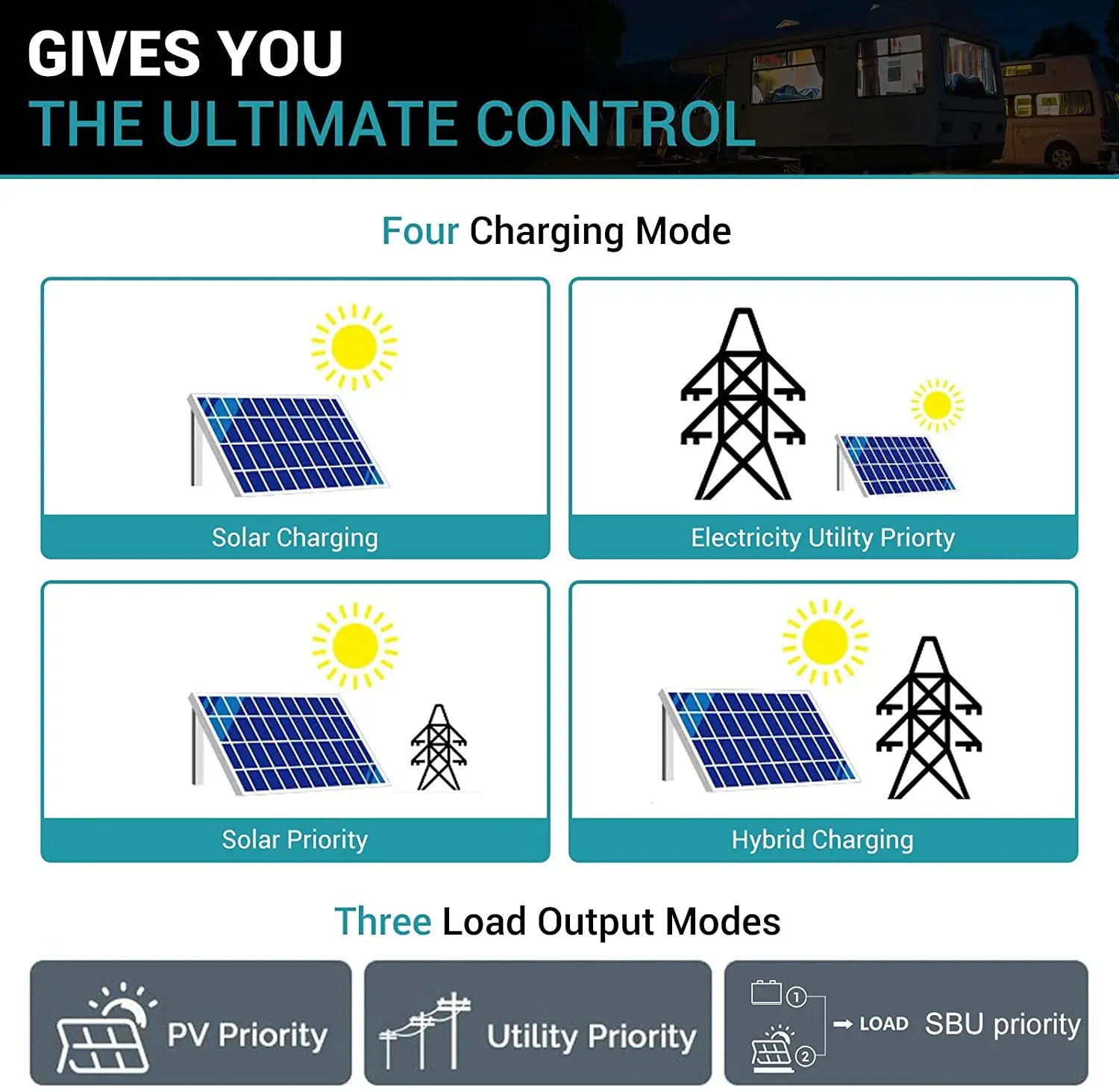

• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery

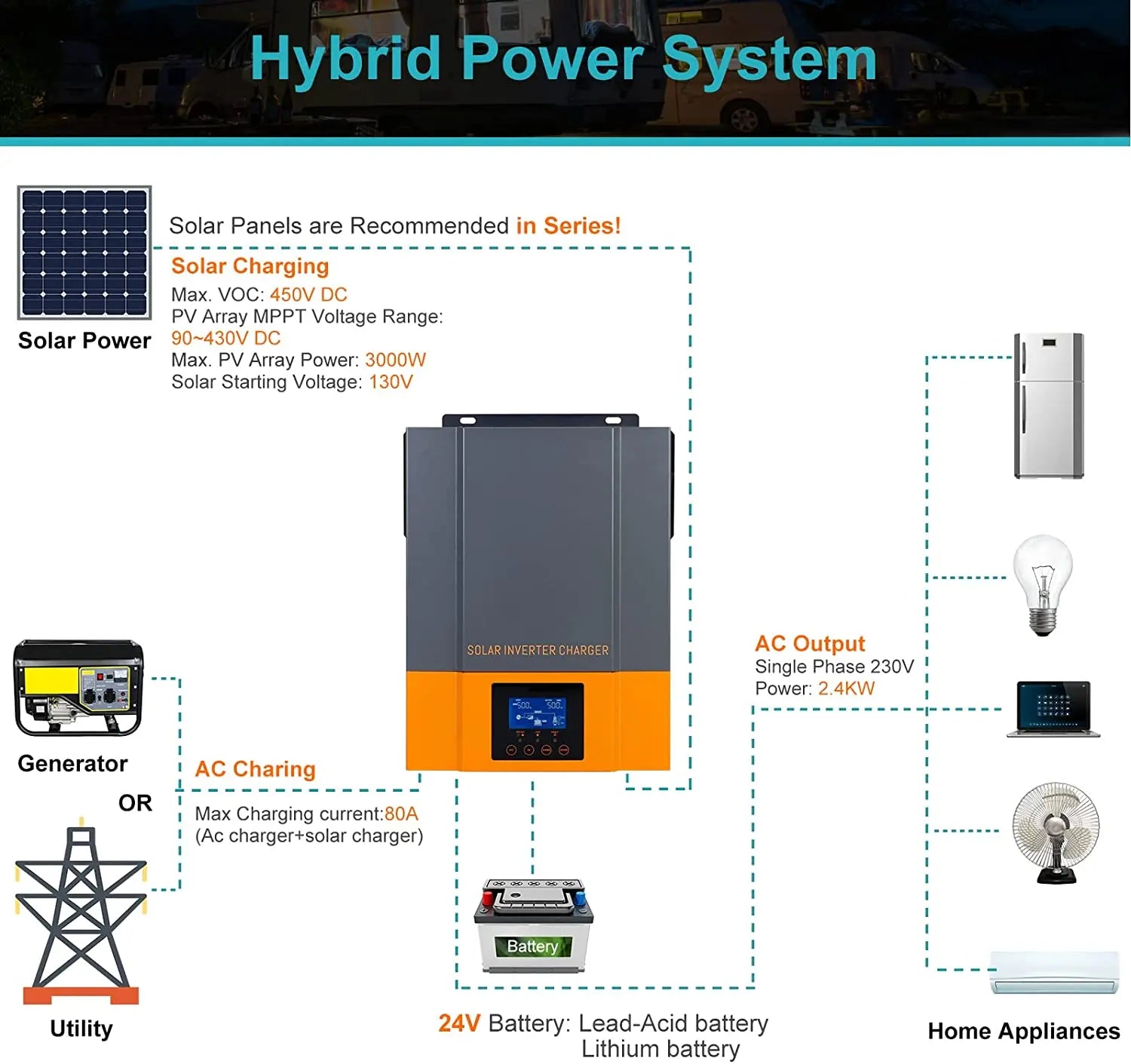

Basic System Architecture：

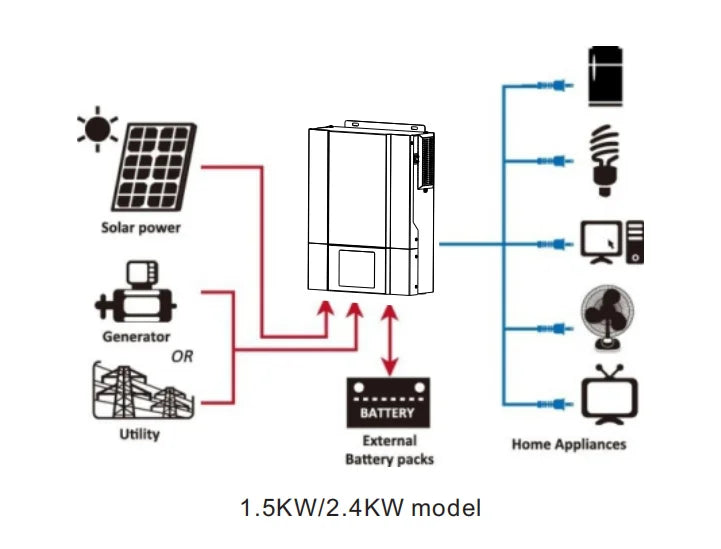

The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
• Generator or Utility.
• PV modules

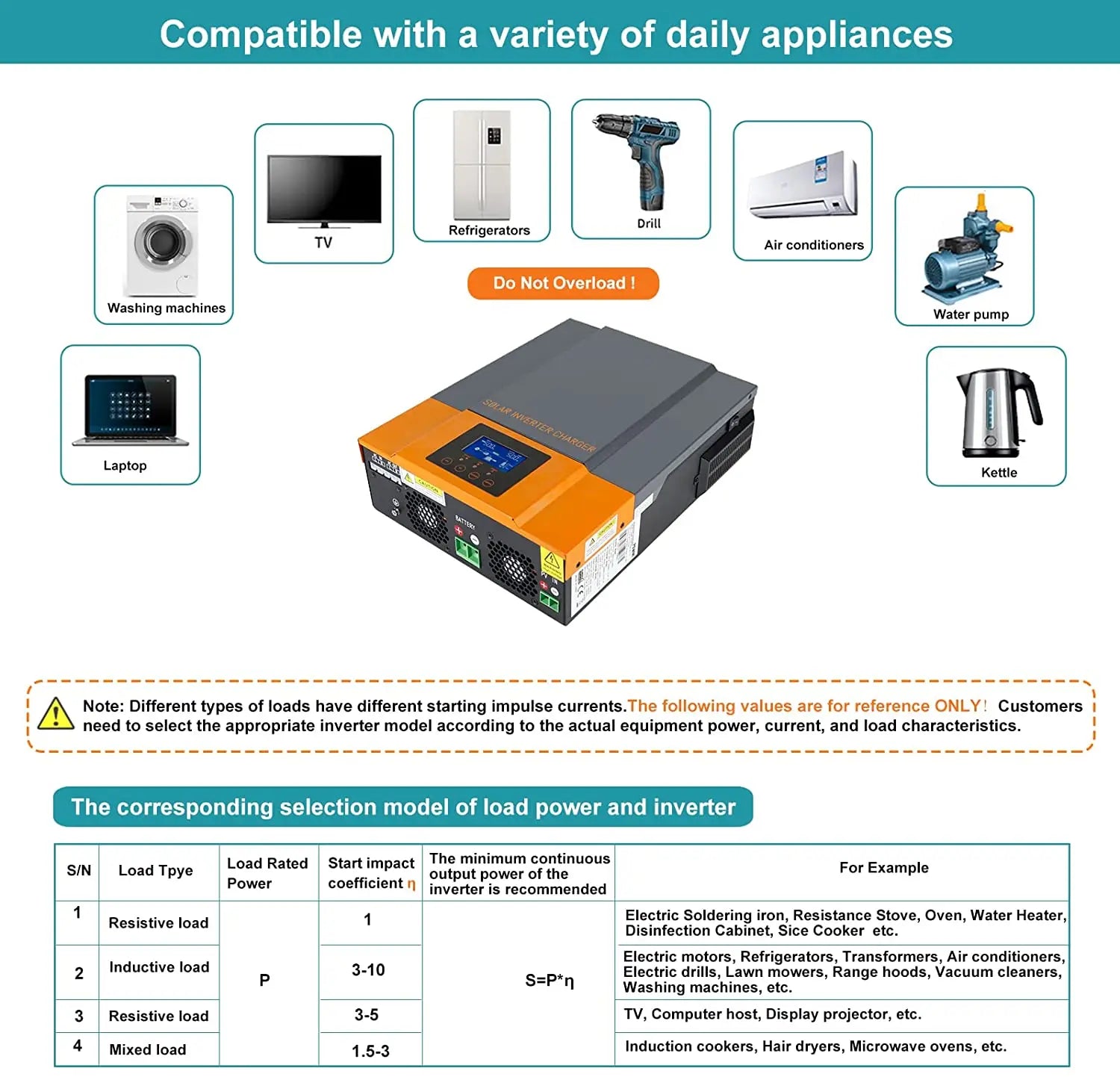

Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Utility Charging Mode | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
60 Amp |
||
Bulk Charging Voltage | |||
Flooded Battery |
14.6 |
29.2 |
|
AGM / Gel Battery |
14.1 |
28.2 |
|
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
|
MPPT Solar Charging Mode | |||
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
|
Max. PV Array Power |
2000W |
3000W |
3000W |
Nominal PV Voltage |
240Vdc |
||
PV Array MPPT Voltage Range |
90~430Vdc |
||
Max. PV Array Open Circuit Voltage |
450Vdc |
||
Max Charging Current (AC charger+solar charger) |
80Amp |
||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Safety Certification |
CE |
||
Operating Temperature Range |
-10°C to 50°C |
||
Storage temperature |
-15°C~ 60° C |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS)； 90Vac±7V (Appliances) |
||
Low Loss Return Voltage |
180Vac±7V (UPS); |
||
100Vac±7V (Appliances) | |||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±Hz |
||
Low Loss Return Frequency |
42±Hz |
||
High Loss Frequency |
65±Hz |
||
High Loss Return Frequency |
63±Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Peak Efficiency |
91% |
94% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
Low DC Warning Voltage | |||
@ Io ad < 50>% |
11.0Vdc |
22.0Vdc |
|
@ load >50% |
10.5Vdc |
21.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
11.5Vdc |
22.5Vdc |
|
@ load >50% |
11.0Vdc |
22.0Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
10.2Vdc |
20.5Vdc |
|
@ load >50% |
9.6Vdc |
20.0Vdc |
|
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
|
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
|
No Load Power Consumption |
<25W |
<30W |
<35W |
