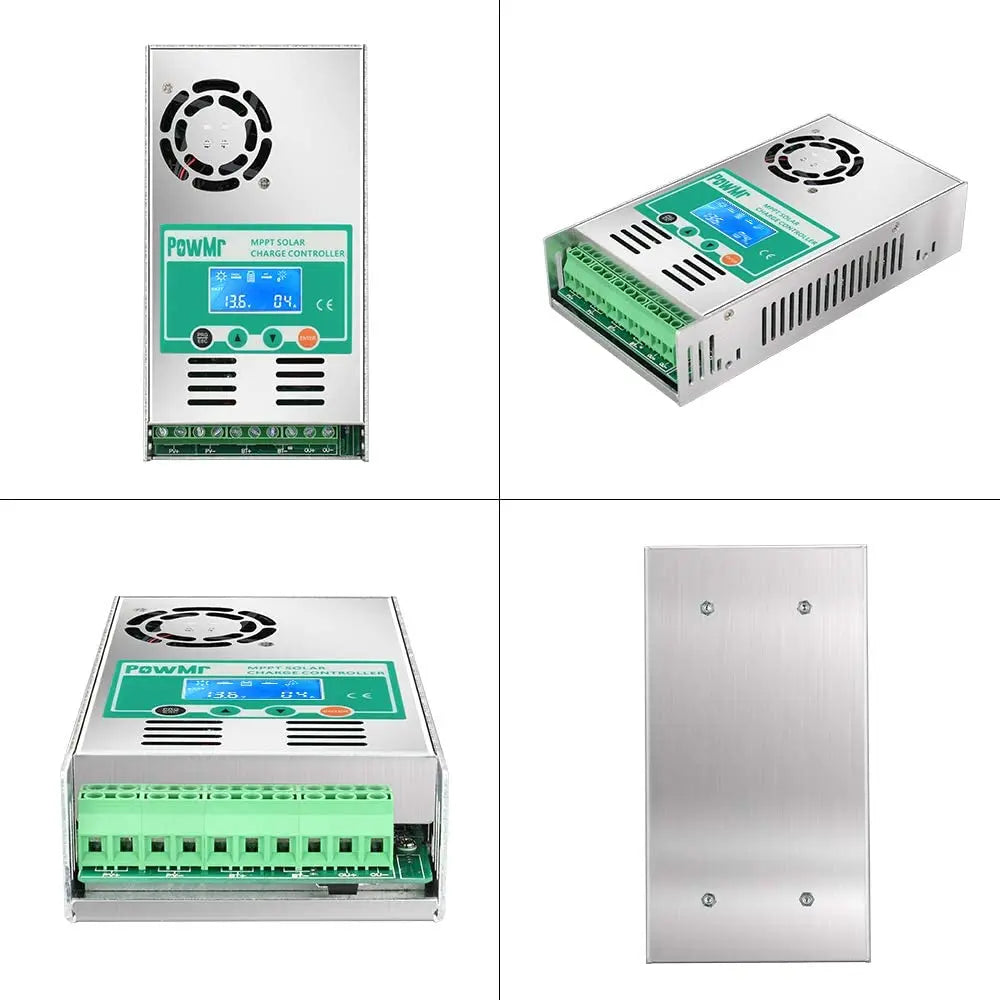

PowMr MPPT 60A Solar Charge Controller Solar Panel Regulator 12V 24V 36V 48V Auto Max PV 190VDC For Lead Acid Lithium Battery
PowMr MPPT 60A Solar Charge Controller Solar Panel Regulator 12V 24V 36V 48V Auto Max PV 190VDC For Lead Acid Lithium Battery
193 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Version: PowMr 2022
The maximum PV input voltage (Voc): DC190V
The maximum PV input power: 12V system (720W) 24V system (1440W) 36V system (2100W) 48V system (28
Rated output current: MPPT 60A
Quality: 100% genuine
Origin: Mainland China
Model Number: MPPT Solar Charge Controller Solar Regulator
Maximum Current: MPPT 60A
Enclosure: IP21
Charging mode: MPPT Maximum power point tracking automatically
Certification: CE
Brand Name: PowMr
Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for othe

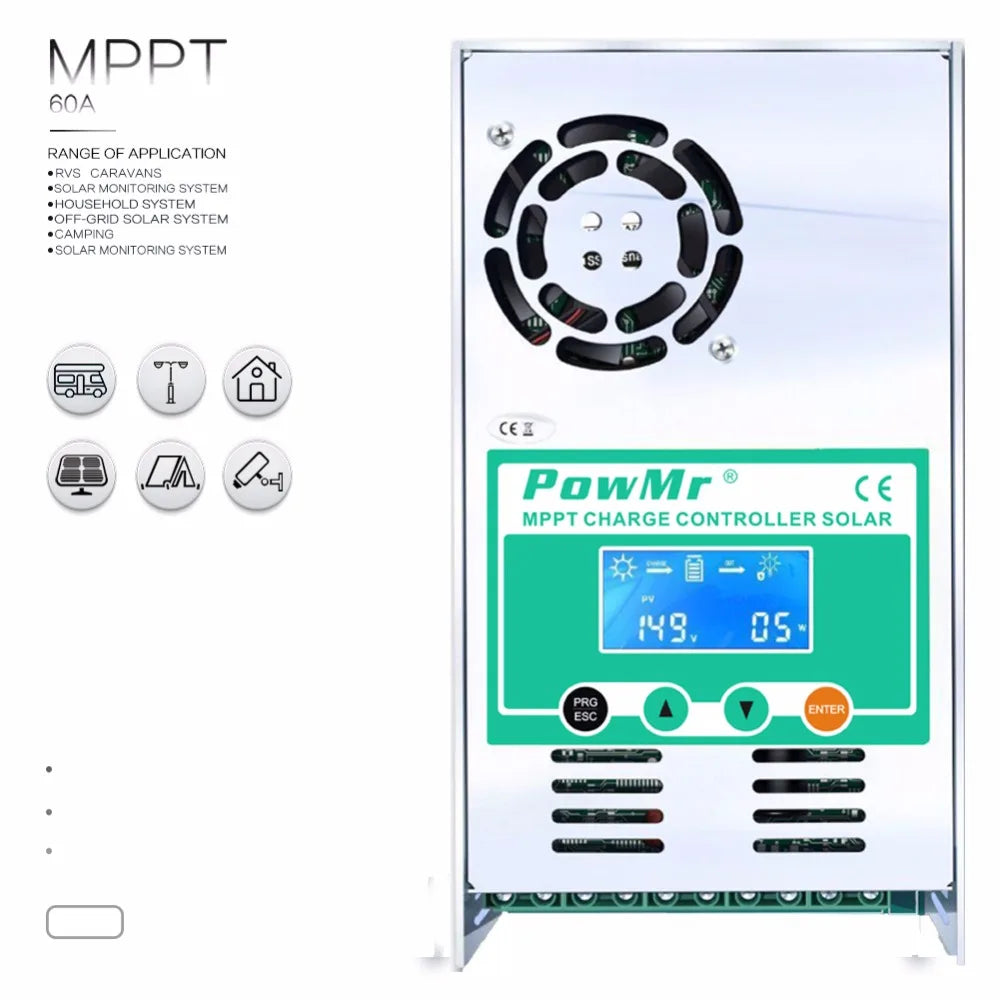

Application: Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller
PowMr MPPT 60A 50A 40A 30A Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery
Feature:
100% MPPT controller！
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance
Multi-function LCD displays, Reverse polarity protection of solar panel
Overcharge protection, Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

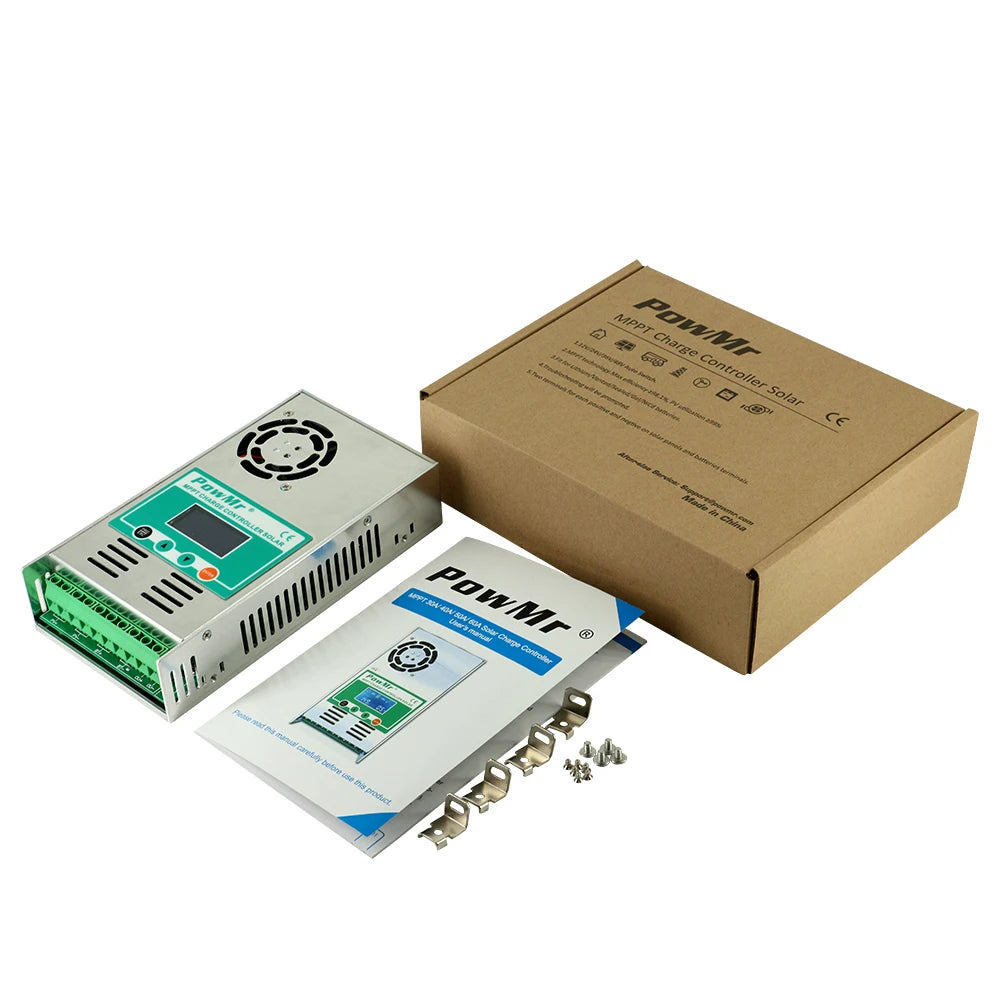

Package Including：
1PC MPPT Solar Controllers
1PC User Manual (English)
▲Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

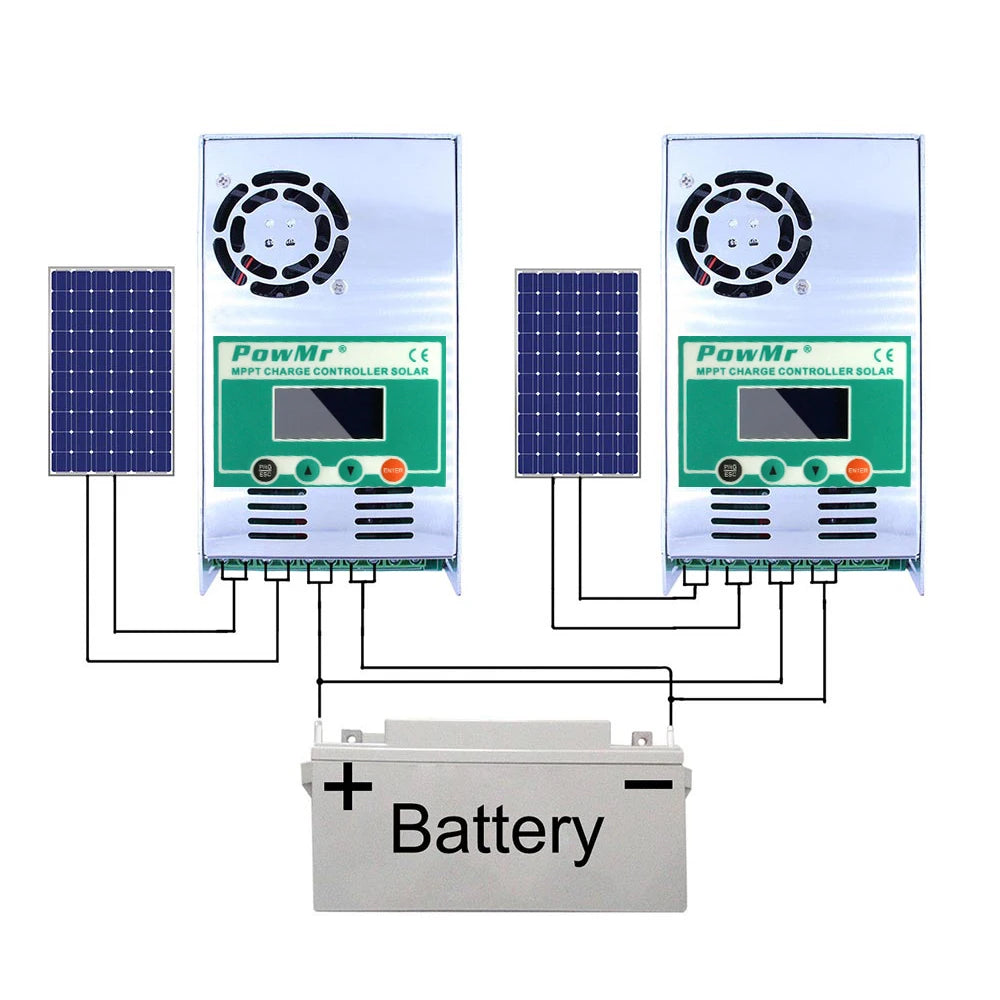

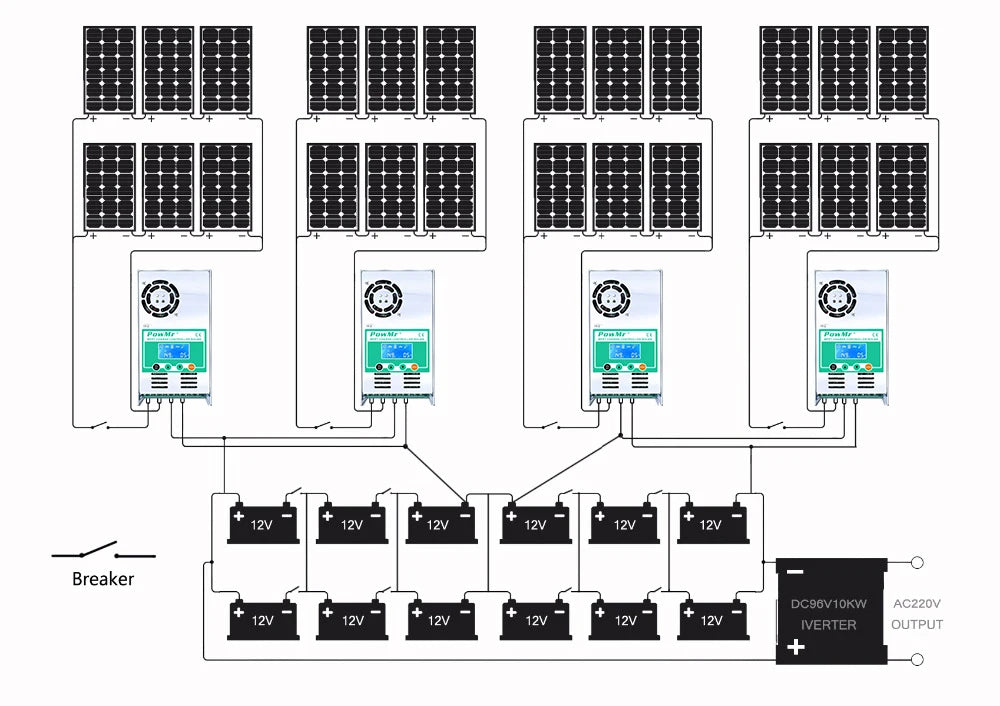

you can put two pieces 60A in parallel , So total is MPPT 120A
Specifications:
Model Name |
MPPT-30A |
MPPT-40A |
MPPT-50A |
MPPT-60A |
Charging mode |
MPPT Maximum power point tracking automatically |
|||
Charging |
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
|||
System type |
DC12V/24V/36V/48V Recognition automatically |
|||
System voltage automatic recognition |
12V system (DC9V-DC15V) |
|||
24V system (DC18V-DC29V) | ||||
36V system (DC30V-DC39V) | ||||
48V system (DC40V~DC60V) | ||||
Soft start time |
≤1S |
|||
Dynamic response and recovery time |
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) |
|||
PV utilization |
≥99% |
|||
Input specification | ||||
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) |
12V system (DC20V~DC80V) |
|||
24V system (DC37V~DC105V) | ||||
36V system (DC50V~DC160V) | ||||
48V system (DC72V~DC160V) | ||||
The maximum PV input voltage (Voc) |
DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) |
|||
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (360W) |
12V system (480W) |
12V system (600W) |
12V system (720W) |
24V system (720W) |
24V system (960W) |
24V system (1200W) |
24V system (1440W) |
|
36V system (1080W) |
36V system (1400W) |
36V system (1800W) |
36V system (2100W) |
|
48V system (1440W) |
48V system (1700W) |
48V system (2200W) |
48V system (2800W) |
|
Output specification | ||||
Selectable battery type(default is Sealed) |
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) |
|||
Absorption Charging Voltage |
Refer to Batteries charging reference |
|||
Floating Charging Voltage |
Refer to Batteries charging reference |
|||
Overcharging protection voltage |
12V system (15V) |
|||
24V system (30V) | ||||
36V system (45V) | ||||
48V system (60V) | ||||
Rated output current |
30A |
40A |
50A |
60A |
Temperature Coefficient |
±0.02%/ centi-degree |
|||
Automatic temperature compensation |
14.2V-(Max temperature-25 centi-degree)*0.3 |
|||
Output voltage ripple-peak |
100mV |
|||
Output voltage accurac |
≤±1% |
|||
Input Anti-intrusion protection |
yes |
|||
Temperature Protection |
75°C |
|||
Temperature increased protection |
Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C |
|||
Fan-on temperature |
>40 °C |
|||
Fan-off temperature |
<35 °C |
|||
Acoustic noise |
≤40dB |
|||
Cooling way |
Forced air cooling |
|||
Components |
Imported materials, Accord to EU standards, Industrial grade range. |
|||
Environmental requirements |
Meet 2002/95/EC; No cadmium, hydrides and fluorides |
|||
Security Level |
Accord to CE, PSE, FCC, EMC, EN60950 |
|||
Electromagnetic Compatibility |
Accord to EN61000, EN55022, EN55024 |
|||
Enclosure |
IP21 |
|||
Net weight(Kg) |
1.2 |
|||
Gross weight(Kg) |
1.3 |
|||
