PowMr Mppt+PWM Solar Charge Controller 12V 24V 30A 50A 70A Solar Controller Solar Panel Battery Regulator Dual USB LCD Display
PowMr Mppt+PWM Solar Charge Controller 12V 24V 30A 50A 70A Solar Controller Solar Panel Battery Regulator Dual USB LCD Display
174 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
overcharge and low voltage protection: yes
is_customized: Yes
Reverse Connection Protection: yes
Product: Dual USB Solar Regulator
Origin: Mainland China
Model Number: PVSC Series
Maximum Current: 30A 50A 70A
Max. Input Voltage of sola panel: 50V
Low Voltage Reconnect Voltage: 12.6V(adjustable)
Low Voltage Disconnect Voltage: 11V(adjustable)
Item: 30A 50A 70A MPPT Solar Charge Controller
Is Smart Device: YES
Float Voltage: 13.8V(adjustable)
Dual USB: 5V 2.1A
DC output: 12V / 24V
Certification: CE
Brand Name: PowMr
Battery Voltage: 12V 24V Auto
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
PowMr Mppt+PWM Solar Charge Controller 12V 24V 30A 50A 70A Solar Controller Solar Panel Battery Regulator Dual 5V USB LCD Display
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT Please contact us for checking more details if needed.
Thank you.

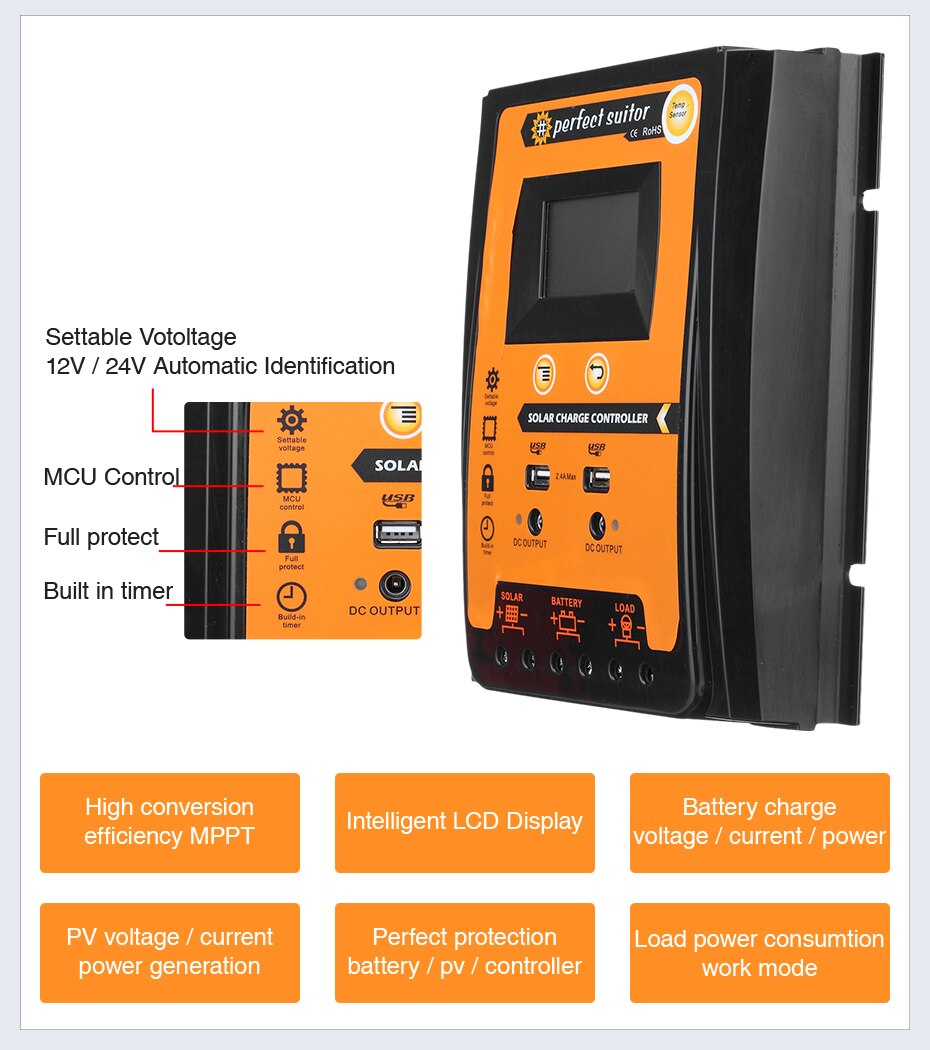

Feature:
1.Automatic identification system voltage, 12/24V auto recognition;
2.Humanized LCD displaying and double button operation of man-machine interface;
3.Completed technical data for setup and modify;
4.High efficiency intelligent MPPT 3-stage charging mode;
5.The load control mode can be selected;
6.the timer function can be reset for street light at night;
7.Discharge capacity control;
8.Discharge counter of ampere hour;
9.Working storage function: record the total run time of system, record timers of error during running time, record times of full charged battery;
Battery protection:
Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.
Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
Roundly reverse connected protection;

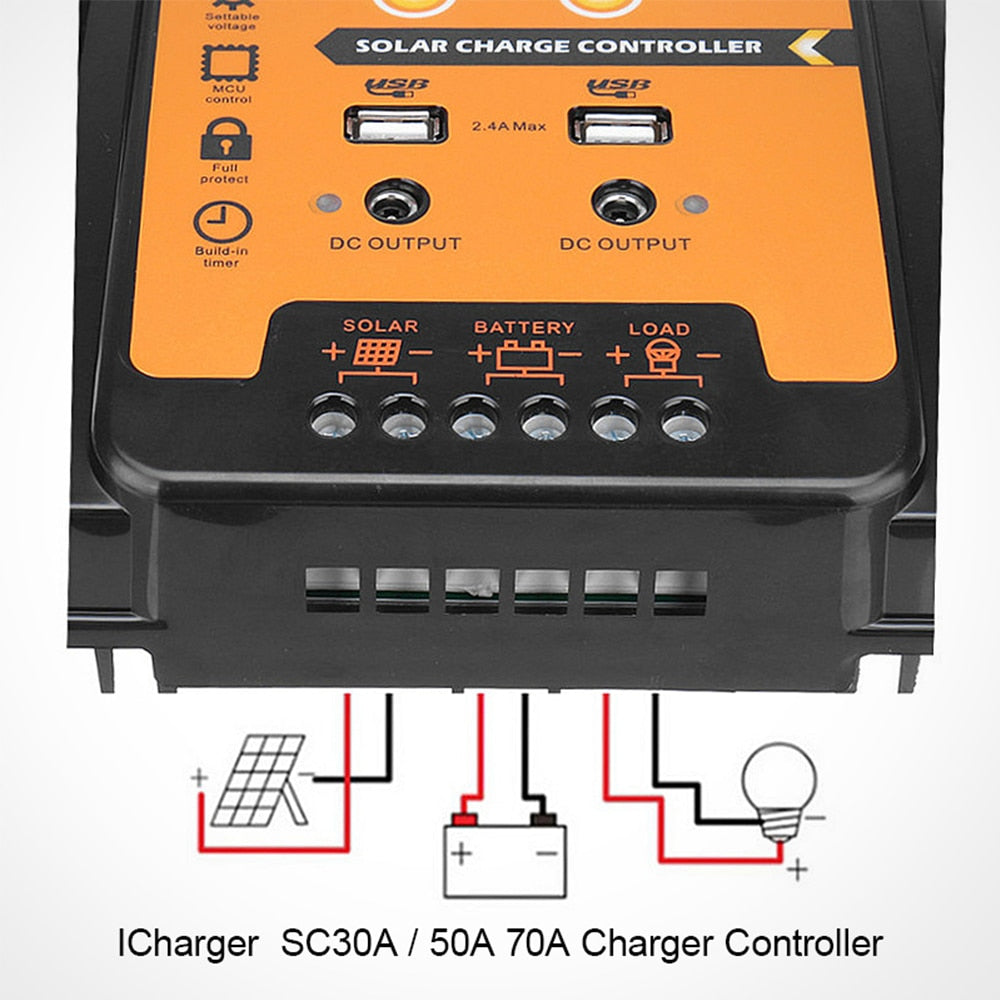

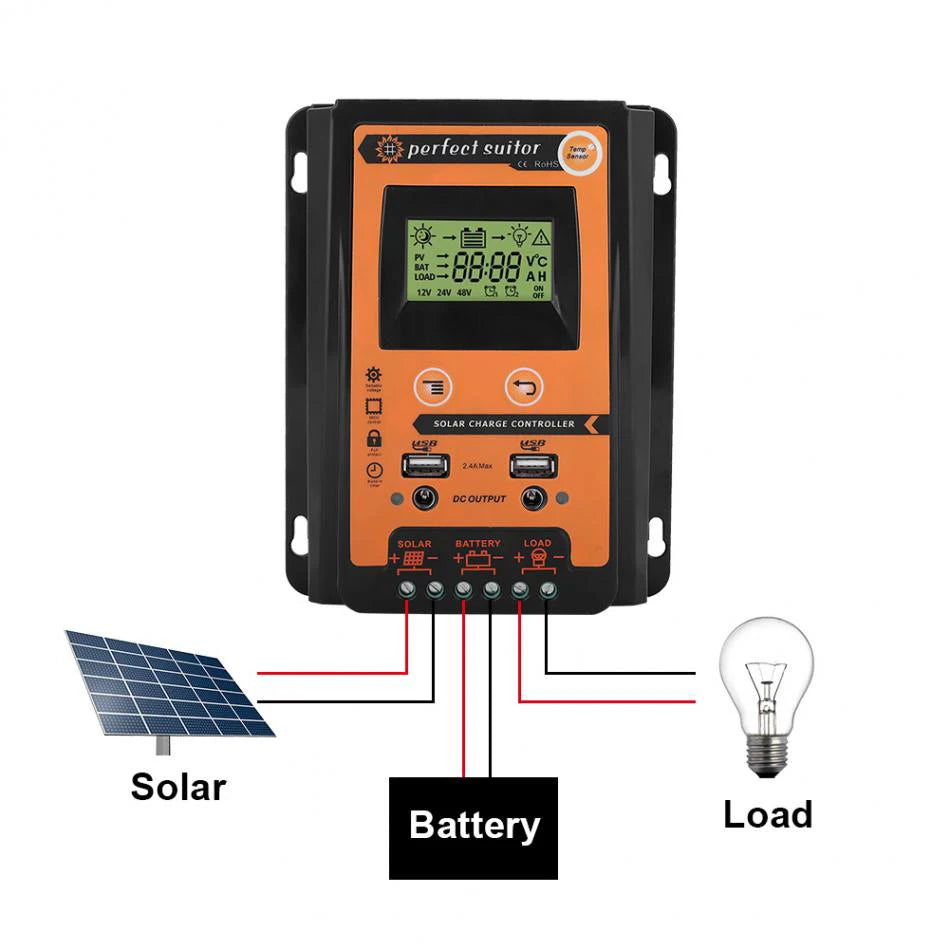

Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit.
Specification:
1.Current: 30A, 50A, 70A
2.Rated Voltage: 12/24V
3.USB Output: 2.4A x2
4.Over Charge Current(V): 13.7V/x2 24V
5.Over Discharge Current(V): 10.5-11V/*2 24V
6.Temperature Compensation: -3mv/°/cell
7.Empty Load Wastage: <45mA
8.Loop Voltage Drop: <200mv
9.Display: LCD Display
10.Charging Type: MPPT+PWM
11.Waterproof Grade: IP32
12.Material: Plastic
13.Color: Black + Orange

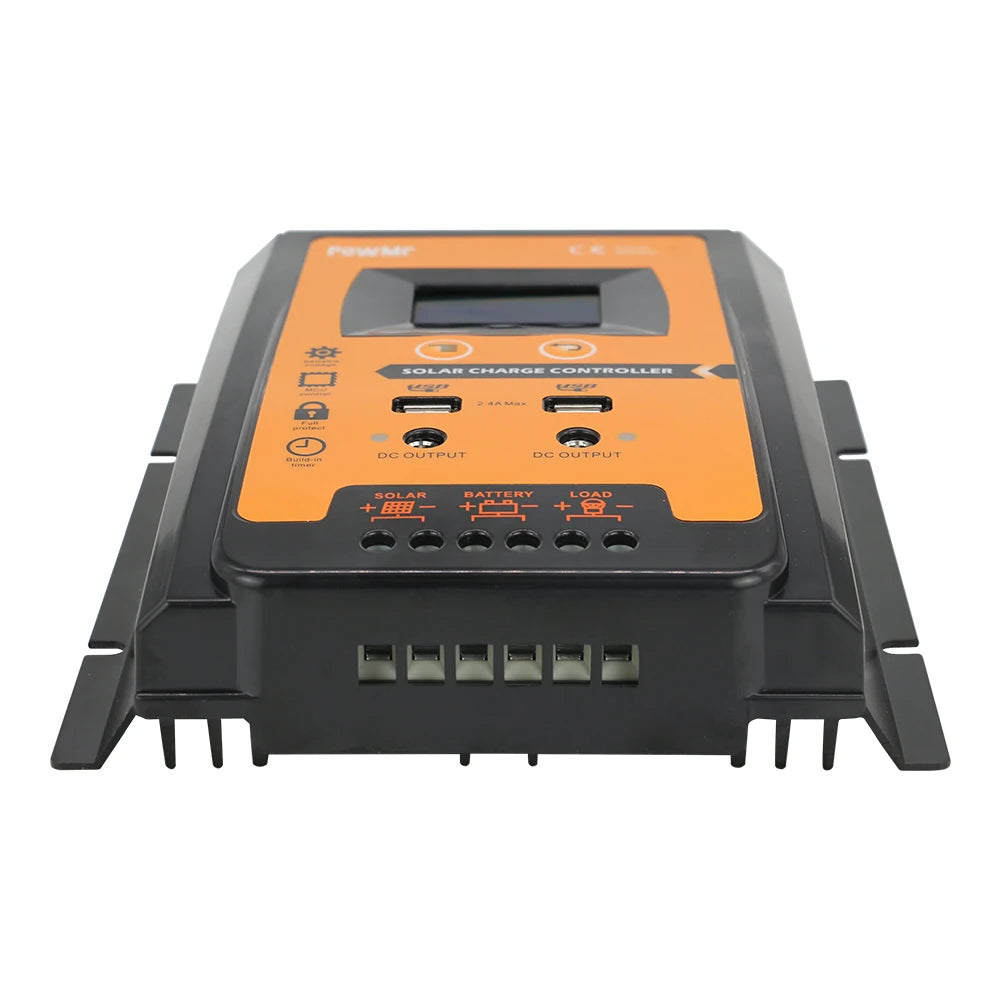

14.Note: Only 30A Solar Controller does not show the charging current ,50A 70A show the charging current !

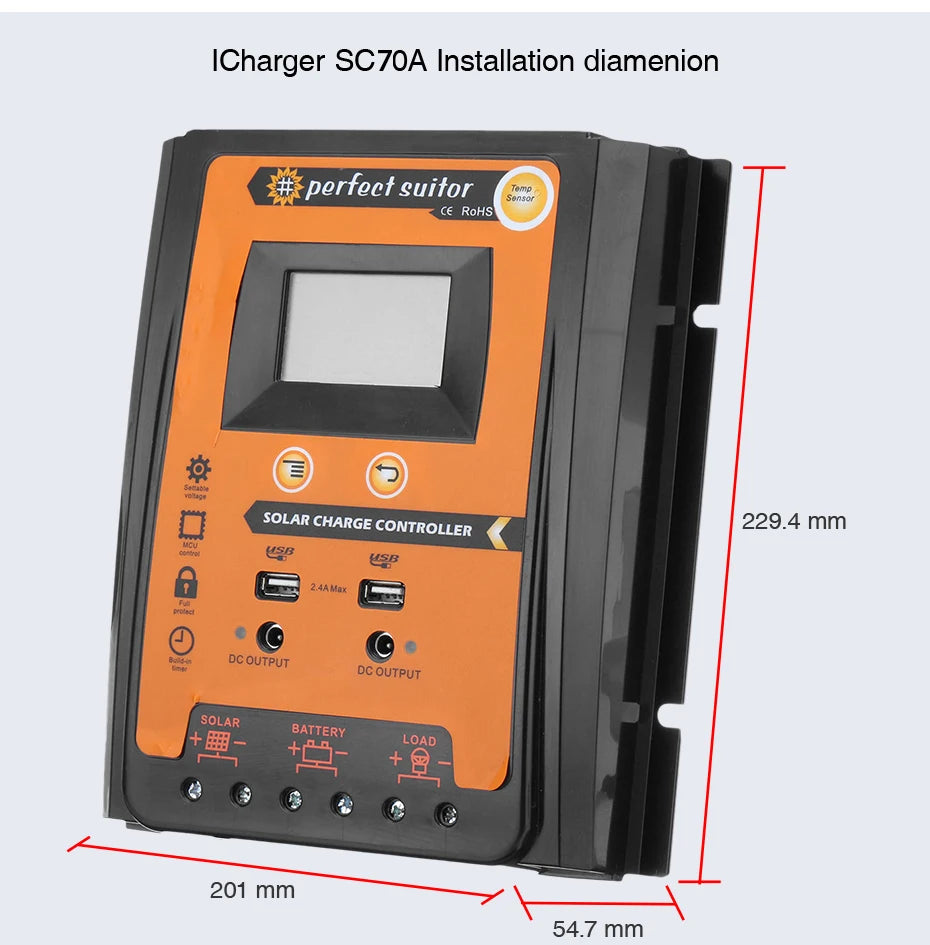

Dimesion:
30A:17.5 x14 x 4cm/6.9 x 5.5 x 1.6in
50A:21 x 19.2 x 5.5cm/8.3 x 7.6 x 2.2in
70A:22.8 x 20 x 5.5cm/9 x 7.9 x 2.2in

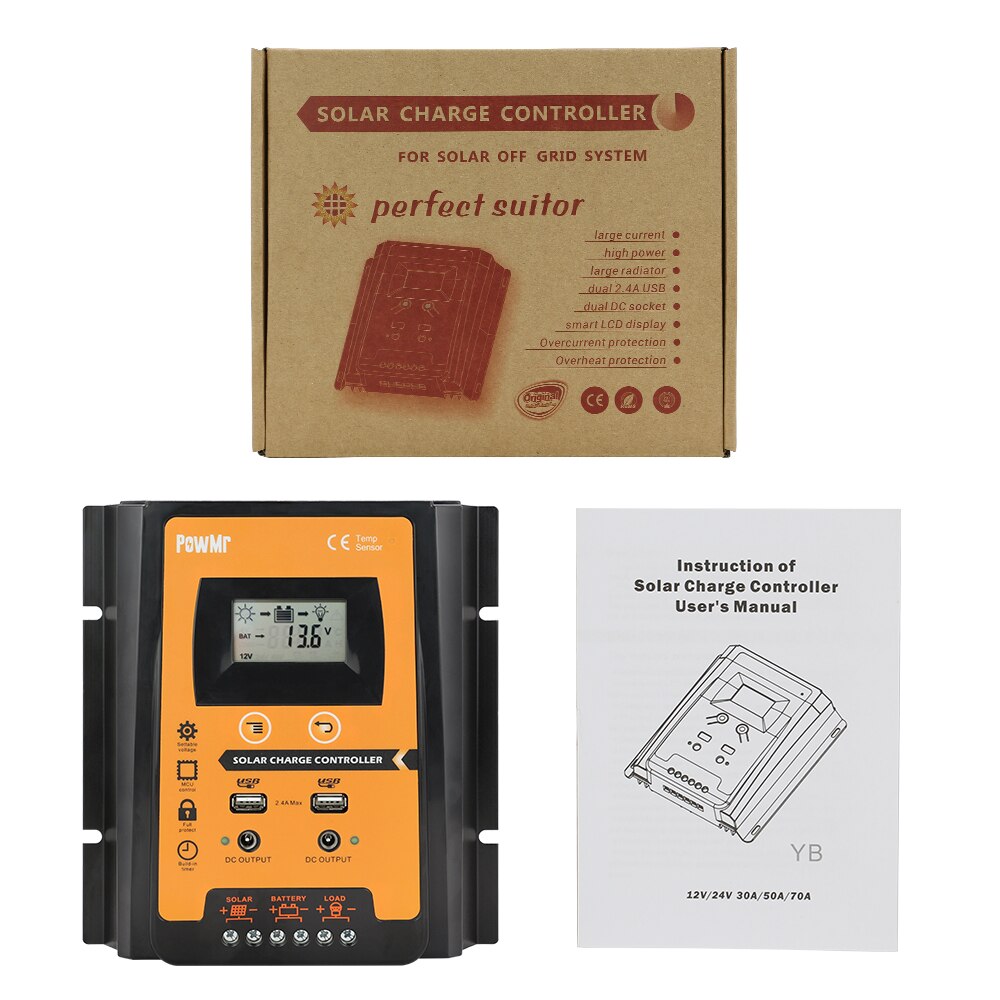

Package Include:
1xSolar Controller
1X User Manual
Product Parameter:
Model |
PVSC-30A |
PVSC-50A |
PVSC-70A |
System Voltage |
12V / 24V |
||
Max. Input Voltage of sola panel |
50V |
||
Self-consumptlon |
≤10mA |
||
Max. charge current |
30A |
50A |
70A |
Max. discharge current | |||
LVD |
11.0V ADJ 9V ┈ 12V; ×2/24V |
||
LVR |
12.6V ADJ 11V ┈ 13.5V; ×2/24V |
||
Float Voltage |
13.8V ADJ 11V ┈ 13V; ×2/24V |
||
Boost charging |
14.4V; ×2/24V Batler Voltage less than 12V start boost charging 2 hours |
||
Battery Ovev Voltage Protection |
16.5V;×2/24V |
||
Reverse Connection Protection |
yes |
||
Load Over Current Protection |
Yes,each two minutes restart once |
||
Temperature Compensation |
-24 mV/℃ for 12V system;×2/24V |
||
Working Temperature |
-20℃ ┈ +55℃ |
||
Waterproof grade |
IP32 |
||

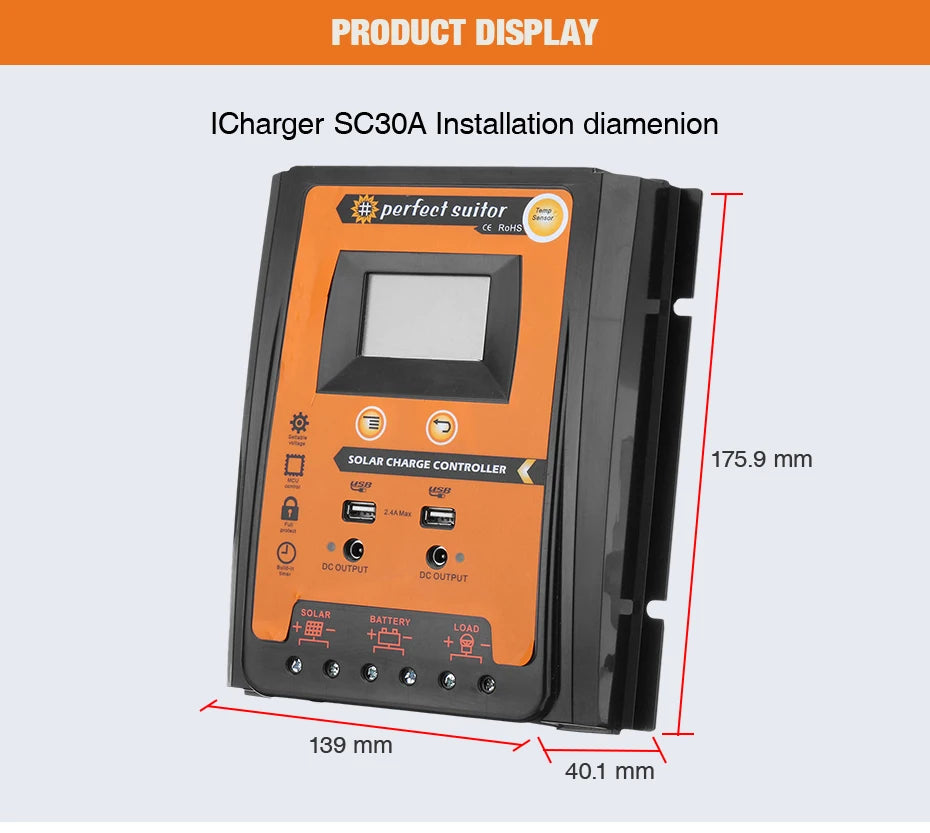

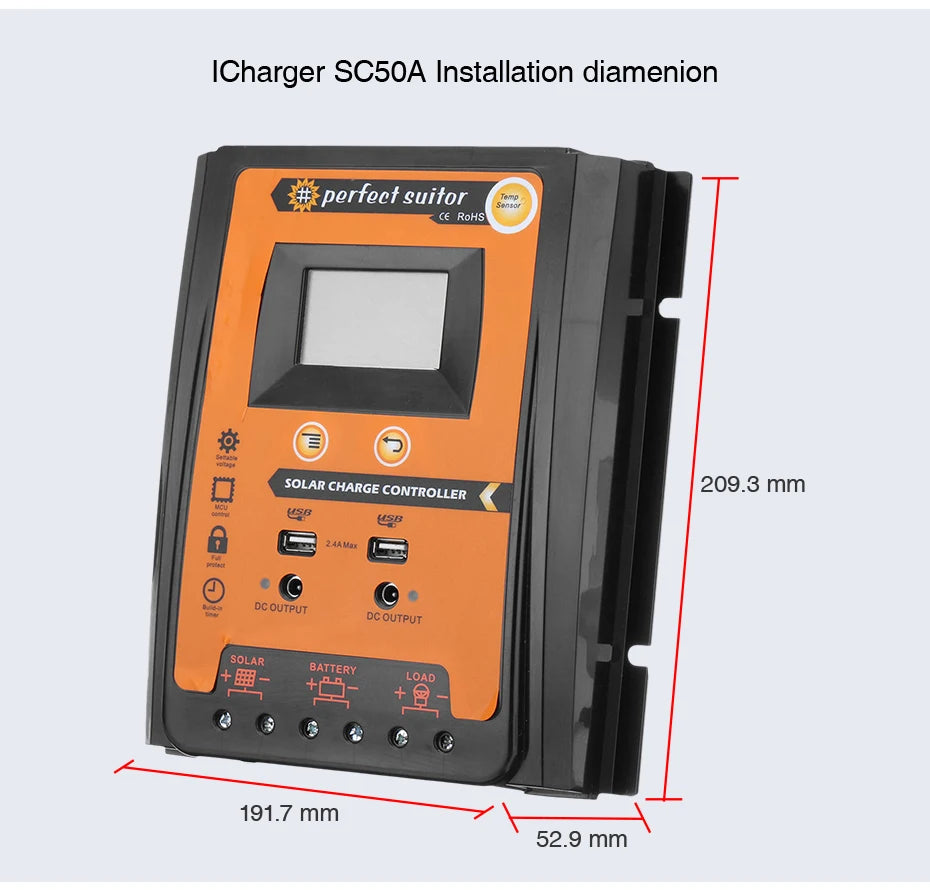

Size (mm) |
175.9×139×40.1 |
209.3×191.7×52.9 |
229.4×201×54.7 |
USB |
5V 2.1A |
||
DC output |
12V / 24V |
||
Net weight (kg) |
0.38 |
0.75 |
1.16 |
Product Pictures:
