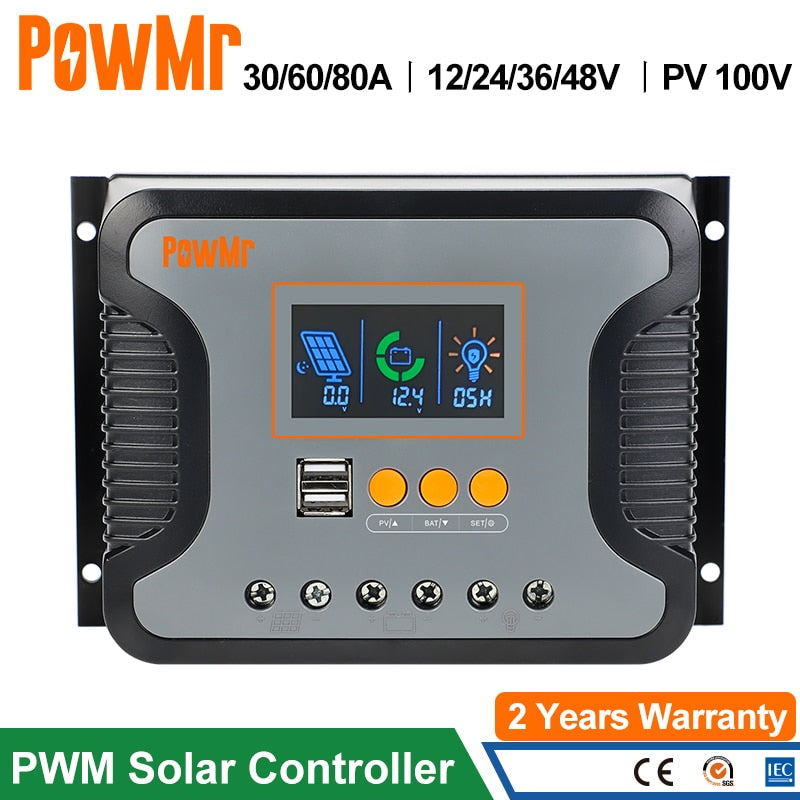

PowMr PWM 30A 60A 80A Solar Charge Controller Work for 12V 24V 36V 48V Battery LED Screen USB 5A/2A Max PV 100V Slient Operation

PowMr PWM 30A 60A 80A Solar Charge Controller Work for 12V 24V 36V 48V Battery LED Screen USB 5A/2A Max PV 100V Slient Operation

$61.09 USD
$61.09 USD
Sale Sold out
Shipping calculated at checkout.

218 orders in last 30 days

Ships From
Color
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Support: lithium-ion and lead-acid battery

Protection Class: IP30

Origin: Mainland China

Net weight: 0.49kg

Model Number: Pstar-30A/Pstar-60A/Pstar-80A

Maximum Current: 30A 60A 80A

Max Open Voltage of PV Module: 100V

Dimension: 187*94*49mm

Certification: CE,RoHS

Brand Name: PowMr

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

PowMr PWM 30A 60A 80A Solar Charge Controller Work for 12V 24V 36V 48V Battery LED Screen USB 5A/2A Max PV 100V Slient Operation


Instructions:

Thank you for choosing the Pstar Series of Solar Power Controllers. The controller uses numerical control technology design, LCD display, automatic operation. Its pulse-width modulation (PWM) type battery charging mode, as well as control technology, will greatly extend the battery life.

This controller is suitable for the solar energy system (independent system), control the charging and discharging process automatically. The battery charging and discharging process of the controller is optimized, which can prolong the battery life and improve the system performance. Its self-test function and electronic protection function can avoid controller damage due to installation errors and system failures.



Features:

⚫ Integrated charge presets
Integrated charge presets combined with adaptive charge logic are well suited for most common
battery types, such as LiFePO4, Gel and flooded lead-acid.
⚫ Flexible Application
Automatic identification of 12V/24V/36V/48V system voltage.
⚫ Multi-stage charge algorithm
The multi-stage charge algorithm is specifically engineered to optimise each recharge cycle and
charge maintenance over extended periods.
⚫ Adaptive boost charge
Adaptive boost charge monitors the battery’s response during initial charging and intelligently
determines the appropriate boost charge duration for each individual charge cycle. This ensures
that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive
time at the elevated boost charging voltage (that can accelerate battery aging).
⚫ Durable and safe
i. Protection against overheating: When the equipment temperature exceeds 85℃, the control
automatically stops charging. Resume charging when the equipment temperature is 75 ℃.
ii. Protection against output short circuit.
iii. Protection against over discharging.
iv. Protection against reverse polarity connection: No damage to the controller will result, when
polarity is reversed. And the controller will not work.
v. Limit the maximum charging current. Protect battery performance and prolong battery life.

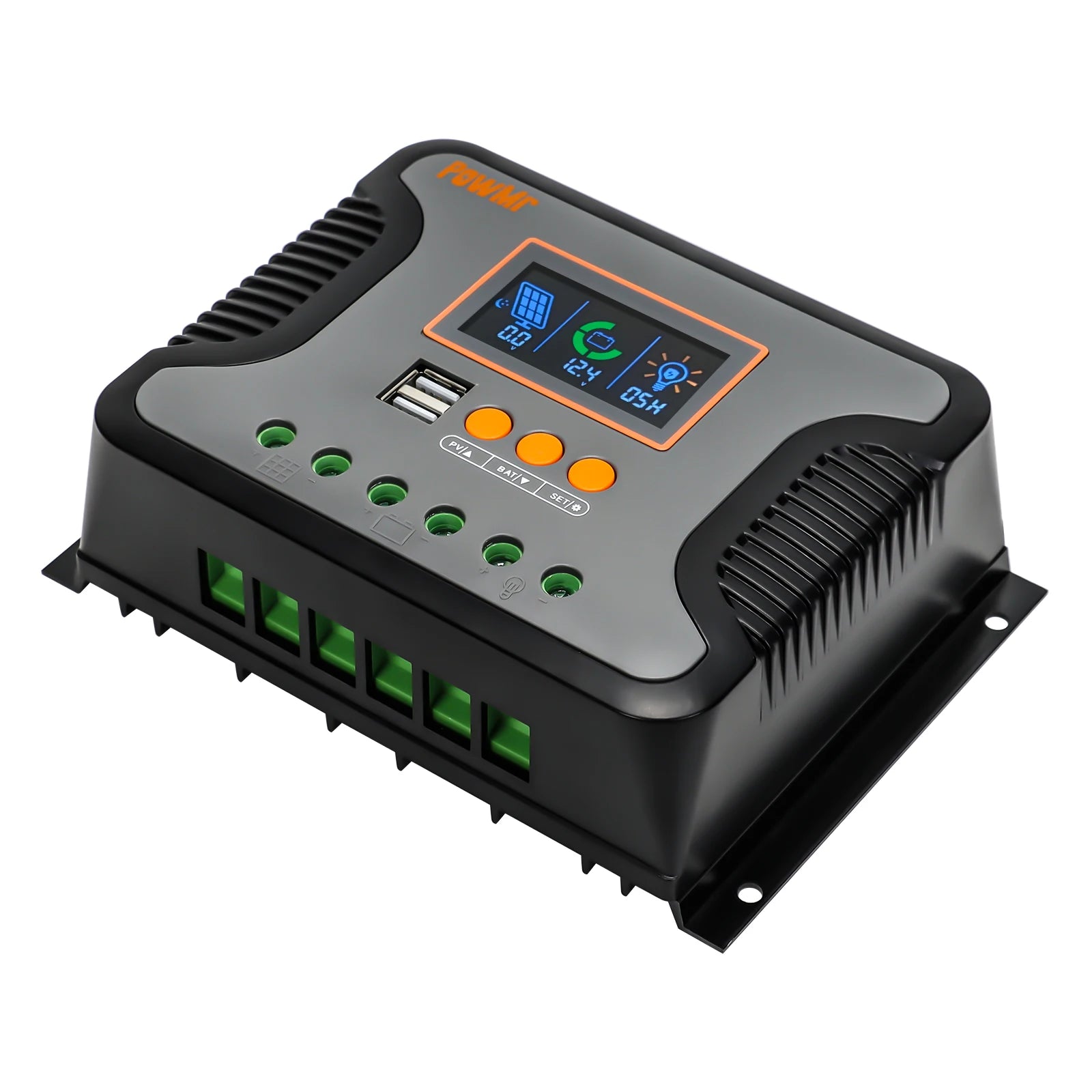

⚫ Silent operation
Almost silent operation since there is no cooling fan or moving parts, cooling is via natural
convection.
⚫ Lithium battery compatible
Compatible with Li-ion (LiFePO₄) batteries; when the battery type parameter is set to Lithium battery
the charge cycle settings are altered to suit.
Warning: Do not charge Li-ion batteries if the battery temperature is below 0°C.



Specification:

Model

Pstar-30A

Pstar-60A

Pstar-80A

PV Input

Max Open Voltage of PV Module

100V

PV Operation Voltage Range

>System voltage and ≤100V

Max. Input Power:

For 12V system

For 24V system

For 36V system

For 48V system

≤360W

≤720W

≤1080W

≤1440W

≤720W

≤1440W

≤2160W

≤2880W

≤960W

≤1920W

≤2880W

≤3840W

Charge Mode

Charging technology

PWM

Charge Algorithm

3-Stages

Self-consumption

≤20mA

Nominal System Voltage

12V/24V/36V/48V

Rated Charging Current

30A

60A

80A

DC output

Rated Output Current

20A

35A

50A

USB Interface

5V/2A*2

Environment

Operating Temperature Range

-20℃~+55℃

Humidity Range

≤90%，Non-condensing


Product details:

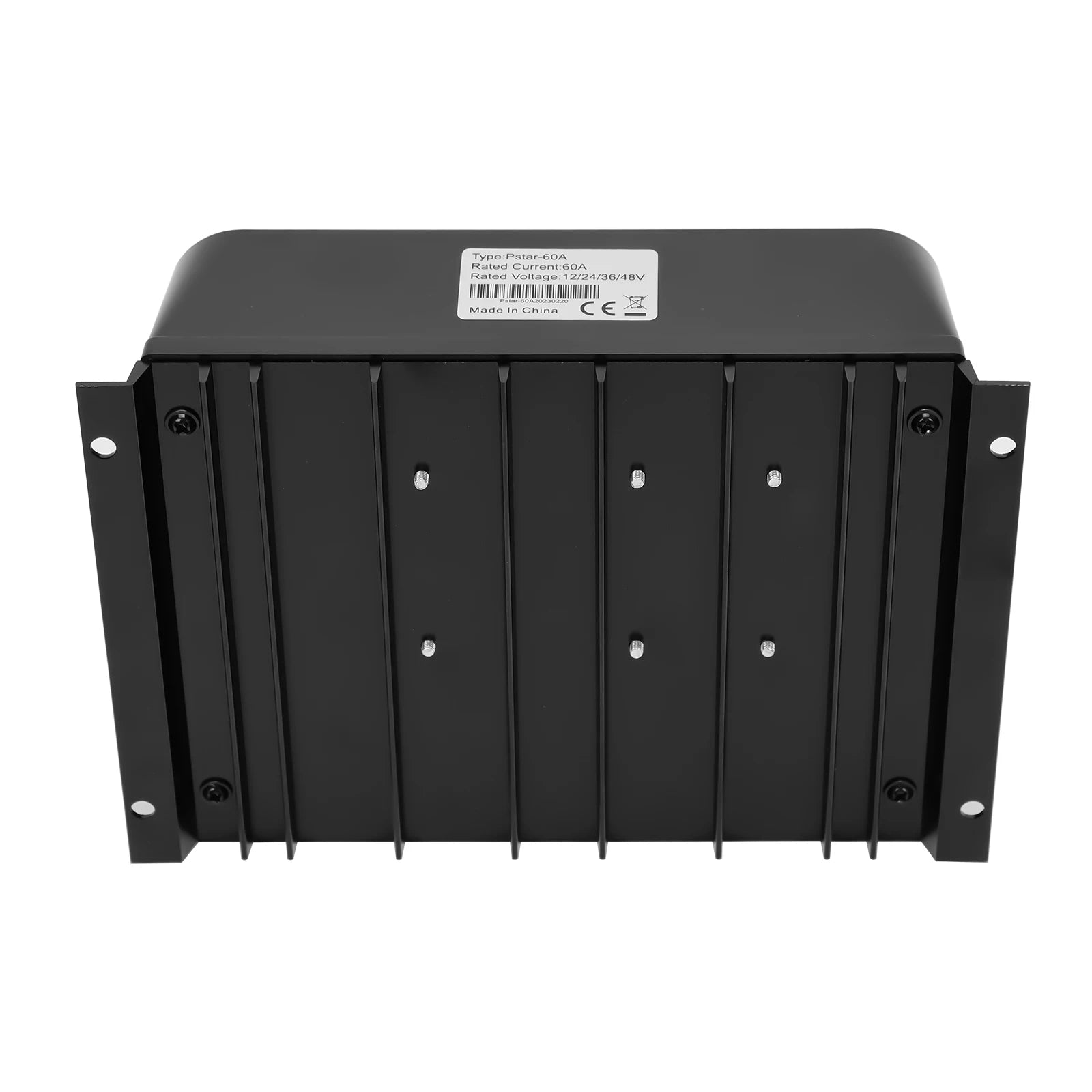

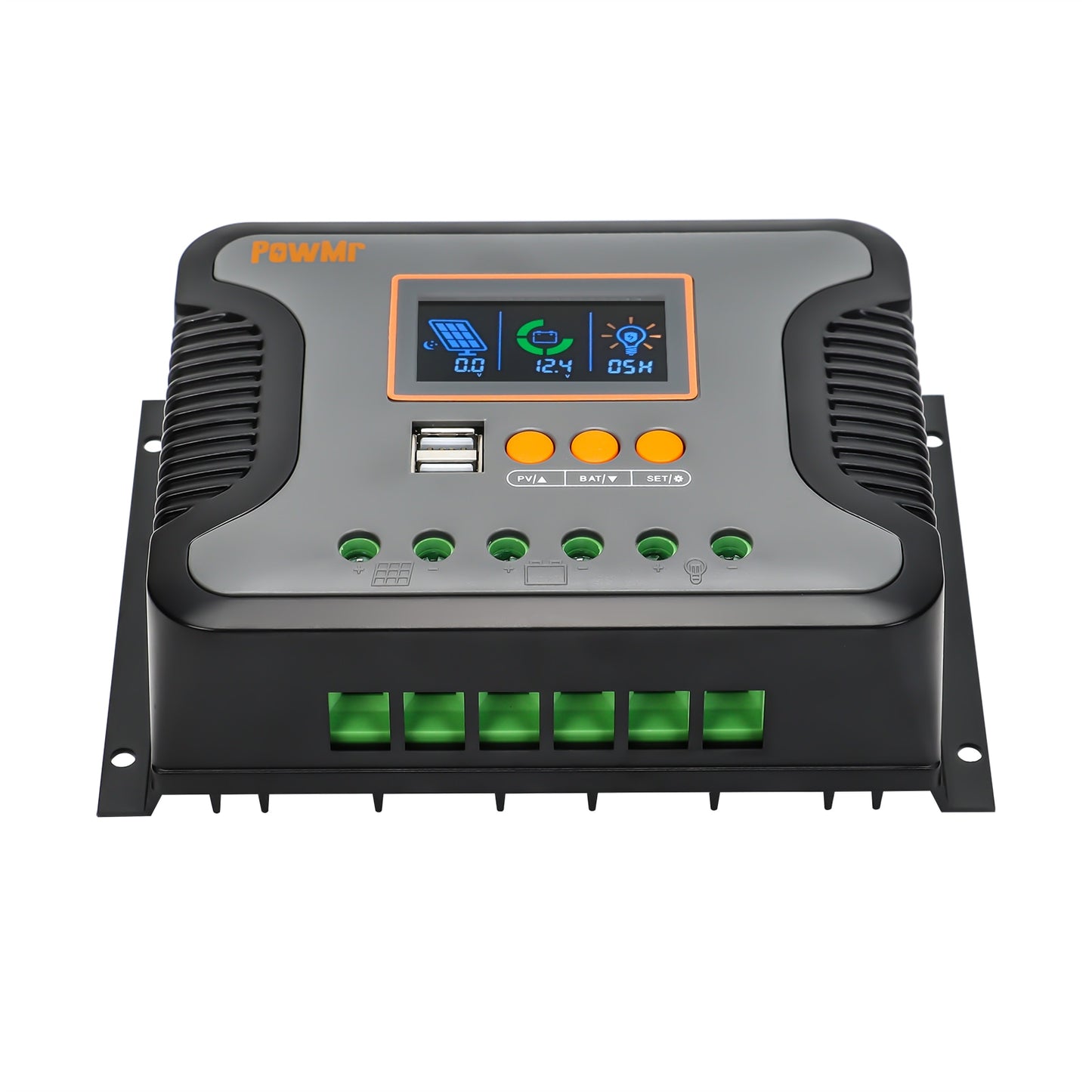

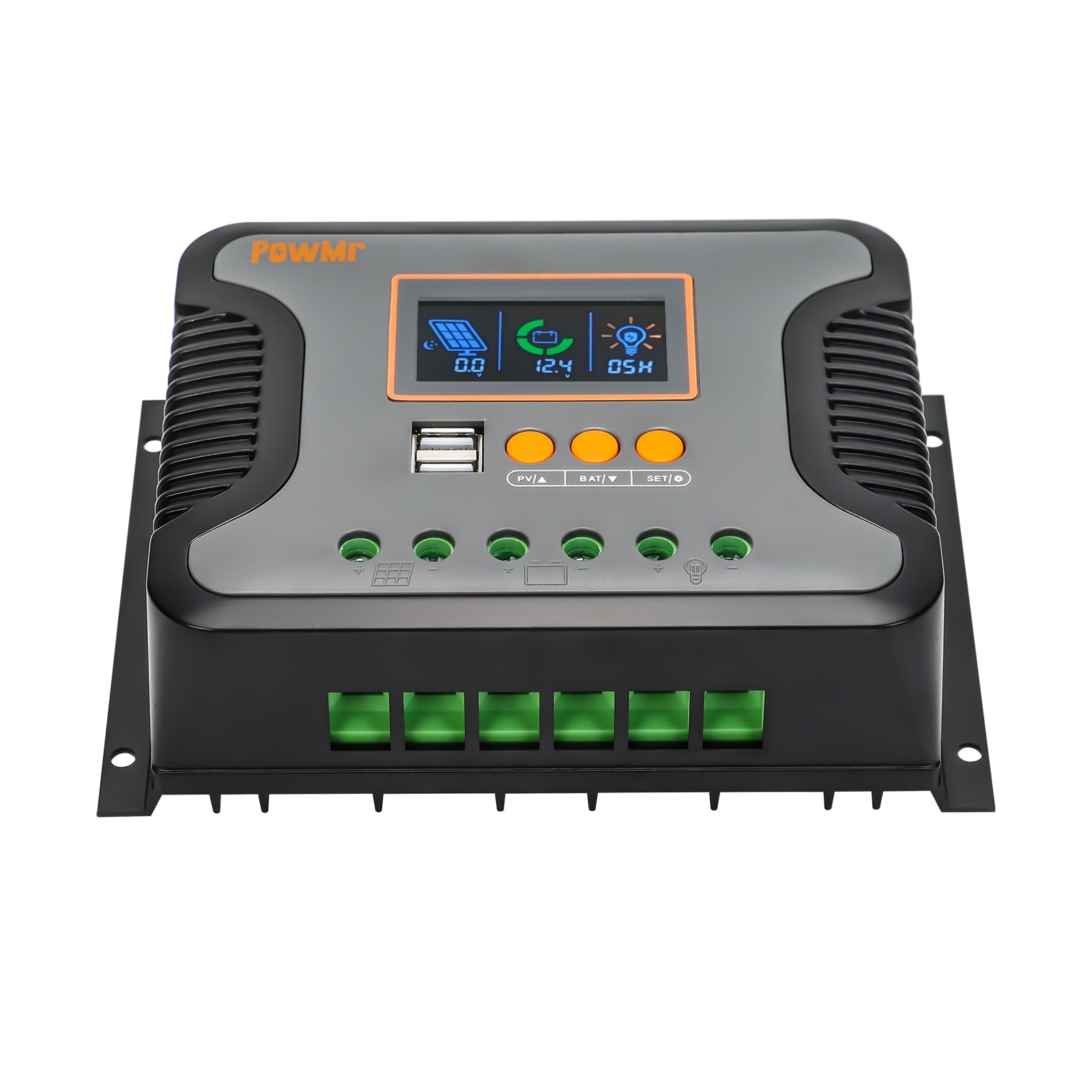

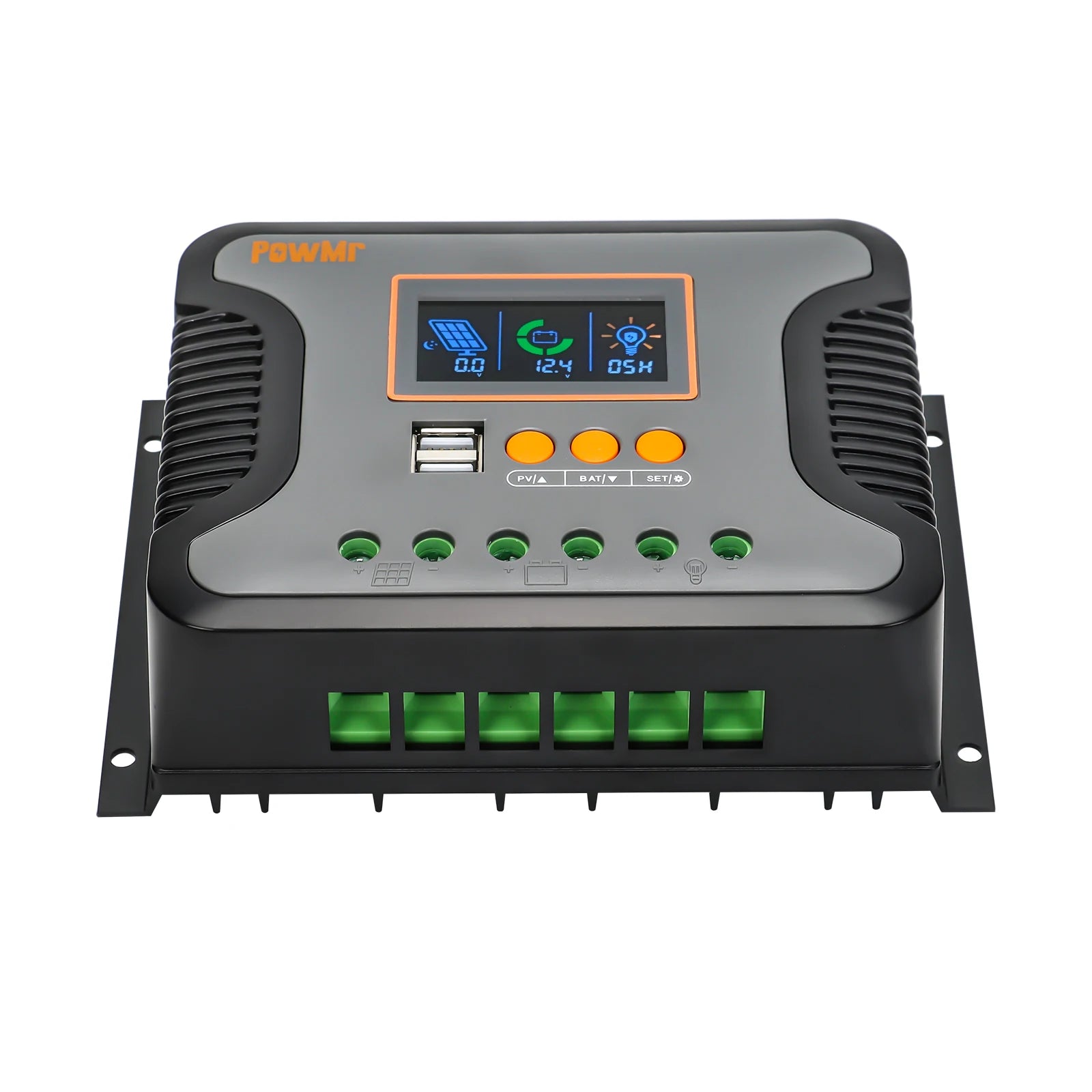

Product Photos:
