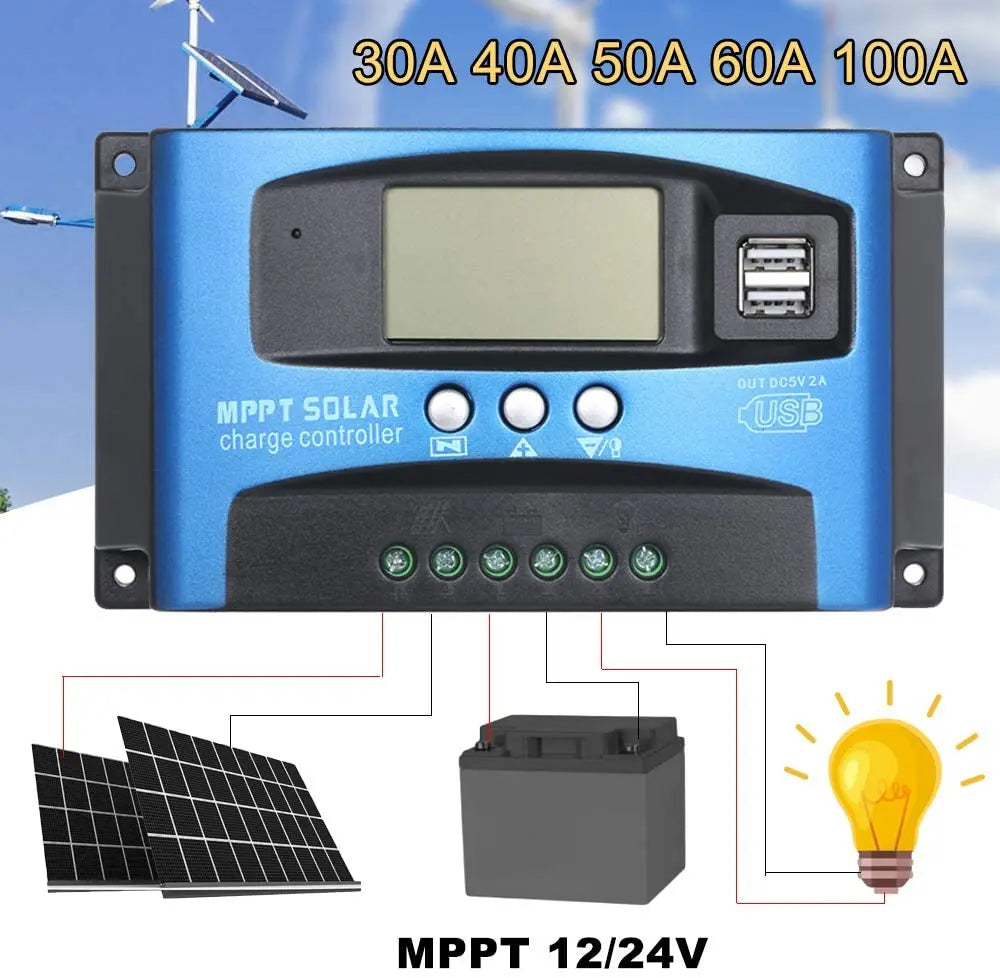

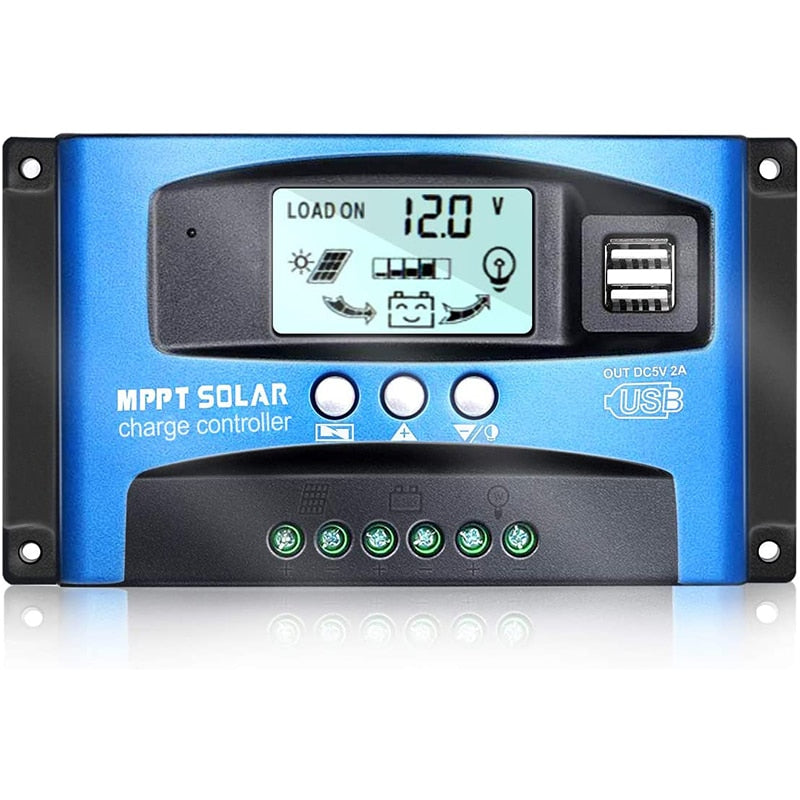

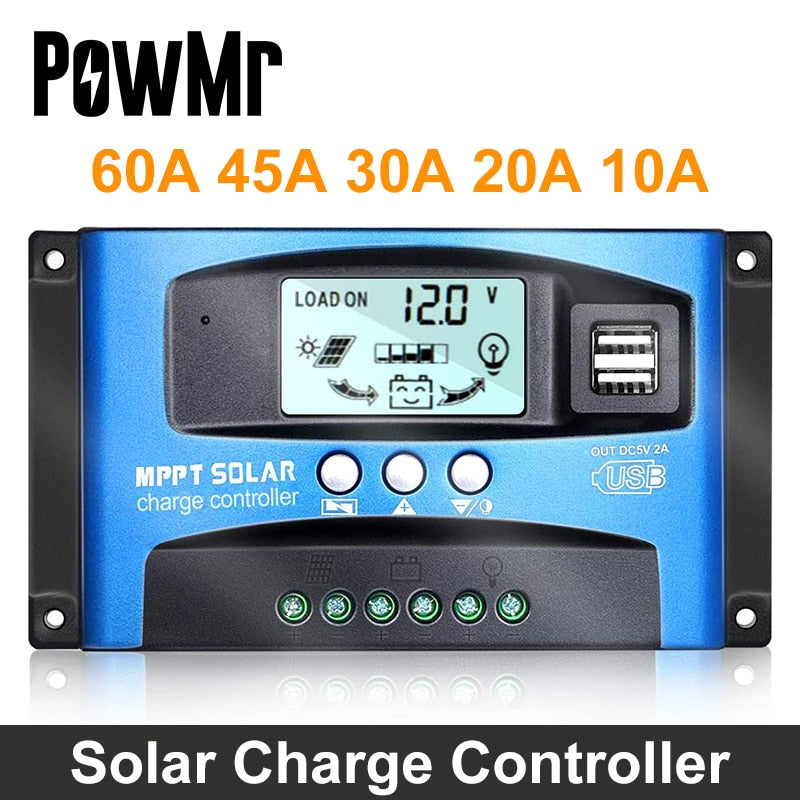

PowMr Solar MPPT 100A 60A 50A 40A 30A Charge Controller Dual USB LCD Display 12V 24V Solar Cell Solar Panel Charge Regulator
PowMr Solar MPPT 100A 60A 50A 40A 30A Charge Controller Dual USB LCD Display 12V 24V Solar Cell Solar Panel Charge Regulator
222 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: MPPT 30/40/50/60/100A Solar Charge Controller
Maximum Current: MPPT 100A/60A/50A/40A/30A
Max. PV voltage: 50V
Is Smart Device: YES
Charing Model: MPPT+PWM
Certification: CE
Brand Name: PowMr
Battery Type: Lithium Battery/B02 Colloidal Battery/B03 Open Cell
Application: Solar System Controller
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
PowMr Solar MPPT 100A 60A 50A 40A 30A Charge Controller Dual USB LCD Display 12V 24V Solar Cell Solar Panel Charger Regulator
Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working.
8. Thunder protection
9. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃ condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.

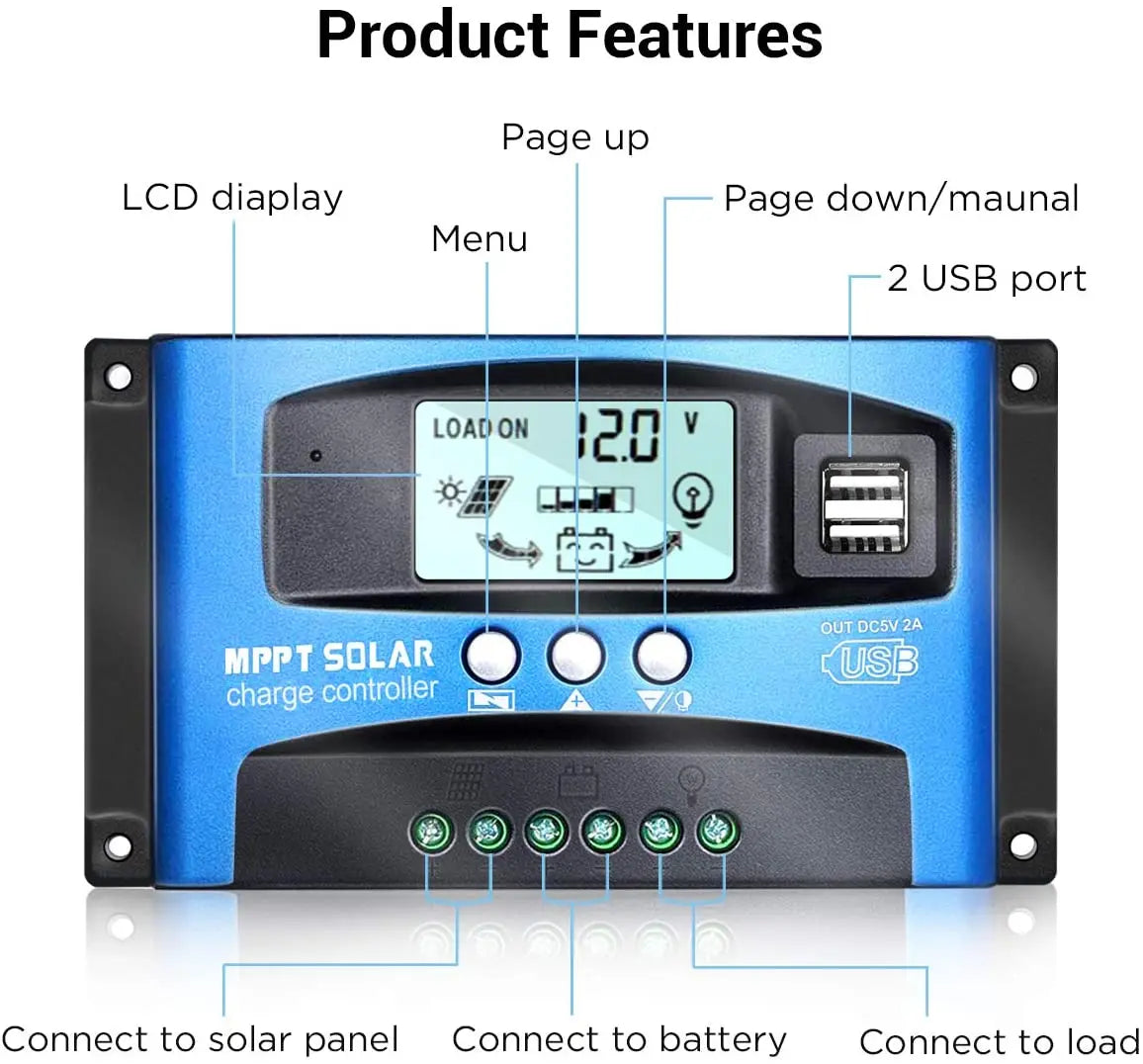

Features:
1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current accurate real-time display, power generation at a glance.
2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking.

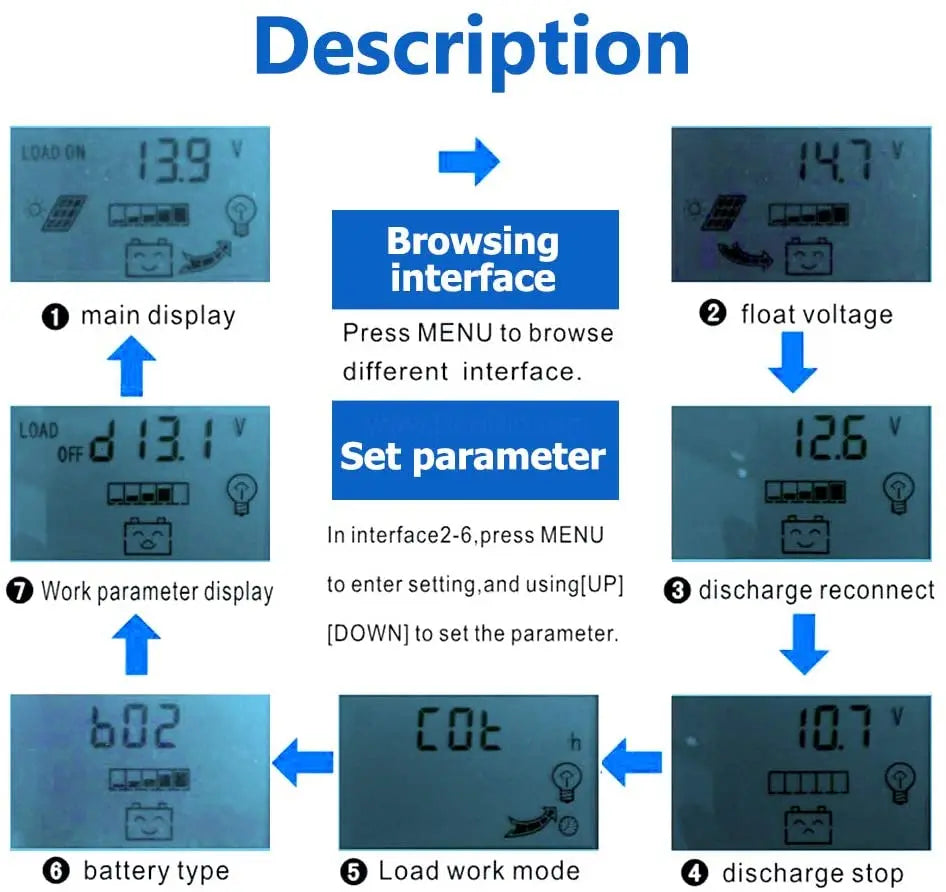

3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge and discharge adjustable, as long as you understand the characteristics of the battery set its corresponding charging parameters, you can charge a battery. When the output is off, the time can be adjusted, which is more convenient. (on the market, there is no point adjustment)
4. Acomplete three-phase charge management, effectively protect the battery, the battery is more durable.
5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection,when the fault is eliminated, the controller automatically recovers, does not damage the device.
6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

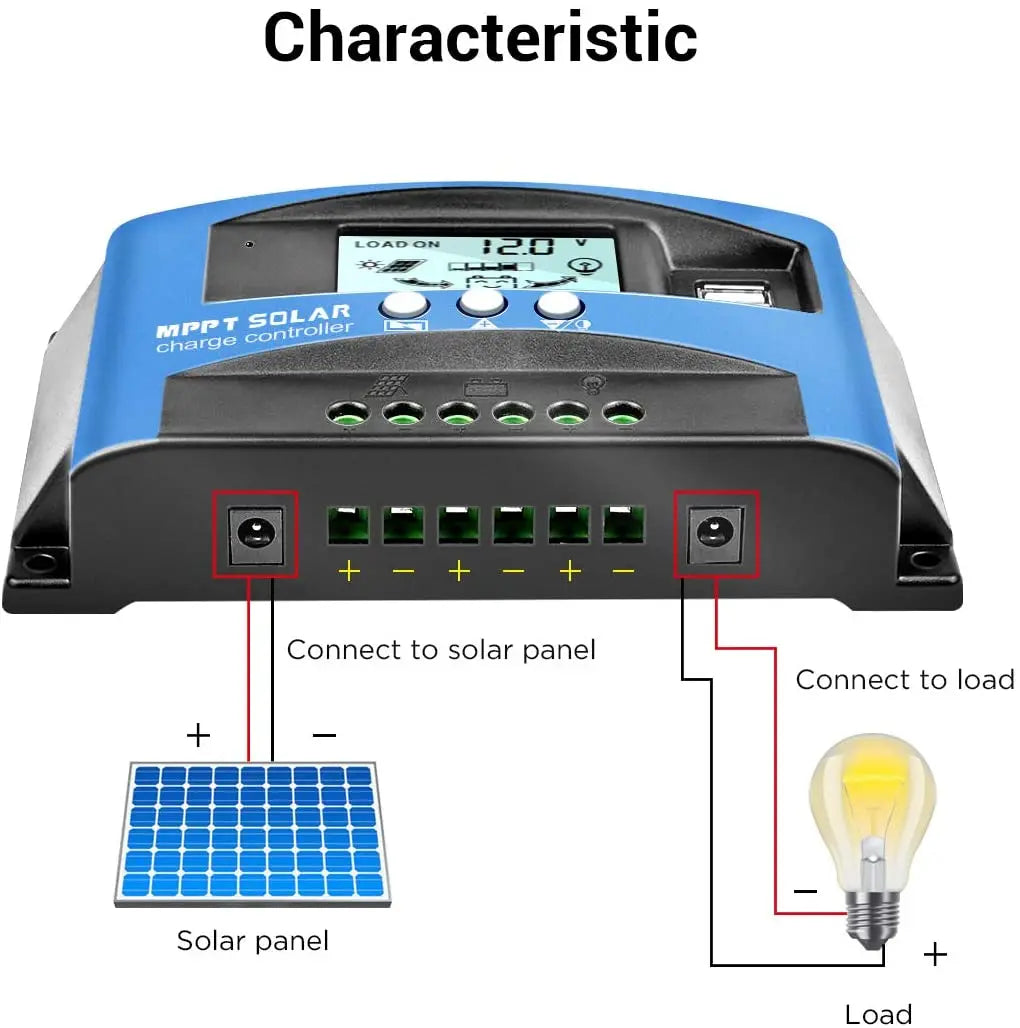

7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Specifications:
Rated voltage |
12/24V |
Rated current |
30/40/50/60/100A |
Max. PV input power |
750W(12V) / 1200W(24V) |
System voltage |
12 / 24V adaptive |
Rated charging current |
30A | 40A | 50A| 60A | 100A |
Rated discharge current |
10A | 20A | 20A | 30A | 30A |
Solar photovoltaic voltage |
12V battery with 18V solar panel, 24V battery with 36V solar panel |
Full Voltage Value |
Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V) |
Floating Charge Voltage |
13.7 V ( Default, Adjustable ) |
Discharge cut-off voltage |
10.7 V ( default, adjustable ) |
Discharge recovery voltage |
12.6 V ( default, adjustable ) |
Standby current |
10mA |

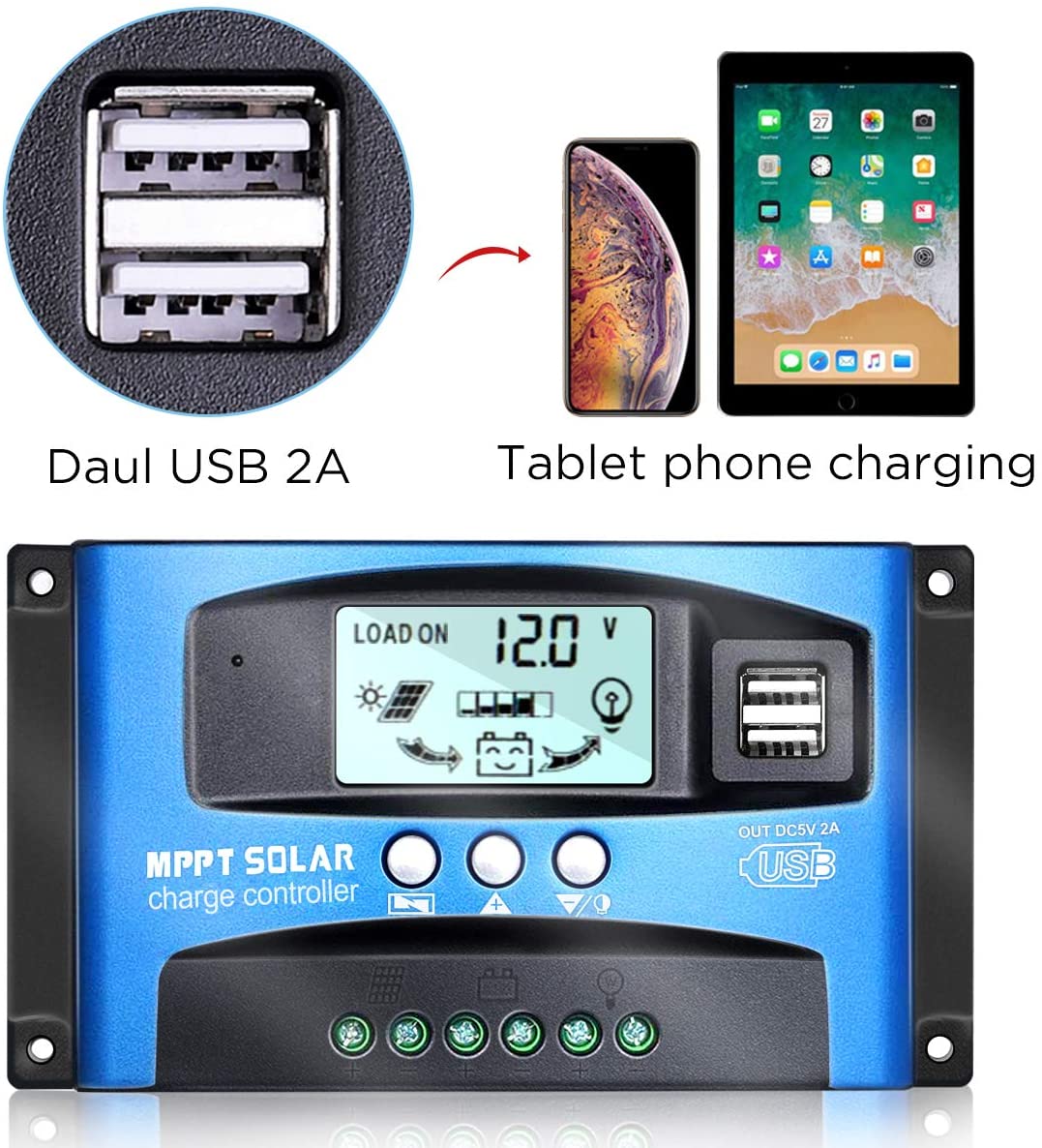

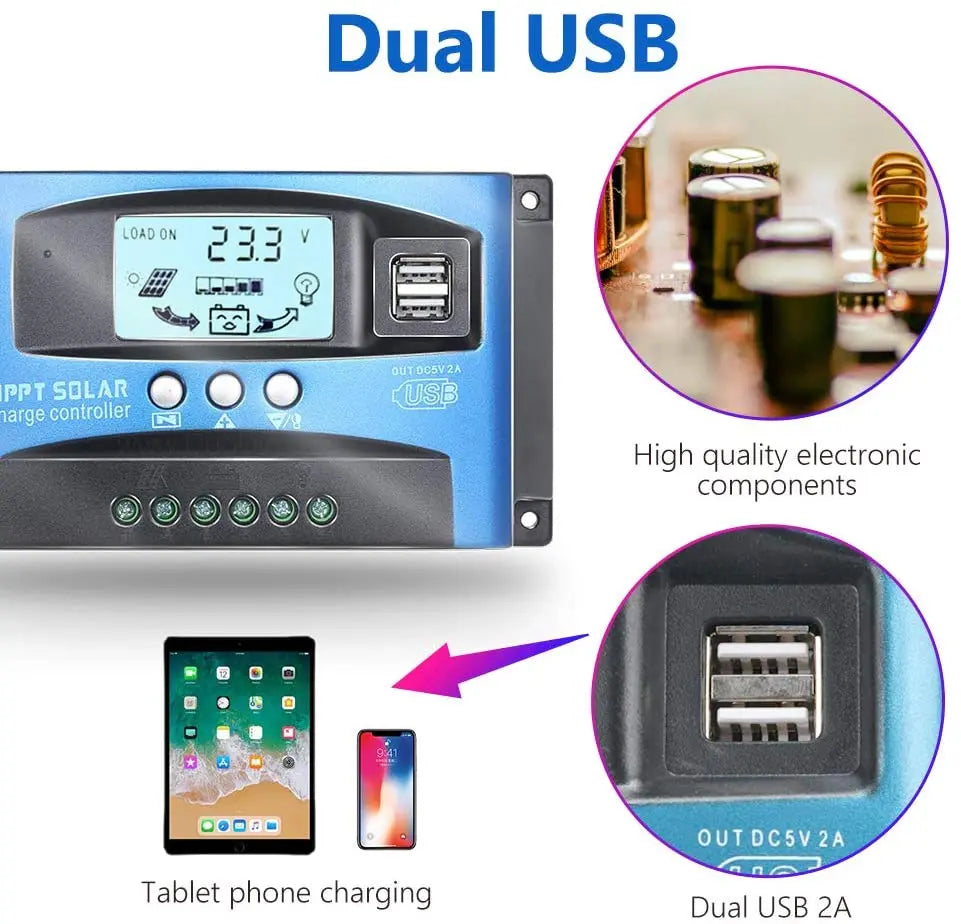

USB Output |
5V / 2A MAX |
Operating temperature |
-35-60°C |
Package Includes：
1 x Solar Panels Battery Charge Controller
1 x User Manual
