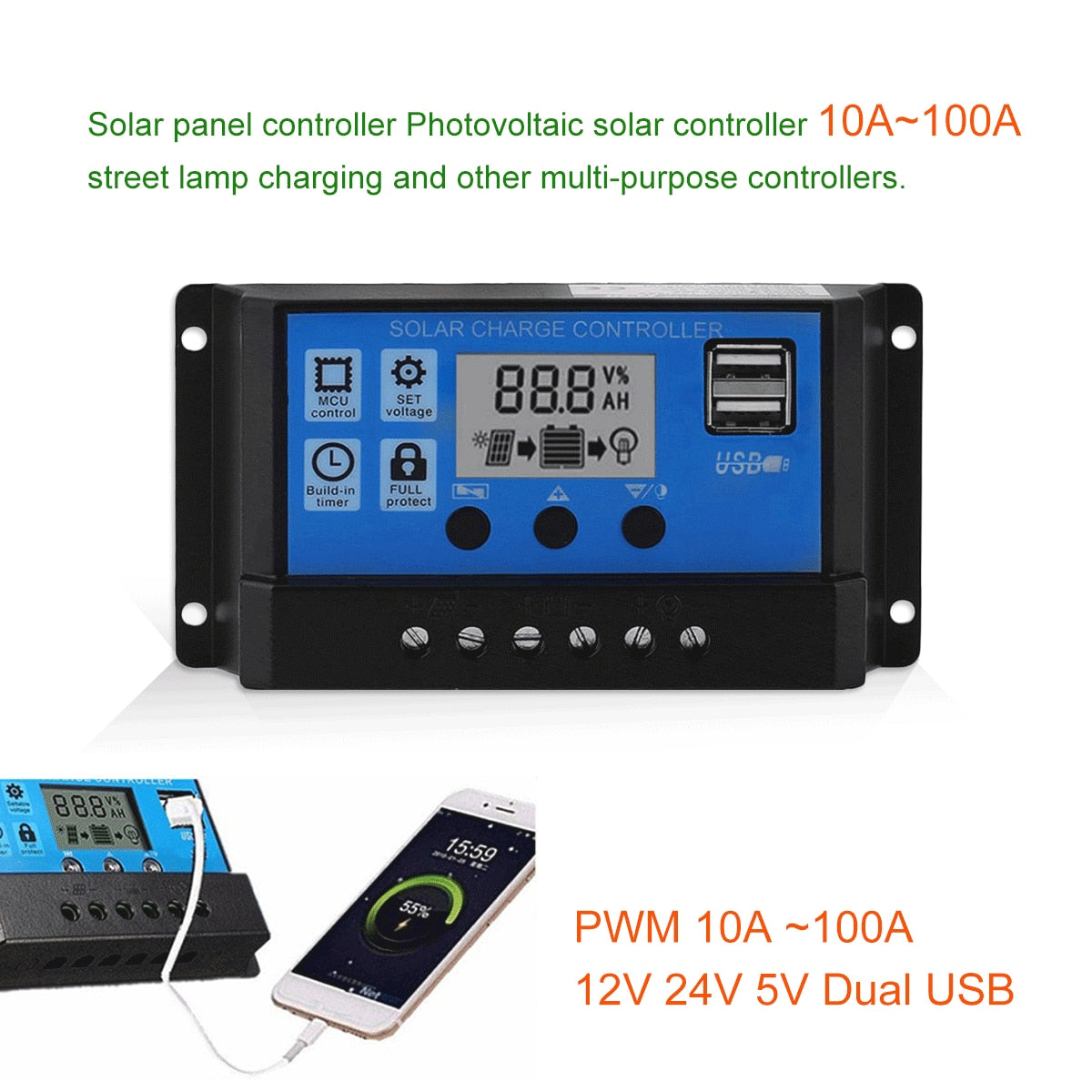

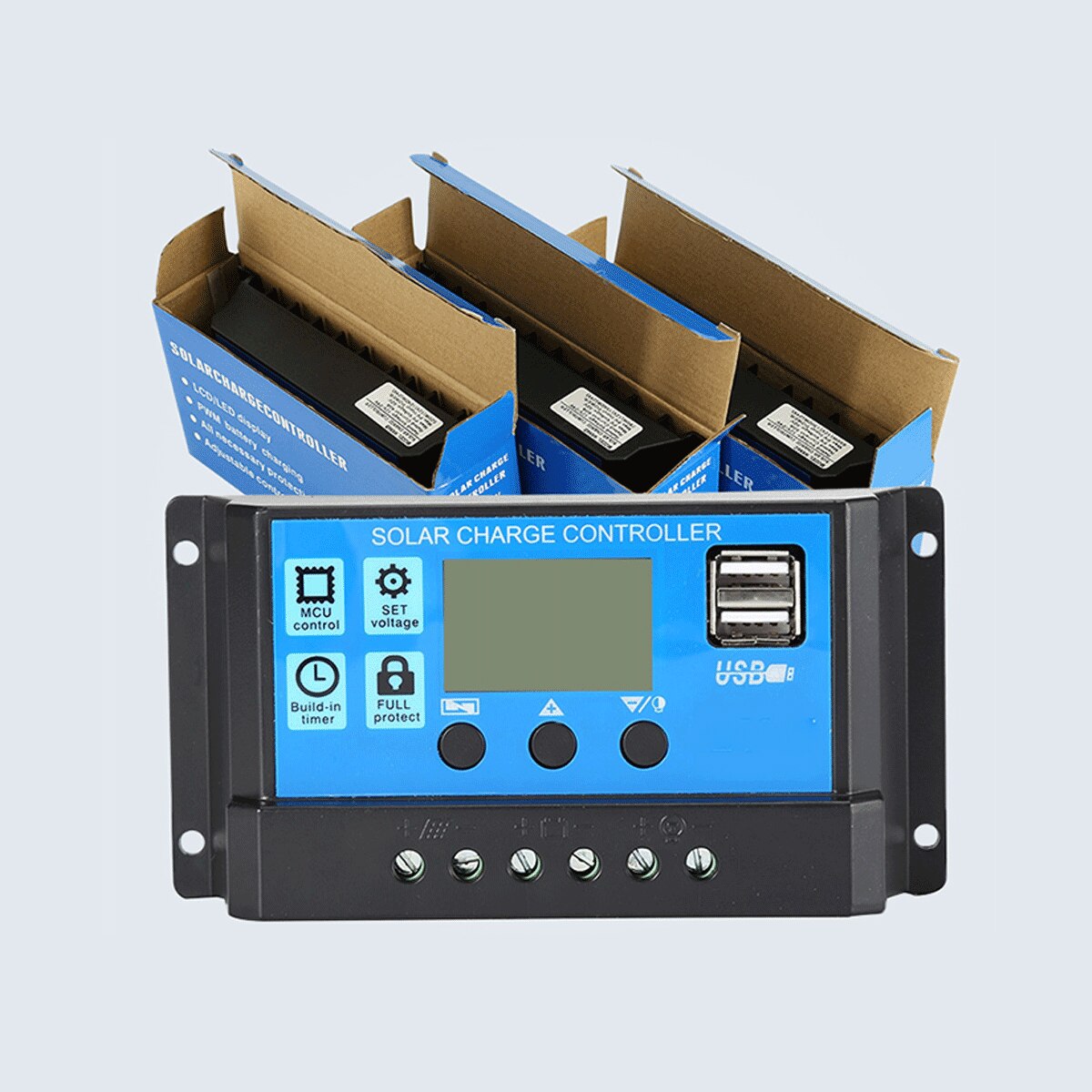

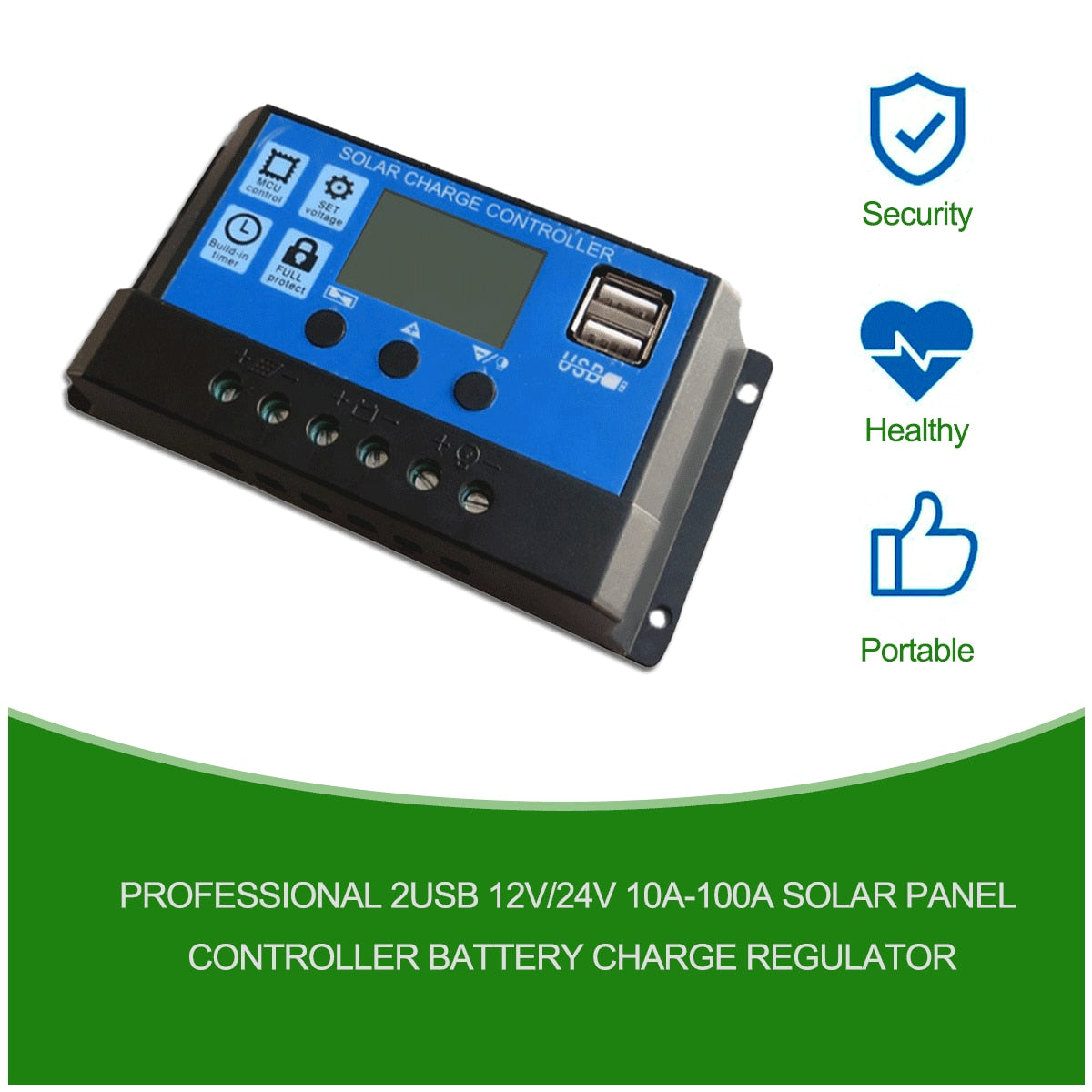

Photovoltaic panel solar controller 10A 20A 30A 40A 50A 60A 70A 80A 90A 100A Street lamp intelligent system charging controller

1. Connect the battery to the positive and negative of the charging regulator.

2. Connect the pv module to the positive and negative sides of the regulator.

3. Connect user to positive and negative charging regulator.

The reverse order applies when unloading!

Improper sequence will damage the controller!

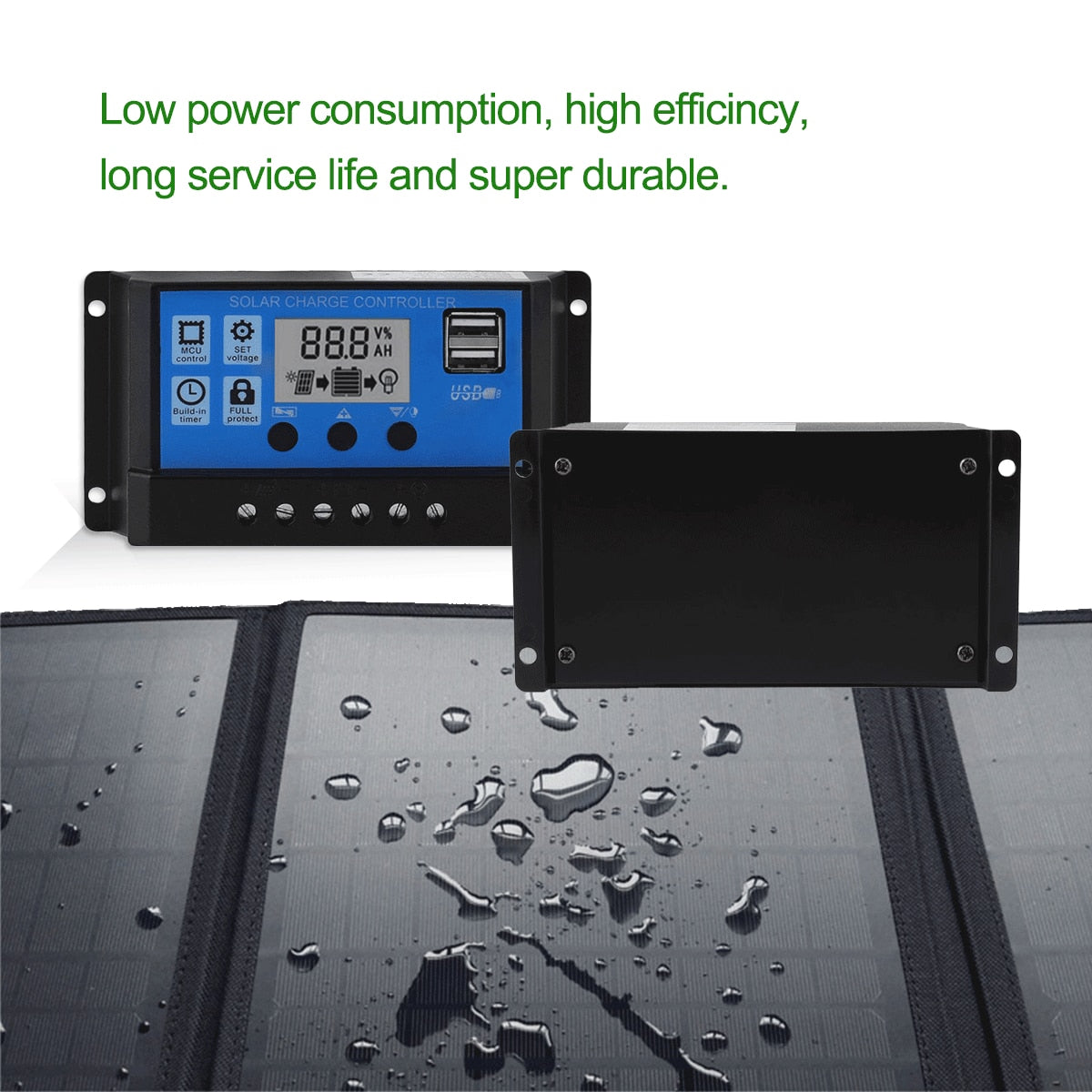

This is the new solar controller, it is able to fully meet the requirements of your home PHOTOVOLTAIC system, including home lighting system. It can be recongize 12V and 24V lead acid colloidal batteries automatically

Available in 10A 20A 30A 40A 50A 60A 70A 80A 90A 100A models

10 A:

If your battery is 12V, the maximum solar panel input is 25V 120W
If your battery is 24V, the maximum solar panel input is 50V 240W

20 A:

If your battery is 12V, the maximum solar panel input is 25V 240W
If your battery is 24V, the maximum solar panel input is 50V 480W

30A

If your battery is 12V, the maximum solar panel input is 25V 360W
If your battery is 24V, the maximum solar panel input is 50V 720W

40A

If your battery is 12V, the maximum solar panel input is 25V 480W
If your battery is 24V, the maximum solar panel input is 50V 960W

50A

If your battery is 12V, the maximum solar panel input is 25V 600W
If your battery is 24V, the maximum solar panel input is 50V 1200W

60A

If your battery is 12V, the maximum solar panel input is 25V 720W
If your battery is 24V, the maximum solar panel input is 50V 1440W

70A

If your battery is 12V, the maximum solar panel input is 25V 840W
If your battery is 24V, the maximum solar panel input is 50V 1680W

80A

If your battery is 12V, the maximum solar panel input is 25V 960W
If your battery is 24V, the maximum solar panel input is 50V 1920W

90A

If your battery is 12V, the maximum solar panel input is 25V 1080W
If your battery is 24V, the maximum solar panel input is 50V 2160W

100A

If your battery is 12V, the maximum solar panel input is 25V 1200W
If your battery is 24V, the maximum solar panel input is 50V 2400W

Features:

1. Built-in industrial microcontroller.

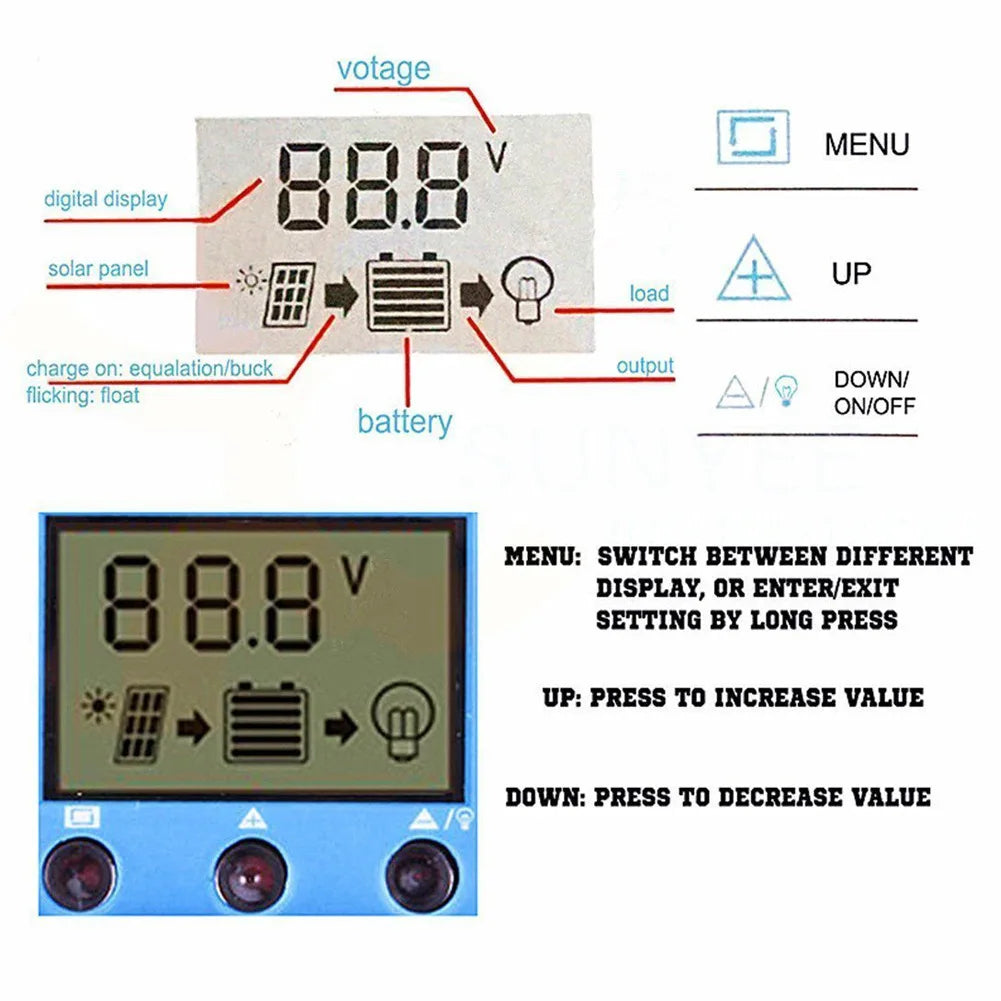

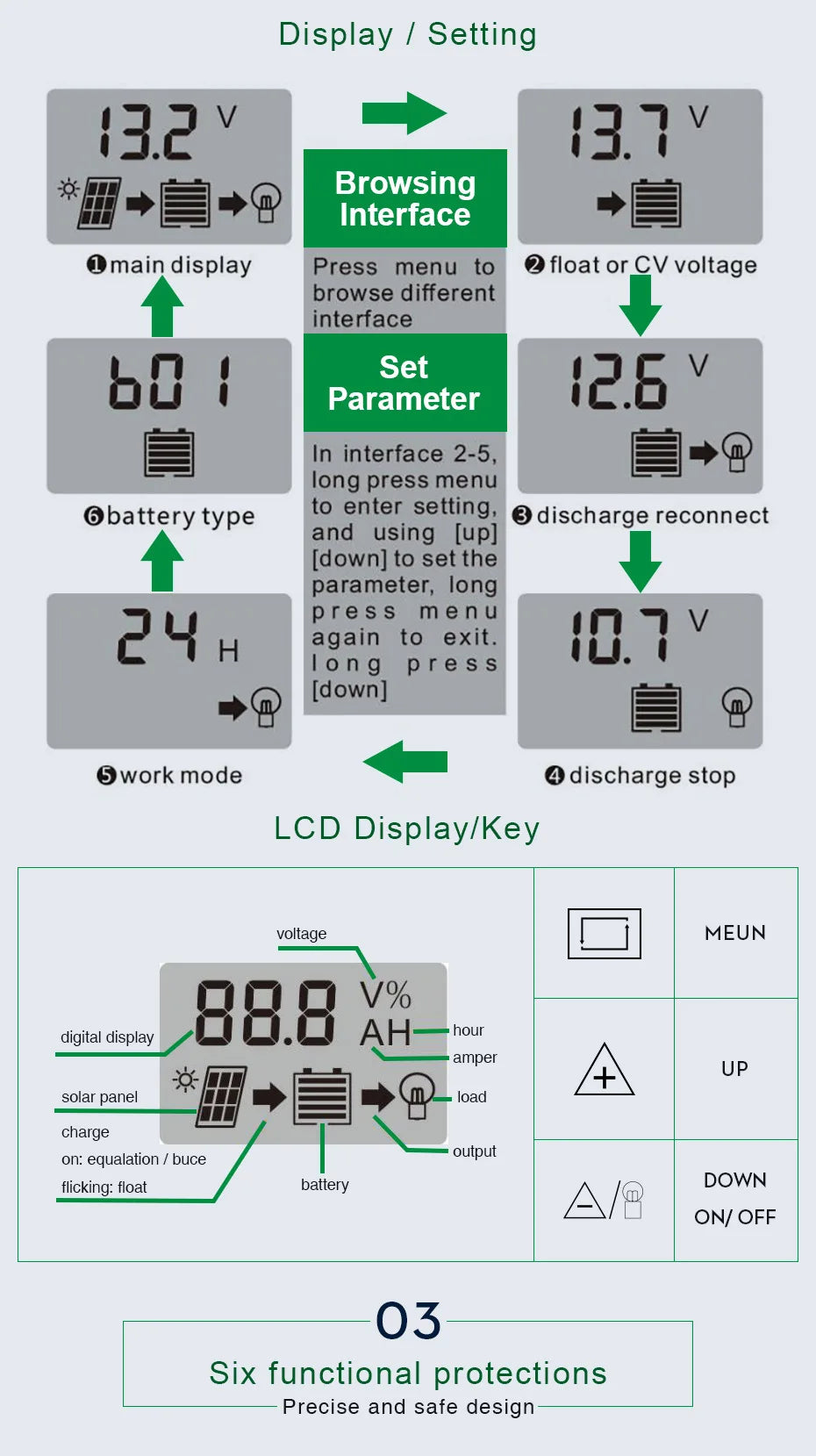

2. Large LCD screen, all parameters adjustable.

3. Full level 4 PWM charging management.

4. Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection.

Double MOSFET reverse current protection, low heating.

Specifications:

Rated voltage: 12V 24V automatic

Application: Solar energy system controller

Current: 10A, 20A, 30A

With timer and light sensor, can be used in solar lighting system.

Only suitable for off-grid PHOTOVOLTAIC solar system.

For 10A 12V PV systems: 120W solar panels, 12V lead-acid batteries, 21V for maximum input voltage

For 20A 24V PV systems: 240W solar panels, 24V lead-acid batteries, 42V for maximum input voltage

Safety instructions

1. Before installing the battery for the first time, ensure that the battery has enough voltage to enable the controller to identify the battery type.

2. Battery cables should be as short as possible to minimize loss.

3. The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL

It does not work with nickel-metal hydride, lithium ion or other batteries.

4. Charge regulators are only suitable for regulating solar modules. Do not connect other charging sources to the charging regulator.

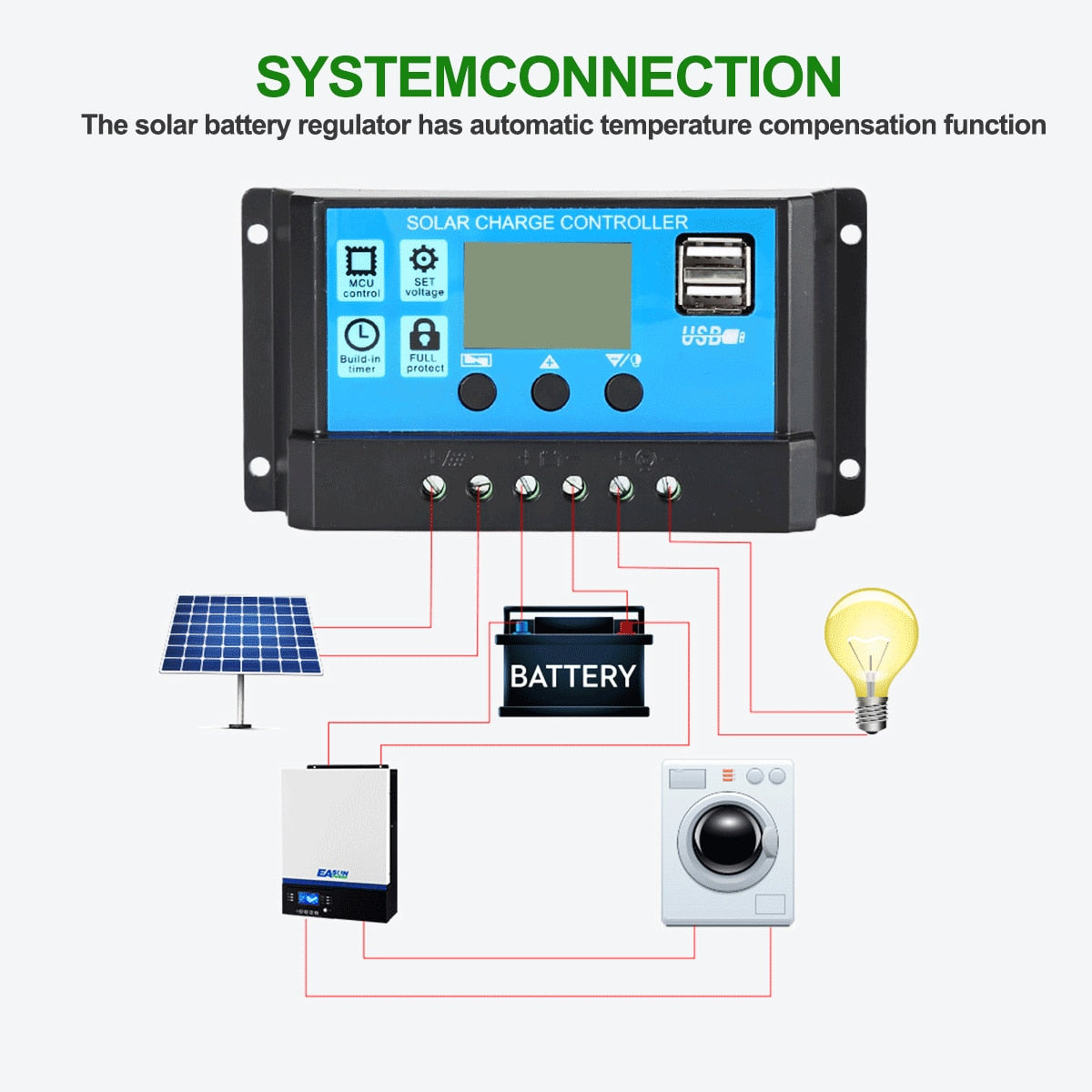

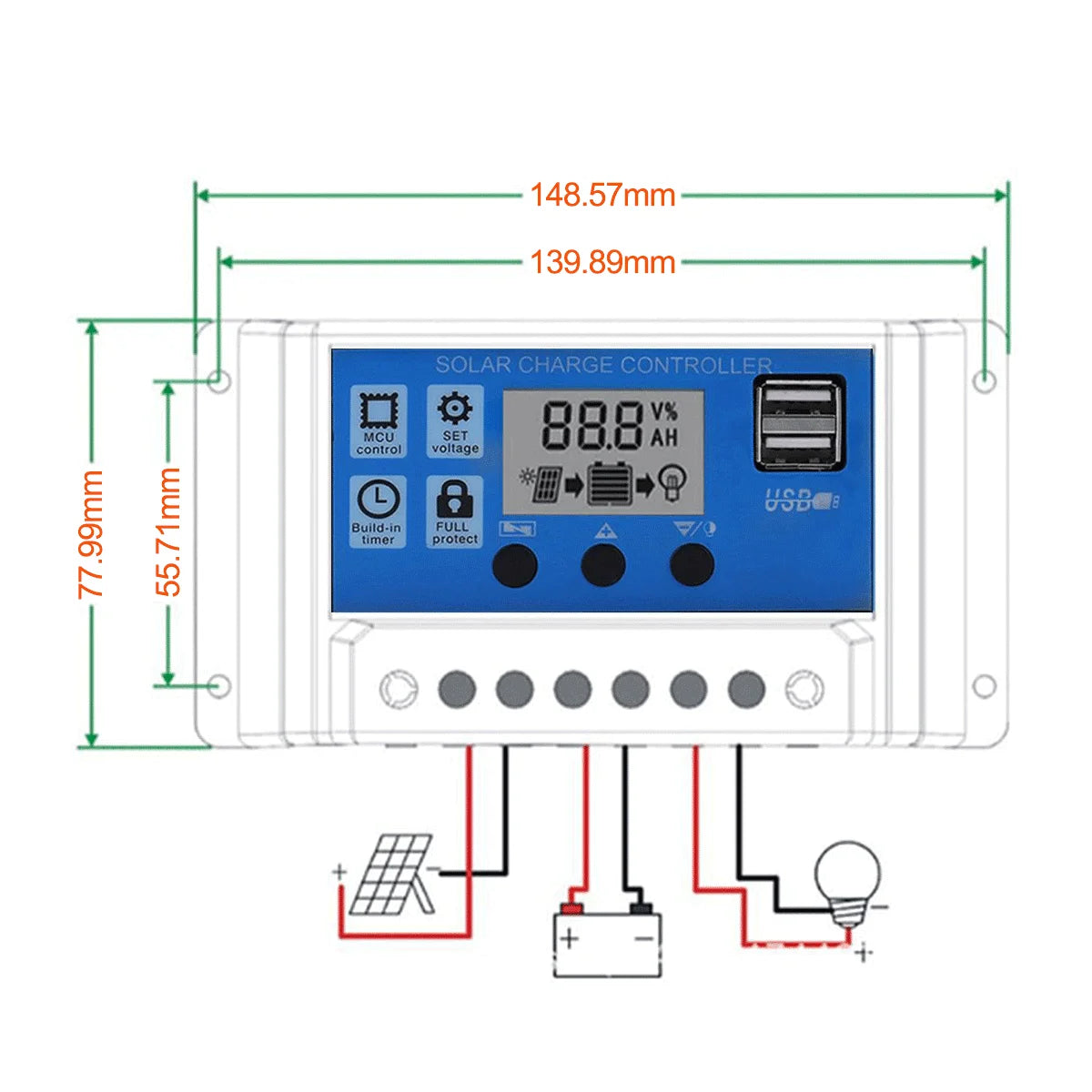

System connection

1. Connect the battery to the charging regulator - positive and negative. If a 12V battery is detected, it will display 1; If a 24V battery is detected, display 2

2. Connect the PV module to the regulator - positive and negative.

3. Connect user to charging regulator - positive and negative.

The reverse order applies when unloading!

Improper sequence will damage the controller!
