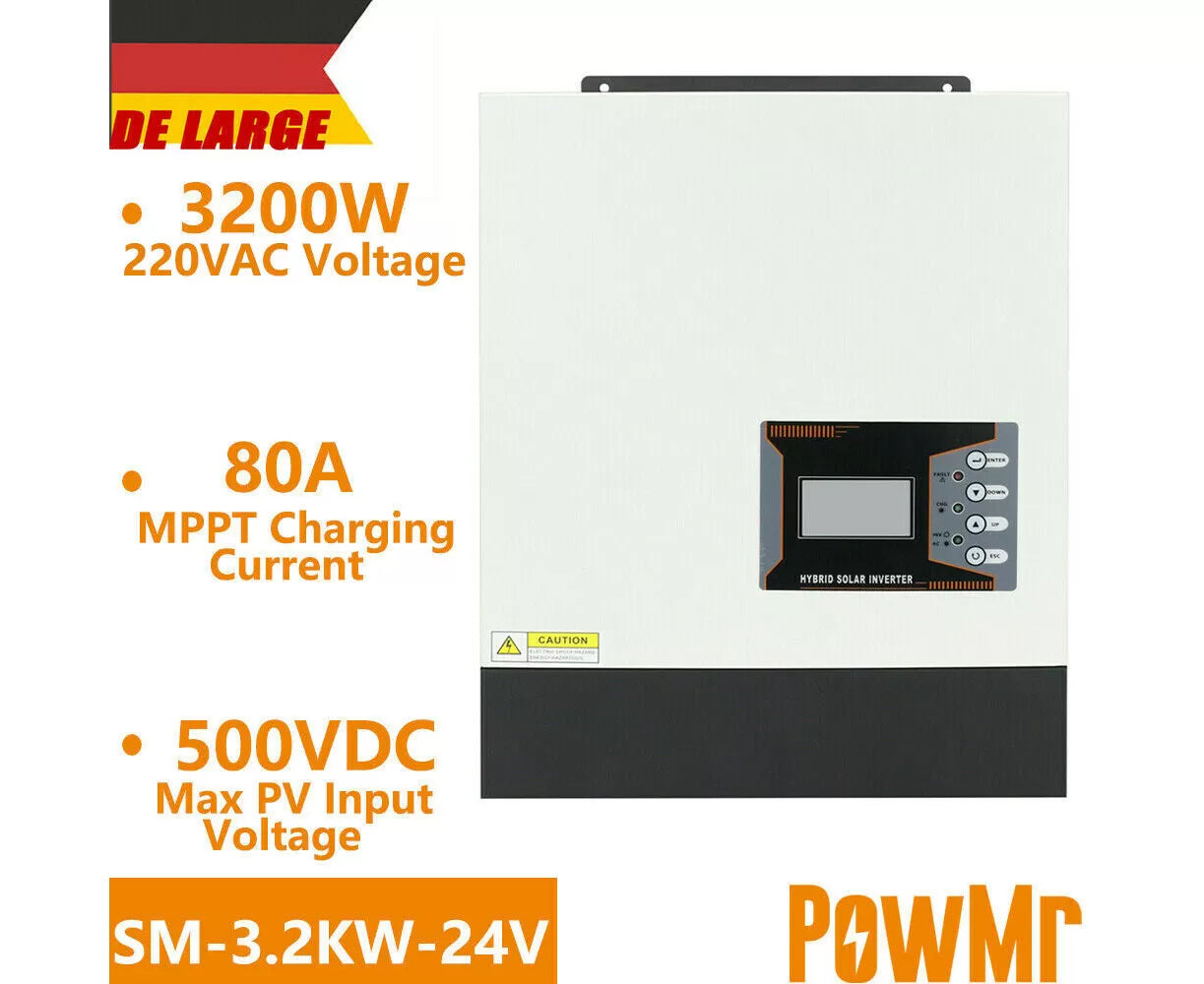

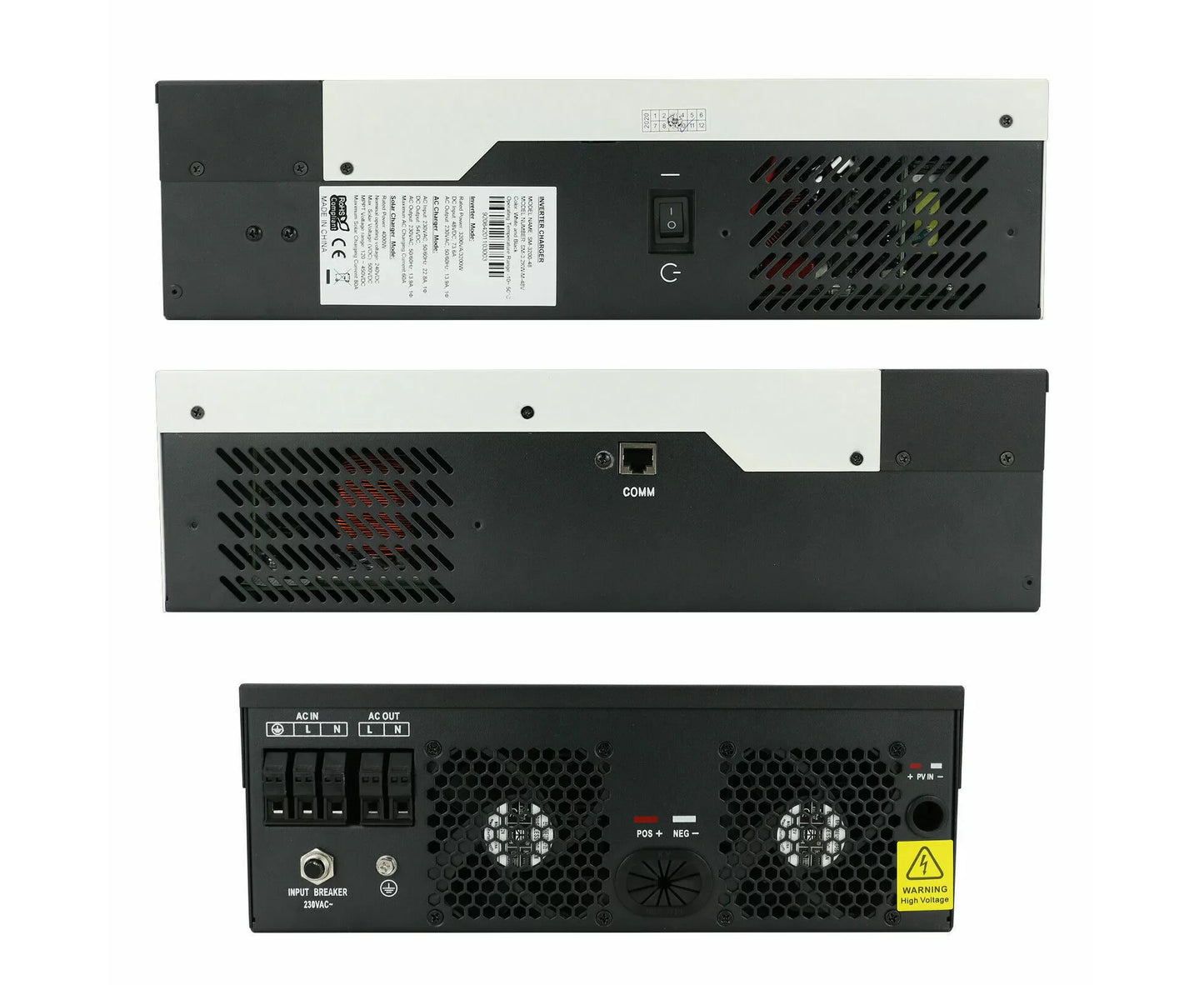

PowMr 3200W DC24V Charger Solar Inverter Pure Sine Wave Inverter With 80A Charger
DC24V Charger supplies are still popular in audio, lighting, and sensor applications. This All In One Solar Inverter that we sell is DC24V supported. Don't worry about not being able to use this DC 24V Inverter without pairing it.
DC24V Charger Item specifics:
| Condition: new | Brand: PowMr |
| System configuration: Hybrid Inverter | Inverter technology: Hybrid |
| Application: home/garden | Charge mode: MPPT (Maximum Power Point Tracking) |
| Particularities: LCD screen, LED display | Product Type: charger/inverter |
| Voltage: DC24V Charger | Model: SM-3.2KW-24V |
| power source: Solar | Color: black |
| Wattage: 3200W | Power: 3200W |
| current type: universal | current output: MPPT 80A |
| Resistance properties: dustproof | Rated current: 80A |
| Protective properties: Overvoltage protection | Recommended environment: Inside |
| Unit of measurement: unit | Maximum input voltage: 500V |
| EAN: Does not apply |
DC24V Charger INITIATION:
This is a multi-function inverter/charger that combines the functions of all in one inverter, solar charger, and battery charger to provide an uninterruptible power supply with portable size. Its comprehensive LCD display provides user-configurable and easy-to-use button operation such as battery AC current, AQsdar charge priority, and acceptable input voltage based on different applications.
Features:
●Pure sine wave inverter
●Configurable input voltage range for home appliances and PC via LCD setting
●Configurable battery charging current based on applications via LCD setting
●Configurable AC/Solar Charger priority via LCD setting
●Compatible with mains voltage or generator power
●Auto restart while AC is recovering
●Overload/overtemperature/short circuit protection
●Intelligent battery charger design for optimized battery performance
●Cold start function
●WIFI/GPRS (option)
●Can be connected to a lithium battery
DC24V Charger SPECIFICATIONS:
Table 1 Line mode specifications
|
INVERTER MODEL |
3.2KW24V/3.2KW48V |
5.2KW48V |
|
Input Voltage Waveform |
Sinusoidal (utilily or generator) |
|
|
Nominal Input Voltage |
230Vac |
|
|
Low Loss Voltage |
170Vac£7V (UPS)； 90Vac±7V (Appliances) |
|
|
Low Loss Return Voltage |
180Vac±7V (UPS); 100Vac±7V (Appliances) |
|
|
High Loss Voltage |
280Vac±7V |
|
|
High Loss Return Voltage |
270Vac±7V |
|
|
Max AC Input Voltage |
300Vac |
|
|
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
|
|
Low Loss Frequency |
40±1Hz |
|
|
Low Loss Return Frequency |
42±1Hz |
|
|
High Loss Frequency |
65±1Hz |
|
|
High Loss Return Frequency |
63±1Hz |
|
|
Output Short Circuit Protection |
Circuit Breaker |
|
|
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
|
|
Transfer Time |
10ms typical (UPS); 20ms typical (Appliances) |
|
DC24V Charger Tabelle 2 Spezifikationen des Wechselrichtermodus
|
INVERTER MODEL |
3.2KW24V |
3.2 KW 48V |
5.2KW48V |
|
Rated Output Power |
3.2KW |
3.2KW |
5KW |
|
Output Voltage Waveform |
Pure Sine Wave |
||
|
Output Voltage Regulation |
230Vacd5% |
||
|
Output Frequency |
50Hz |
||
|
Peak Efficiency |
93% |
||
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% 〜150% Io ad |
||
|
Surge Capacity |
2* rated power for 5 seconds |
||
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
|
|
Low DC Warning Voltage @ Ioad < 50% @ load >50% |
22.0Vdc 21.0Vdc |
44.0Vdc 42.0Vdc |
|
|
Low DC Warning Return Voltage @ load < 50% @ load >50% |
22.5Vdc 22.0Vdc |
45.0Vdc 44.0Vdc |
|
|
Low DC Cut-off Voltage @ load < 50% @ load >50% |
20.5Vdc 20.0Vdc |
41.0Vdc 40.0Vdc |
|
|
High DC Recovery Voltage |
32Vdc |
62Vdc |
|
|
High DC Cut off Voltage |
33Vdc |
63Vdc |
|
|
No Load Power Consumption |
<25W |
<35W |
|
Tabelle 3 Spezifikationen für den Lademodus
|
Utility Charging Mode |
||||
|
INVERTER MODEL |
3.2KW24V |
3.2KW 48V |
5.2KW48V |
|
|
Charging Algorithm |
3-Step |
|||
|
AC Charging Current (Max) |
80Amp (@VI/P=230Vac) |
60Amp (@VI/P=230Vac) |
80Amp (@VI/P=230Vac) |
|
|
Bulk Charging Voltage |
Flooded Battery |
29.2 |
58.4 |
|
|
AGM / Gel Battery |
28.2 |
56.4 |
||
|
Floating Charging Voltage |
27Vdc |
54Vdc |
||
|
Charging Curve |
|
|||
|
MPPT Solar Charging Mode |
||||
|
INVERTER MODEL |
3.2KW 24V |
3.2KW 48V |
5.2 KW 48V |
|
|

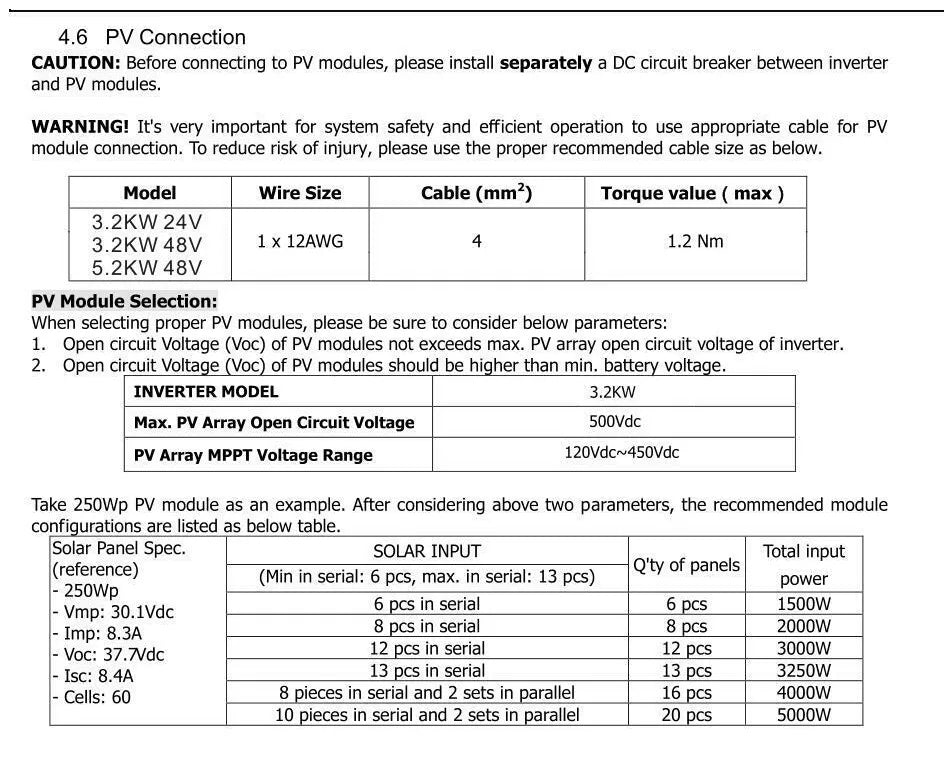

Max. PV Array Power |
4000W |
5000W |
||
|
Nominal PV Voltage |
240Vdc |
|||
|
PV Array MPPT Voltage Range |
120~450Vdc |
|||
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|||
|
Max Charging Current (AC charger plus solar charger) |
80Amp |
60Amp |
80Amp |
|
DC24V Charger Tabelle 4 Allgemeine Spezifikationen
|
INVERTER MODEL |
3.2KW24V |
3.2KW48V |
5.2KW48V |
|
Safety Certification |
CE |
||
|
Operating Temperature Range |
-10°Cto50°C |
||
|
Storage temperature |
-15°C~ 60° C |
||
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
|
Dimension (D*W*H), mm |
383X333X104 |
||
|
Net Weight, kg |
8.0 |
8.5 |
|

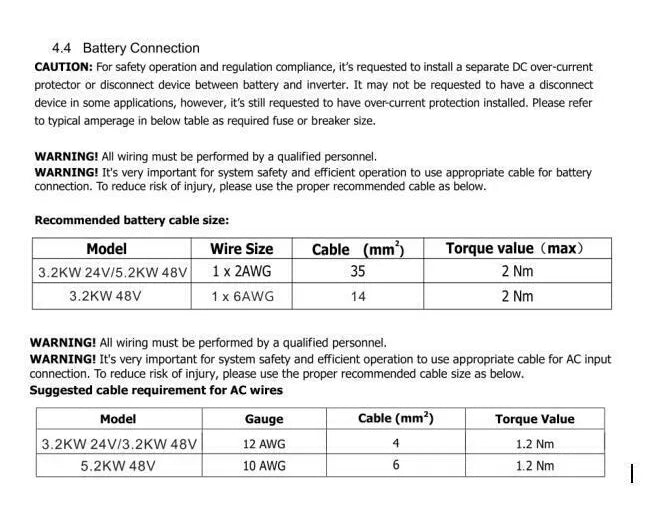

Please read the specification carefully before install: SM series User Manual.pdf
