Solar Panel 300W 400W 200W 100W Etfe Flexible Solar Panels Monocrystalline Solar Cell 12V/24V Battery Charger 1000W System Kits
Solar Panel 300W 400W 200W 100W Etfe Flexible Solar Panels Monocrystalline Solar Cell 12V/24V Battery Charger 1000W System Kits
233 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Type: Solar Panel
Size: 1050mm*540mm*2.5mm
SOLAR PANEL KITS: SOLAR PANEL
SOLAR PANEL 300W: PANEL SOLAR
SOLAR PANEL 100w: MONO SLAR CELL
Origin: Mainland China
Number of Panels: 1

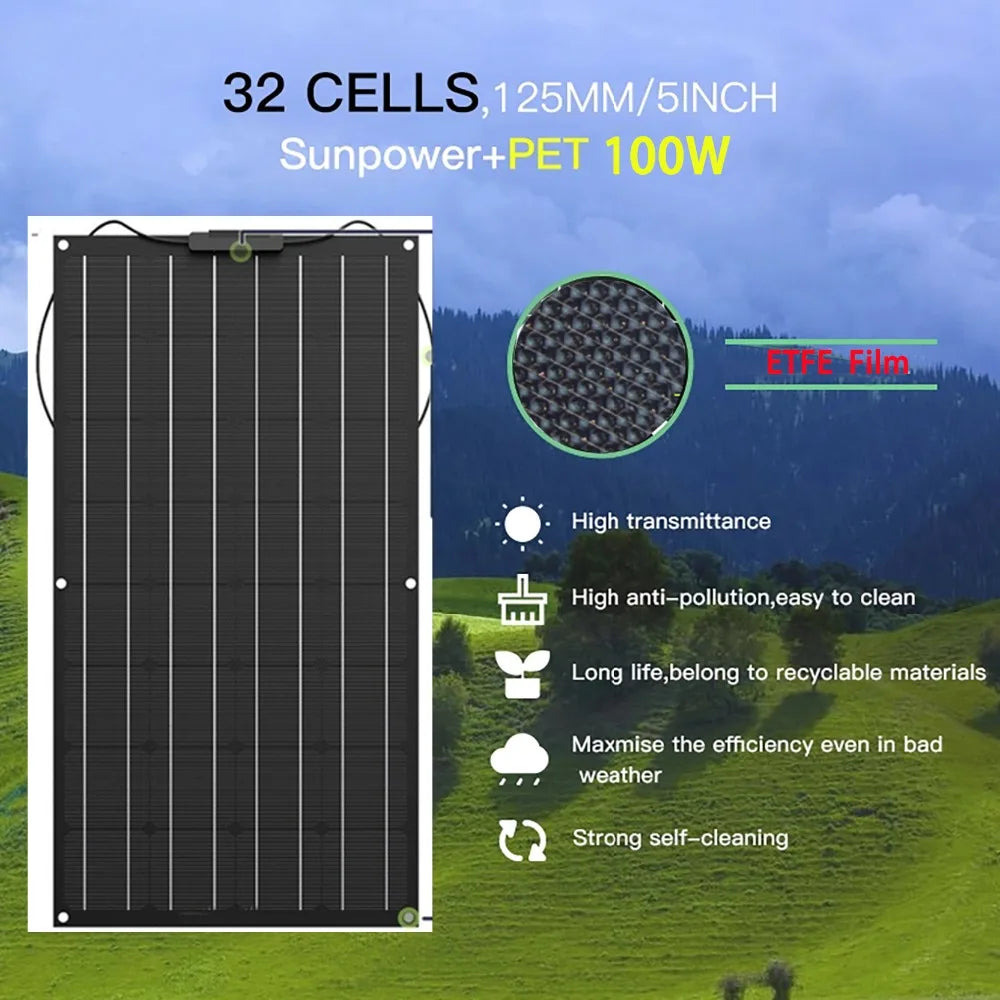

Number of Cells: 32
Nominal Capacity: 100w
Module Efficien: 21.8%
Model Number: BPS 32-100 ETFE 32-100
Max. Power: 100
Material: Monocrystalline Silicon
Foldable Solar Panel: No
Flexible Solar Panel: Yes
FLEXIBLE SOLAR PANEL: SOLAR PANEL 12V

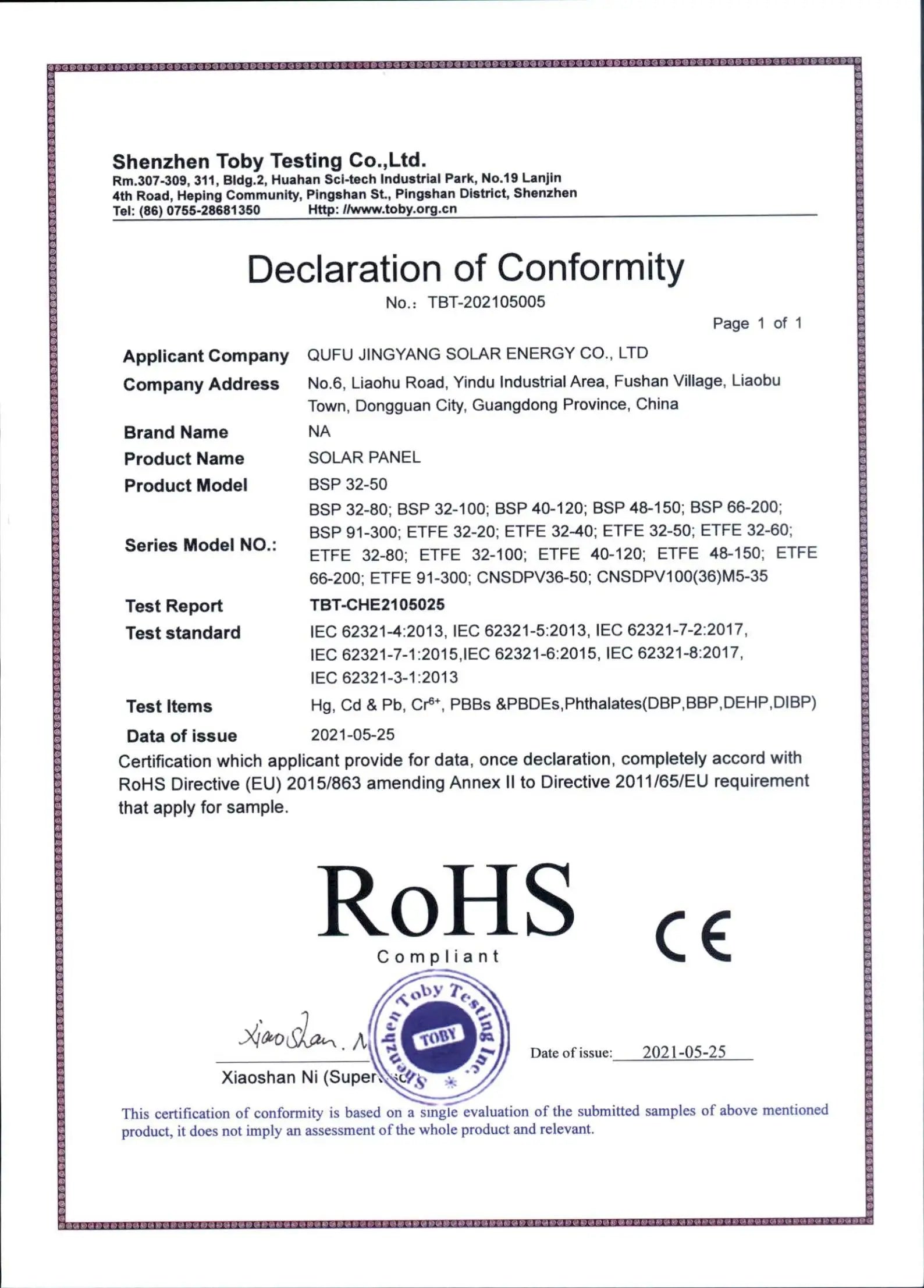

Certification: CE
Brand Name: JINGYANGPV

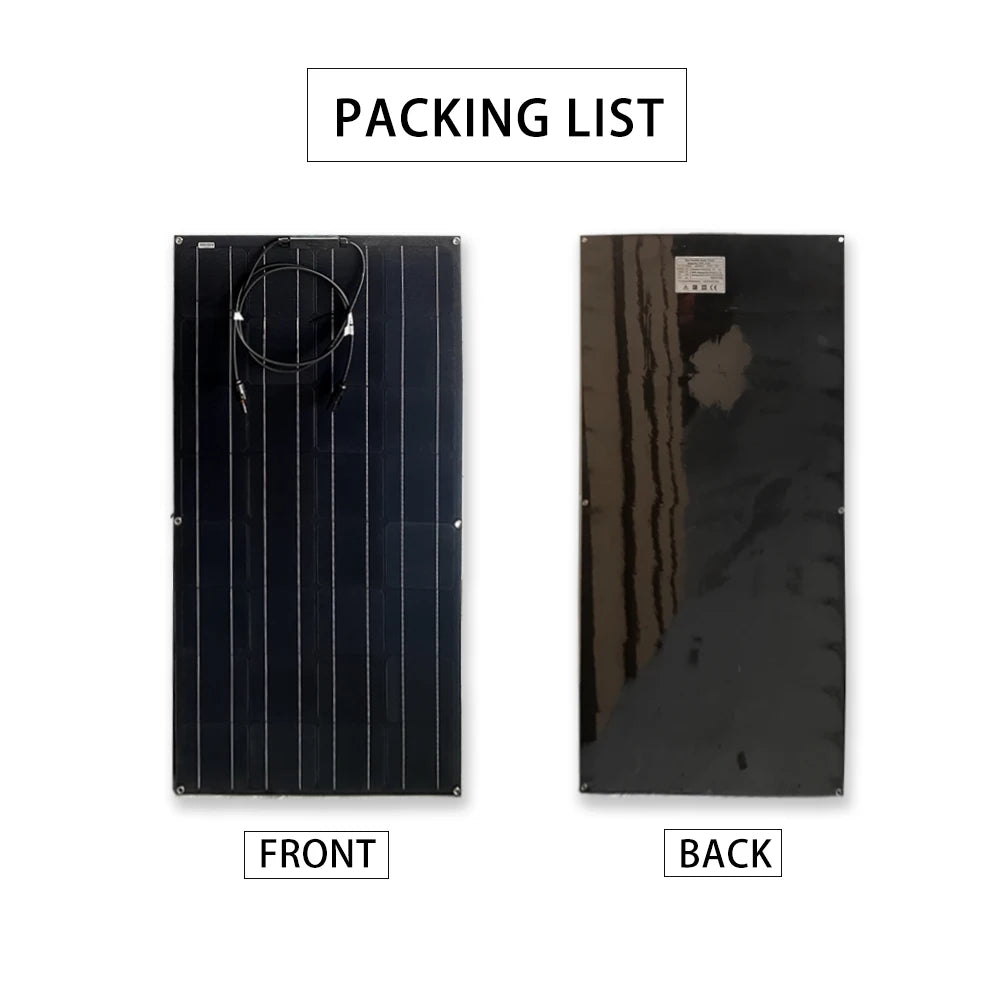

Advantages of JINGYANG ETFE Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

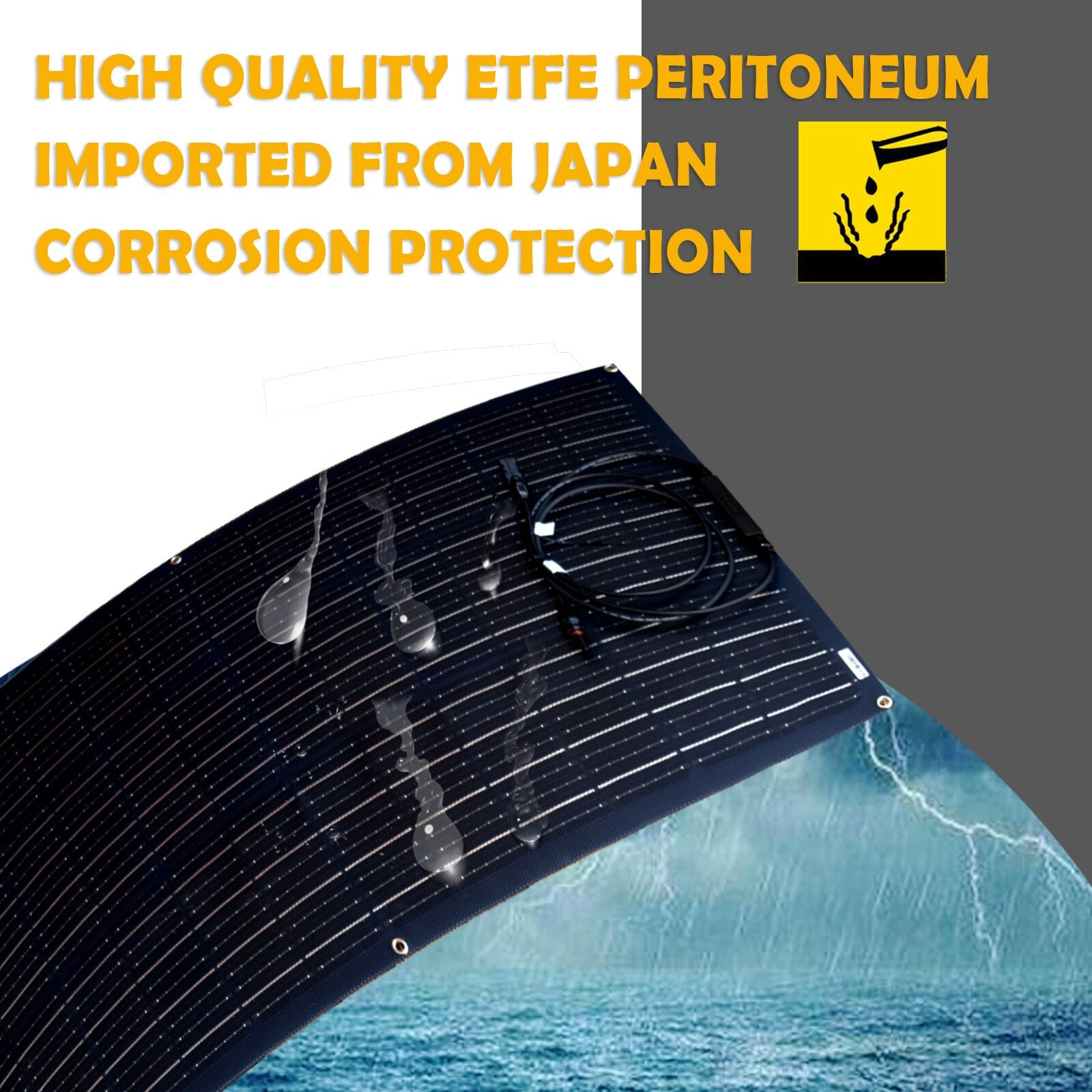

Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:

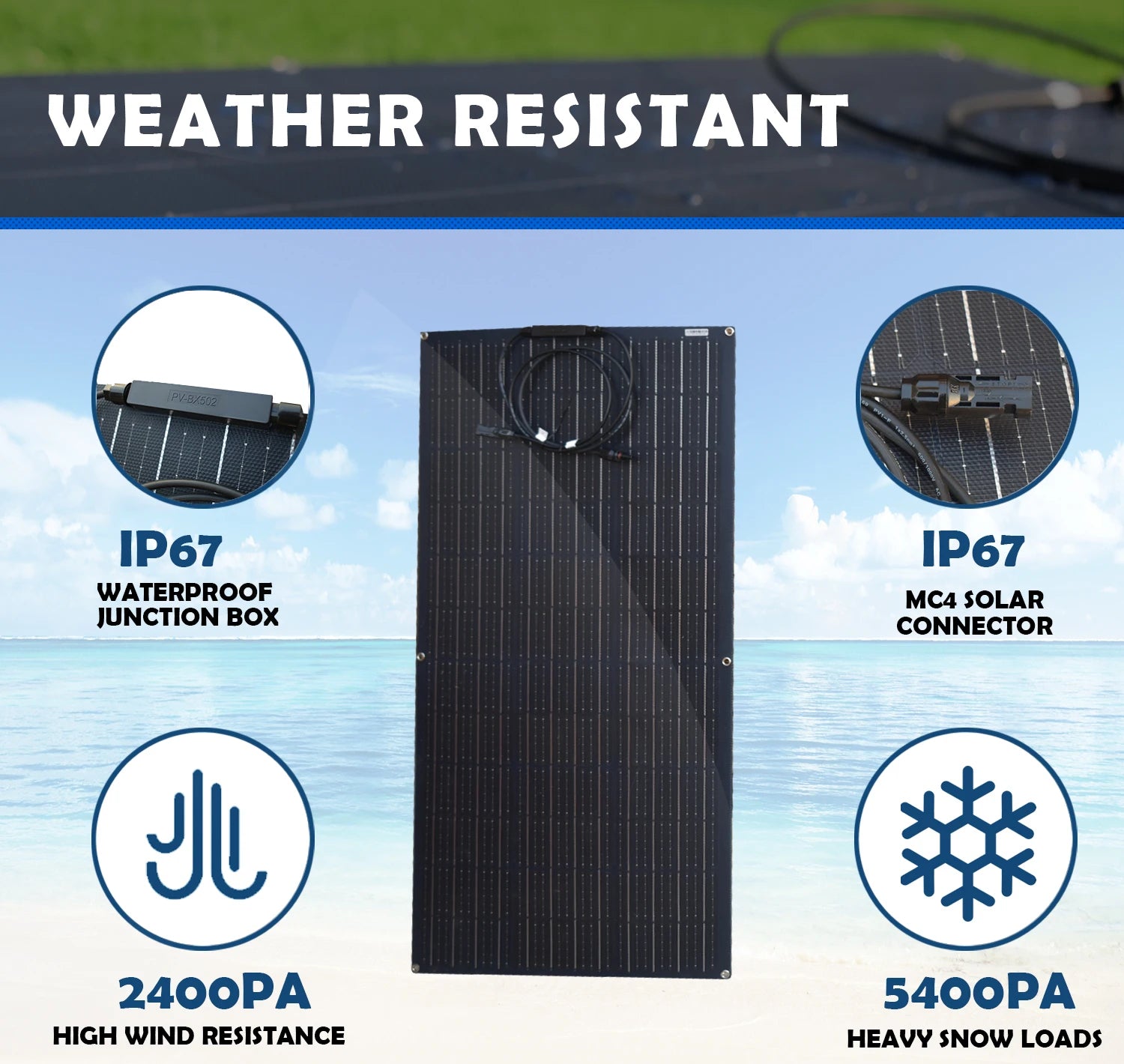

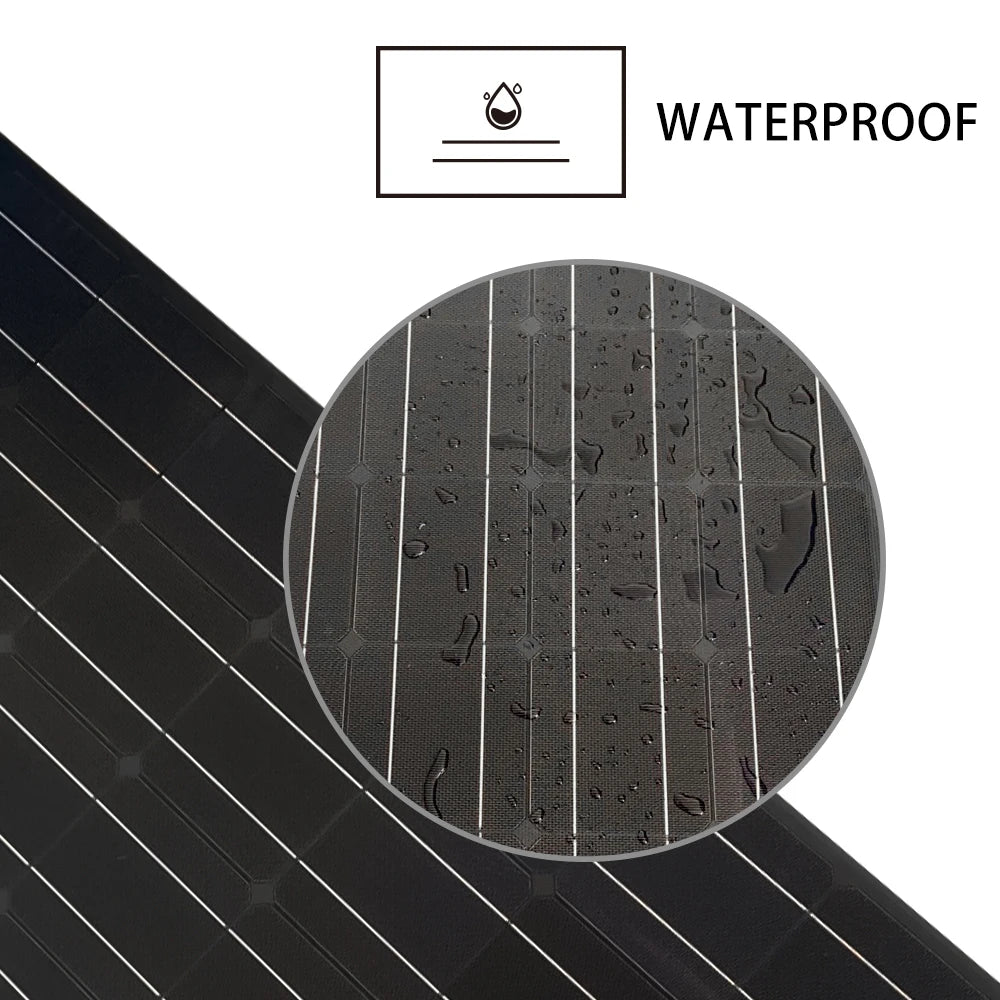

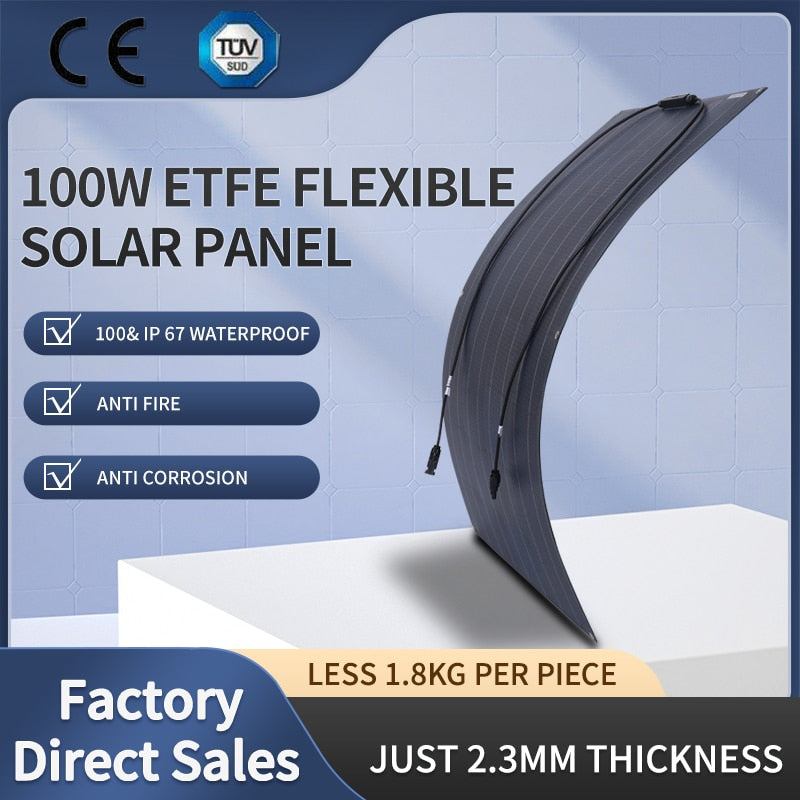

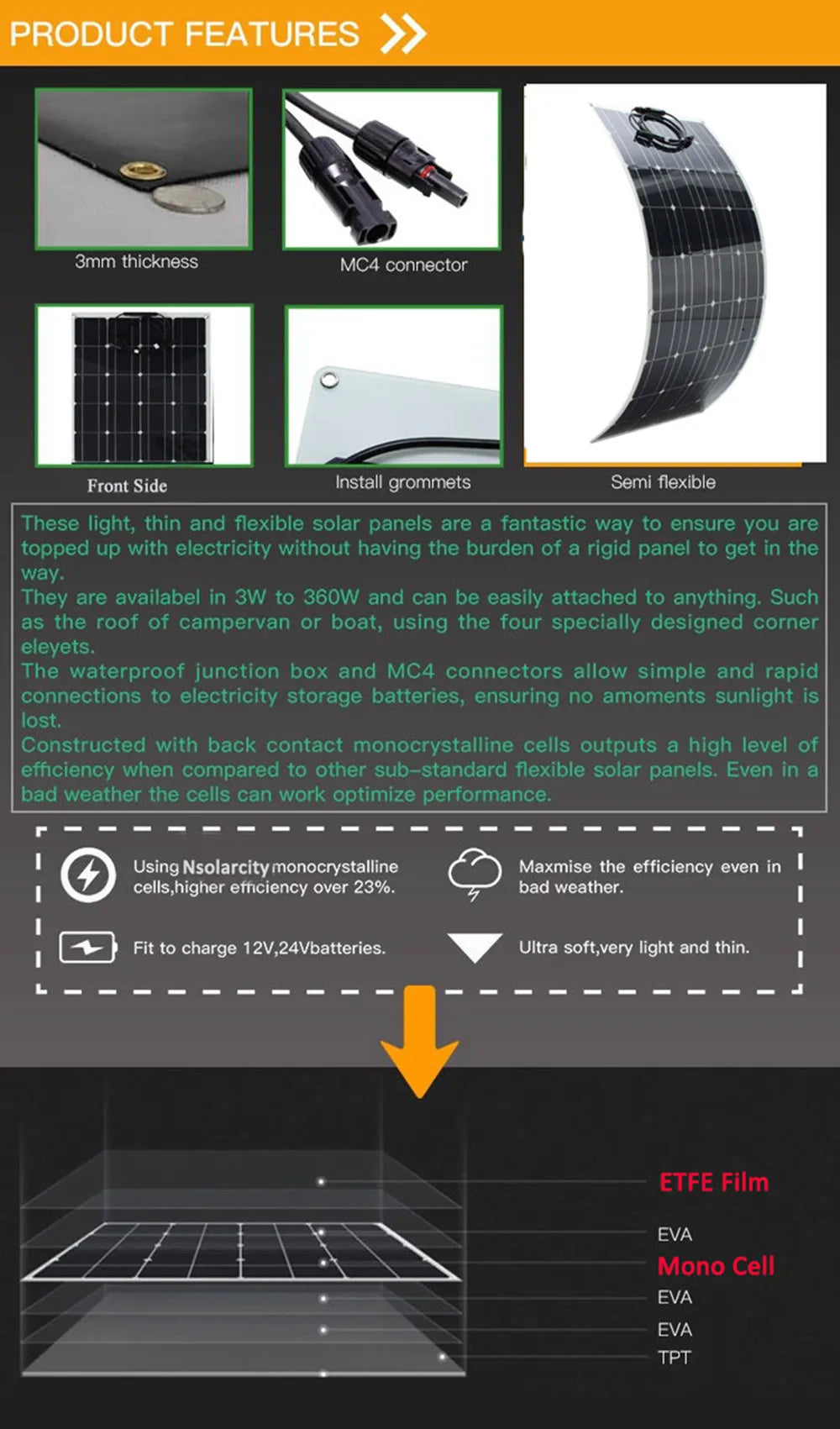

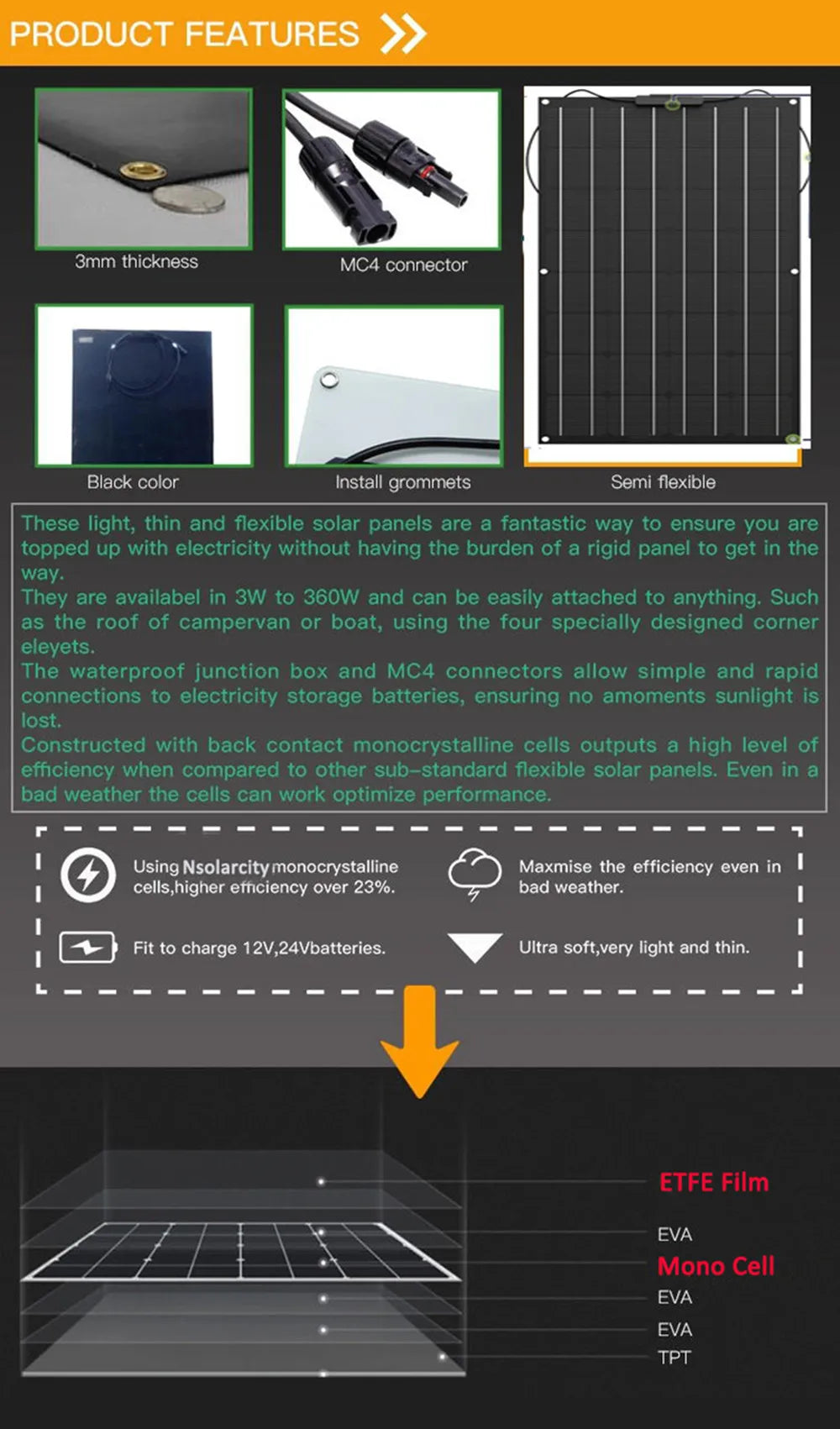

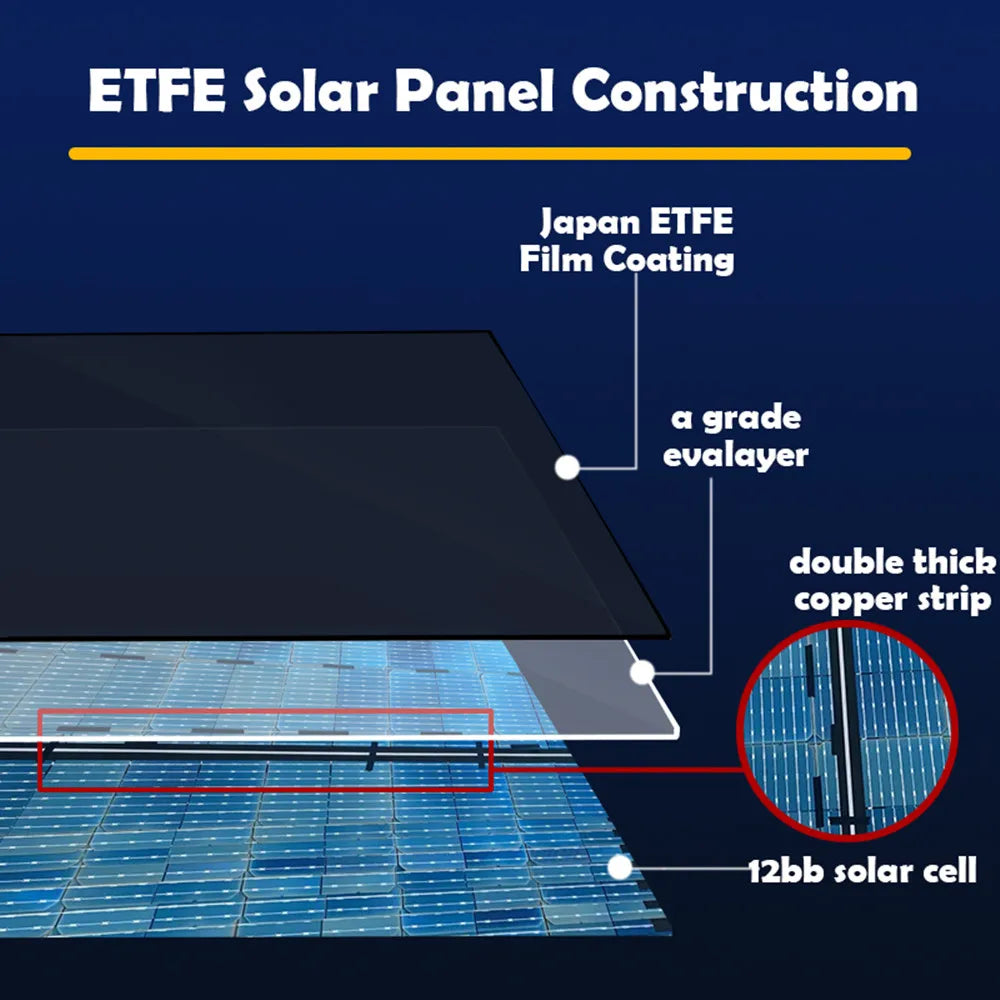

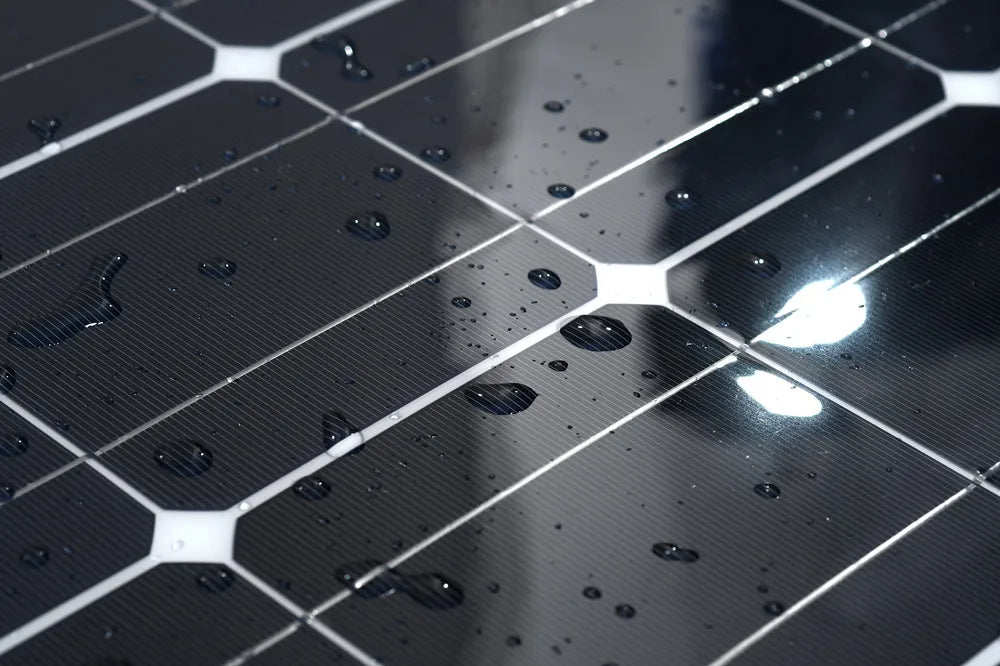

The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.

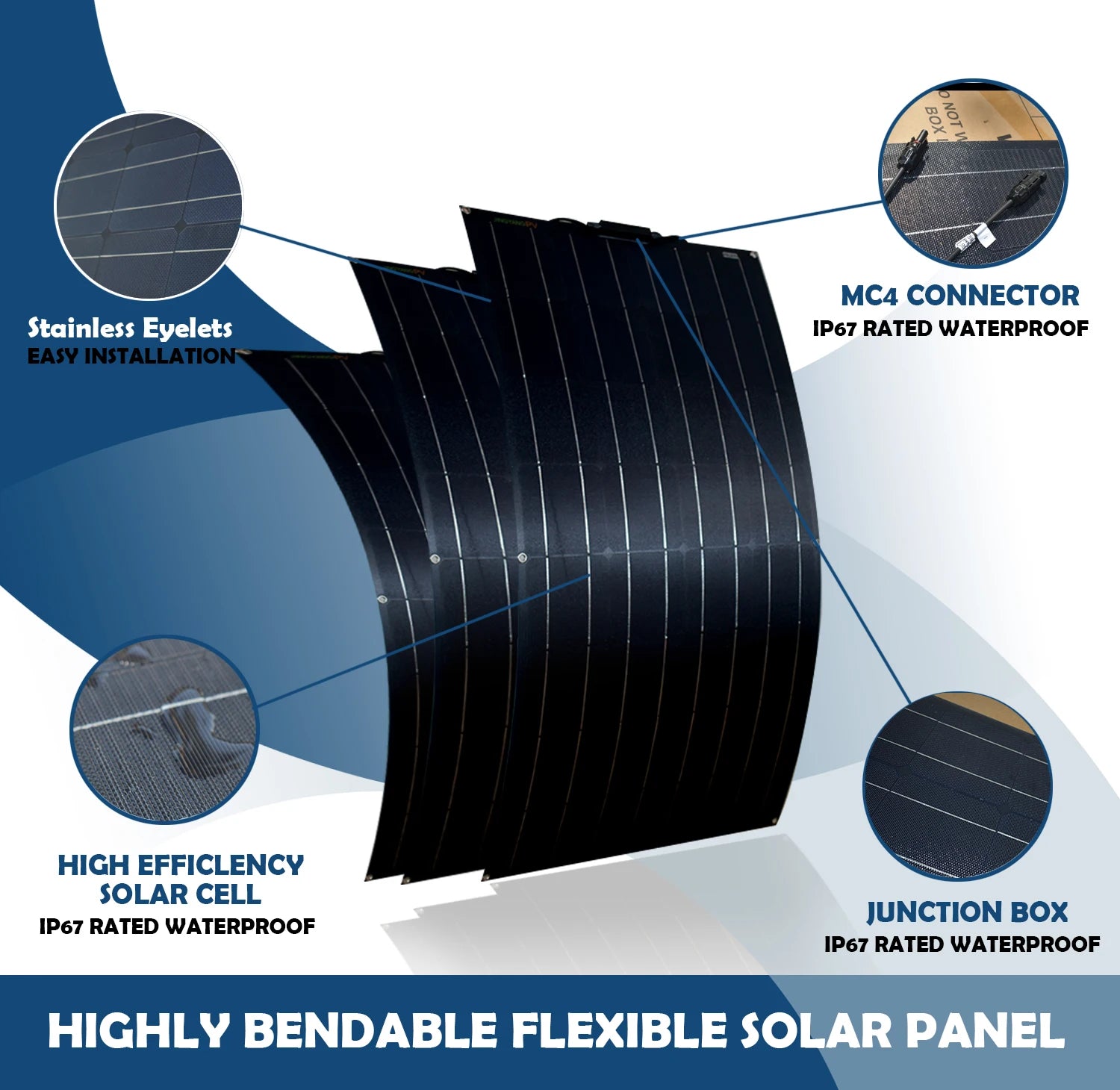

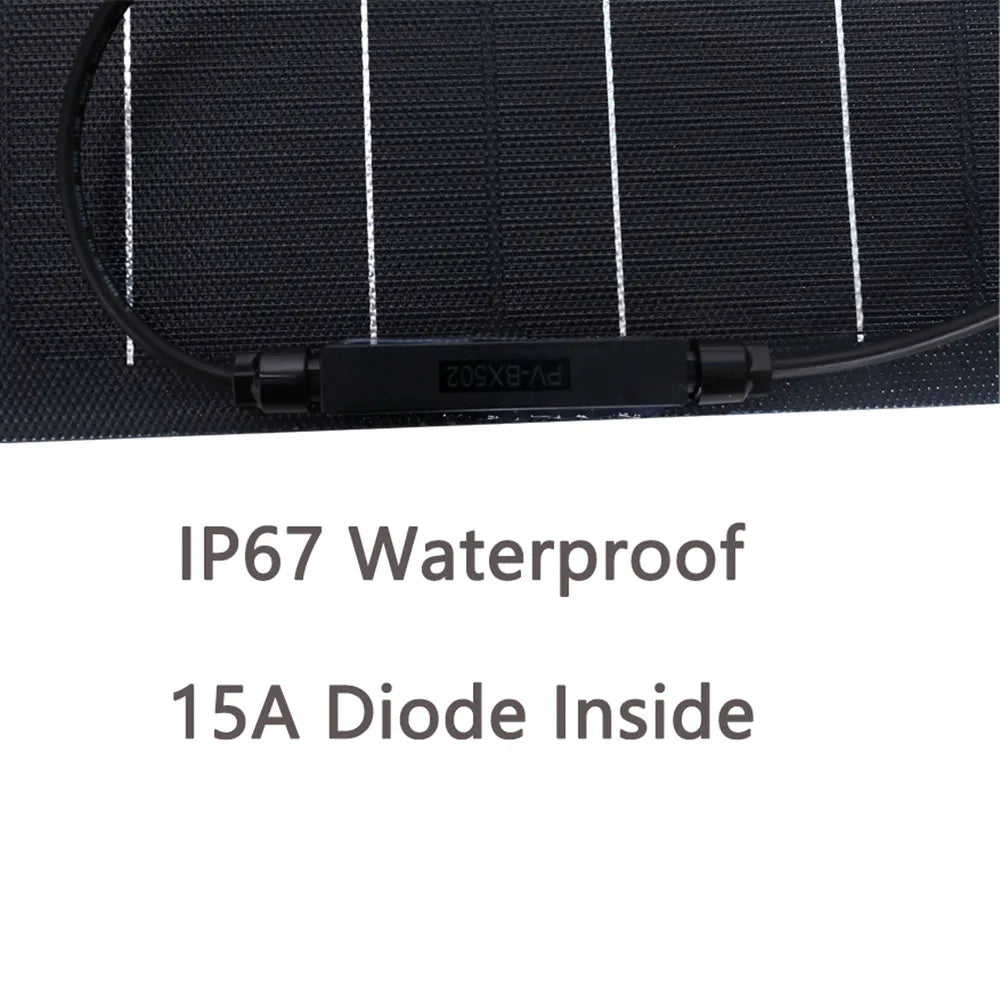

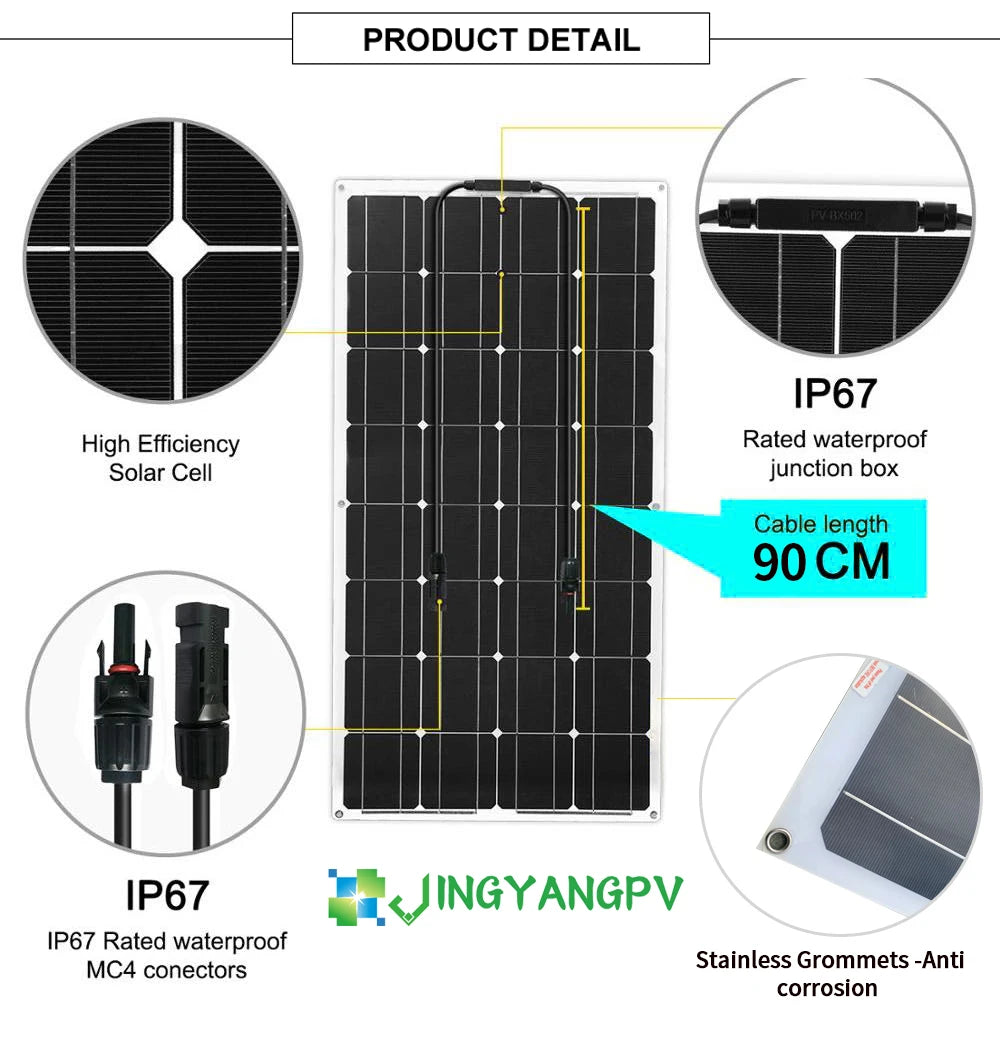

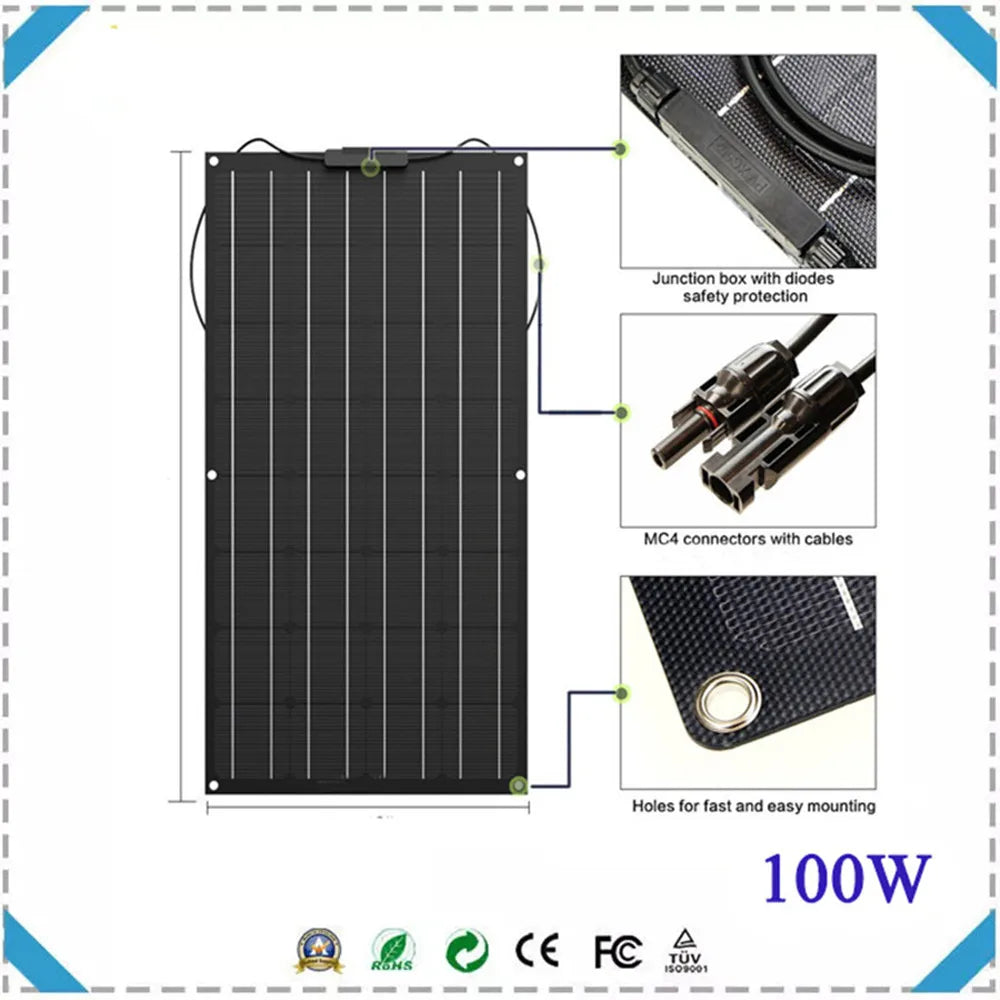

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

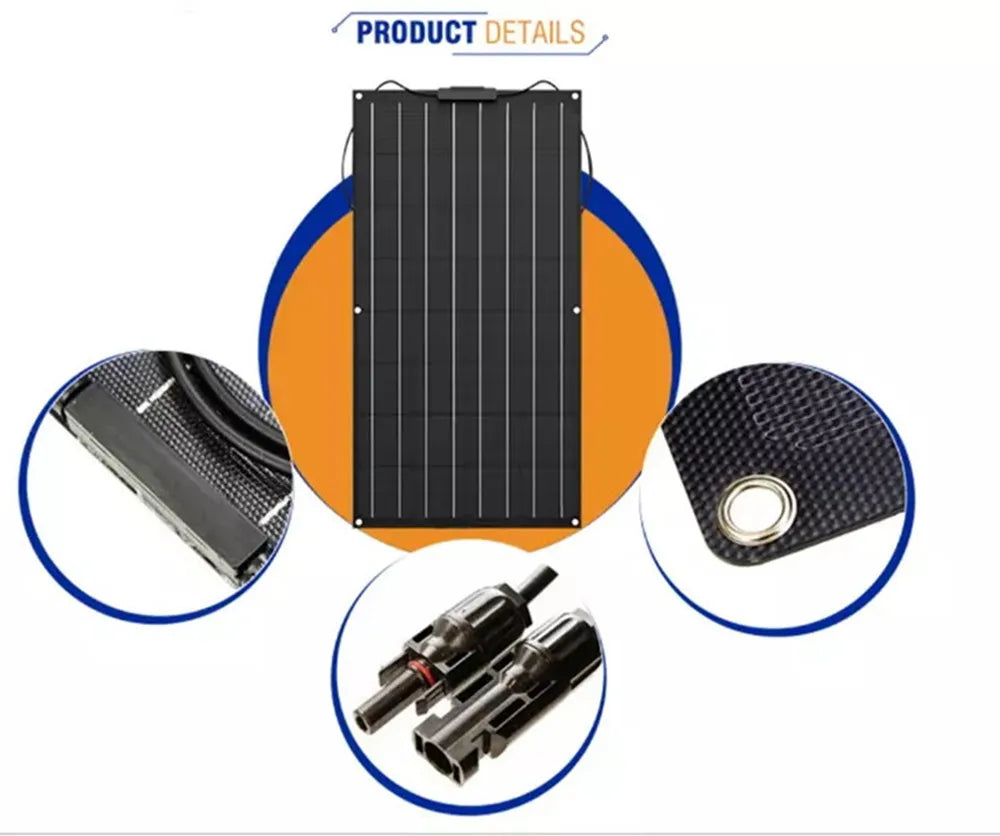

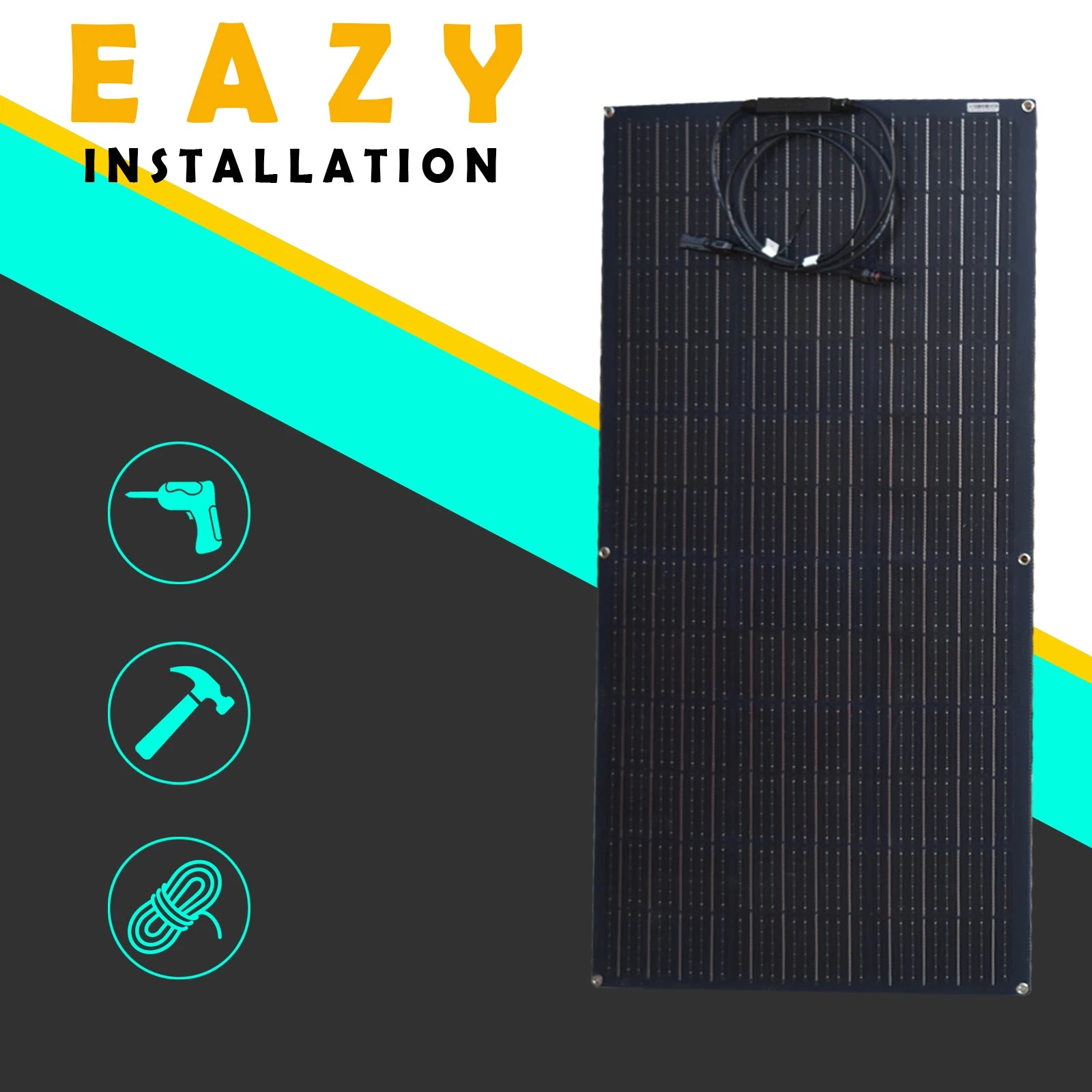

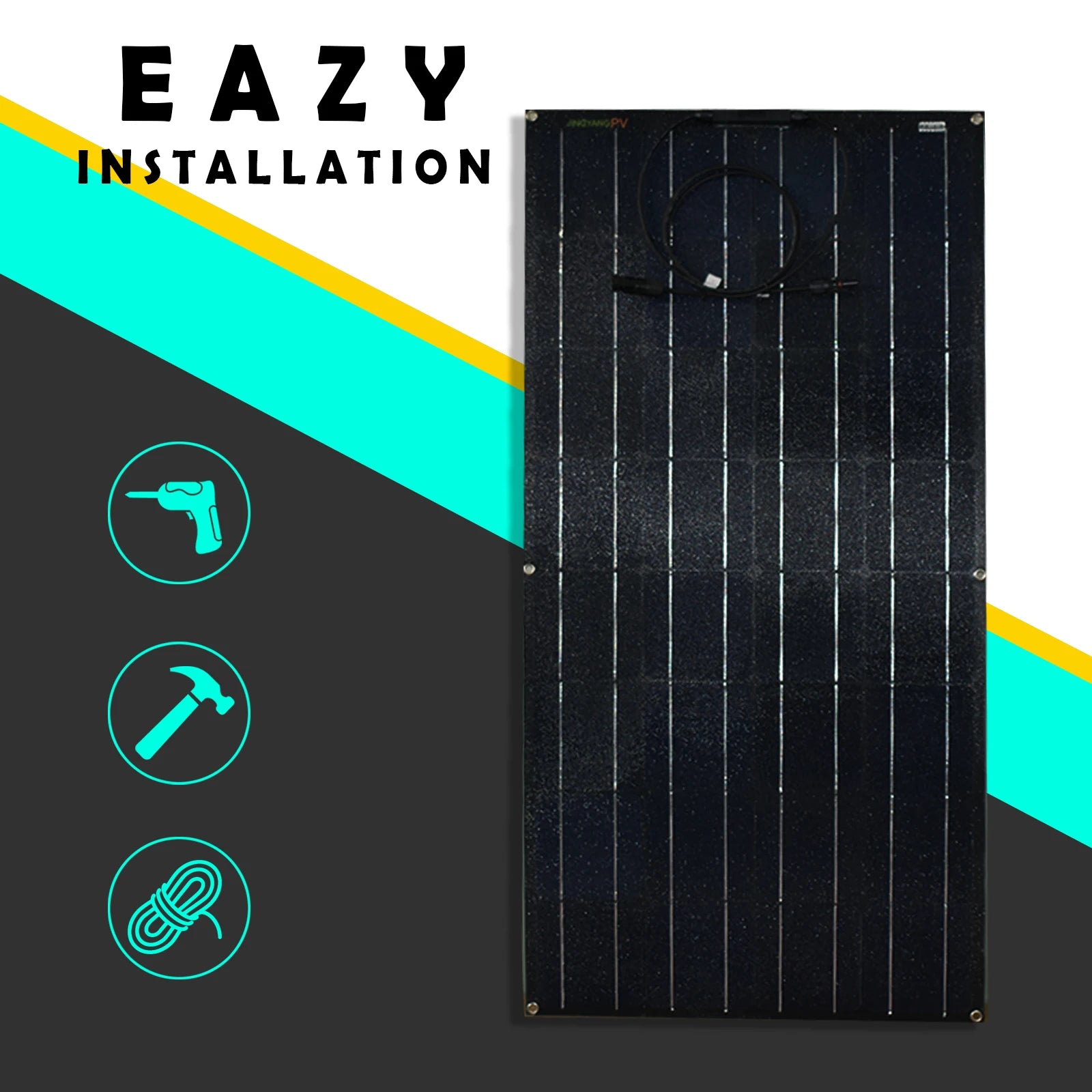

The back has 6 drill holes that can be quickly installed.

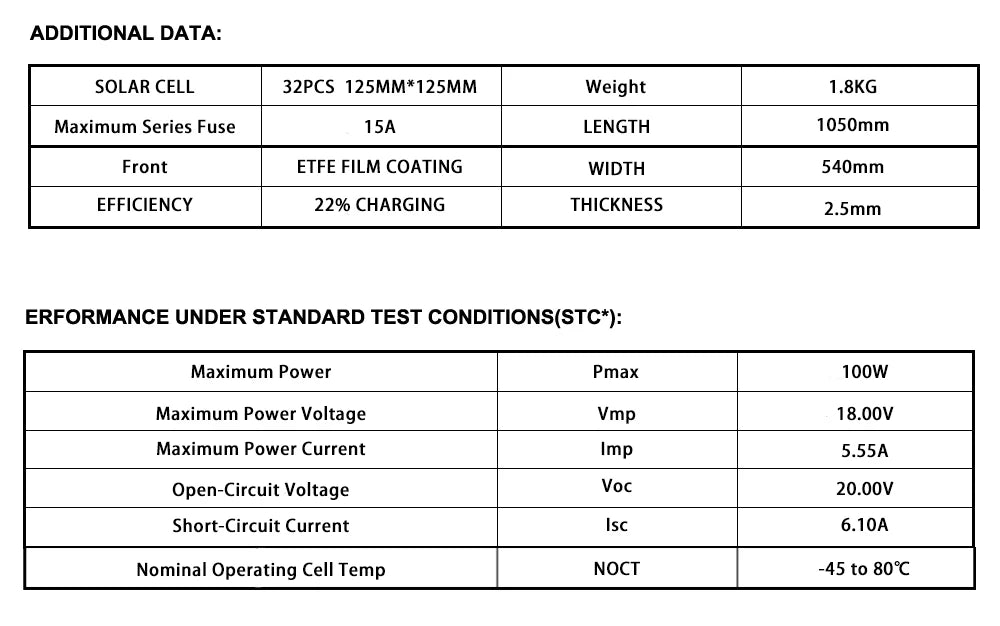

Model: ETFE 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

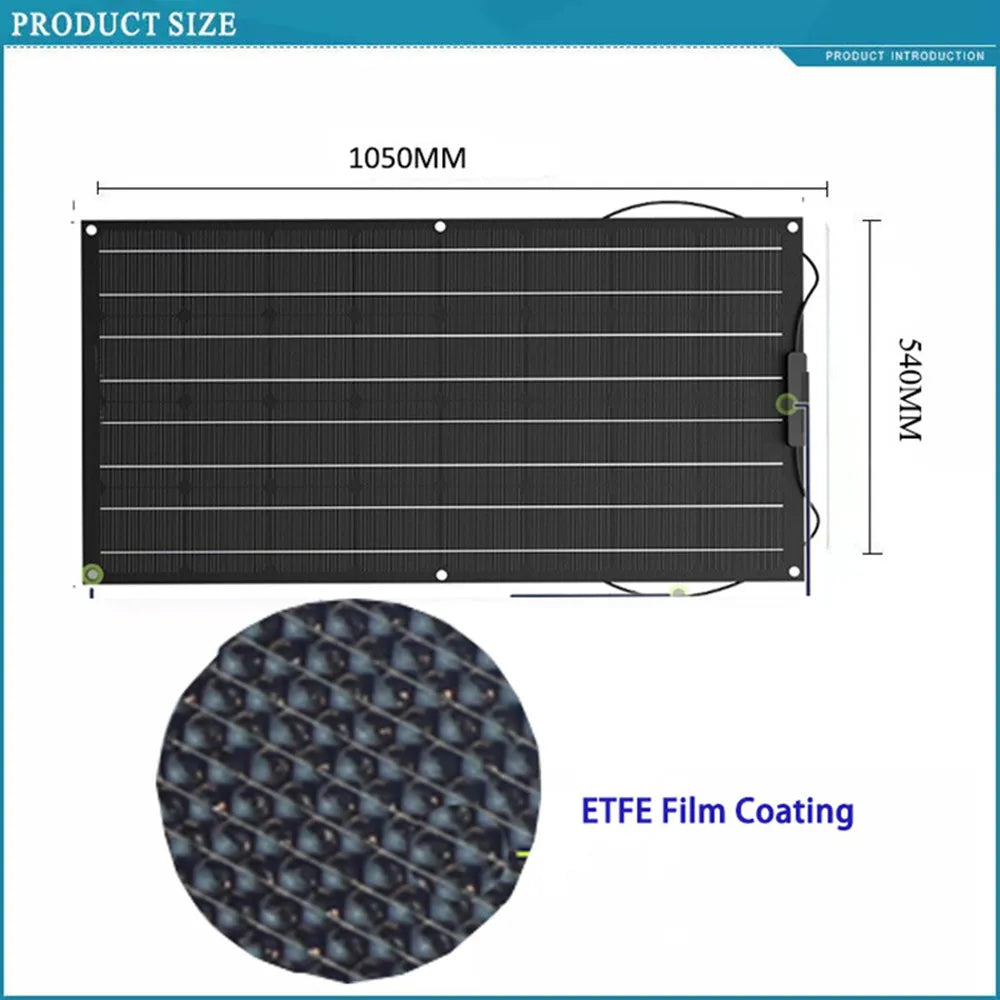

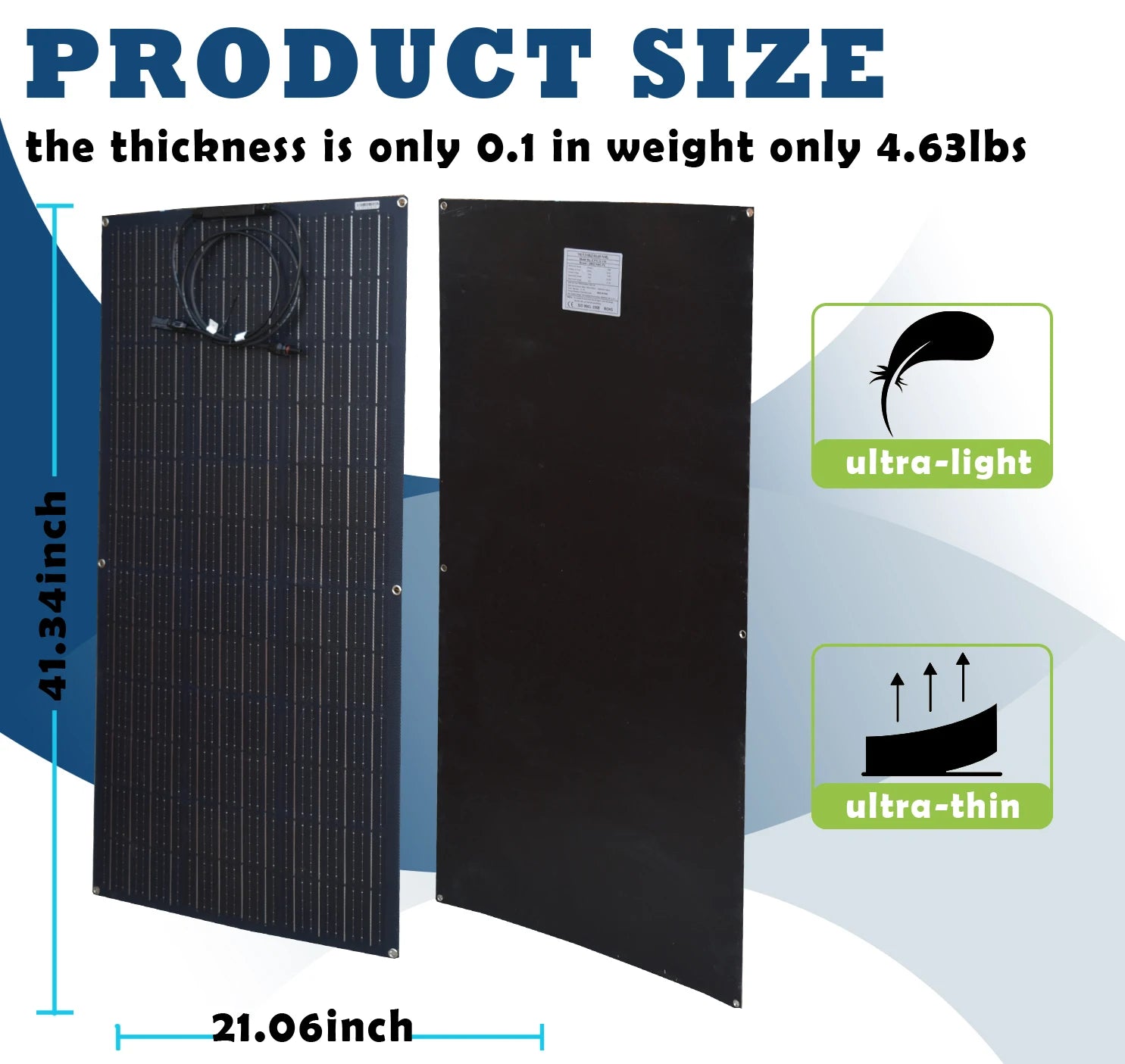

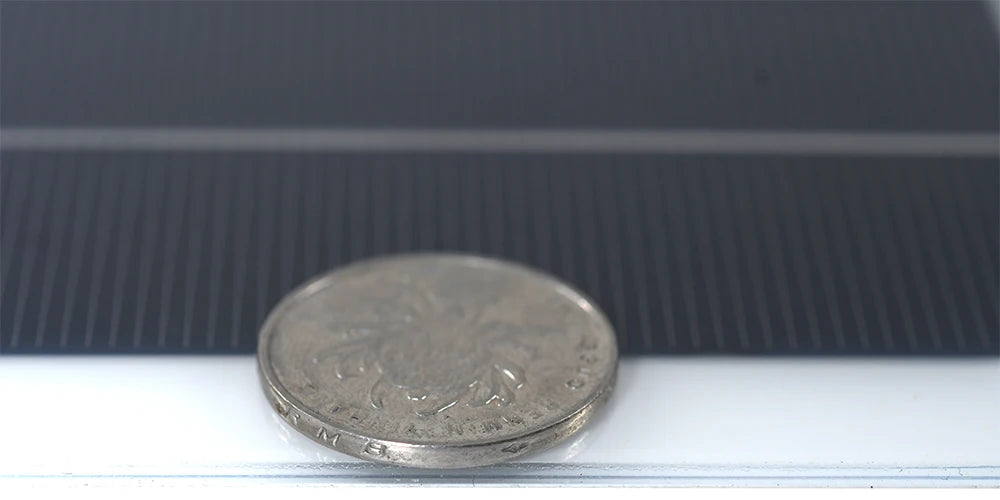

Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

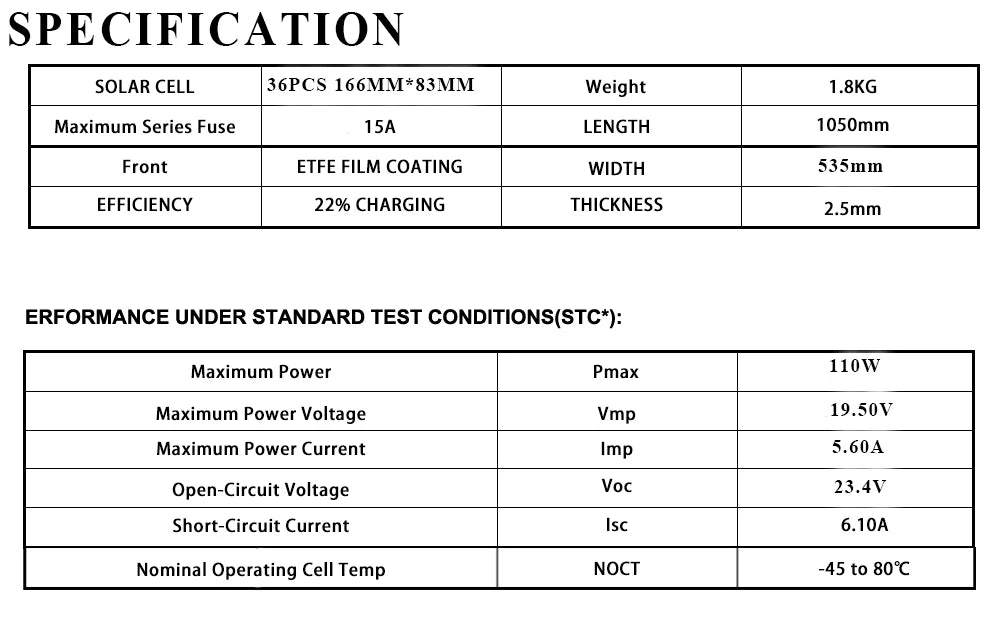

Model: ETFE 32-110
Material: Monocrystalline silicon
Maximum Power(Pmax):110W±3%
Maximum Power Voltage(Vmp):19.50V
Maximum Power Current (Imp):5.60A
Open-Circuit Voltage (Voc): 23.4V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

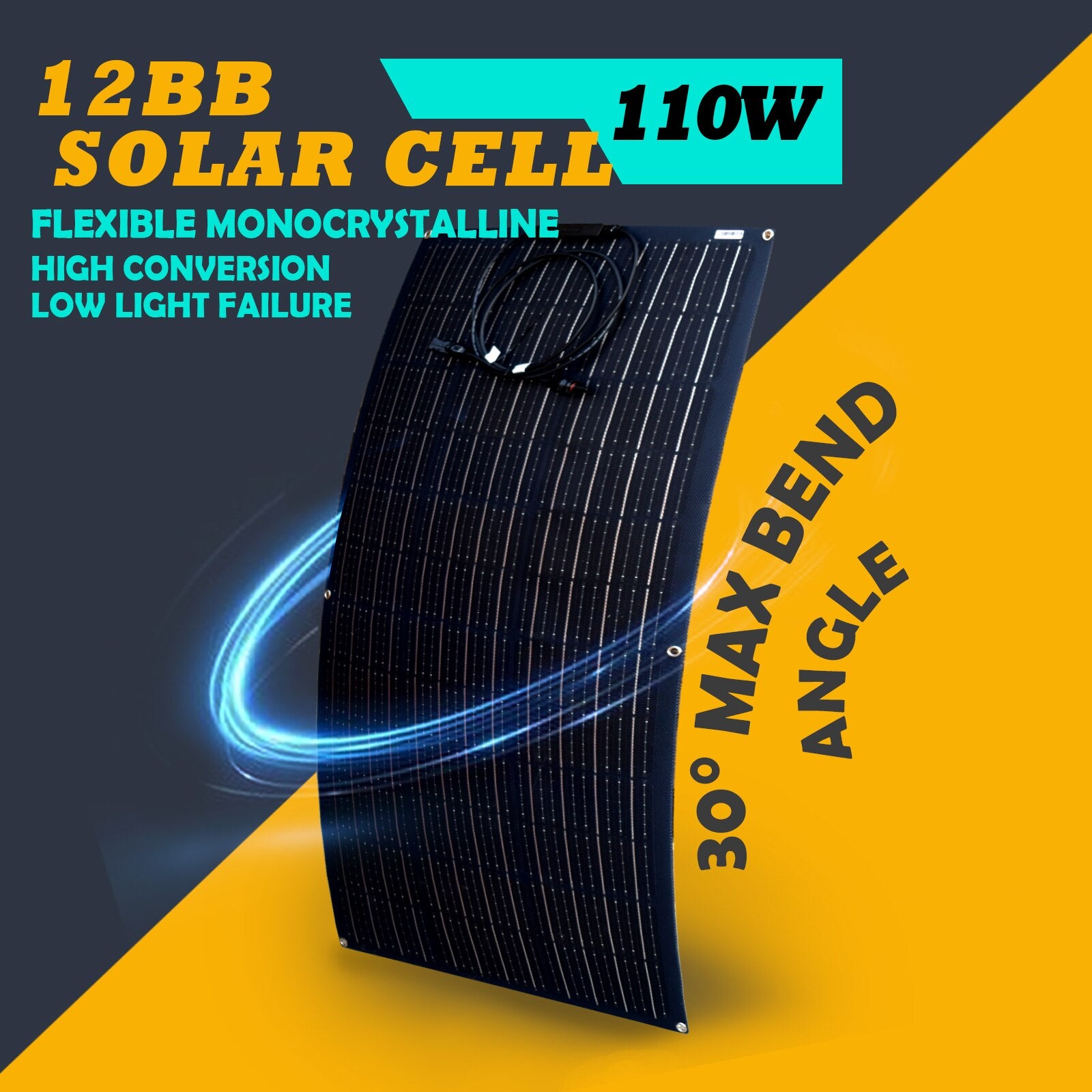

Solar Cell: 36pcs 166mm*83mm; 12BB Solar Cell

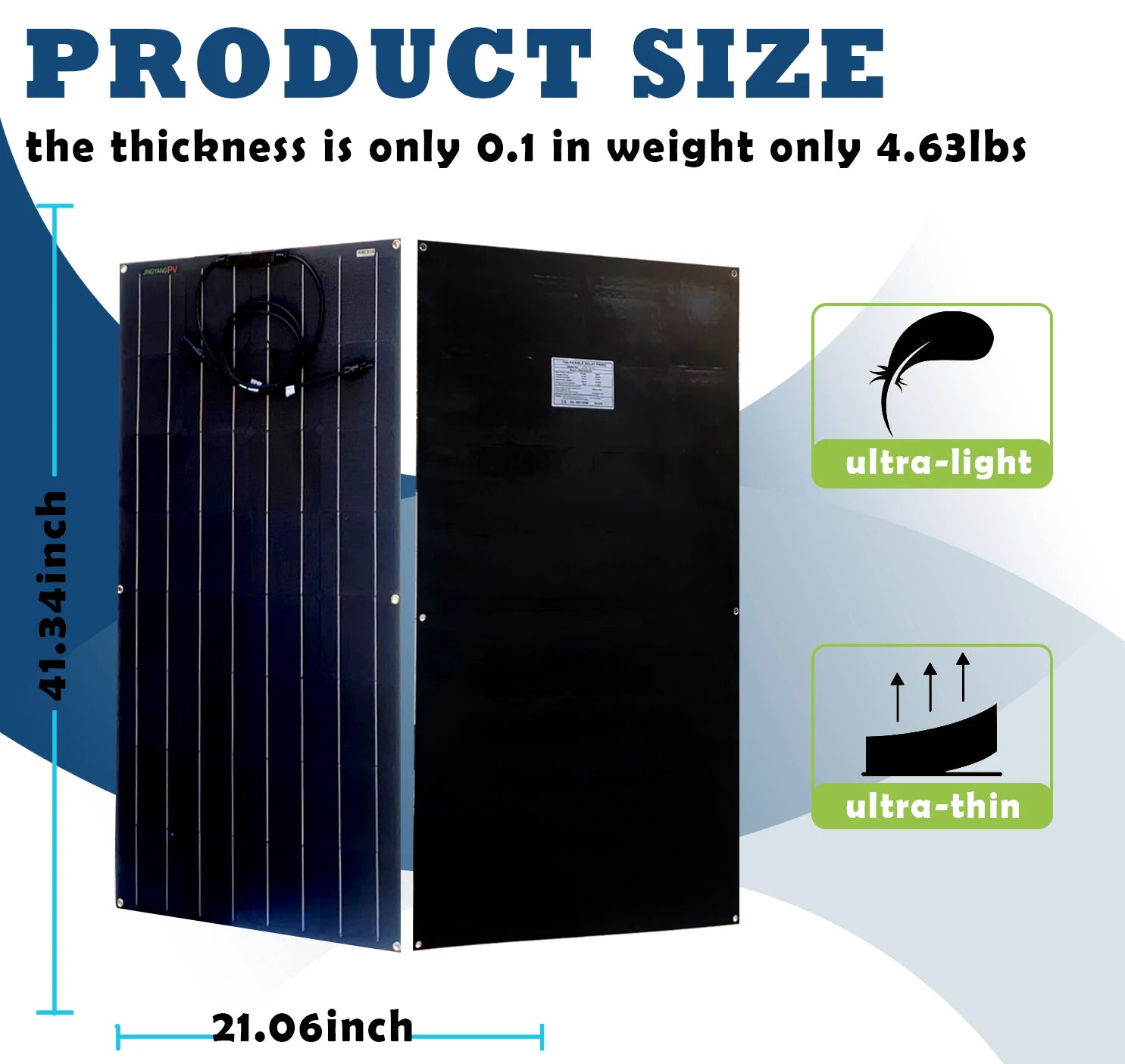

Dimension:1050MM(L)*535MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.06inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

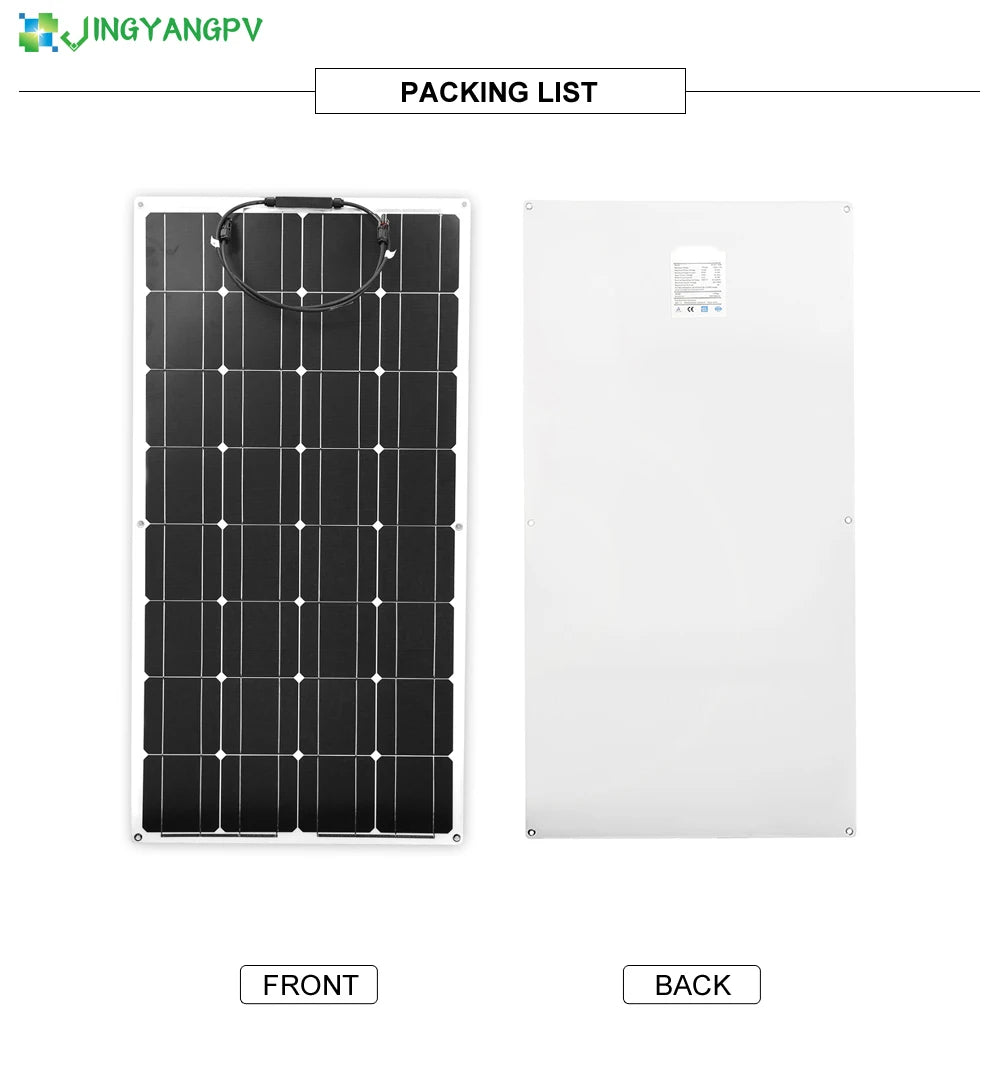

Advantages of JINGYANG PET Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.

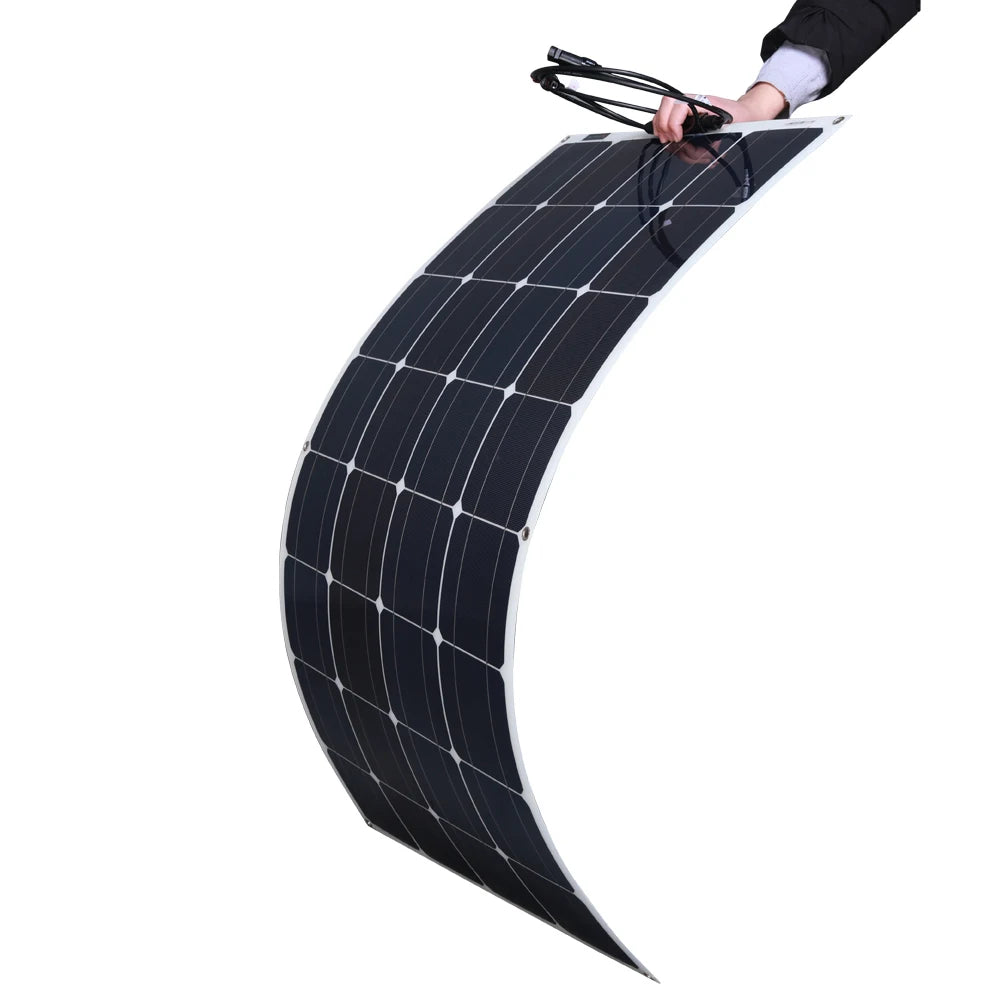

Product description:

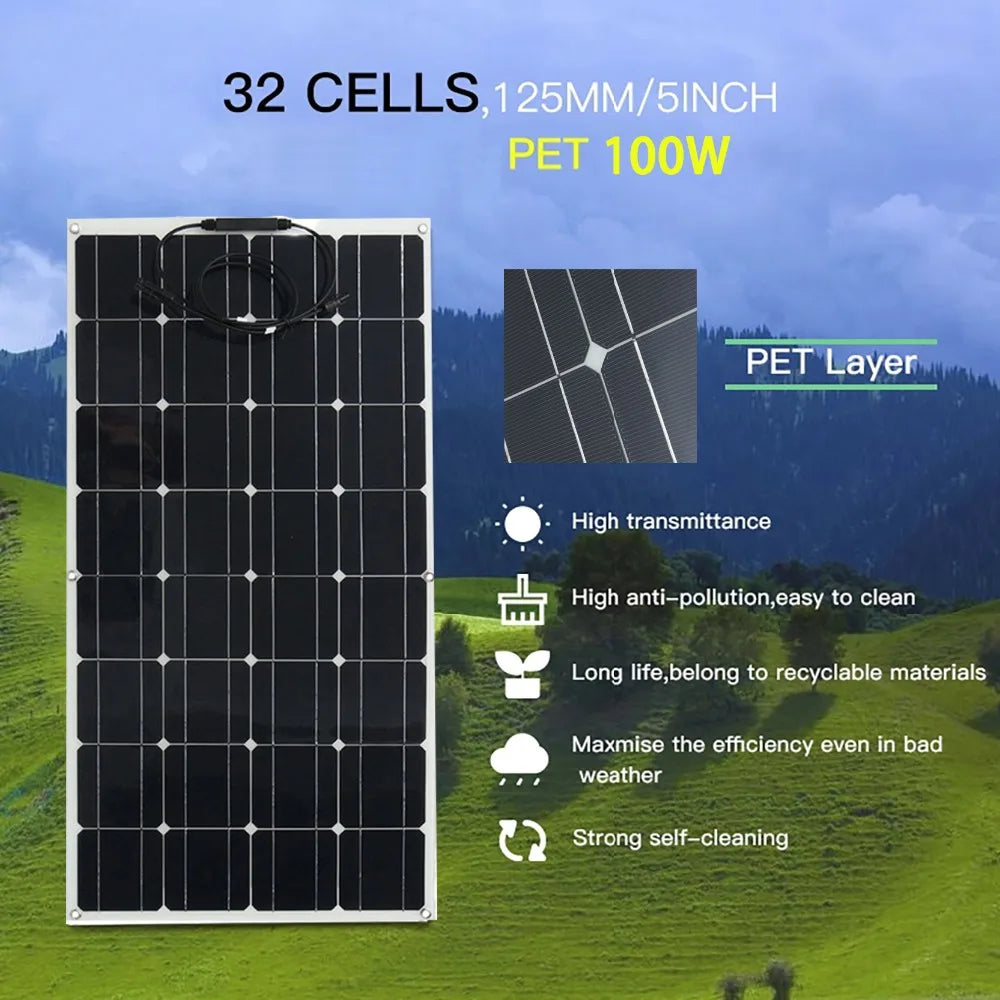

The surface is Plstic Cover Film Coating And Four EVA Layers, waterproof, snowproof, resistant to small hail.
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM
The back Sidehas 6 drill holes that can be quickly installed.

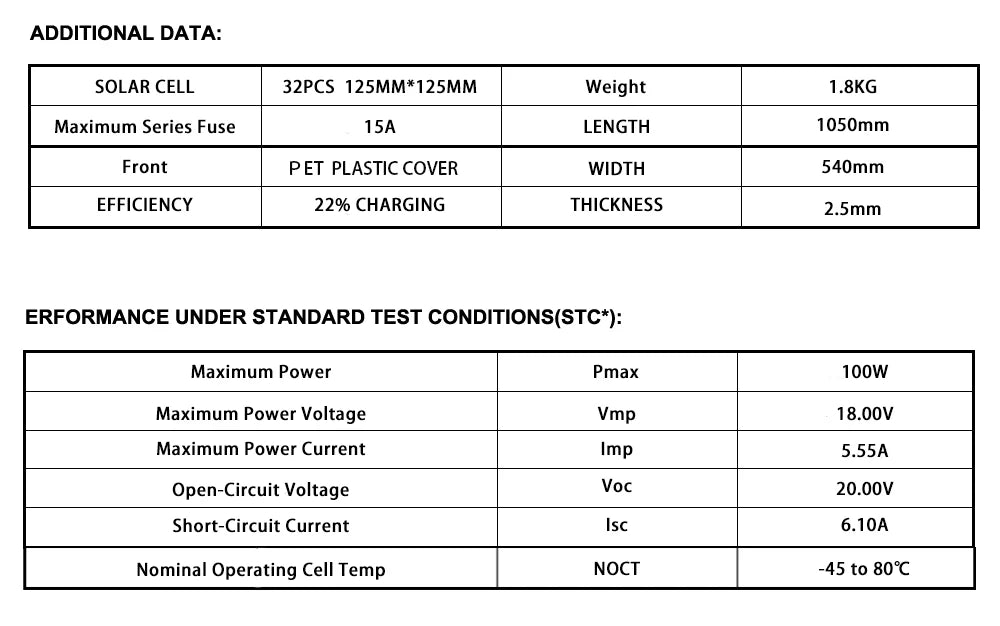

Model: BSP 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

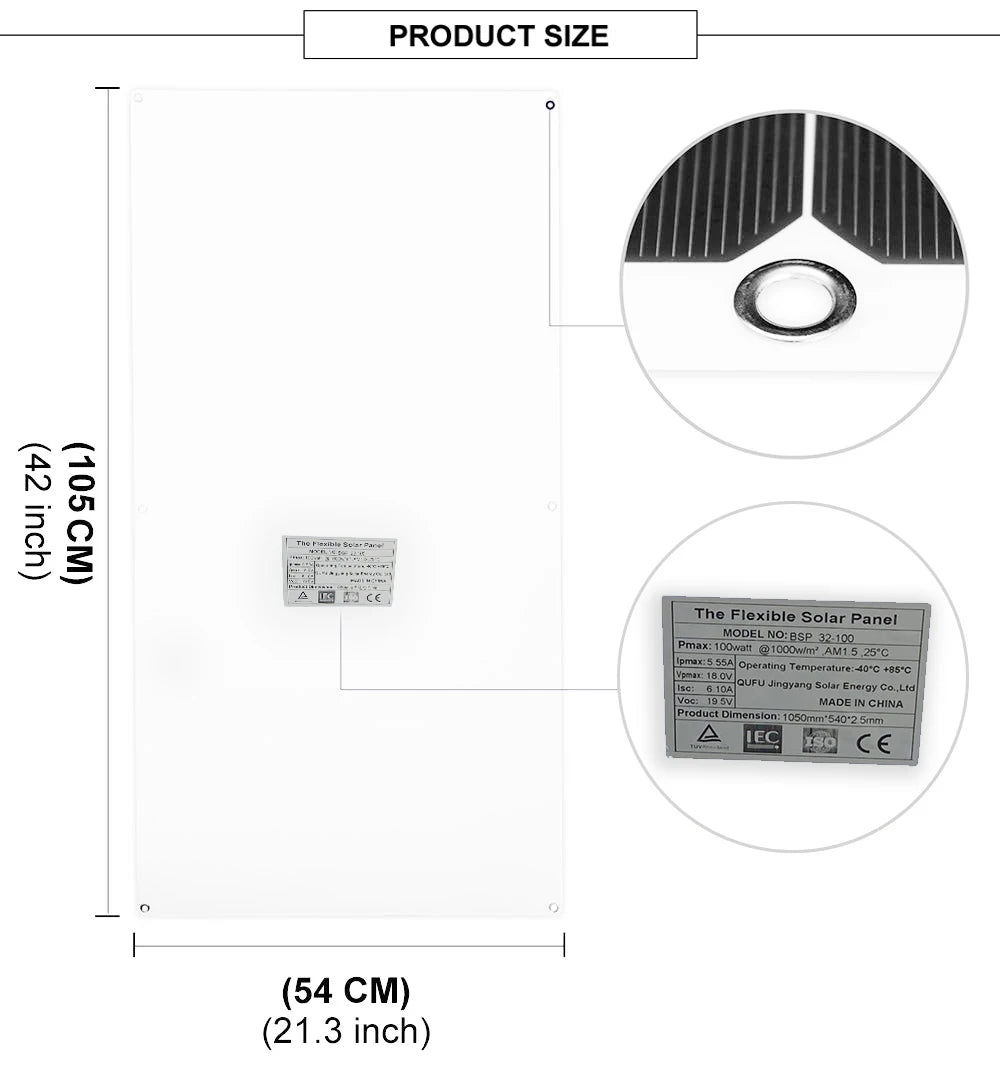

Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.85kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

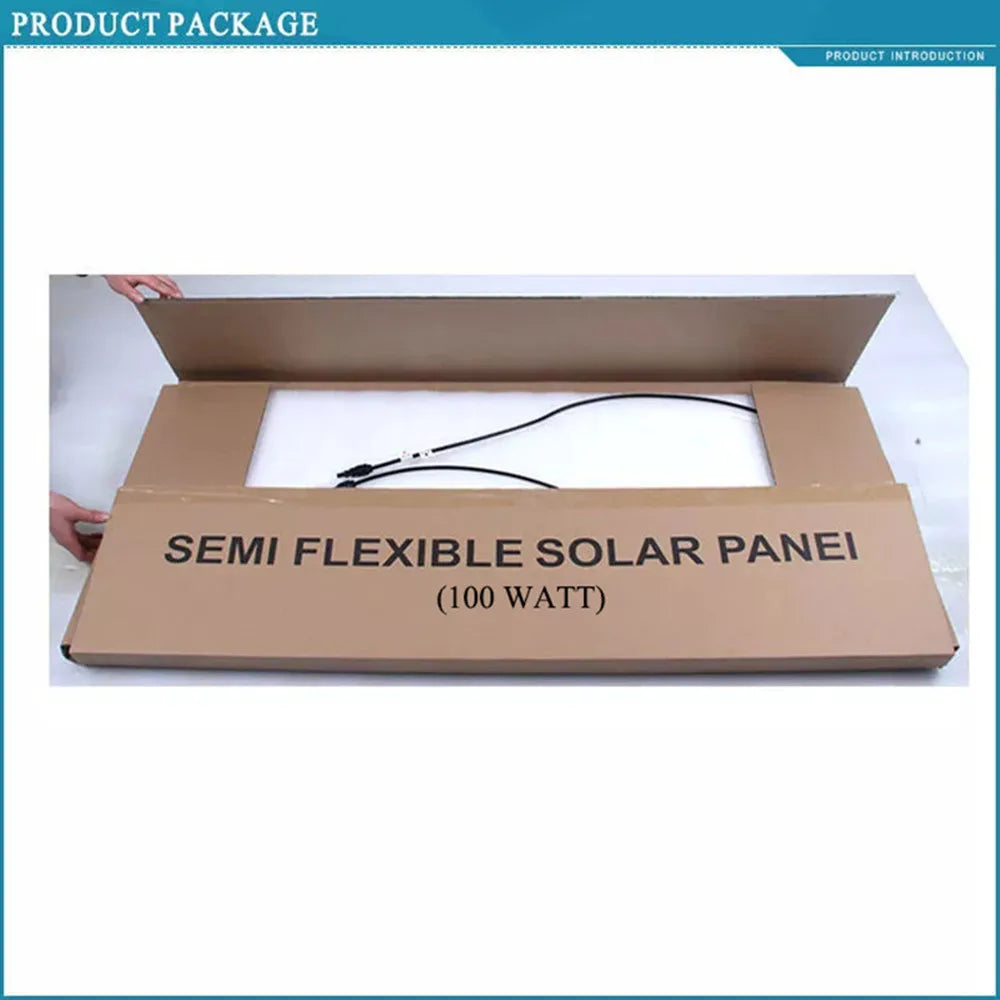

Package and delivery:

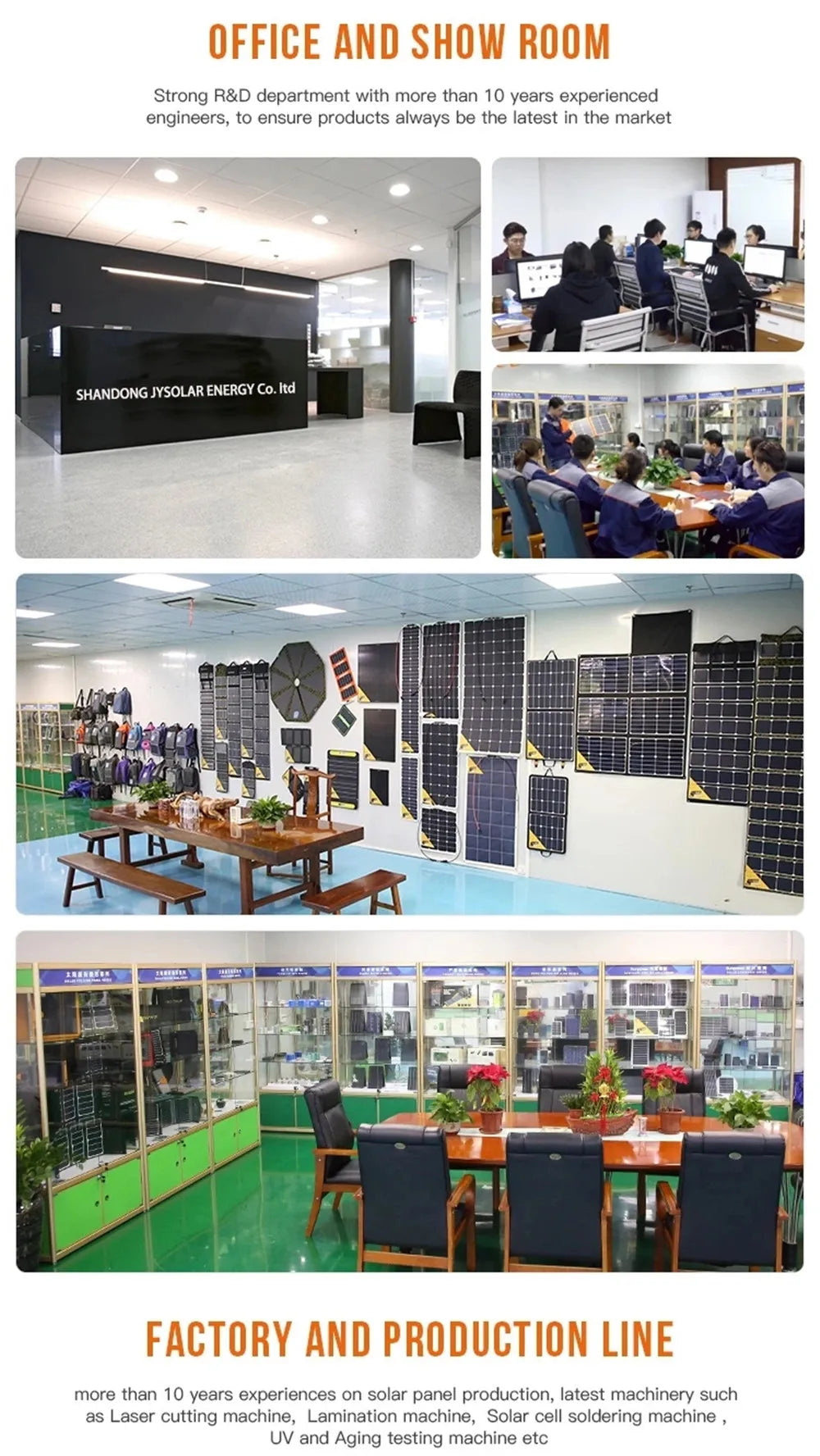

Company Information
