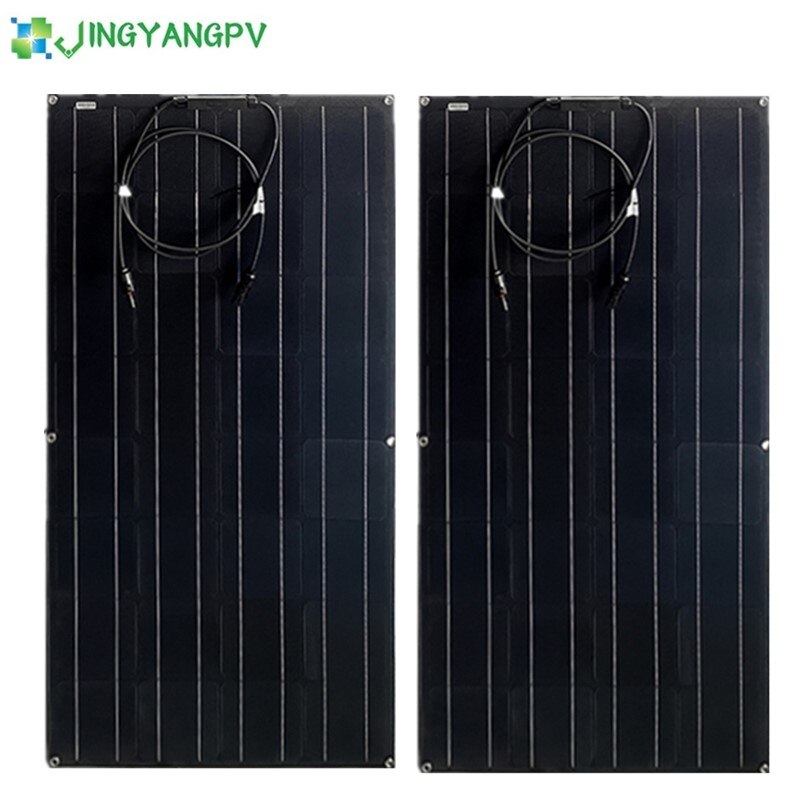

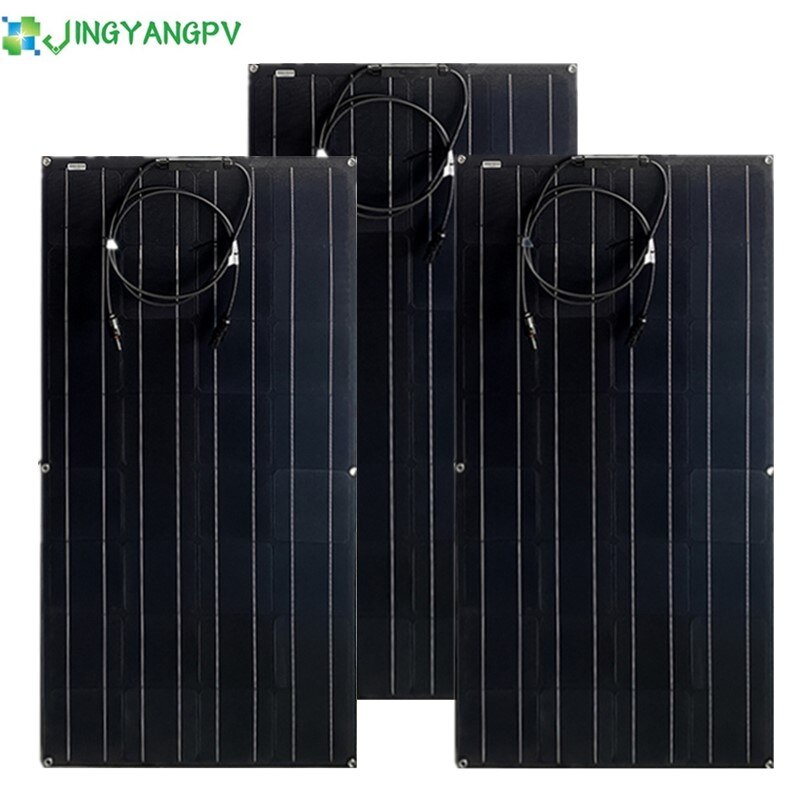

Solar Panel100W 110W 200W 220W 300W 330W 400W 440W ETFE Fliexible Panel Monocrystalline Solar Cell 1000W Solar System Power Bank
Solar Panel100W 110W 200W 220W 300W 330W 400W 440W ETFE Fliexible Panel Monocrystalline Solar Cell 1000W Solar System Power Bank
265 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
flexible solar panel: solar panel 100W
Type: Solar Panel
Size: 1050mm*540mm*2.5mm
Origin: Mainland China
Number of Panels: 1

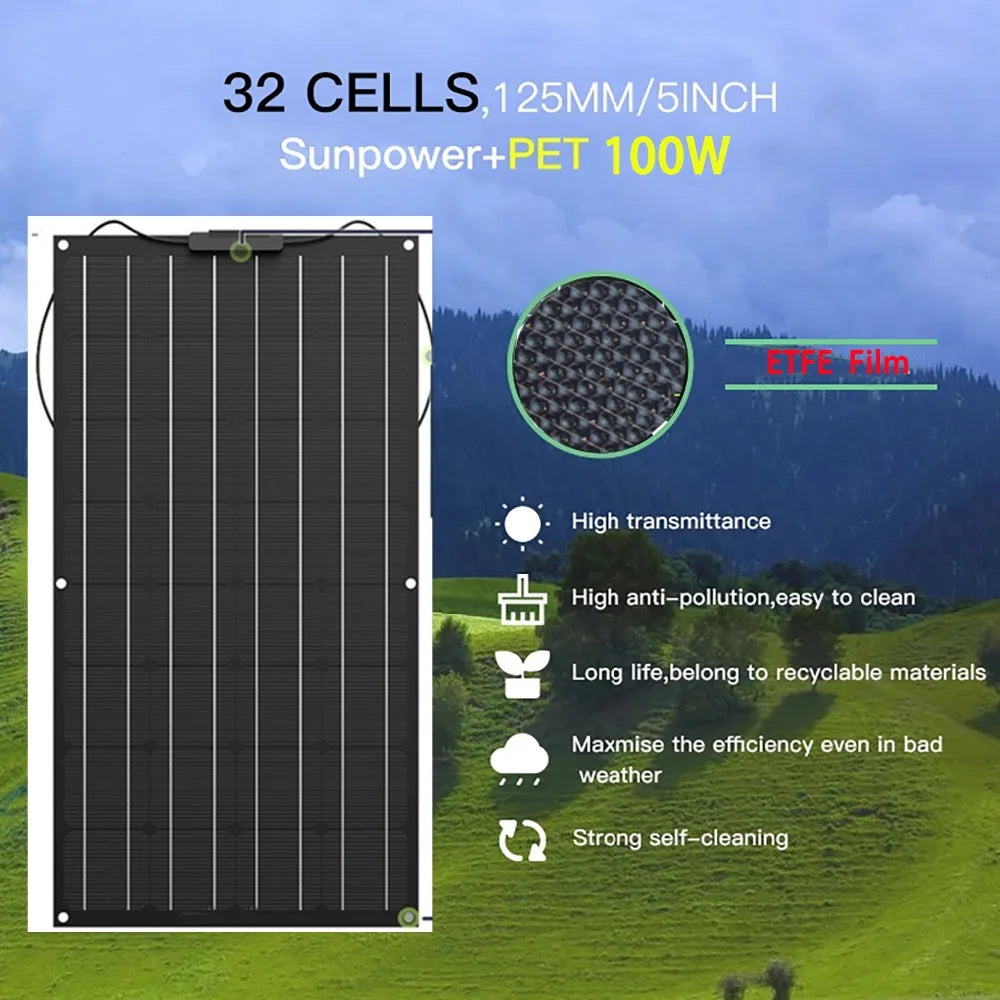

Number of Cells: 32
Nominal Capacity: 100w 110W
Module Efficien: 21.8%
Model Number: ETFE 32-100
Max. Power: 105
Material: Monocrystalline Silicon
Foldable Solar Panel: No

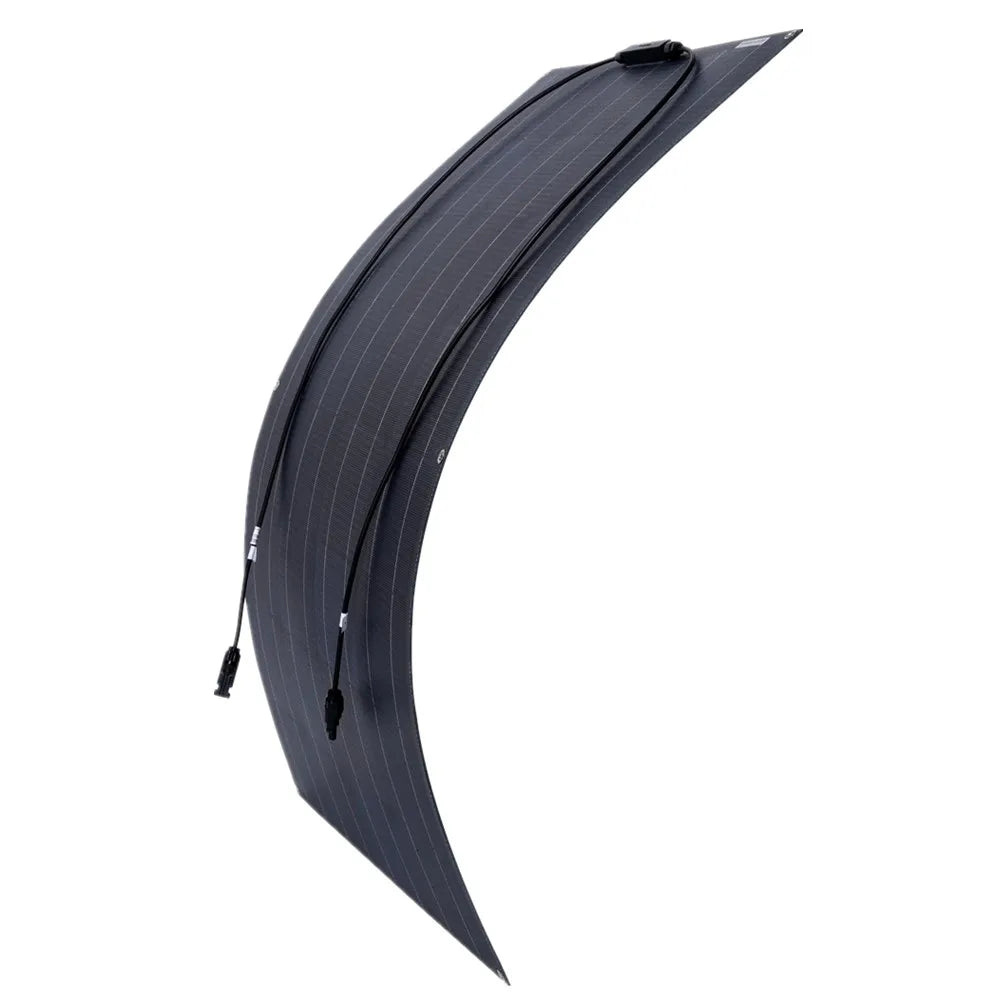

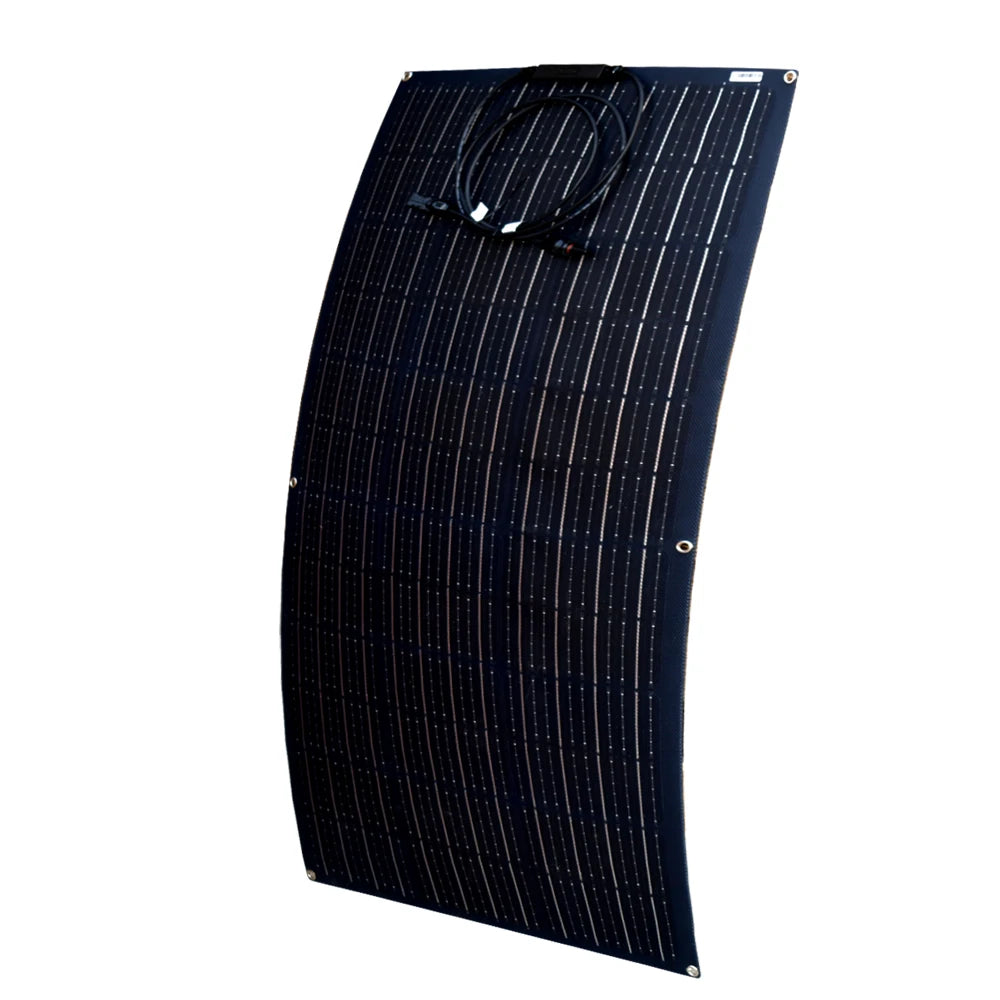

Flexible Solar Panel: Yes
ETFE SOLAR PANEL 100W: 12V 18V PV PANEL

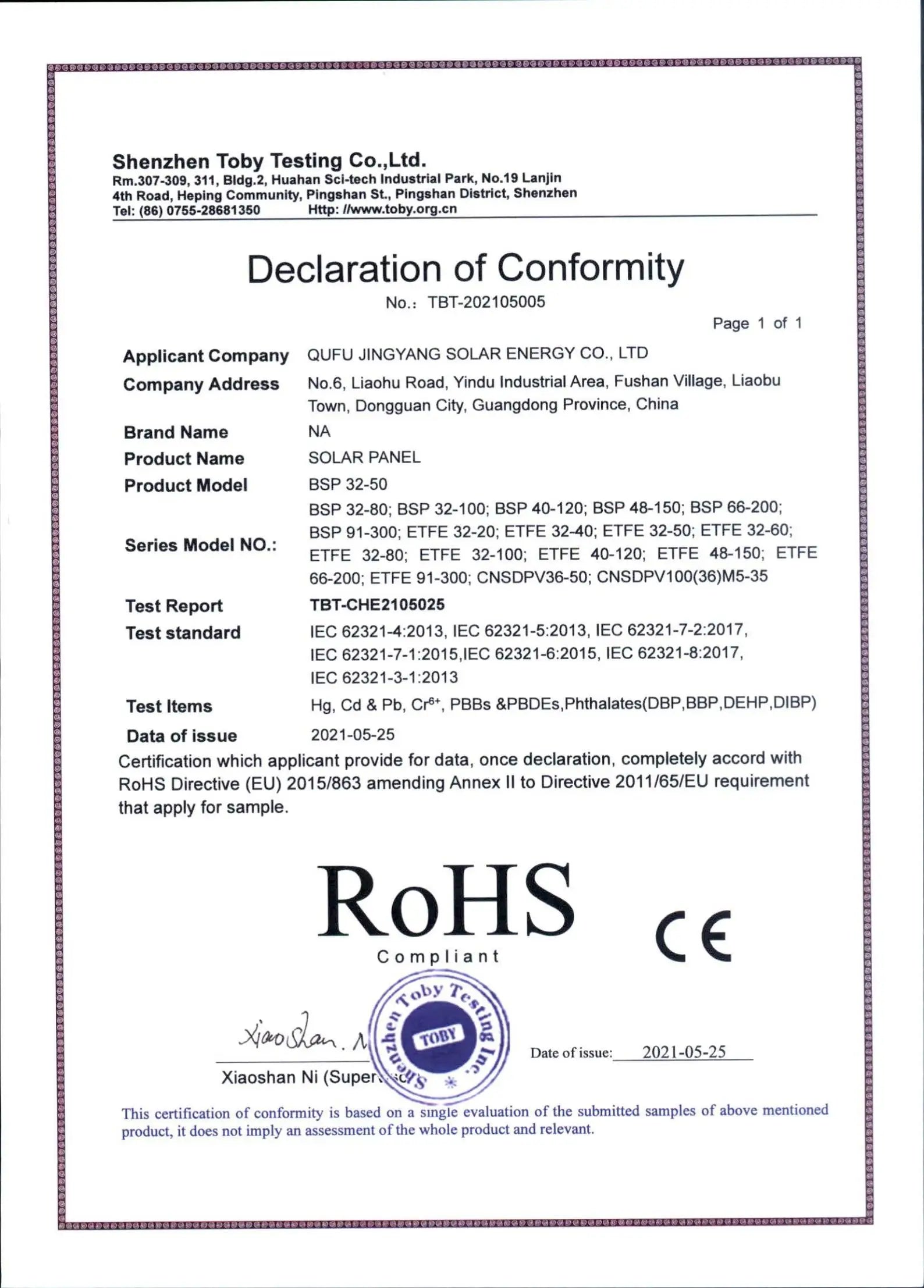

Certification: CE
Brand Name: JINGYANGPV
Advantages of JINGYANG ETFE Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

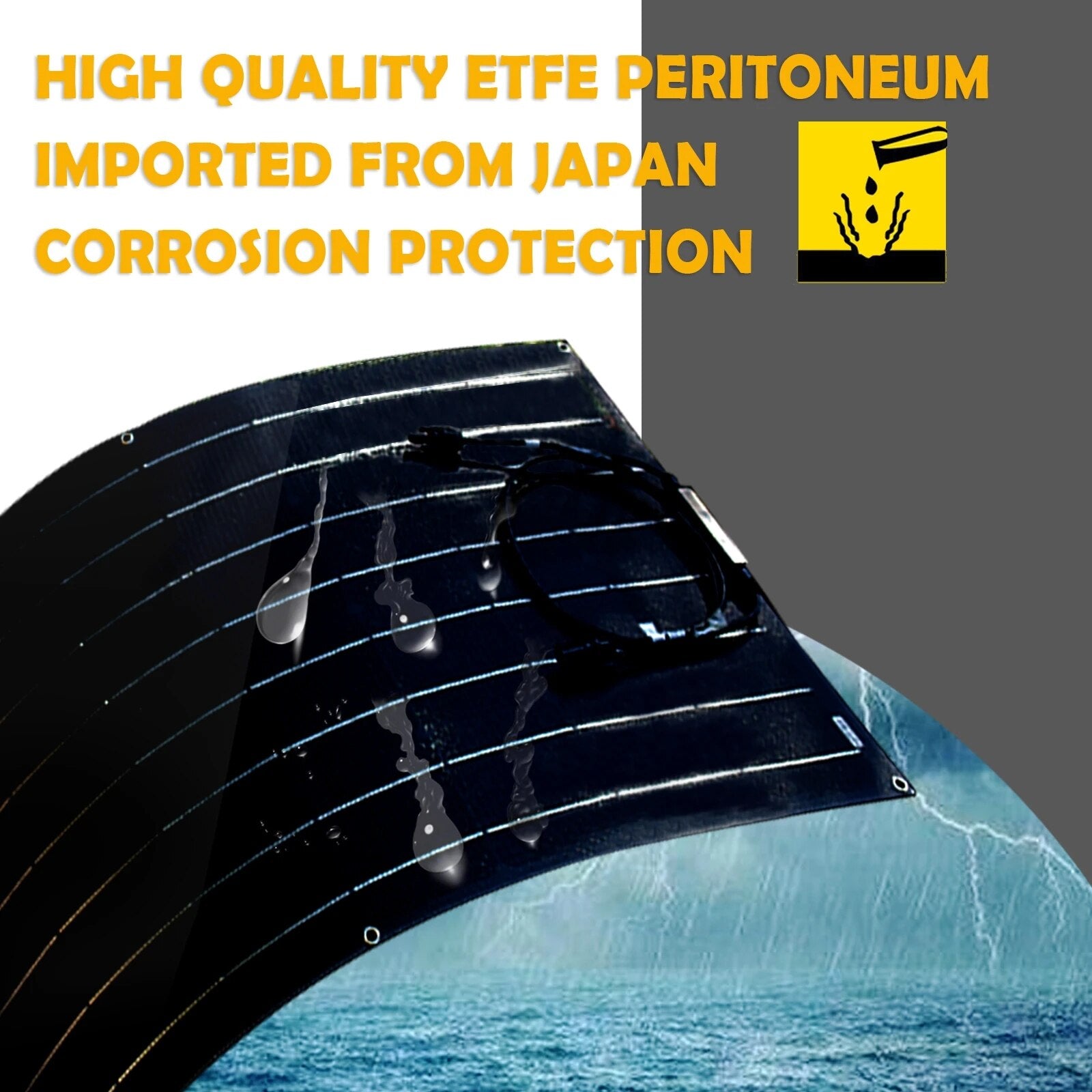

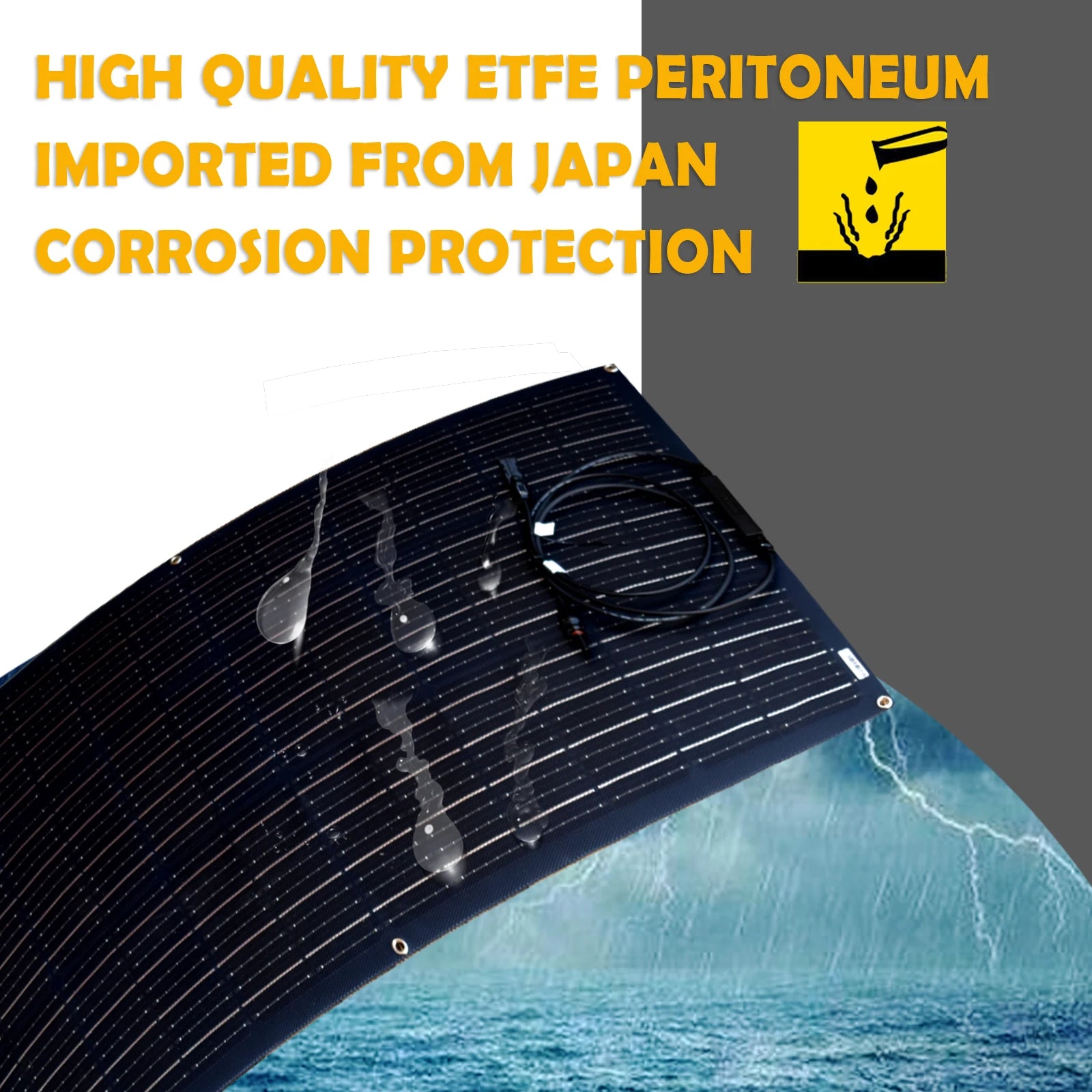

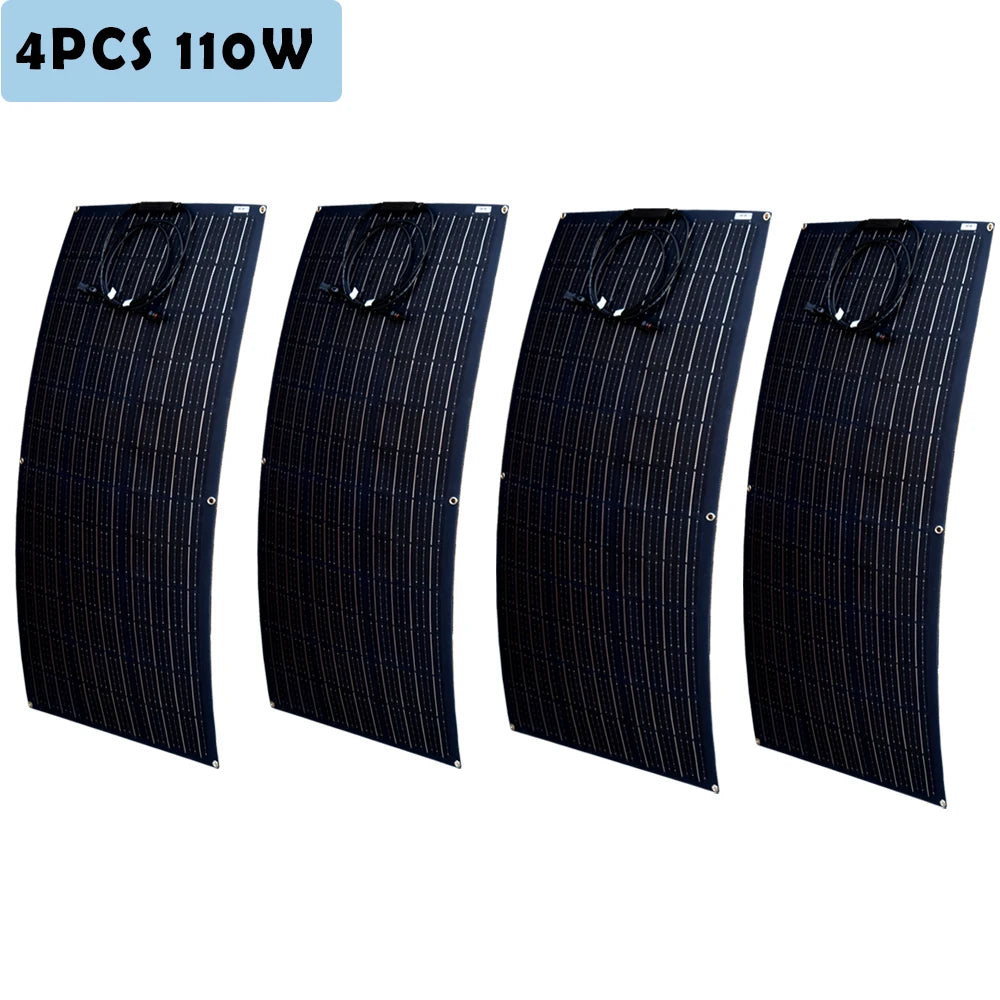

Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:

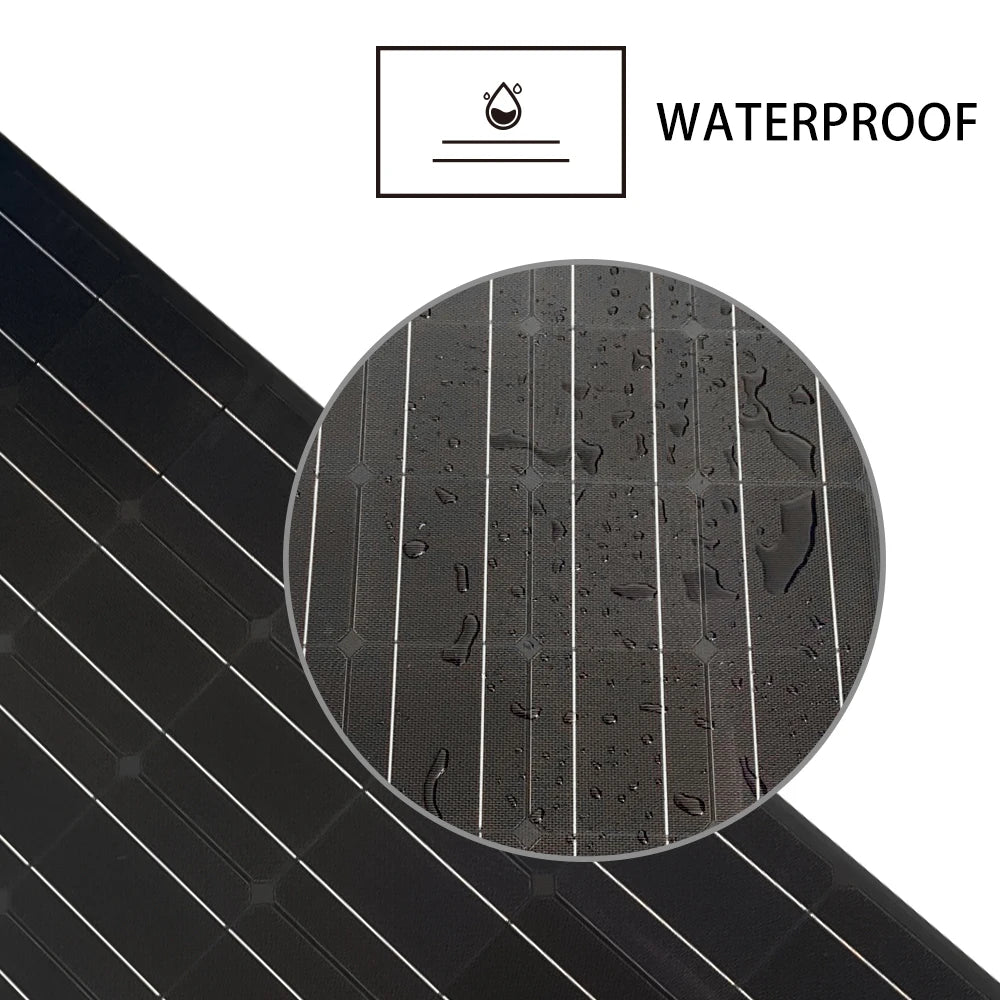

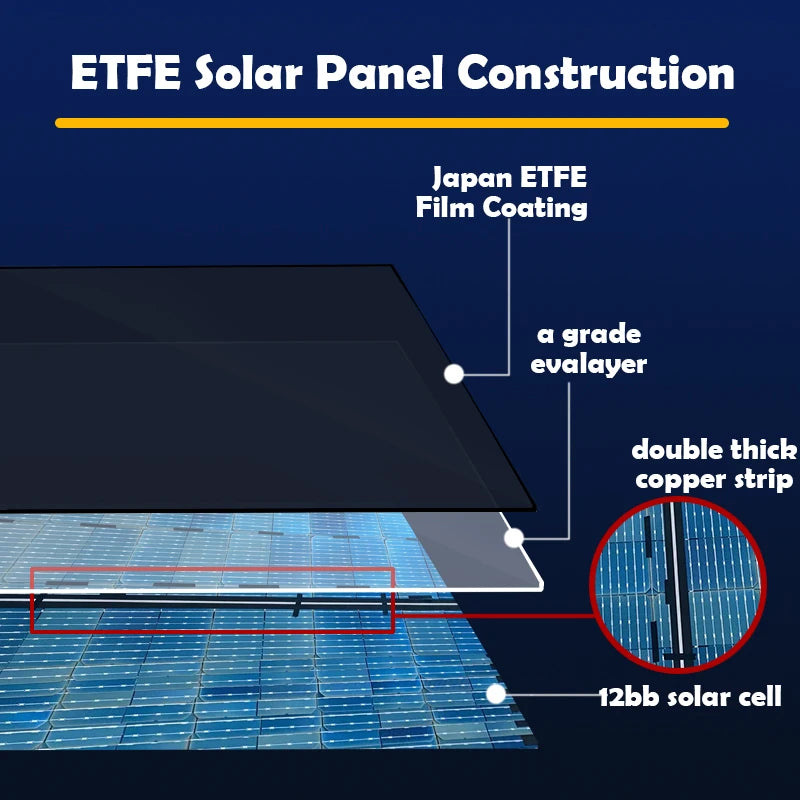

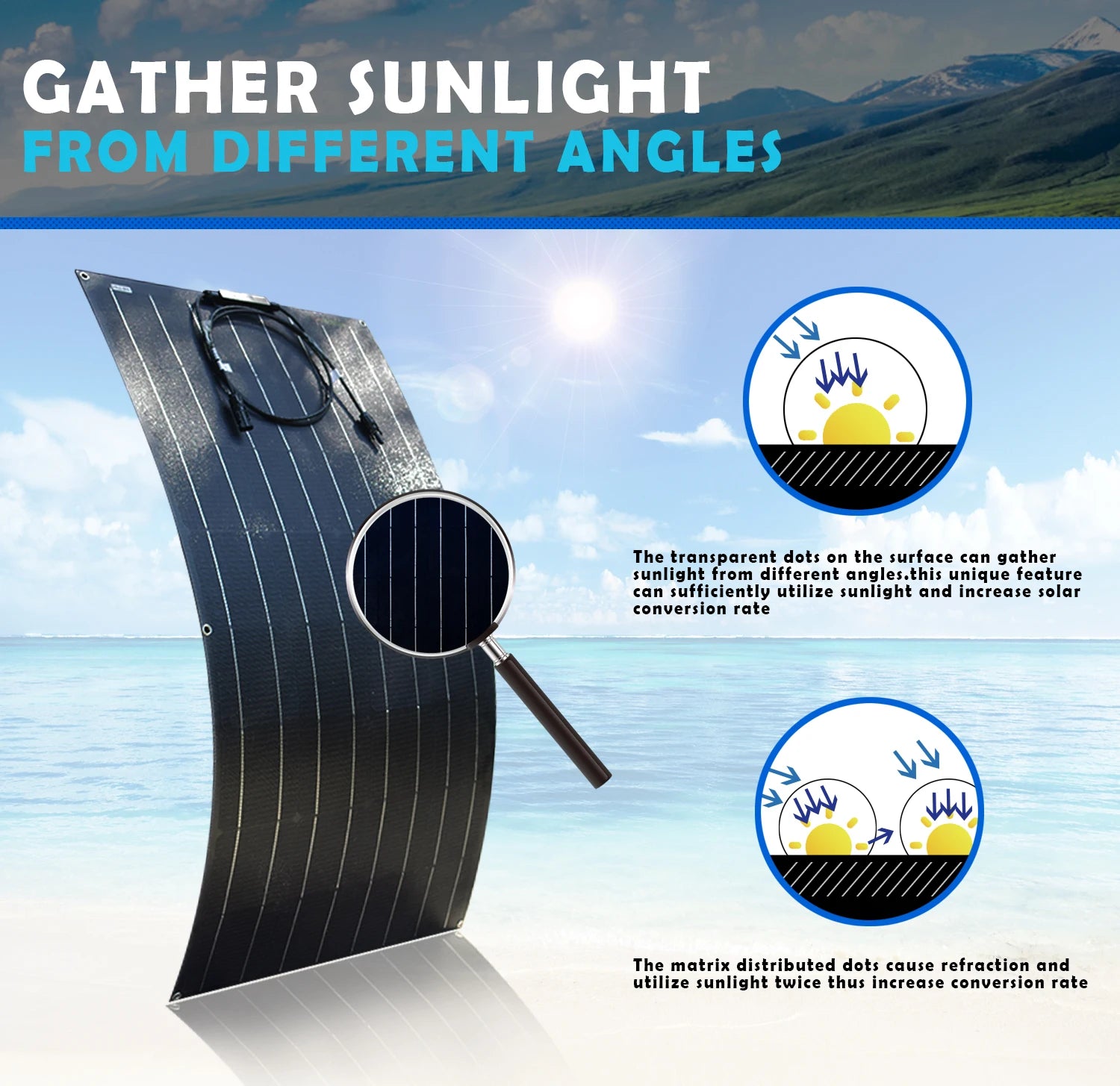

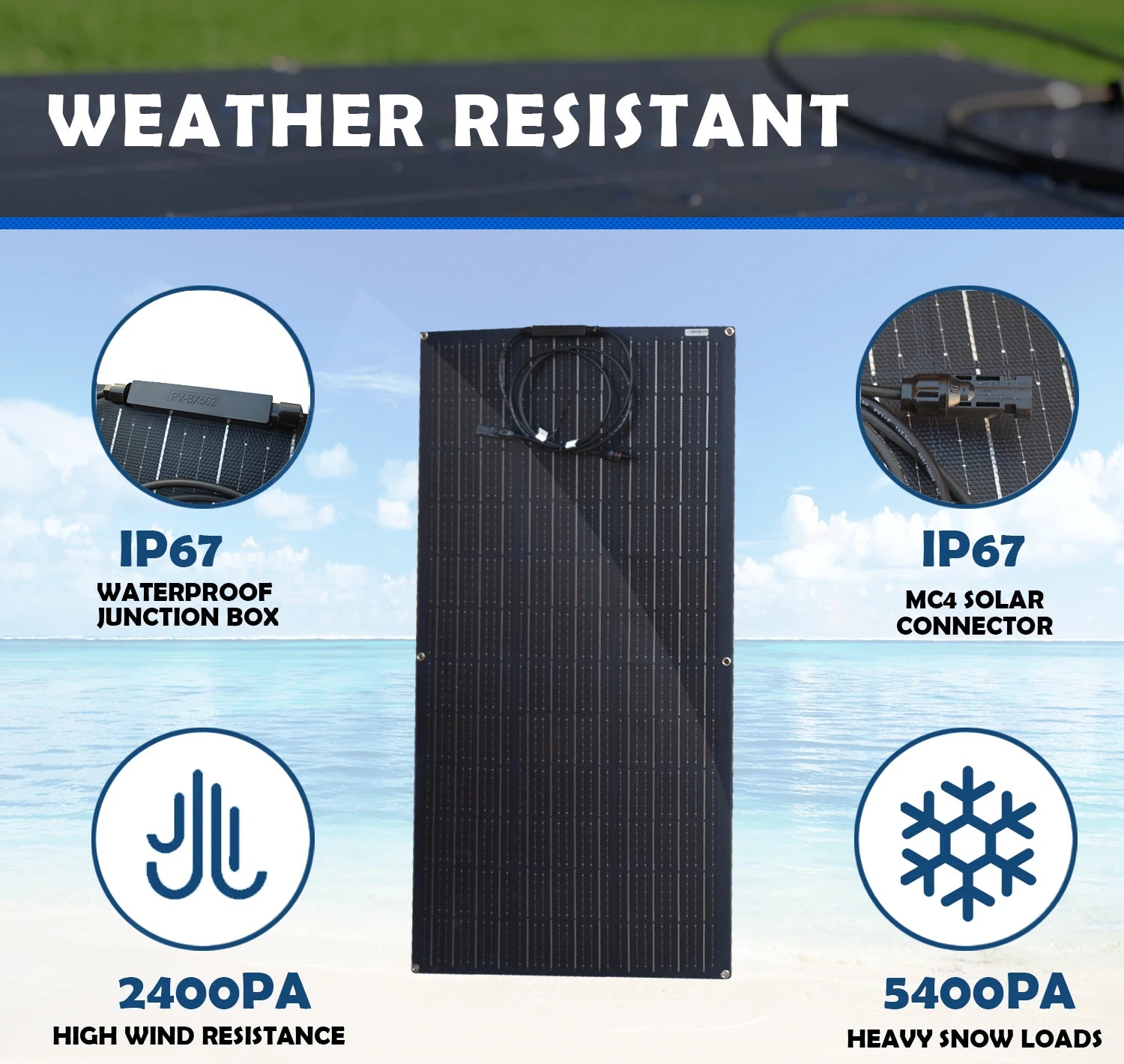

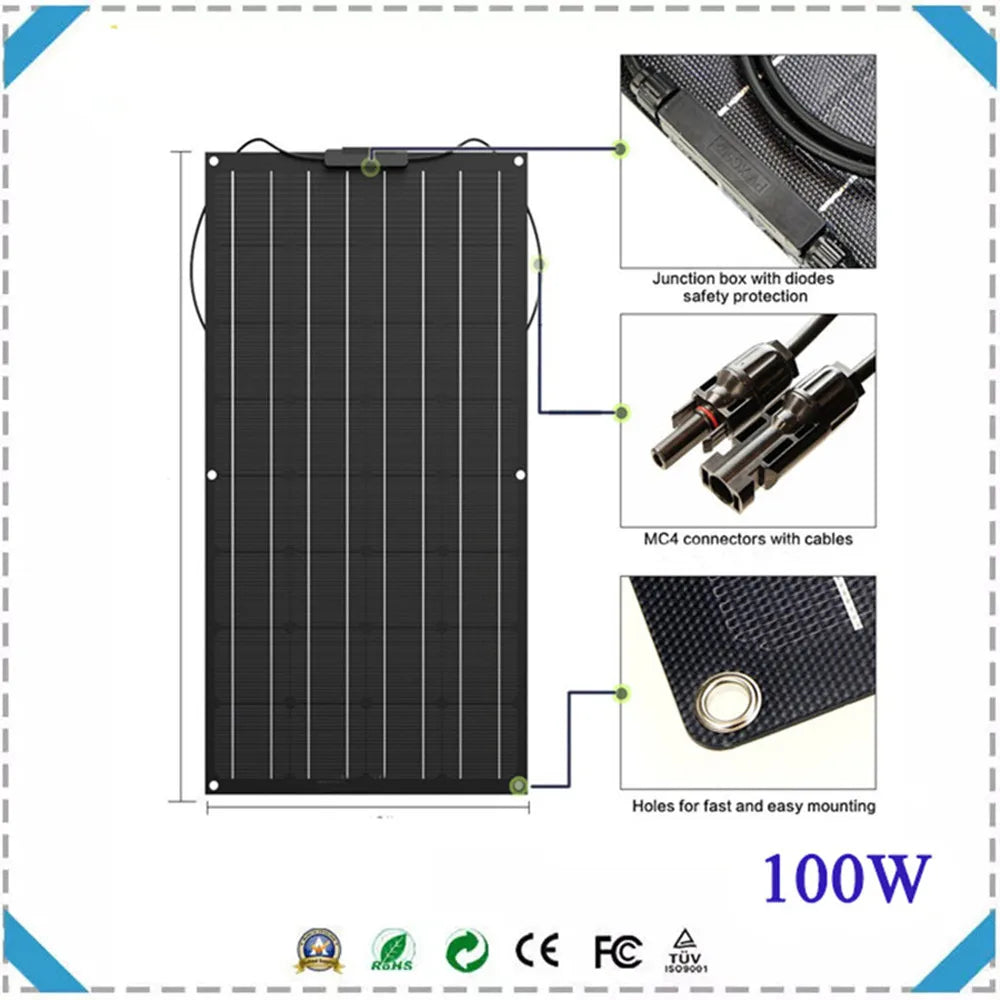

The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.

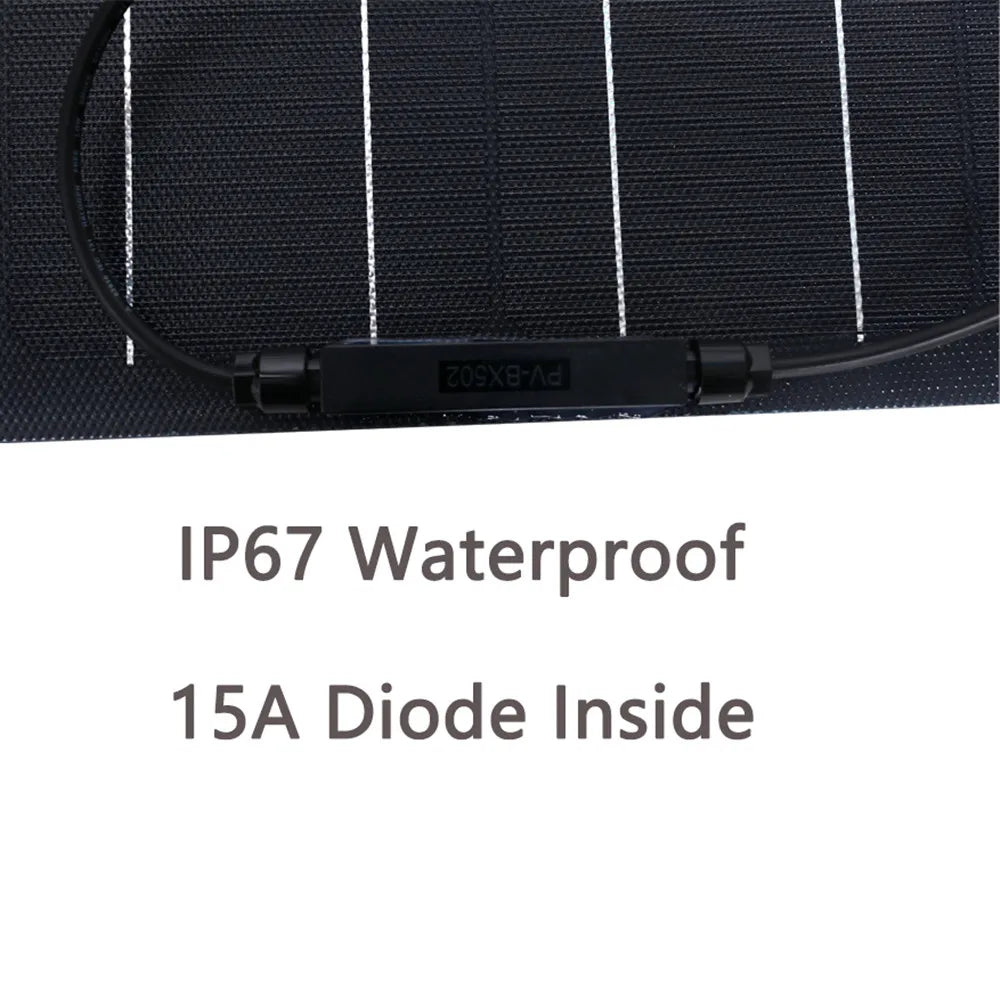

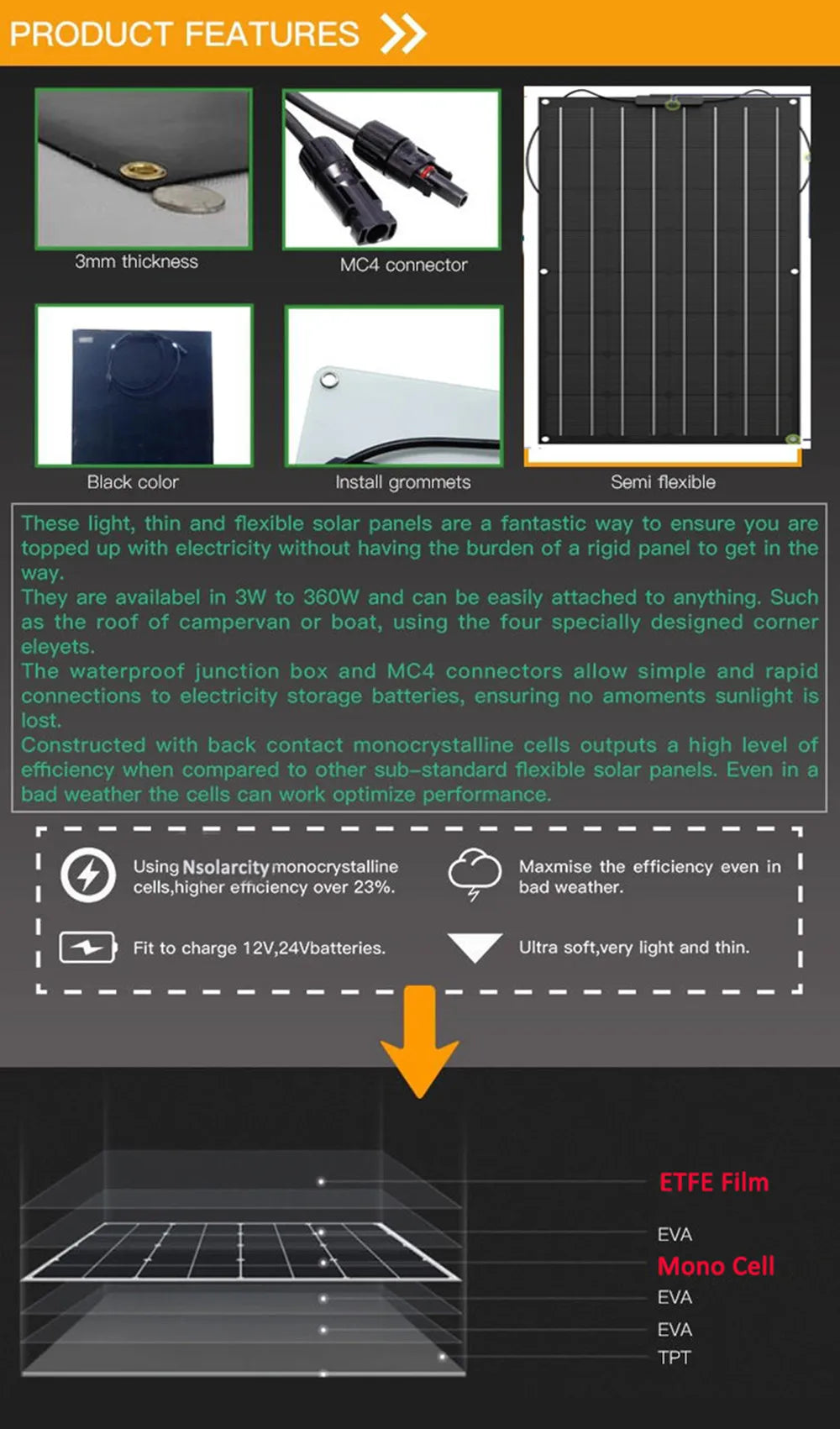

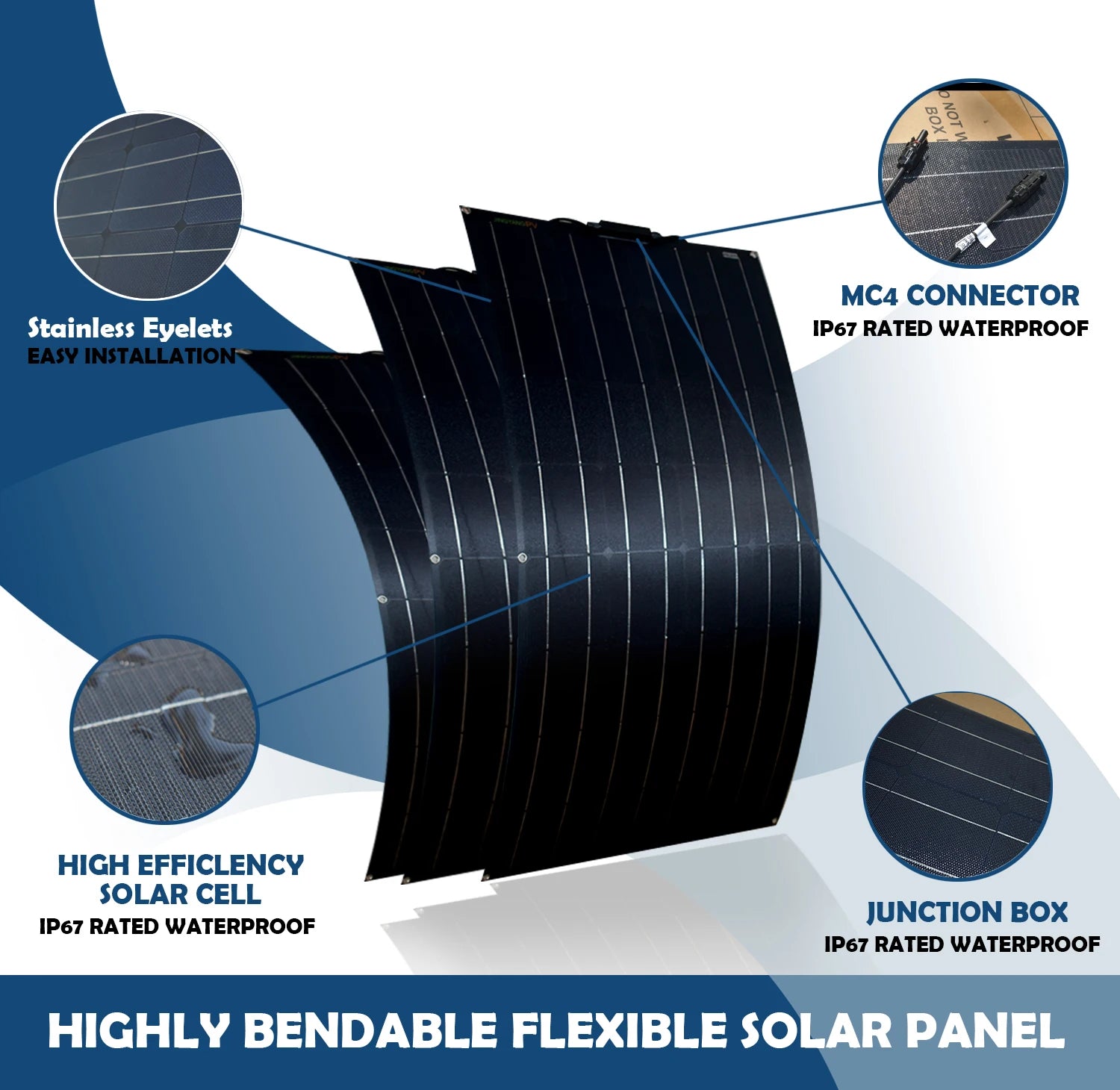

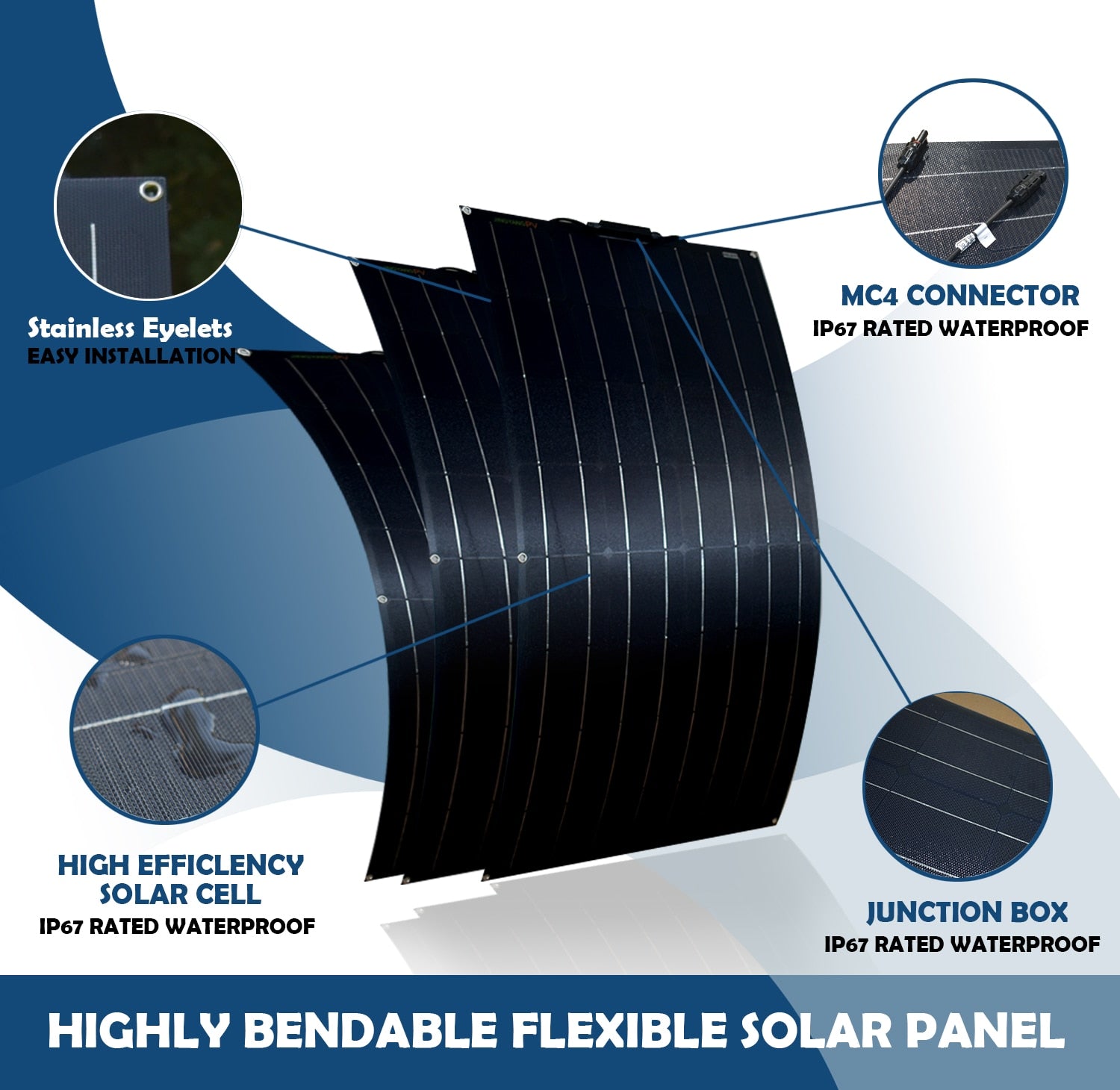

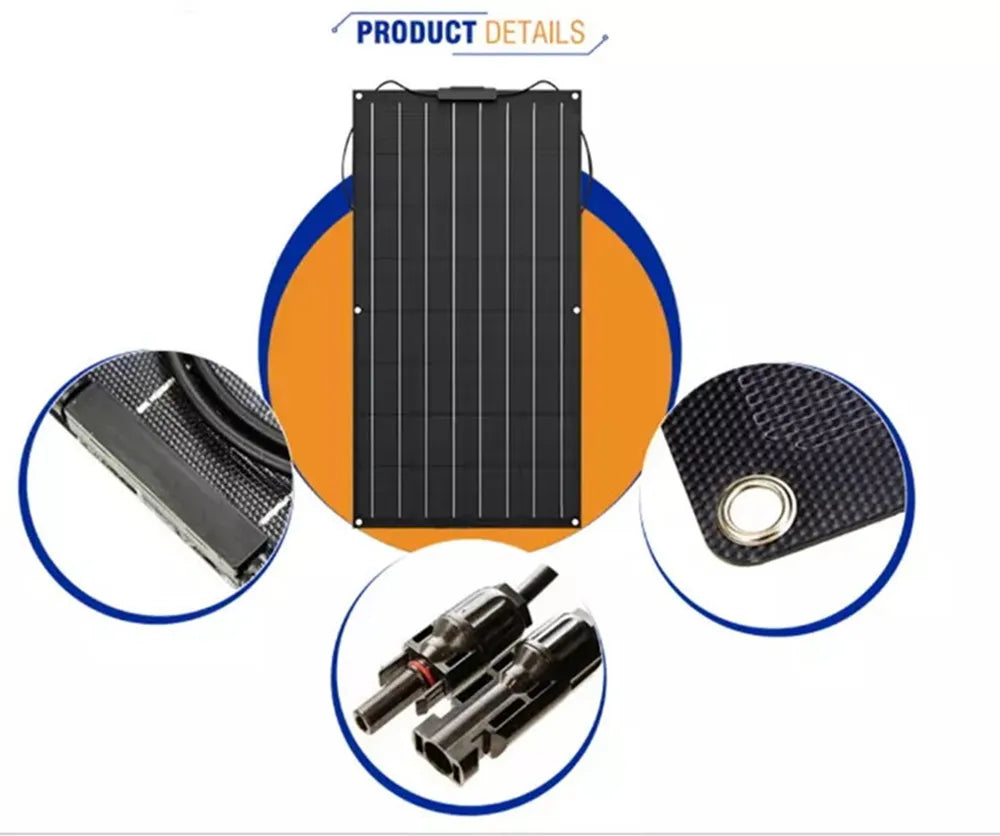

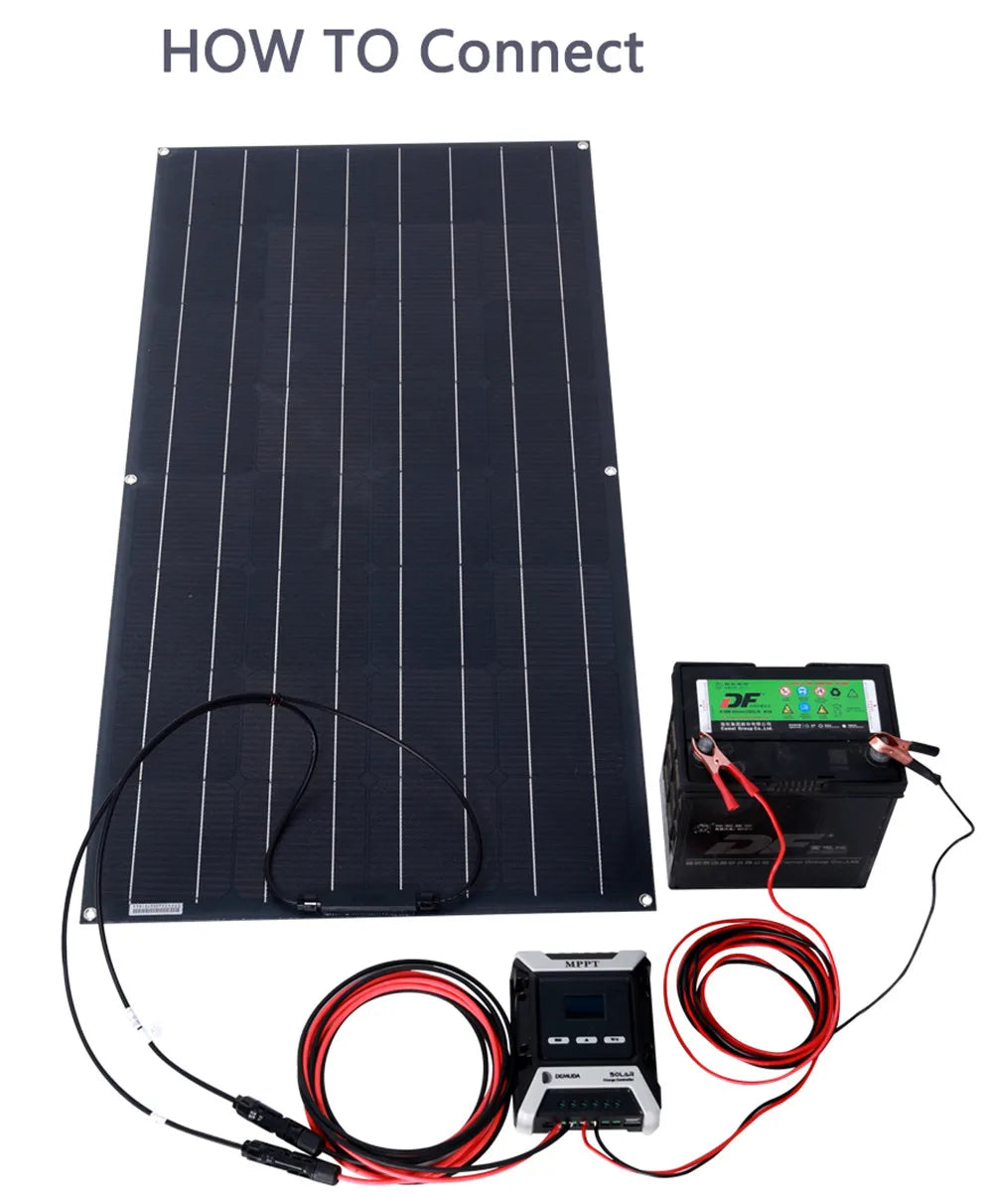

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

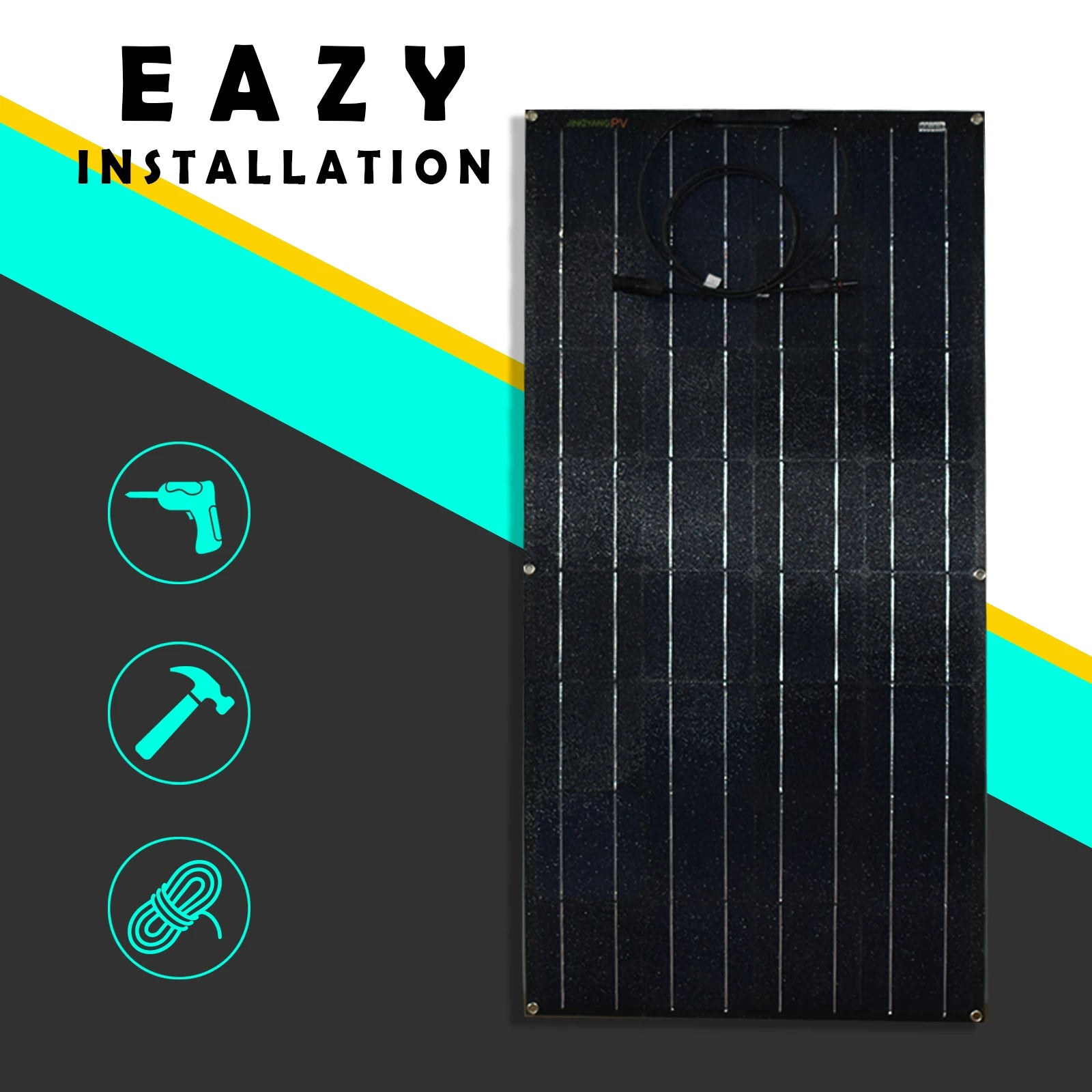

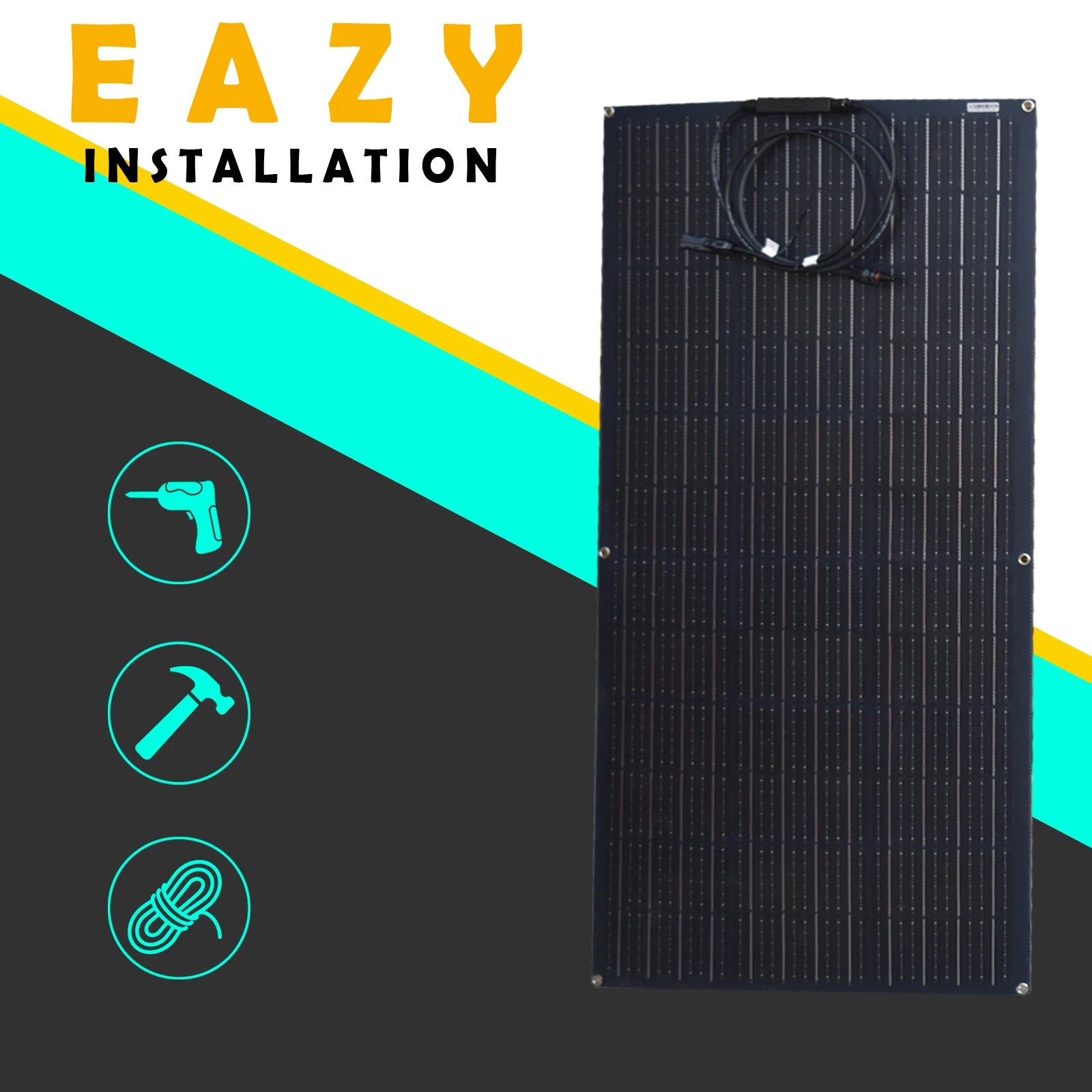

The back has 6 drill holes that can be quickly installed.

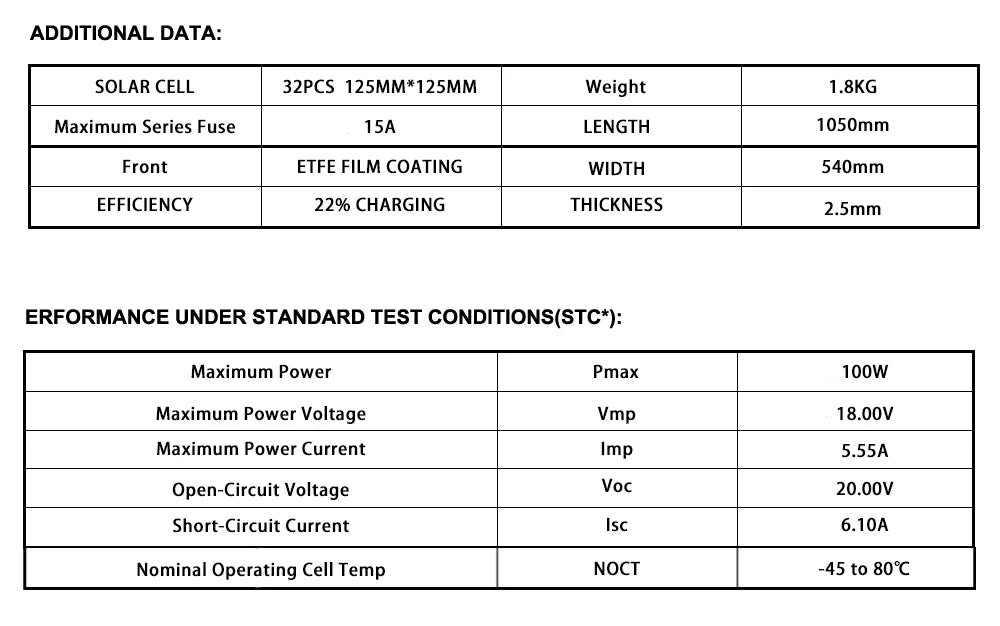

Model: ETFE 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

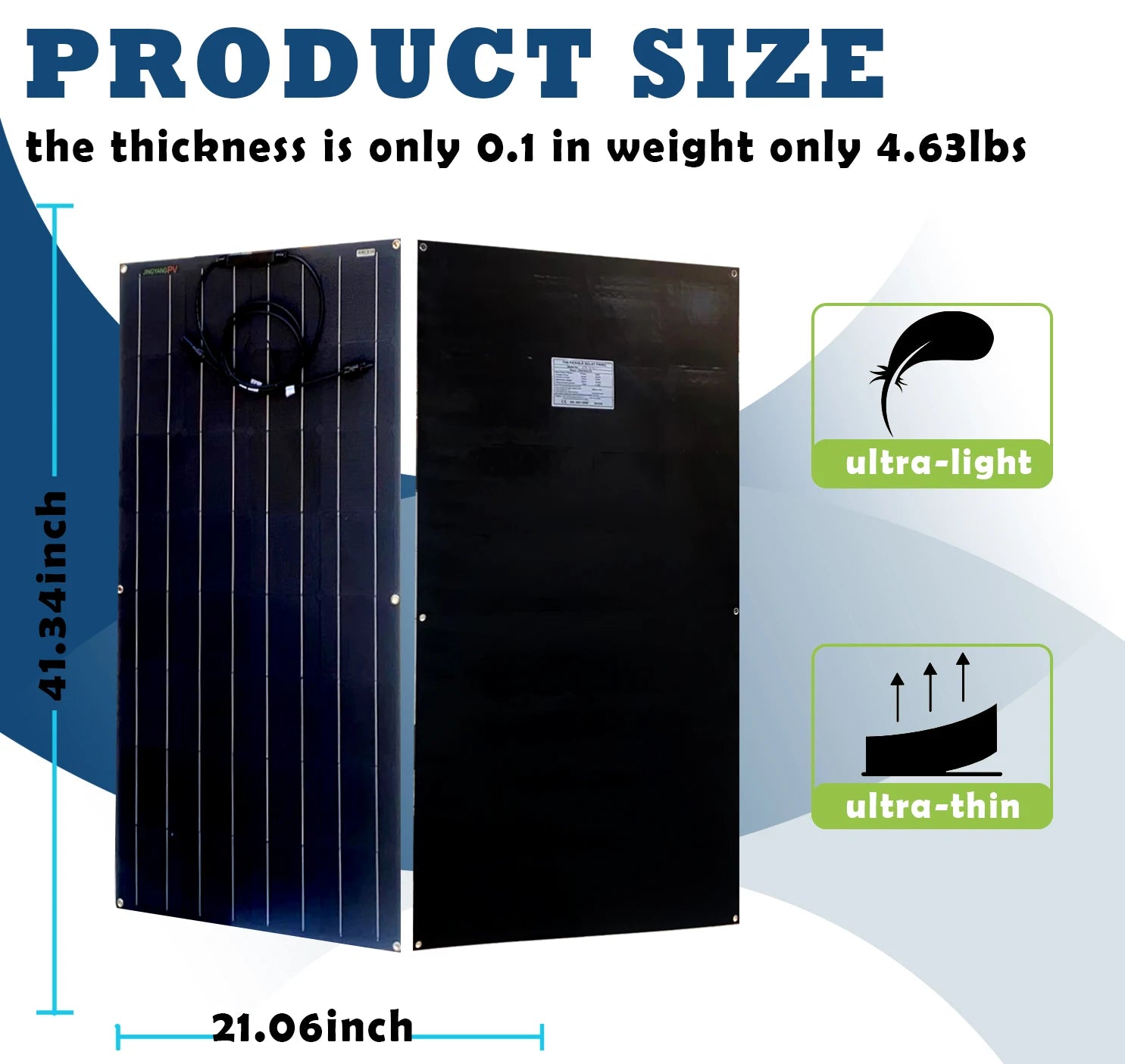

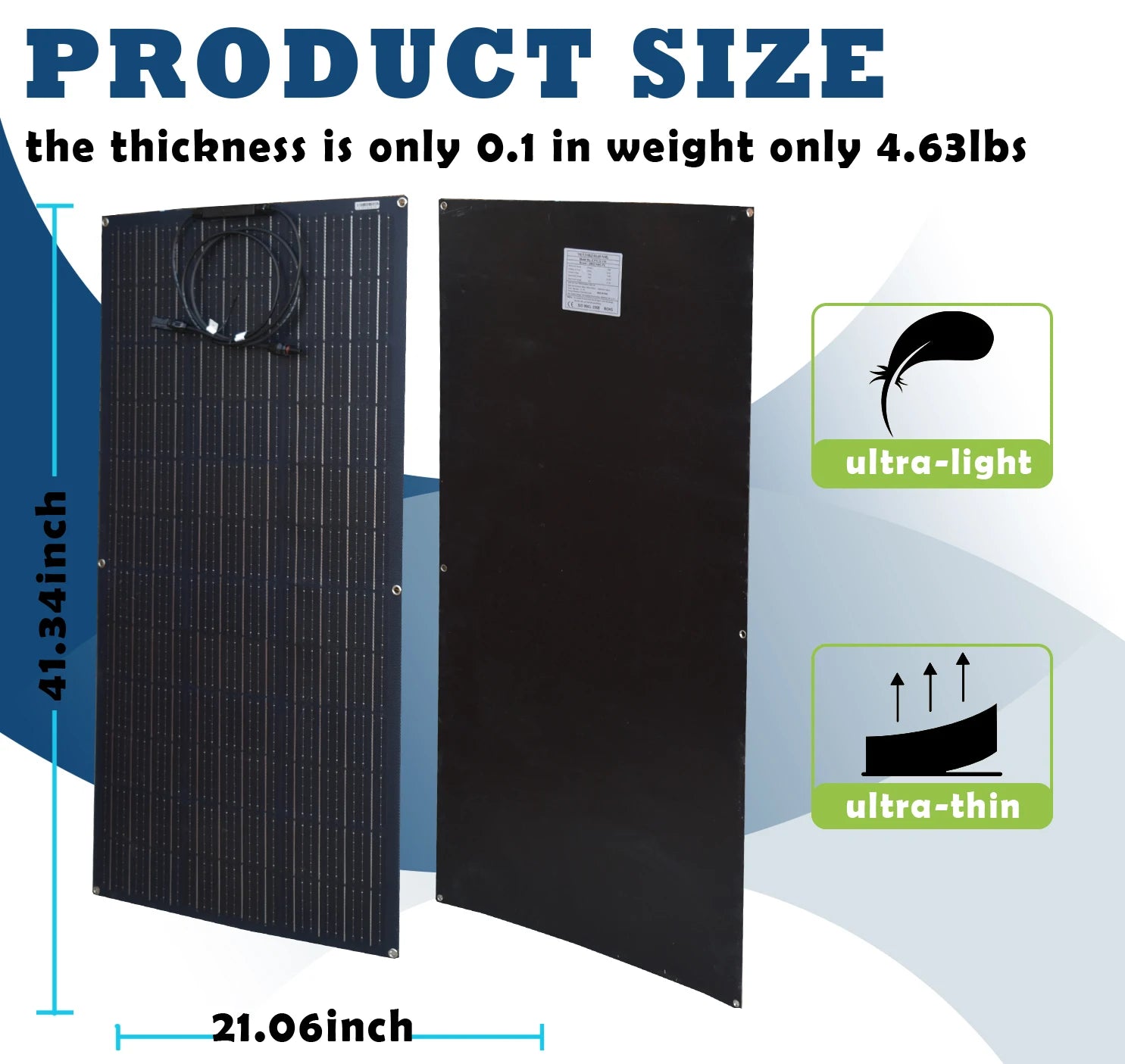

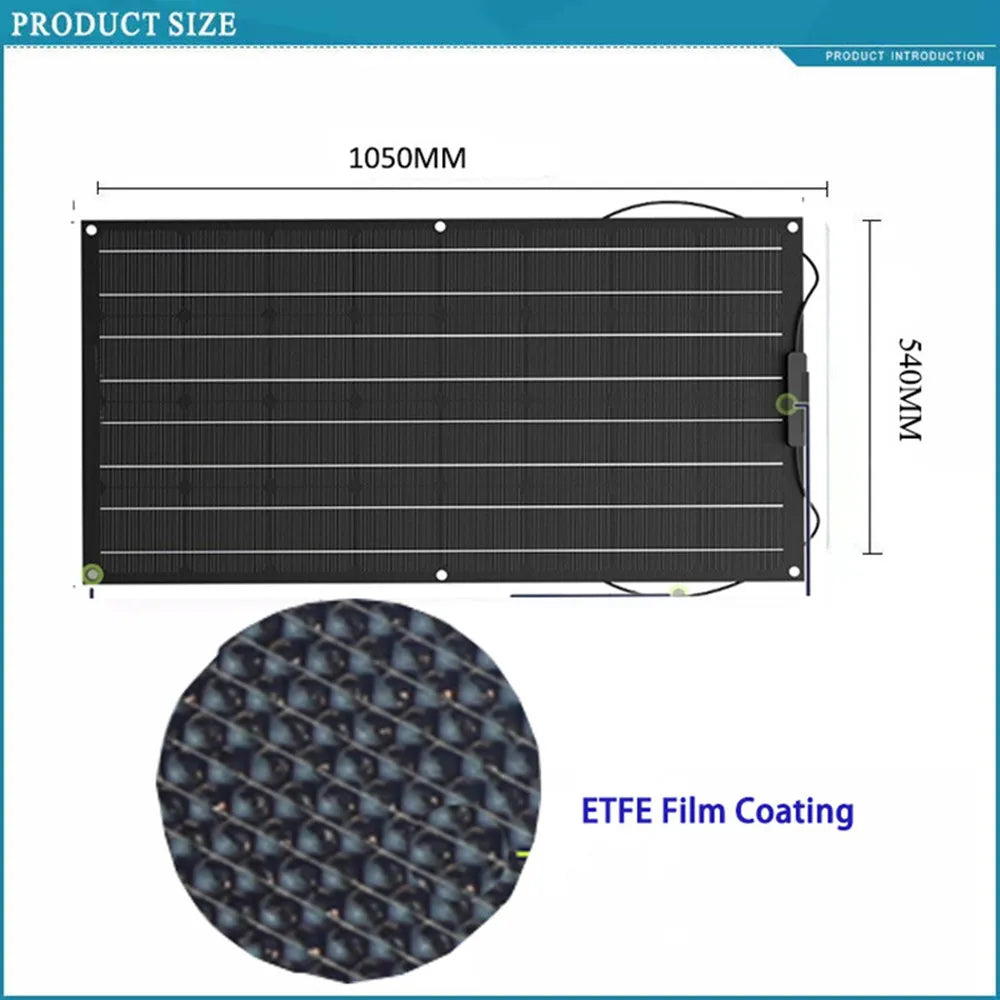

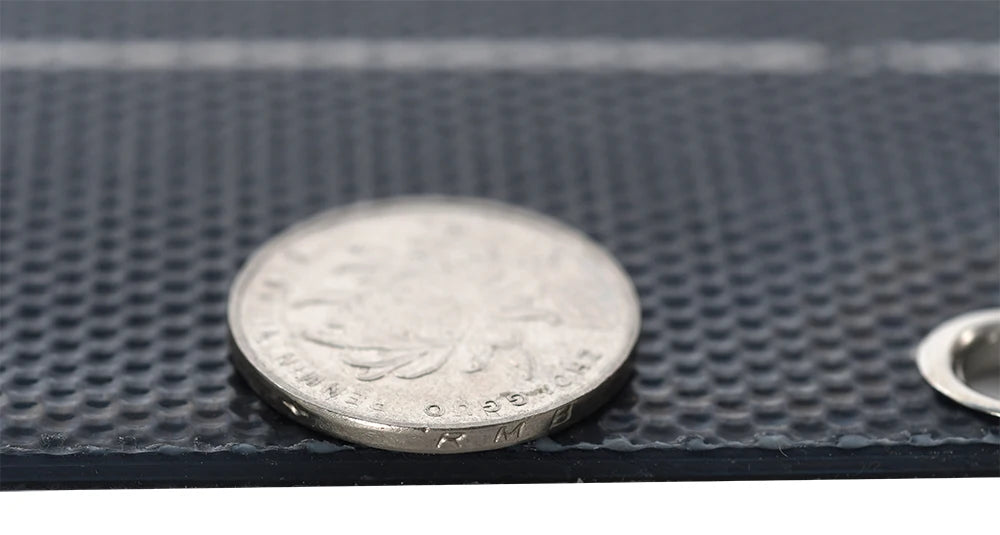

Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

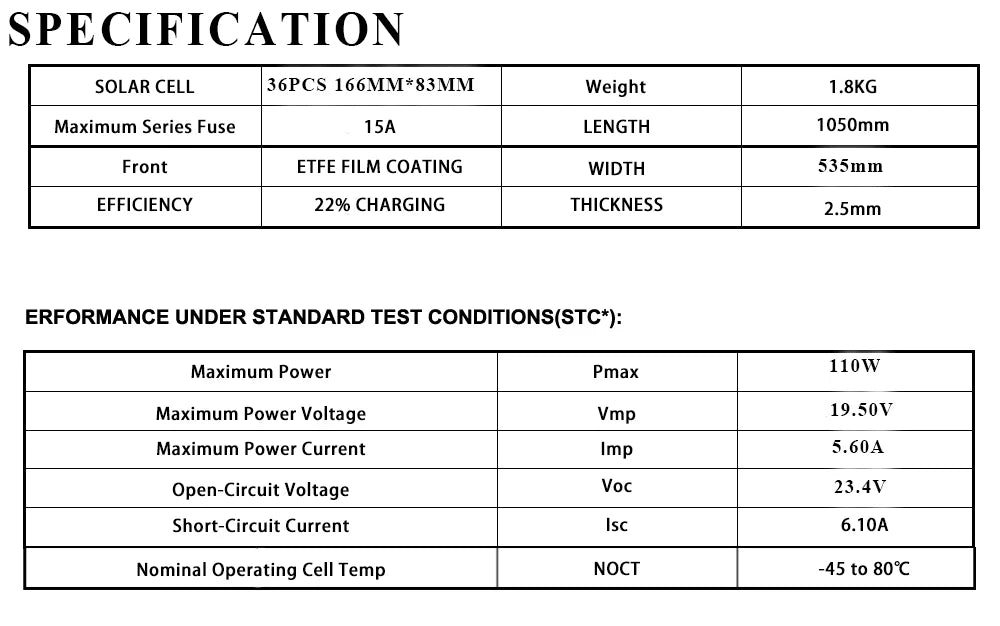

Model: ETFE 32-110
Material: Monocrystalline silicon
Maximum Power(Pmax):110W±3%
Maximum Power Voltage(Vmp):19.50V
Maximum Power Current (Imp):5.60A
Open-Circuit Voltage (Voc): 23.4V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

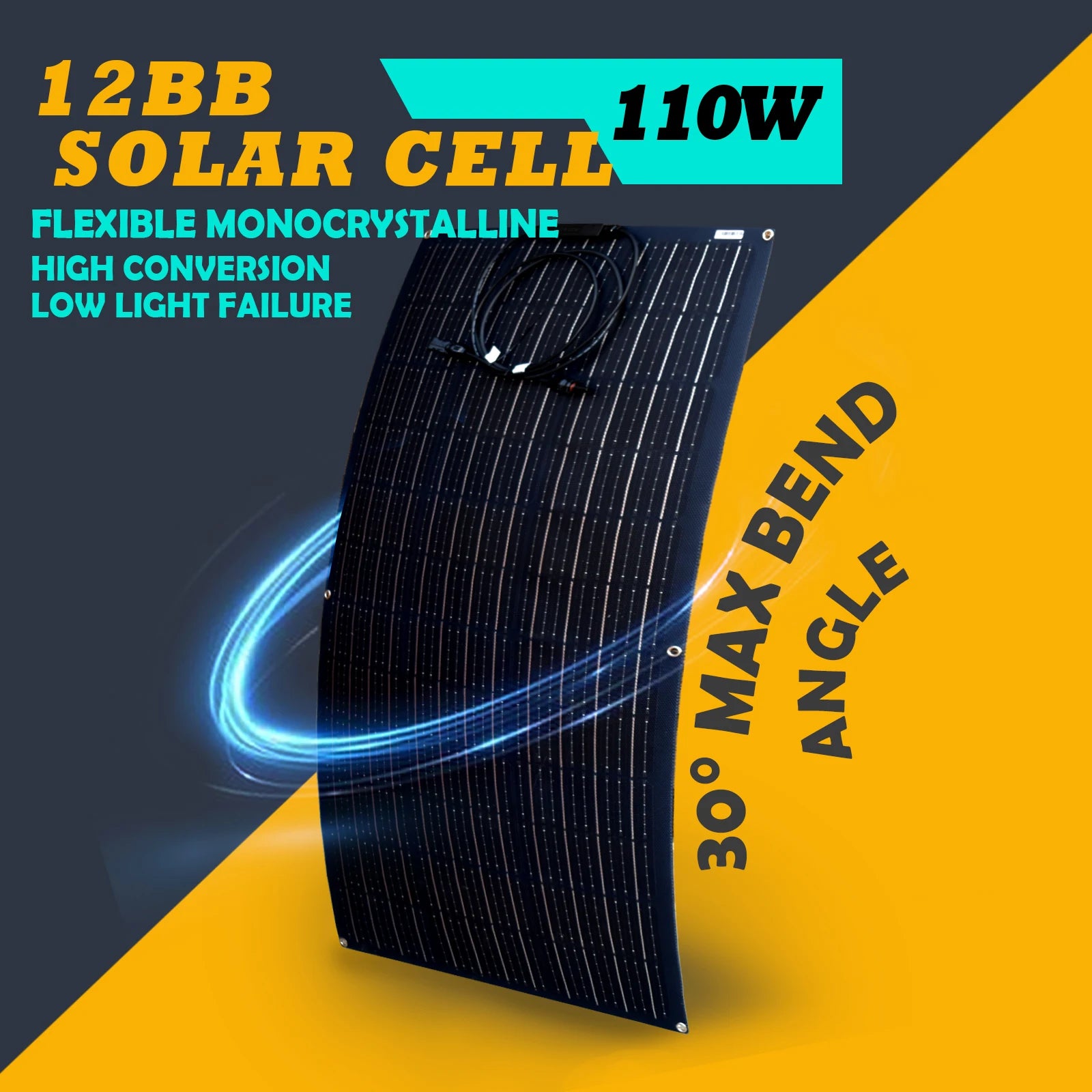

Solar Cell: 36pcs 166mm*83mm; 12BB Solar Cell
Dimension:1050MM(L)*535MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.06inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

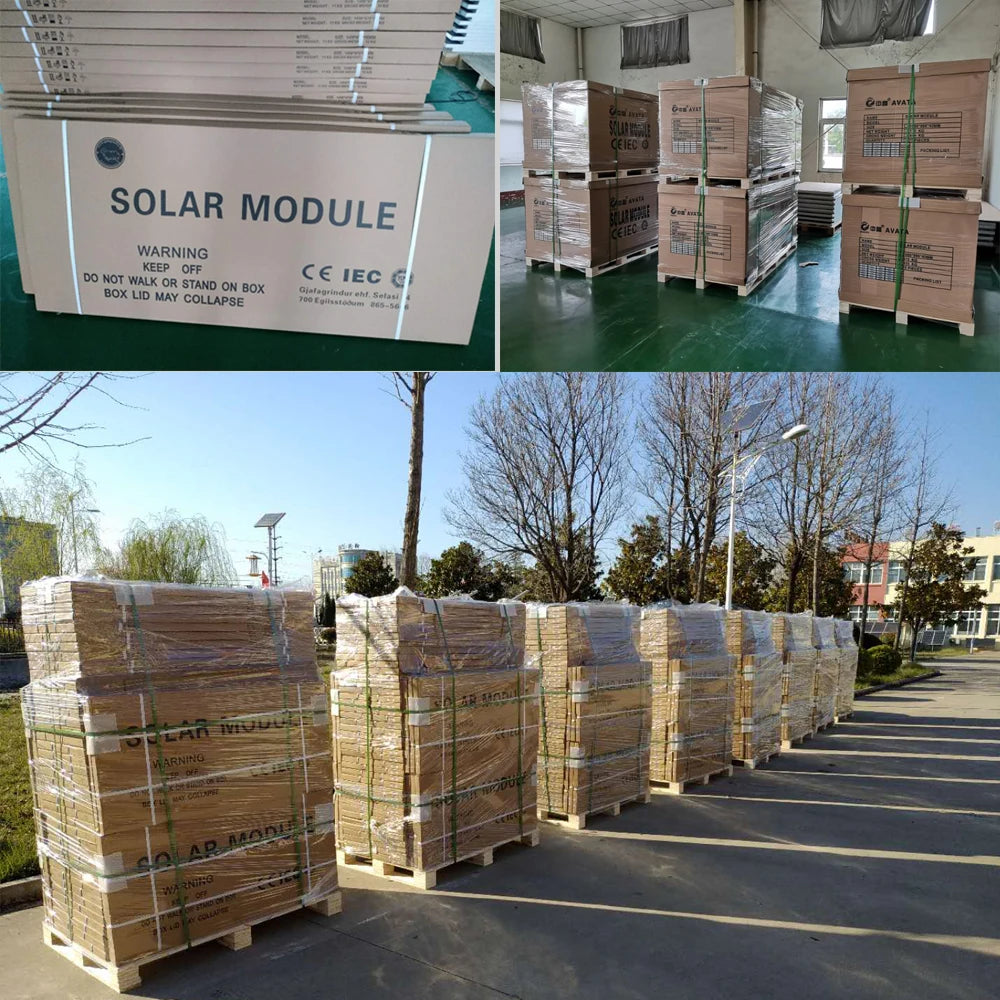

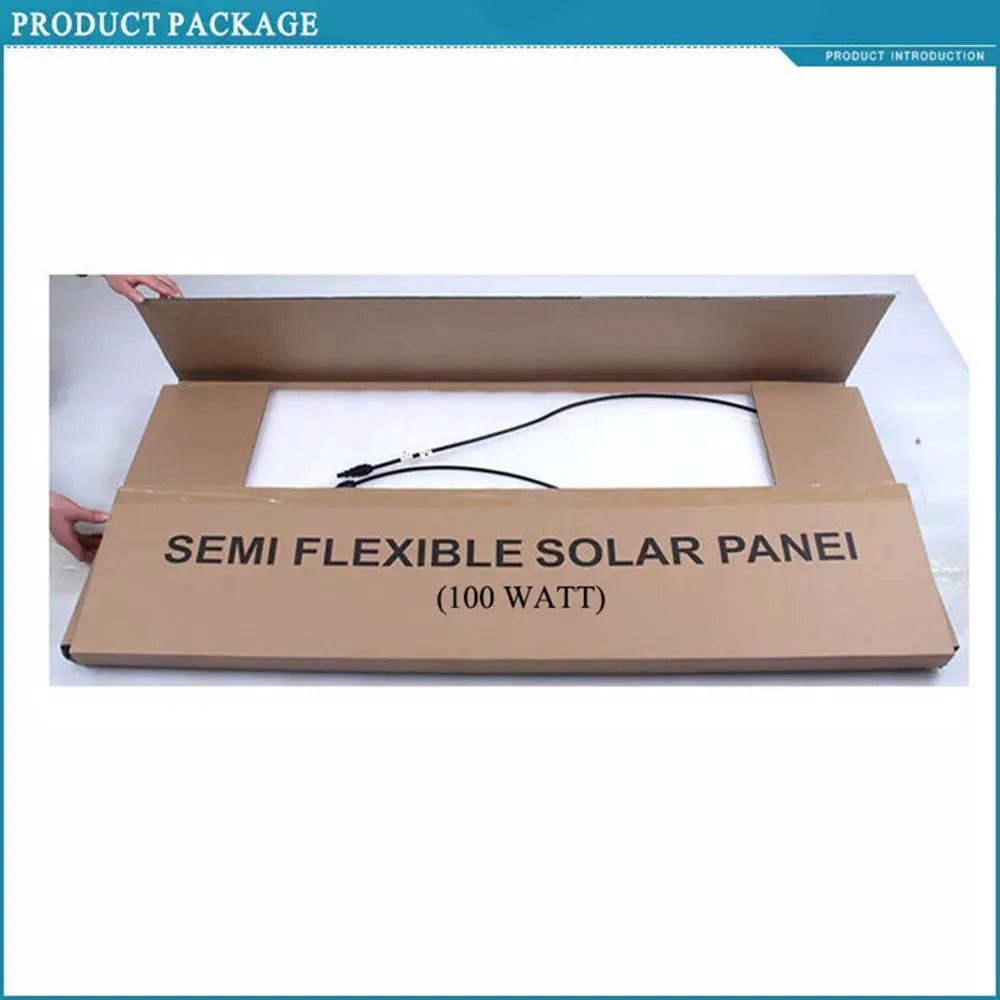

Package and delivery:
