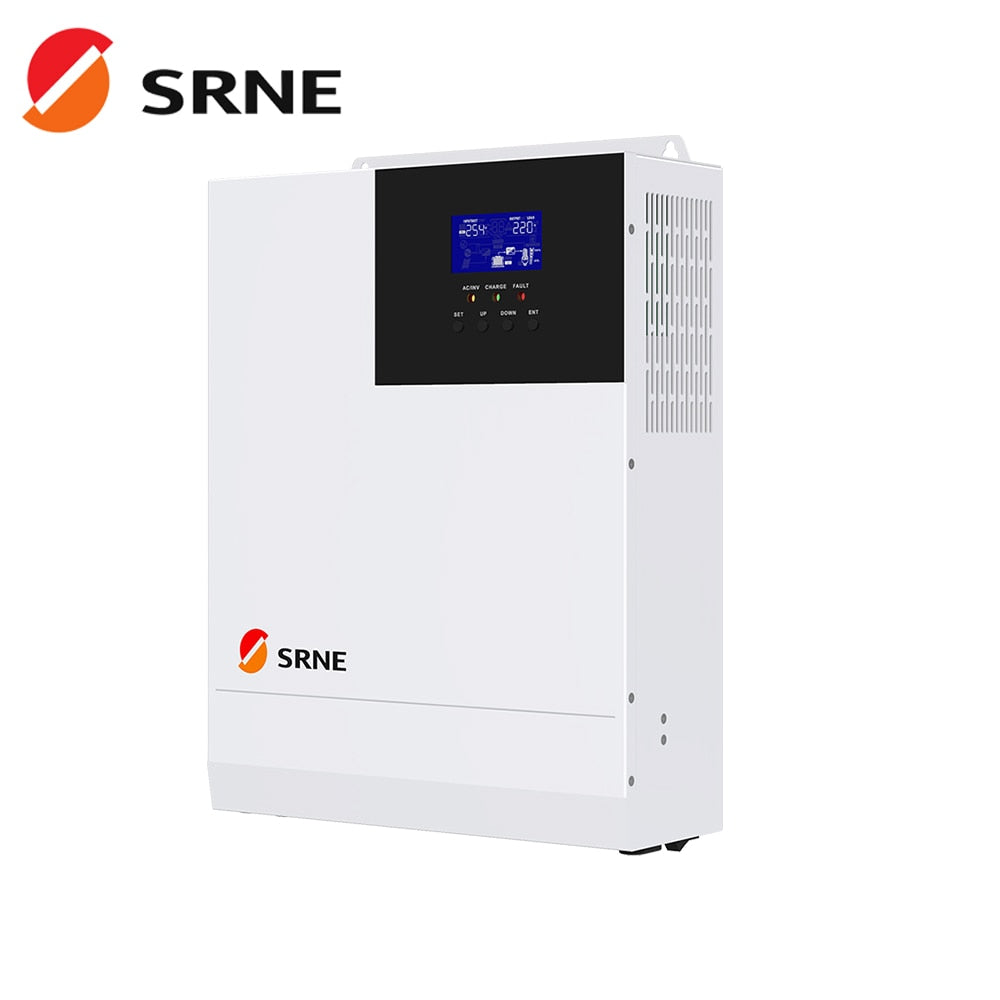

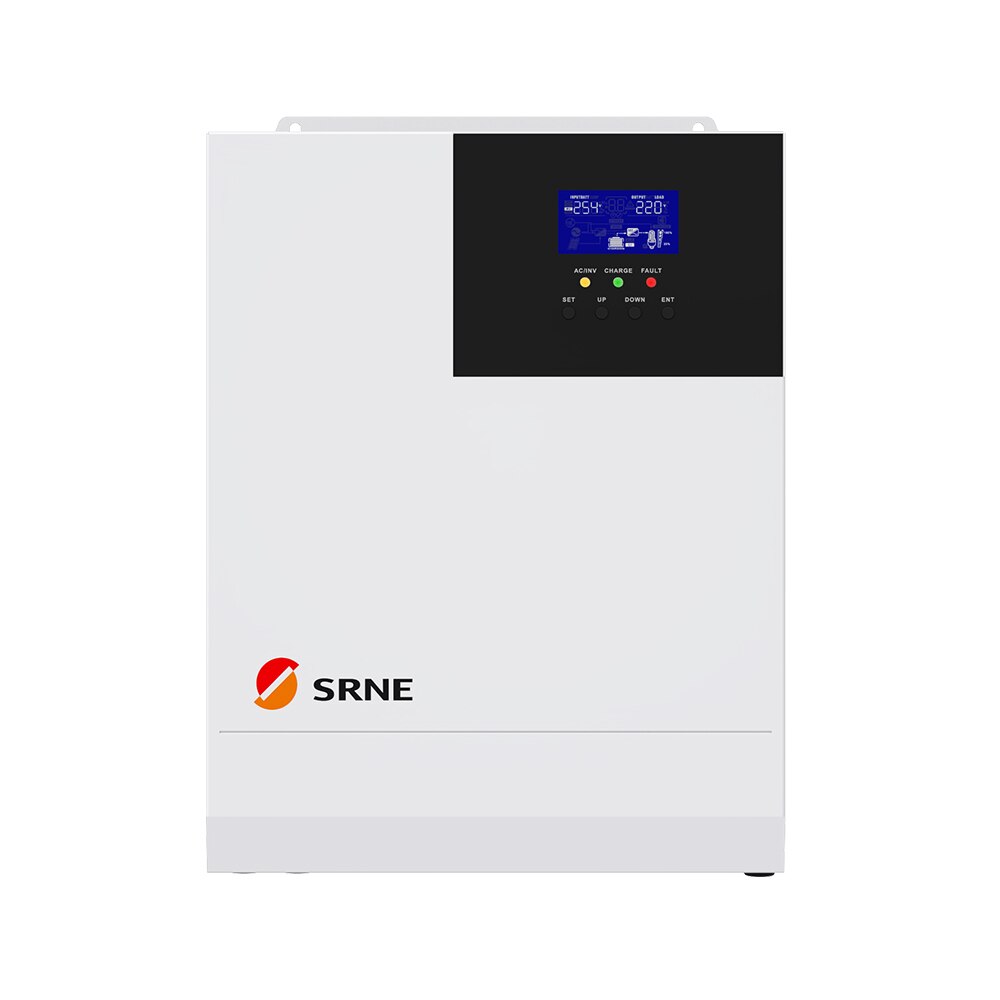

SRNE 3300W Hybrid Solar Inverter 220V MPPT 80A 3300VA Pure Sine Wave Inverter Off-Grid Solar Inverter 24V Battery Charger PV Max.input Voltage 500VDC Support Wifi Module HF2433S80-H

Note :

       The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction：

1、HF series is a new hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrialstandard. Four charging modes are optional,i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available,i.e. Inverter and Mains, to meet different application requirements. The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.

 2、Through a state of the art control algorithm, the AC-DC charging module realizes fully digitalvoltage and current double closed loop control, with high control precision in a small volume.

 3、Wide AC voltage input range and complete input/output protections are designed for stable and reliable battery charging and protection.

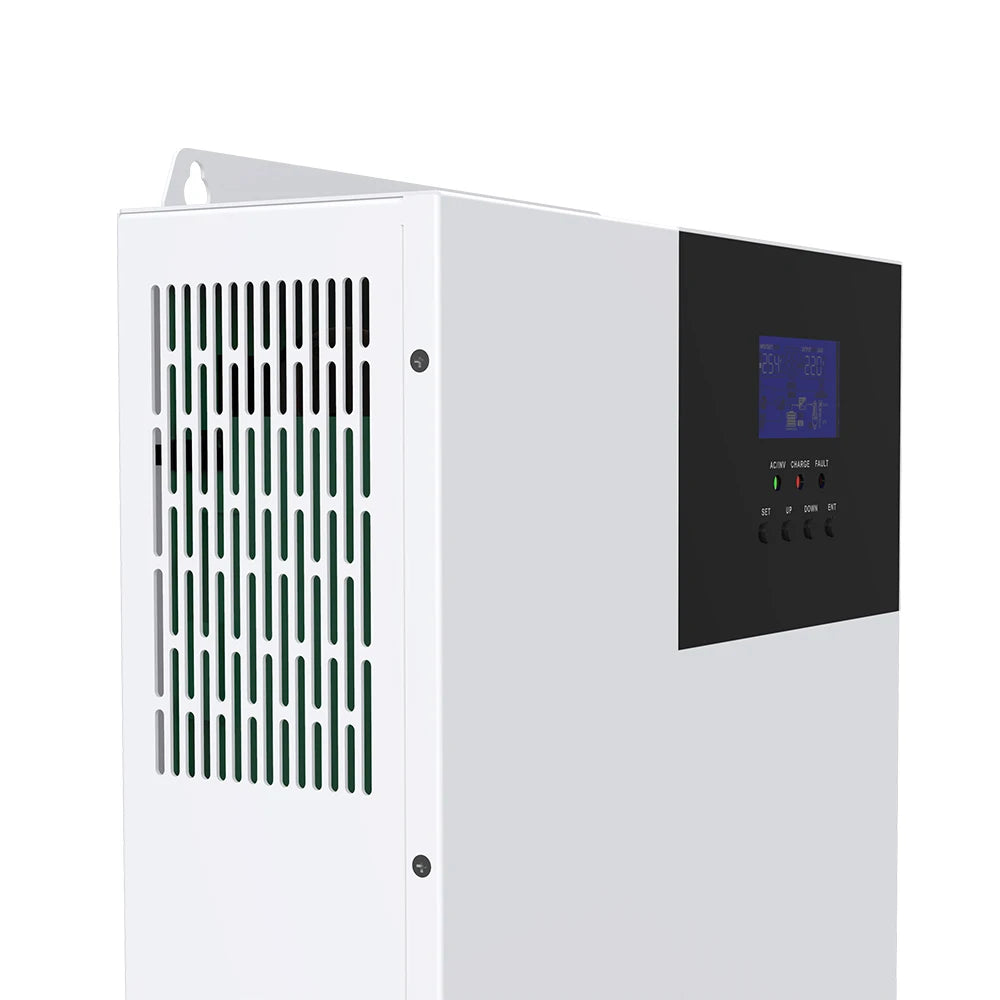

 4、Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology and outputs pure sine wave to convert DC into AC. It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic audio and video equipment. The product comes with a segment LCD display design whichlallows real-time display of the operating data and status of the system. Comprehensive electronic protections keep the entire system safer and more stable.

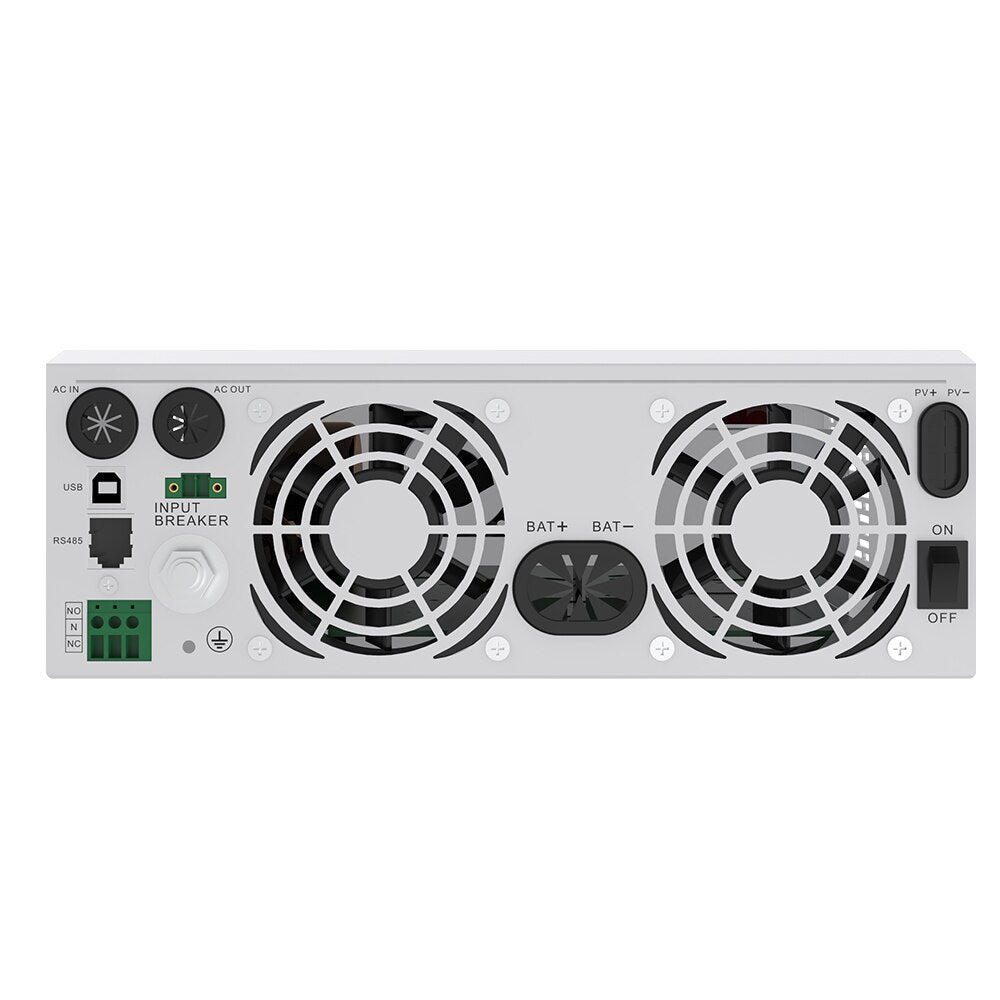

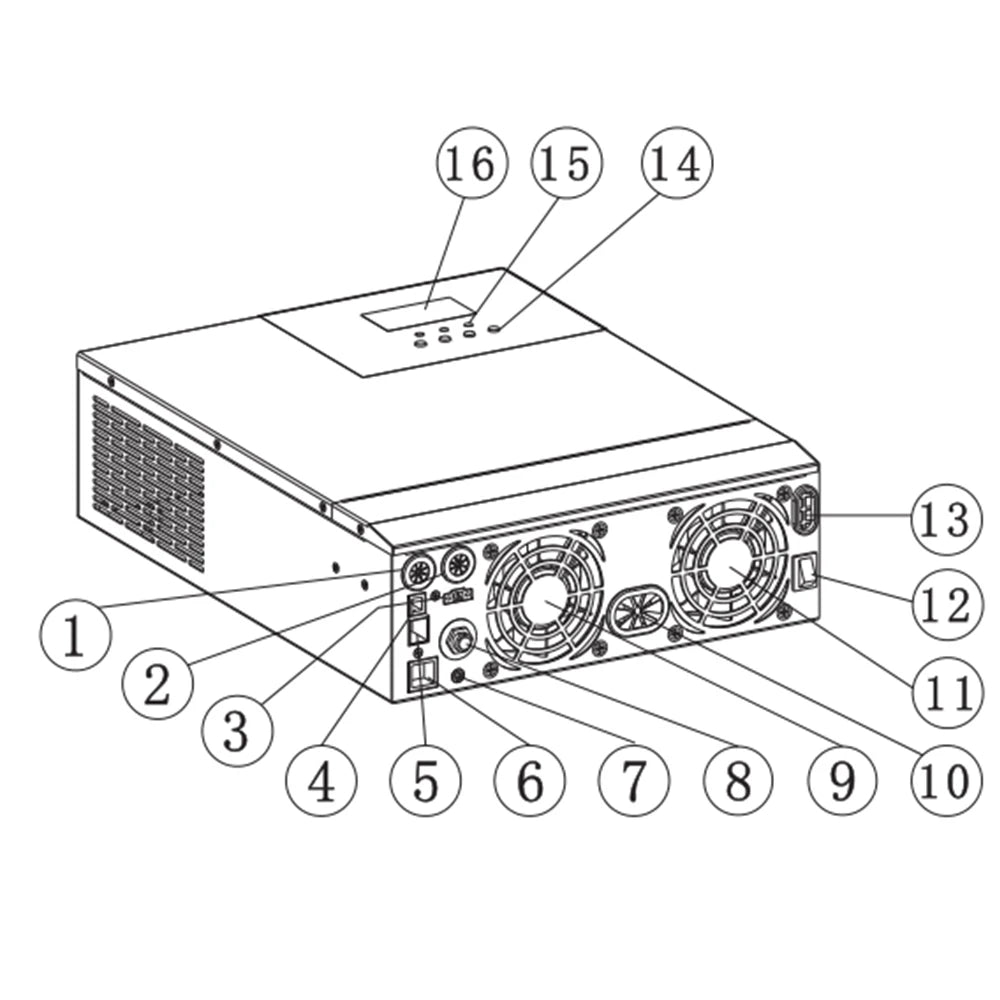

①AC input port

②AC output port

③CAN communication port

④USB communication port

⑤RS485 communication port

⑥Dry contact port

⑦Grounding screw hole

⑧Overload protector

⑨Cooling fan

⑩Battery port

⑪Cooling fan

⑫ON/OFF rocker switch

⑬PV port

⑭Touch button

⑮LED Indicator

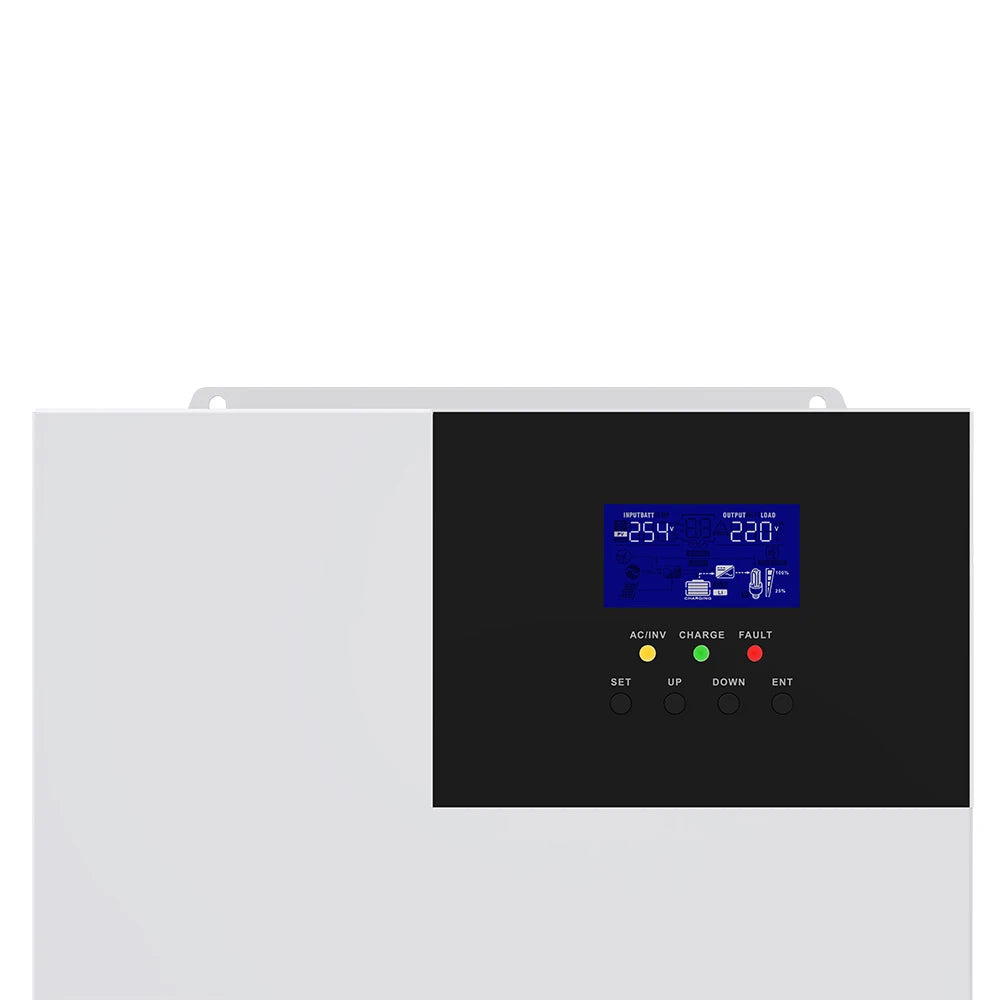

⑯LCD screen

Feature：

·Full digital voltage and current double closed loop control, advanced SPWM
technology, output of pure sine wave.

·Two output modes: mains bypass and inverter output; uninterrupted power supply.

·Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains
& Solar hybrid charging.

·Advanced MPPT technology with an efficiency of 99.9%.

·With the charging requirement (voltage, current, mode) settings, and suitable for
various types of energy storage batteries.

·ON/OFF rocker switch for AC output control.

·Power saving mode available to reduce no-load loss.

·Intelligent variable speed fan to efficiently dissipate heat and extend system life.

·Lithium battery activation design, allowing access of lead-acid battery and lithium
battery.

·360 ° all-round protection with a number of protection functions. Such as overload,
short circuit and over current.

·Supply of a variety of user-friendly communication modules, such as RS485(GPRS,
WiFi ), USB etc.,
and suitable for computer, mobile phones, Internet monitoring as well as remote
operations.

· Lithium battey can be activated by both mains and PV.

Sepecification：

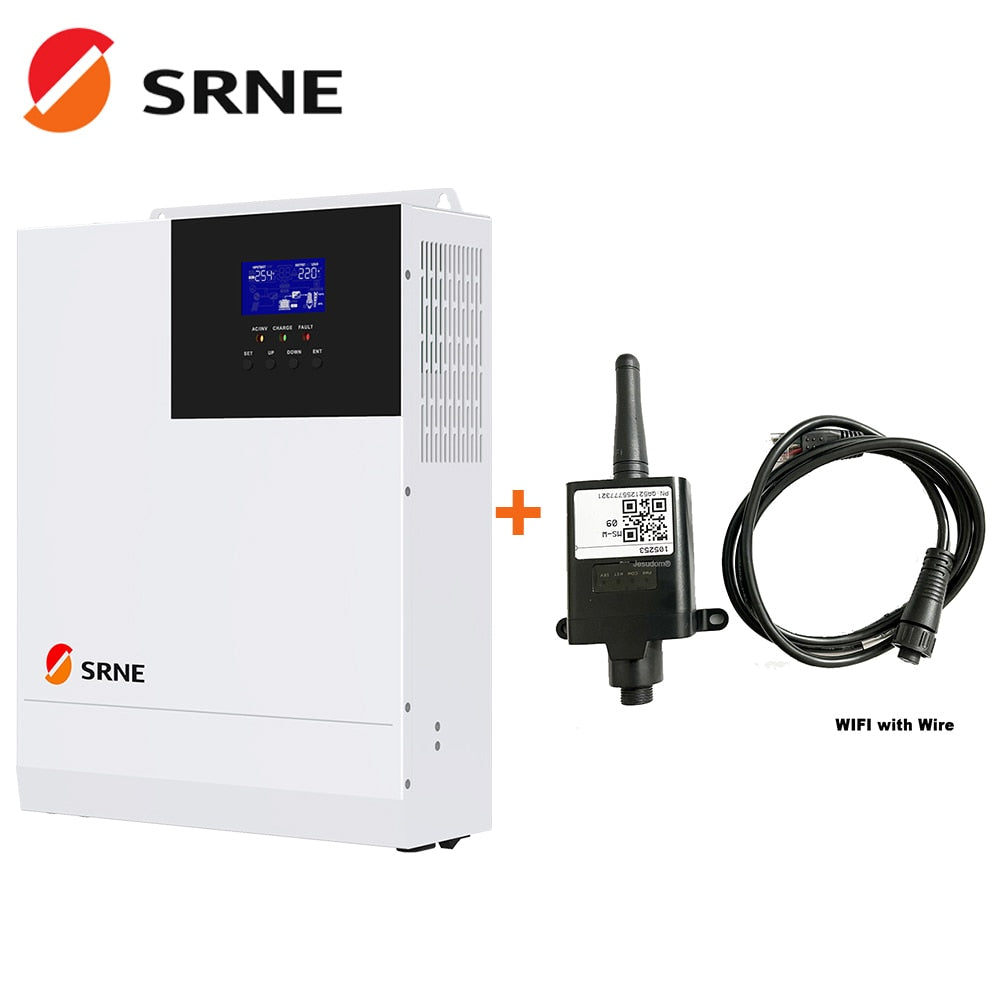

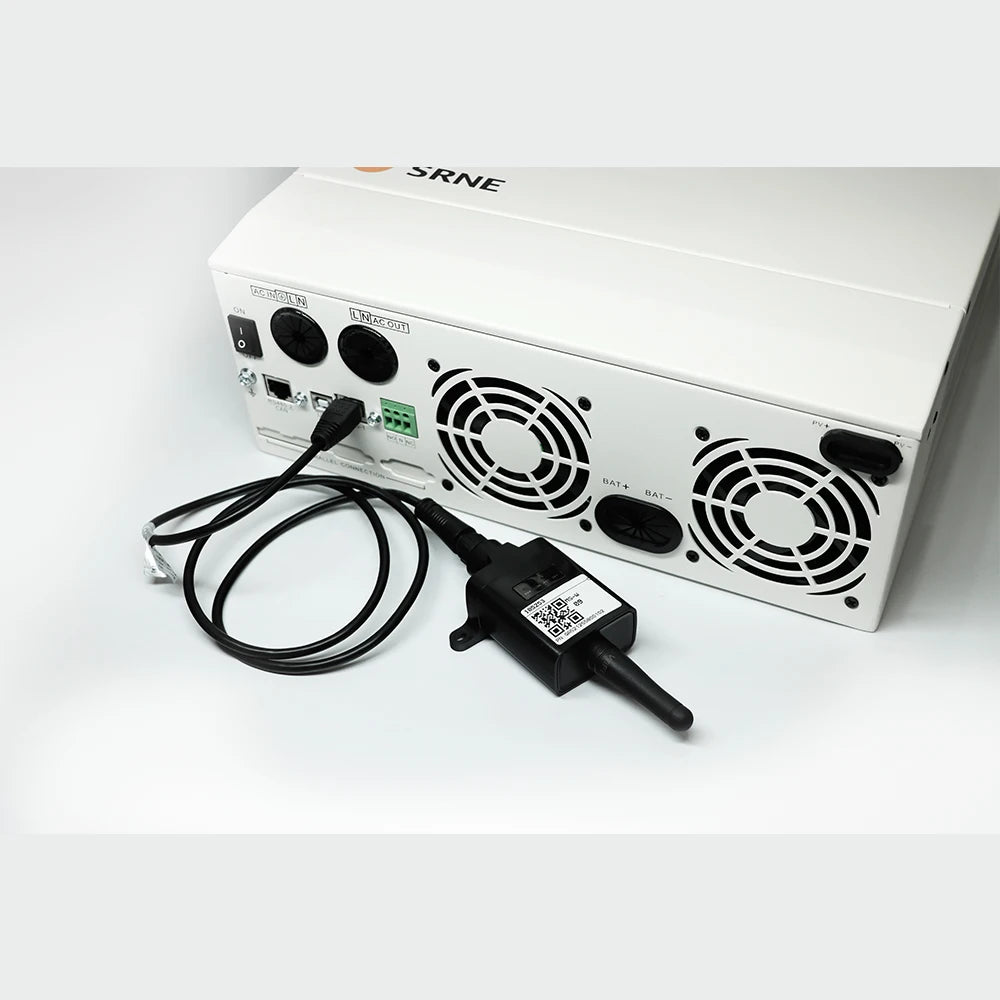

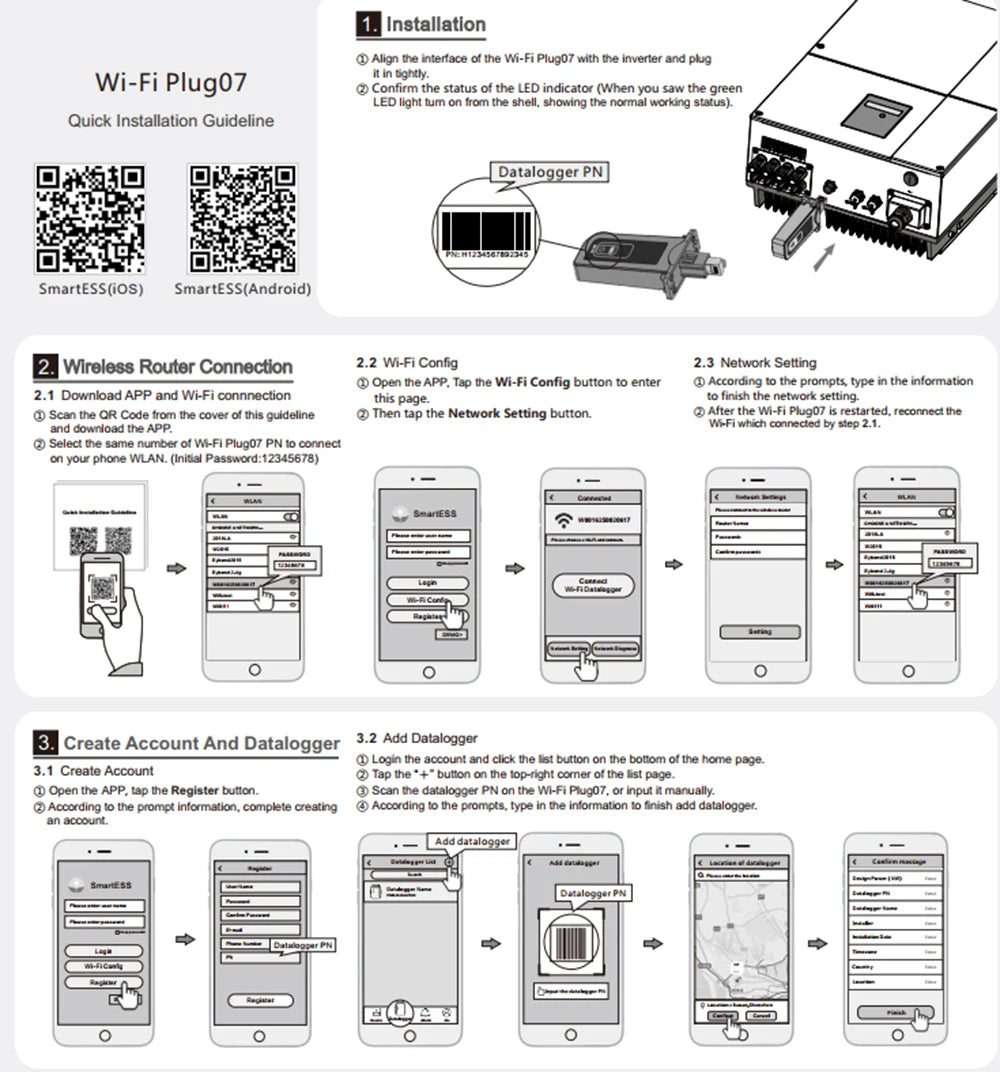

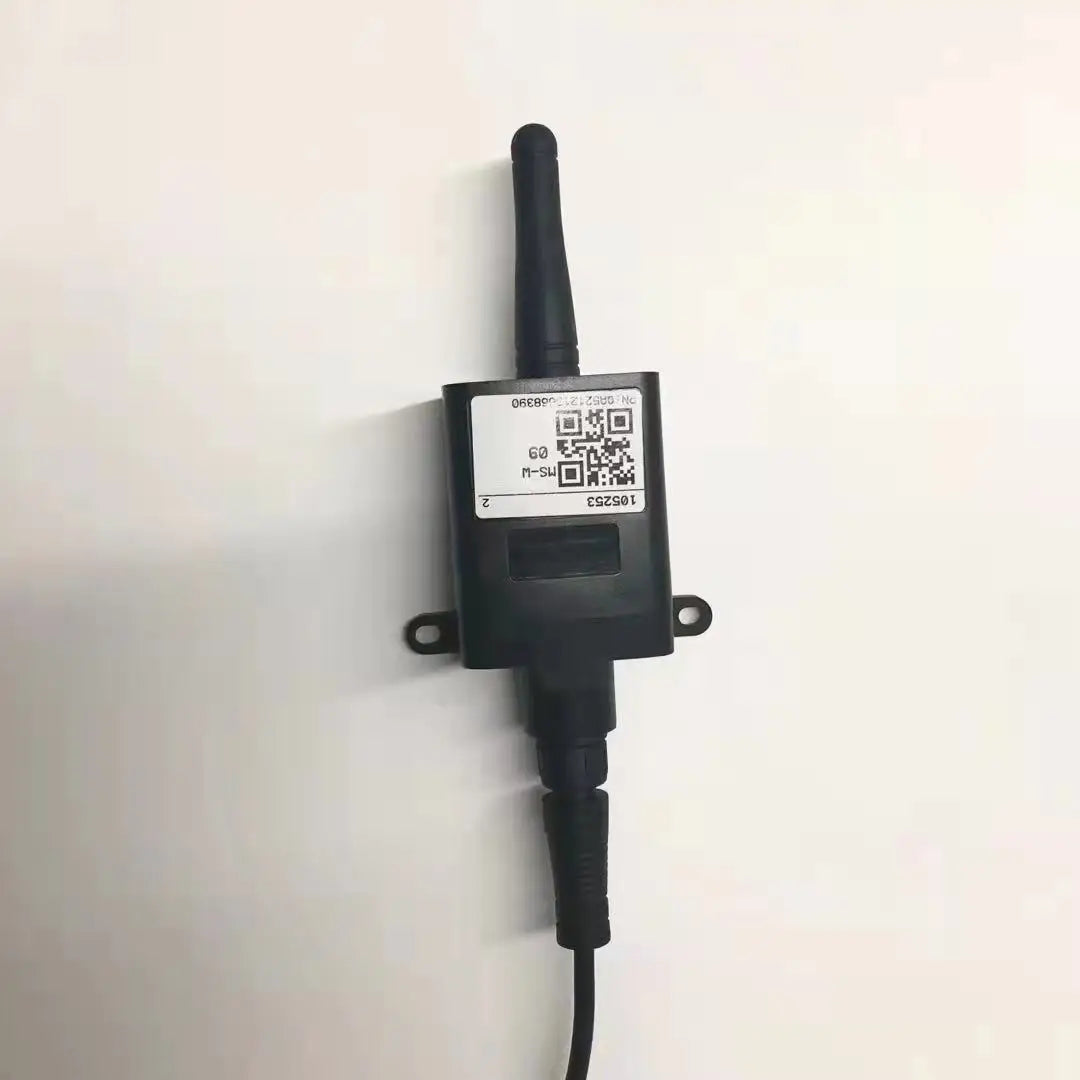

WIFI Module：

Package Include：

·All-in-one Solar Charge Inverter*1

·User Manual *1

·M5 Screws *4

·Terminal Blocks *2

Item Pictures：
