SRNE MPPT 60A 70A 12V 24V 36V 48 PV MAX Input 250VDC Solar Controller PV Regulator Auto Match For Lifepo4 Lithium GEL Lead AcidMC4860N15/MC4860N25/MC4870N15/MC4870N25

Introduction：

        The controller adopts the leading PowerCatcher maximal power Tracking technology in the industry to
achieve maximal energy Tracking for solar panel, so that it can quickly and accurately trace the maximal power
point of the solar battery, acquire the maximal energy of the solar panel and significantly improve the energy

utilization ratio of the solar system. Widely applied to solar off-line photovoltaic system for managing solar panel

and storage battery in operation, the controller is the core control component of off-line photovoltaic system.

        The inside of the controller possesses sound electronic failure detecting and protection function to avoid the

product component damage caused by installation error and system failure.

        The controller is equipped with an LCD display screen to simultaneously support data interaction, setting

and other operations with mobile phone APP, PC upper computer and other devices.

Feature：

1、PowerCatcher maximal power Tracking technology can still trace the maximal power point of solar battery in the

complicated environment. Compared with traditional MPPT Tracking technology, it enjoys higher response speed

and higher Tracking efficiency.

2、MPPT charge efficiency is greater than traditional PWM charge efficiency by about 15% ~20%.

3、MPPT Tracking efficiency can be as much as 99.9%.

4、Adopting advanced digital power technology, the circuit energy conversion efficiency can be as much as 98%.

5、The products support lithium batteries, charging output has active voltage stabilization function. In case of open

circuit of lithium batteries or BMS overcharging protection, the storage battery end of the controller shall output

stable target voltages in time, thereby possessing good lithium electric activation function.

6、Preset a variety of battery types: lithium batteries, sealed batteries, colloidal batteries, open batteries and self-

definition.

7、Lead-acid batteries support temperature compensation function.

8、With charging line loss compensation, the voltage of the battery terminal can be accurately controlled.

9、With current-limiting charging, in case of too much battery panel power (charging current is greater than rated

current), the controller automatically reduces the charging power so that it can operate within the rated charging

current.

10、With built-in overtemperature protection mechanism, when the temperature exceeds the set temperature value,

the charging power shall decline in a linear way with the temperature.

11、It supports parallel function and breaks through the power limit of single unit. Therefore, combination of several

units can meet greater charging power.

12、With built-in bluetooth 4.0BLE module, it can achieve mobilephone APP data interaction.

13、Supporting standard Modbus protocol, it provides protocol technology support to facilitate secondary

development and application by users.

14、Programmable relay output

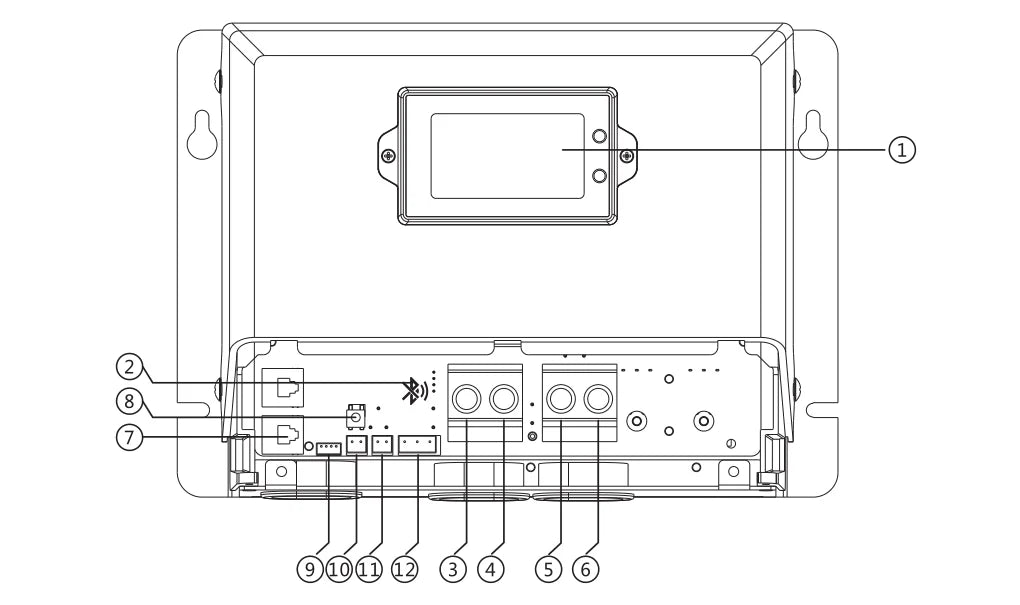

Description of Appearance and Interface：

①Liquid crystal display (LCD)

②Bluetooth 4.0BLE module

③Positive interface of battery

④Negative interface of battery

⑤Negative interface of solar panel

⑥Positive interface of solar panel

⑦RS485 communication interface

⑧Key

⑨TTL communication interface

⑩Battery temperature sampling interface

⑪Battery voltage sampling interface

⑫Relay output interface

Note: Negative poles of storage battery and solar battery are a common negative pole design

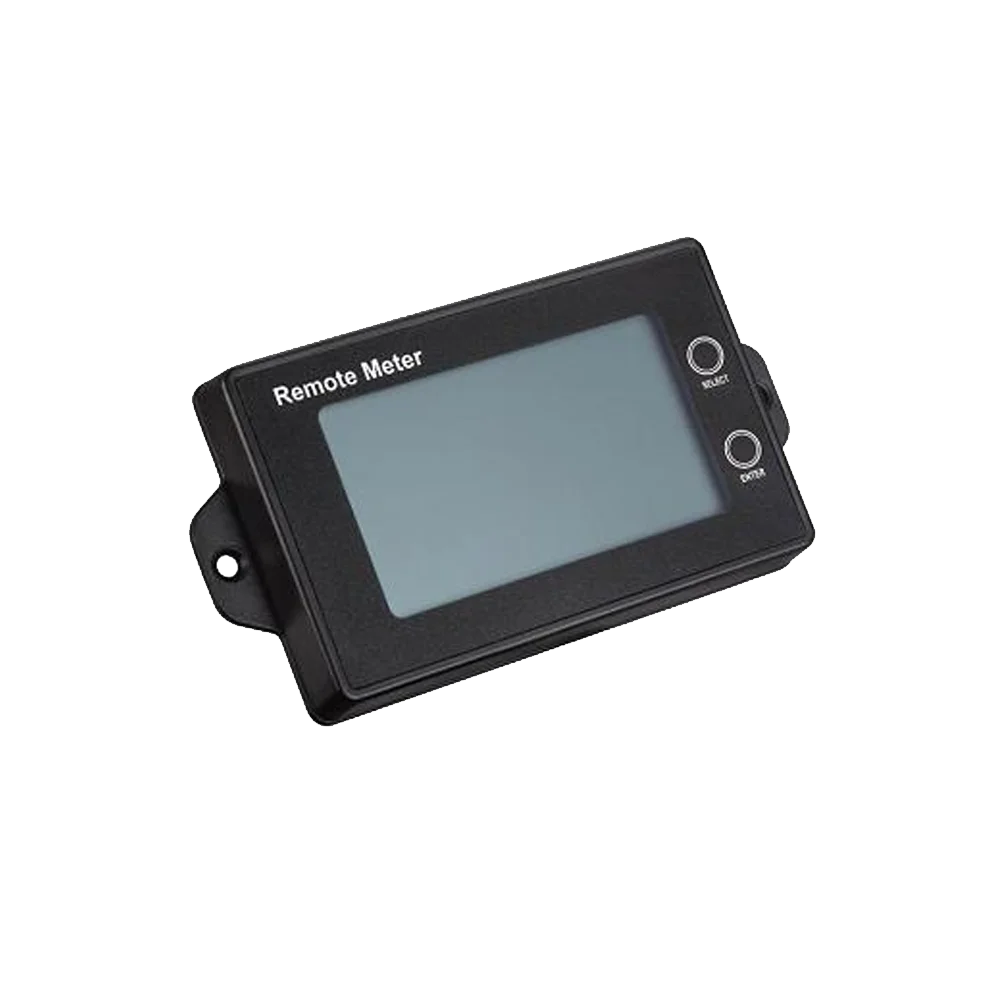

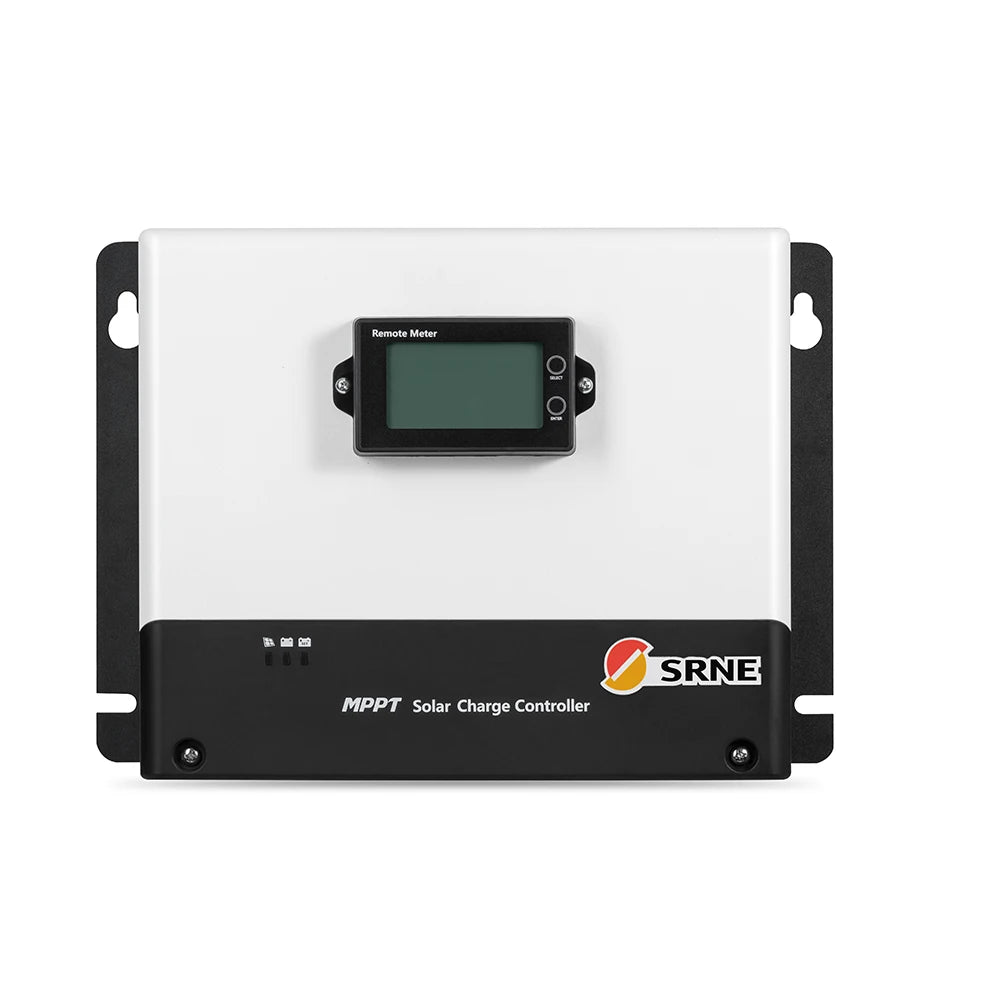

Remote Meter：

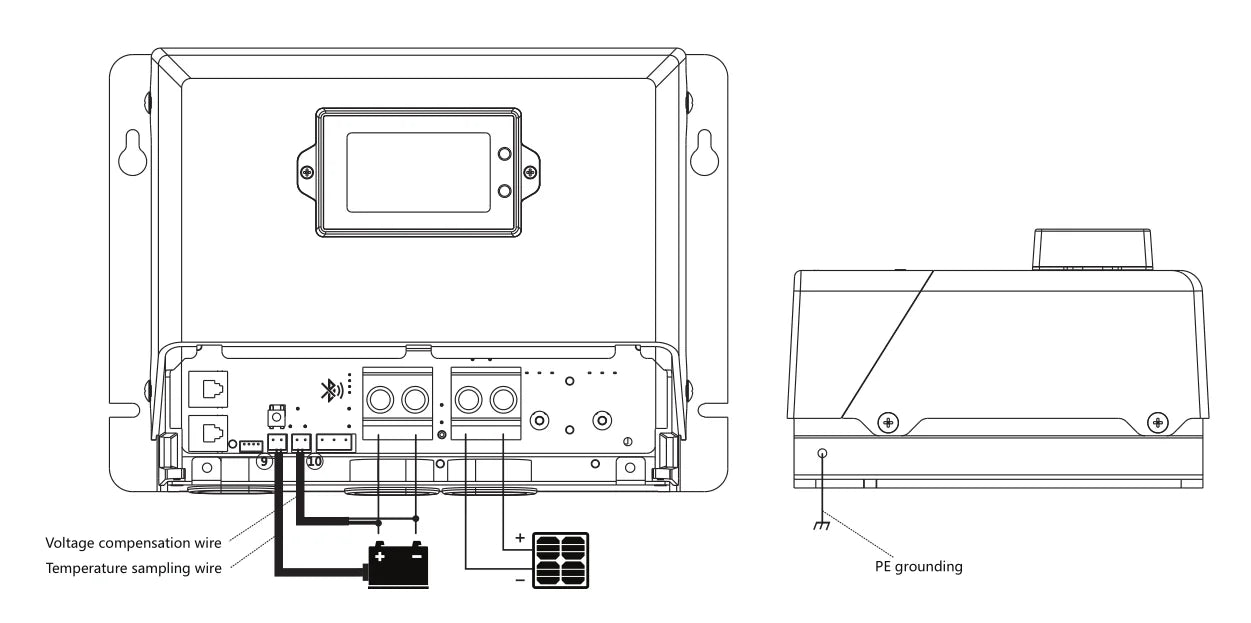

System Wiring Schematic Diagram：

Sepecification：

Model	MC4860N15	MC4870N15	MC4860N25	MC4870N25
System Voltage	12V/24V/36V/48V
No-load loss	0.54W
Battery voltage	9V~64V
Maximal PV open-circuit voltage	150V		250V
Rated charging current	50A		40A
Maximal voltage range at power point	Battery voltage +2~110V		Battery voltage +2~180V
Rated charging current	60A	70A	60A	70A
Settable charging current	0-60A	0-70A	0-60A	0-70A
Power of solar panel (12V)	800W	920W	800W	920W
Power of solar panel (24V)	1600W	1840W	1600W	1840W
Power of solar panel (36V)	2400W	2760W	2400W	2760W
Power of solar panel (48V)	3200W	3680W	3200W	3680W
Charging conversion efficiency	≤98%
MPPT tracing efficiency	＞99%
Temperature compensation coefficient	-3mV/℃/2V (default, settable lead-acid); no temperature compensation for lithium battery.
Communication way	TTL/Isolated RS485; baud rate 9600, digital bit 3, stop bit 1, no check bit
Bluetooth	Built-in bluetooth 4.0BLE module, achieving mobilephone APP monitoring
Internal temperature protection	When interior temperature of controller is higher than the set value, it shall perform linear power reduction operation
External temperature sampling of battery	The temperature is used for battery temperature compensation and battery temperature protection
Programmable relay	DPST 10A/250VAC；10A/30VDC
Protection function	Battery overcharging protection, battery over discharge protection, PV anti-reverse protection, reverse charge protection at night, interior overtemperature protection of controller and over-current protection in charge
Operation temperature	-35℃～+65℃(No derating within 40 ℃)
Elevation	≤3000m
Protection grade	IP32
Weight	3.6kg
Product size	Conventional：266*194*119mm MC4：266*226*119mm

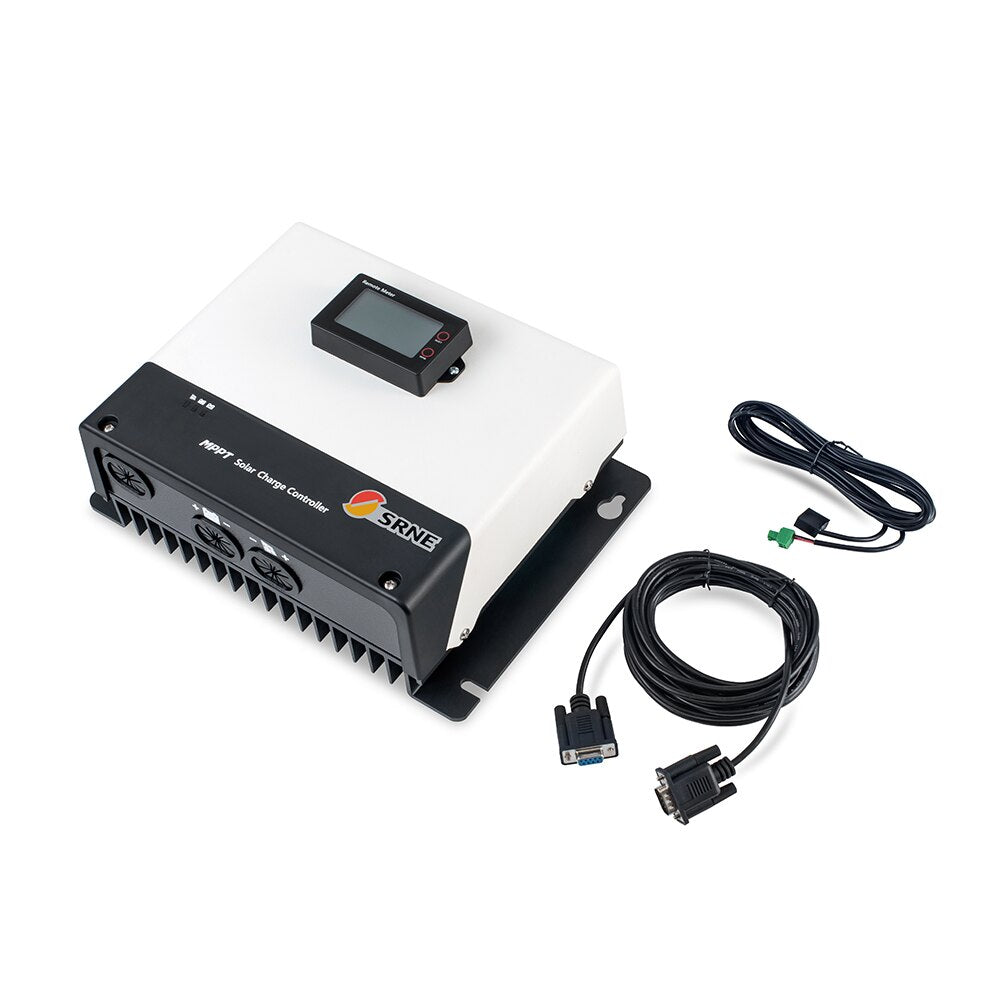

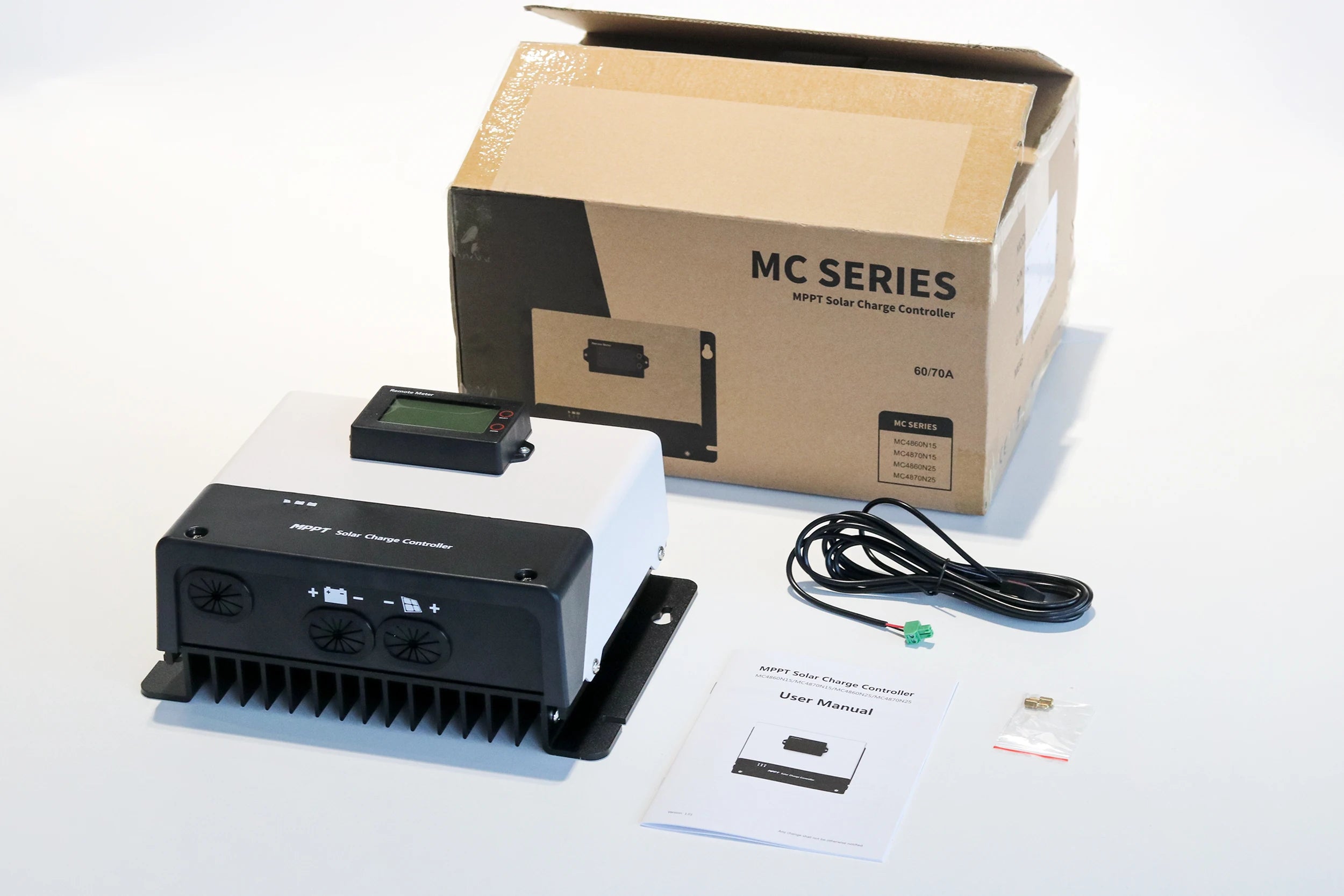

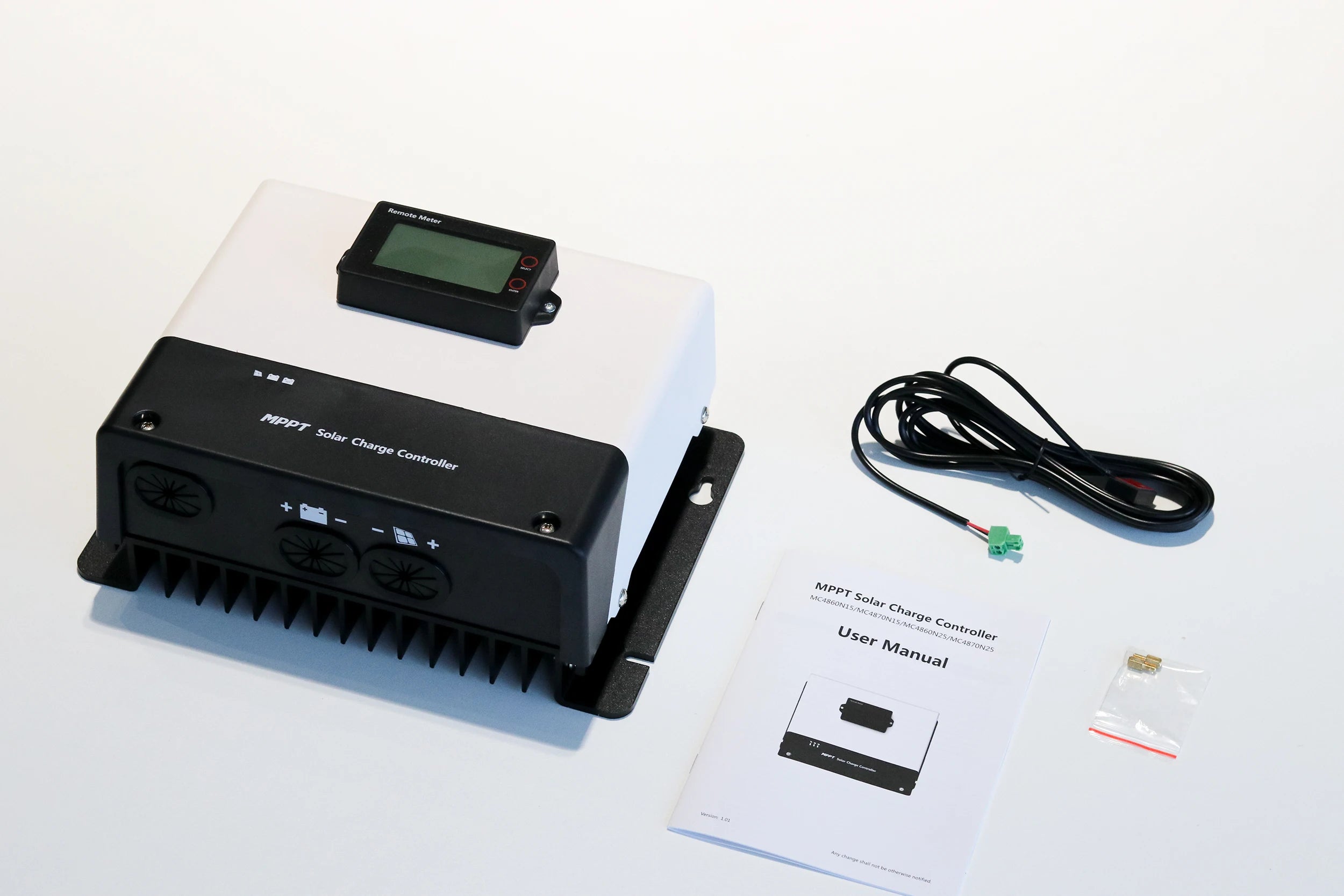

Package Include：

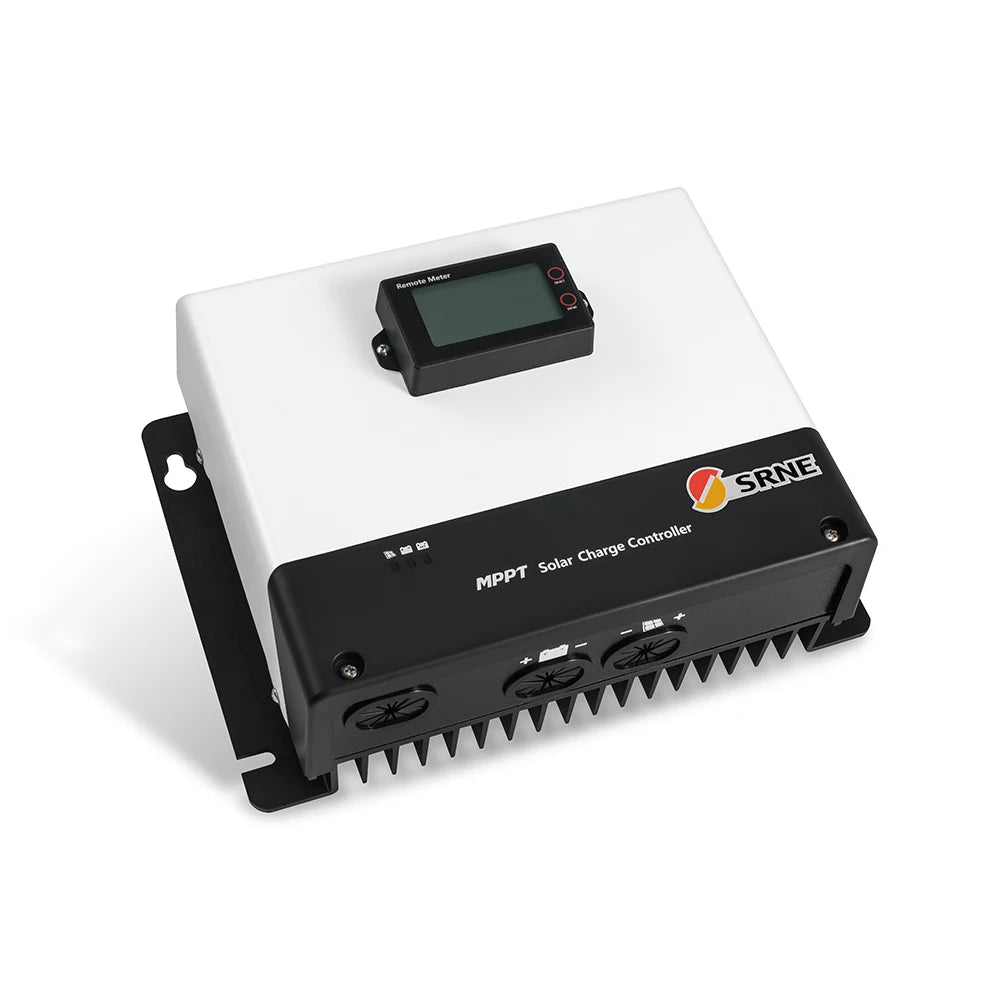

Item Pictures：
