SPECIFICATIONS

is_customized: Yes

Weight: 1.5kgs

Type: DC/AC Inverters

Size: 143.5*86*186.5mm

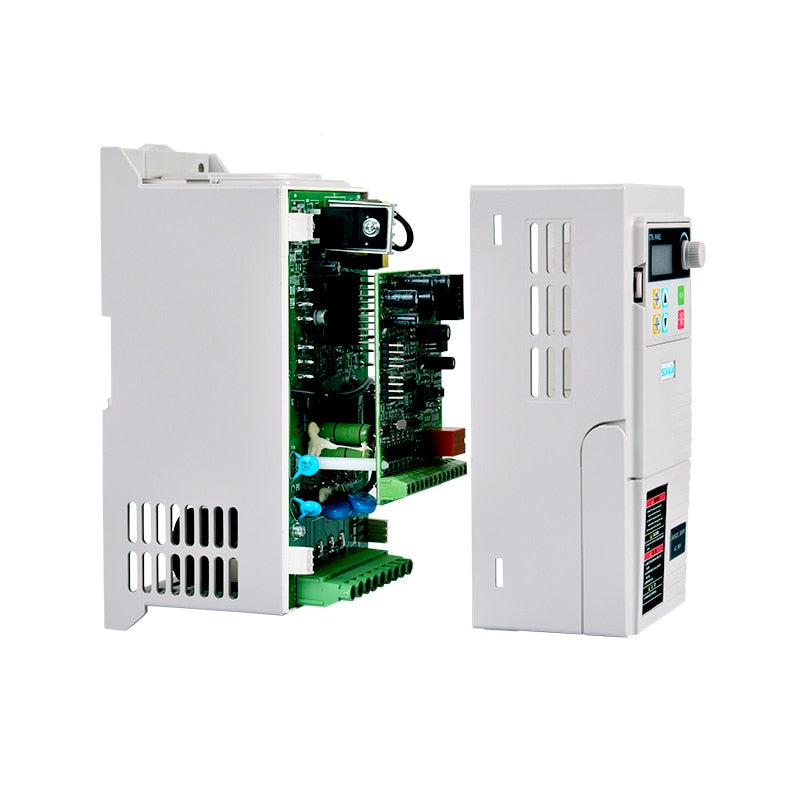

Product Description: Motor Speed Controller

Power: 0.75-2.2kw

Output Voltage: Three phase 220VAC

Output Type: triple

Output Power: 0.75KW,1.5KW,2.2KW

Output Frequency: 0-999Hz

Output Current: 2.3A ; 4A ; 7A ;9.5A

Origin: Mainland China

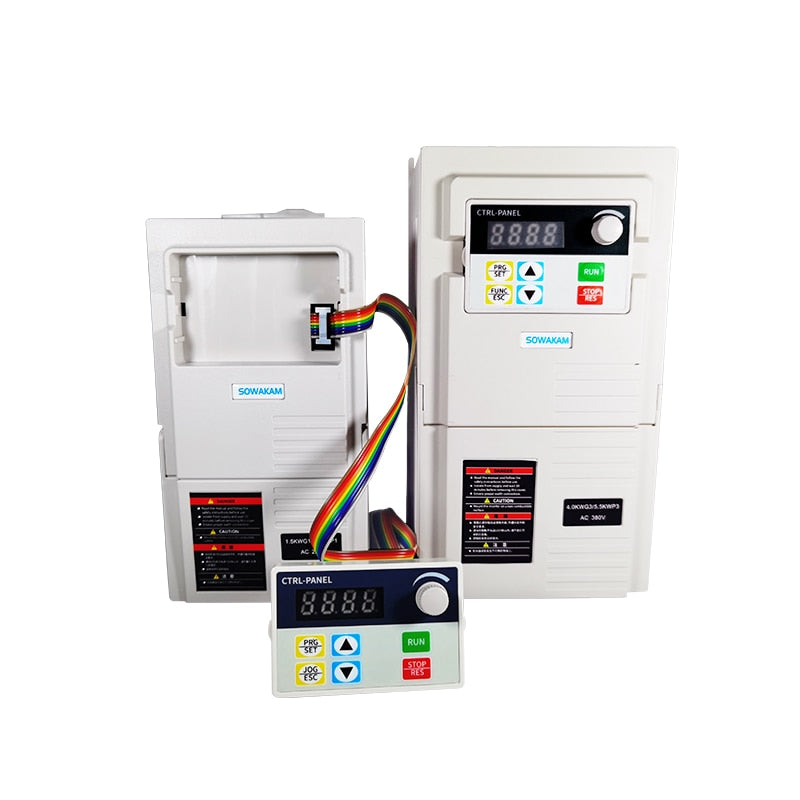

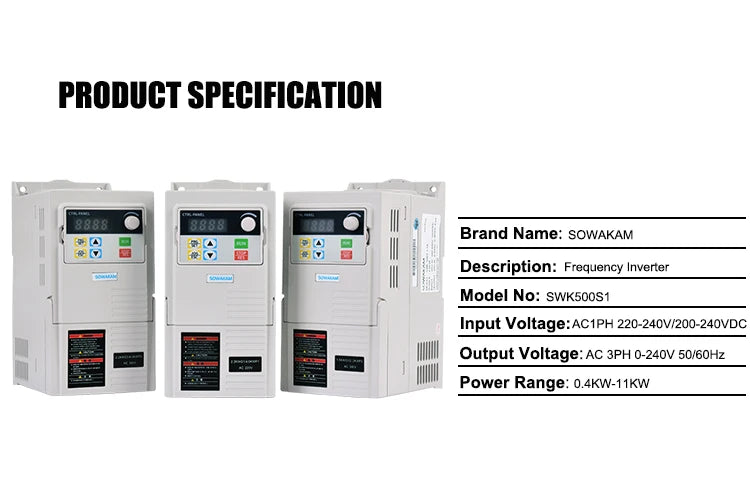

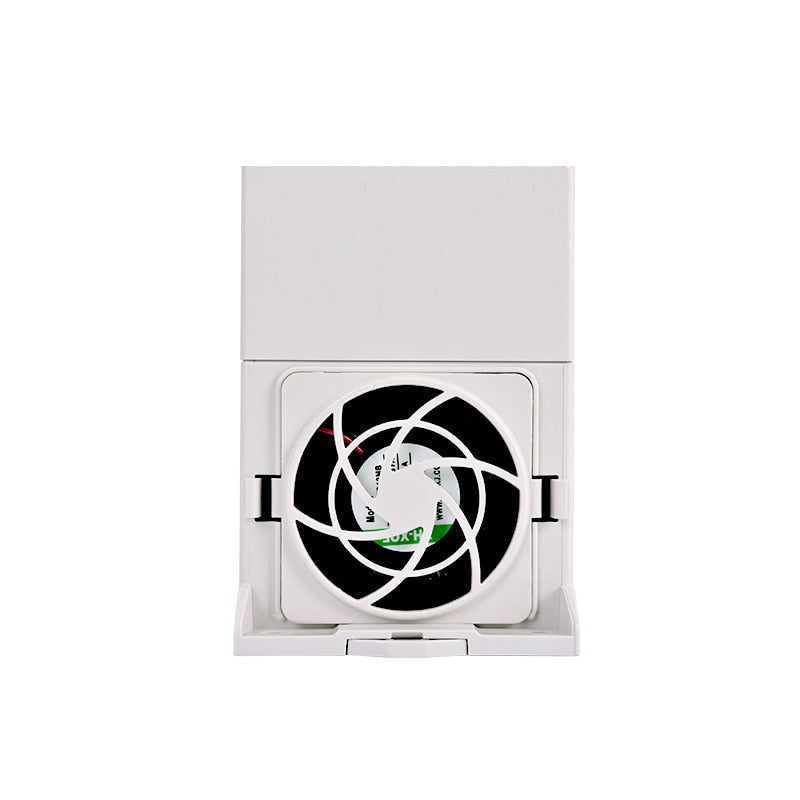

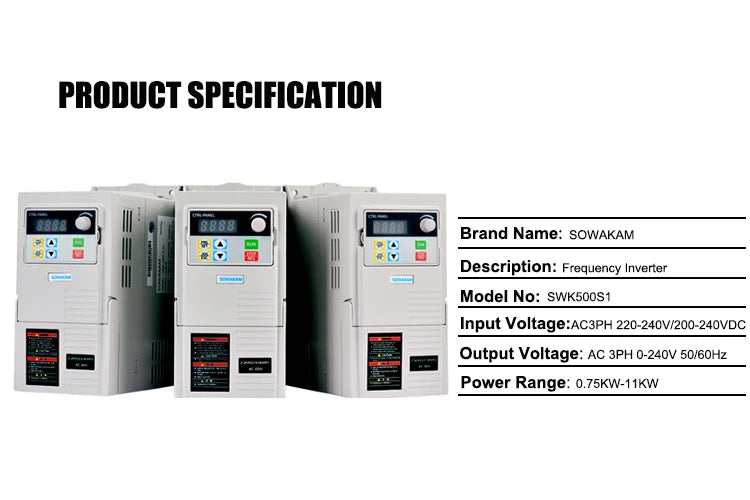

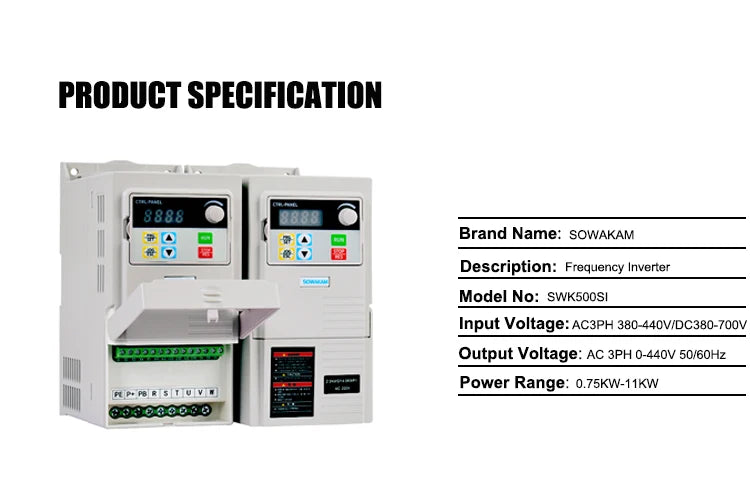

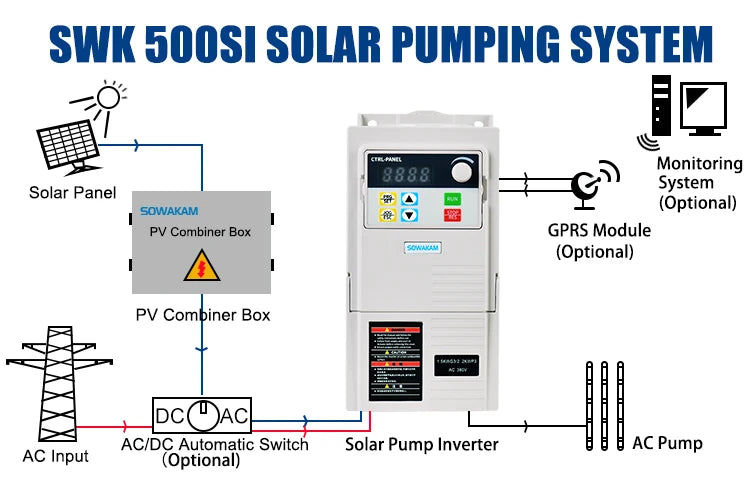

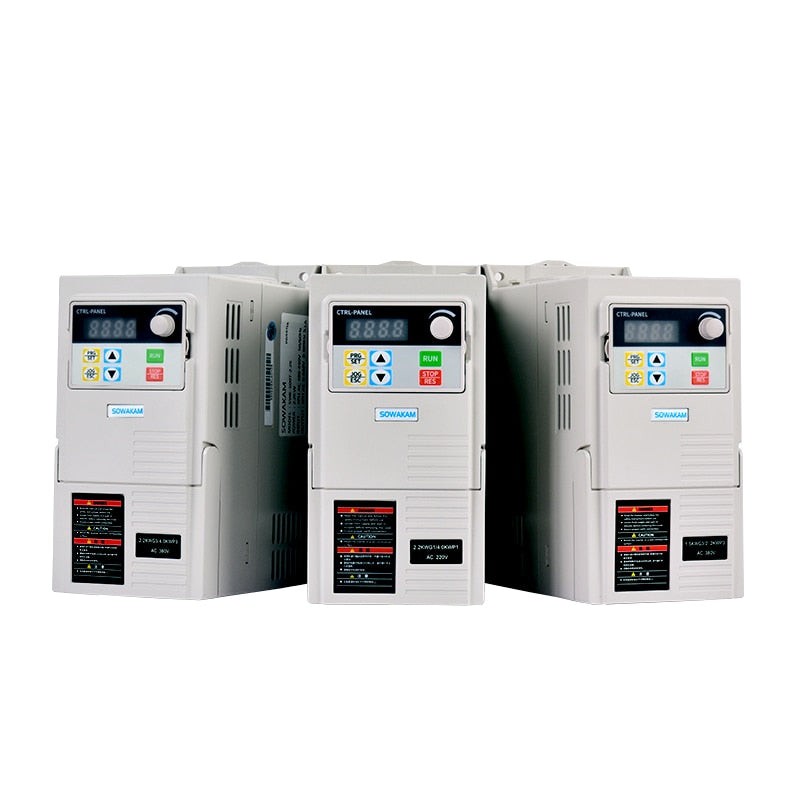

Model Number: SWK500SI

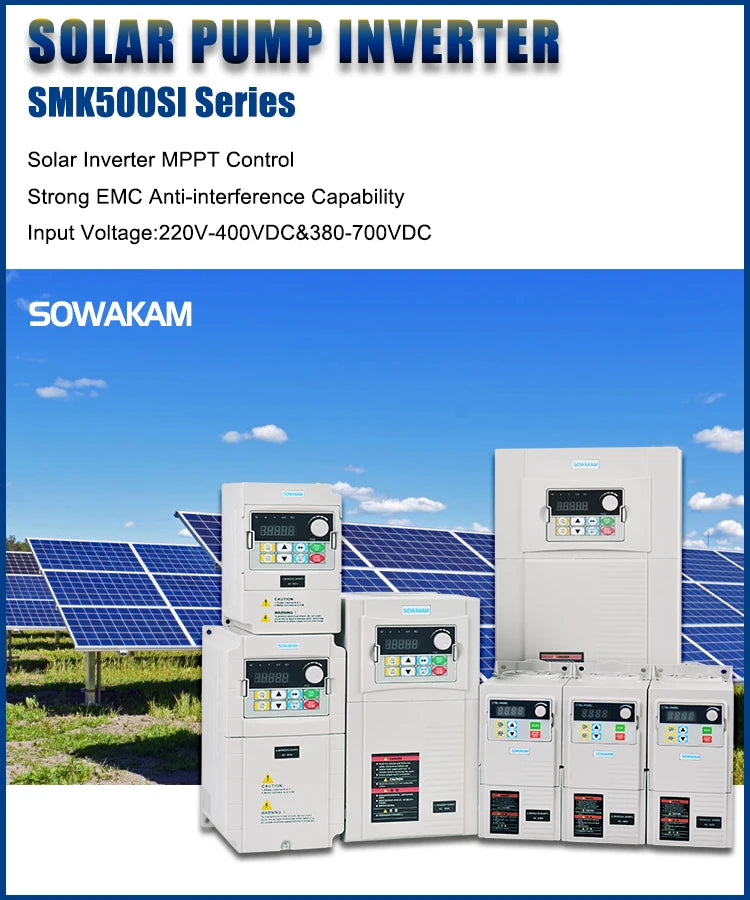

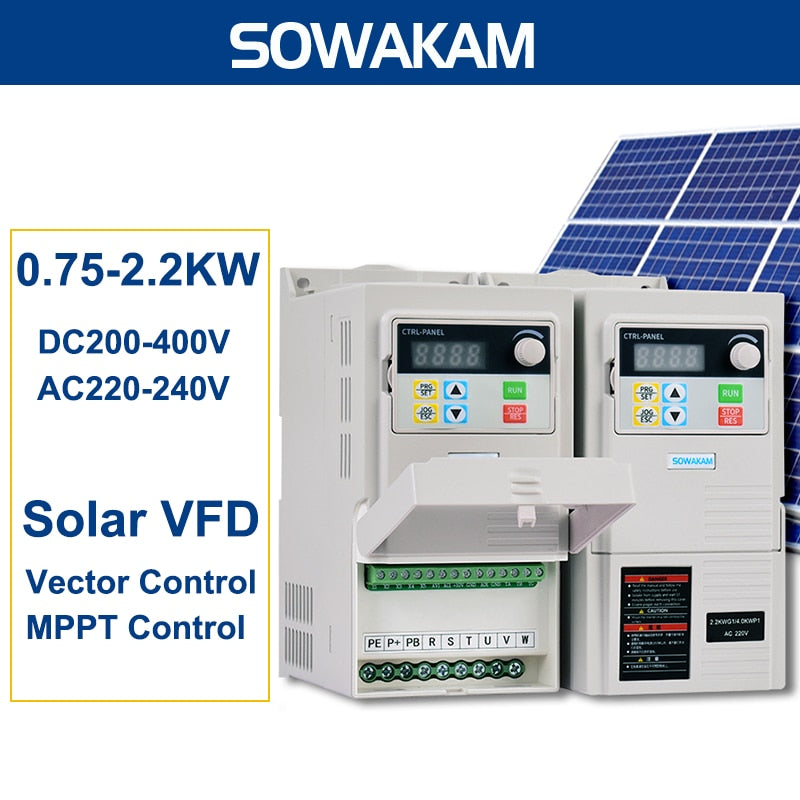

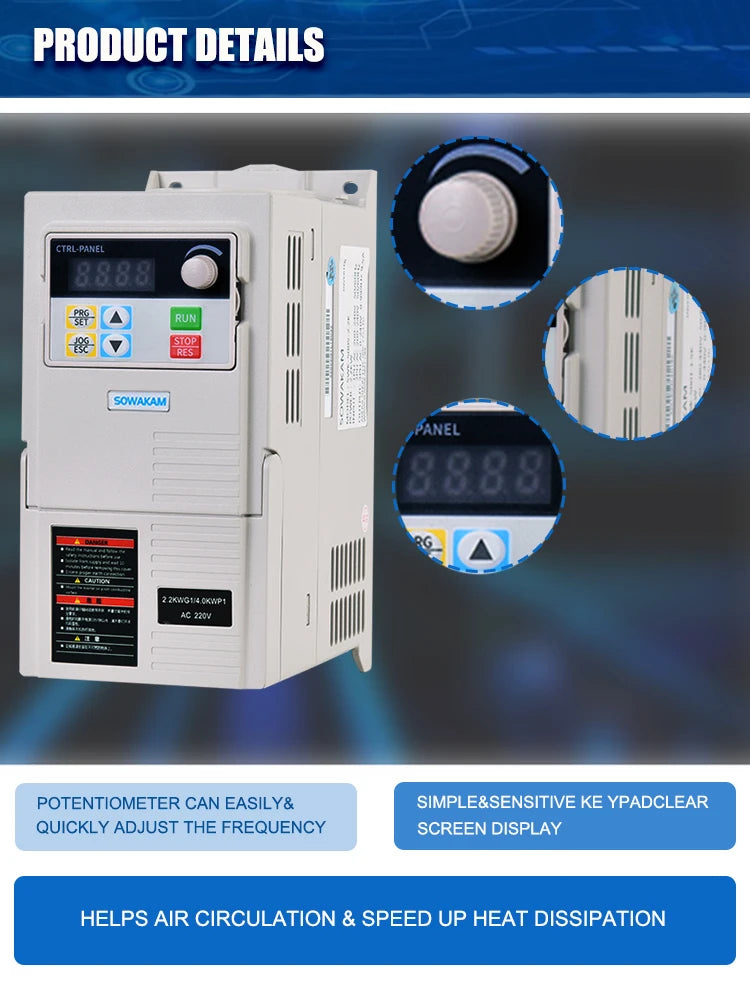

Item Name: Solar Pump Inverter

Input Voltage: DC200-400V & Single phase 220VAC

Control Model: V/F control

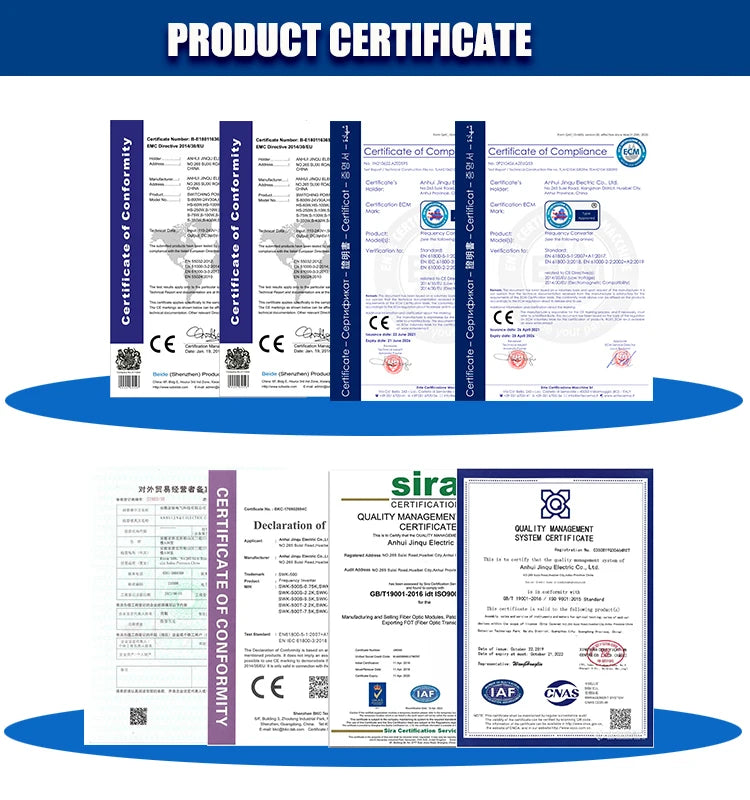

Certification: CE,FCC,RoHS

Brand Name: SOWAKAM

Technical Index and Specification

SWK500S VFD

Input :

1> : 1-phase 220V;50/60HZ

2> : 3-phase 220V;50/60HZ

3> : DC200-400V

Output: Voltage : 3 - phase ; 0～240V

SWK500T VFD

Input :

1> : 3-phase 380-440V;50/60HZ

2> : DC380-700V

Output: Voltage : 3 - phase ; 0～440V

SWK480S VFD

Input : 1-phase 220V;50/60HZ

Output: Voltage : 3 - phase ; 0～240V

Control Mode :V/F control

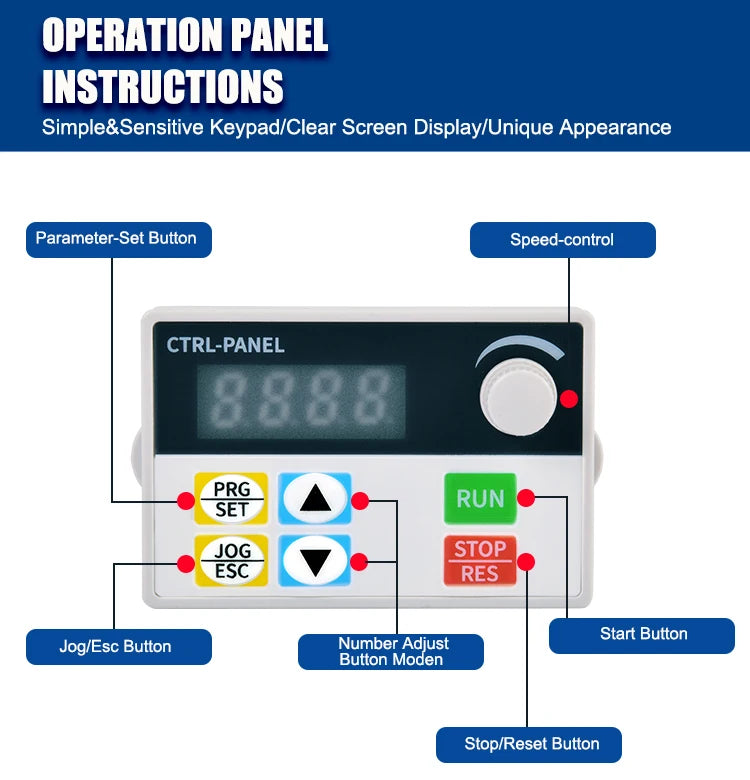

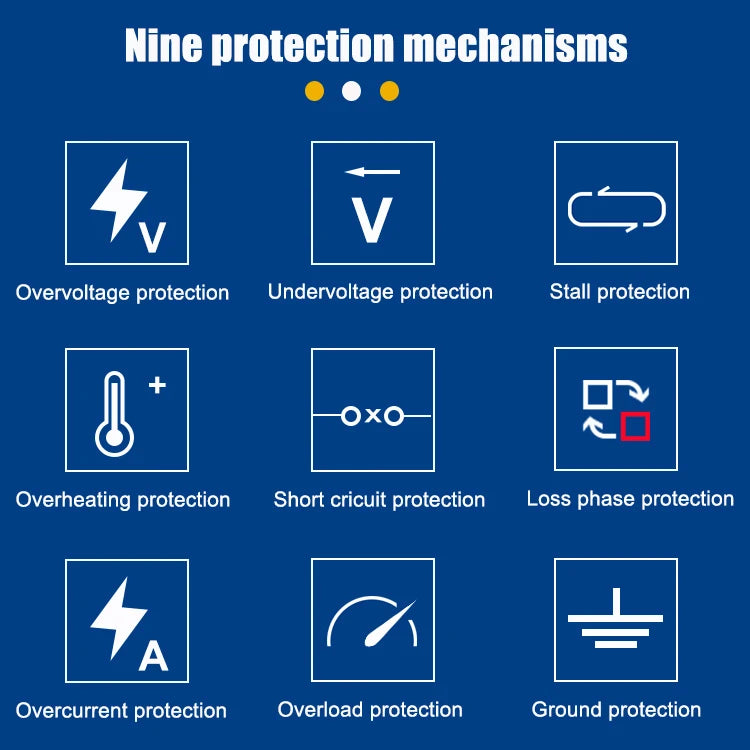

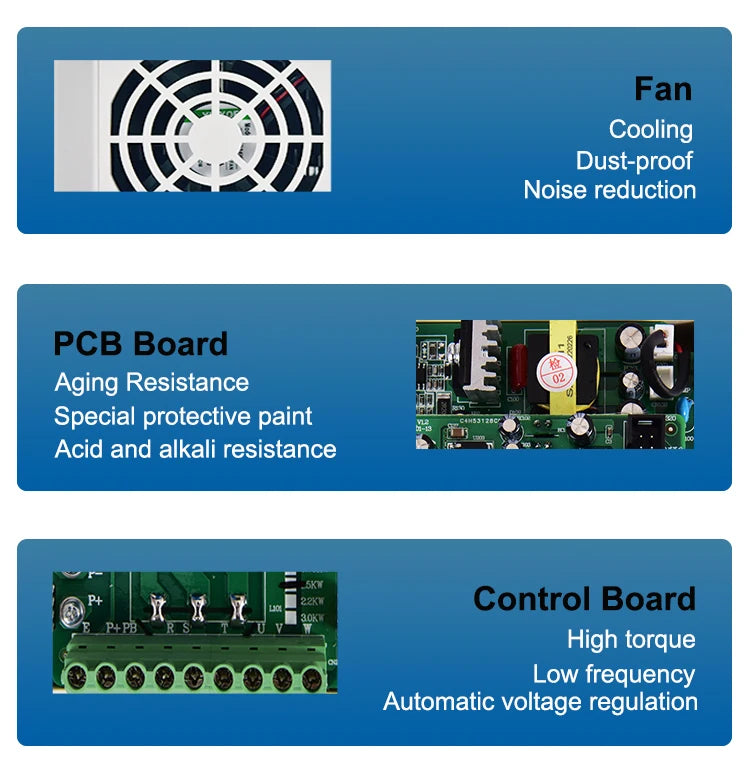

Protective Function :Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit,

default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc.

For more function pls ask me for user's manual >>>>>>>>>>>>>>>>>>>>>>>>>>>>

Safety Precaution:

1. Before wring, please make sure that the input power is off.

2. The wring work should be operated by the professional electrical engineer.

3. The grounding terminals must be connected with the ground.

4. Having paused circuit wiring emergently, please make sure that the check is effective.

5. Do not connect the output wire of the inverter with the shell, and pay attention that the

output wire should not be short-circuited.

6. Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter.

7. Do not do the voltage withstand test on the inverter.

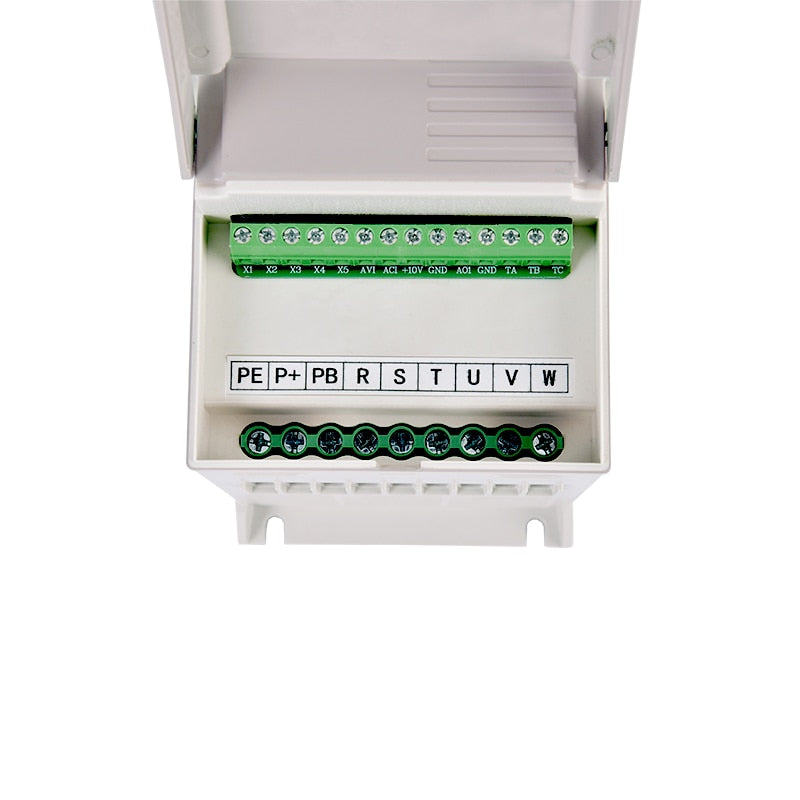

8. Please connect the brake resistor according to the wiring diagram.

9. Do not connect the power to the U, V, W output terminals.

10. Do not connect the contactor with the output circuit.
