Tracer5415AN - EPever 50A MPPT Solar Charge Controller

EPever 50A MPPT Solar Charge Controller Quick Info

Brand: EPever

Lithium Battery Activation: Active Lithium Batteries

Battery Voltage: 12V, 24V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries, User Mode

Charging Current: 50 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 1040W-2500W

Solar Panel Max Input Voltage: 150V

EPever 50A MPPT Solar Charge Controller 12V 24V 36V 48V Auto Solar Regulator with LCD Display 150v 200v Tracer5415AN Tracer5420AN

Welcome to buy 50a mppt solar charge controller

Specification:

• High quality & low failure rate components of ST and Infineon to ensure the product’s life
• Advanced MPPT Solar Charge Controller technology & ultra-fast tracking speed is up to 99.5%.
• Maximum DC/DC transfer efficiency is as high as 98.7%
• Auto control system to limit the charging power & current goes over the rated value.
• Real-time energy recording and statistical function
• Battery temperature compensation function.
• Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• Support up to 8 units in parallel to expand the system
• PV short circuit / PV reverse polarity /Battery over voltage
• Battery over-discharge / Battery reverse polarity / Load overload protection

Package List:

1 X Tracer 5415AN Solar Charge Controller

1 X MT50 remote meter

1 X RS485-150U communication cable

1 X Battery voltage Sensor Terminal / 2 X Use Manual

Tracer 5415AN MPPT Charge Controller 50 amp 12V / 24V / 36V/ 48V DC Auto Rated charge current: 50 amp Max Input Power: 625W-2500W ( 625W/12V battery 1250W/ 24V battery 1875W/ 36V battery 2500W/ 48V battery) Max.PV open circuit voltage: 150VDC (138V at 25℃ temperature) Battery type selection: Lithium, lead-acid ( Gel, Sealed ) Flooded batteries and User Common-Negatived Ground Controller Battery Input:8V～68V User is programmable for battery types, load control, etc. Termina: 6AWG/16mm2 Recommended cable: 6AWG/16mm2

Features:

• Brand: Epever
• Product Model: Tracer 5415AN
• CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)High quality & low failure rate components of ST and Infineon to ensure the product’s life
• Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
• Maximum DC/DC transfer efficiency is as high as 98.7%
• Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
• The wider range of MPP operating voltage
• Auto control system to limit the charging power & current go over the rated value
• Support 4 charging options: Sealed, Gel, Flooded, and User
• Battery temperature compensation function
• Real-time energy recording and statistical function
• Automatic over-temperature power reduction function
• Hundred percent full load operation in working environment temperature range within charging & discharging
• Support up to 8 units in parallel to expand the system
• Load relay control external load switch signal to realize diversified load work modes

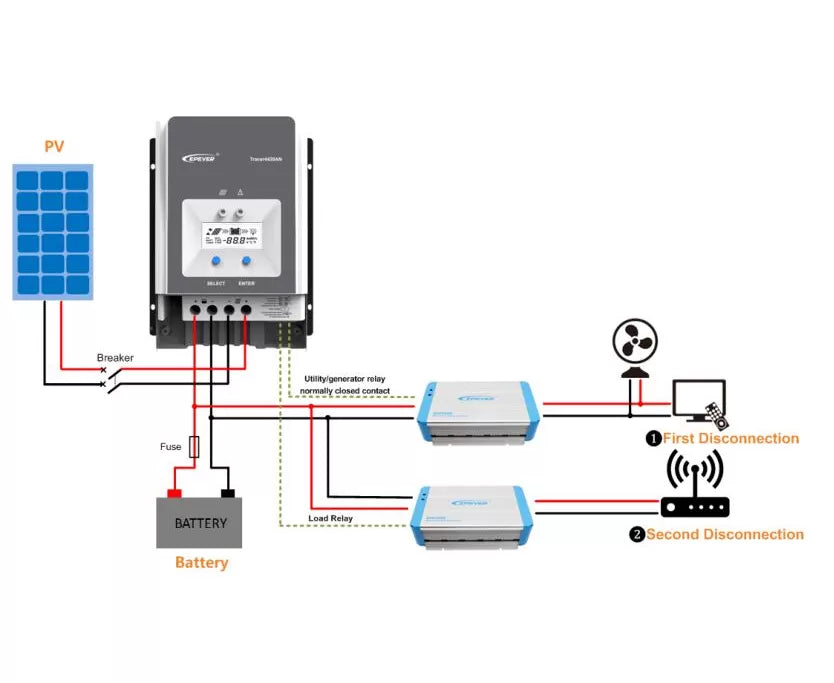

• The first and the second disconnection of load control, contain two relay’s contact
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make it easy to compose the hybrid power system
• The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
• Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• To monitor or set the parameters by using the phone Apps or PC software

Electronic protections:

• PV over current/power protection
• PV short circuit protection
• PV reverse polarity protection
• Night reverse charging protection
• Battery over-voltage protection
• Battery over-discharge protection
• Battery overheating protection
• Controller overheating protection
• TVS high voltage transients protection

Warm tips：

Step: Connect the system in the order of 1. battery--> 2. load-->3. PV array, and disconnect the system in the reverse order 3. 2. 1.

• The battery must be connected first !!!
• Never connect the solar panel array to the controller Without / Before a Battery.
• DO NOT connect any inverter/ wind/Alternator or Charger into the charge controller!
• WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently！！！
• If the remote temperature sensor is not connected to the controller, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.

MT50 Remote Meter:

• >span class="a-list-item">Compatible with EPever Tracer-A/AN/BN, LS-B/BP, VS-BN series controllers
• With attached extension cable, it will show the operational data and working status of the connected MPPT charge controller.

RS485-150U Cable(1.5m):

• used to monitor each controller on the network using Solar Station PC software and update the firmware.

Remote Temperature Sensor（TS-R，3m）：

• Obtain battery temperature for temperature compensation of control parameters

Please confirm the specification before install

User Manual (EPever_Tracer-AN_50-100A__User_Manual.pdf, 1,189 Kb) [Download]
