Tracer6415AN - EPever 60A MPPT Solar Charge Controller

EPever 60A MPPT Solar Charge Controller Quick Info

Brand: EPever

Lithium Battery Activation: Active Lithium Batteries

Battery Voltage: 12V, 24V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries, User Mode

Charging Current: 60 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 3000W-5000W

Solar Panel Max Input Voltage: 150V

EPever 150V 200V Max PV Input 60A MPPT Solar Charge Controller 12V 24V 36V 48V Auto Solar Regulator with LCD Display Tracer6415AN

FEATUREs

Tracer AN series Solar Charge Controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT solar charge controllers algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard. MSRT can ensure very high conversion efficiency in any charging power, which sharply improves the energy efficiency of the solar system; Advanced MPPT control algorithm minimizes the maximum power point loss rate and loss time, to ensure the tracking efficiency, corresponding speed as well as high conversion efficiency under high or low power so that in any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel. The load, utility, or generator auto-control relays make it easy to compose the hybrid power system.

• So that can be widely used for various applications, e.g.solar RV, household system and field monitoring, etc.

1. Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5% and will minimize the MPP loss rate and loss time, Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98>#/span###
2. The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.
3. Auto control system to limit the charging power & current goes over the rated value. Battery temperature compensation function and Automatic over-temperature power reduction function will prolong your battery life.
4. Real-time energy recording and statistical function. One key to zero clearing PV energy function.
5. Error LED indicator tells you what's wrong with your system.
6. Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
7. To monitor or set the parameters by using the phone Apps or PC software.
8. WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently！！！

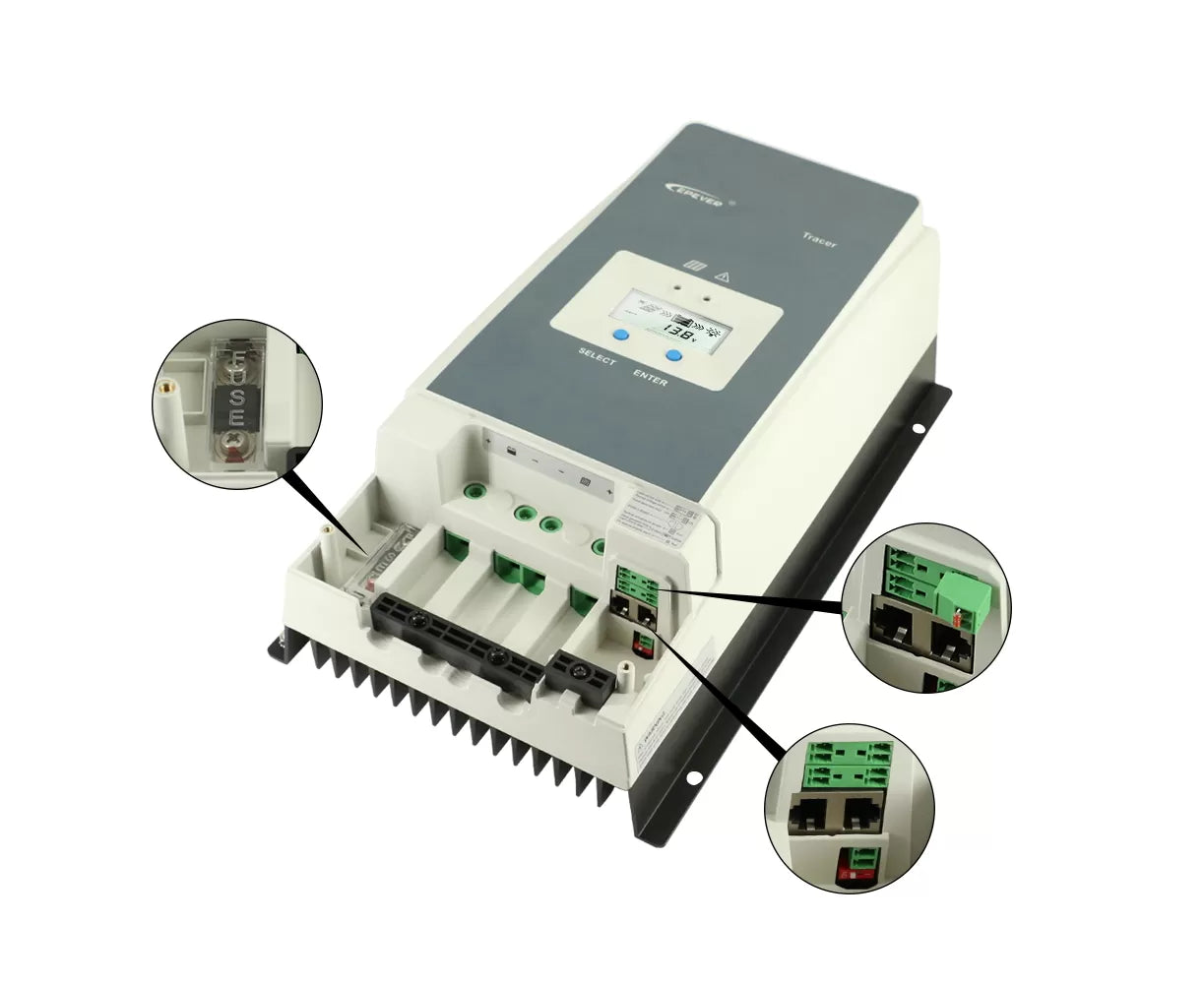

MORE CONVENIENT AND SAFE DESIGN

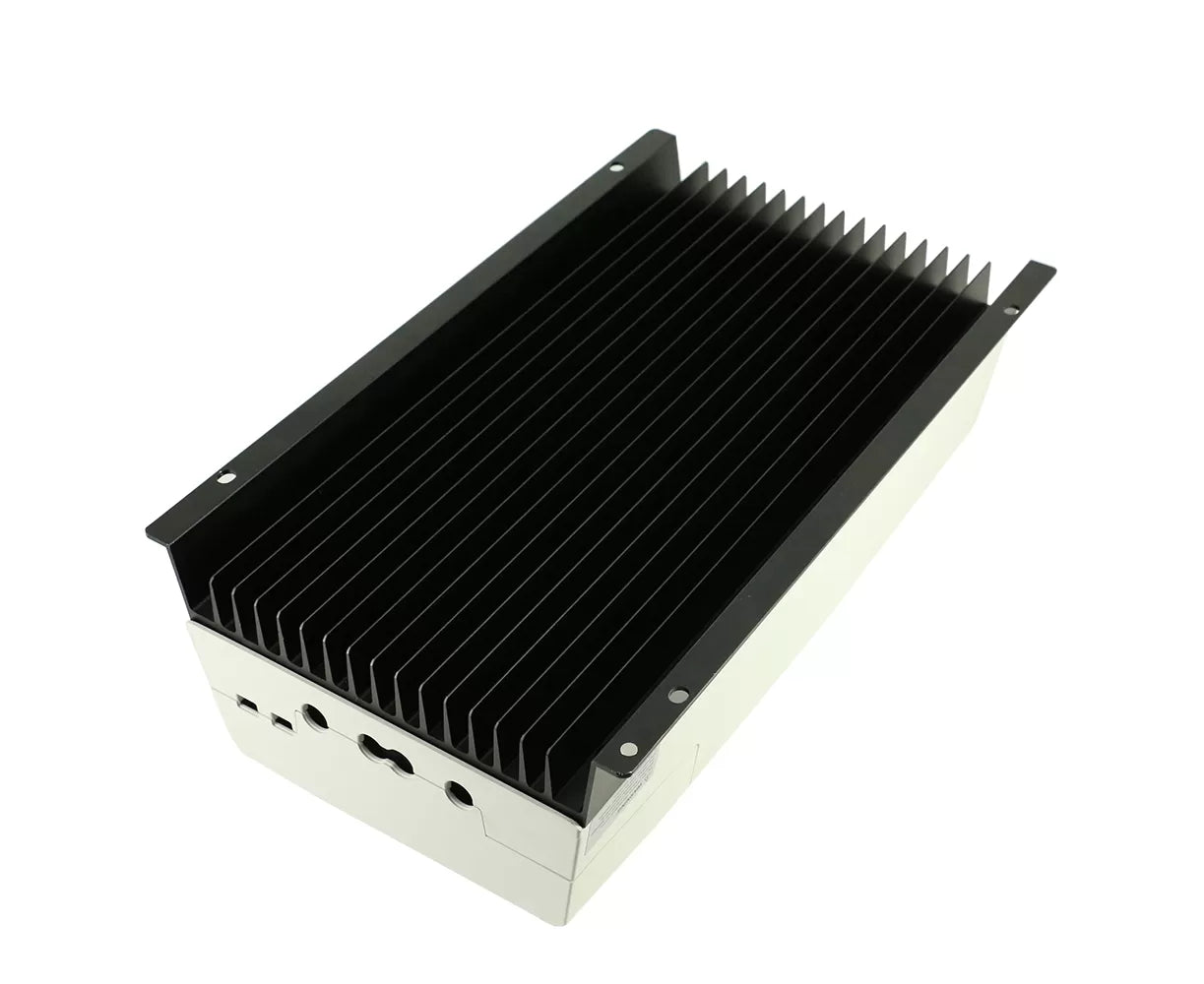

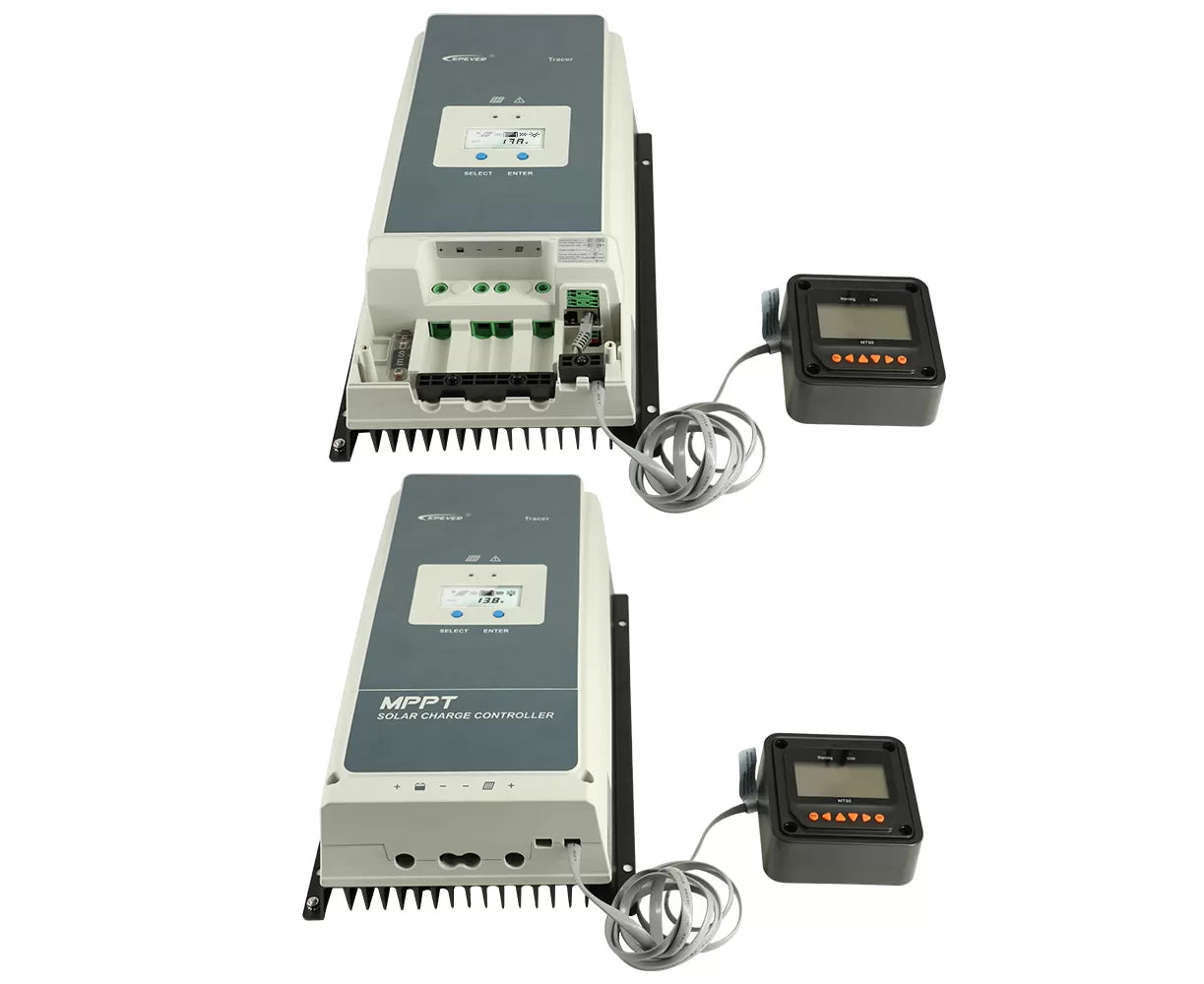

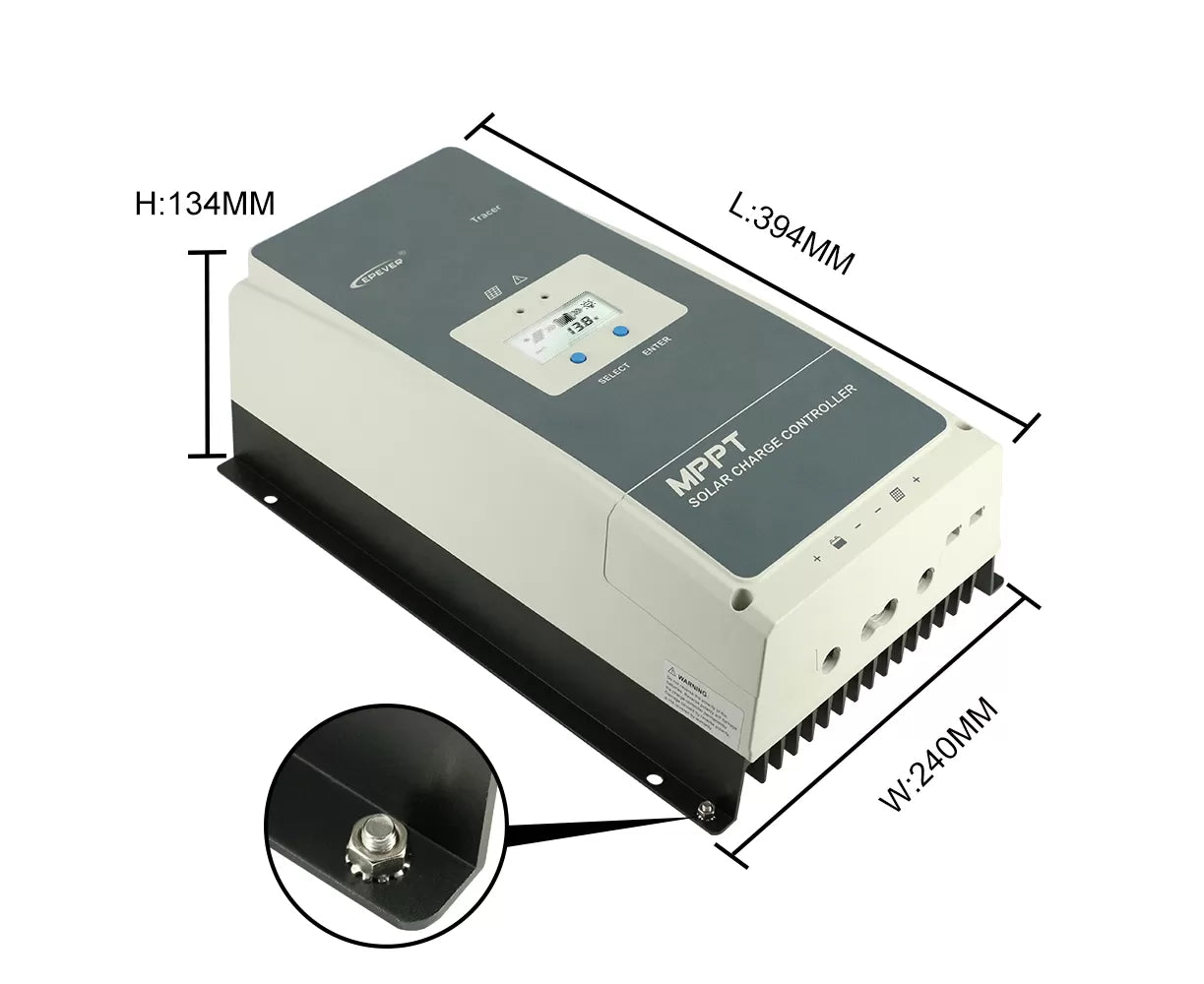

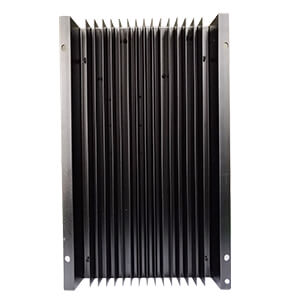

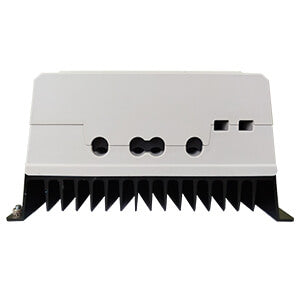

Aluminum Alloy Heat Sink Excellent heat dissipation characteristic Ensure great airflow. Remove all the debris around the controller (leaving a space of approx. 5.91in) Net weight: 4.5kg / Dimension: 340×236×119mm Packing List: < 1X60A mppt charge controller > < 1X Remote Meter MT50 >< 1XTemperate Sensor >< 1X PC cable>< 1X English User manual >

Negative Ground 60A MPPT Charge Controller Nominal System: 12 / 24 / 36 / 48VDC or Auto Rated charge current: 60A / Battery Input:8V～68V Max. PV open: 150V / Battery fuse: 80A/58V Rated charge Power: 750W (12V) / 1500W (24V) / 2250W (36V) / 3000W (48V) Battery Type: Sealed(Default) / Gel / Flooded / User/ lithium

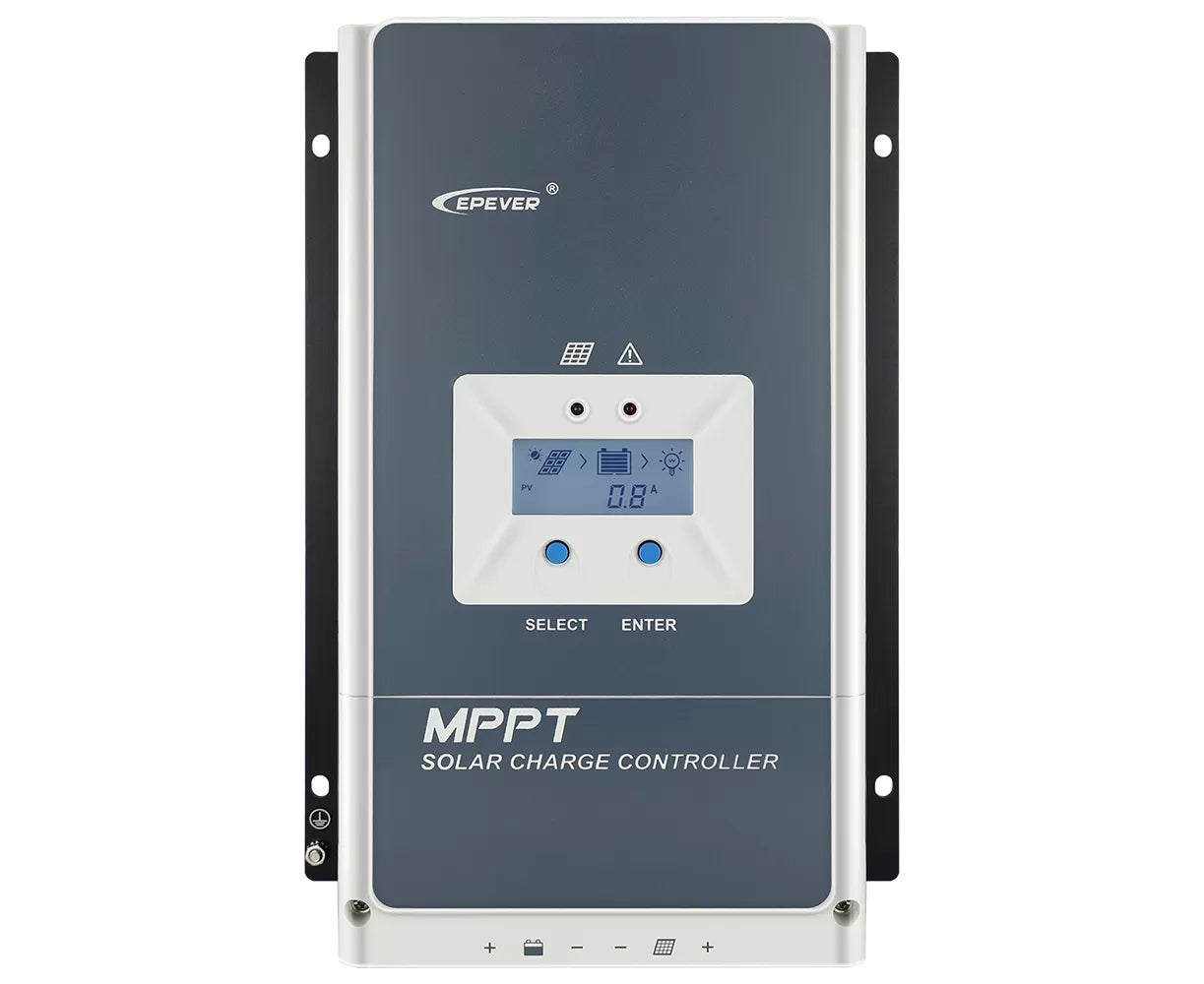

LCD Display PV ( Voltage, Current, Kwh ), One key to zero clearing PV energy function. BAT (Voltage, Current, Temperature ), Temp. compensation:-3mV/℃/2V(77℉) (default) Load (Current, Kwh, Load Limer), Check load timer to ensure if opening load output

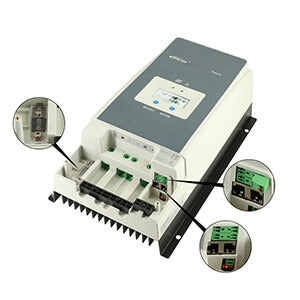

Solar Charge Controller Connection Terminals: 6AWG (16mm2) Red wire connect “+” and Black wire connect “-” Ensure tighten wires

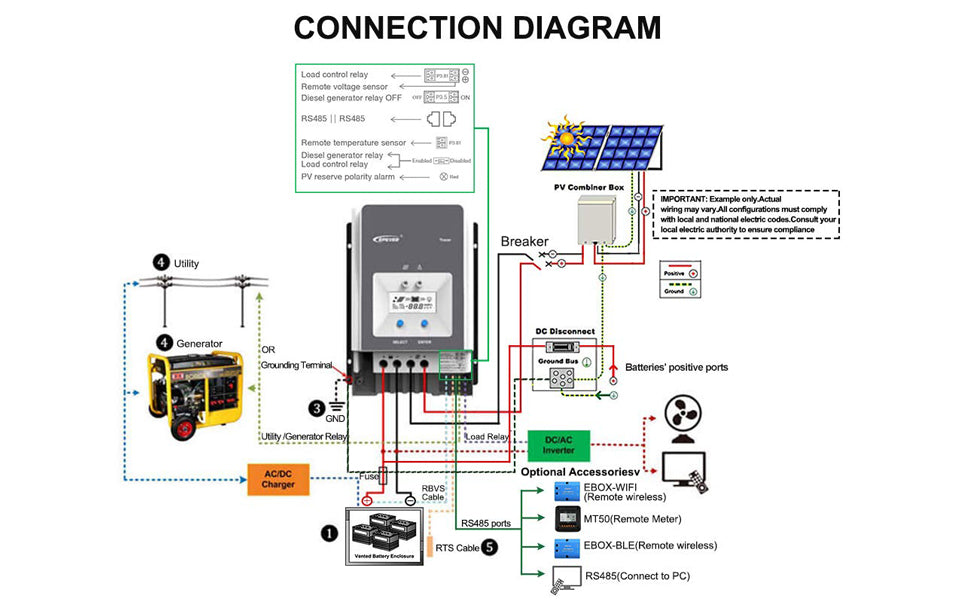

DIAGRAM OF CONNECTION

Features:

• CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)High quality & low failure rate components of ST and Infineon to ensure the product’s life
• Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
• Maximum DC/DC transfer efficiency is as high as 98.7%
• Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
• The wider range of MPP operating voltage
• Auto control system to limit the charging power & current go over the rated value
• Support 4 charging options: Sealed, Gel, Flooded, and User
• Battery temperature compensation function
• Real-time energy recording and statistical function
• Automatic over-temperature power reduction function
• Hundred percent full load operation in working environment temperature range within charging & discharging
• Support up to 8 units in parallel to expand the system
• Load relay control external load switch signal to realize diversified load work modes

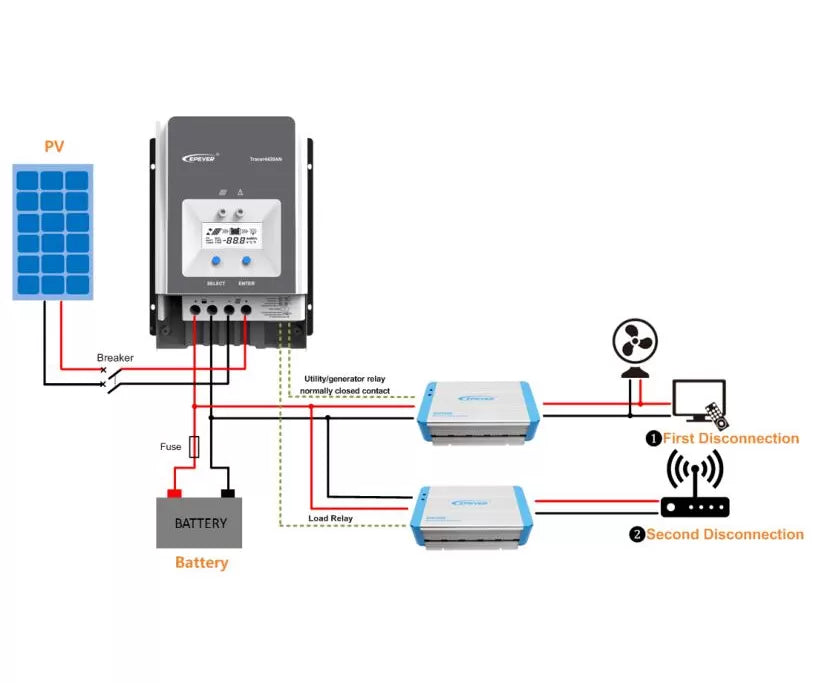

• The first and the second disconnection of load control, contain two relay’s contact
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make it easy to compose the hybrid power system
• The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
• Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• To monitor or set the parameters by using the phone Apps or PC software

Electronic protections:

• PV over current/power protection
• PV short circuit protection
• PV reverse polarity protection
• Night reverse charging protection
• Battery over-voltage protection
• Battery over-discharge protection
• Battery overheating protection
• Controller overheating protection
• TVS high voltage transients protection

Specification:

Rated charge current: 60A

Rated discharge current: 60A

Battery input voltage range: 8-68V

Max. PV open circuit voltage: 150V

Rated charge power: 750W(12V);1500W(24V);2250W(36V);3000W(48V)

Self-consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V

Temperature compensate coefficient: -3mV/℃/2V(Default)

Dimension: 340×236×119mm

Power terminals: 2AWG(35mm²)

Net weight: 4.5kg

Enclosure: IP20

TIPS

1. Always connect the battery first!!! Make sure enough batteries’ voltage lets the controller recognize the right system voltage.
2. DO NOT connect any Inverter/wind / Alternator or Charger into the charge controller! connect the Inverter directly to the battery.
3. Ensures solar input voltage higher than 3V or more than batteries’ voltage and total input power in the range. the charging current almost is zero when the controller is floating charge.
4. Parameter Setting Rules: Floating voltage > Low voltage reconnect > Low voltage discharge.
5. The solar charge controller will stop output when the battery is under 10.7V (adjustable). The LCD will be blank when the battery is under 8V and it will re-output when the battery is up to 12.6V (adjustable).
6. Install the Charger controller to the battery as close as possible to avoid voltage and power dropping caused by overlong wire and affect normal voltage judgment.
7. Remove all the debris around the controller(leaving a space of approx. 5.91in)
8. WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently！！！

Tracer6415AN EPever 60A MPPT Solar Charge Controller DataSheet

Please confirm the specification before install

User Manual (EPever_Tracer-AN_50-100A__User_Manual.pdf, 1,189 Kb) [Download]
