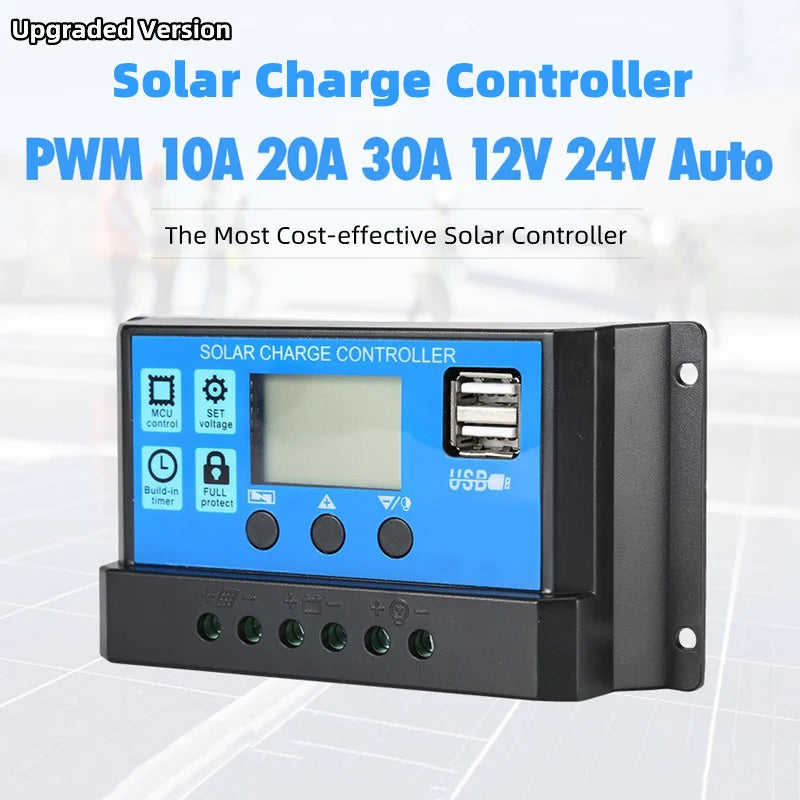

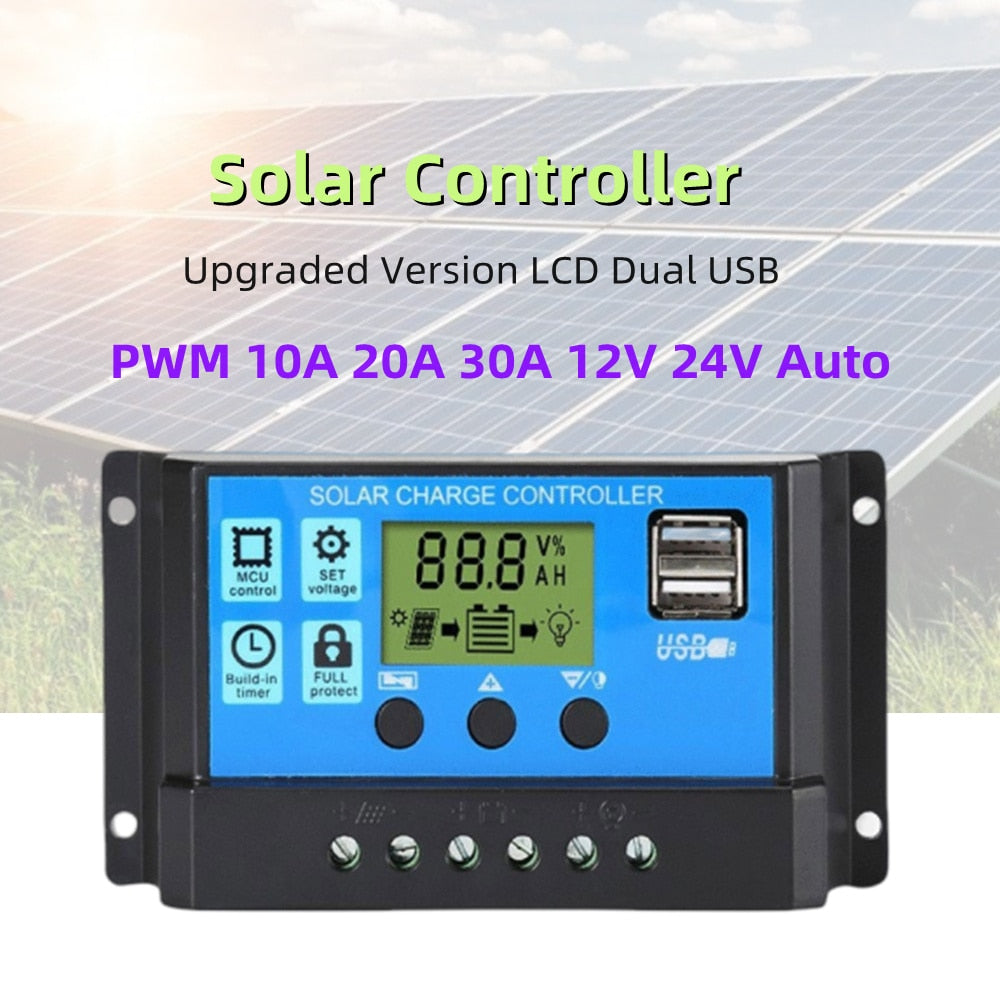

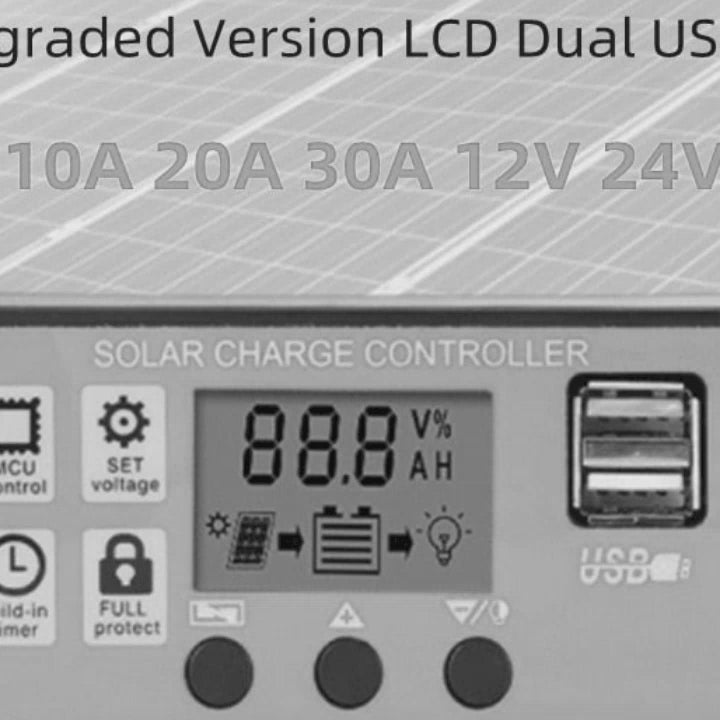

Upgraded Smart Solar Charge Controller 10A 20A 30A 12V 24V Auto PWM LCD Dual USB 5V Output Solar Panel PV Regulator Hot Sale
Upgraded Smart Solar Charge Controller 10A 20A 30A 12V 24V Auto PWM LCD Dual USB 5V Output Solar Panel PV Regulator Hot Sale
255 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Working temperature: -35 ℃ -60 ℃,12V fits 18V solar panel, 24V fits 36V solar panel
Voltage: DC 12V / 24V
Self-consumption: <10MA
Origin: Mainland China
Name: solar controller
Model Number: Upgraded Version Solar Charge Controller
Maximum Current: 30A
Is Smart Device: No
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Display: LCD screen
Certification: CE,FCC,RoHS
Application: Charger Controller,Voltage Controller,Wind Controller,Lighting Controller,Solar System Controller
Upgraded Smart Solar Charge Controller 10A 20A 30A 12V 24V Auto PWM LCD Dual USB 5V Output Solar Panel PV Regulator Hot Sale
Feature:

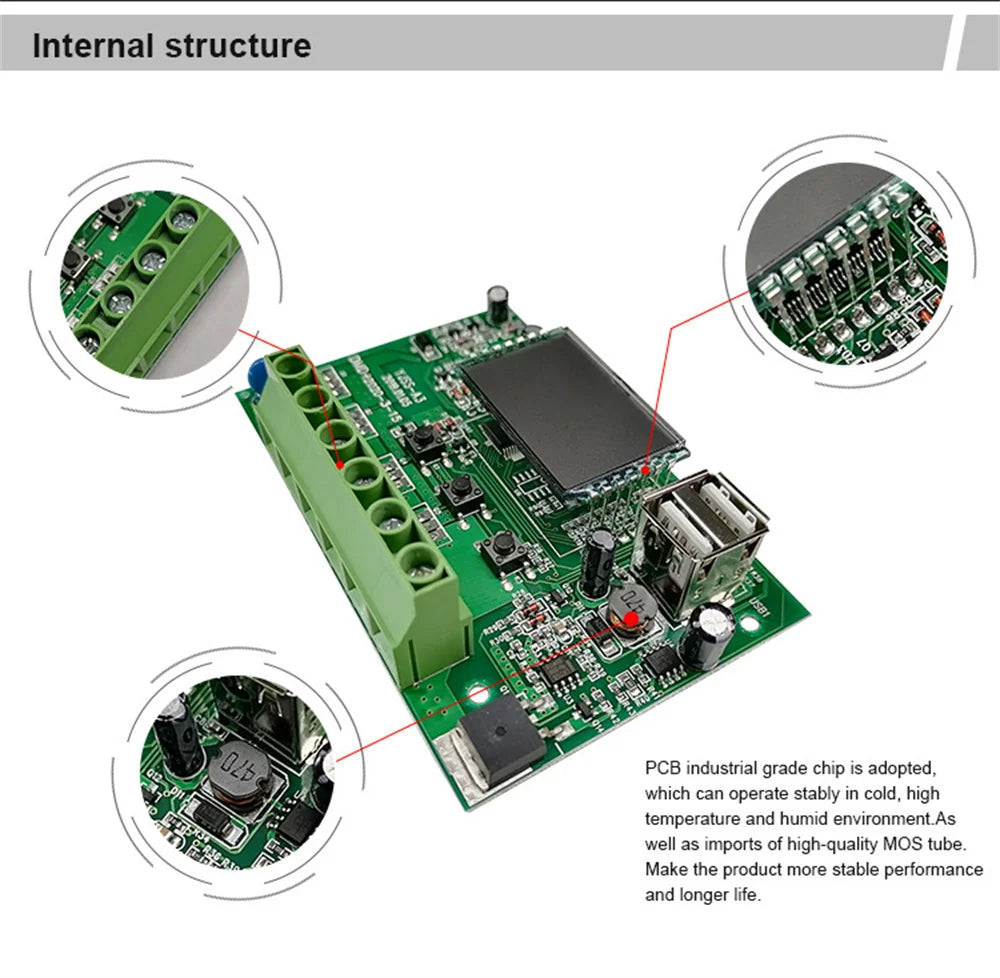

● Build-in industrial micro controller
● Fully 4-stage PWM charge management

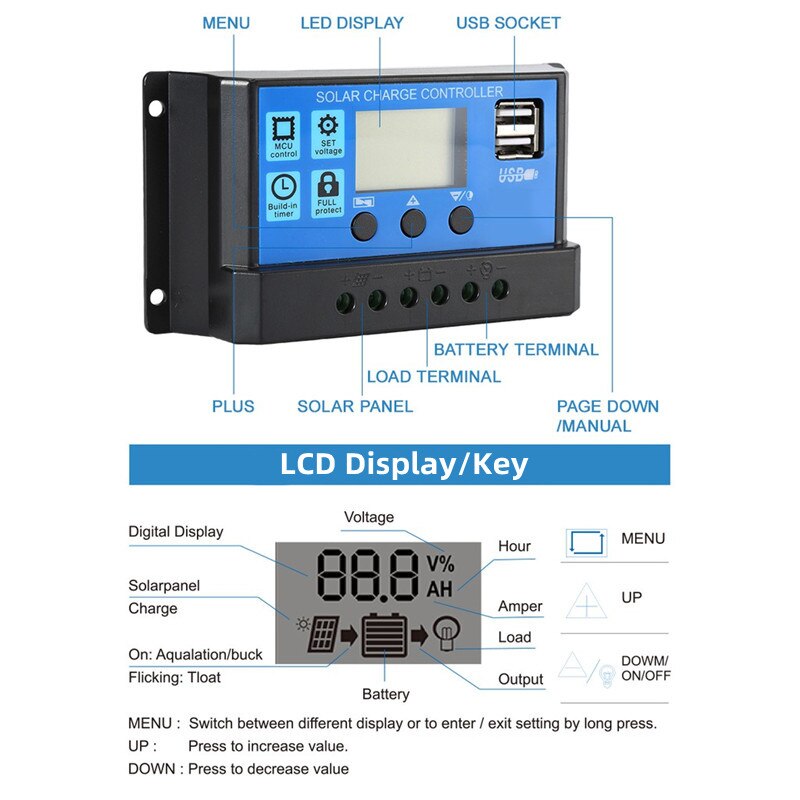

● Big LCD display, all adjustable parameter

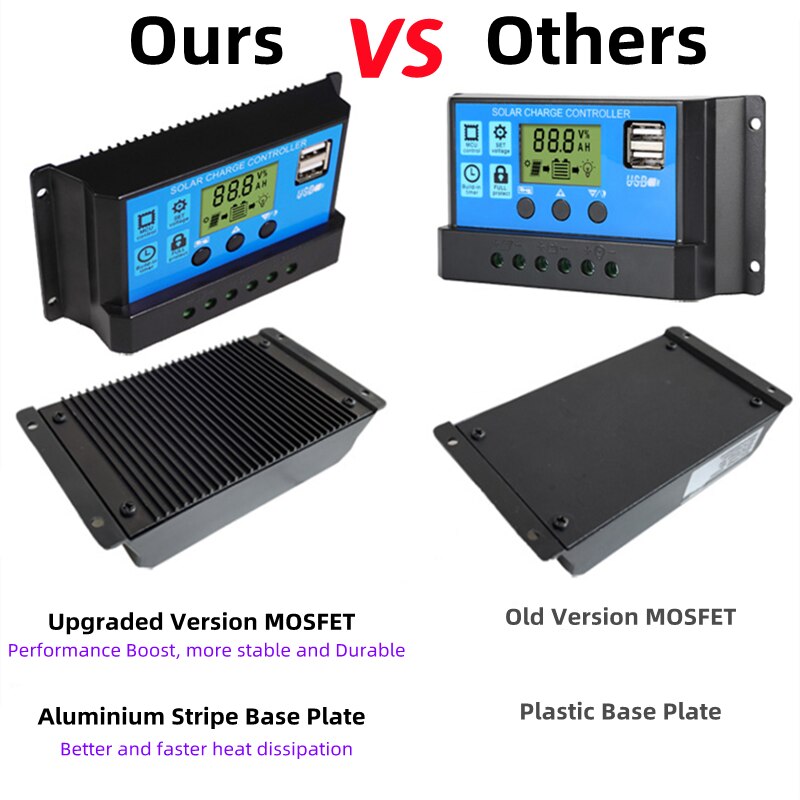

● Dual mosfet reverse current protection, low heat production
● Support lead-acid battery, dual USB charging function, floating charge, over-discharge, return voltage can be adjusted, a variety of batteries can be selected, power indicator.Support Apple's mobile phone charging

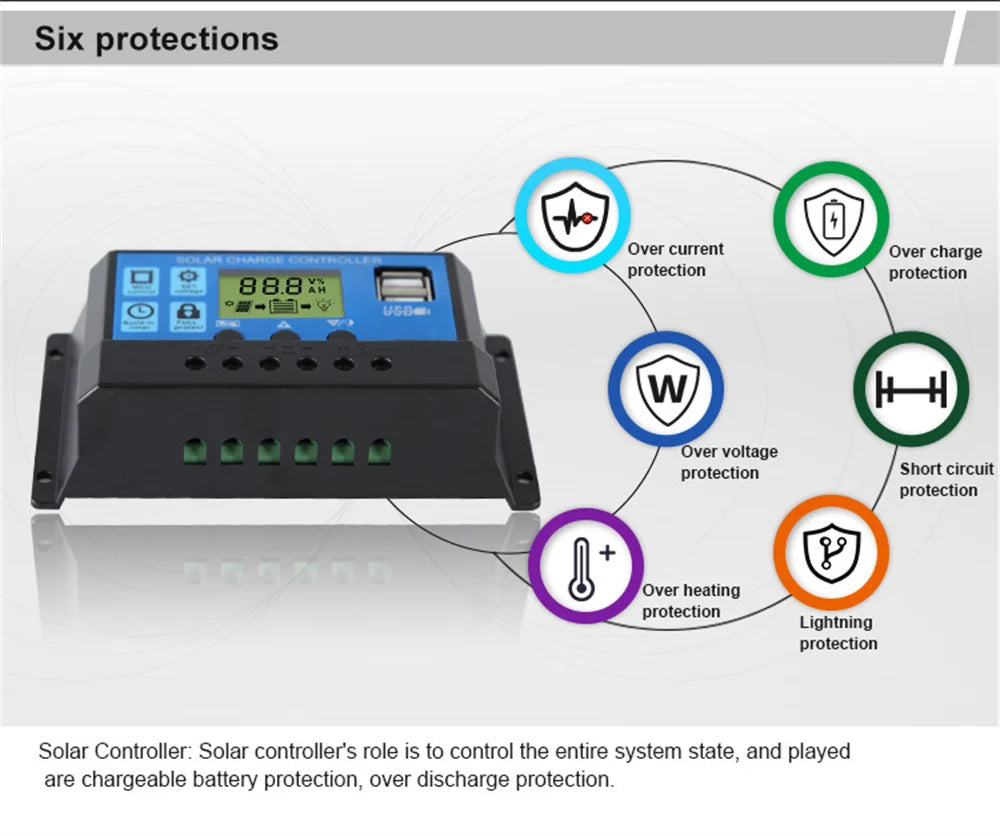

● Light control + delay function; it has protection against backflow, overcharge, overdischarge, lightning protection, overheating, output short circuit, etc., with memory function
● Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system
MODEL |
10A |
20A |
30A |
Battery Voltage |
12V 24V Auto |
||
Charging Current |
10A |
20A |
30A |
Discharging Current |
10A |
10A |
10A |
Max Solar input |
50V(for 24V battery) 25V(for 12V battery) |
||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
||
Floatcharge |
13.7V(defaul,adjustable) |
||
Discharge stop |
10.7V(defaul,adjustable) |
||
Discharge reconnect |
12.6V(defaul,adjustable) |
||
Charge reconnect |
13V |
||
Voltage of open light |
Solar Panel8V(Light lights delay) |
||
Voltage of close light |
Solar Panel8V(Light off delay) |
||
USB output |
5V/2A |
||
Self-consume |
<10mA |
||
Operating temperature |
-35°C~+60°C |
||

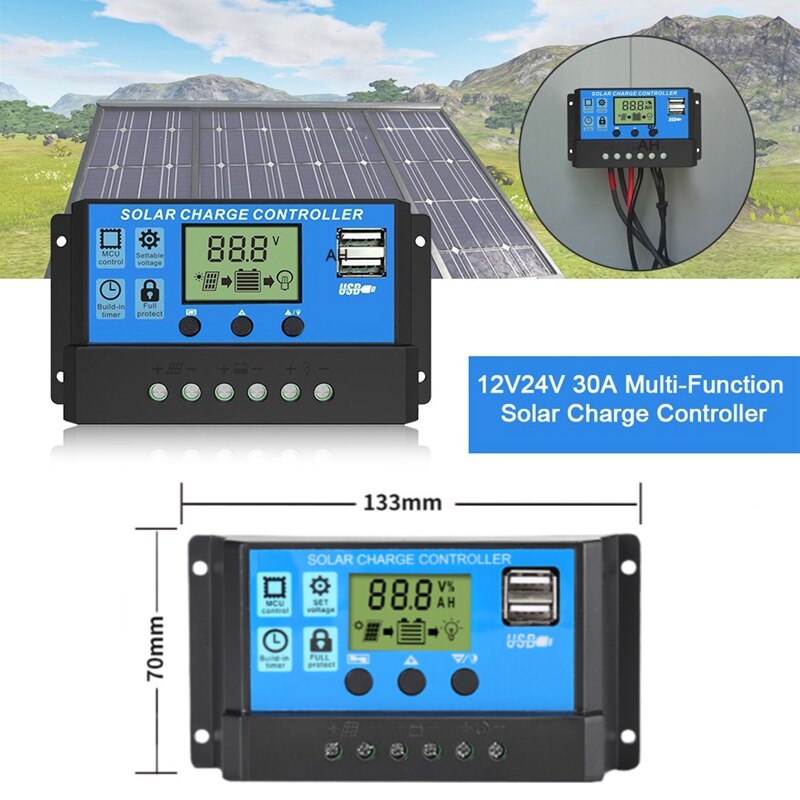

Size |
133.5*70*35mm |
||
Note |
*all red color voltage X2 ,while using 24V system. |
||

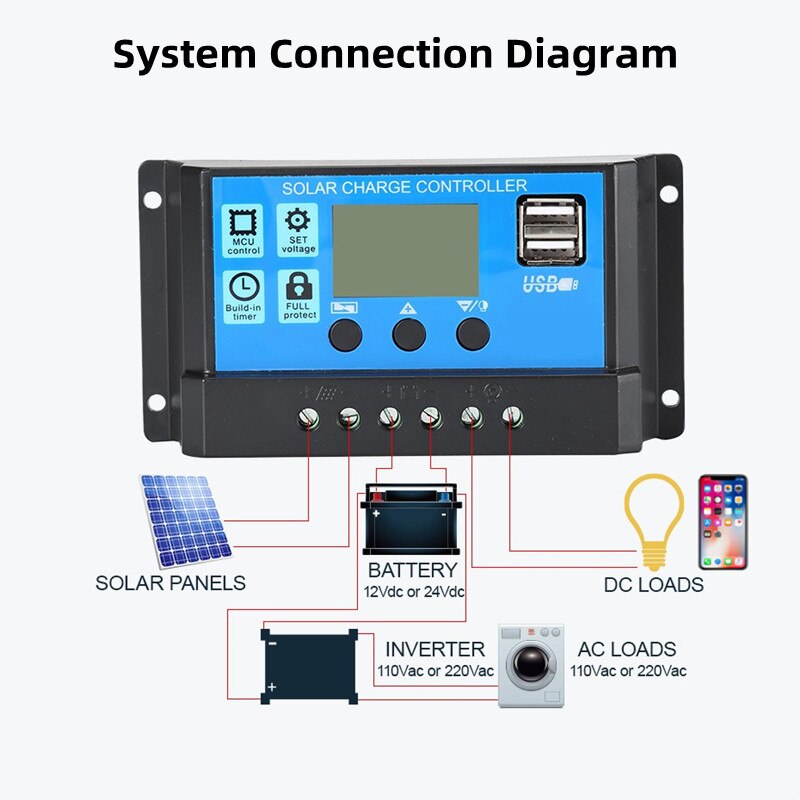

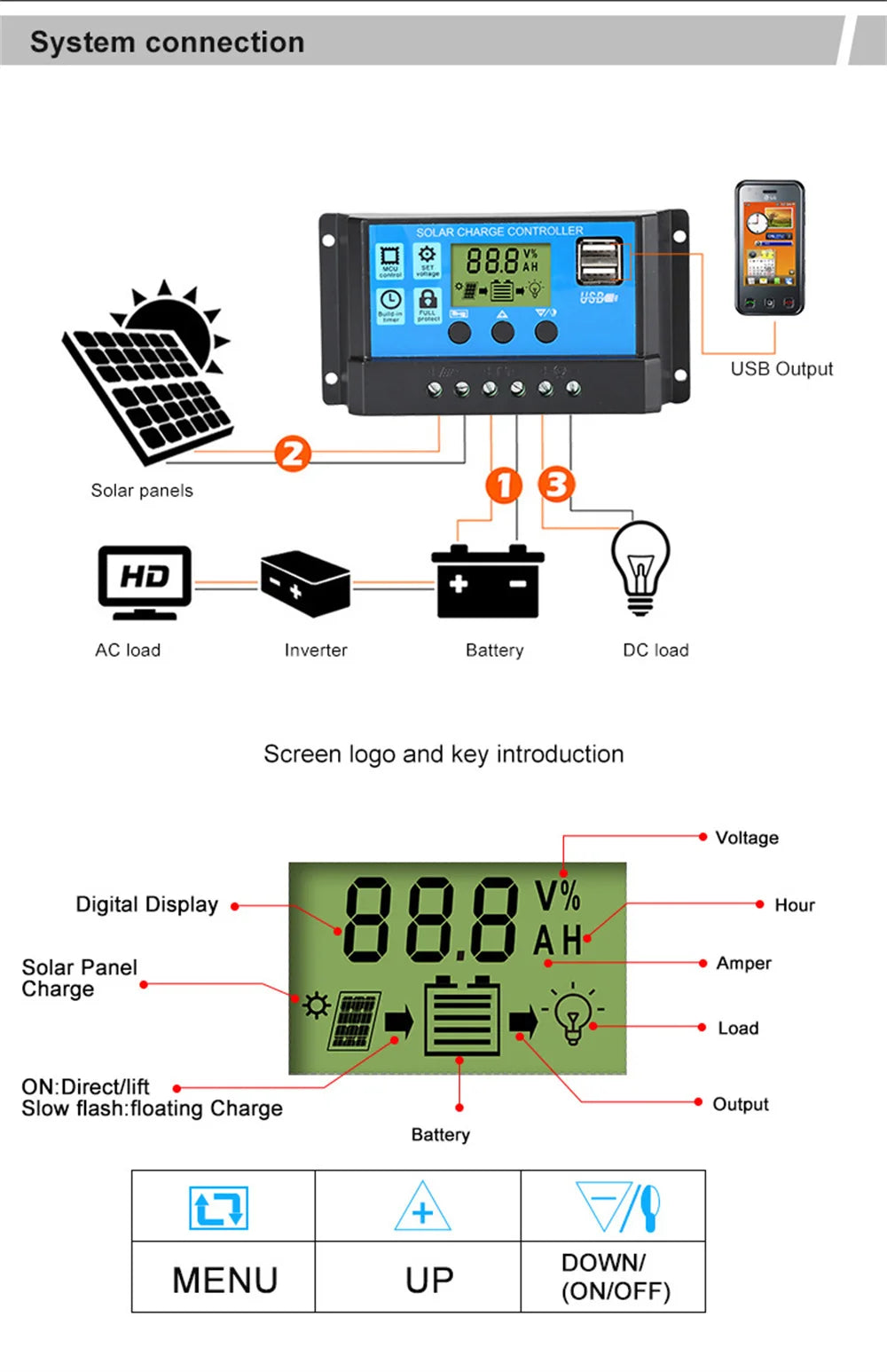

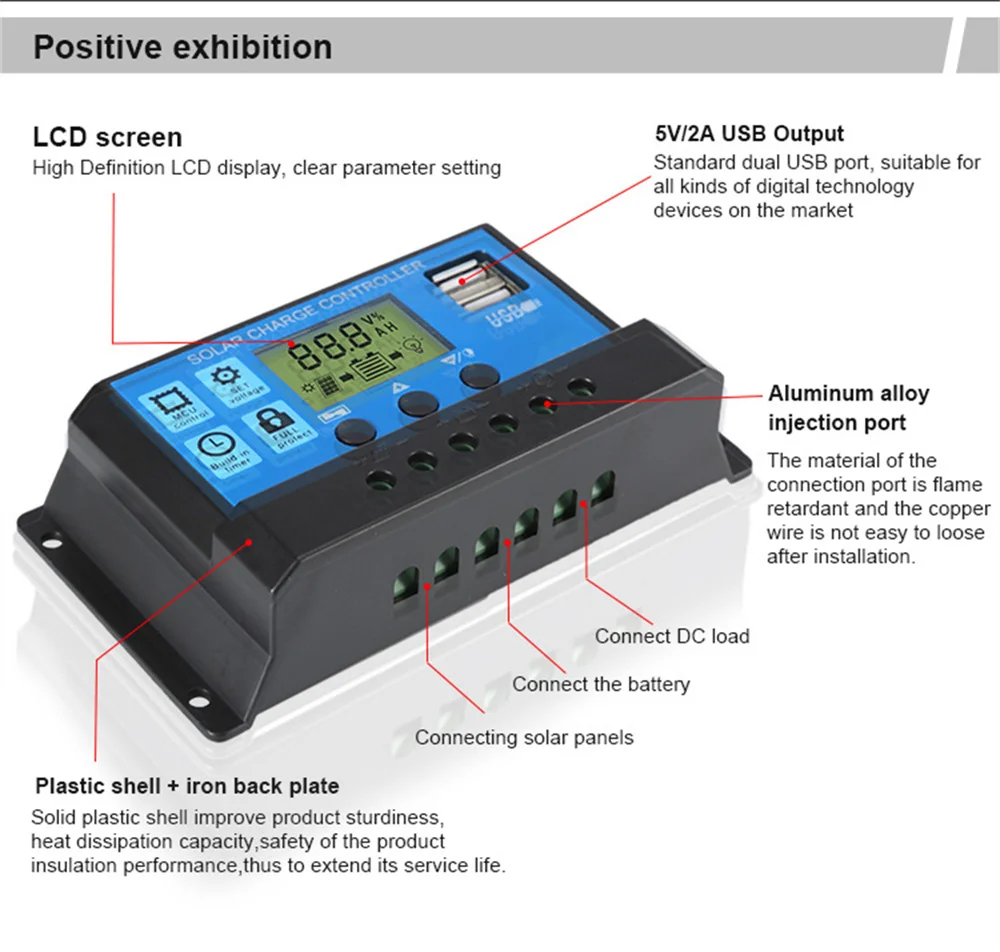

System Connection:
1.Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the regulator-plus and minus.
NOTE: The reverse order applies when deinstalling, an improper sequence order can damage the controller

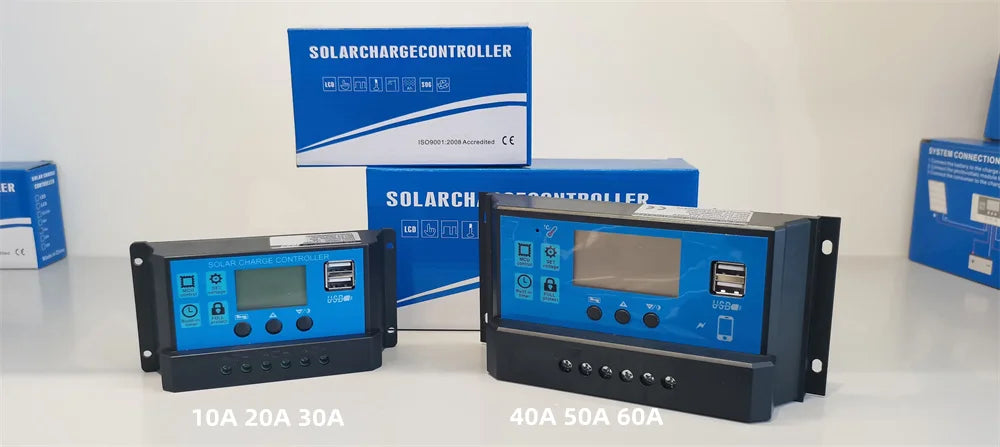

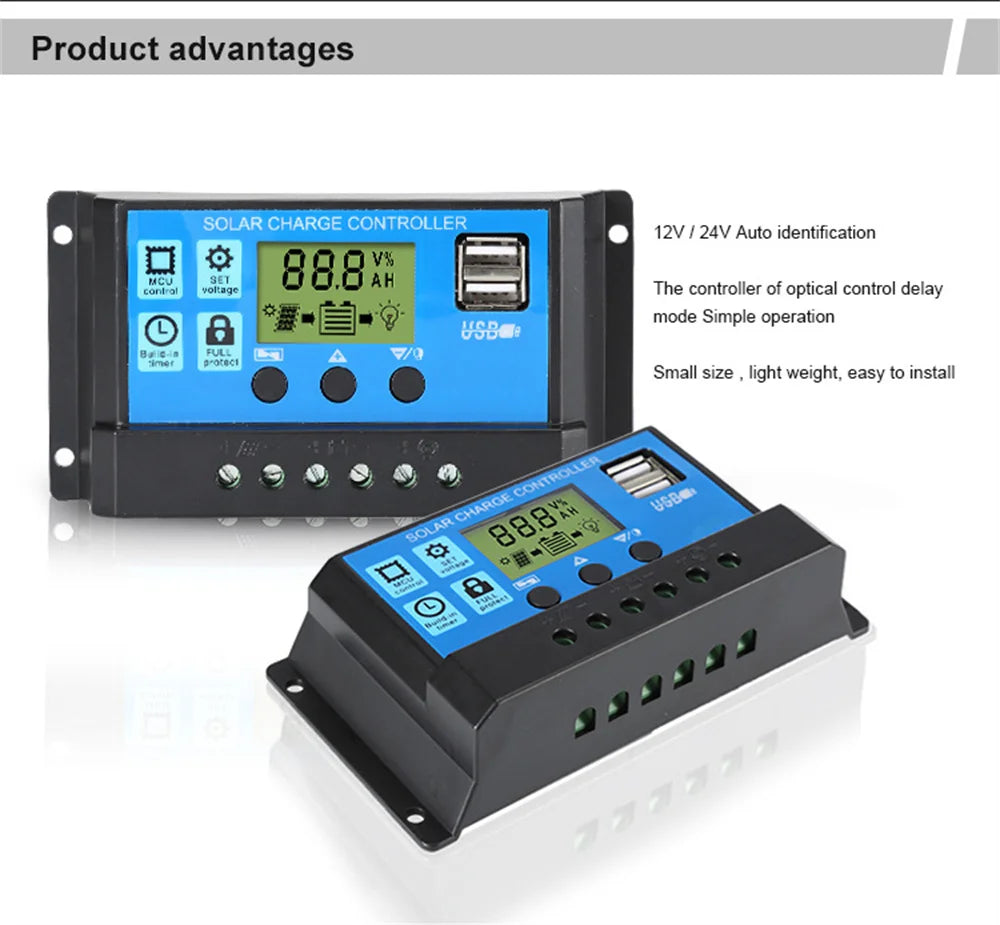

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically, There are optional 10A 20A 30A model.
10A:
-if your battery is 12V ,the max solar panel input is 25V 120W
-if your battery is 24V ,the max solar panel input is 50V 240W
20A:
-If your battery is 12V, the max solar panel input is 25V 240W
-if your battery is 24V, the max solar panel input is 50V 480W
30A
:
-if your battery is 12V ,the max solar panel input is 25V 360W
-if your battery is 24V ,the max solar panel input is 50V 720W
Safety Instruction:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation
2.The battery cable should be as short as possible to minimize loss
3.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator
Package Included:
1X Solar Panels Battery Charge Controller
1X User Manual
Notice:
1.Please allow slight deviation of measurement due to manual measurement.

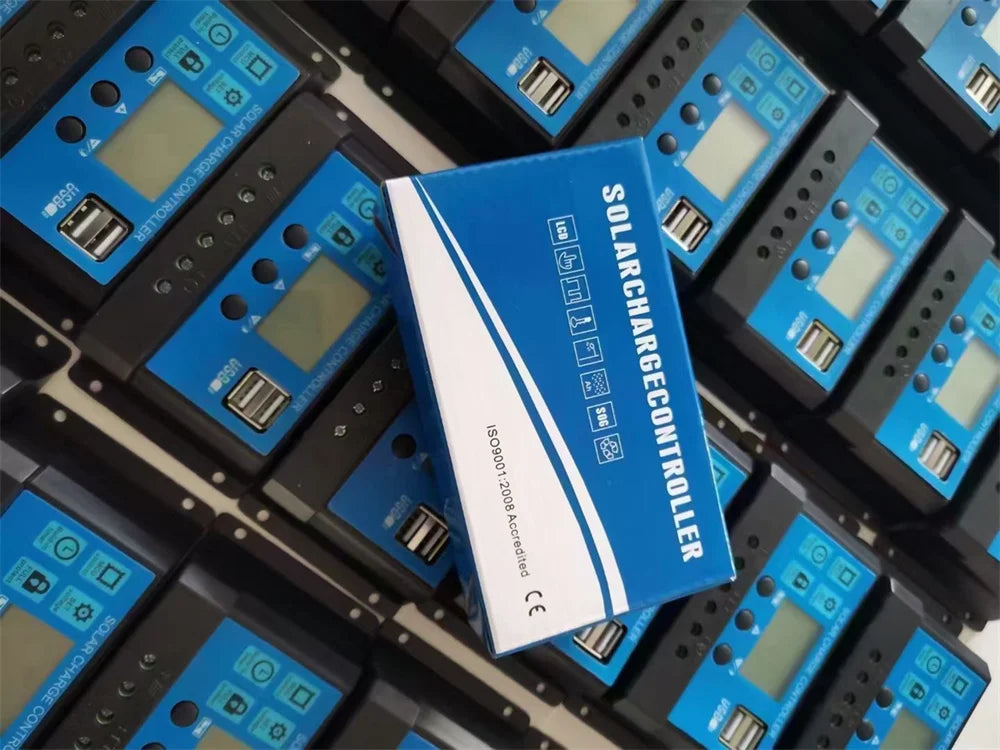

2.Due to different producing batches, product details might be a little different.
3.Due to different monitors and different light, the picture may not reflect the actual color of the item.
4.Please consider the actual sizes shown in the listing as the pictures are generally enlarged to show detail.
5. Indoor use only: the working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.
