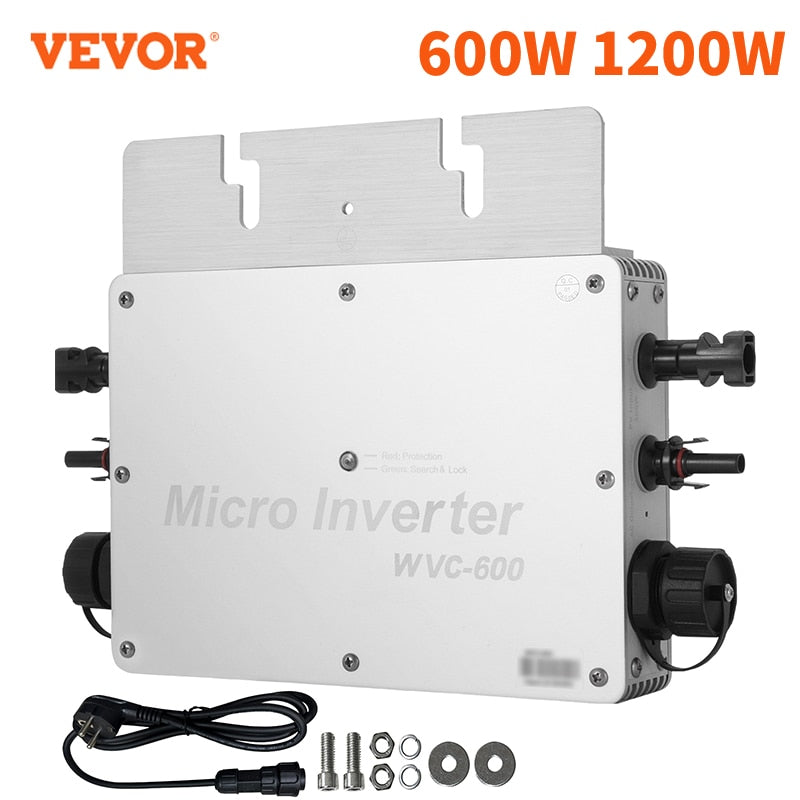

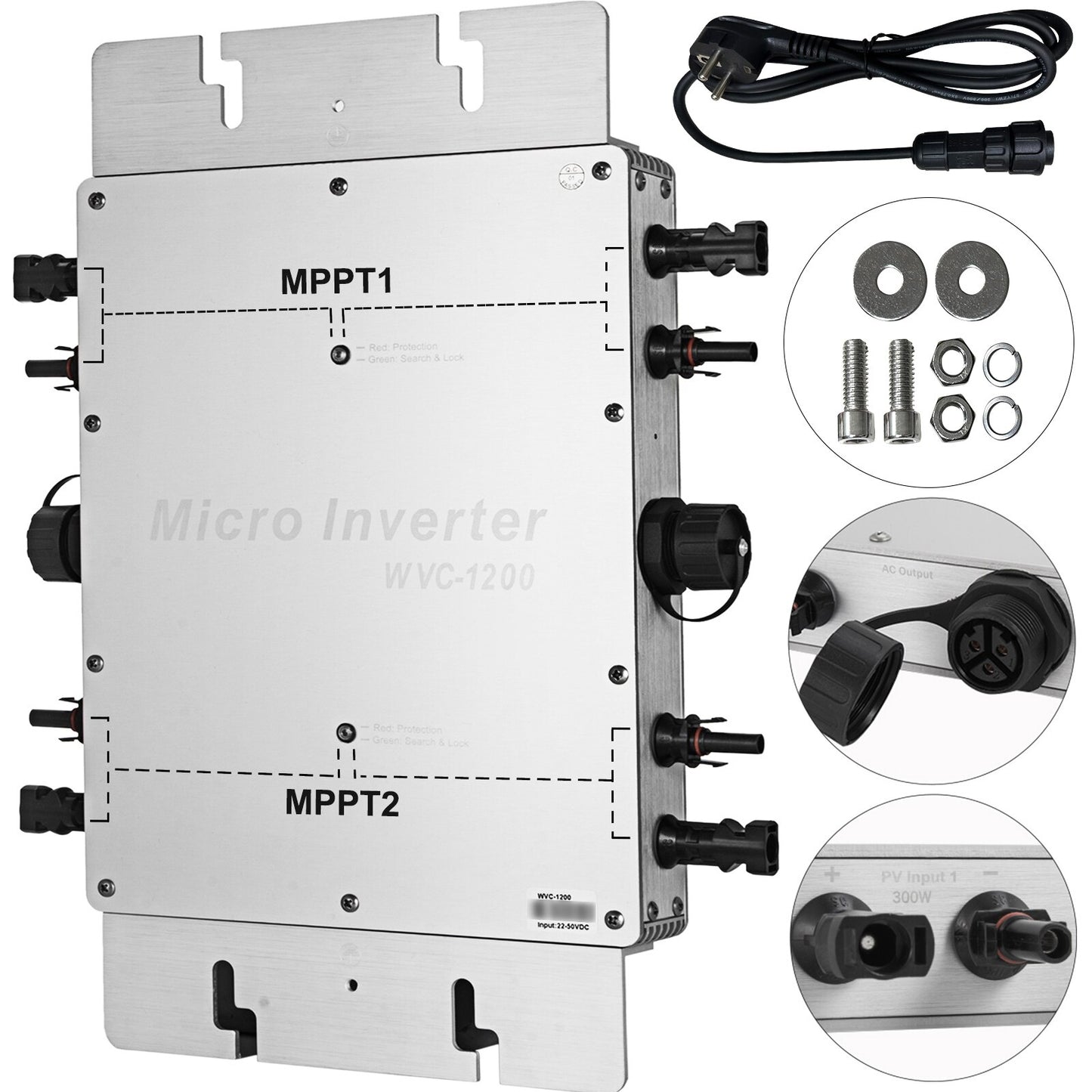

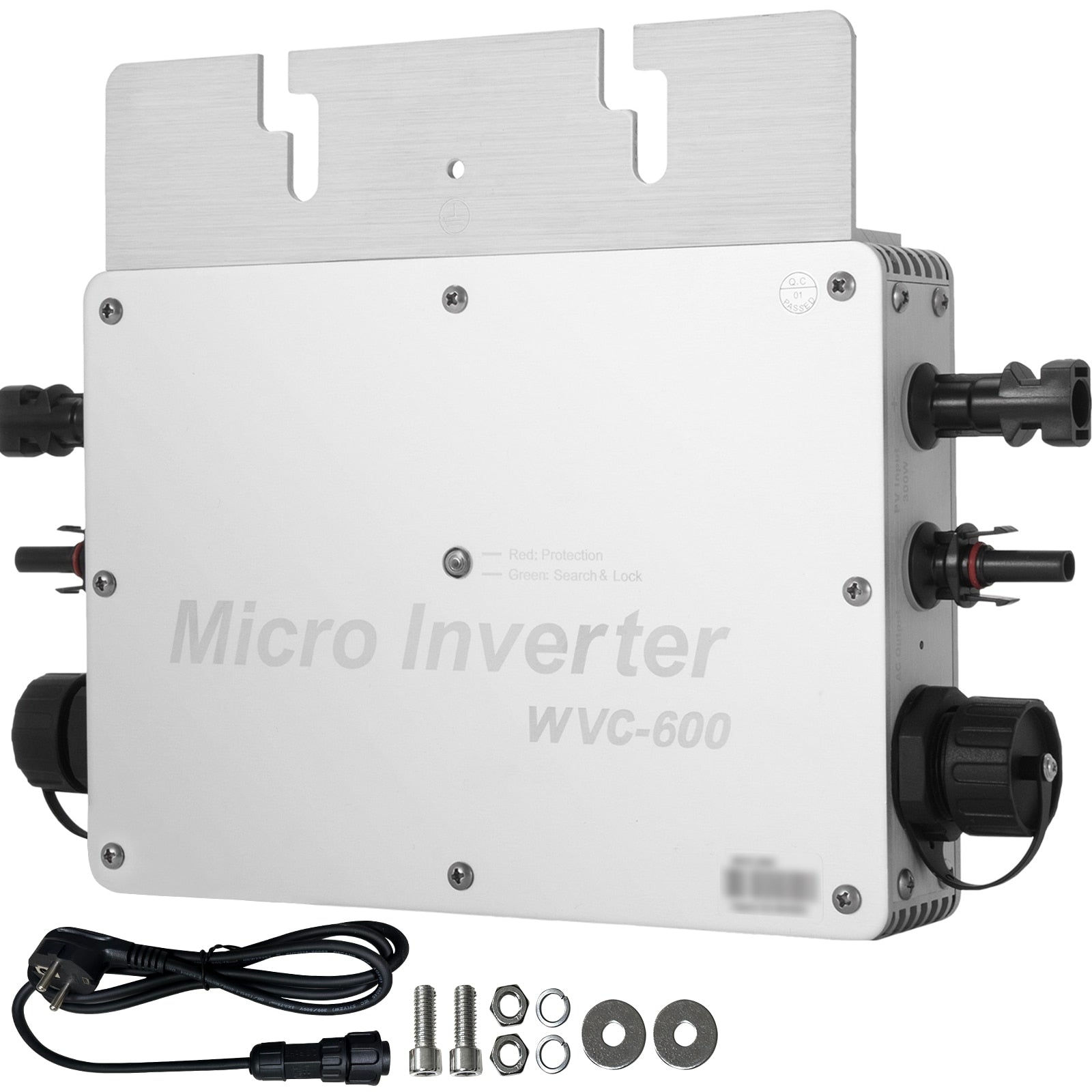

VEVOR 600W 1200W Solar Grid Tie Micro Inverter MPPT DC 22-50V to AC 220V/110V Waterproof IP65 Converter for Household Appliances

VEVOR 600W 1200W Solar Grid Tie Micro Inverter MPPT DC 22-50V to AC 220V/110V Waterproof IP65 Converter for Household Appliances

$121.19 USD
$121.19 USD
Sale Sold out
Shipping calculated at checkout.

23 orders in last 30 days

Color
Ships From

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Recommended input power: 600W / 1200W

Product: Solar Grid Tie Micro Inverter

Output power: 110VAC / 220VAC

Origin: Mainland China

Certification: CE


Product Description
MPPT Solar Grid Tie Micro Inverter
Efficiently turns sunlight into clean and green power. Our solar grid tie micro inverter employs MPPT technology, reverse power transmission, and digital control. It is designed to provide sufficient power to drive various household appliances. Moreover, it has a prolonged service life given its IP65 waterproof design and aluminum alloy structure. The first step on the sustainable energy path is energy conservation, and this inverter aims at achieving exactly this.

  • MPPT Technology

  • High Performance

  • Protective & Reliable

  • Easy Operation

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Friendly Note:

1. This is a Grid-Tie inverter, which means connecting the Grid power to the "AC output" would be necessary for Grid-tie power generation. Please check the voltage is 110V or 220V as well, different options according to the Grid voltage.
2. If taking the solar panels as the input instead of batteries, "VOC" Voltage should be set in the range of 30-48V, the solar panels' power is set 20% bigger than the inverter's output power would be recommended. E.g. for the 600W inverter, the total solar panels' total output power should be 700-750W. For the 1200W inverter, the total power should be 1200~1400W.
3. If taking the battery packs as input, 36V battery packs would be firstly recommended, three 12V batteries are connecting in series to 36V would be fine. When wires the inverter, please follow the indication in the inverter, Pos (+) to Pos (+), Neg(-) to Neg (-). Regarding the battery's capacity, 36V/10mah to 300W, 36V/20mah to the 600W inverter, and 36V/40-45mah to the 1200W inverter.
4. Please check the configuration, input and output voltage are totally in the allowance, ensure the inverter could run normally and Grid to Grid generation.
Key Features

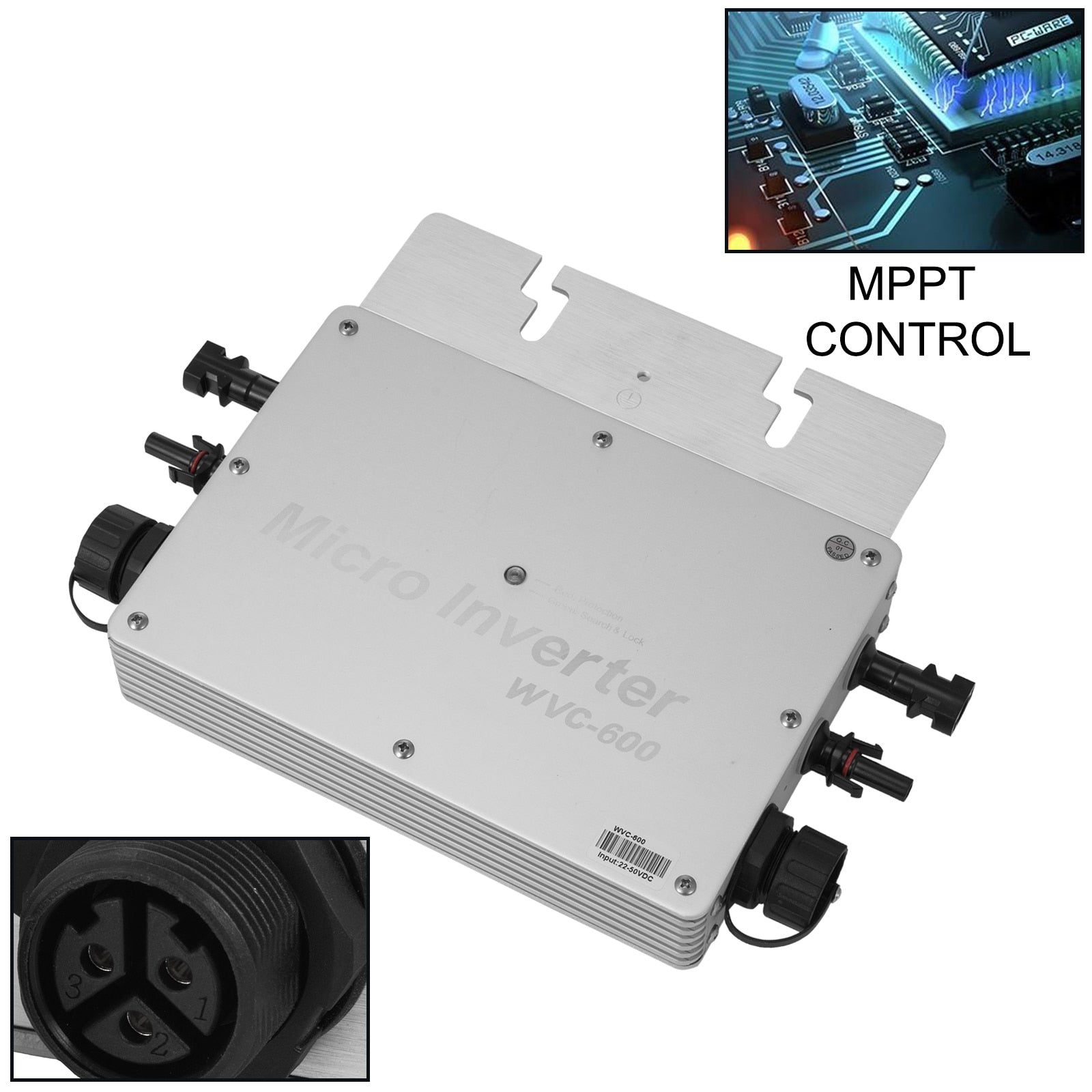

High Automation
The robust MPPT algorithm can automatically track the power points and increase the power generation by 25%. With a real-time monitoring system, it can help you monitor power generation efficiency and reduce workforce expenses.

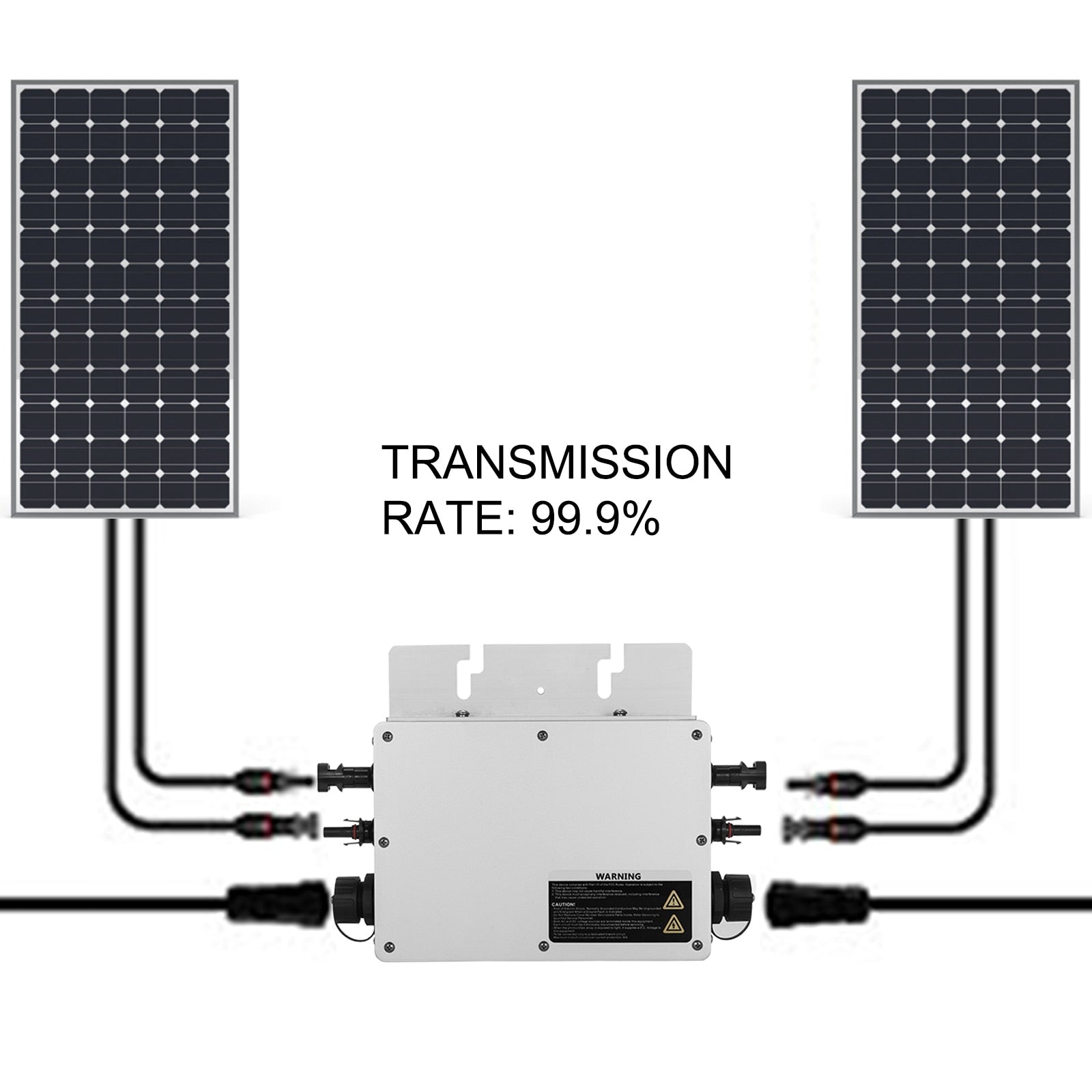

Efficient Transmission
Efficient reverse power transmission technology. Power transmission rate up to 99.9%. All digital control and intelligent soft switch technology are adopted in the charging module.

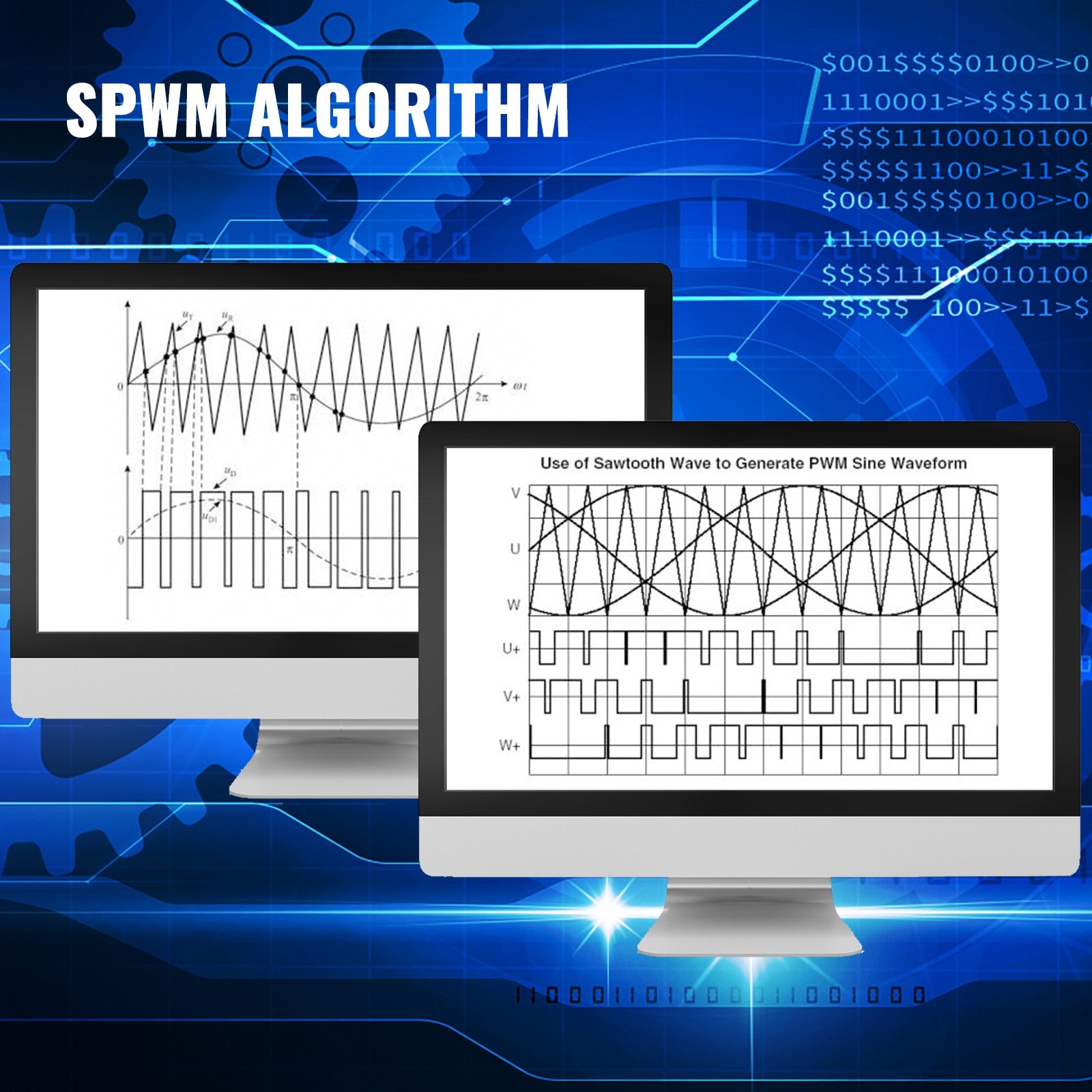

Digital Control
The digital SPWM control technology is characterized by strong anti-interference ability, fast calculation speed, high intelligent degree, high control precision, and excellent output waveform.

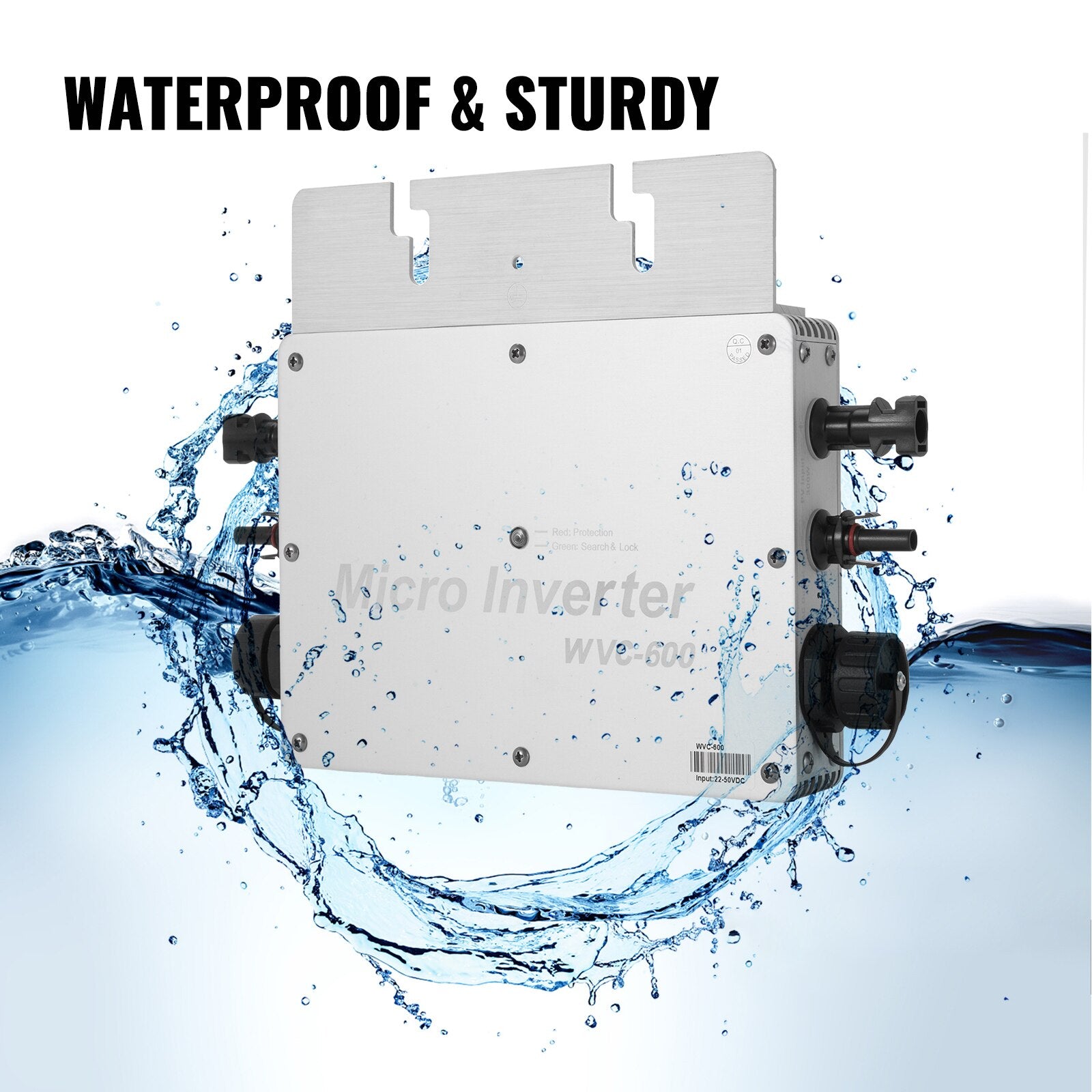

IP65 & Aluminum Material
Introducing IP65 waterproof appearance design and aluminum alloy material, it is safe and reliable. Multiple protection functions are provided to prolong service life.
Easy To Use

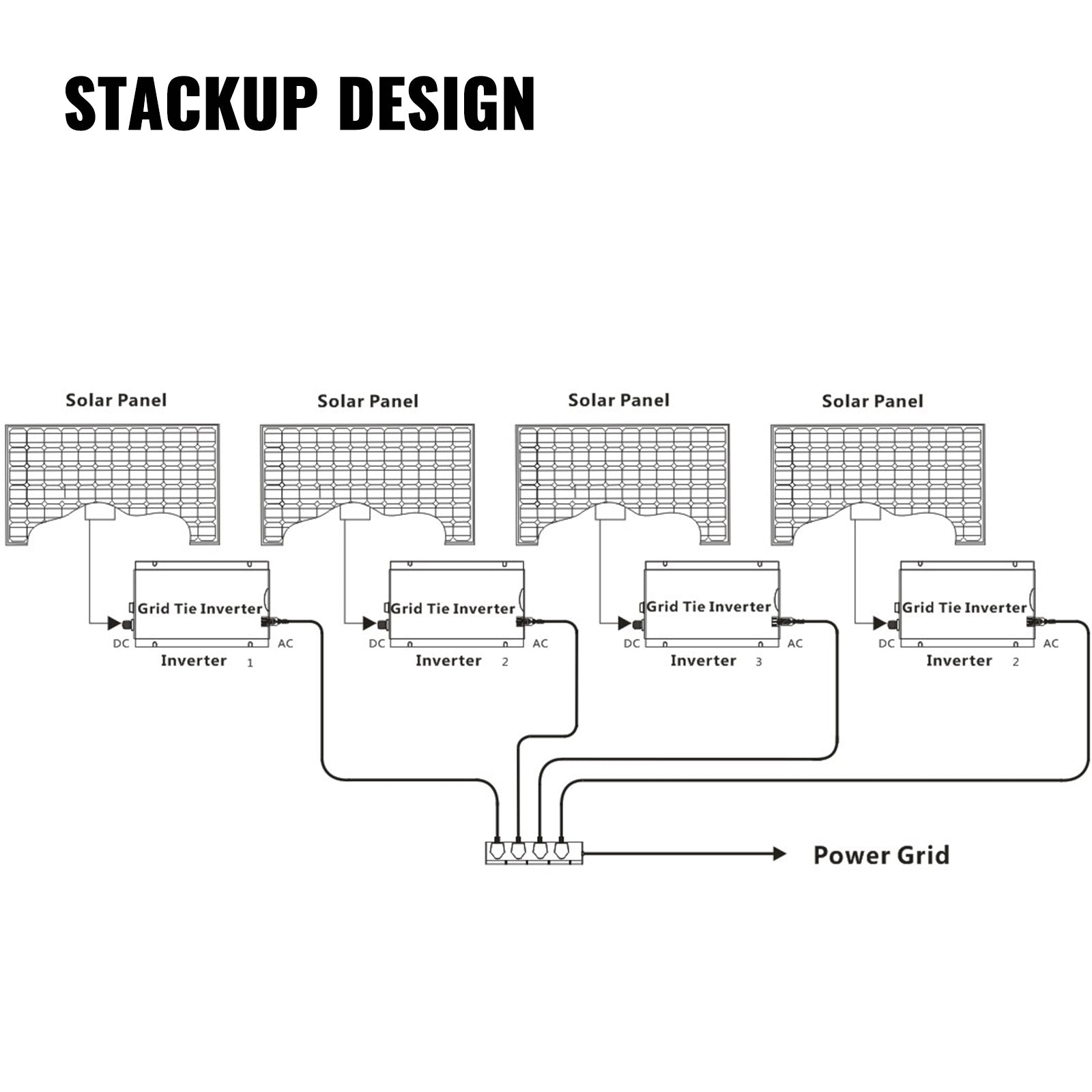

Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel stacking system. It is simple, whether installation or maintenance.
Wide Usage
It is suitable for various household appliances. It can convert the DC power generated by solar panels into AC power available for household appliances.
600W 220V Micro Inverter

  • Recommended input power: 600W

  • Recommend the use of PV modules: 2 x 300W, 30-50VOC

  • Maximum input DC voltage: 54V

  • Peak power tracking voltage: 25-40V

  • Operating voltage range: 17-50V

  • Min/Max start voltage: 22-50V

  • Maximum DC short current: 40A

  • Maximum input current: 27.2A

  • Output power: 220VAC

  • Peak power output: 600W

  • Rated output power: 550W

  • Rated output current: 2.39A

  • Rated voltage range: 180-260VAC

  • Rated frequency range: 47-52.5 Hz

  • Power factor: >99%

  • Maximum units per branch circuit: 12pcs (Single-phase)

  • Static MPPT efficiency: 99.5%

  • Maximum output efficiency: 92.5%

  • Nighttime power consumption: <1W

  • THD: <5%

  • Ambient temperature: -40~+60 ℃

  • Operating temperature range(inverter inside) : -40~+82 ℃

  • Waterproof rating: IP65

  • Cooling: Self-cooling

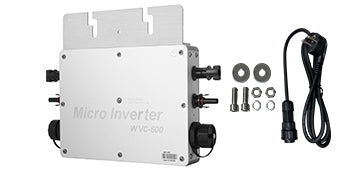

Package Content

  • 1 x 600W Solar Grid Tie Micro Inverter

  • 1 x Tee connector

  • 1 x 1.5 m Power Cable

  • 1 x Set of Mounting Accessories

  • 1 x Product Manual

1200W 220V Micro Inverter

  • Recommended input power: 1200W

  • Recommend the use of PV modules: 4 x 300W, 30-50VOC

  • Maximum input DC voltage: 54V

  • Peak power tracking voltage: 25-40V

  • Operating voltage range: 17-50V

  • Min/Max start voltage: 22-50V

  • Maximum DC short current: 80A

  • Maximum input current: 54.4A

  • Output power: 220V AC

  • Peak power output: 1200W

  • Rated output power: 1150W

  • Rated output current: 5A

  • Rated voltage range: 180-260VAC

  • Rated frequency range: 47-52.5 Hz

  • Power factor: >99%

  • Maximum units per branch circuit: 6pcs (Single-phase)

  • Static MPPT efficiency: 99.5%

  • Maximum output efficiency: 92.5%

  • Nighttime power consumption: <1W

  • THD: <5%

  • Ambient temperature: -40 to 60 ℃

  • Operating temperature range(inverter inside) : -40 to 82 ℃

  • Waterproof rating: IP65

  • Cooling: Self-cooling

Package Content

  • 1 x 1200W Solar Grid Tie Micro Inverter

  • 1 x Tee connector

  • 1 x 1.5 m Power Cable

  • 1 x Set of Mounting Accessories

  • 1 x Product Manual

1200W 110V Micro Inverter

  • Recommended input power: 1200W

  • Recommend the use of PV modules: 4 x 300W, 30-50VOC

  • Maximum input DC voltage: 54V

  • Peak power tracking voltage: 25-40V

  • Operating voltage range: 17-50V

  • Min/Max start voltage: 22-50V

  • Maximum DC short current: 80A

  • Maximum input current: 54.4A

  • Output power: 110VAC

  • Peak power output: 1200W

  • Rated output power: 1150W

  • Rated output current: 9.58A

  • Rated voltage range: 80-160VAC

  • Rated frequency range: 57-62.5 Hz

  • Power factor: >99%

  • Maximum units per branch circuit: 3pcs (Single-phase)

  • Static MPPT efficiency: 99.5%

  • Maximum output efficiency: 91.2%

  • Nighttime power consumption: <1W

  • THD: <5%

  • Ambient temperature: -40 to 60 ℃

  • Operating temperature range(inverter inside) : -40 to 82 ℃

  • Waterproof rating: IP65

  • Cooling: Self-cooling

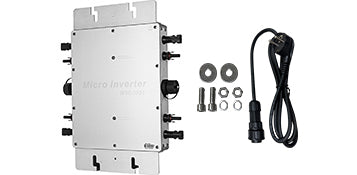

Package Content

  • 1 x 1200W Solar Grid Tie Micro Inverter

  • 1 x Tee connector

  • 1 x 1.5 m Power Cable

  • 1 x Set of Mounting Accessories

  • 1 x Product Manual

Features & Details

  • 【MPPT TECHNOLOGY】 - Precise maximum power point tracking. MPPT algorithm can optimize the power collection from solar panels. It accurately captures and collects sunlight, and locks in the maximum output power points, significantly increasing over 25% of the power generation. With the monitoring system, it can help you monitor the power generation efficiency of the power station and reduce workforce expenses.

  • 【HIGH PERFORMANCE】 - Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate up to 99.9%. Full digital control can be achieved by using intelligent soft switching technology and built-in MCU for charging modules; Introducing high-frequency switching power supply and SPWM control technology. It features strong anti-interference ability, fast calculation speed, a high degree of intelligence, high control precision, and excellent output waveform.

  • 【PROTECTIVE & RELIABLE】 - IP65 waterproof design and aluminum alloy material can effectively prevent rainwater erosion on the surface. It provides electrical isolation, more reliable to use. It offers multiple protection functions, such as over-current protection, short circuit protection, low-voltage protection, over high voltage protection.

  • 【EASY OPERATION】 - Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel stacking system. Almost no maintenance work is required, clean the dust on the photovoltaic panel occasionally.

  • 【SUSTAINABLE USE】 - This solar power grid-tie micro-inverter can convert DC power generated by solar panels into AC power. Our solar inverter provides sustainable energy and brings excellent environmental benefits.
