SPECIFICATIONS

Weight: 4.3KGS/5.4KGS

Type: DC/AC Inverters

Size: 322x196x88mm/434x196x88mm

Output Frequency: Auto: 50Hz(47.5-51.5Hz);60V(59.3-60.5Hz)

Output: Pure Sine Wave

Origin: Mainland China

MPPT Effeciency: 99%

Frequency: Auto: 50Hz(47.5-51.5Hz);60V(59.3-60.5Hz)

Certification: CE,FCC,RoHS

Brand Name: VESDAS

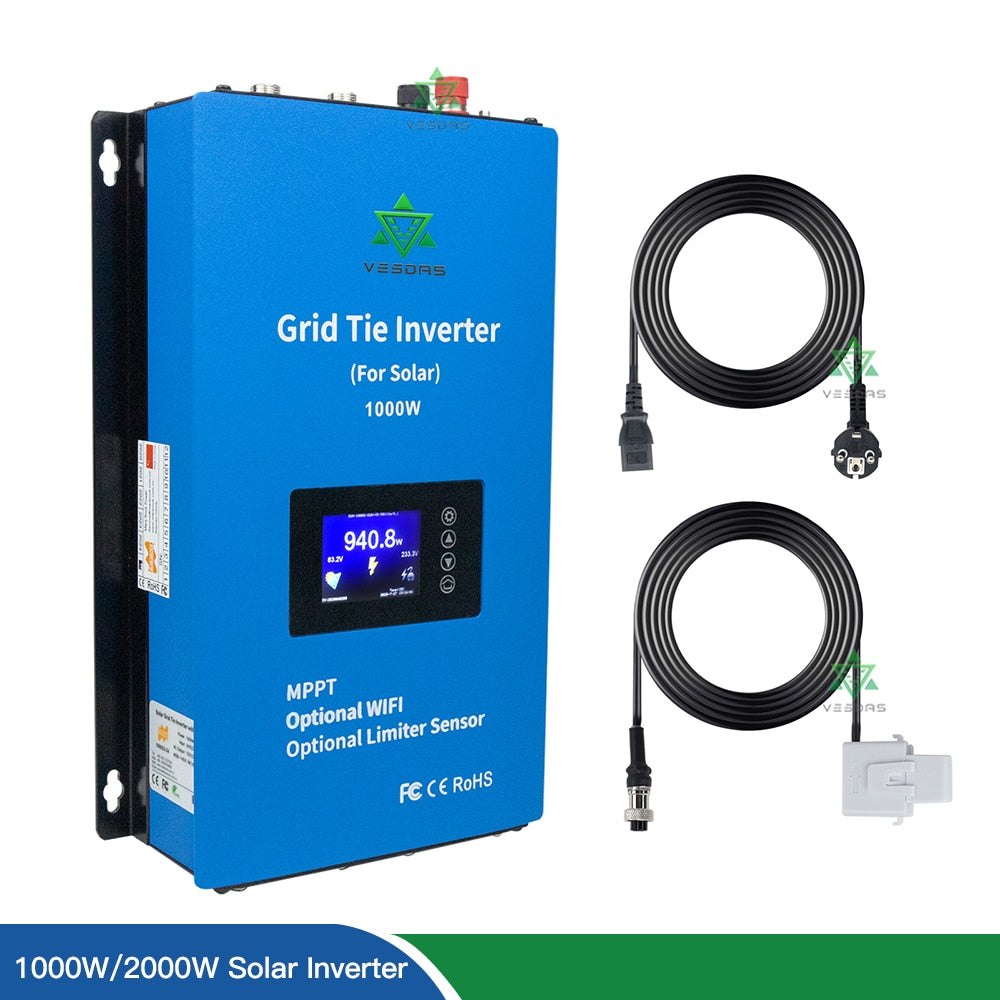

Solar Inverter with Limiter Sensor and MPPT Technology: 1000W or 2000W Power Output for Grid-Tied Systems. Suitable for PV Systems with 36, 60, 72, or 96 cells. Features an LCD display and can handle AC voltages of 110V or 220V. Ideal for residential grid-tie applications.

Special tips:

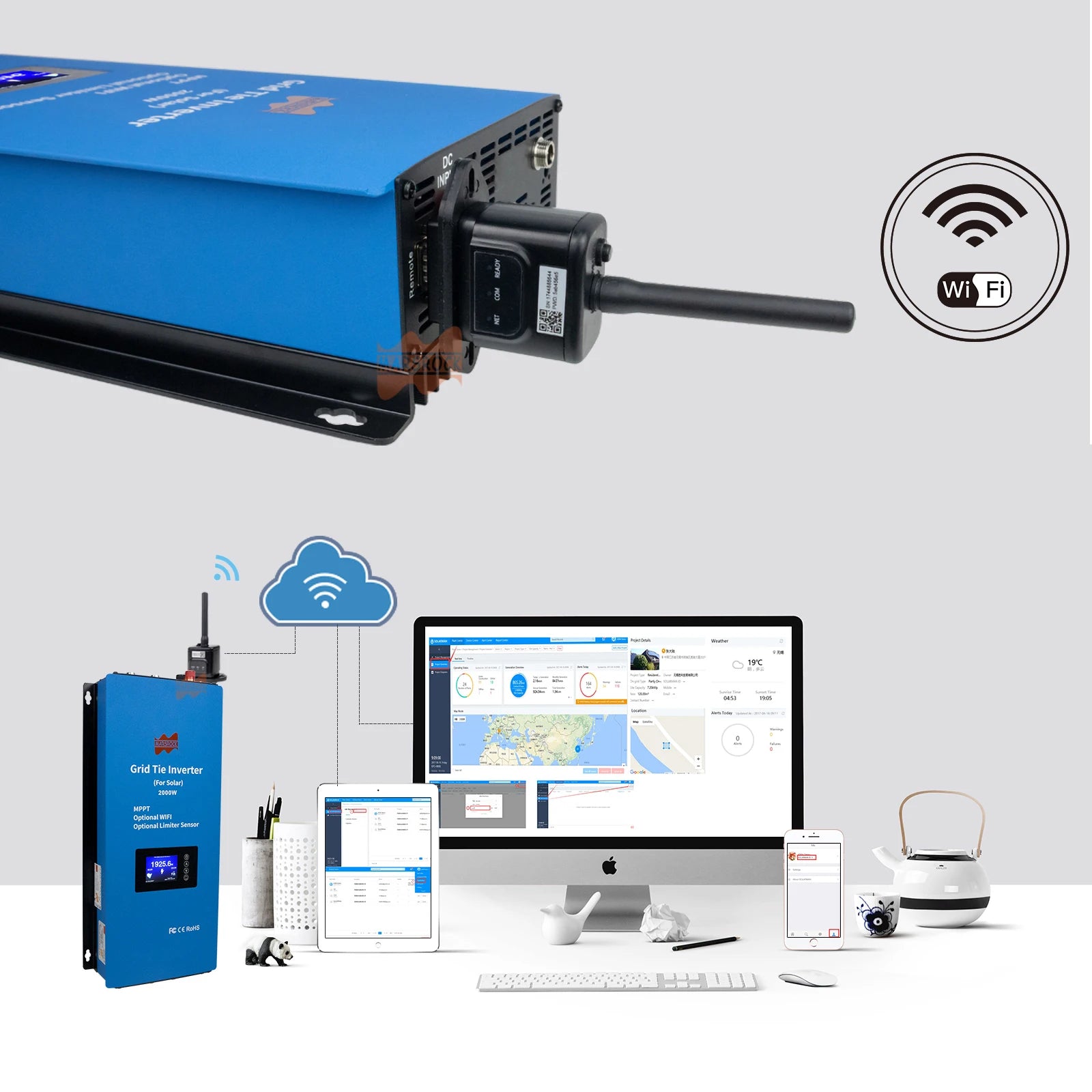

Due to the different communication protocols of different manufacturers, we strongly recommend that users who purchase our G2 series inverter to purchase this WIFI. (we adopt Eybond’s protocols). Otherwise, communication between WIFI and INVERTER may not be established due to different protocols.

Related Product

1000w Grid Tie Inverter forSolar Panels or Battery

-- working well with all kinds of Battery

--with internal Limiter / Wi-Fi connection

-- Limiter sensor clamp Wi-Fi port (optional )

--Input voltage Range : DC 22V-60V or 45V-90V (optional )

--Output Voltage : AC 110V 120V 220V 230V 240V (automaticly)

Advantage of The Sunshine Grid Tie Power System

• Low cost and easy installation - Easy installation of solarmodules and grid tie inverter. It just needs very low maintenance costs

• Low power consumption, over current protection, over temperature protection, reverse polarity protection, etc.

• mproving the efficiency of the entire solar power system-- Because of MPPT function. So every panel is working at the maximum. And when the DC is 36V, the efficiency is the highest

• Free combination - SGPV can be used as a separate grid tie system and can be setup as a large solar array withmany of them. The quantity of SGPV in the array is just according to your desire

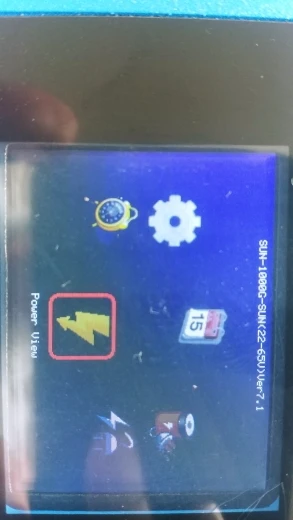

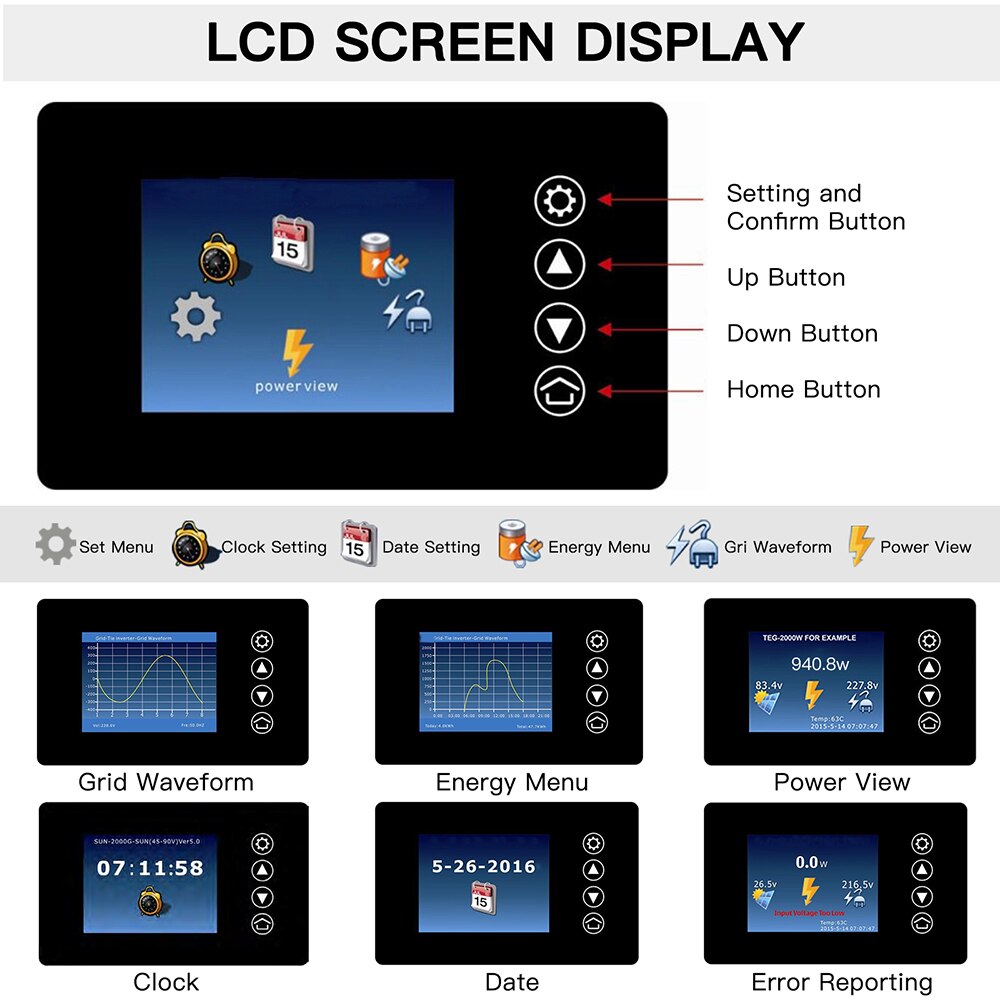

• The screen can display daily power generation & total power generation, real-time waveform display of the power grid, real-time voltage & current of solar energy system, real-time power, internal temperature, date and time

It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem

This is the 2nd generation grid tie inverter with limiter.

With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way,No additional limiter module is needed,reduced customerrsquos cost,more easier for installation.But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode,just set on the nice LCD and save your setting.

New upgraded firmware enable battery or solar limiter current and power model.

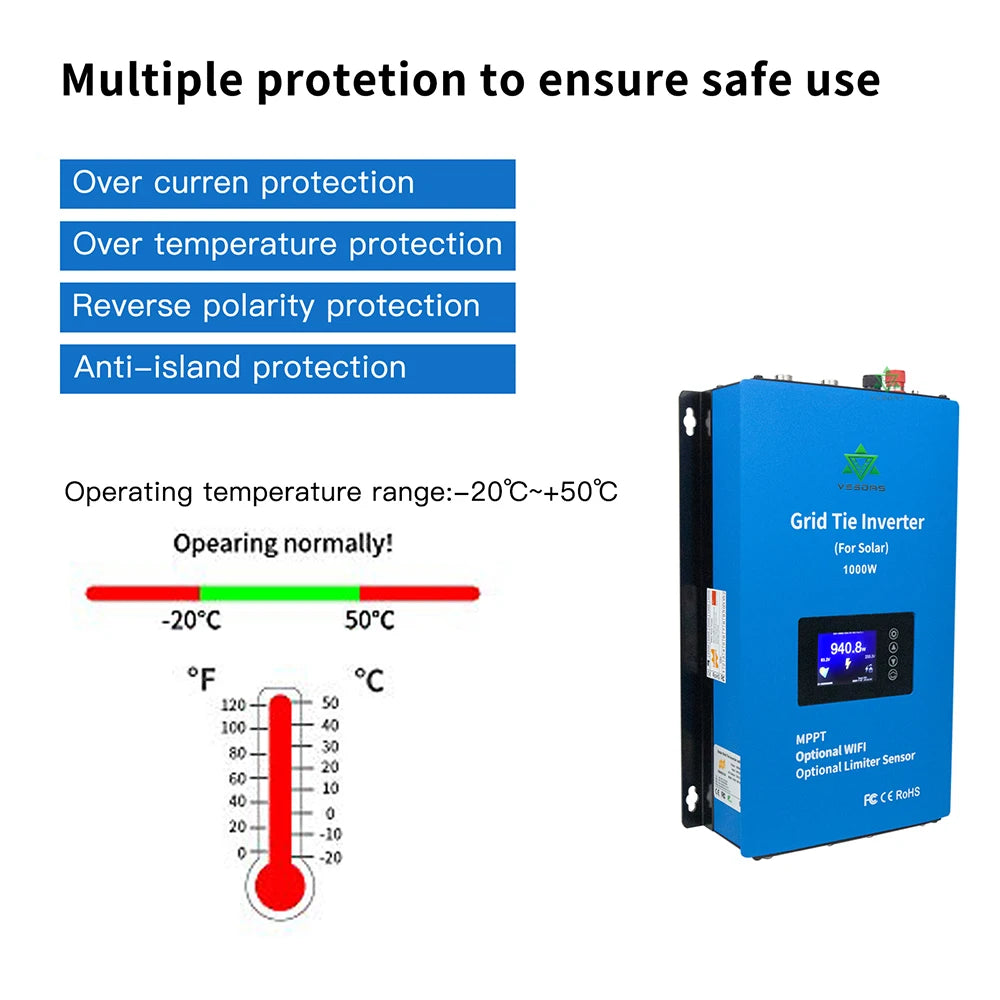

Multiple safety features ensure safe operation: overcurrent protection, overtemperature protection, reverse polarity protection, and anti-island protection. The solar inverter operates within a temperature range of -20°C to 50°C (108°F). Grid Tie Inverter mode is enabled for normal solar energy harvesting.

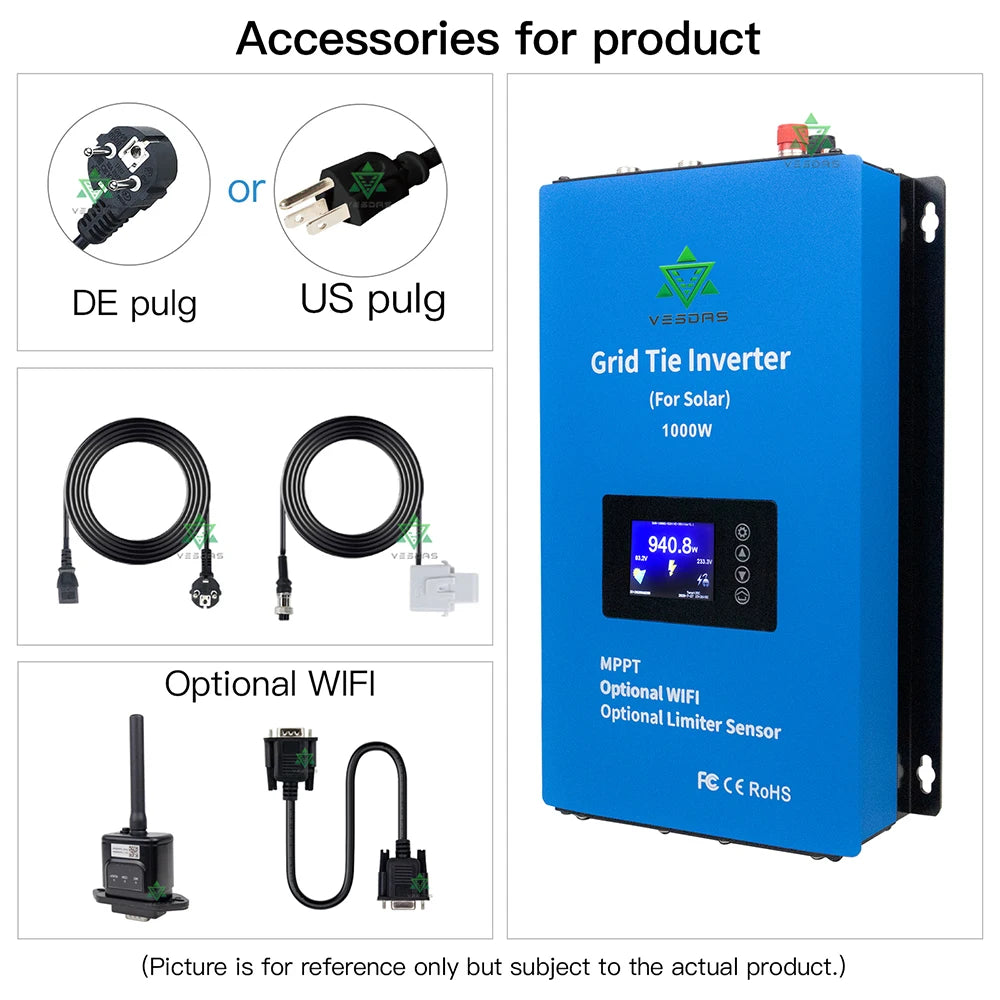

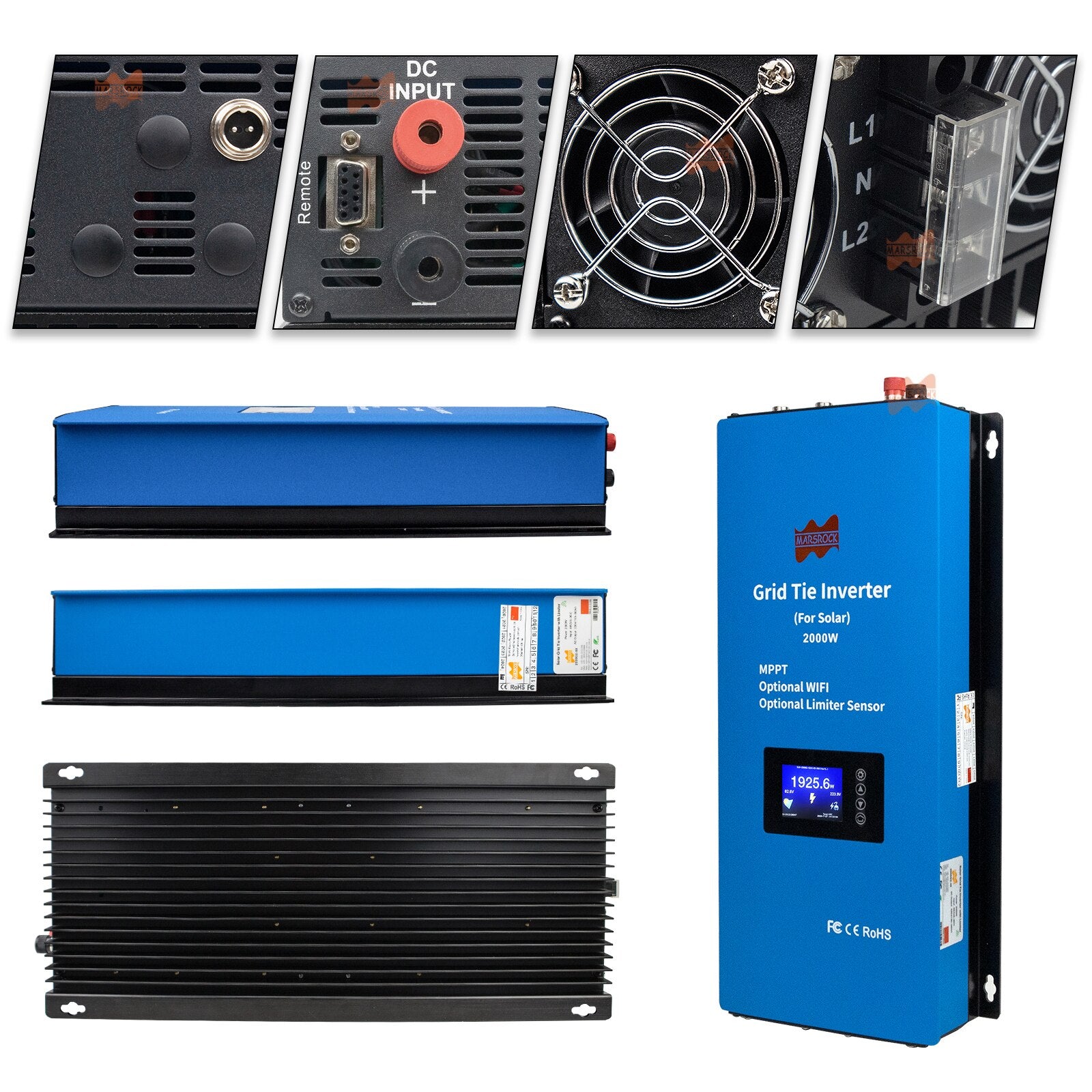

Marsrock 2000W Grid-Tie Inverter for solar panels with optional WiFi and limiter sensor, featuring MPPT (Maximum Power Point Tracking) technology. ROHS compliant.

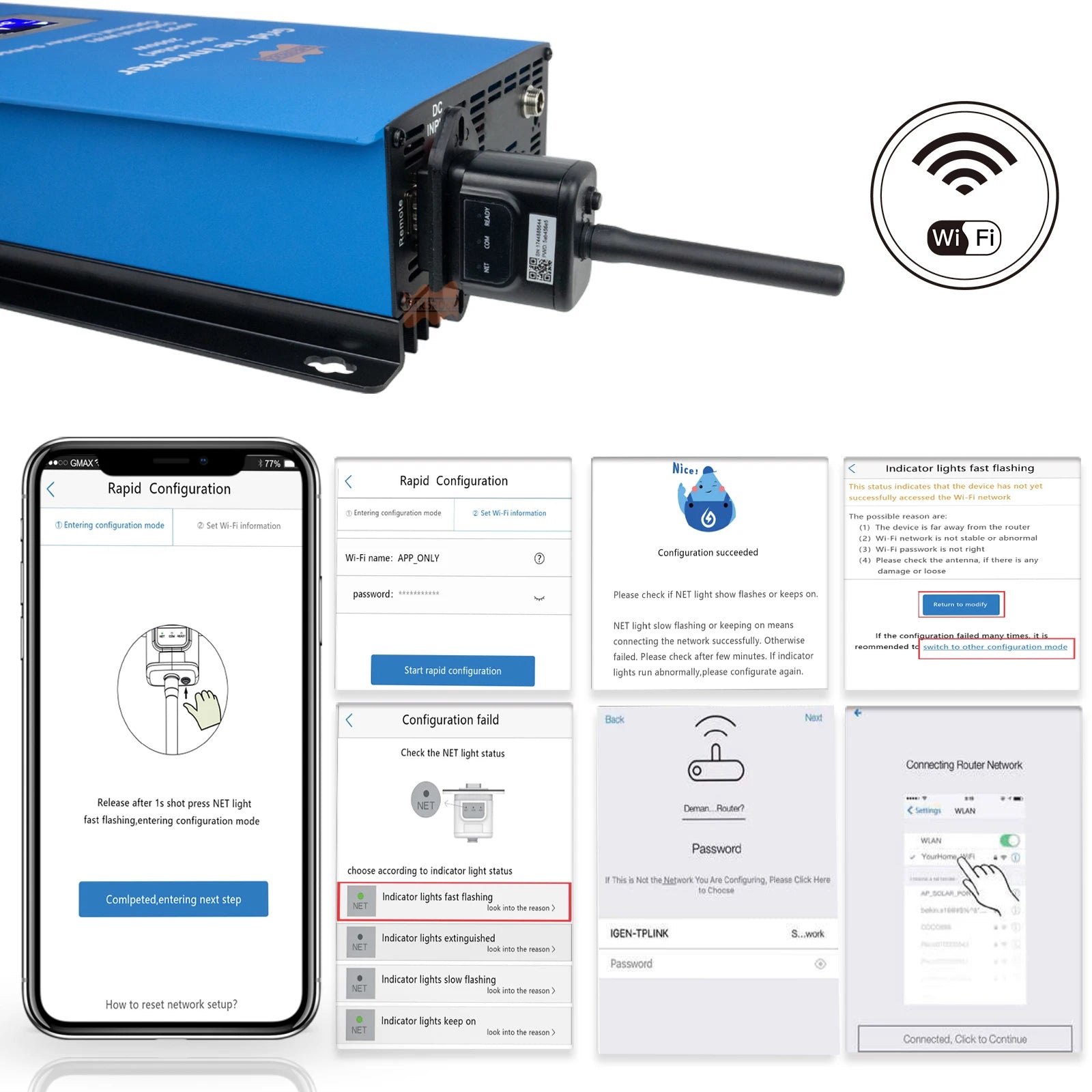

Device Configuration Status: The indicator lights are flashing rapidly, indicating that the device has successfully accessed the Wi-Fi network. To enter configuration mode, set your Wi-Fi information, and ensure a stable connection with the correct password. If the NET light shows rapid flashes or remains on, it means configuration failed multiple times. Try reconnecting to the network after a few minutes. If the indicator lights continue to flash abnormally, please reconfigure. Check the NET light status if it's stuck or flashing rapidly.

Grid-tie inverter with MPPT technology, optional WiFi and limiter sensor. Suitable for 36-144 cell solar panels. Compact design: 7.8cm x 4.9cm. RoHS compliant.

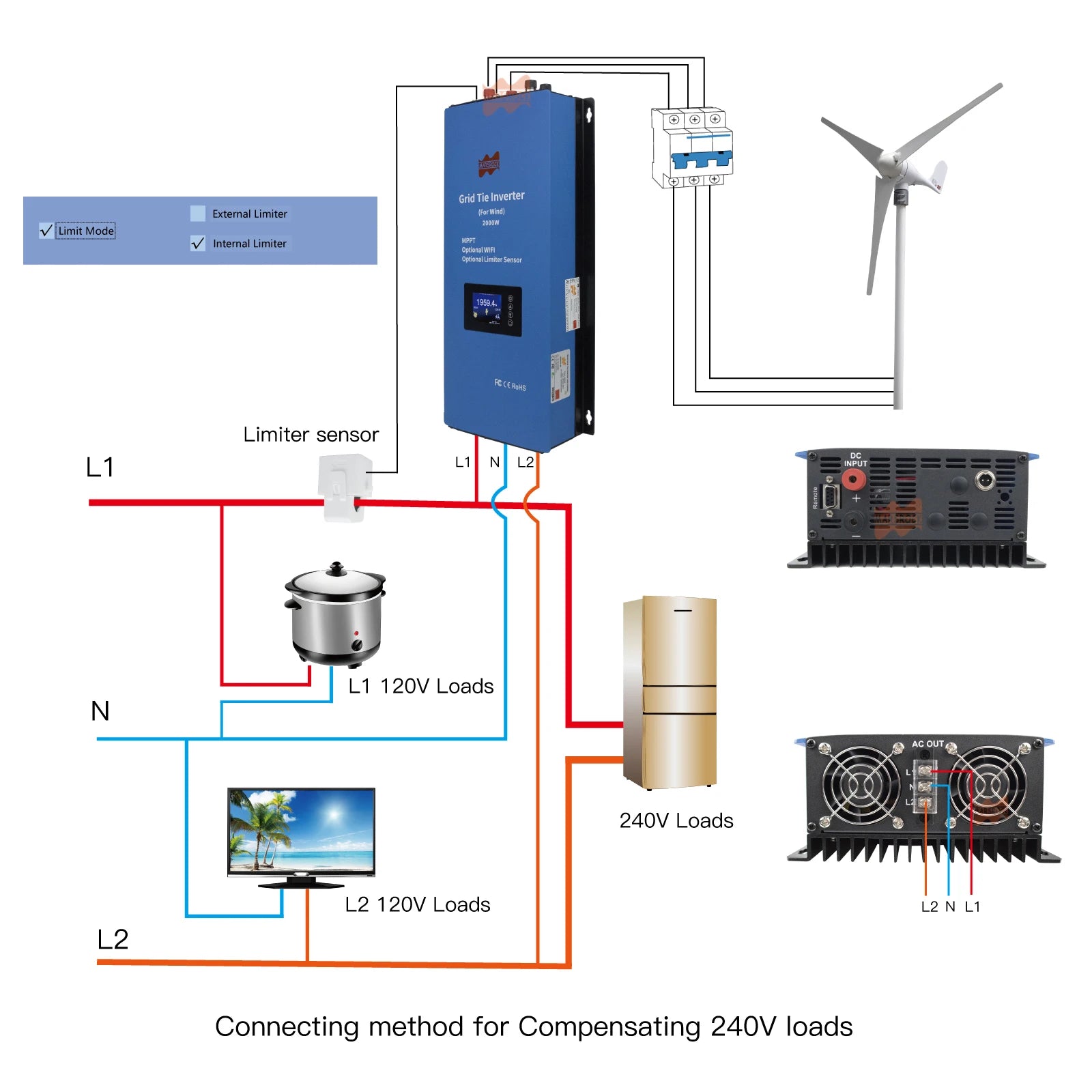

This grid-tie inverter features an external limiter with MPPT technology. The optional internal limiter ensures stable performance. The device accepts input from L1 (120V) or L2 (240V) sources and provides outputs to L1 and L2 loads. For 240V loads, a connecting method compensates for voltage imbalances.

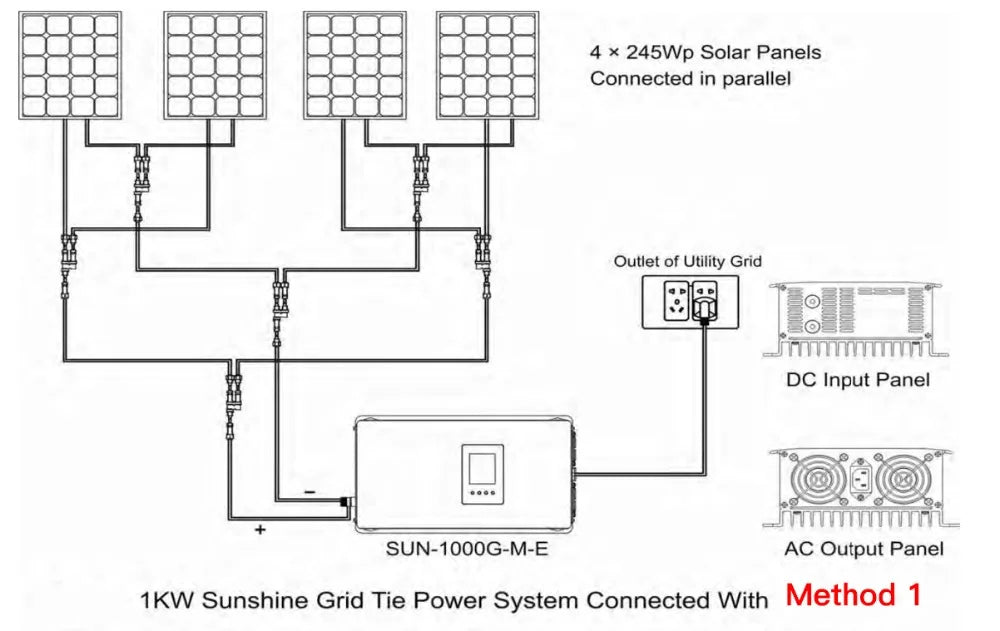

Four 245W solar panels connected in parallel output to a utility grid tie system, featuring a 1000W on-grid inverter with MPPT technology and LCD display, suitable for homes with 36-144 cells.

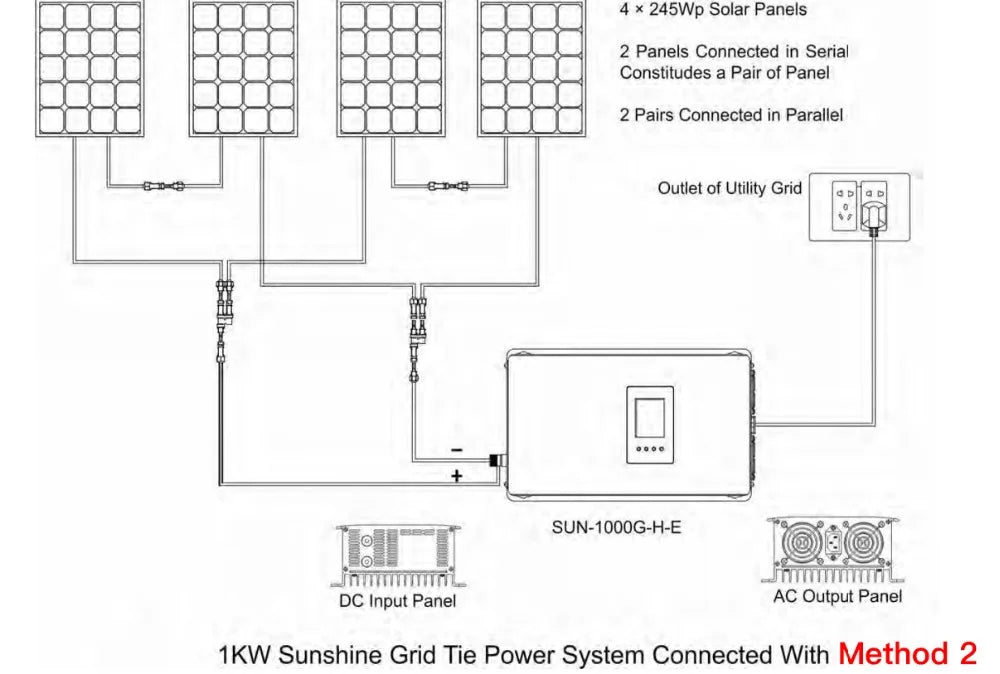

Two pairs of solar panels, each consisting of two 245Wp modules connected in series, are connected in parallel. This setup provides a 1kW grid-tied power system with a DC input panel and an AC output panel.

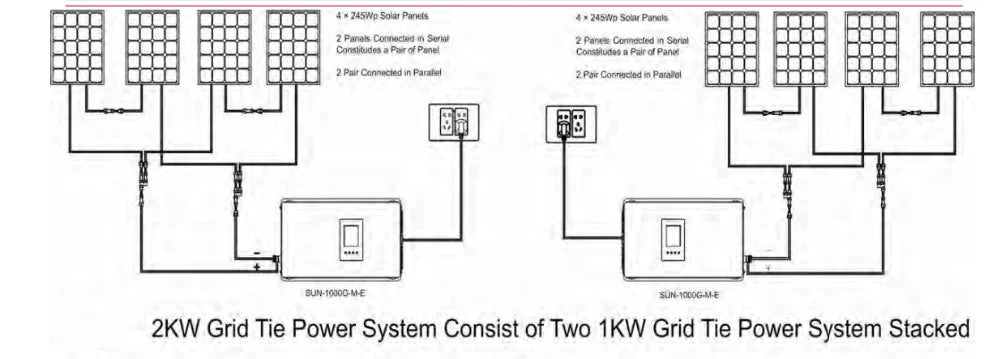

SunPower 245MTP Solar Panel Array: A pair of solar panels connected in parallel, comprising two identical 1KW grid-tie power systems stacked together.

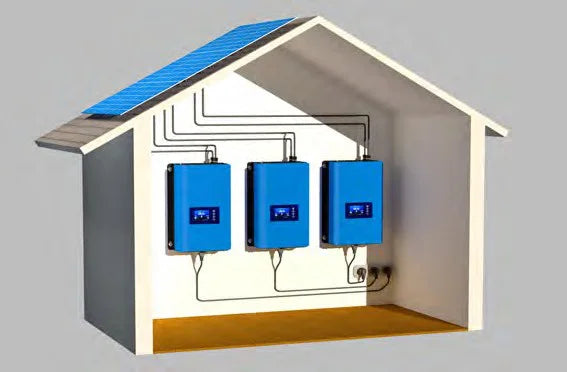

When the Capacity of Gird Tie Power System is larger, intall all the power system to one

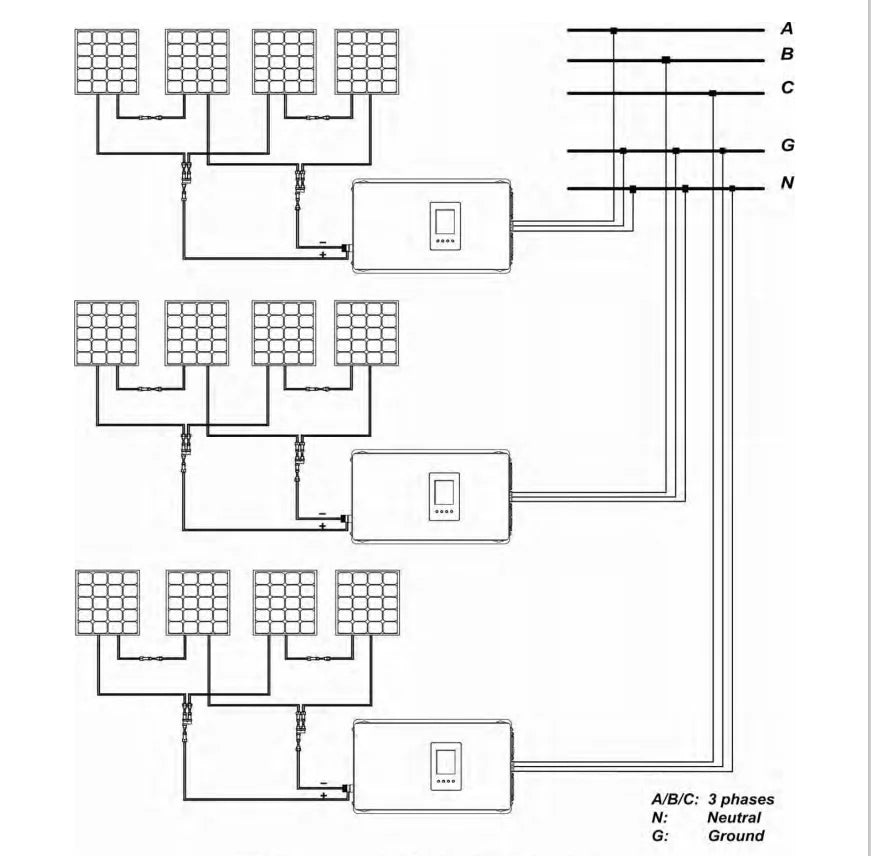

Three-phase neutral ground fault detection system for safe and reliable operation.
