100A/50A/40A/30A/20A/10A 12V 24V Auto Solar Charge Controller MPPT/PWM Controllers LCD Dual USB Output Solar Panel PV Regulator

100A/50A/40A/30A/20A/10A 12V 24V Auto Solar Charge Controller MPPT/PWM Controllers LCD Dual USB Output Solar Panel PV Regulator

Regular price $16.30 USD
Regular price Sale price $16.30 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Working temperature: -35 ℃ -60 ℃

Voltage: DC 12V / 24V

Self-consumption: <10MA

Overcharge protection: 14.4V / 28.8V

Overcharge Float charge: 13.7V / 27.4V

Over discharge recovery: 12.6V / 25.2V

Over discharge protection: 10.7V / 21.4V

Origin: Mainland China

Name: LCD screen solar controller

Model Number: Solar Panels Battery Charge Controller

Maximum Current: 100A

Is Smart Device: No

Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)

Charge recovery voltage: 12.6V / 25.2V

Application: Charger Controller



Description:

- Advanced maximum power point tracking (MPPT/PWM) technology, the efficiency is not less than 99.5%. High-quality components improve the system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.

- Large screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control delay control; adjustable charge and discharge parameters, with power-off memory and other functions.

- Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

- Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with self-recovery function, will not damage the controller.

- Real-time display of temperature, charging current and discharge current. Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.

Specifications:

Name: LCD screen solar controller

Voltage: DC 12V / 24V

Display: LCD screen

Self-consumption: <10MA

Overcharge protection: 14.4V / 28.8V

Overcharge Float charge: 13.7V / 27.4V

Charge recovery voltage: 12.6V / 25.2V

Over discharge protection: 10.7V / 21.4V

Over discharge recovery: 12.6V / 25.2V

Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)

Working temperature: -35 ℃ -60 ℃

12V fits 18V solar panel, 24V fits 36V solar panel

12.0 volt lead acid battery corresponding

The float voltage is set to: 13.6

The recovery discharge voltage is set to: 12.6

The discharge cut-off voltage is set to: 10.7

12.8 volt lithium iron phosphate battery corresponding

The float voltage is set to: 14.6

The recovery discharge voltage is set to: 13.6

The discharge cut-off voltage is set to: 11.0

11.1 volt lithium battery corresponding

The float voltage is set to: 12.6

The recovery discharge voltage is set to: 11.6

The discharge cut-off voltage is set to: 9.6

The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).

PV system power Description:

10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 12V photovoltaic system: power is respectively 100-1000W

10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 24V photovoltaic system: power is respectively 200-2000W

Package Included:

1X Solar Panels Battery Charge Controller

1X User Manual

Notes:

1. The charge regulator is suitable for lead-acid batteries: OPEN, AGM, GEL, nickel hydride, lithium, Liions, or other batteries.

2. This controller can only use photovoltaic panels as charging power. Do not use DC or other power as charging power.

3.The LCD display has an error of 0.2 V- 0.3 V, but this is normal

4. Old batteries may be degraded the capacity after hundereds of cycles, easily drop lower than 8V, which results in the controller will be shut off (LCD screen become totally “DEAD”).

5. Indoor u

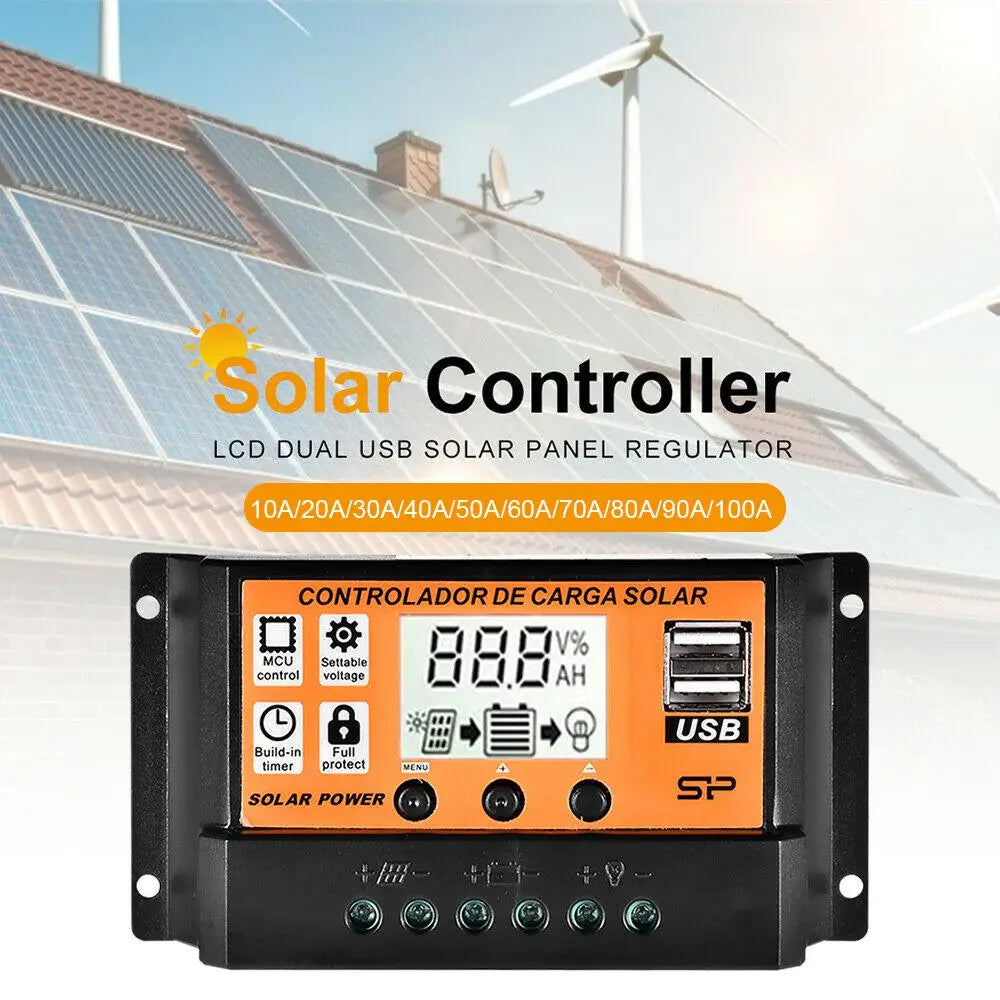

Solar charge controller with LCD display, dual USB output, and adjustable voltage for solar power systems and auto charging.

100A to 10A MPPT/PWM Solar Charge Controller with LCD display and dual USB output. Features adjustable voltage, built-in full-time protection, and USB build-in. Perfect for solar power systems and auto charging applications.

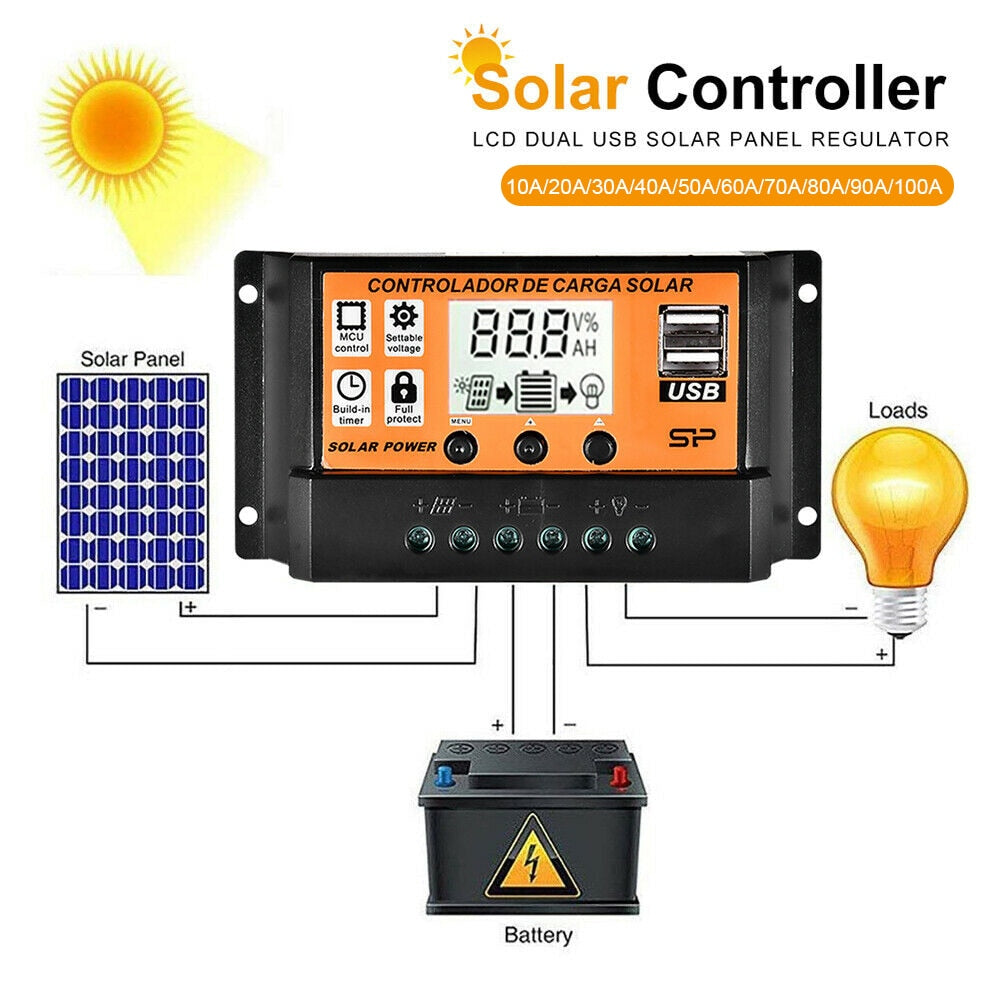

Solar charge controller with LCD display and USB output regulates solar panels and batteries.

Auto Solar Charge Controller with LCD Display and Dual USB Output. This MPPT/PWM controller regulates 12V or 24V solar panels, suitable for solar-powered systems and battery charging. It features auto detection, overcharge protection, and built-in full-loads monitoring. Perfect for off-grid power generation and backup energy systems.

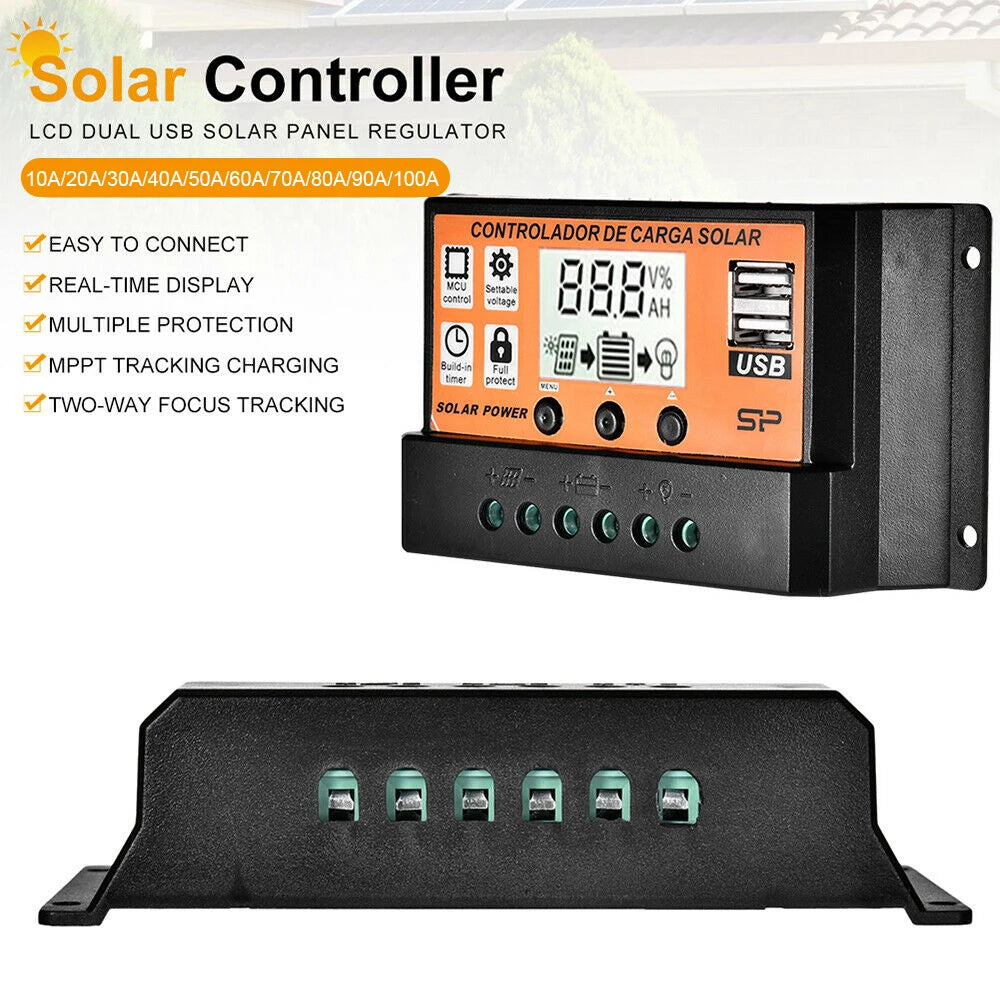

Solar charge controller with LCD display and dual USB output for real-time monitoring and tracking charging capabilities.

100A/50A/40A/30A/20A/10A MPPT/PWM Solar Charge Controller with LCD Display and Dual USB Output. Real-time monitoring and tracking charging capabilities ensure efficient solar power conversion. Equipped with multiple protections and easy connectivity, this controller is perfect for auto, solar panel, and PV systems.

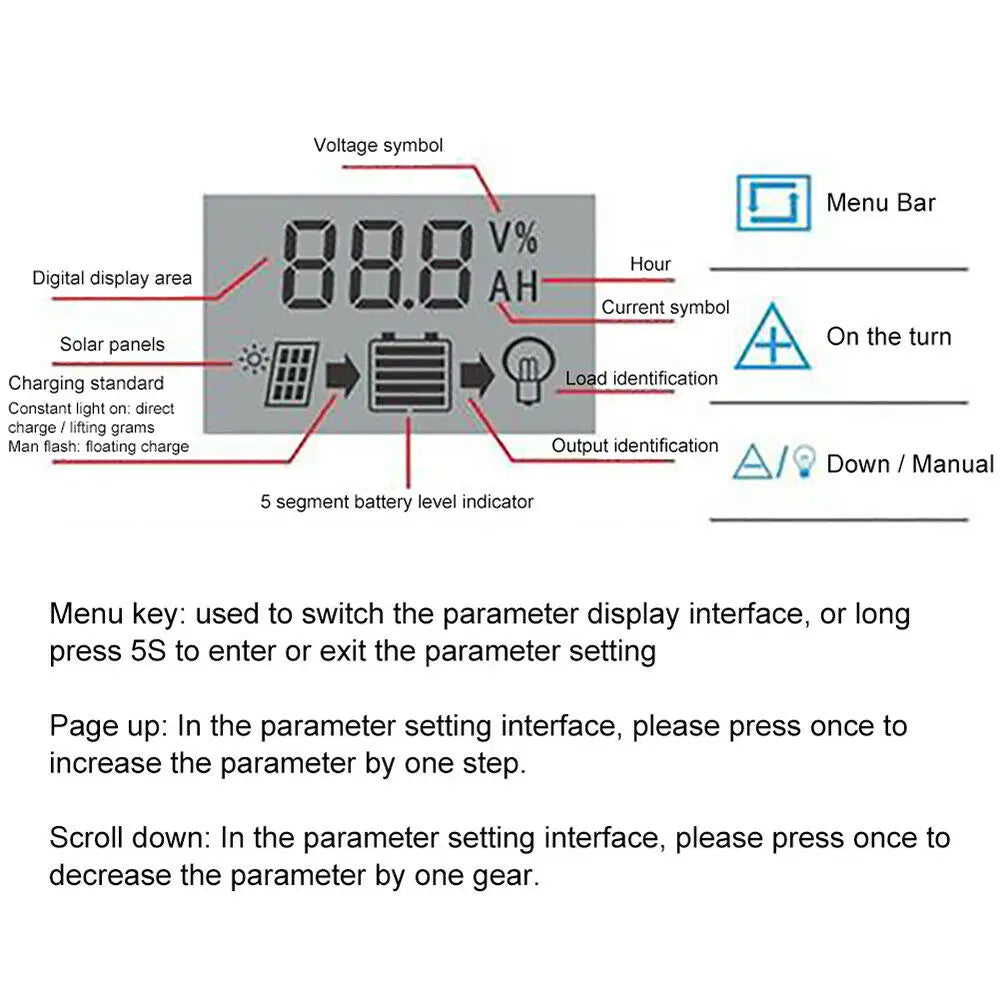

Menu bar with navigation keys for solar charger display and setting control.

Menu Bar: V%, Hour, Digital Display Area, AH, Current Symbol, and Solar Panels On/Off. The display shows Constant Light for direct charge or Manual mode for floating charge. Battery Level Indicator (5 segments) allows switching between parameter displays or entering/exiting settings by long pressing 5S. Navigation keys include Page Up (increase parameter by one step) and Page Down (decrease parameter by one step).

MPPT/PWM solar charge controller with dual USB output and LCD display for monitoring vital stats.

Charge solar power with this MPPT/PWM controller, featuring dual USB output and LCD display for monitoring voltage, current, and temperature.

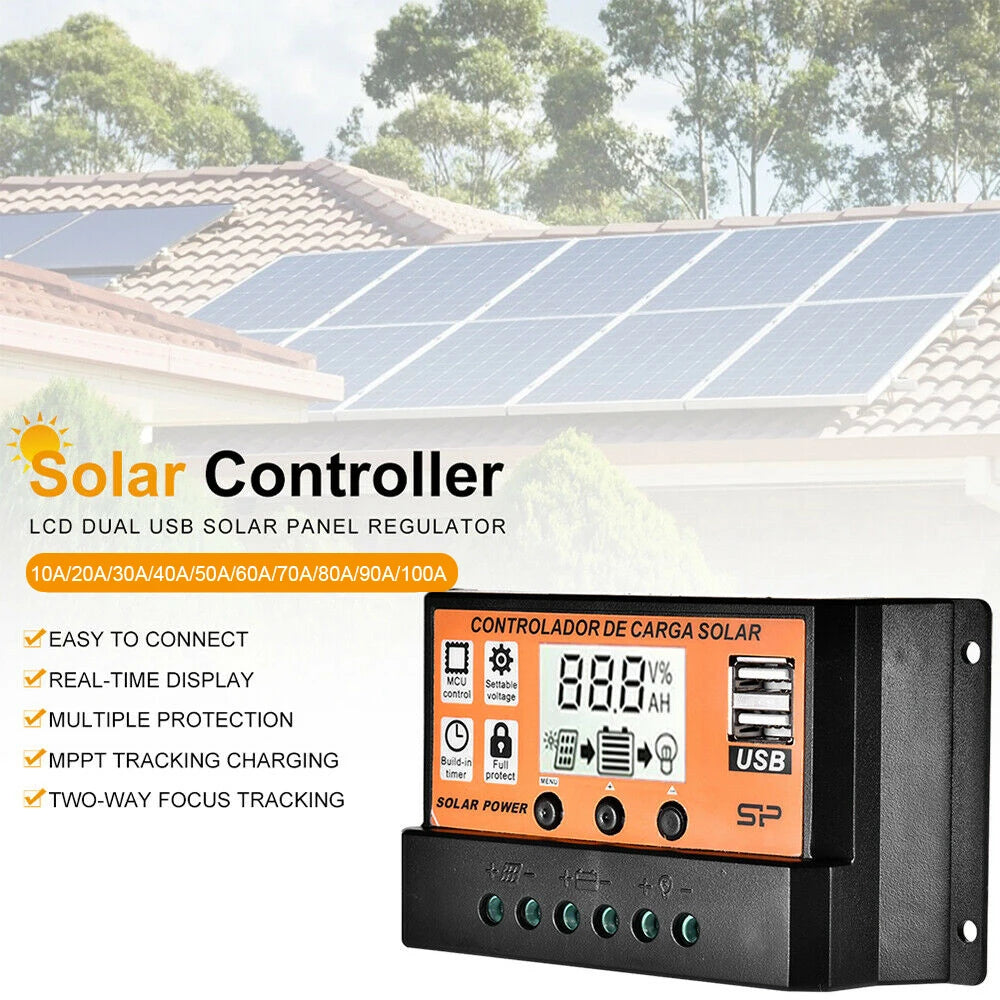

Solar charge controller with real-time display, dual USB output, and multi-protection features for efficient energy harvesting.

100A/50A/40A/30A/20A/10A MPPT/PWM Solar Charge Controller features a real-time LCD display, dual USB output, and multiple protection. Easily connect and control your solar panel with this regulator, which offers MPPT tracking charging and 5V output. It also comes with two-way focus tracking and advanced solar power management.

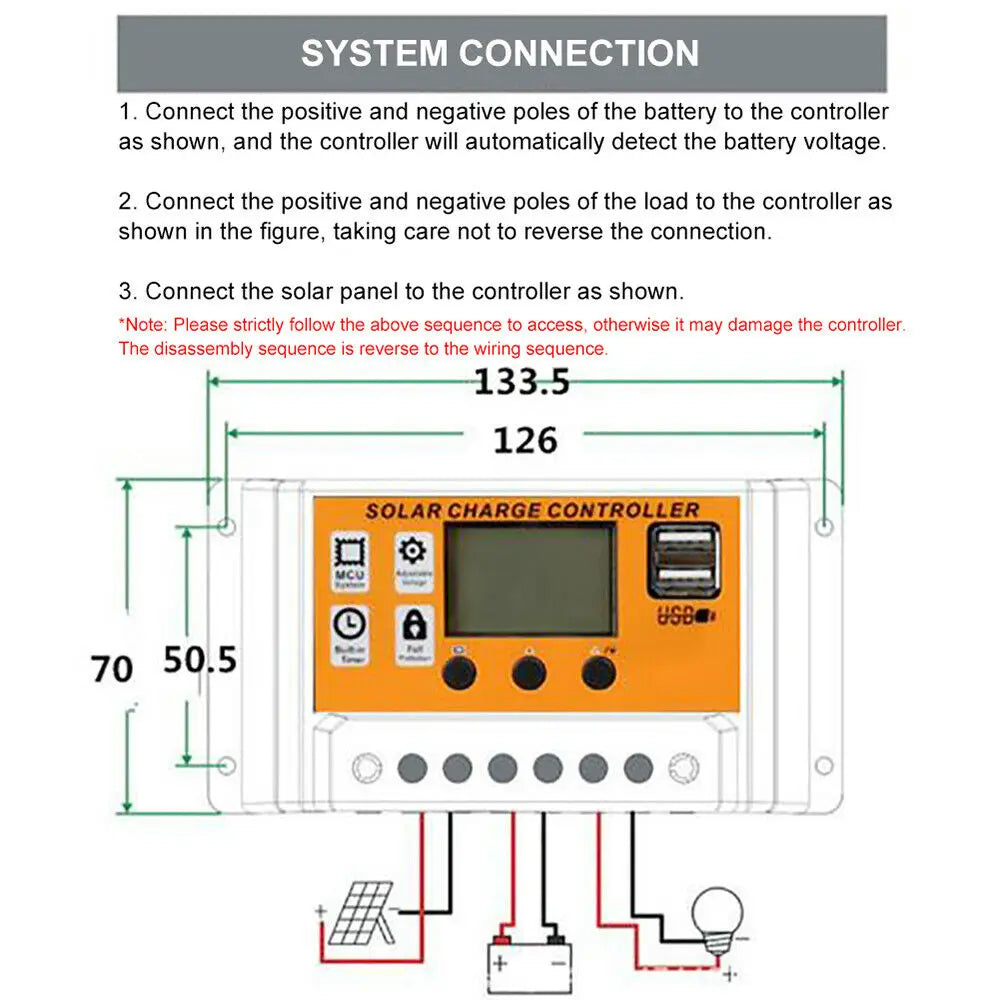

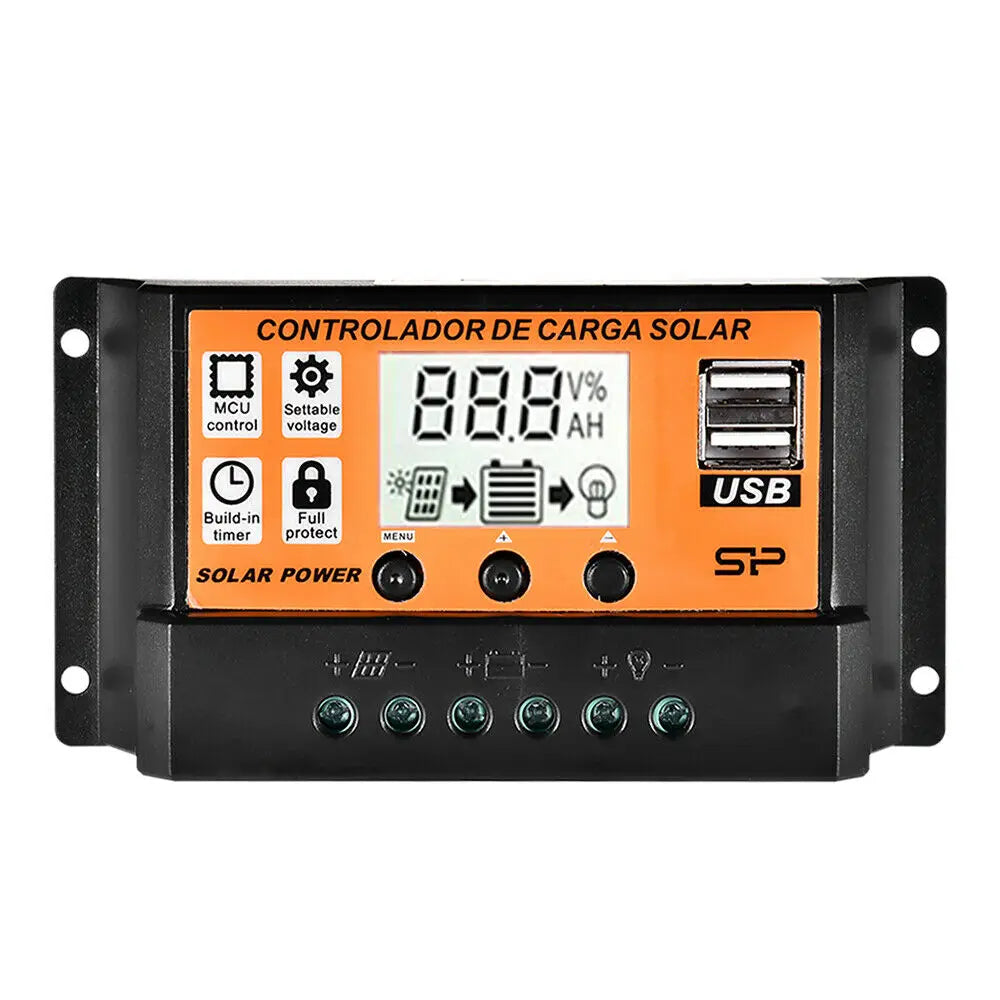

12V 24V Auto Solar Charge Controller MPSolar charge controller with LCD display, USB ports, and timer for charging 12V or 24V solar panels.

MPPT/PWM solar charge controller with LCD display, dual USB output, and built-in timer. Adjustable voltage settings (100A to 10A) for 12V/24V auto solar panel charging.

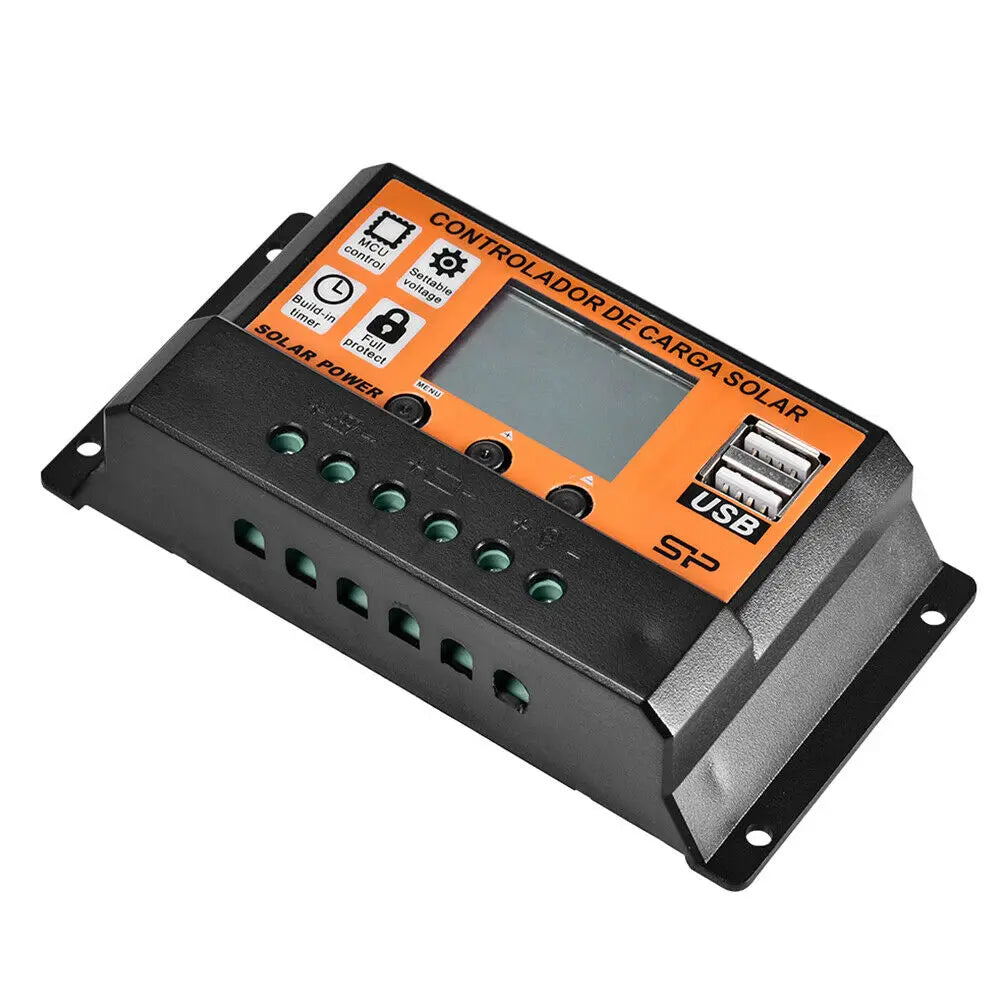

Powerful charge controller with adjustable settings and protections for safe charging and powering multiple devices.

MCU-controlled charge controller with settable voltage, timer, and full protection. Builds up to 8x power during charging. Includes dual USB output for solar-powered devices.
