2022 New MPPT/ PWM 60A/80A/100A 12V 24V 36V 48V AUTO solar panel charge controller with LCD Display Dual USB Multiple Load Control Modes New Mppt Technical Maximum Charging Current

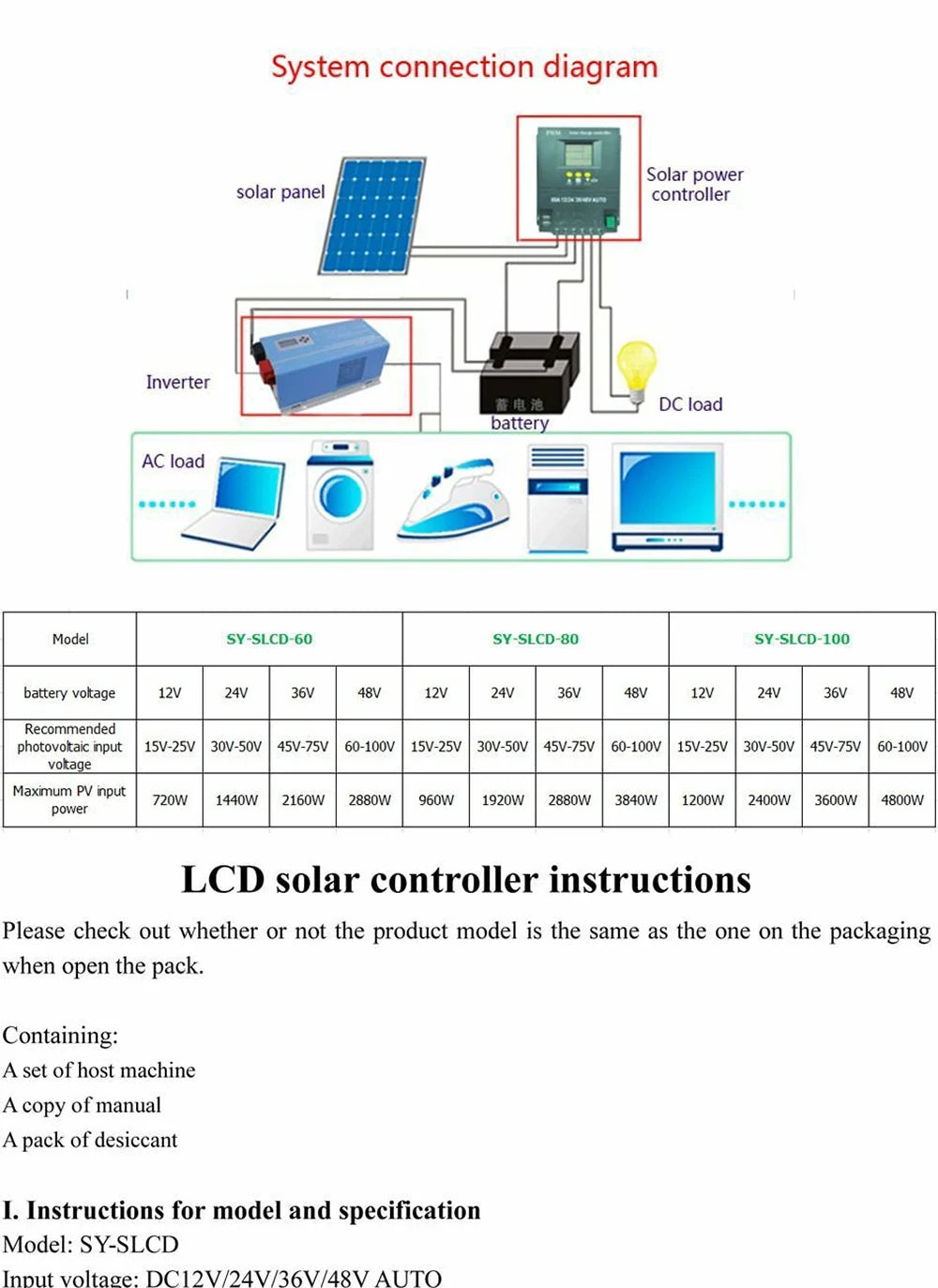

The controller is 12/24/36/48V auto, but the voltage of the photovoltaic panels used to charge different batteries is different. For 12V batteries, use about 18V photovoltaic panels, for 24v batteries, use about 30-37V photovoltaic panels, and for 48V batteries use 60. For photovoltaic panels around -72V, the controller wiring is connected to the battery first, and then to the photovoltaic panel. Disconnect the wire on the contrary, otherwise it will easily cause damage to the controller! ! !

Description of charging protection:

1. When using a 12V battery, the boost charging voltage of the battery is higher than 14.8V, and it is converted to a floating charging voltage of 13.8V.

2. When using a 24V battery, the battery boost charging voltage is higher than 29.6V, and it changes to a float charging voltage of 27.6V.

3. When using a 36V battery, the battery boost charging voltage is higher than 44.4V, and it changes to a floating charging voltage of 41.4V.

4. When using a 48V battery, the battery boost charging voltage is higher than 59.2V, and it changes to a floating charging voltage of 55.2V.

Clock setting instructions:

When the battery is connected, press "▲" "▼" to set the clock table, short press "■" to save.

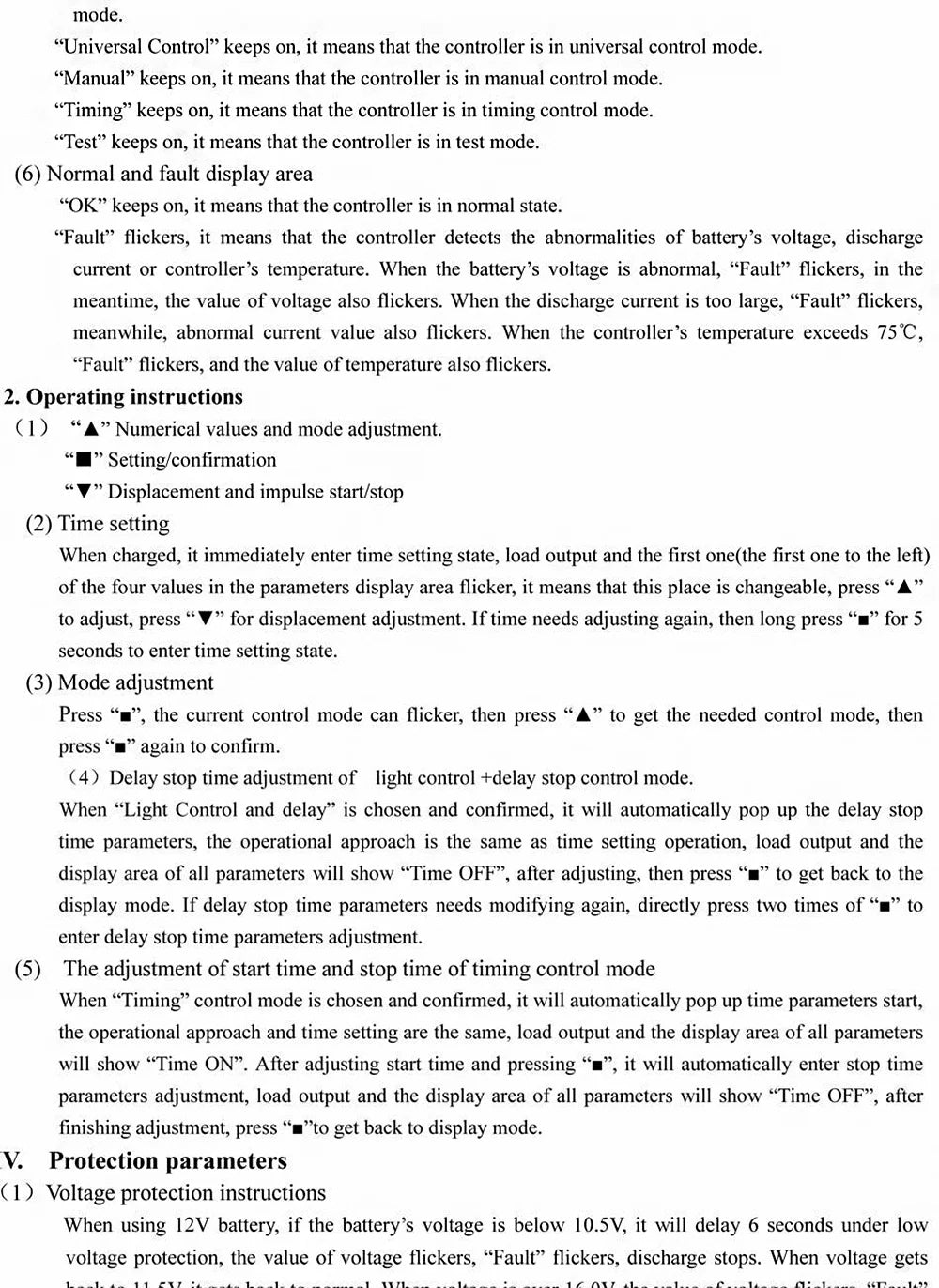

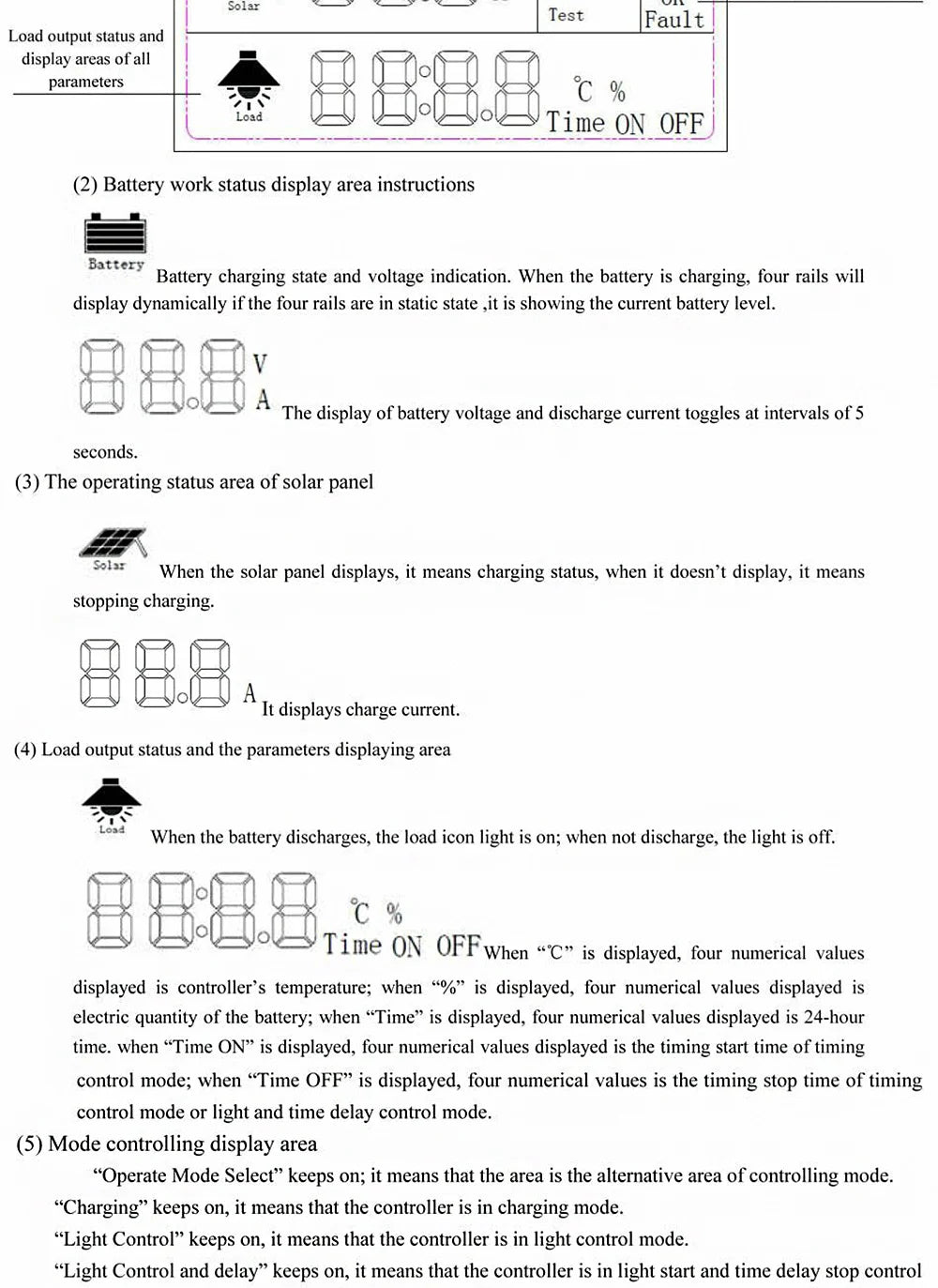

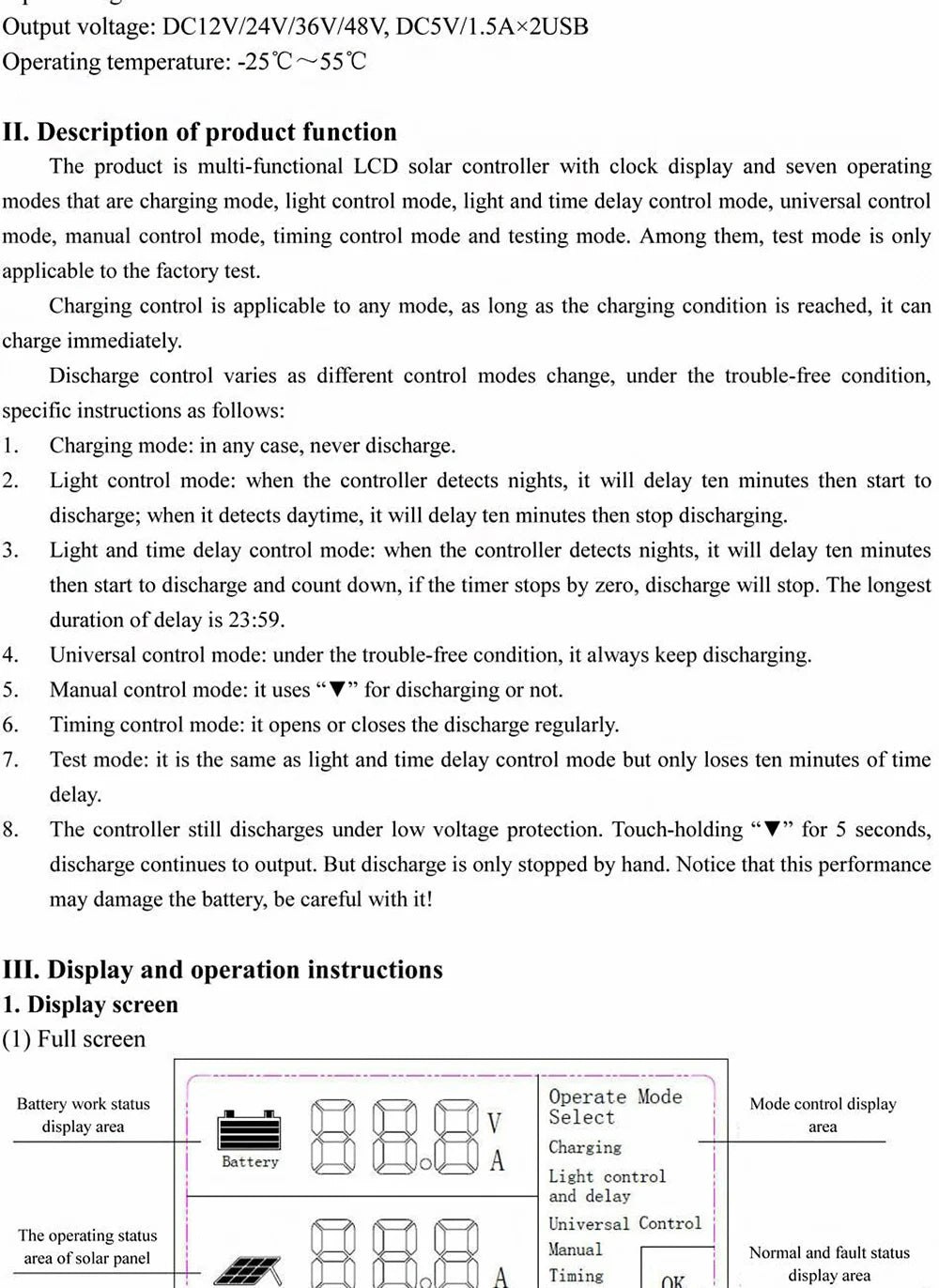

Charging voltage setting instructions:

After connecting the battery, after setting the clock and saving, long press "▲" for 3-5 seconds, the screen displays L**V as the floating charge voltage, which can be adjusted by pressing "▼"; short press again "▲"H**V is to increase the charging voltage, which can be adjusted by pressing "▼"; shortly press "▲" again. F**V is the low-voltage cut-off voltage of the DC load, which can be adjusted by pressing "▼"; after setting Long press "▲" for 3-5 seconds to save and exit.

Note:

1.Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.

2. It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT

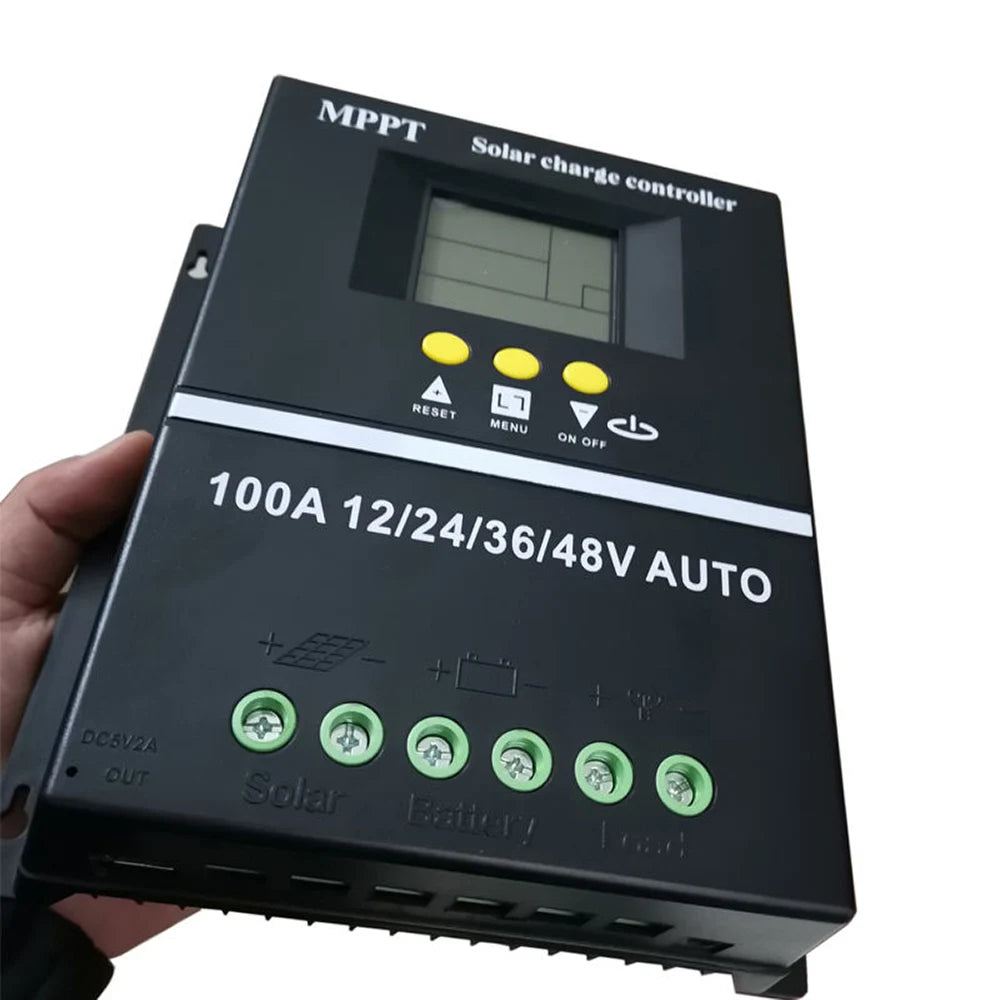

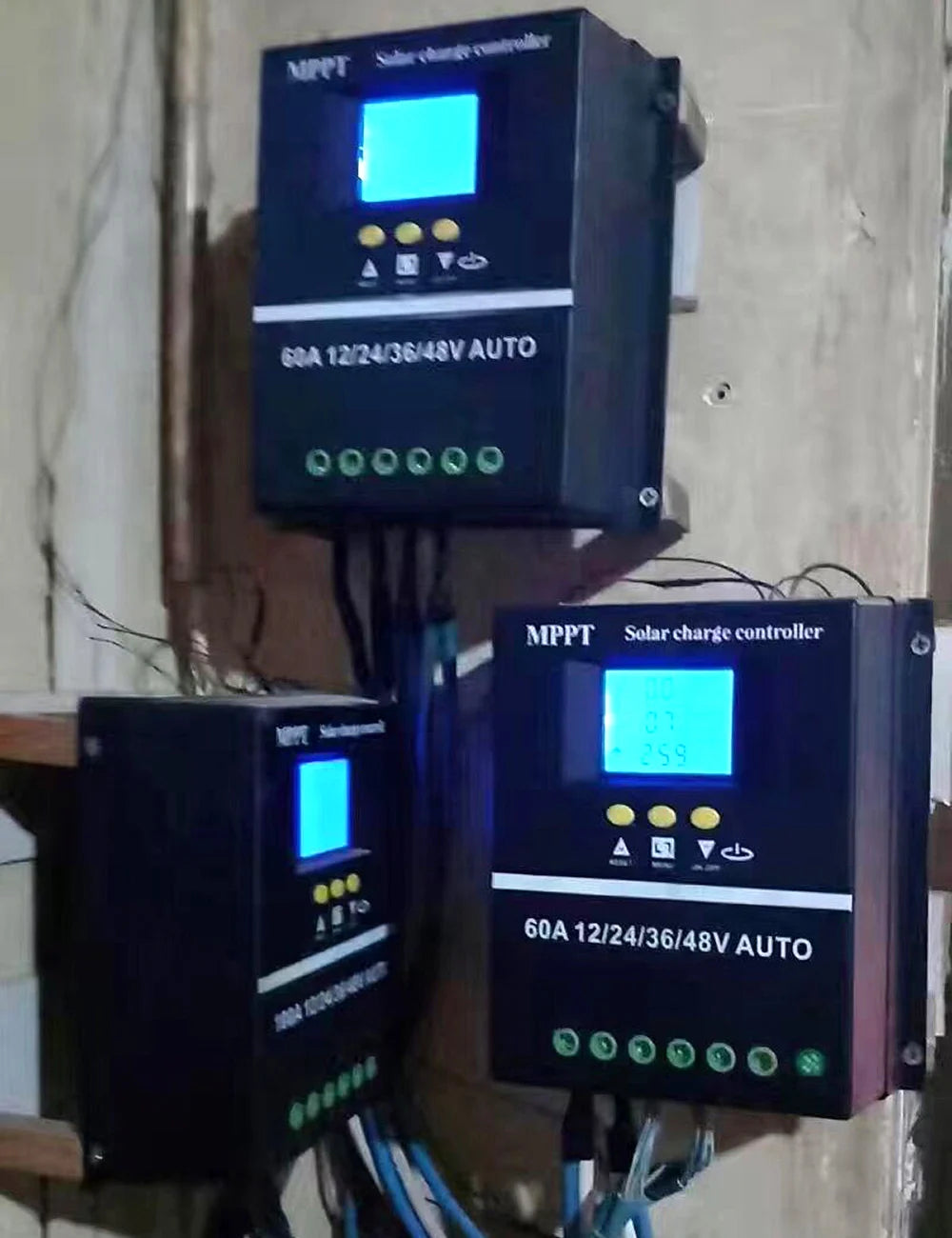

100A MPPT solar charge controller with LCD display, compatible with 12V/24V/36V/48V batteries and featuring auto tracking, dual USB ports, and advanced PWM technology.

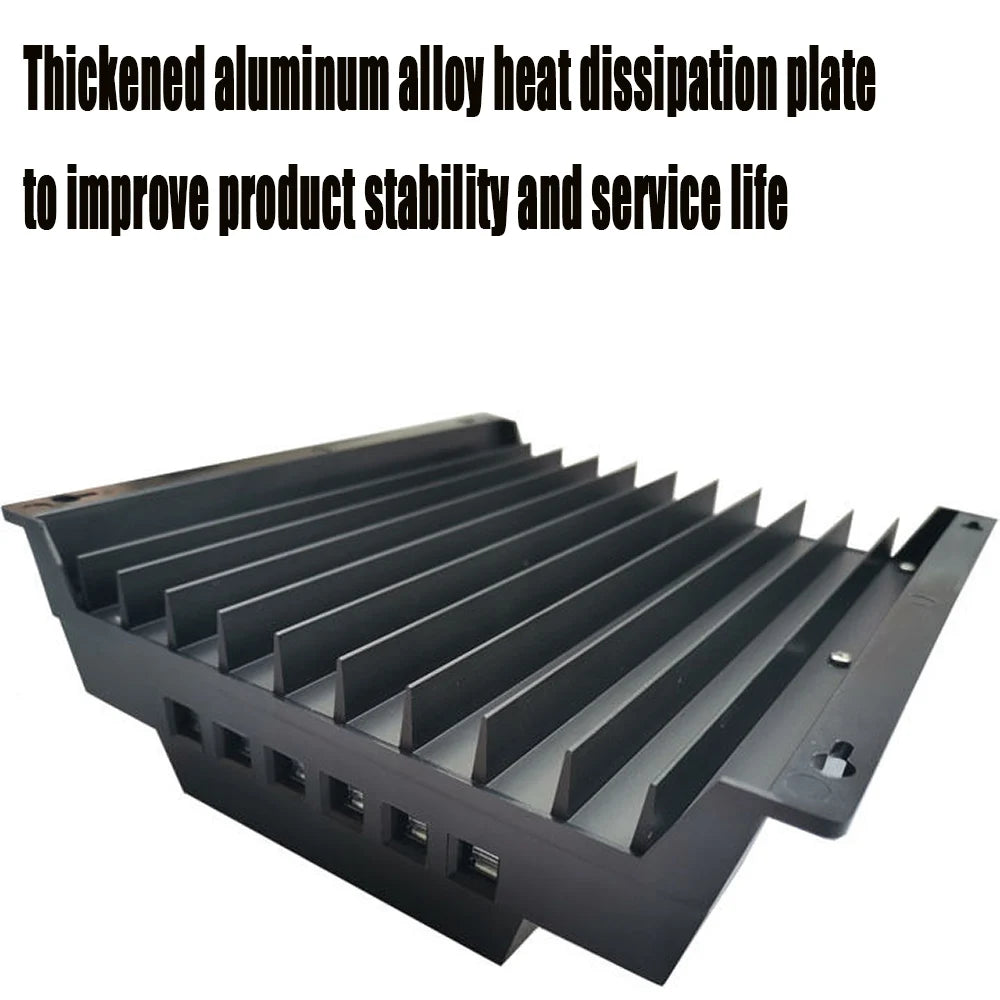

This solar charge controller features a thickened aluminum alloy heat dissipation plate to improve product stability and reliability.

MPPT Solar Charge Controller: 100A, 80A, or 60A. Supports 12V, 24V, 36V, and 48V systems. Auto controller with LCD display and dual USB ports.

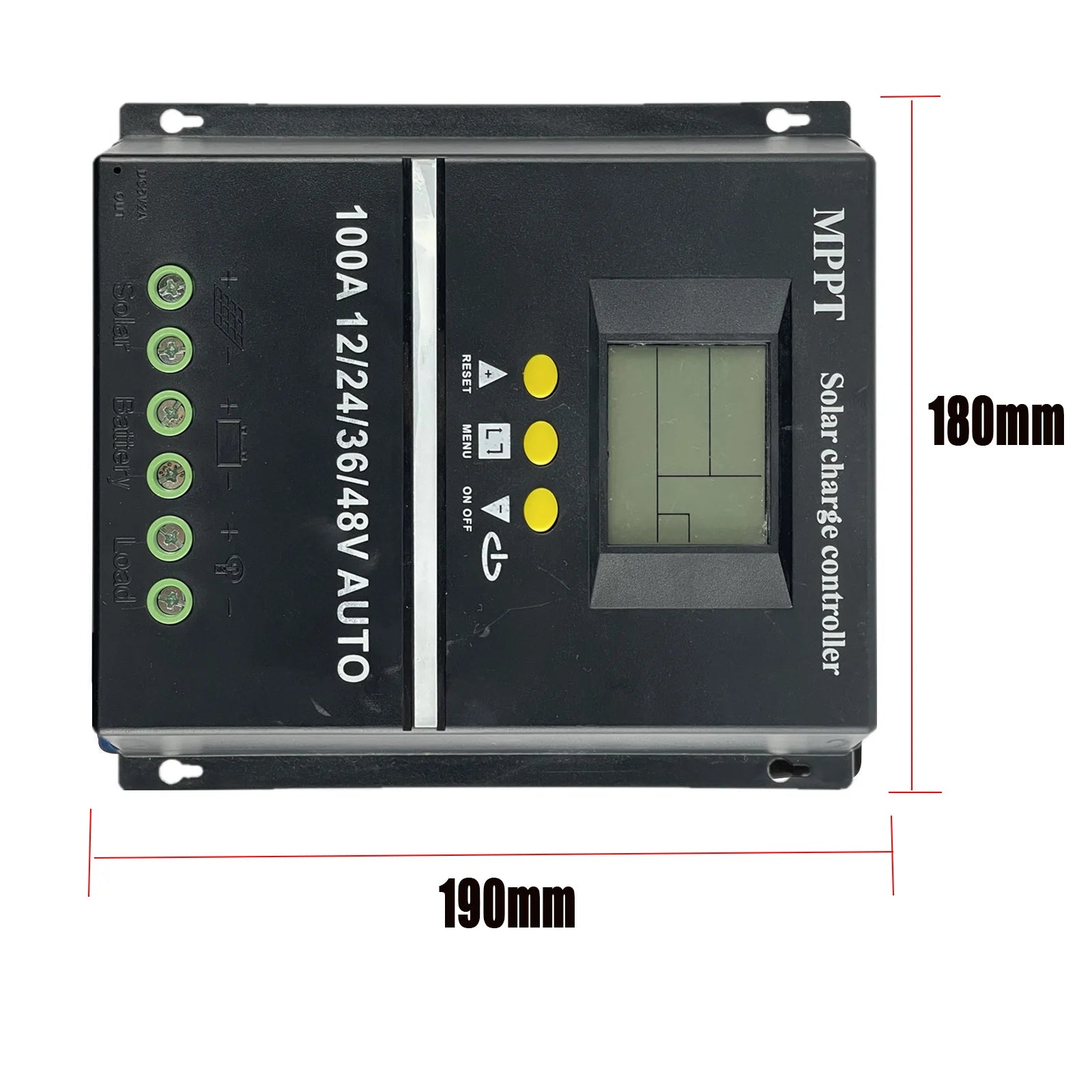

MPPT solar charge controller supports up to 100A, 12V-48V inputs, and features auto-tracking and LCD display for monitoring solar panels and battery charging.

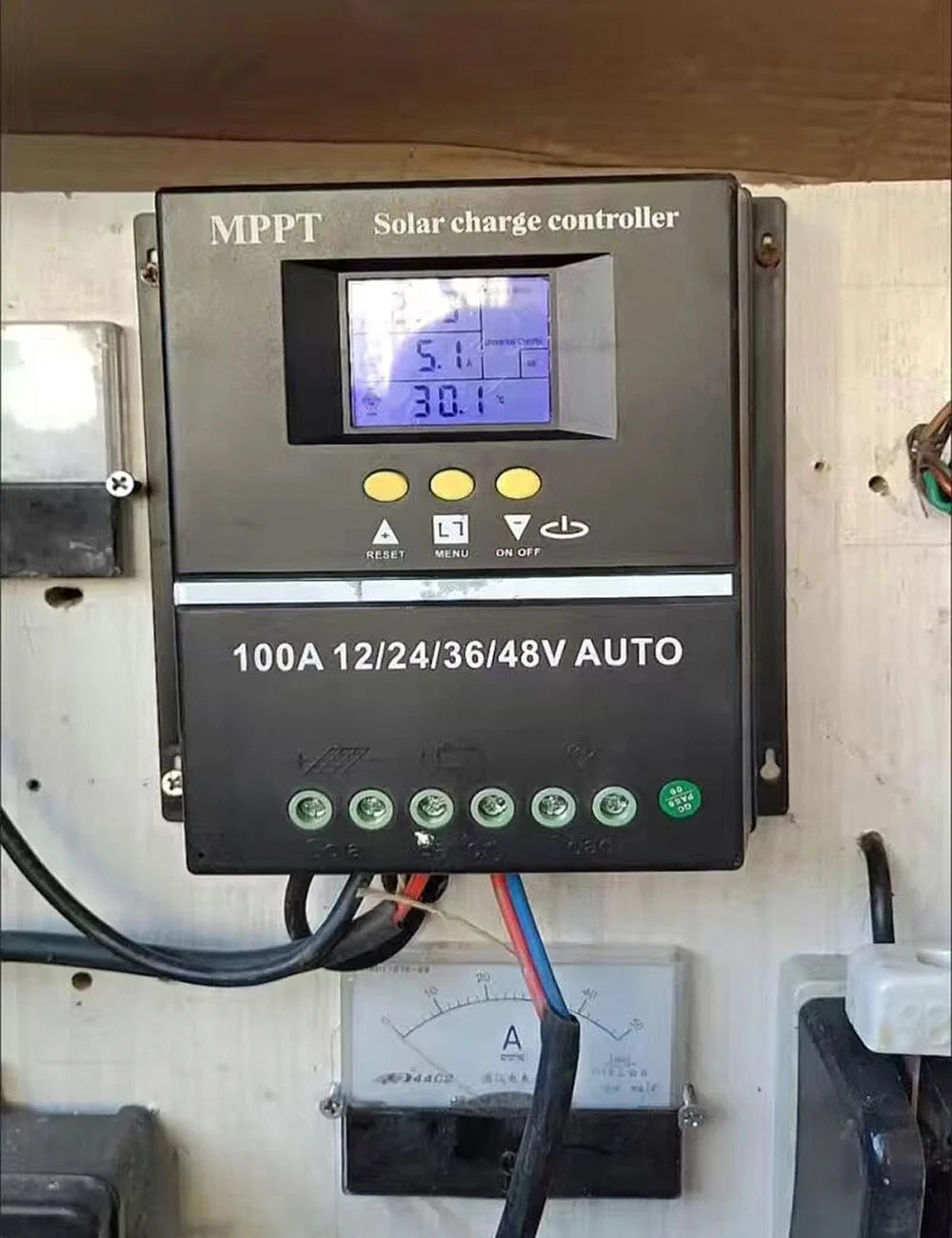

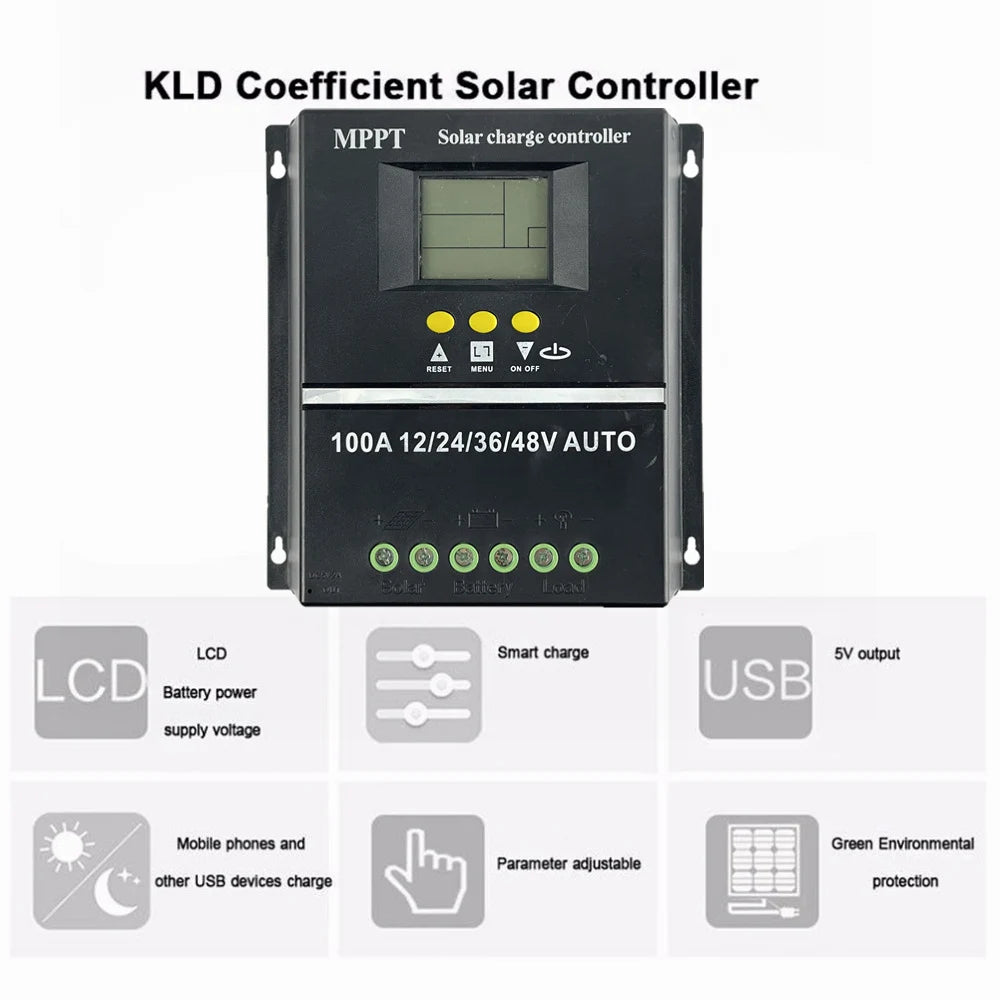

MPPT Solar Charge Controller by KLD Coefficient: A smart controller with auto-adjustable settings for 12/24/36/48V systems. Features LCD display, dual USB ports, and adjustable parameters for solar power output, battery protection, and mobile device charging.

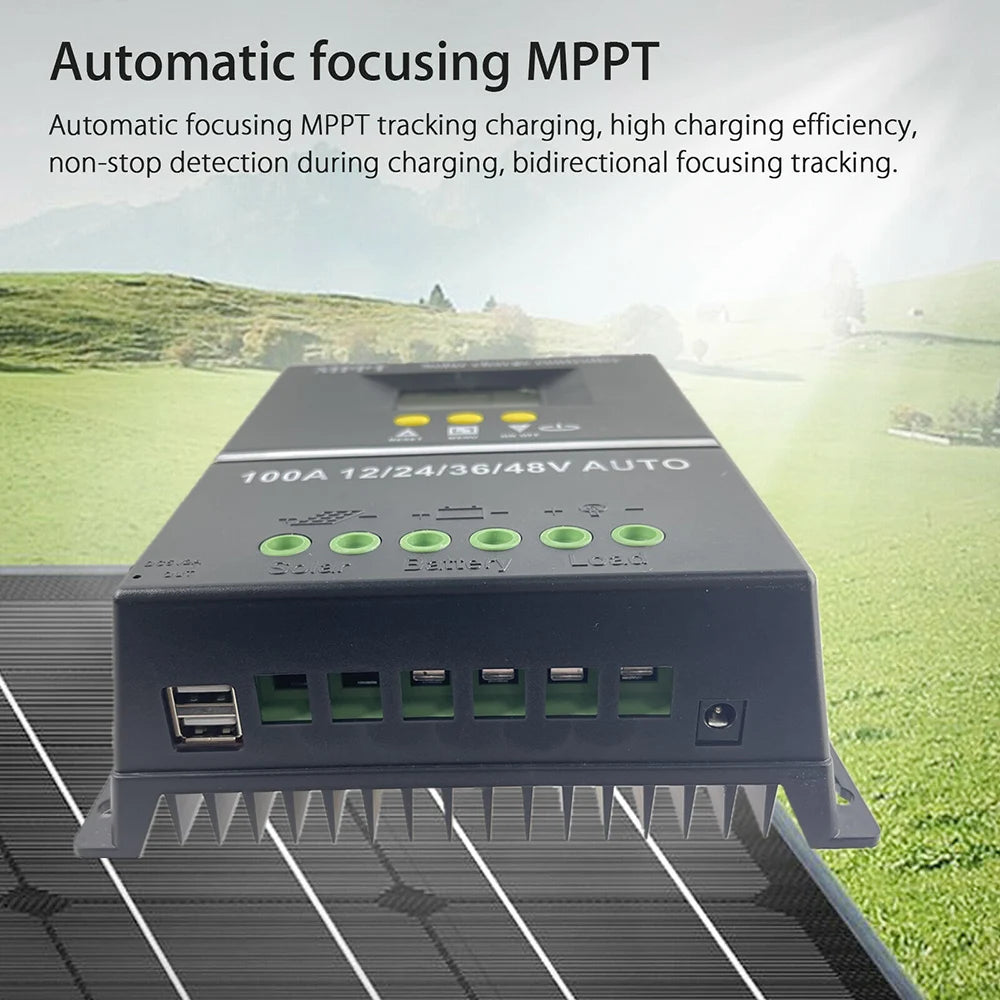

This solar charge controller features automatic MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) technology for efficient charging. It detects changes in voltage and current to optimize energy harvesting, making it ideal for 12V/24V/36V/48V battery systems.

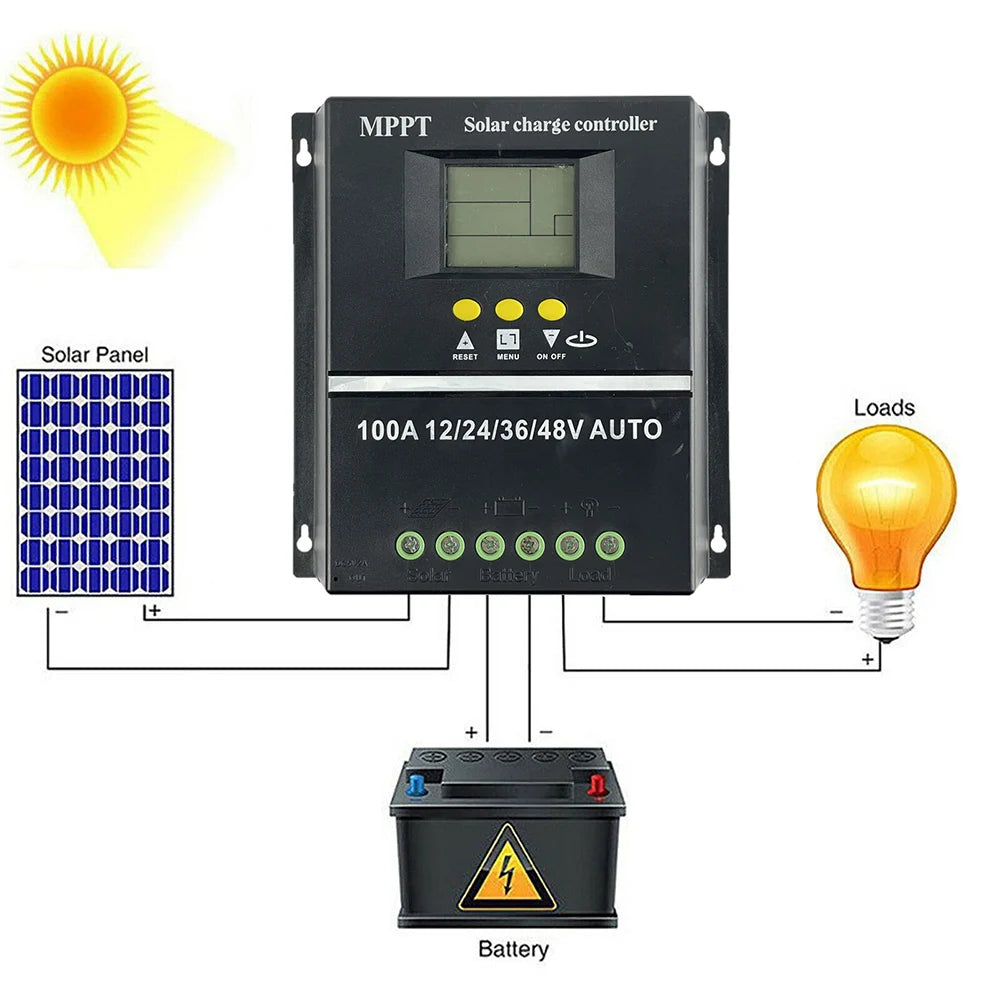

MPPT solar charger controller with MPPT and PWM technology, supports 12V/24V/36V/48V auto charging, LCD display, and dual USB ports.

100A/80A/60A MPPT/PWM solar charge controller for 12V, 24V, 36V, or 48V systems with LCD display and dual USB ports.

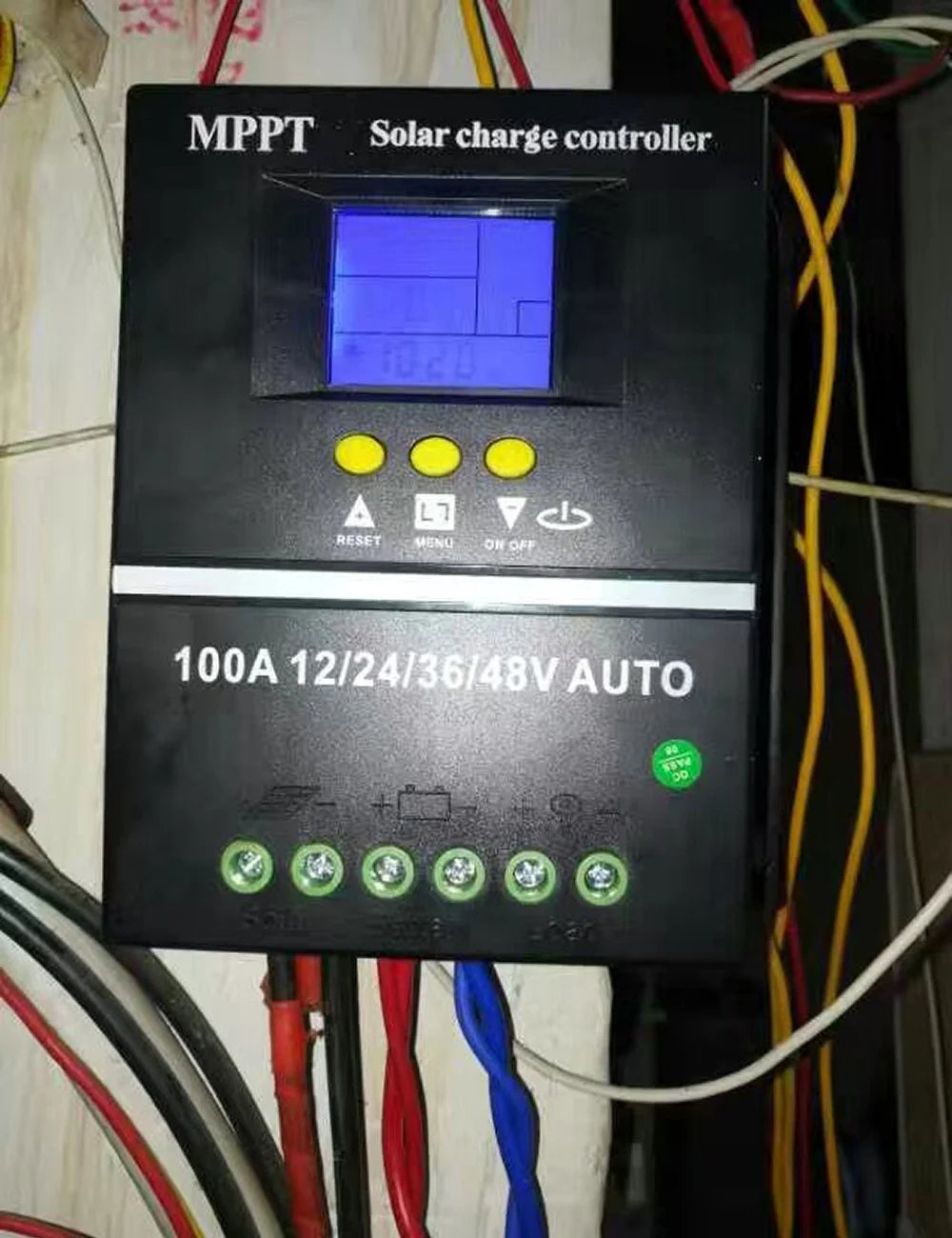

100A MPPT solar charge controller for 12V/24V/36V/48V systems with auto reset and menu options.
