Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
100 W Foldable Solar Panel Parameters
- Cell size: 158.75mmx158.75mm
- Type: PERC, Overlapping, Foldable
- Panel Dimensions: 1210*565*30mm(Unfolded)
- Panel Efficiency: 21.4%
- Certificate: CE/ROHS
- Warranty: 1 year
- Products name: 100w solar panel
- Maximum Power Current (Impp): 5.35A
- Maximum Power Voltage (Vmpp): 18.7V
- Open-circuit Voltage (Voc): 22.1V
- Short-circuit Current (Isc): 5.86A
- Connector Type: USB-A ,USB-B
- Output Tolerance: +3%
- Working Temperature: -20℃~+65℃
- Maximum System Voltage: 100V
- Weight: 3.8kg
100 W Foldable Solar Panel Review
100 W Portable Solar Panel Features
- 【Compatible with Most Solar Generators】 100W Portable solar panel equipped with different size of connectors (8mm/5.5*2.5mm/3.5*1.35mm/5.5mm*2.1mm/Anderson dc adapter), can be compatible with the most solar generators such as Jackery, Goal Zero, Blutti, Renogy, FlashFish etc. 1* USB-C port(5V,3A) & 1* USB-A(5V, 3A) port could charge 2 small devices directly.
- 【High Conversion Efficiency】Foldable solar panel is covered by monocrystalline silicon solar cells with max 23.7% efficiency, convert more solar power into usable energy. Under good sunshine, the 500wh power station is fully charged by LUVKNIT 100W solar panel within 7 hours.
- 【Waterproof & High Durability】IP65 rating against water and dust, endure for any weather conditions, now you don’t have to worry about a sudden shower of rain. The zippers on the pocket can hold and cover the power port. The advanced multi-layered ETFE laminitation enhanced the cell prerformance and extend lifespan of the 18v camping solar panel.

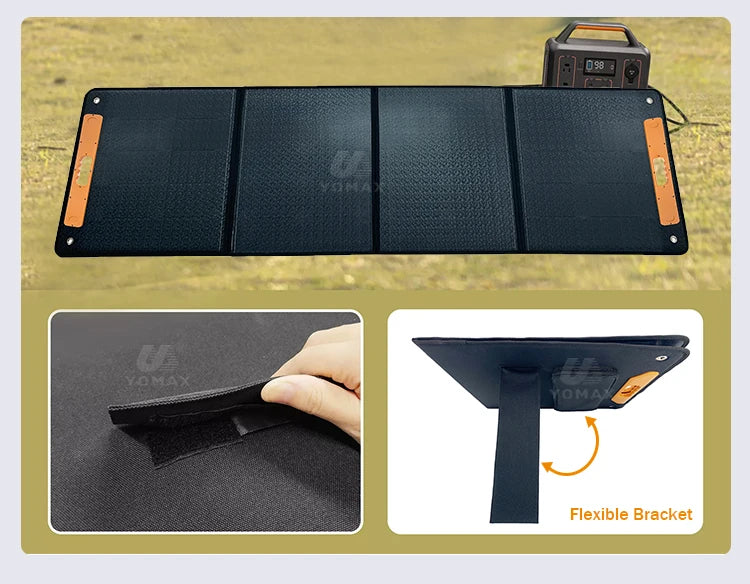

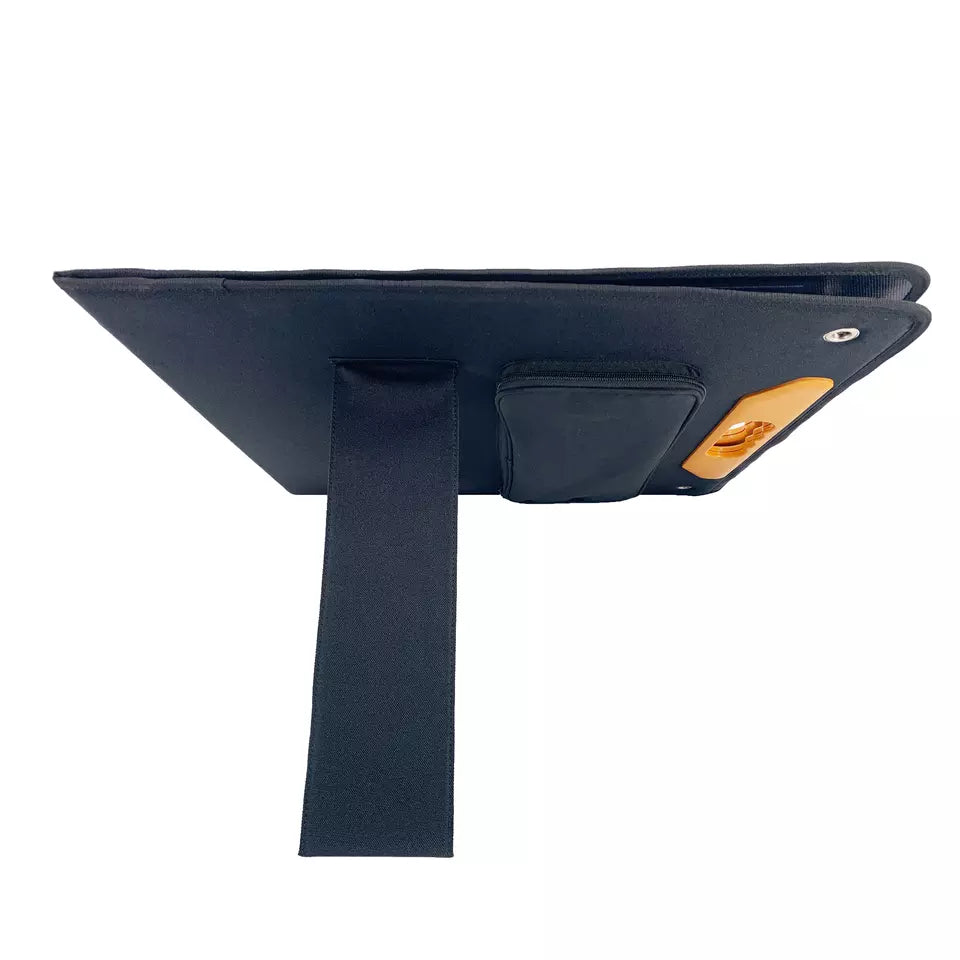

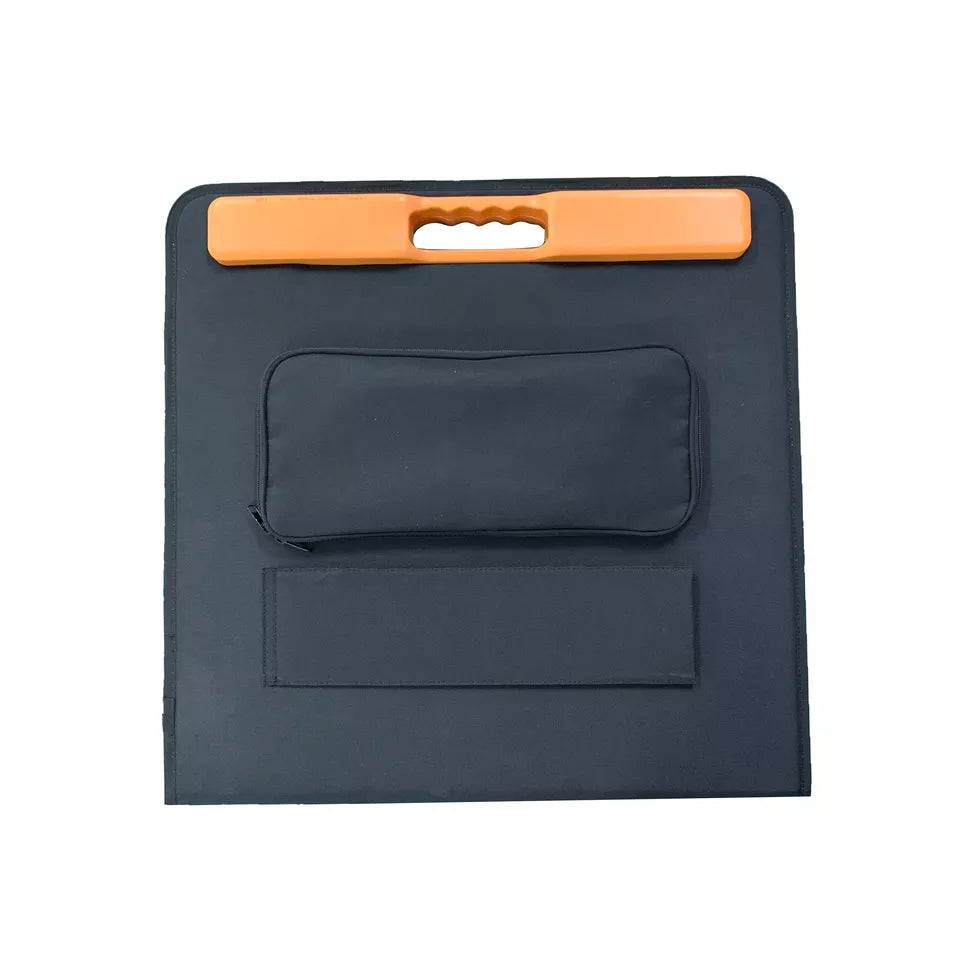

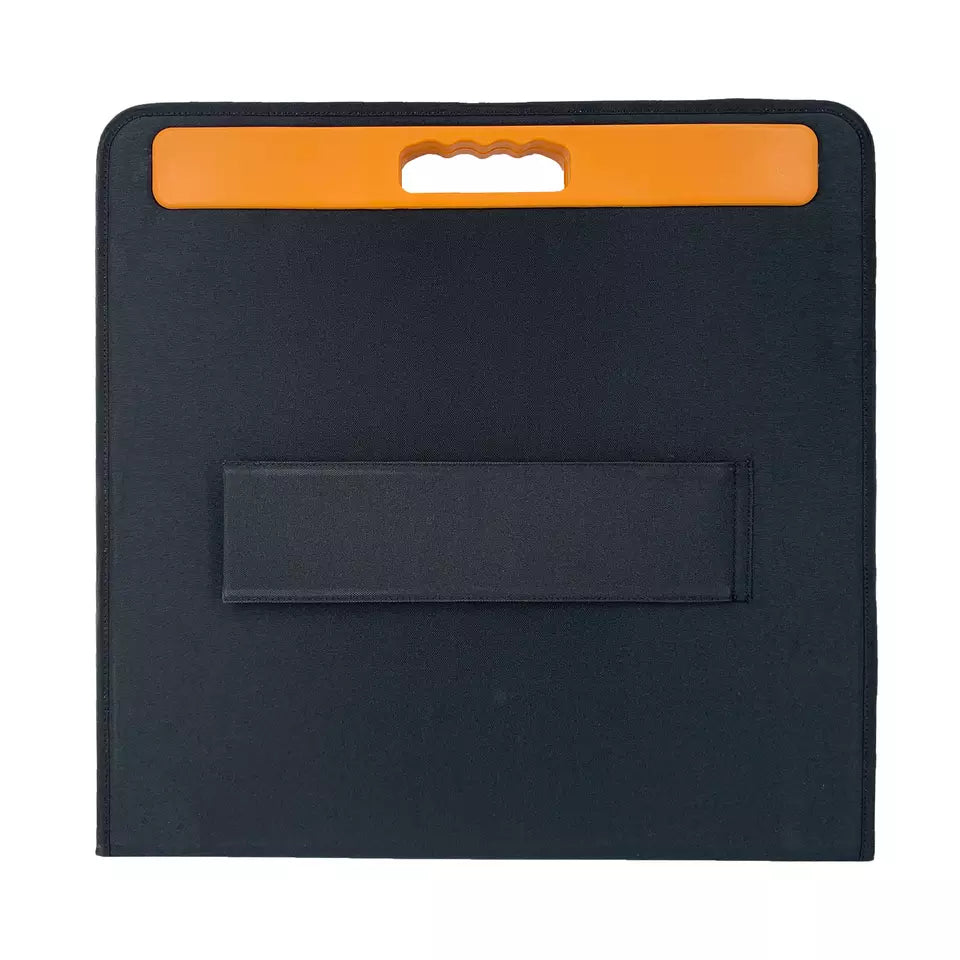

- 【Portable & Foldable Design】Small solar panel equipped with 2 adjustable kickstands enabling to get the max sunlight. 2 folds design, 8.16 pounds of weight and TPE rubber handle allows you take easily when you do the outdoor activities, camping, hiking and off-grid living etc.
- 【Package Content & Guaranteed】 LUVKNIT 100 Watt solar panel, USB-A and USB-C output ports, 10* port converters, 1* 30ft charge cable, 1*anderson connection, user guide. 24-months technical customer service available 7×24 hrs.
- 【Please Note】The power output cable is not intended to be connected directly to devices without a compatible solar generator. If you want to charge other DC devices, please try to compatible with a solar power station.
100 W Foldable Solar Panel Details
Wholesale 100 watt shingled monocrystalline foldable solar panel
-Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.
-Optimized performance under low light conditions.
-EL-Testing before packing
-Comprehensive module power testing, 100% positive output tolerance guaranteed
-Warranty on Electrical Performance: 5 years 80% of power output.
Specializing in foldable, flexible, and aluminum-framed solar panels, including semi-flexible and BIPV options.
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ |
|||||||
Nominal Power
|
60W
|
80W
|
100W
|
120W
|
160W
|
200W
|
300W
|
Cell Type
|
Monocrystalline
|
||||||
Cell Efficiency
|
21.4%
|
||||||
Maximum Power Current (Impp)
|
2.87A
|
4.55A
|
5.35A
|
5.74A
|
9.09A
|
10.7A
|
15.15A
|
Maximum Power Voltage (Vmpp)
|
20.9V
|
19.6V
|
18.7V
|
20.9V
|
17.6V
|
18.7V
|
19.8V
|
Open-circuit Voltage (Voc)
|
24.7V
|
23.4V
|
22.1V
|
24.7V
|
20.8A
|
22.1V
|
23.4V
|
Short-circuit Current (Isc)
|
3.38A
|
5.06A
|
5.86A
|
6.25A
|
9.61A
|
11.21A
|
15.67A
|
Output Tolerance
|
+3%
|
||||||
Maximum System Voltage
|
100V
|
||||||
Working Temperature
|
-20℃~+65℃
|
||||||

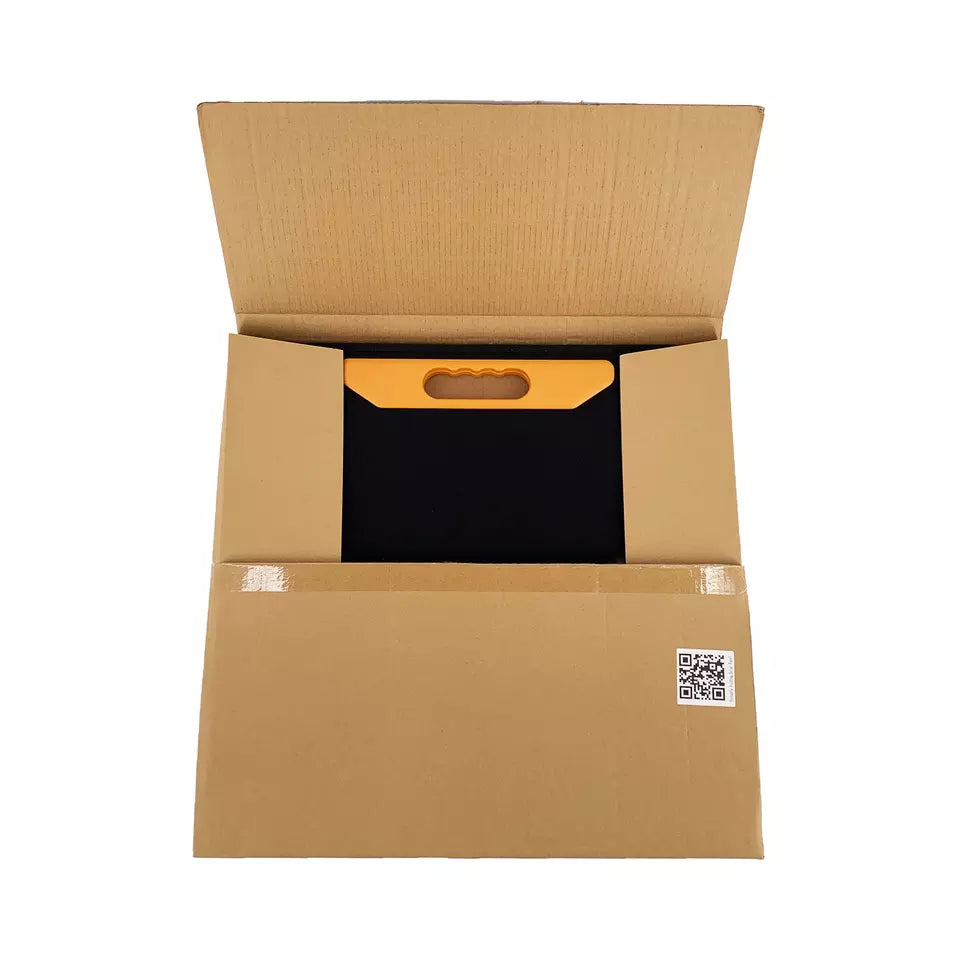

Packaging
|
|||||||
Module Dimensions (Unfolded)
|
870*530*30mm
|
1080*525*30mm
|
1210*565*30mm
|
1600*530*30mm
|
1600*525*30mm
|
2260*565*30mm
|
2940*595*30mm
|
Module Weight
|
1.9kg
|
2.2kg
|
3.8kg
|
4kg
|
6.7kg
|
8.3kg
|
11kg
|
Module Dimensions (Folded)
|
440*530*45mm
|
540*525*45mm
|
600*565*45mm
|
440*530*50mm
|
535*525*50mm
|
595*565*50mm
|
770*595*50mm
|
Package
|
Single Package
|
||||||
Pieces per Pallet
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
Gross Weight per Pallet
|
95kg
|
105kg
|
160kg
|
170kg
|
260kg
|
310kg
|
380kg
|
Pallet Dimensions
|
1200*1100*620mm
|
1200*1100*710mm
|
1200*1100*770mm
|
1200*1100*770mm
|
1200*1100*700mm
|
1200*1100*700mm
|
1200*1100*940mm
|

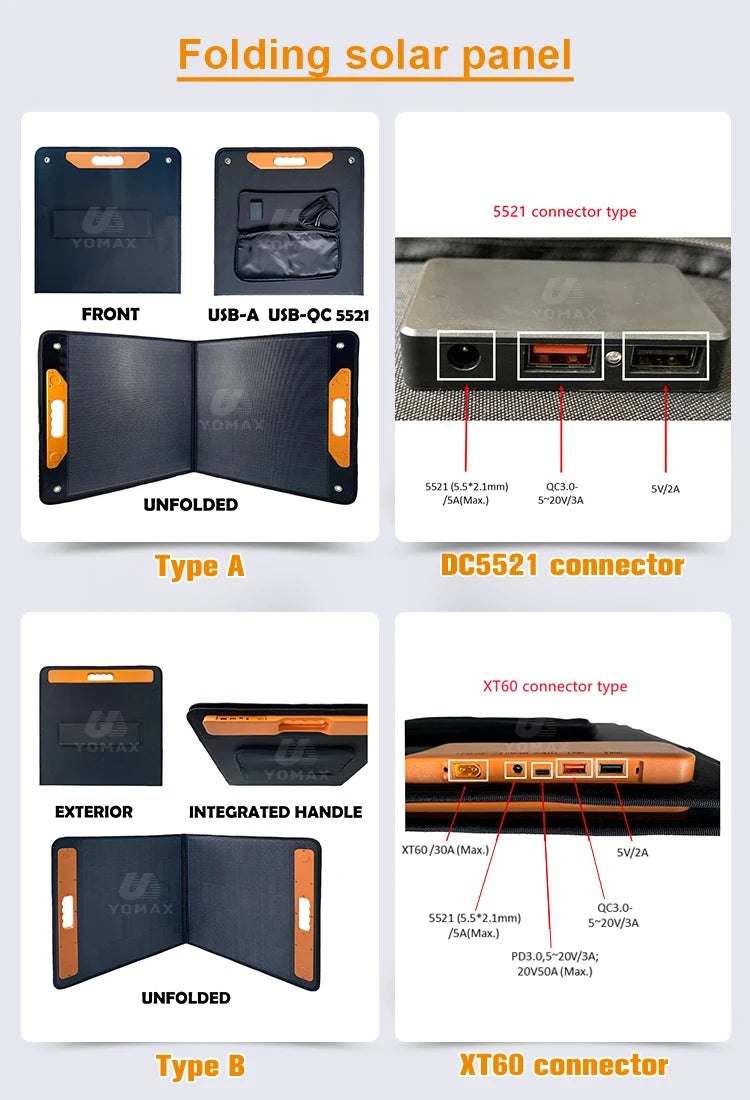

Introducing our portable solar panel generator, perfect for outdoor camping trips. With its foldable design, this solar charger features a 100W capacity, compatible with USB devices (A and QC), and a max output of 5V/3A. The unfolded size is approximately 5.5*21mm, and it has an integrated handle for easy carrying.
Unique connection design reduces internal resistance for improved efficiency, outperforming traditional busbar connections.

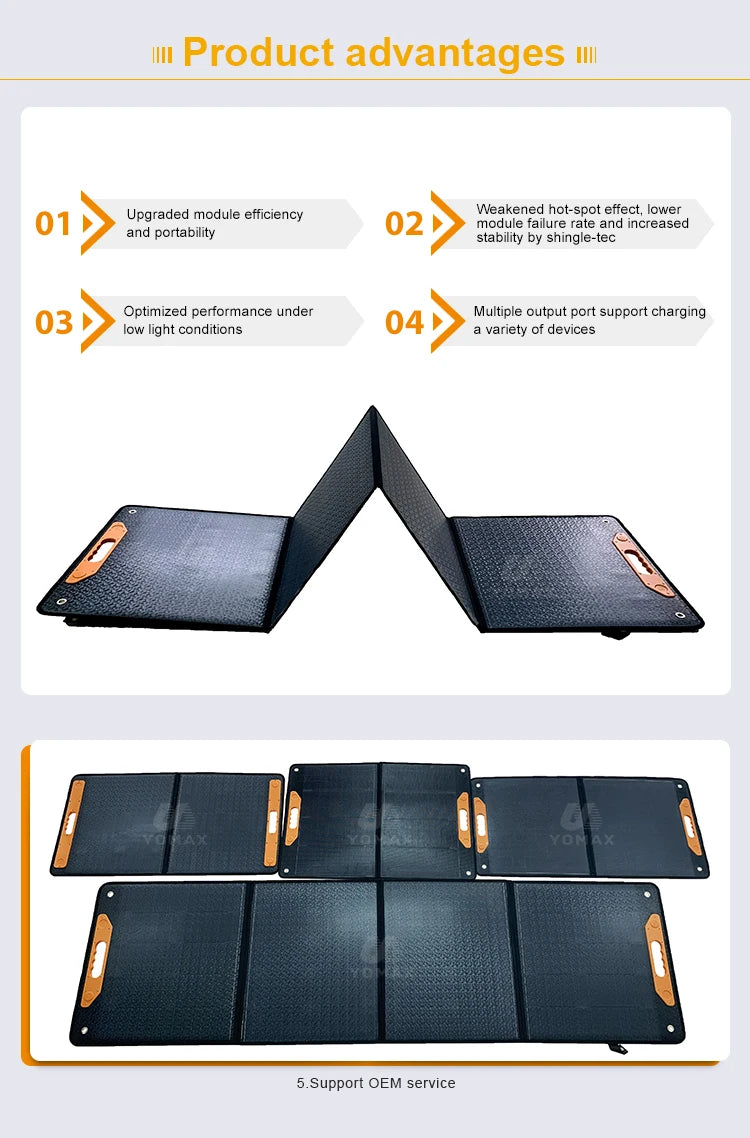

Upgraded solar panel features improved efficiency, reduced hotspots, and increased reliability. It also offers optimized performance in low-light conditions, supports multiple output ports for charging various devices, and comes with a shingle-tec design for enhanced portability and stability.
Yomax's quality control includes original cell sorting, EL-testing, and comprehensive module power testing to ensure a reliable and efficient portable solar panel.

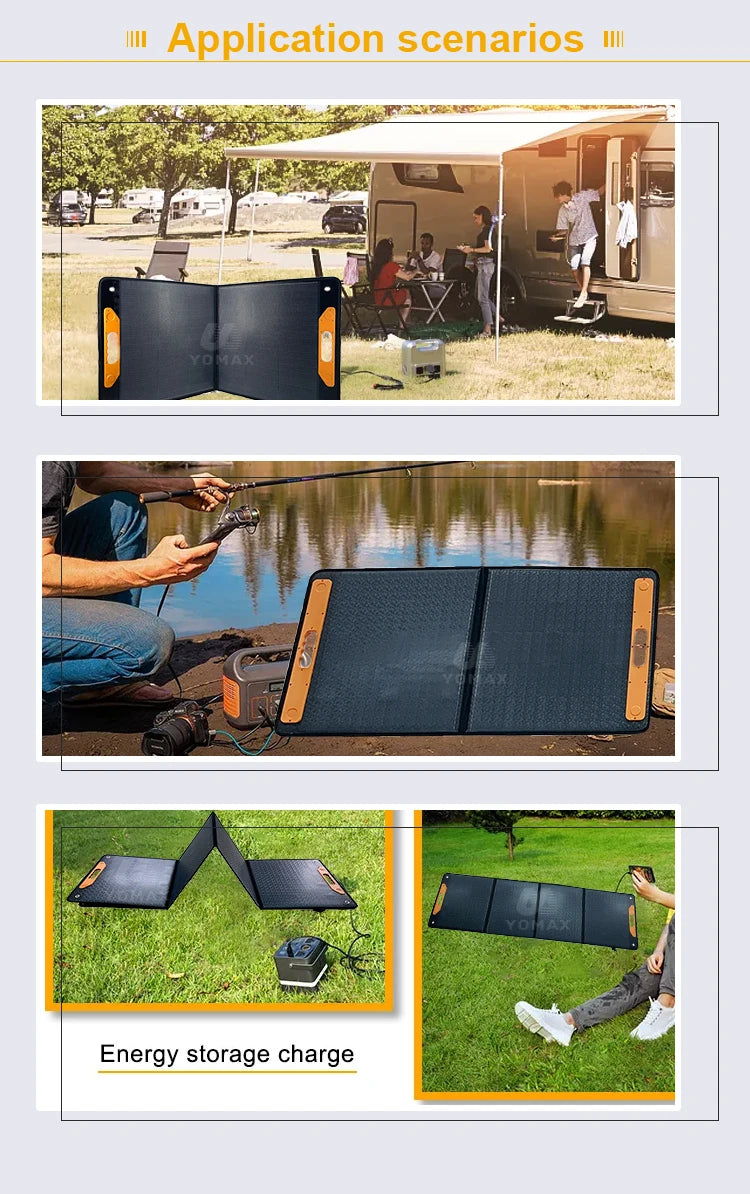

Charge energy storage devices anywhere with this portable solar panel, perfect for camping or travel.
