BestSolarPanel

10A 20A 30A 12V 24V Auto Solar cells Panel Battery Charge Controller PWM Solar PV Regulators LCD Display 5V USB

10A 20A 30A 12V 24V Auto Solar cells Panel Battery Charge Controller PWM Solar PV Regulators LCD Display 5V USB

Regular price $4.30 USD
Regular price Sale price $4.30 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB output: 5V/3A

Rated Voltage: 12V/24V Auto Switch

Origin: Mainland China

Model Number: 12/24V 10A/20A/30A

Maximum Current: 10A/20A/30A Optional

Certification: CE

Brand Name: Snaterm

Application: Charger Controller,Solar System Controller,Voltage Controller,Solar Working Station

12V 24V Auto 10A 20A 30A 40A 50A 60A PWM Solar Charge Controller Solar Battery Charger Solar PV Regulators with LCD Display and 5V USB

This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

This is NEW Solar Controller, it can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recongize 12V and 24V Lead acid,Gel battery automatically


There are optional 10A 20A 30A 40A 50A 60A model:

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

If your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

40A:

if your battery is 12V ,the max solar panel input is 25V  520W

if your battery is 24V ,the max solar panel input is 50V  1040W

50A:

If your battery is 12V, the max solar panel input is 25V   650W

if your battery is 24V, the max solar panel input is 50V   1300W

60A

if your battery is 12V ,the max solar panel input is 25V   780W

if your battery is 24V ,the max solar panel input is 50V   1560W


PRODUCT FEATURES

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet reverse current protection,low heat production.


SYSTEM CONNECTION

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!


SPECIFICATON:

MODEL

10A

20A

30A

40A

50A

60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

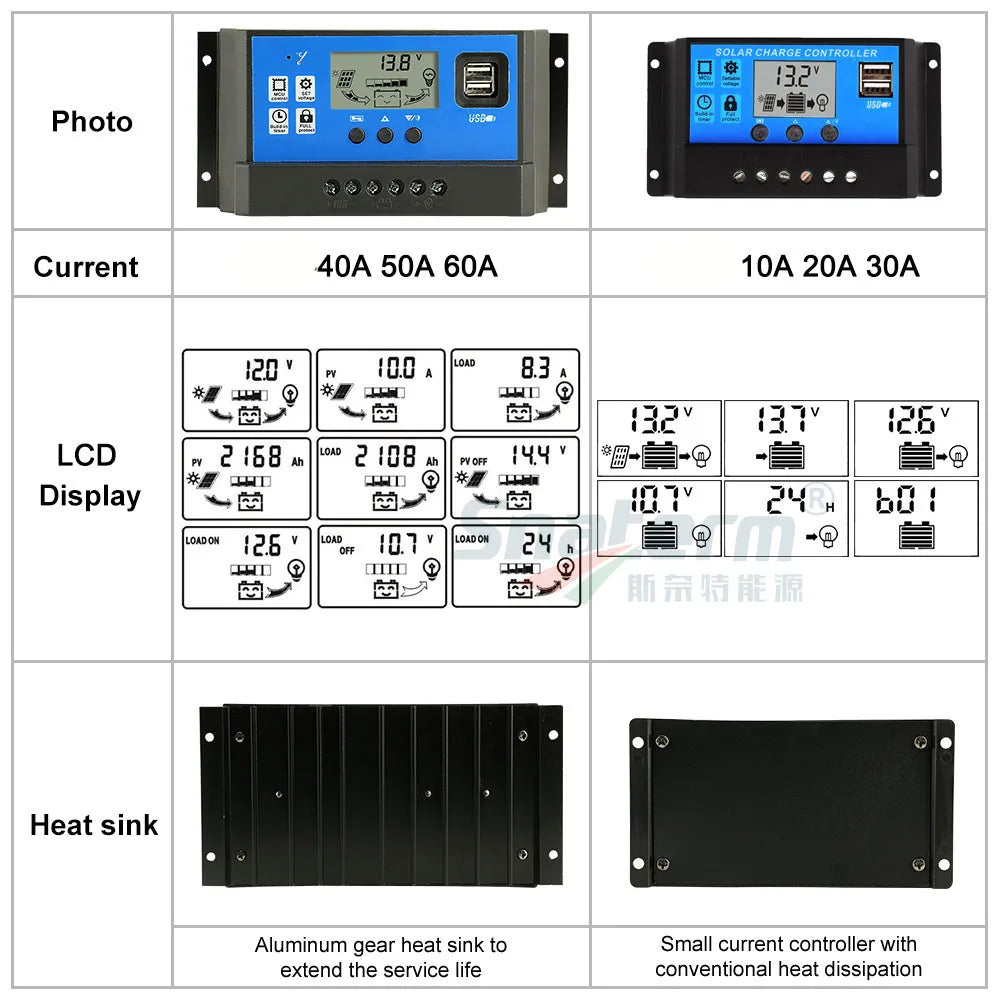

*all red color voltage X2 ,while using 24V system.Note: Follow the same procedure in reverse for disassembly.



10A 20A 30A

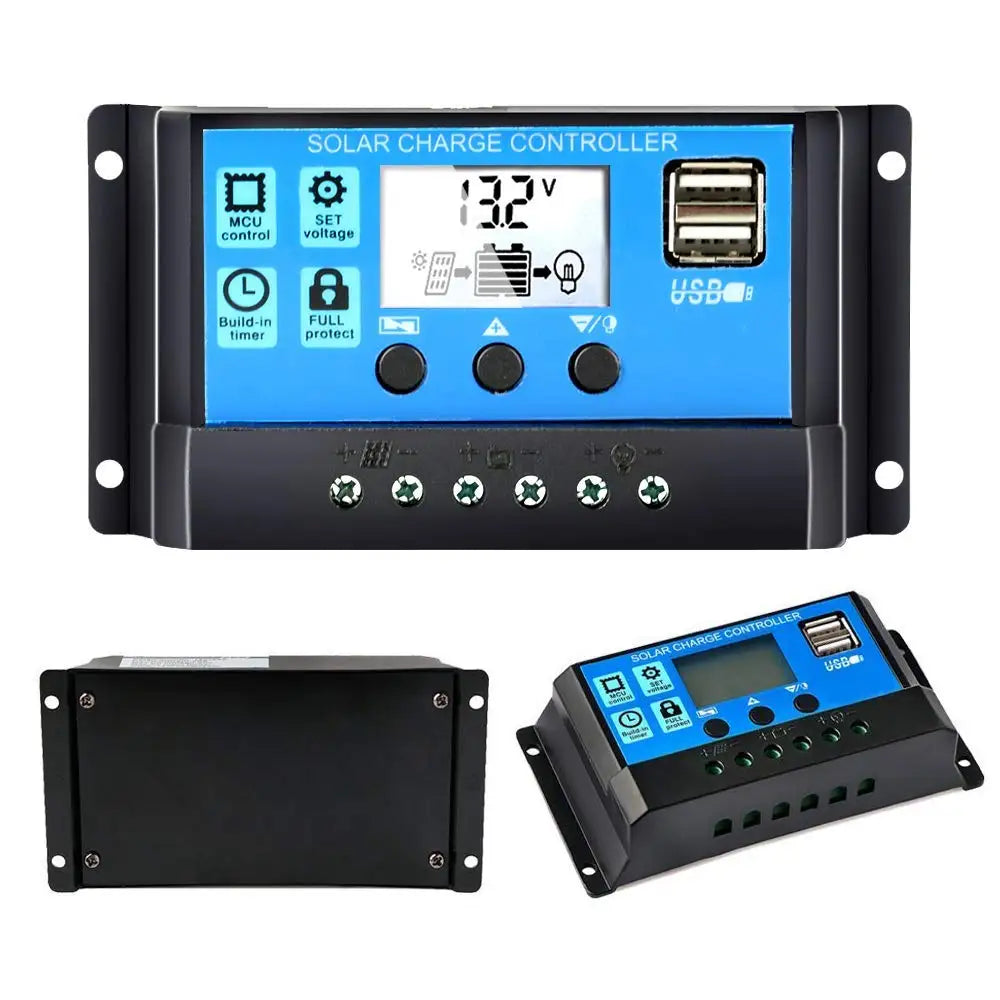

MCU-based solar charger with USB output, timing mode, and high current capacity, easy to use with no programming needed.

MCU-based solar charge controller with USB output, built-in full timing mode and 6s/80A max current. Simple to use, no complex programming required.

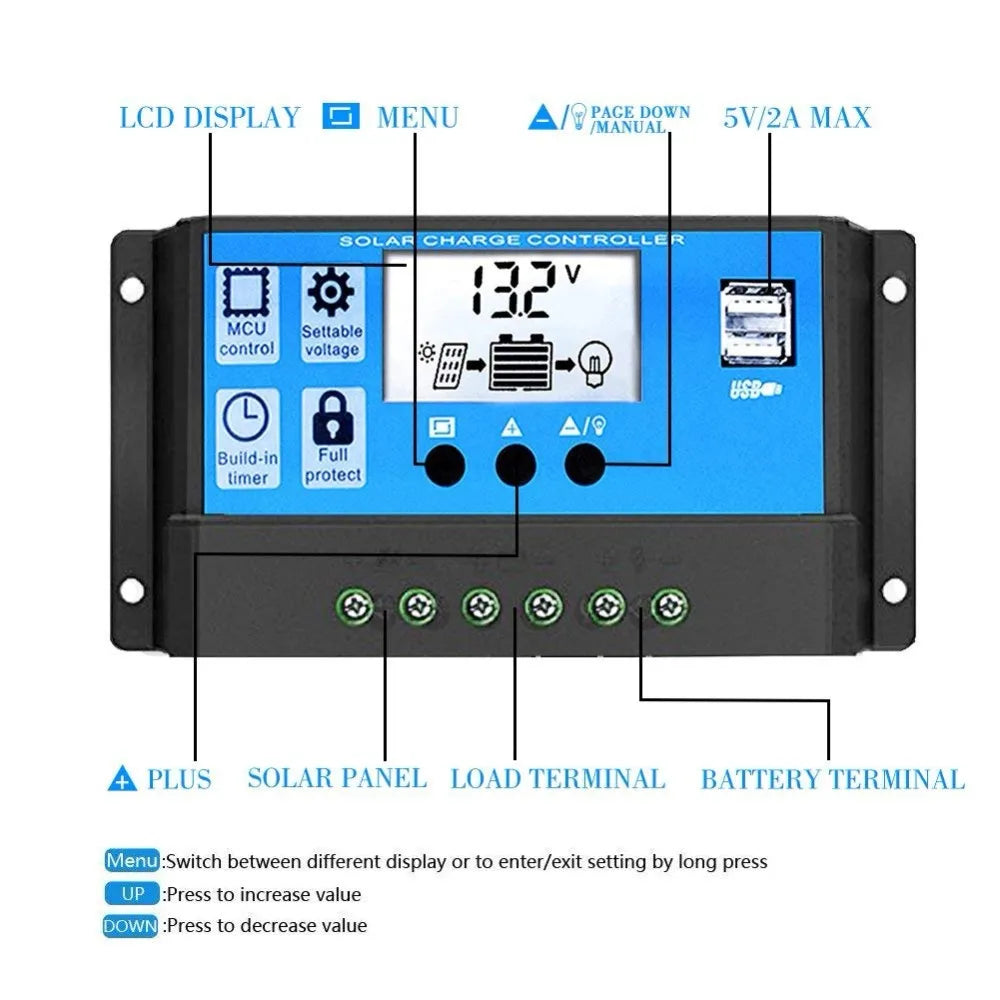

LCD Display Menu with Quick Page Down button and solar charging features.

LCD Display Menu with Quick Page Down button. The menu features a 5V/2A max solar charge controller with MCU selectable control voltage, built-in full discharge protection, and plus solar panel load terminal and battery terminal. Use the Up and Down buttons to switch between displays or enter/exi settings by long pressing. Press the Up button to increase value and the Down button to decrease value.

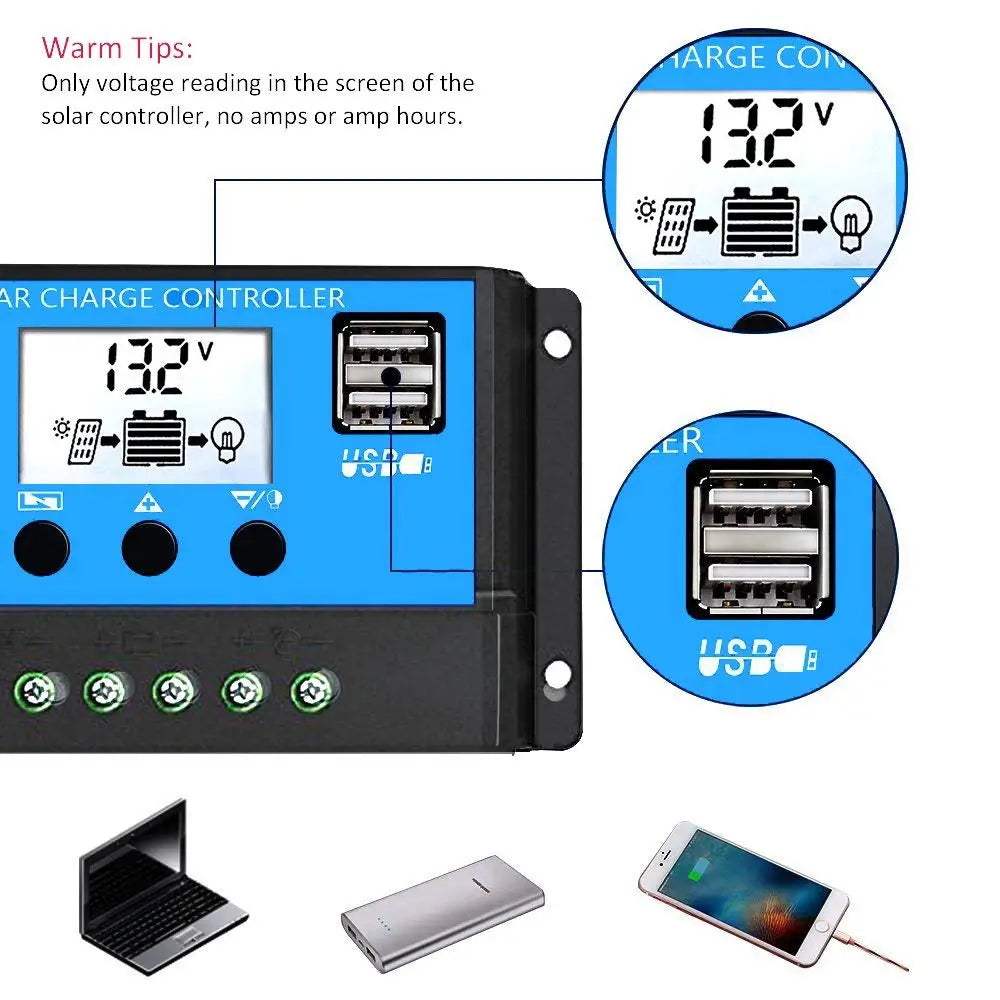

Solar controller display shows voltage readings only, no amps or amp-hours displayed.

Note: The solar controller display only shows voltage readings; amperage and amp-hour values are not available. USB charging tips included.

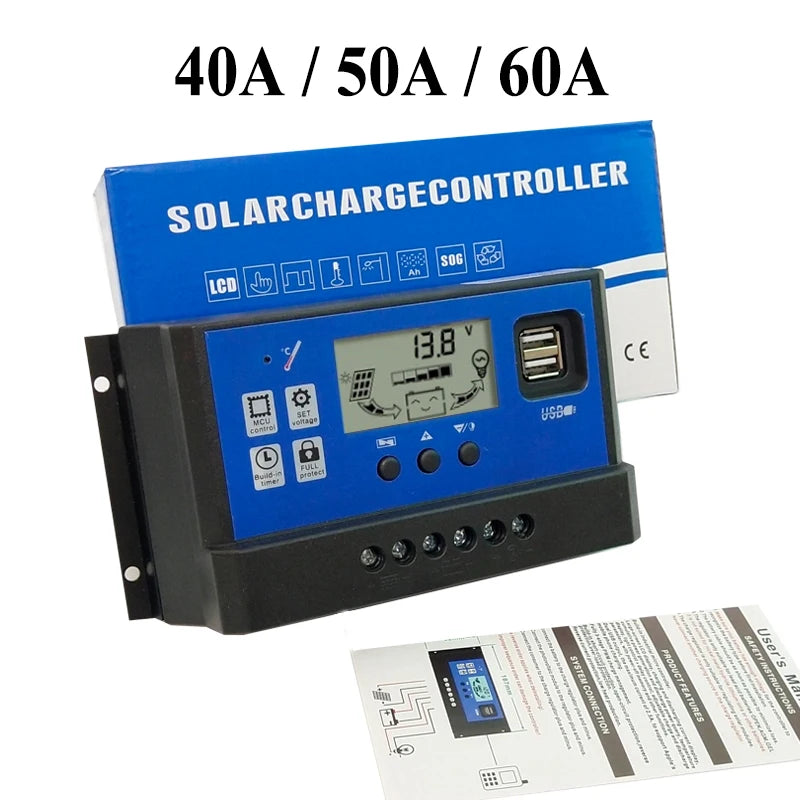

Solar controller with LCD display and USB output, suitable for 12V or 24V solar panels and 40-60A charging.

Solar Charge Controller with LCD display and USB output, supporting 40-60A charge rates and compatible with 12V or 24V solar panels.

Solar charge controller with LCD display for monitoring and regulating solar-powered energy systems.

10A/20A/30A Solar Charge Controller with LCD Display. This 12V/24V auto solar panel battery charge controller features PWM technology and a 5V USB output. It controls charging and discharging for your solar PV system. The LCD display shows the charging status, voltage, and current. Perfect for monitoring and regulating your solar-powered energy system.

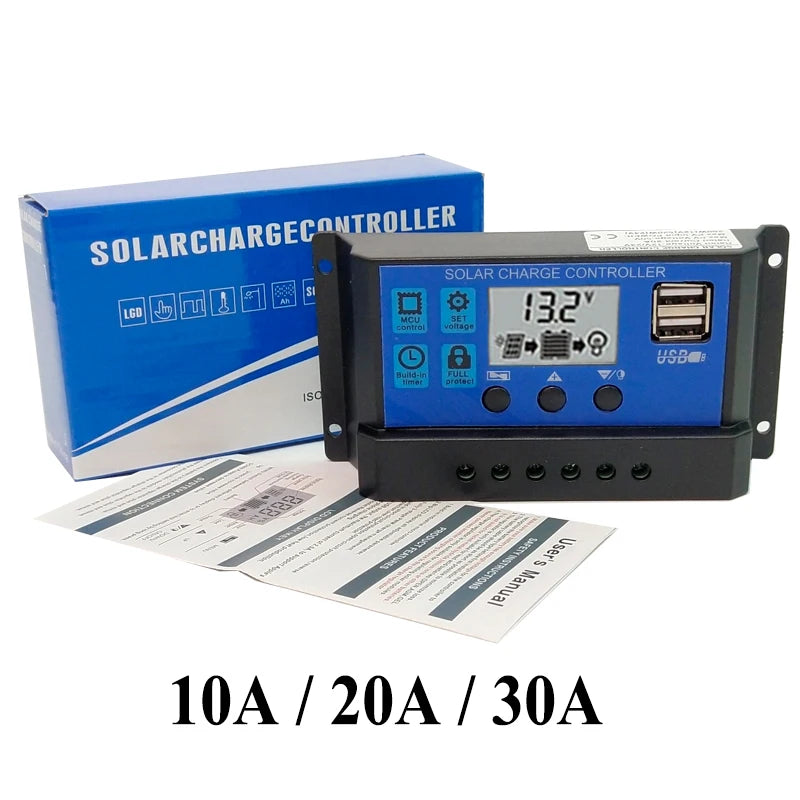

Auto solar charge controller with LCD display and USB port for charging batteries from solar panels.

12V and 24V Auto Solar Charge Controller with PWM Regulator, LCD Display, and 5V USB Port. Supports charging current up to 10A, 20A, or 30A. Ideal for solar panels and battery systems.

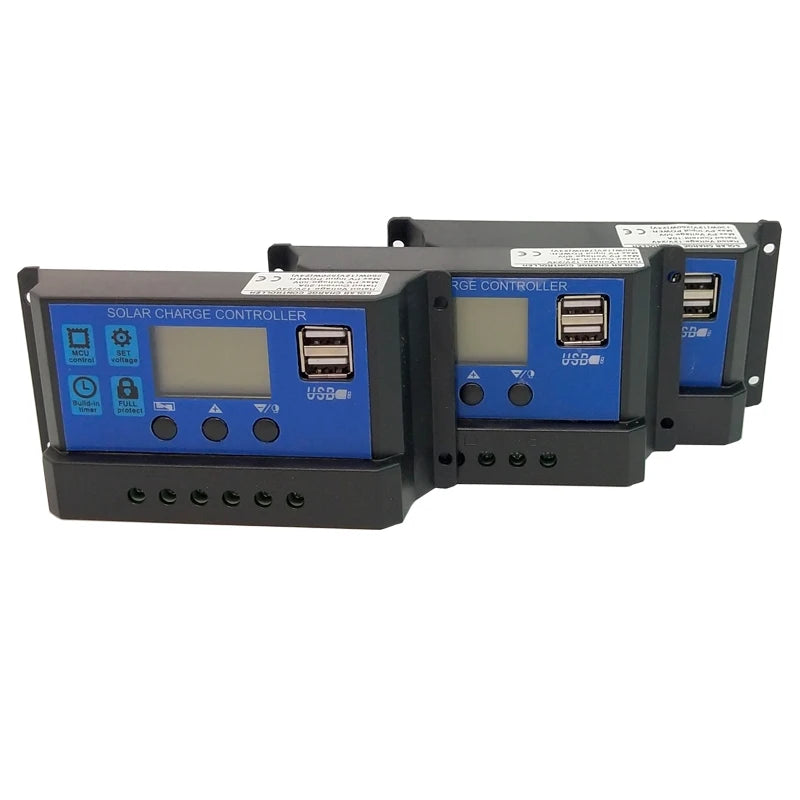

Solar charge controller with LCD display regulates battery charging from 10A to 30A for 12V/24V solar panels.SPECIFICATON:

MODEL

10A

20A

30A

40A

50A

60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

*all red color voltage X2 ,while using 24V system.

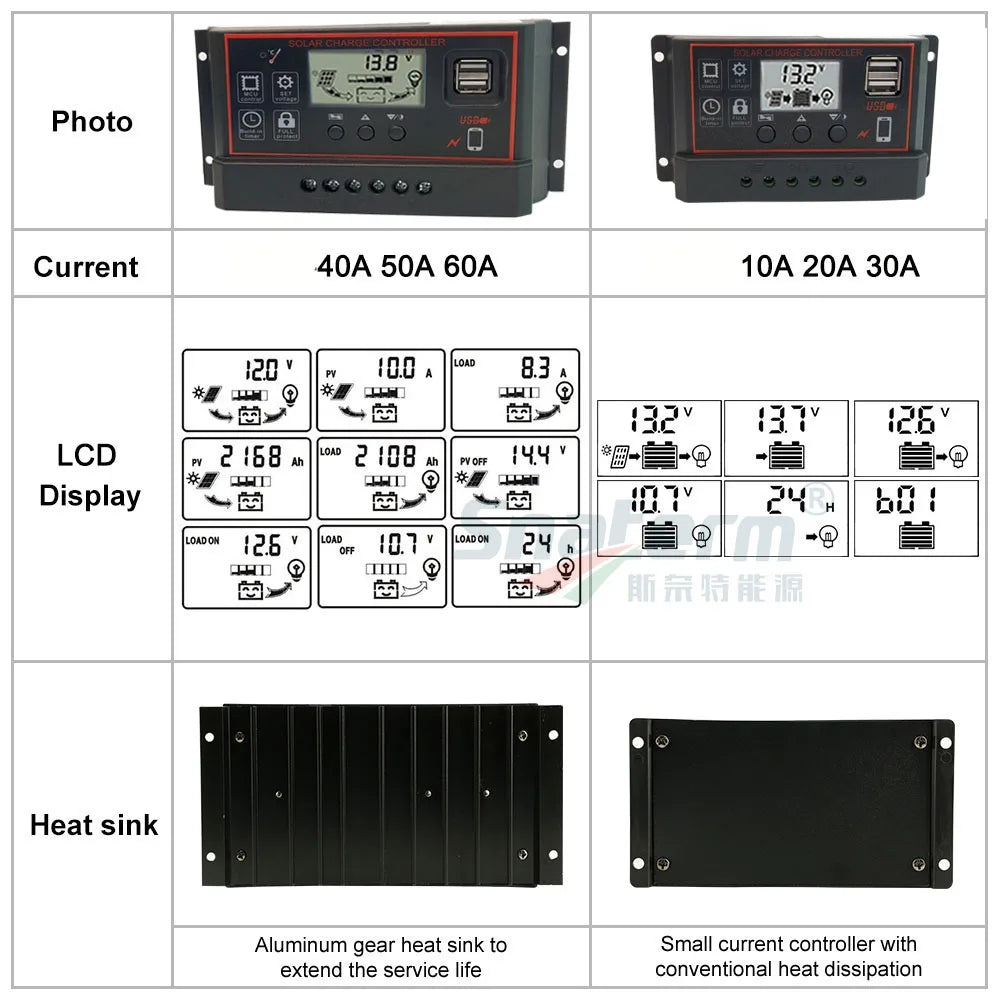

When removing, follow the same order in reverse.

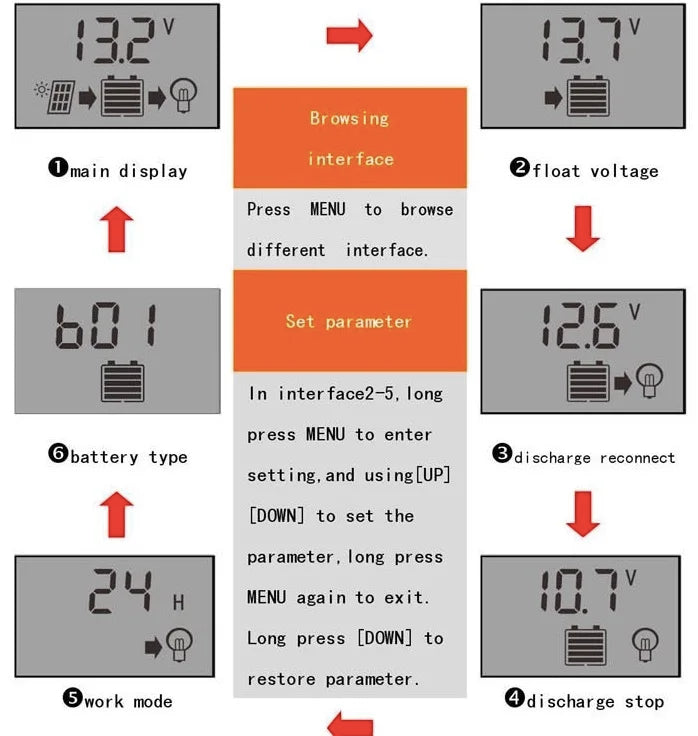

10a/20a/30a LCD Display:

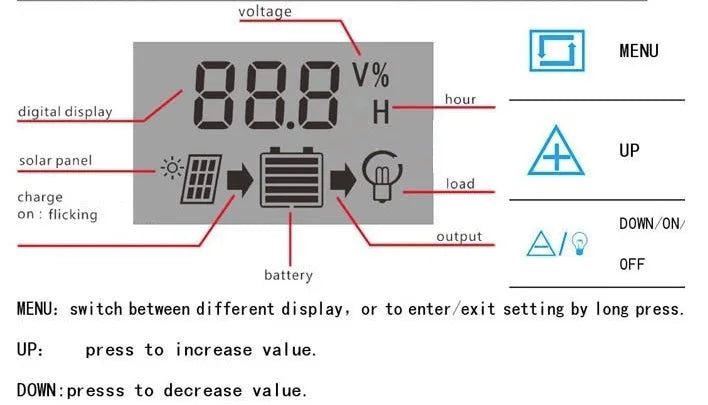

Digital display with voltage percentage (V%) shows options for charging and controlling solar panels, batteries, and outputs.Display voltage (32V-37V), browse interfaces, adjust settings, long press 'MENU' for battery type & discharge settings.

1.press the [Down] button to ON/OFF load manully at main display.

2.the work mode is working as below:
[24H]      load output 24hours
[1-23H]    load on after sunset and closed after setting hours
[0H]       Dusk to dawn

Features a large LCD display with fully adjustable parameters for easy control.

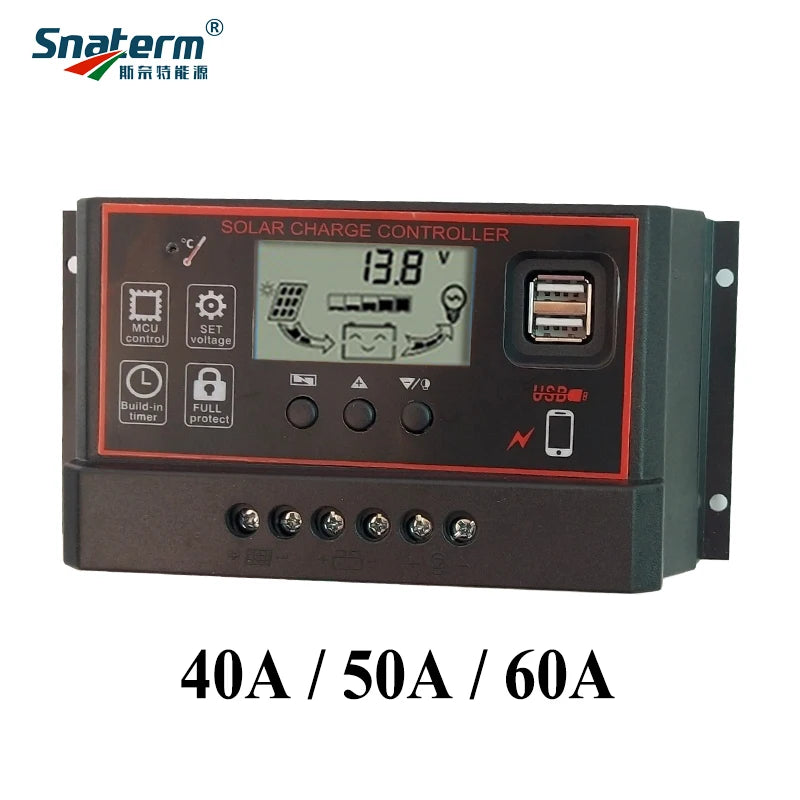

Adjustable solar charge controller with timer, no extra hardware needed.

Smart Solar Charge Controller with MCU set, featuring adjustable output current (40A, 50A, or 60A) and built-in timer. No additional hardware required.

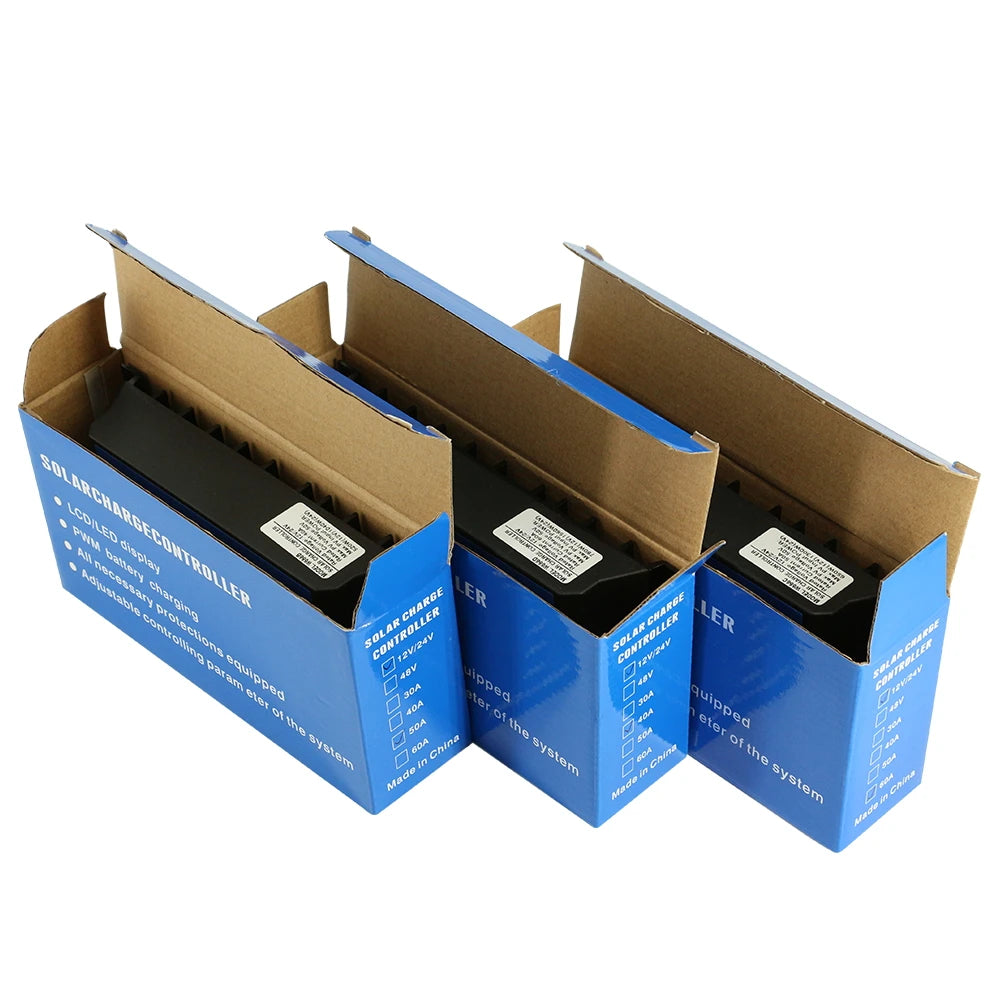

Charges multiple batteries with adjustable currents, monitors voltage, current, and temperature, with LCD display and remote monitoring via USB.

Auto Solar Cell Panel Charger Controller with LCD Display: Regulate 12V/24V Battery Charging and Monitoring. This controller can charge multiple batteries in parallel, featuring adjustable charging currents for 10A, 20A, or 30A outputs. The LCD display shows real-time voltage, current, and temperature readings. It also has a USB port to monitor the system remotely. Perfect for solar power systems, this charger controller ensures safe and efficient charging of your batteries.

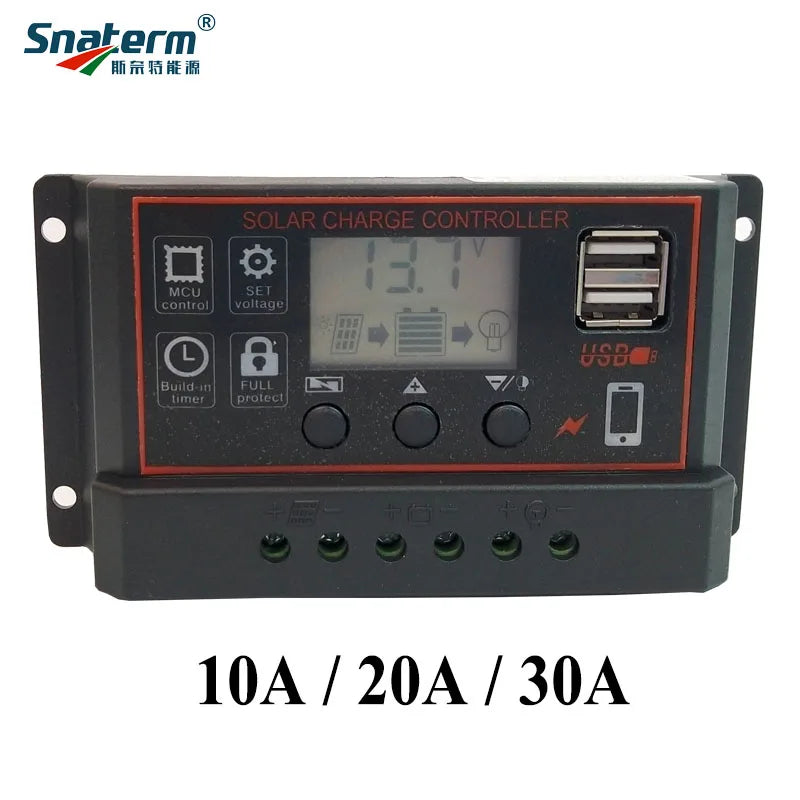

Solar charge controller with MCU, controls voltage, supports up to 30A, ideal for large-scale projects.

Solar Charge Controller with MCU Set: Controls voltage, features USB-C output, and supports up to 30A charging current. Ideal for full-size projects.

10A 20A 30A 12V 24
