SPECIFICATIONS
is_customized: Yes
Output Voltage: 12V/24V
Origin: Mainland China
Model Number: PWM Charger-12/24V
Maximum Current: 60A
Is Smart Device: No
Certification: CE,FCC,RoHS
Application: Solar System Controller
10A 20A 30A 40A 50A 60A PWM USB Solar Charge Controller Intelligent 12V 24V Panel Battery Regulator for Solar Panel
Features of this solar charge controller
1. PWM charging mode
2. LCD Screen display
3. Set real time clock
4. Auto voltage identification
5. Light control mode,Time control mode
6. Reverse connecting protection
7. Hanging style design makes it convenient to install
8. 2 USB charging interface of 5V 2.5A.
Technical Parameter
Dual USB Port:
The solar charge controller has dual USB ports of 5V 2.5A, which can use for
different phone charge.
Solar Battery: Solar Charge controller is only suitable for lead-acid
batteries: OPEN, AGM, GEL, not for nickel hydride, lithium, Liions, or other
batteries. It has another model for lithium battery.
Easy to install and Operate: It's hanging style design can use as wall
mounted one. And this 1024 Solar controller can clearly indicate the status and
data, it can be conveniently switched to different modes and parameter
configuration

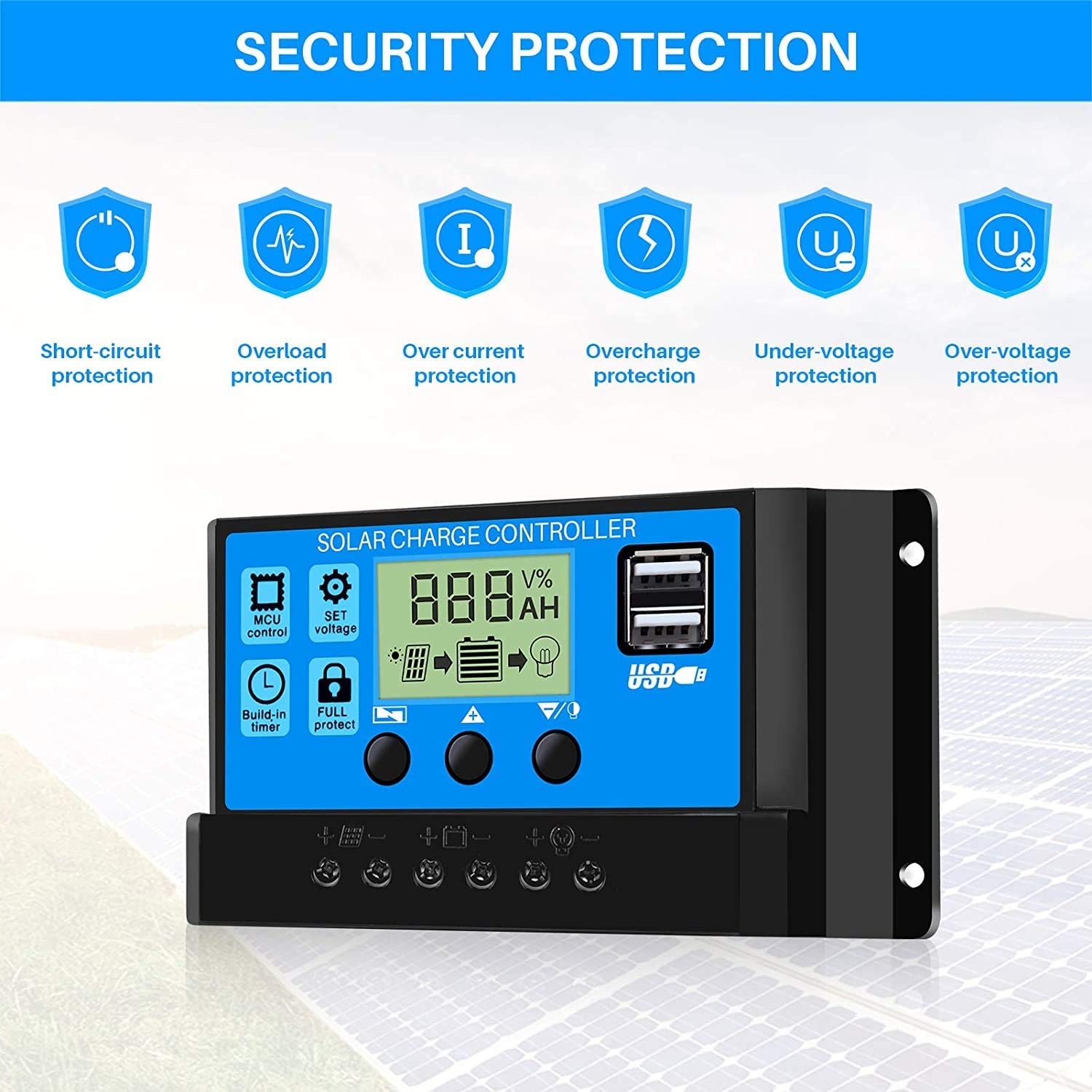

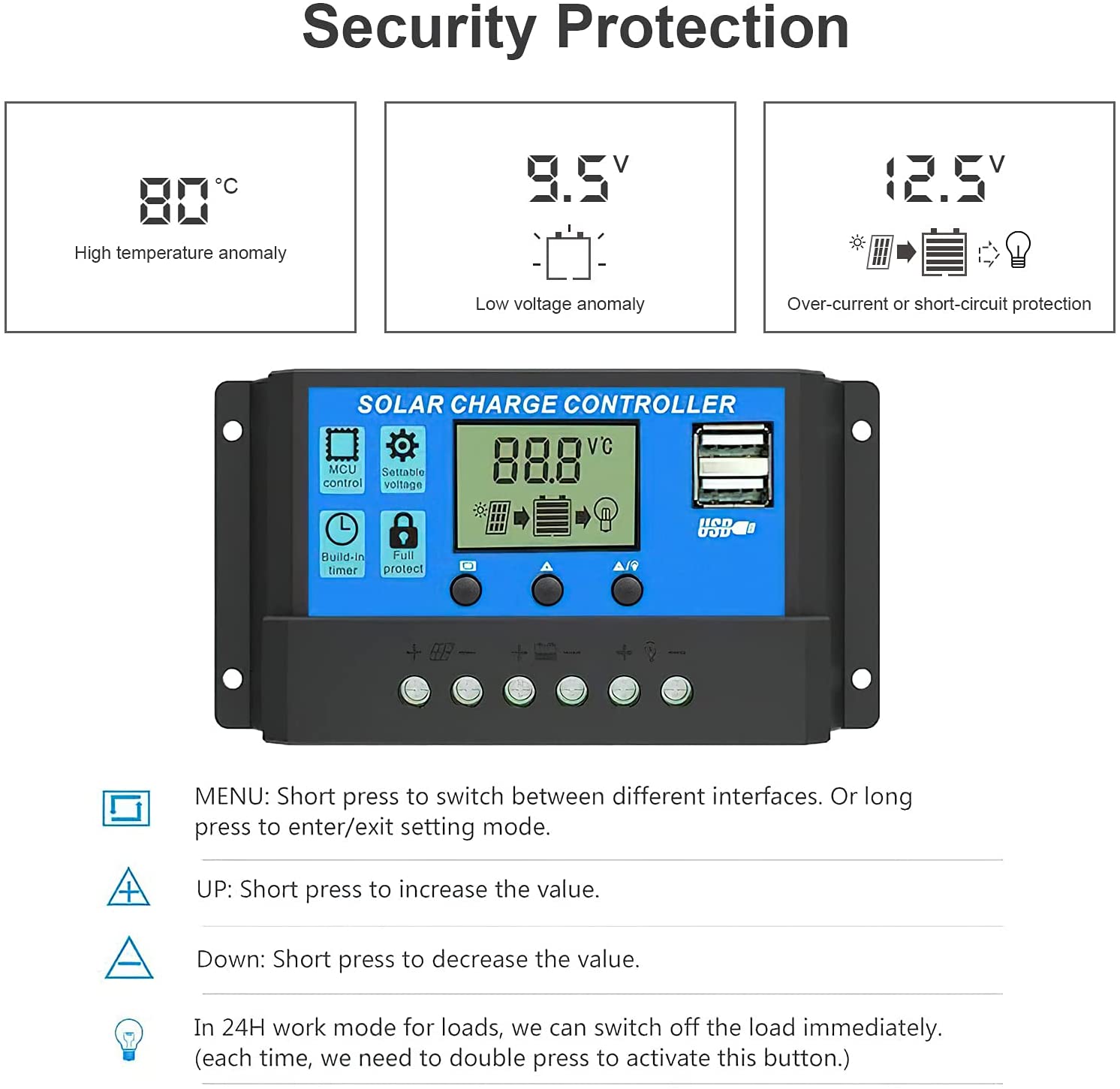

Six Functional Protections: This solar controller inludes short circuit
protection, open circuit protection, over current
protection, over charge protection, over discharge protection and reverse
polarity protection.
Good Heat Dissipation: Dual mosfet reverse current protection, low heat
production(ALL electronic components generate heat when they are running, it is
better to shelter them for better heat dissipation, avoid direct sunlight
exposure or damp place)

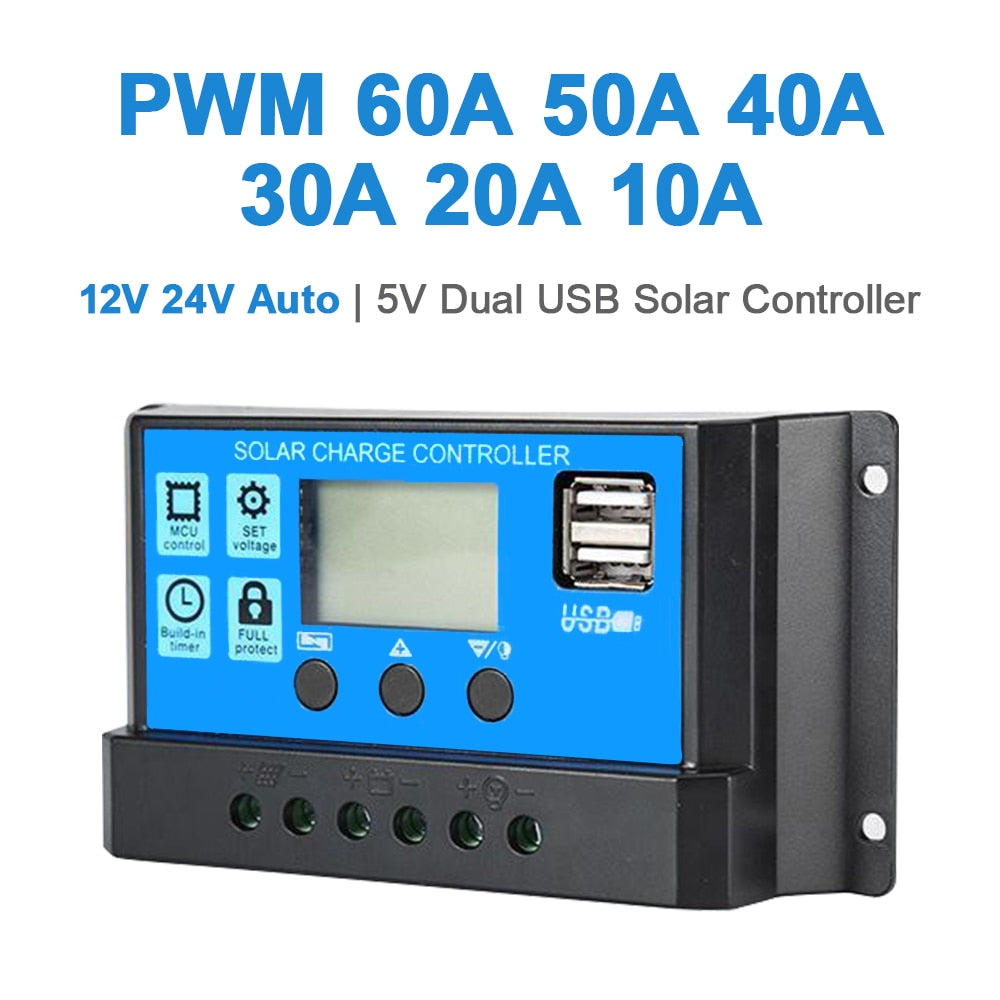

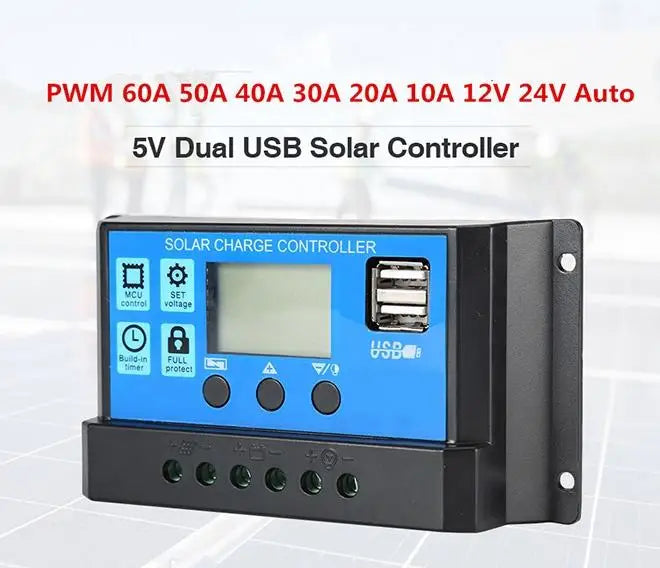

PWM 60A Solar Charge Controller regulates 10A to 60A, suitable for 12V or 24V solar panels and batteries. Features intelligent charging, dual USB ports, and auto shutdown protection.

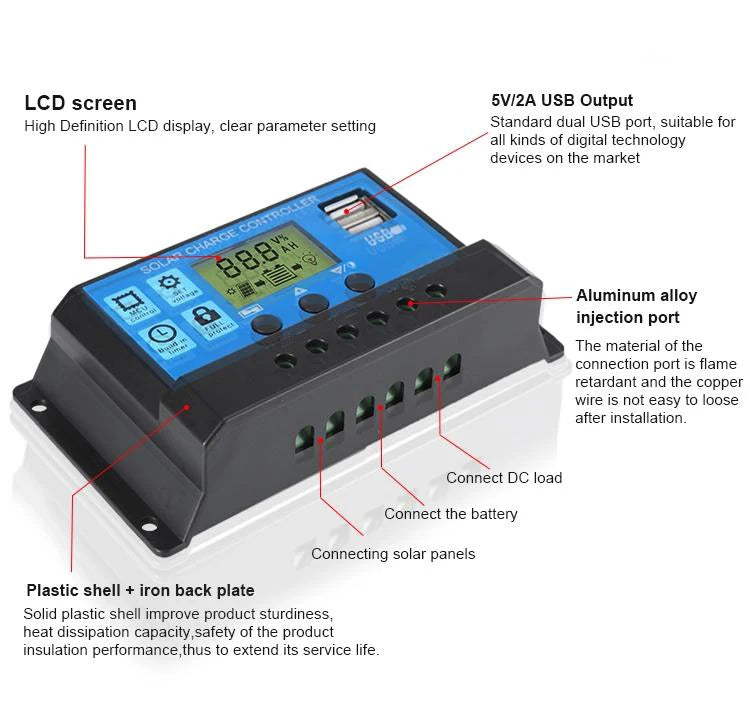

This intelligent charger features a clear LCD screen with high-definition display and dual USB ports for charging various devices. The aluminum alloy injection port ensures a secure connection, while the flame-retardant material prevents wire looseness after installation. A sturdy plastic shell with an iron back plate provides excellent heat dissipation, insulation performance, and durability, extending the product's lifespan.

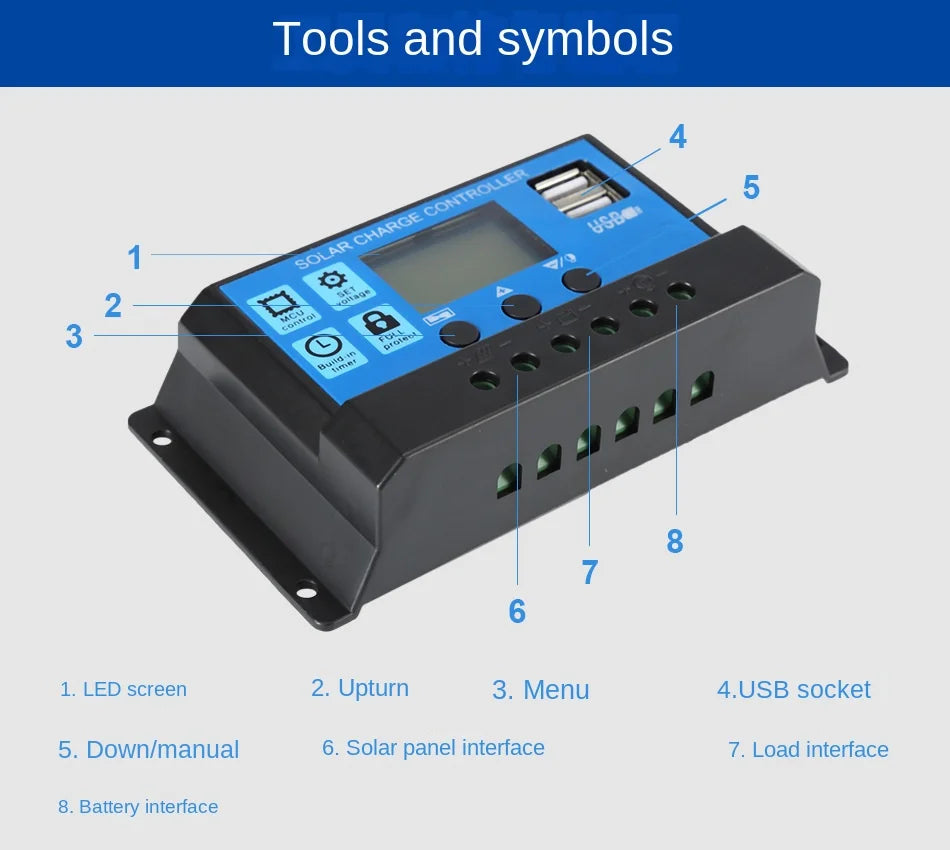

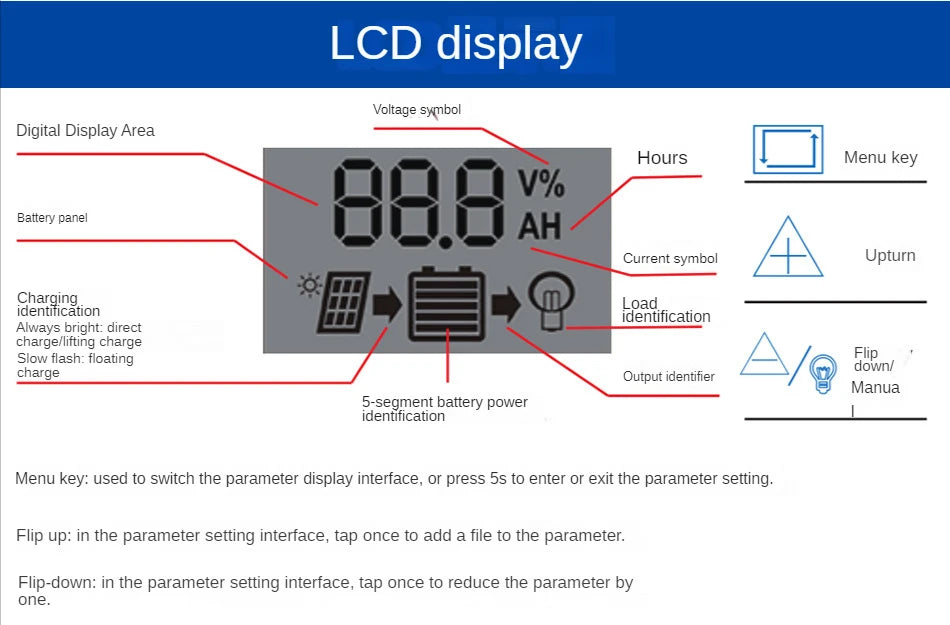

Intelligent PWM controller for solar panels: features LED screen, menu navigation, USB connectivity, and interfaces for solar panels, loads, and batteries. Easy to use with manual download option.
Descriptions:
The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations,
and you can use the controller in different places such as home, industry, and business. Built-in over current protection,
short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the
controller, providing reliable protection for your equipment.
MODEL |
PWM-E-10A |
PWM-E-20A |
PWM-E-30A |
PWM-E-40A |
PWM-E-50A |
PWM-E-60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
48V(for 24V battery) 24V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel 8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel 8V(Light off delay) |
|||||
USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||
Size |
133.5*70*35mm |
188*90*47mm |

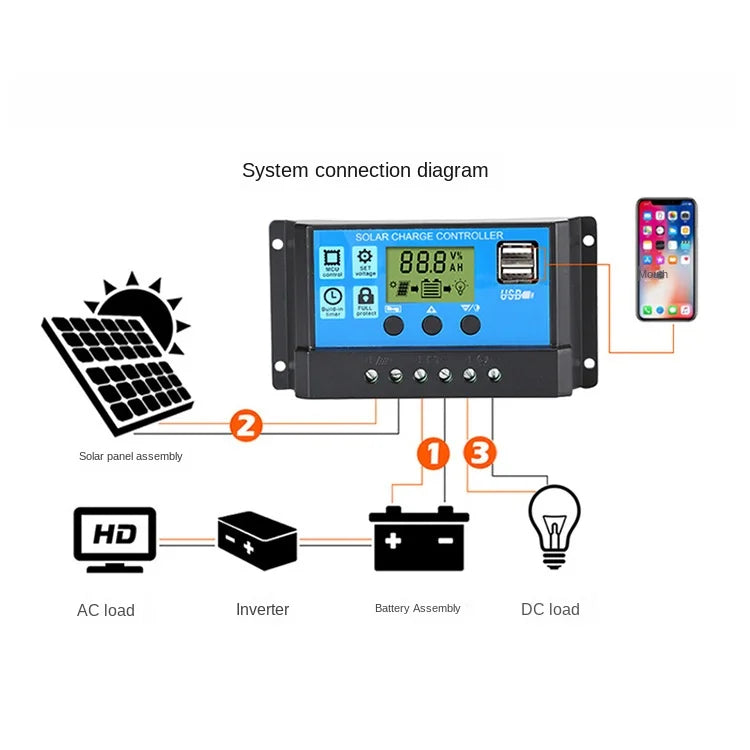

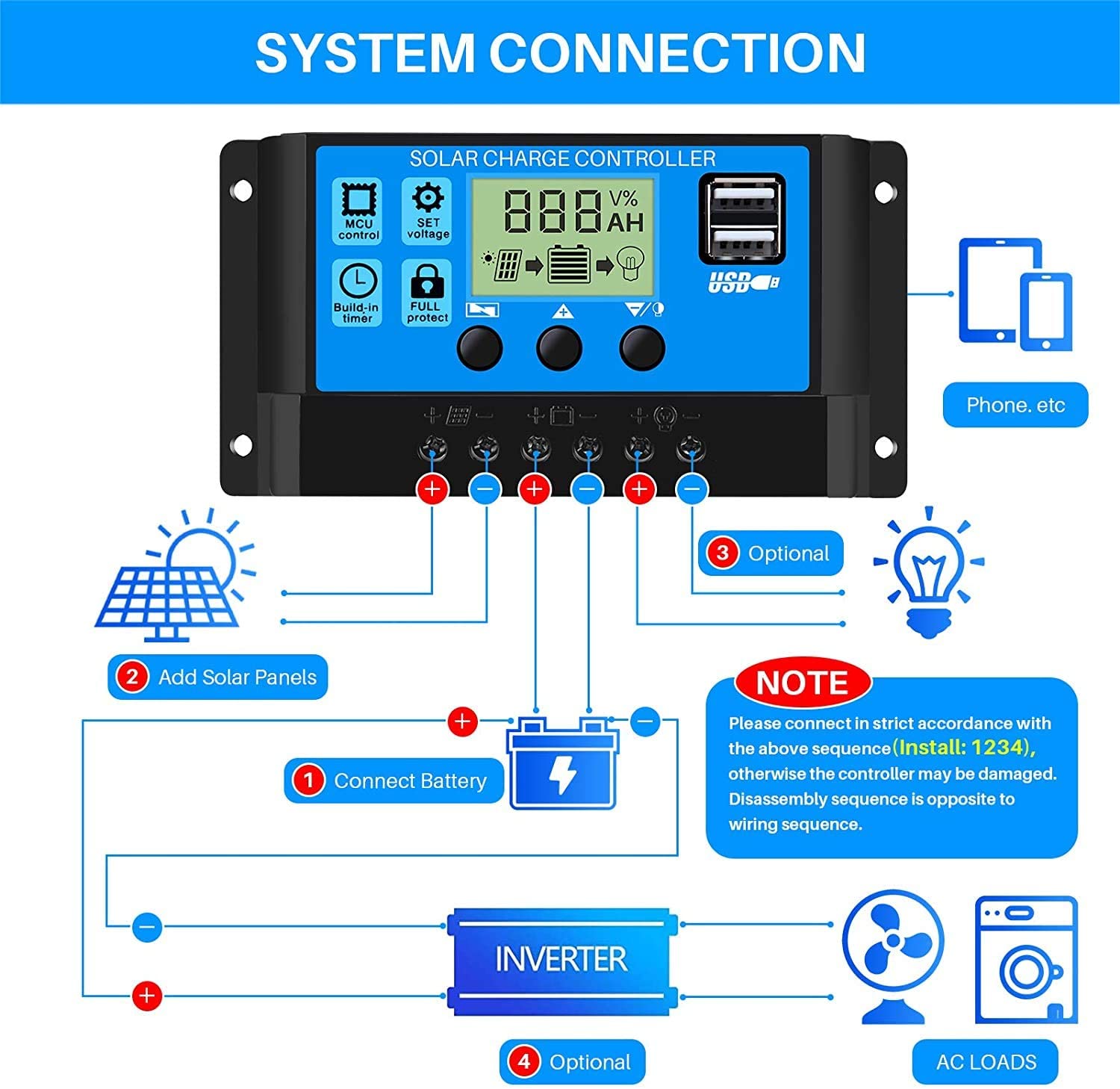

Connect solar charge controller components in the correct order. Follow the installation sequence (1-2-3-4) and connect batteries last. Failure to do so may damage the controller. The disassembly sequence is the reverse of wiring. Optional features include an inverter and AC loads. Note: Please refer to the instructions for detailed information.

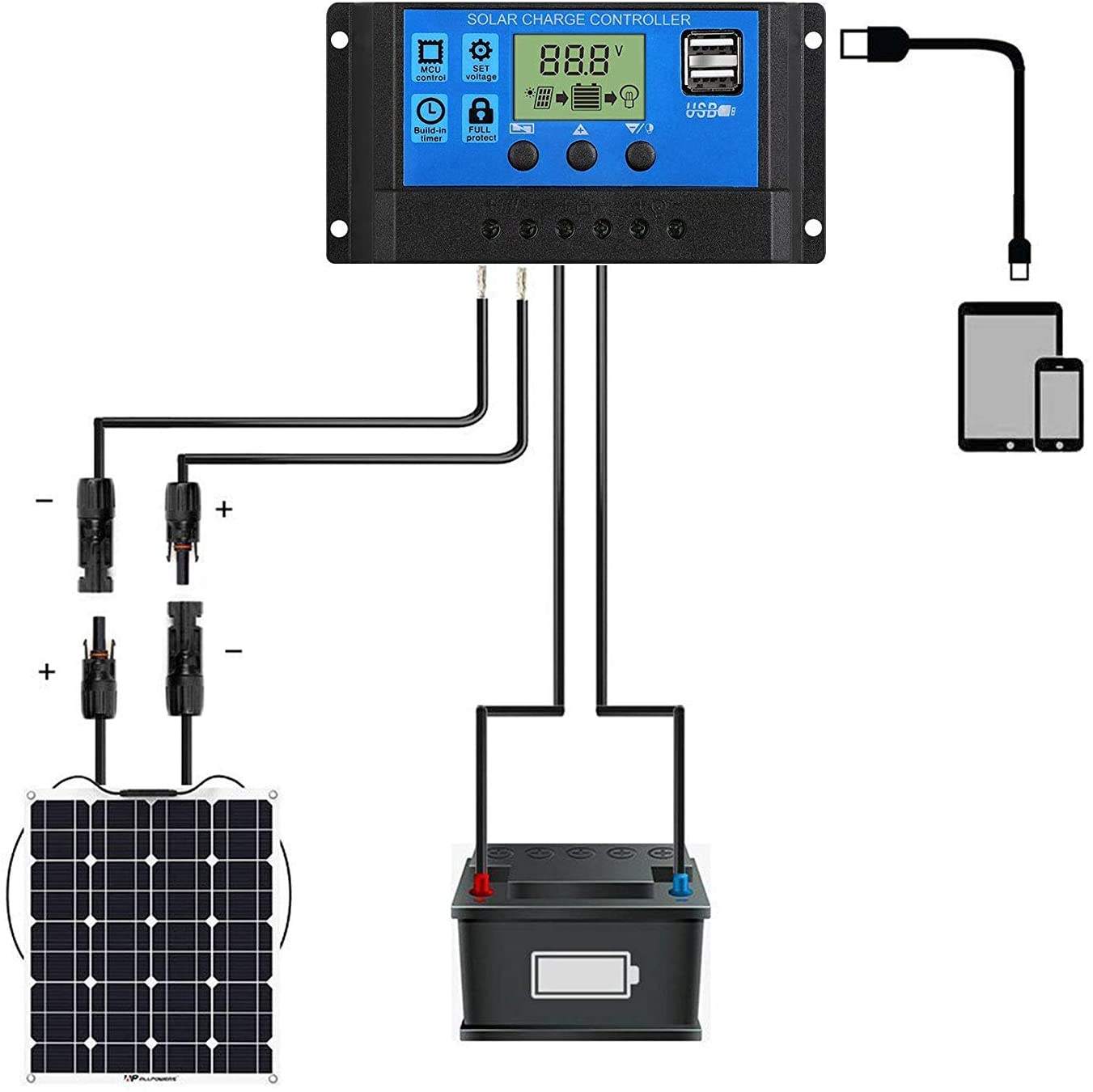

SYSTEM CONNECTION
1. Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
This is NEW Solar Controller ,It can fully meet your home Photovoltaic
system(including home lighting system )requirements .It can recongize 12V and
24V Lead acid ,Gel battery automatically
There are optional 10A 20A 30A model
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W

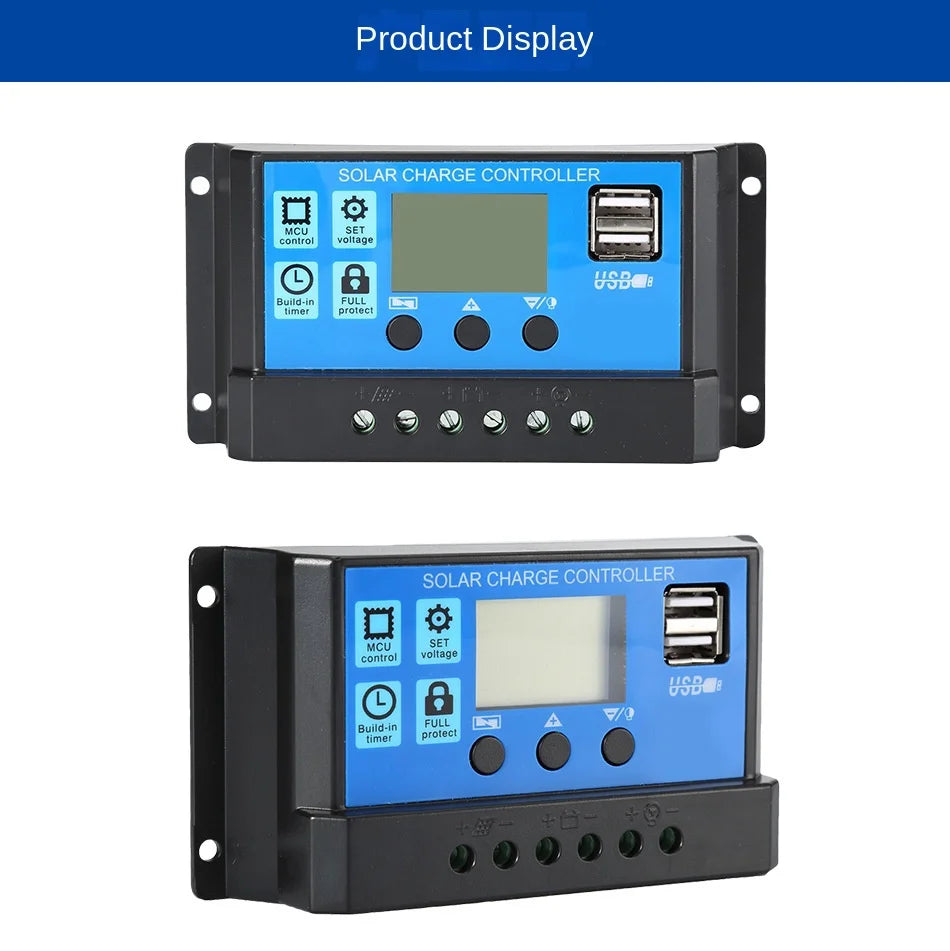

Solar Charge Controller with MCU, built-in full wave protection and USB interface for efficient solar panel charging. Regulates charge to 12V or 24V battery systems with intelligent PWM control.
Compliant with CE, FCC, and SGS certifications, this intelligent solar charge controller regulates 12V/24V panel charging for batteries up to 60A. Supports PWM technology for efficient energy harvesting.
