BestSolarPanel

10A 20A 30A 40A Solar Charge Controller 12V 24V PWM PV Charging Controller Regulator HD Colorful Screen With 4PCS USB Port

10A 20A 30A 40A Solar Charge Controller 12V 24V PWM PV Charging Controller Regulator HD Colorful Screen With 4PCS USB Port

Regular price $32.55 USD
Regular price Sale price $32.55 USD
Sale Sold out
Shipping calculated at checkout.
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Maximum Current: 30A

Max input dc voltage: 50V

Low Voltage Cut-off: 10.7V/21.4V+/-0.2

Is Smart Device: No

Full Voltage Cut-off: 14.4V/28.8V+/-0.2

Charge Mode: PWM

Certification: CE,FCC,RoHS

Application: Charger Controller,Voltage Controller,Solar System Controller

10A 20A 30A 40A Solar Charge Controller, Solar Charge Controller for 12/24V Systems with PWM Regulation and Colorful Screen.

About Our brand

Thanks for choosing CP Series solar charge controller, BYGD is always pursuing thecombination of high quality and fashion design,to change the industrial productmore acceptable by common family.BYGD product chooses high performancecomponents,with strict production standard,BYGD ensures product with longlifespan and stable quality,before enjoy the advantages BYGD bring toyou,please read the user manual carefully.


About this controller:

1.Show current

Connect the controller to 12V or 24V battery,the screen will show thecurrent for 5 seconds,user knows the specification you purchase.

2.Input current &.voltage display

User can see the input current and voltage from the solar panel,thefunction helps user to test the quality of solar panel(current x voltage =power).


3.Battery voltage display &.charge status

When battery is being charged ,theis indicate light will flashing,meanwhile you can read the battery voltage. The function helps user master battery statusclearly.

4.Output current display

When 12V or 24V load connected to the controller works,the screenshow the output current,this function helps user master the workingstatus of the load.

5. 4 pcs of USB output

This controller have 2 groups of USB output(4 pcs),each group with 2Acurrent which able to charge 4 pcs of iPhone 6s at the same time.

6. 12V/24V auto.voltage distinguish function

7.Over-charge,Over-discharge,short-circuit protections,to ensuresystem safe and prolong battery life.

8. With battery temperature compensation,ensure best charge status indifferent environment.

9.Three stage charge mode:strong charge,constant current,floatingcharge intelligent control.

10.lf no operation after three minutes, the system automatically sleep,press any key to restore.

10A 20A 30A 40A Solar Charge Controller, Solar charger controller with adjustable output and multicolored display for charging multiple devices at once.

Model NO.

CP10A

CP20A

CP30A

CP40A

lnput Voltage

<50V

Battery Voltage

12V/24v auto.Distinguish

Max input Current

10A

20A

30A

4OA

Full Voltage Cut-off

14.4V/28.8V+/-0.2

Low Voltage Cut-off

10.7V/21.4V+/-0.2

Charge Mode

PwM




No load loss

10 mA

20 mA

Temp.Compensation


~4mV/degress centigrade




10A 20A 30A 40A Solar Charge Controller, Advanced battery protection with auto-voltage detection, overcharge/discharge and short-circuit safeguards.

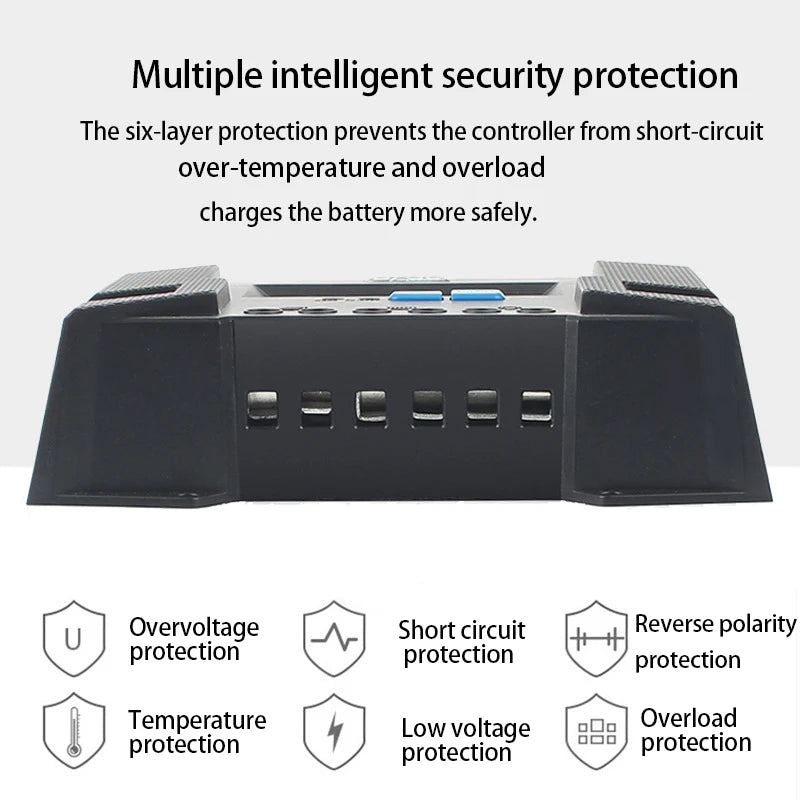

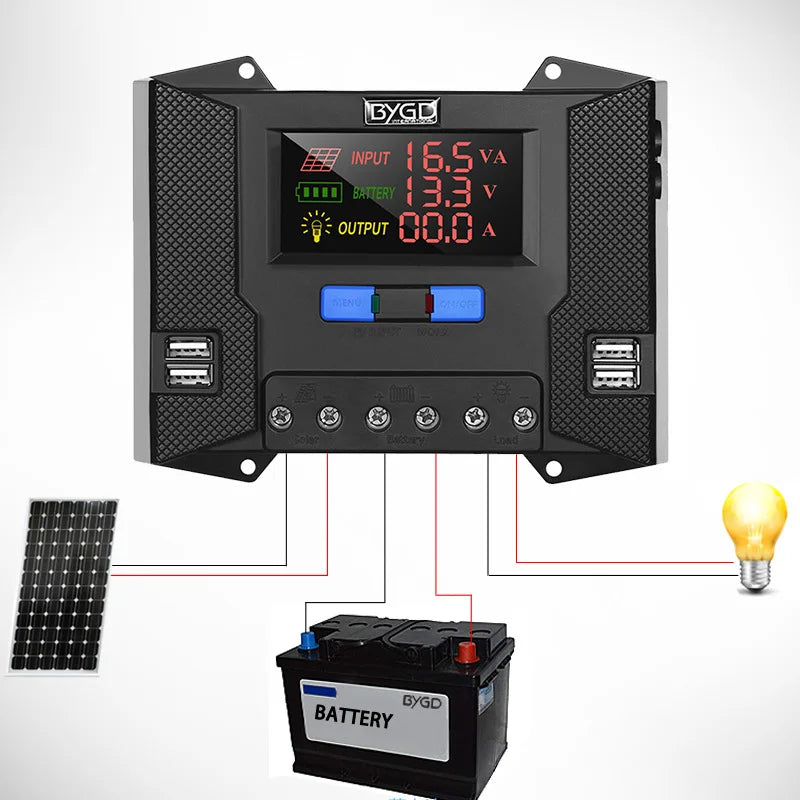

10A 20A 30A 40A Solar Charge Controller, Compatible with BYGL and SYGD battery systems.10A 20A 30A 40A Solar Charge Controller, Safeguarded charging with 6-layer protection against overheating, overloads, and voltage issues.

Enhanced safety features include 6-layer protection against short-circuits, overheating, overloads, and low voltage. This ensures safe charging of batteries, preventing damage from overvoltage, short circuits, reverse polarity, temperature, or overload.

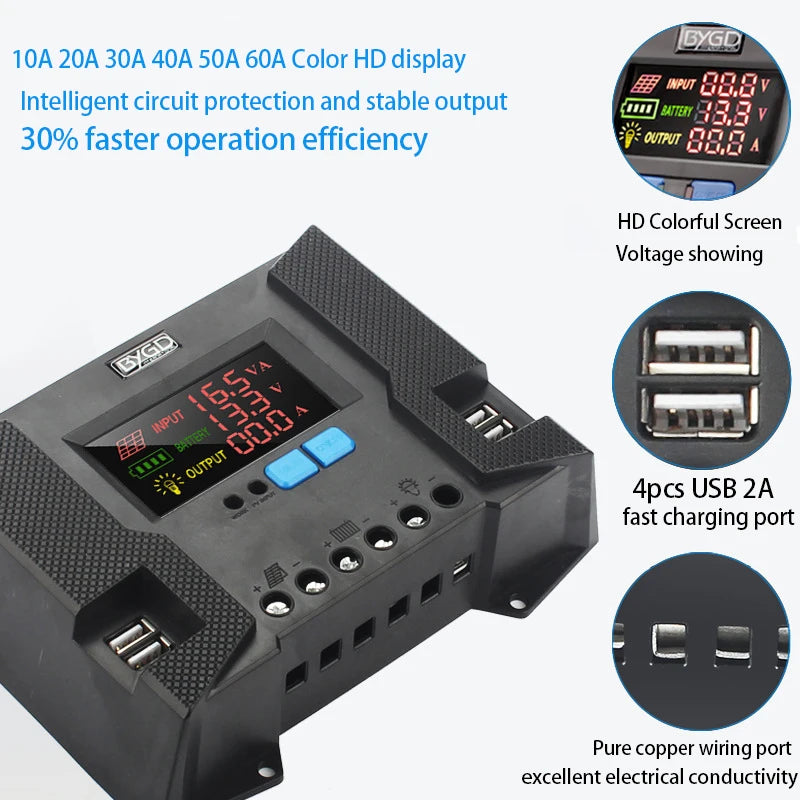

10A 20A 30A 40A Solar Charge Controller, High-tech power adapter with color display, safety features, and multiple USB ports for fast charging.

Features a colorful HD display, intelligent circuit protection, and stable output. Equipped with input/output voltage showing, 4x USB ports for fast charging (2A each), and pure copper construction for excellent electrical conductivity.

10A 20A 30A 40A Solar Charge Controller, Renewable energy features: solar power, battery specs, and USB ports for charging devices.

Features include solar panel voltage and DC output, battery voltage and output current. Also includes GYGD input menu, solar panel charging, and 4 USB ports with 2A current.

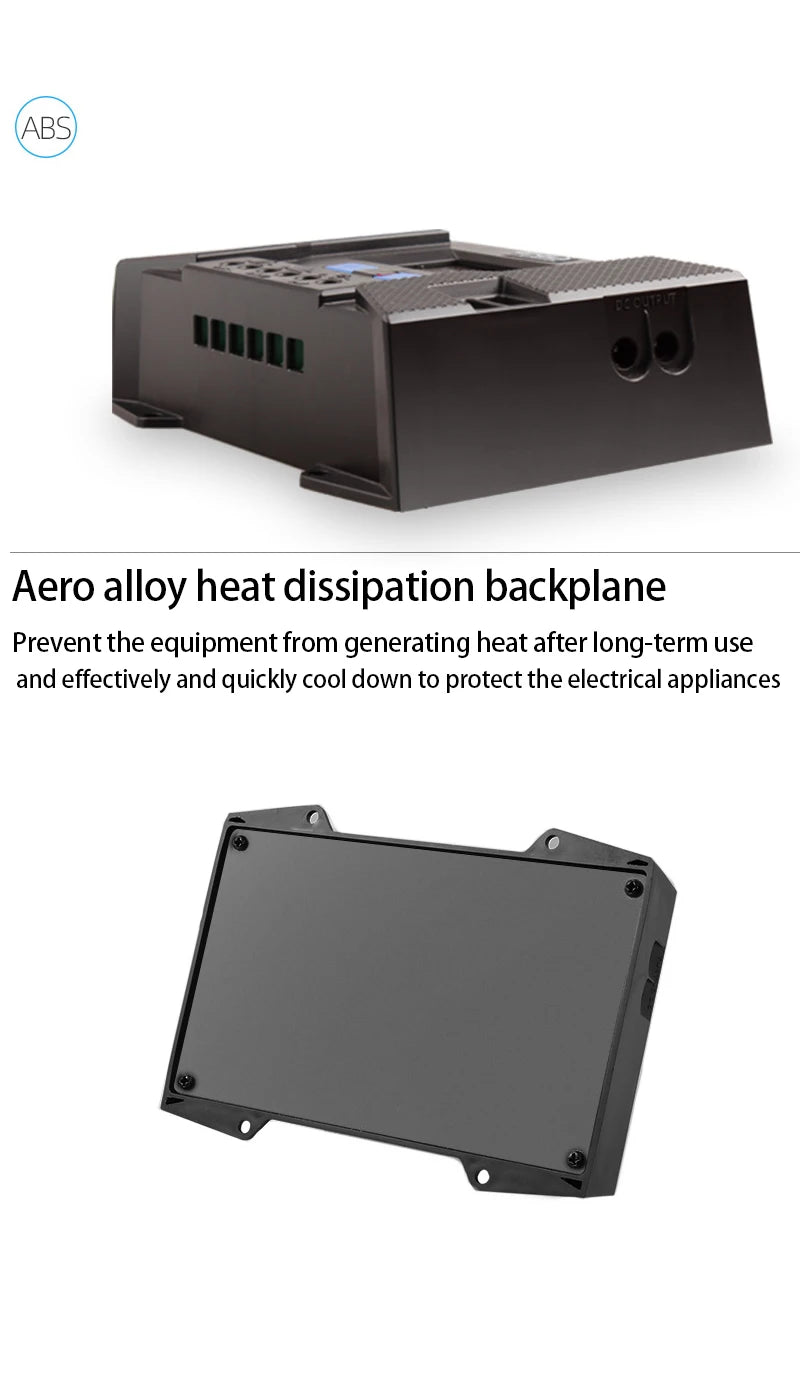

10A 20A 30A 40A Solar Charge Controller, Controller with heat dissipation backplane prevents overheating and safeguards electronic devices.

Equipped with an Aero Alloy Heat Dissipation Backplane, this controller prevents overheating during prolonged use, efficiently cooling down to safeguard electrical devices.

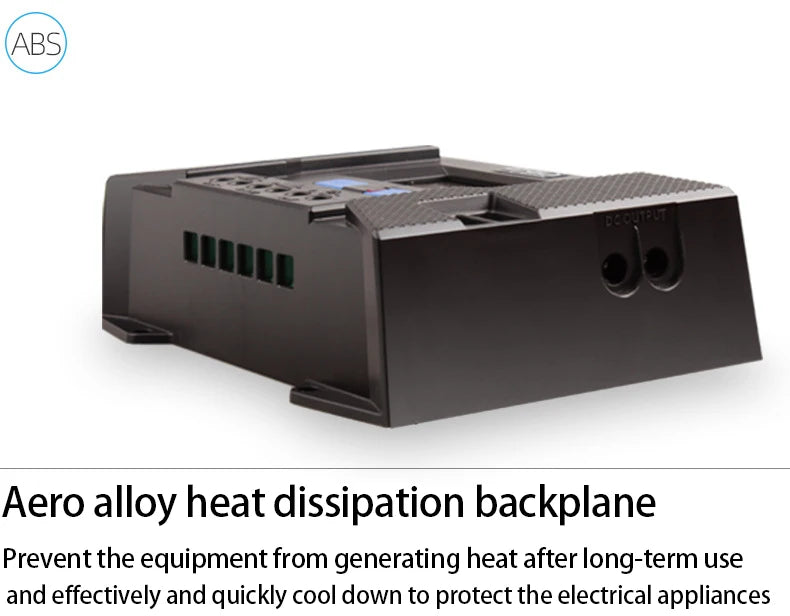

10A 20A 30A 40A Solar Charge Controller, Heat-dissipating design prevents overheating and protects electrical components with effective Aero-alloy cooling.

Features an Aero-alloy heat dissipation design, which effectively dissipates heat generated by long-term use, preventing overheating and protecting electrical components.

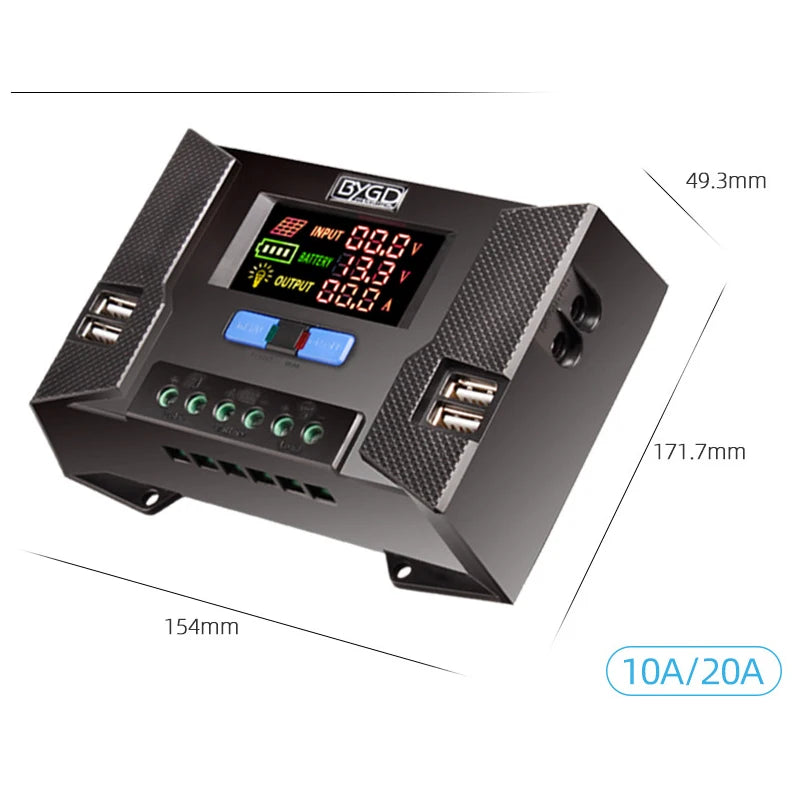

10A 20A 30A 40A Solar Charge Controller, Solar Charge Controllers with Colorful Screen and 4 USB Ports in Compact Dimensions.

Dimensions: 49.3mm x 47mm x 171.7mm x 154mm. Package includes 10A, 20A, 30A, and 40A solar charge controllers with a colorful screen and 4 USB ports.
