BestSolarPanel

10A 20A 30A Solar Controller PWM Battery Charger 12V24V Auto. Sensing for Solar Panels

10A 20A 30A Solar Controller PWM Battery Charger 12V24V Auto. Sensing for Solar Panels

Regular price $14.66 USD
Regular price Sale price $14.66 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color
Current|Rated Voltage|Controller Type

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: 12V24V10A20A30A

Maximum Current: 10A20A30A

Is Smart Device: No

Certification: CE,RoHS

Brand Name: Jesudom

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

10A 20A 30A Solar Controller PWM Battery Charger 12V24V Auto. Sensing for Solar Panels


This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

10A 20A 30A Solar Controller, Solar charge controller with USB port and full-load protection for 12V/24V batteries, auto-senses solar panels.
This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recognize 12V and 24V Lead acid ,Gel battery automatically.

There are optional 10A 20A 30A 40A 50A 60A model

Model

Battery Voltage

Max solar panel input

10A

12V

25V  120W

24V

50V  240W

20A

12V

25V  240W

24V

50V  480W

30A

12V

25V  360W

24V

50V  720W

40A

12V

25V  520W

24V

  50V  1040W

50A

12V

 25V   650W

24V

  50V  1300W

60A

12V

 25V   780W

24V

  50V  1560W

Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
Parameter:

MODEL

PWM 10A

PWM 20A

PWM 30A

PWM 40A

PWM 50A

PWM 60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

30A

30A

30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

*all red color voltage X2 ,while using 24V system.

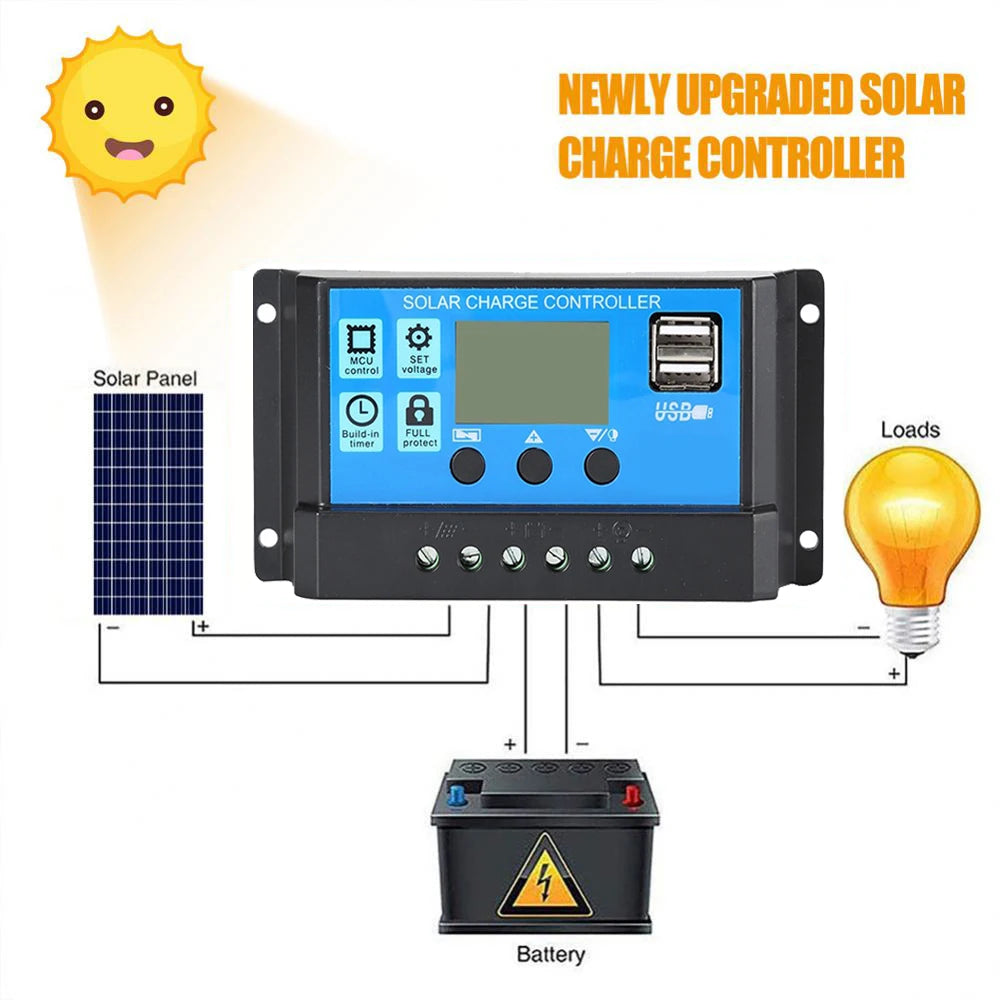

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

10A 20A 30A Solar Controller, Solar Controller PWM Battery Charger 12V

10A 20A 30A Solar Controller, Solar controller for 12V/24V auto systems with auto-sensing for solar panels.

10A, 20A, and 30A Solar Controller: PWM Battery Charger for 12V/24V Auto Systems. Includes auto sensing for solar panels.

10A 20A 30A Solar Controller, Solar charge controller for 10A, 20A, or 30A PWM battery charging with automatic solar panel and system voltage sensing.

Solar Charge Controller for 10A/20A/30A PWM battery charging with auto-sensing for solar panels and 12V or 24V systems.

10A 20A 30A Solar Controller, Solar controller with automatic sensing for 12V/24V systems; ideal for automotive use.

10A, 20A, or 30A Solar Controller/PWM Battery Charger for 12V or 24V systems. Automatically senses solar panels. Ideal for automotive applications.

10A 20A 30A Solar Controller, Universal solar charge controller for various applications: rooftops, homes, traffic signals, railways, RVs, and gardens.

Universal solar charge controller suitable for various applications, including rooftop power generation, home lighting, traffic signals, railway signaling, RV power, and garden automation.

10A 20A 30A Solar Controller, Solar Controller PWM Battery Charger 12V
