SPECIFICATIONS

is_customized: Yes

Warranty: 1 Year

Voltage Range of Battery: 9V-32V

Rated Voltage: 12V/24V

Rated Current: 10A

Protection class: IP30

Origin: Mainland China

Model Number: MPPT110D

Maximum Current: 10A

Max.Solar Panel Input: 120W/240W

Max.PV Input Voltage: 100V

Is Smart Device: YES

Certification: CE,RoHS

Cerification: CE

Brand Name: Jesudom

Battery Type: Floodea.AGM.GEL.Lifepo4 Lithium

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

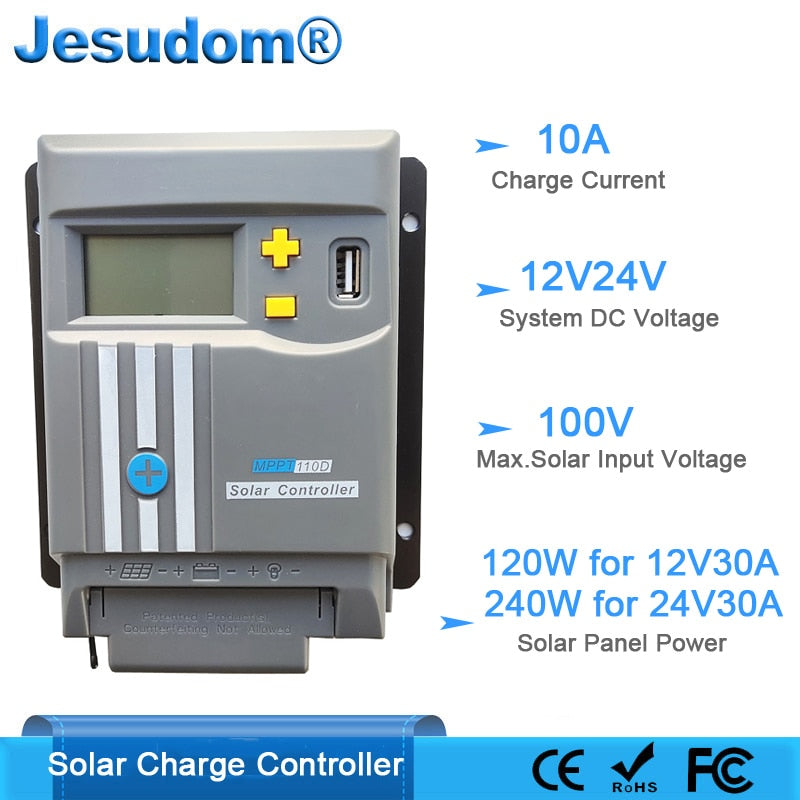

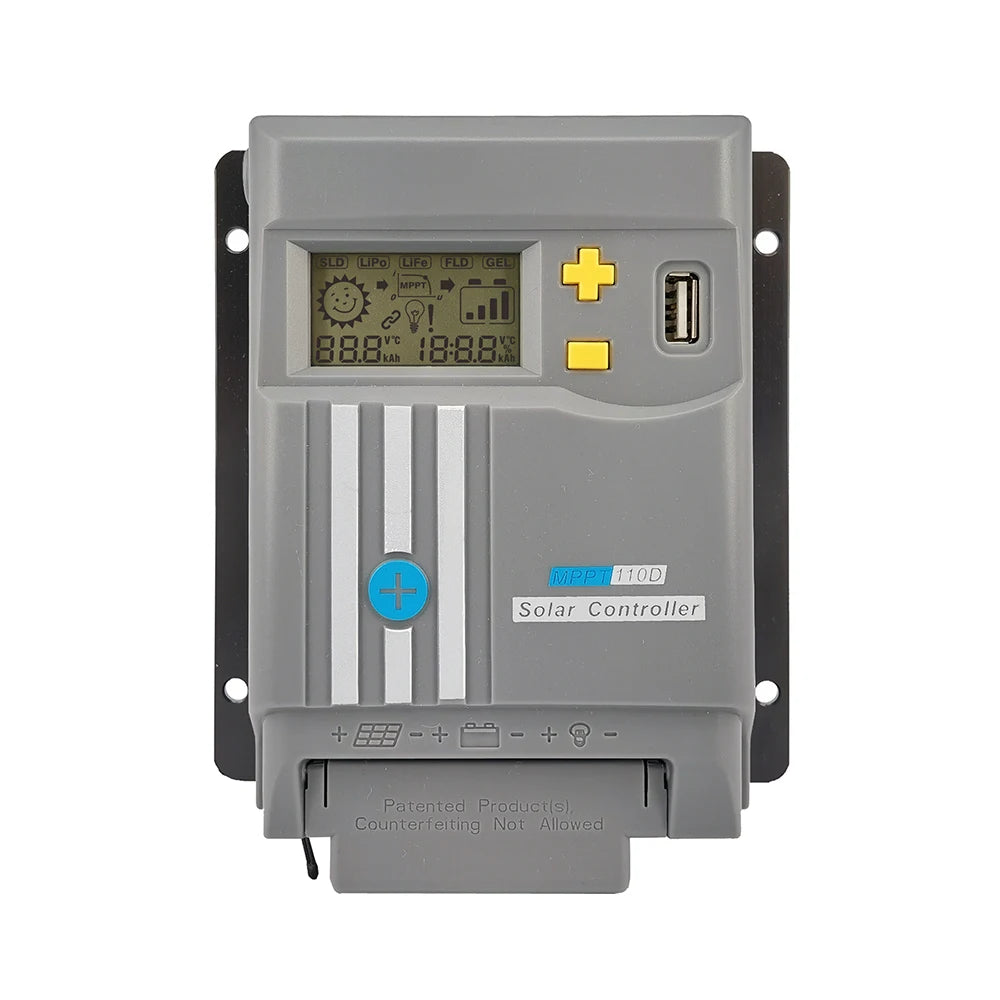

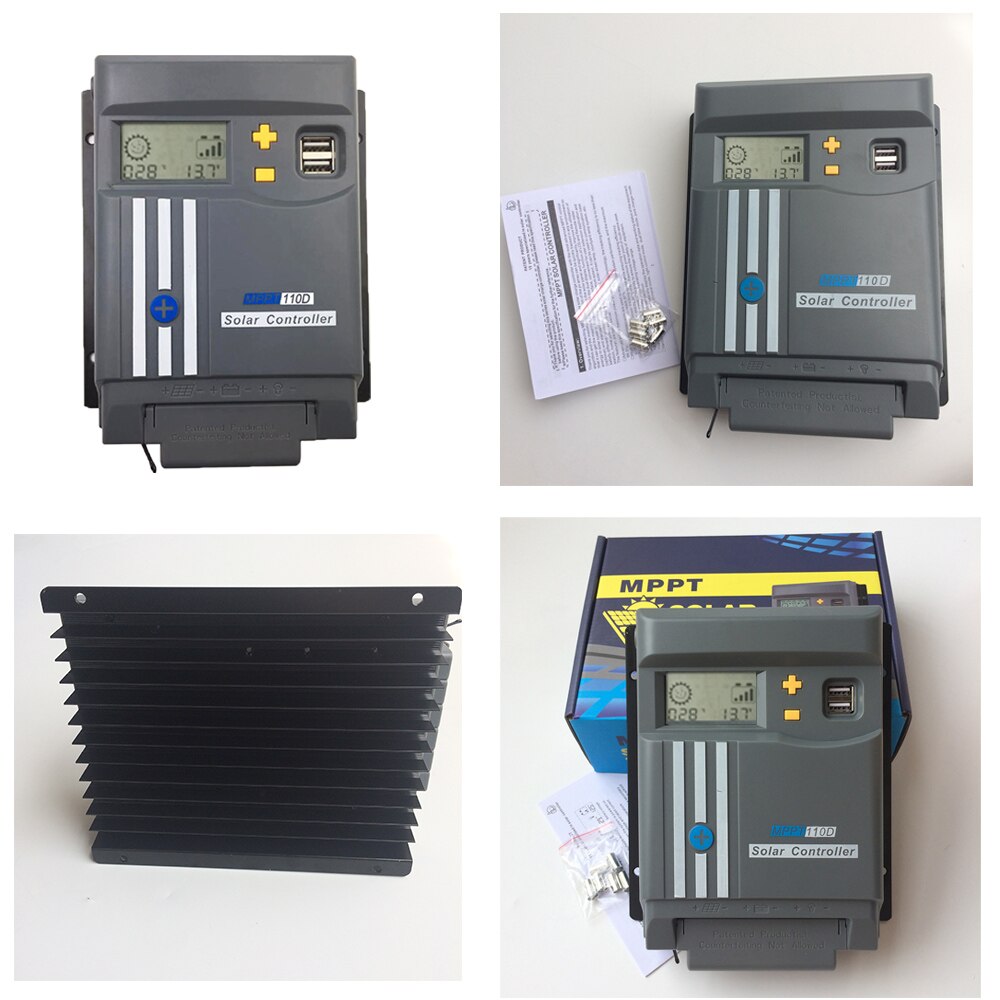

10A MPPT Solar Controller 12V/24V Solar Charger Battery Charge Max 100VDC Input Auto For Flood GEL LifePo4 Lithium BatteryMPPT1 series products adopts DC/DC converting technology and MCU technology.

It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels,environmental temperature and lighting conditions).

Features:

1. High efficiency MPPT charging

2. MPPT efficiency>99%, Peak conversion efficiency>98%

3. 12V/24V auto work

4.PV input:100V max Multi-stages

5. Charging mode(MPPT,Absorption,Float,Equalization)

6. USB output(5V/1A)

7.Used for lead-acid batteries/Gel batteries.Can be used for lithium battery(LiFePO4 battery,ternary lithium battery),Lead-acid batteries, flooded /gel batteries.

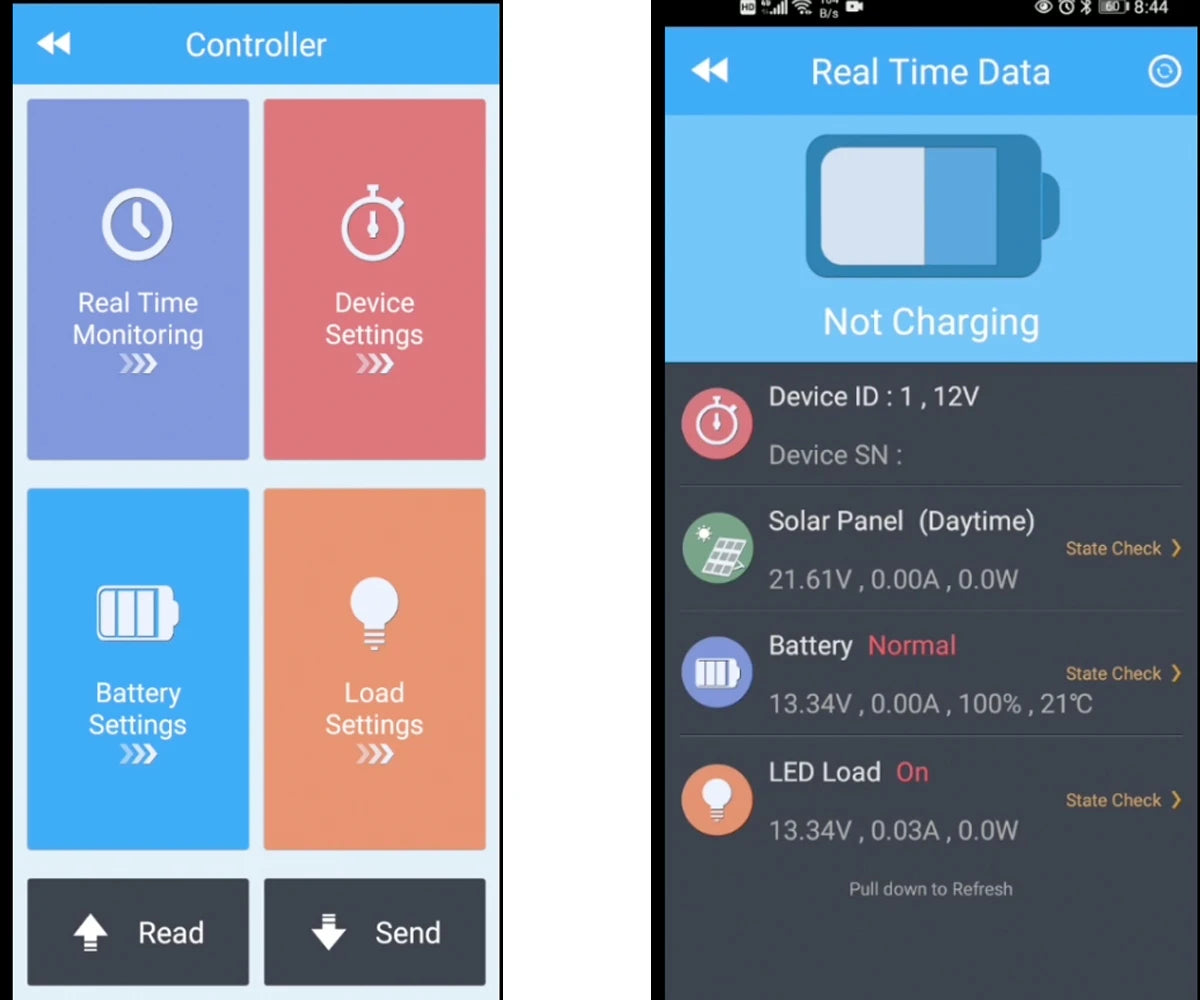

Real-time monitoring settings: Device ID 1, 12V device SN: Solar panel state check at 21.61V (daytime). Battery normal state check with load voltage at 13.34V and current at 100%. LED status: ON, indicating 0.03A and 100% capacity. Refresh by pulling down to update.
