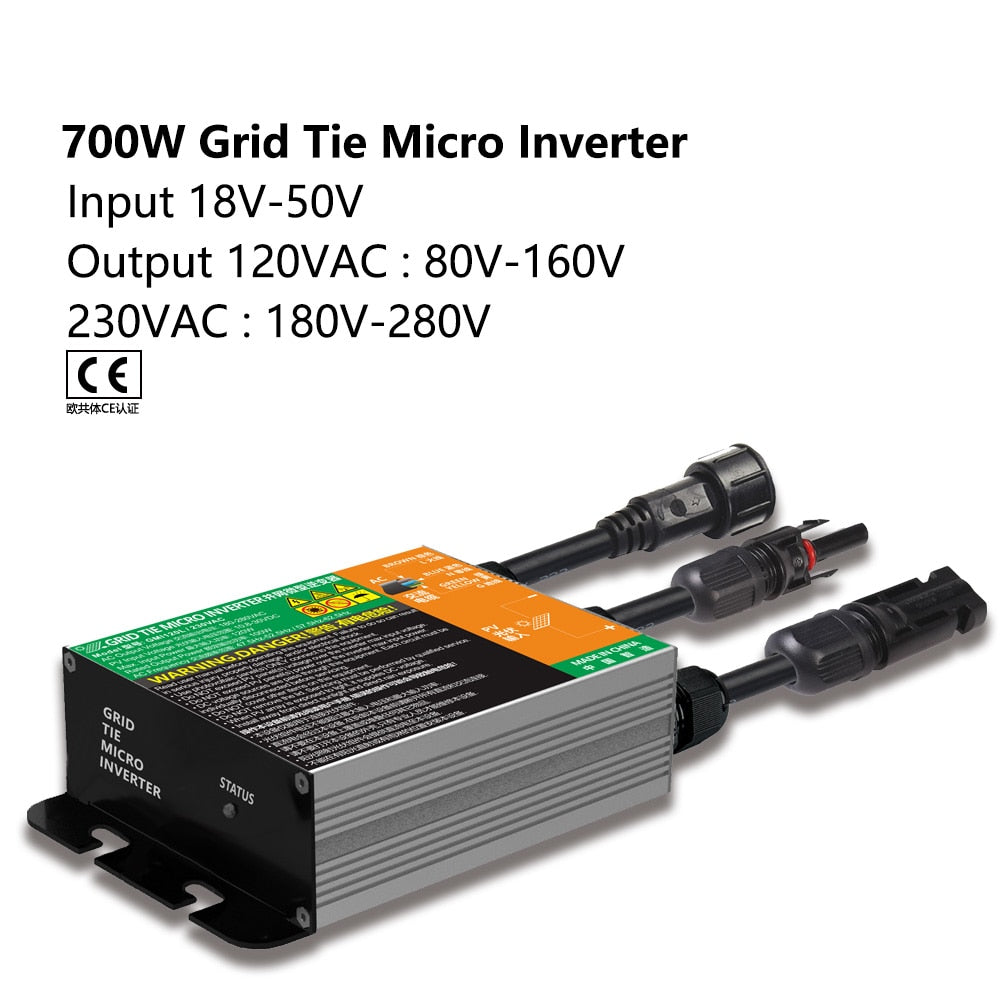

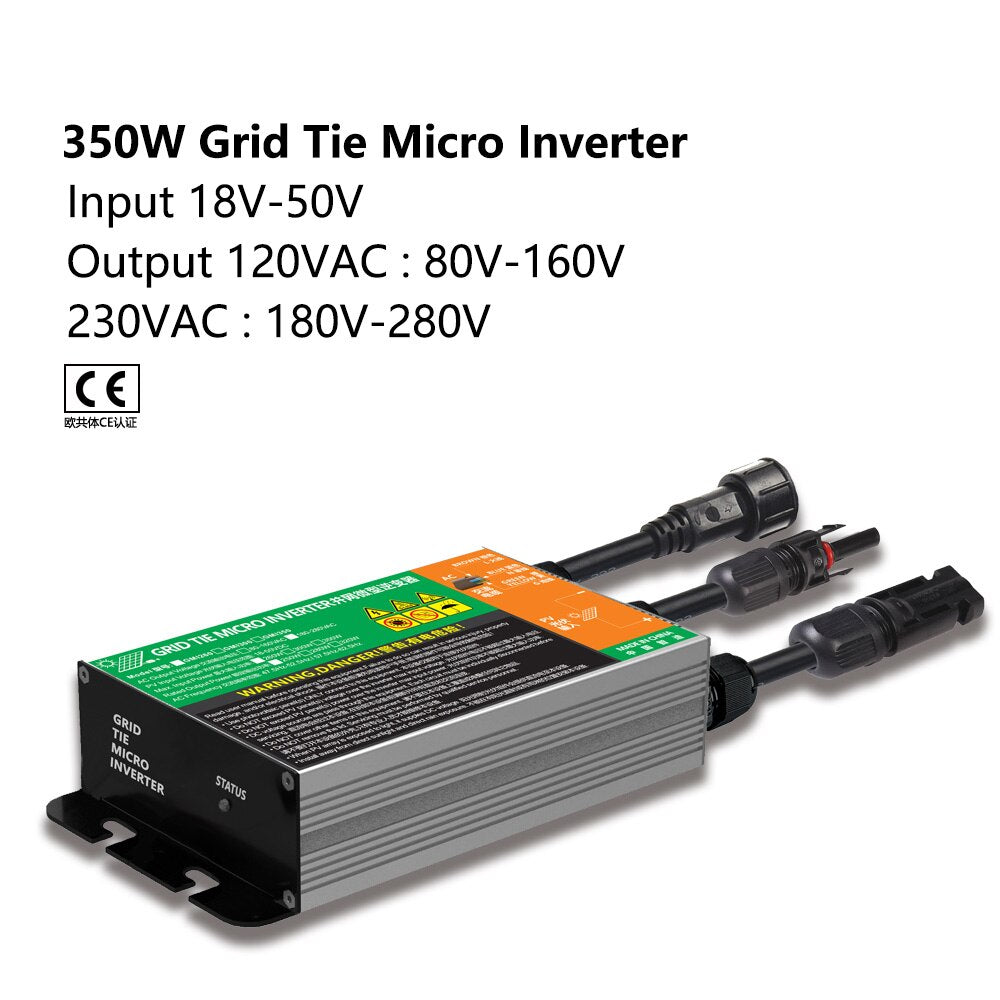

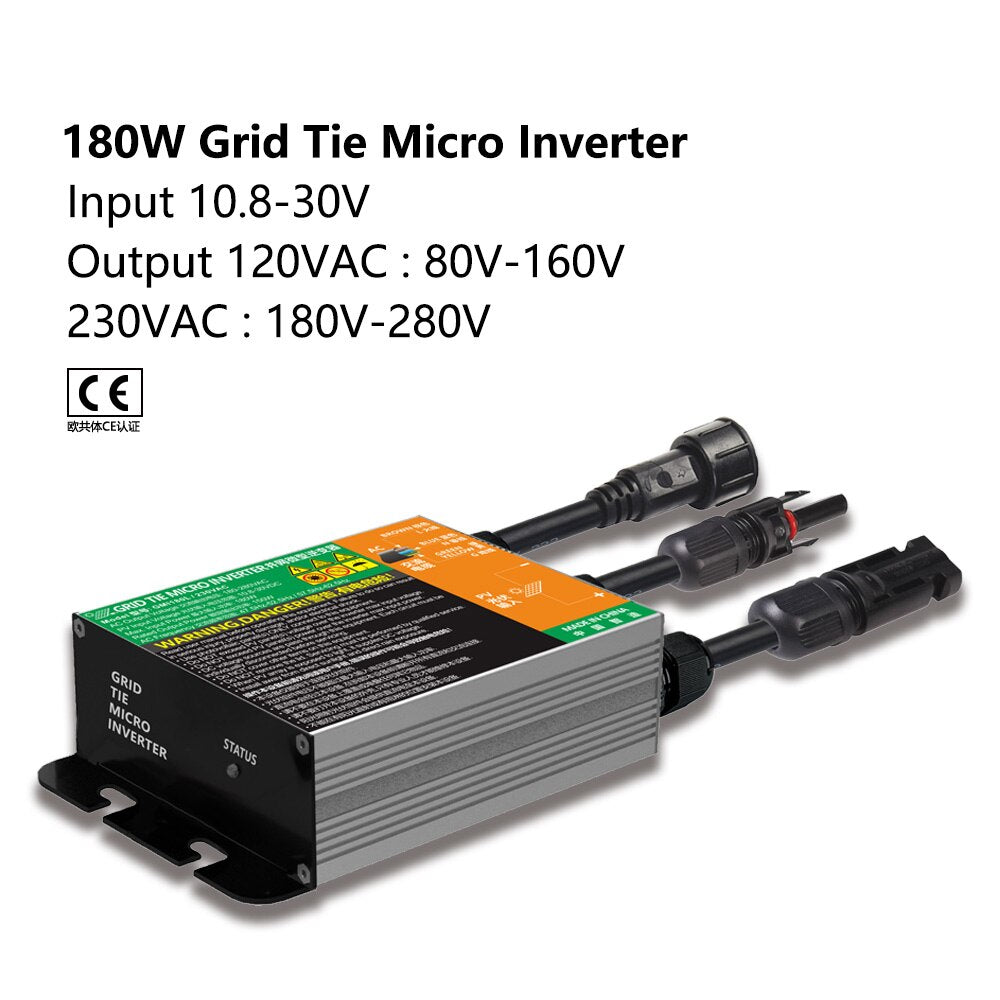

120/150/180W 260/300/350W 500/600/700W DC 10.8-50V To Output 110-240V MPPT Solar PV Grid Tie Micro Inverter

120/150/180W 260/300/350W 500/600/700W DC 10.8-50V To Output 110-240V MPPT Solar PV Grid Tie Micro Inverter

Regular price $59.05 USD
Regular price Sale price $59.05 USD
Sale Sold out
Shipping calculated at checkout.
Color
Output Voltage
Ships From

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Size: 305x125x55mm

Output Power: 120-700W

Output Frequency: 50/60Hz

Origin: Mainland China

Model02: GMI500/GMI600/GMI700

Model01: GMI120/GMI150/GMI180/GMI260/GMI300/GMI350

Model Number: Grid Tie Micro Inverter

Item Name02: GMI Micro Inverter

Item Name01: Micro Inverter

Item Name: micro inversor solar

Is Smart Device: No

Function 2: Grid Tie Inversor

Function 1: Solar Inverter

Certification: CE

Brand Name: FARSUN POWER

120/150/180W 260/300/350W 500/600/700W DC 10.8-50V To Output 110-240V MPPT Solar PV Grid Tie Micro Inverter



LED DISPLAY:


1.Green light steady=Microinverter in generating.

2.Red flash=Microinverter in waiting.

3.Red light steady

a.Island protection.

b.Over-temperature protection.

c.Over/low AC voltage protection.

d.Over/low DC voltage protection.

e.Over/low AC frequency protection.

f.Fault.

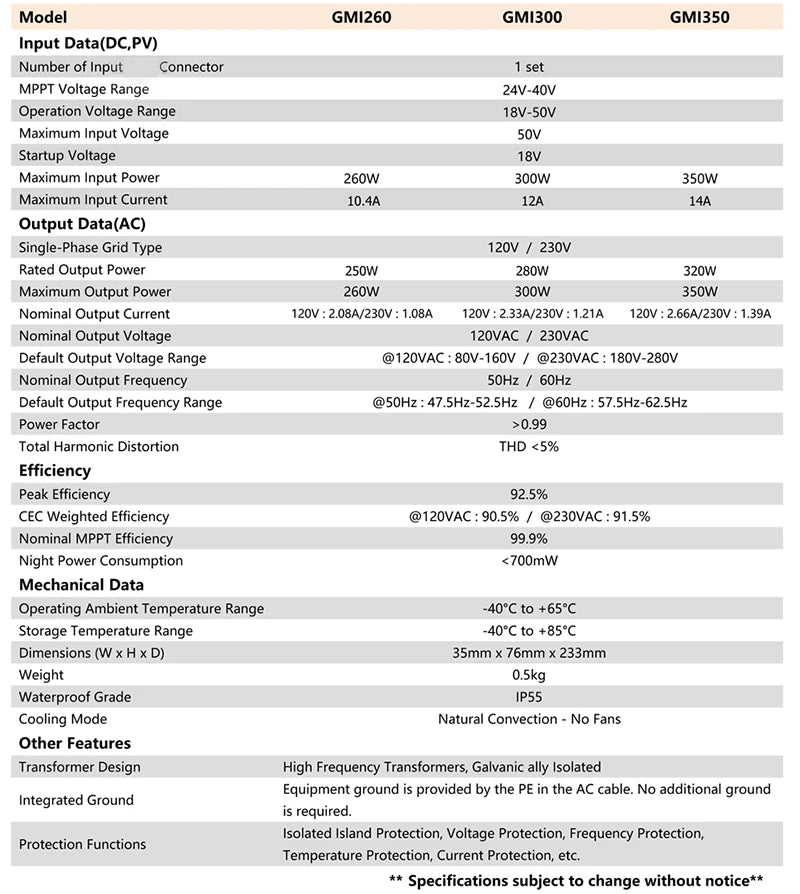

Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V(300W-700W) .Vmp16-21V; Voc20-24V(120W/150W/180W)


Certification:CE


Solar PV Grid Tie Micro InverterSolar PV Grid Tie Micro InverterSolar PV Grid Tie Micro Inverter

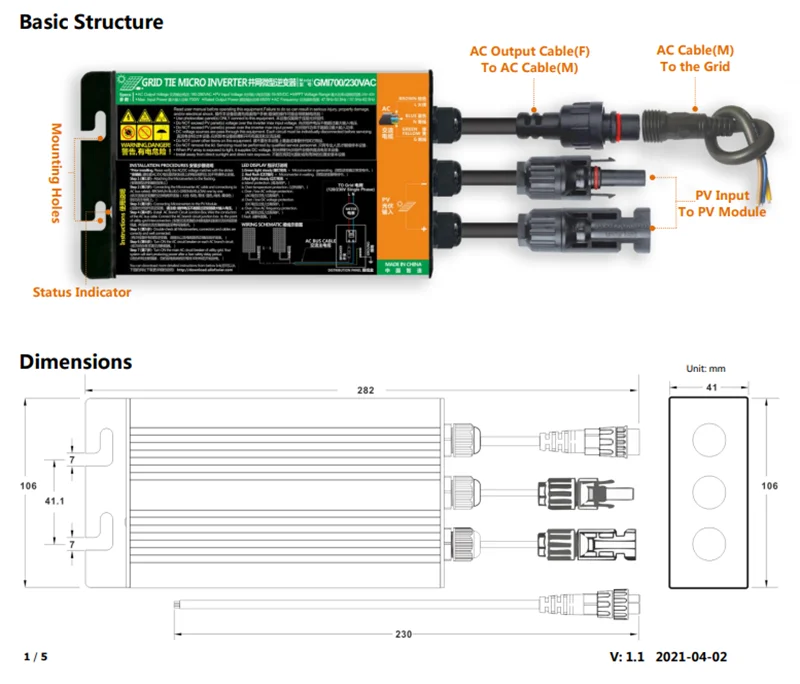

Solar PV Grid Tie Micro InverterDC-DC micro inverter converts solar power to AC output, with MPPT tracking and indicator.

This DC-DC micro inverter converts solar PV power from 10.8V to 50V DC input to grid-tied AC output (110-240V). It features an MPPT tracking algorithm for optimal energy harvesting. The device includes a PV module status indicator and has dimensions of 106mm x H3@ V. Made by Grid TIEMICRO INMERIERIAAAE in 2021.

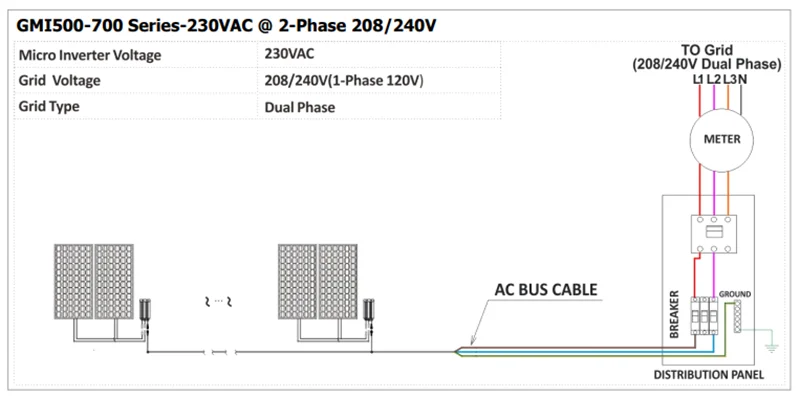

Solar PV Grid Tie Micro InverterMicro inverter with output 230VAC, dual-phase support (208/240V), and grid voltage compatibility.

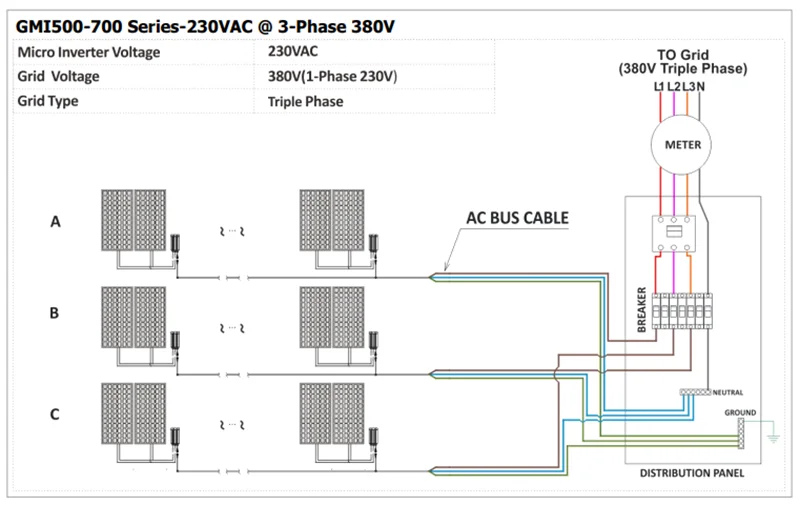

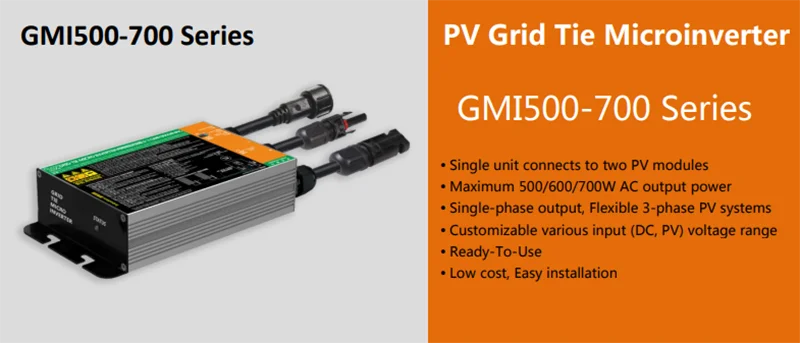

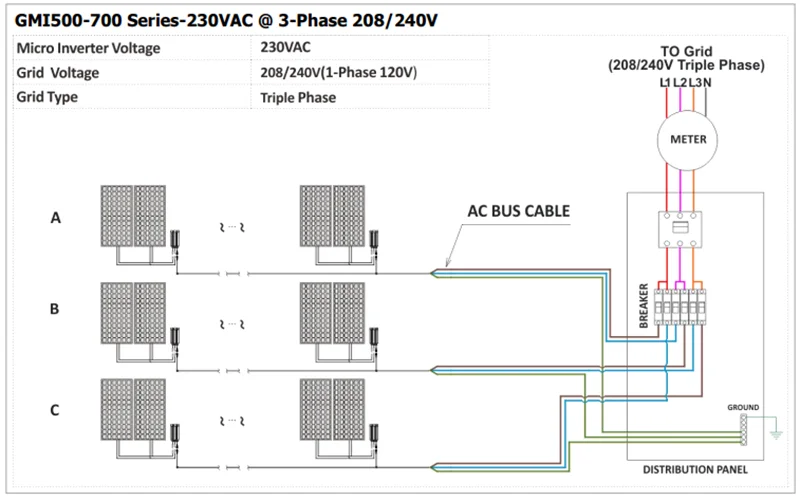

GMISOO-700 Series Micro Inverter: Output 230VAC with dual-phase support (208/240V) and grid voltage compatibility.

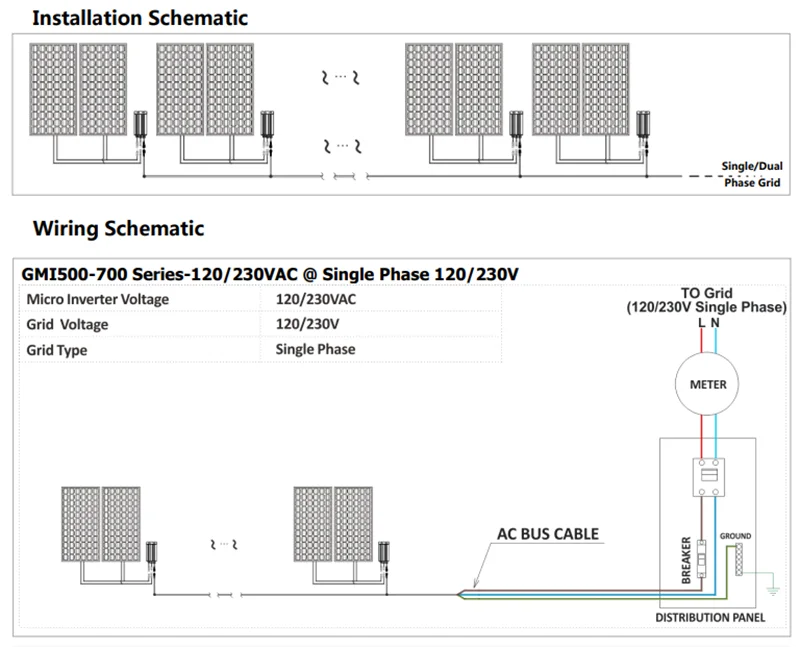

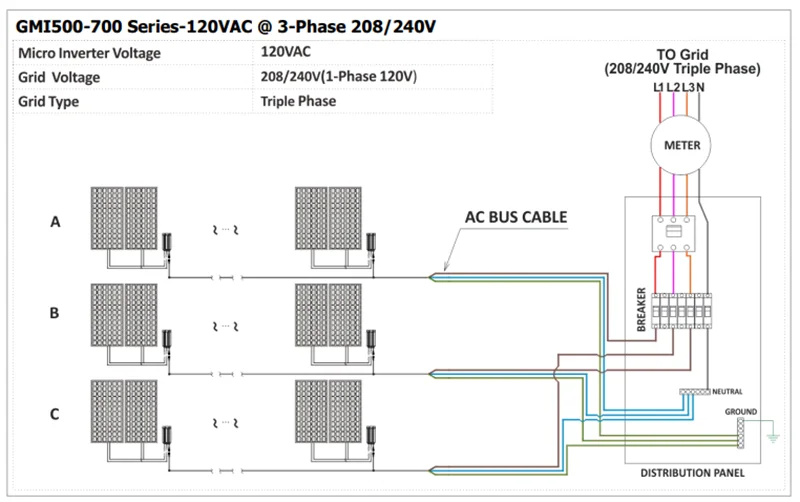

Micro inverter converts DC power to grid voltage for single-phase or three-phase applications.

GMISOO-700 Series Micro Inverter Converts 12V DC to 208/240V Grid Voltage for Single-Phase (120V) or Three-Phase Applications. Compatible with Triple Phase Meter and AC Bus Cable, suitable for Distribution Panel Connection.

Solar PV Grid Tie Micro InverterSolar PV Grid Tie Micro Inverter

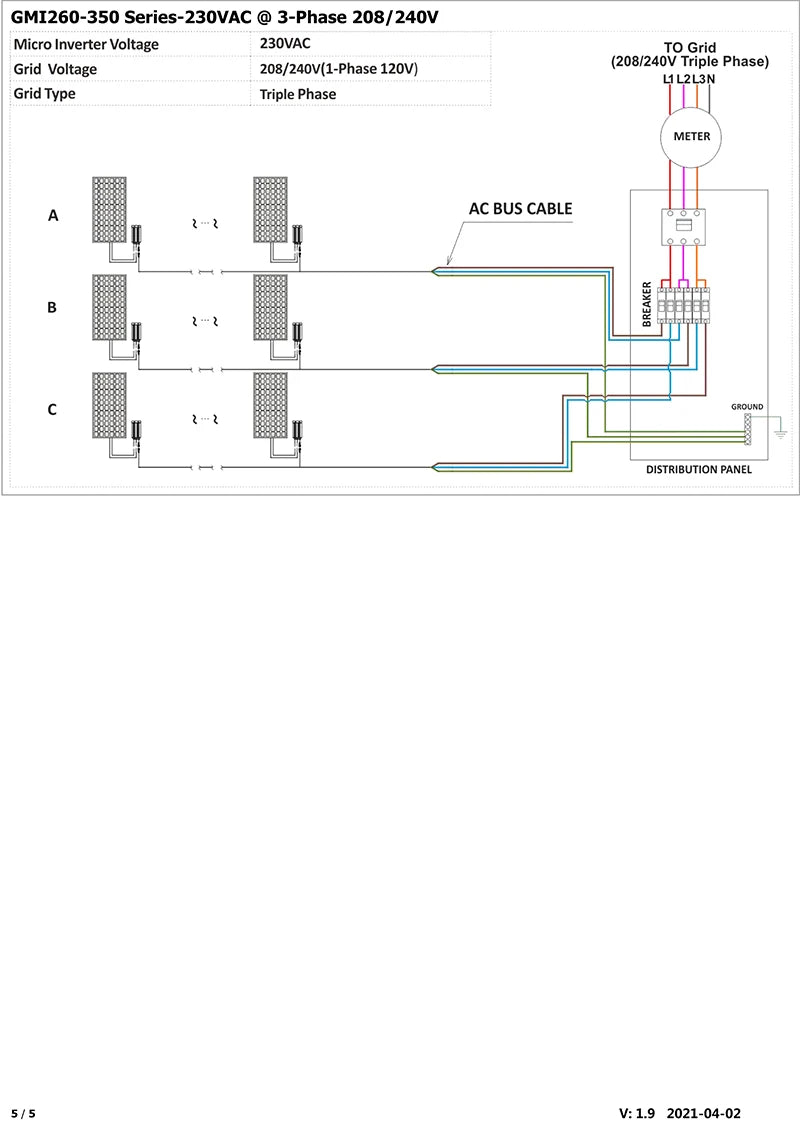

Solar PV Grid Tie Micro InverterSolar PV Grid Tie Micro InverterMicro inverter with 230VAC output, compatible with grid voltages and triple-phase input.

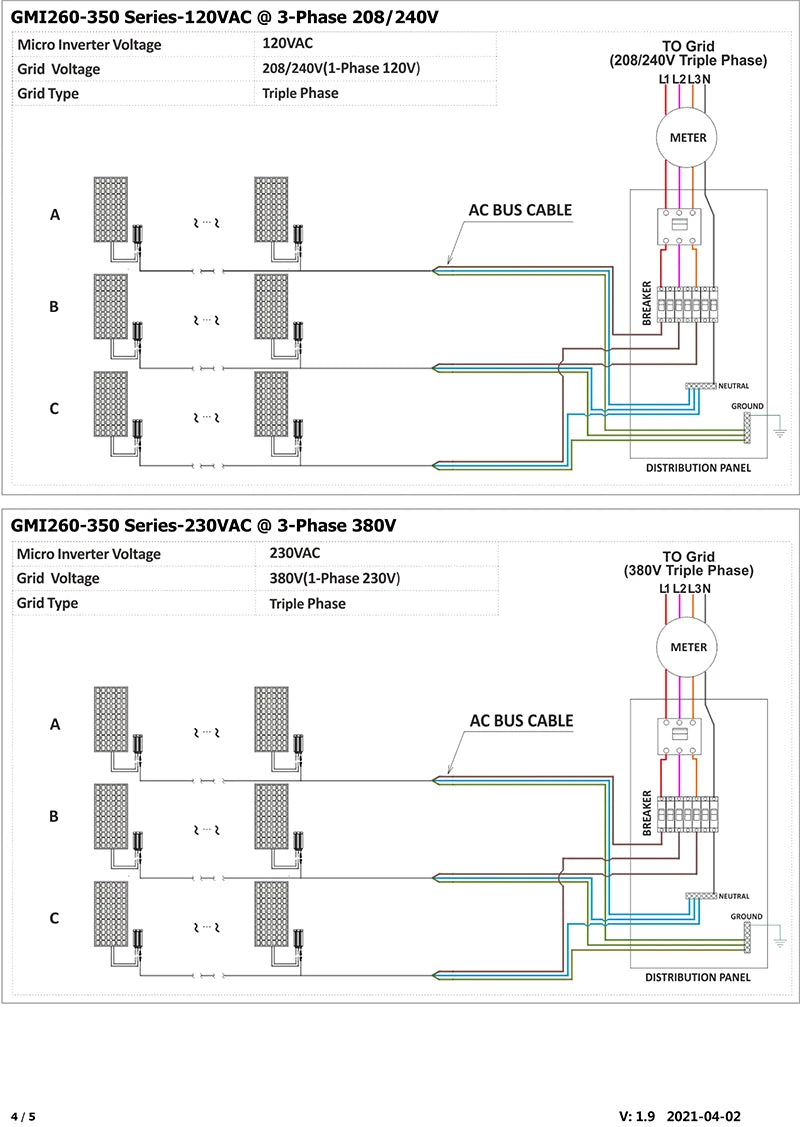

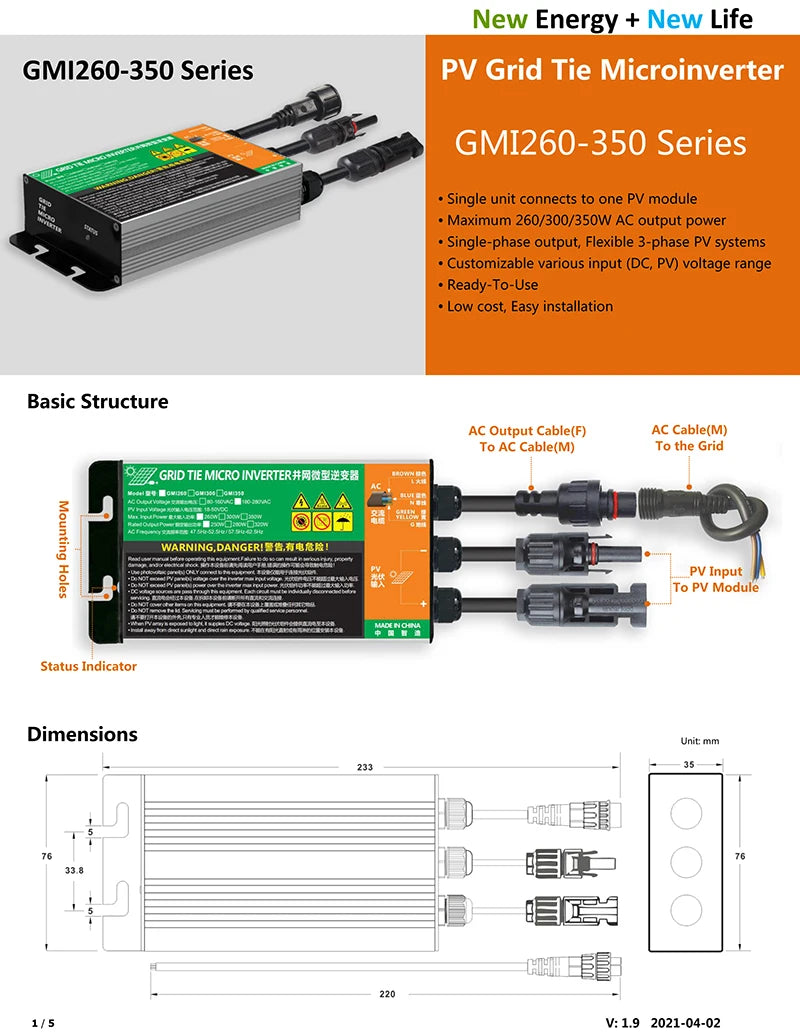

GMI260-350 Series Micro Inverter: Output voltage 230VAC, compatible with grid voltage 208/240V (single-phase) or 120V (one-phase). Supports triple-phase input L1-L3-N. Suitable for use in distribution panels and requires a ground cable.

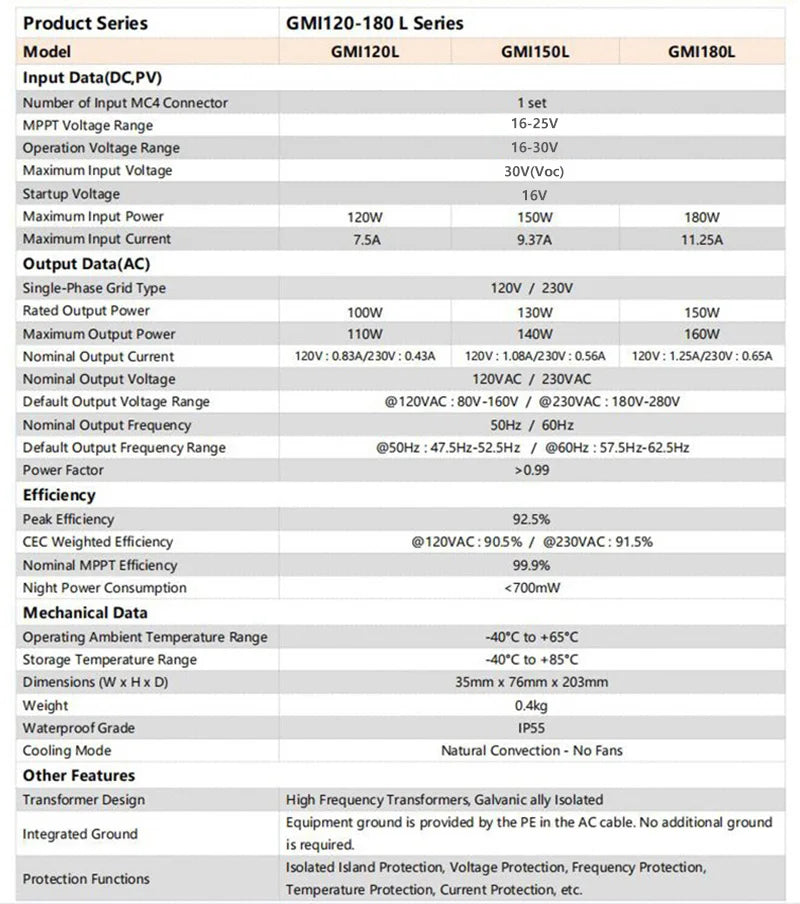

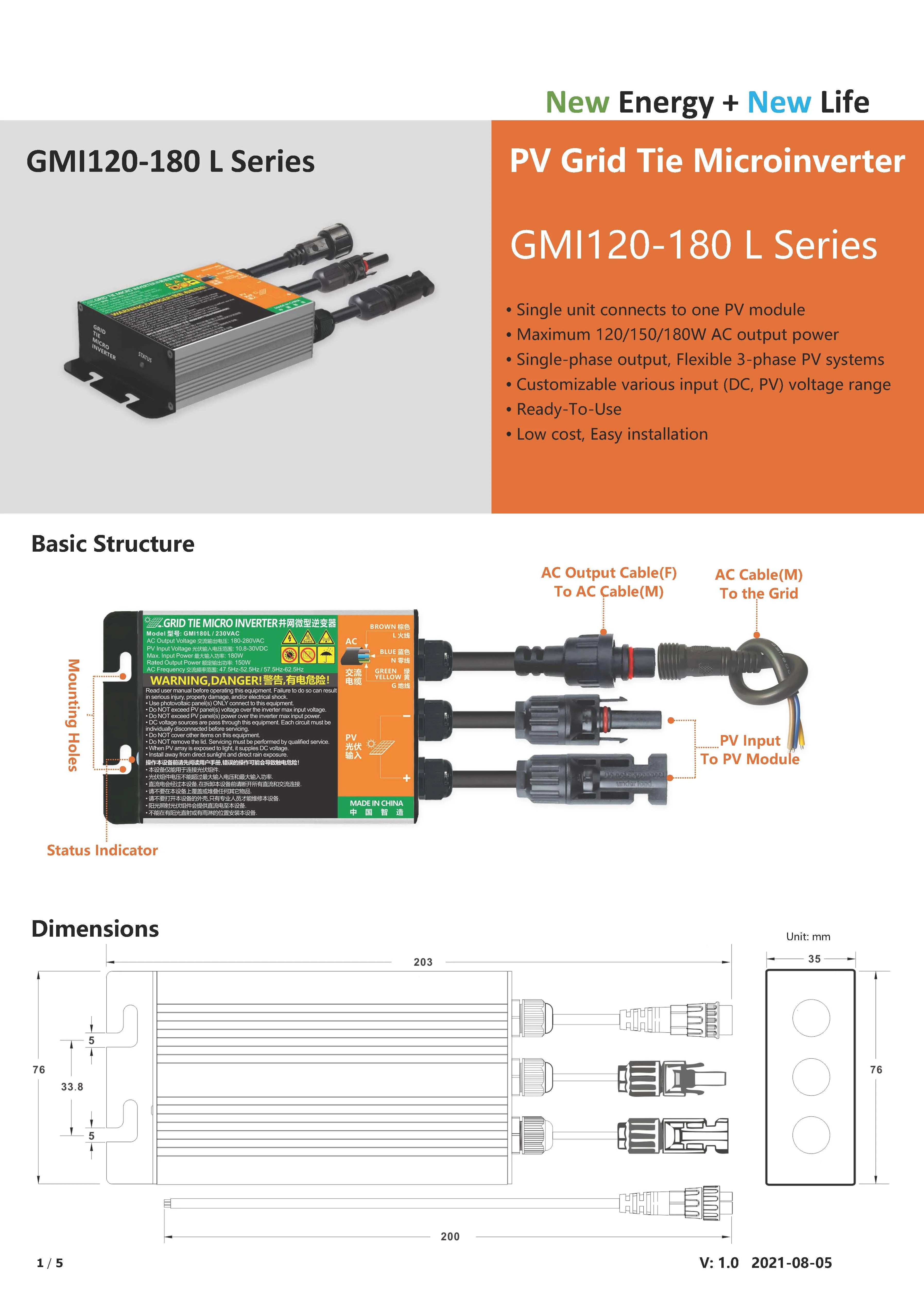

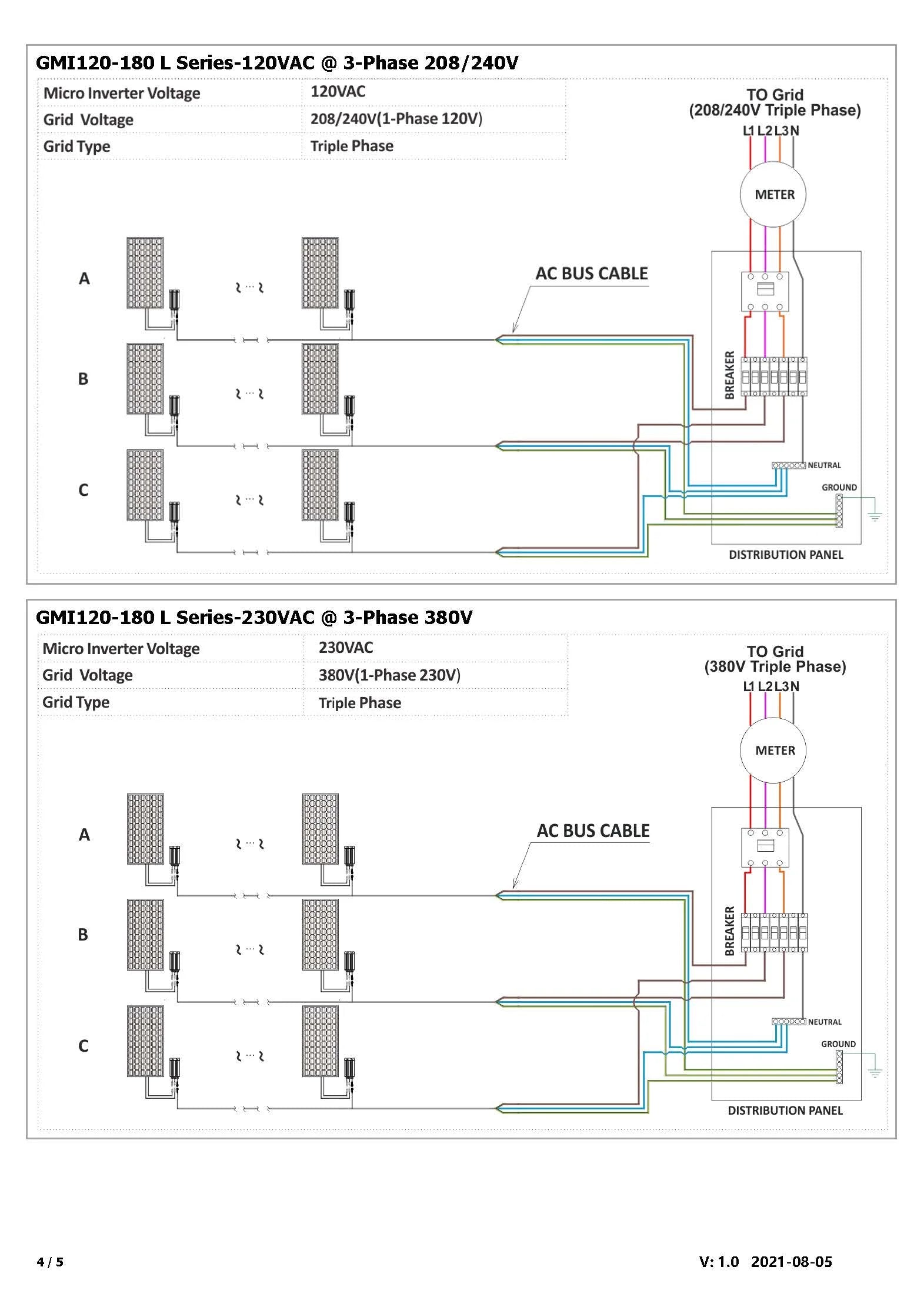

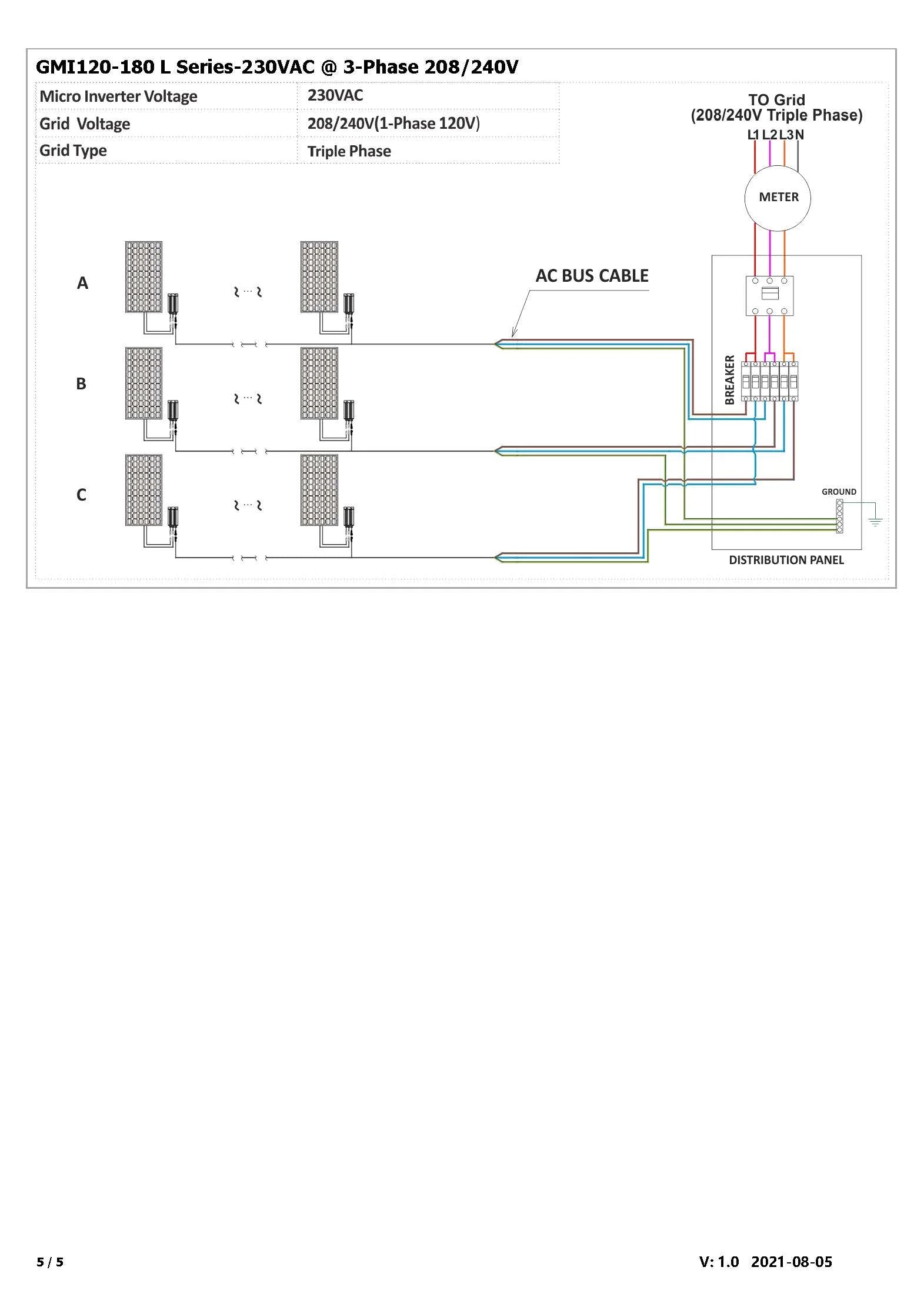

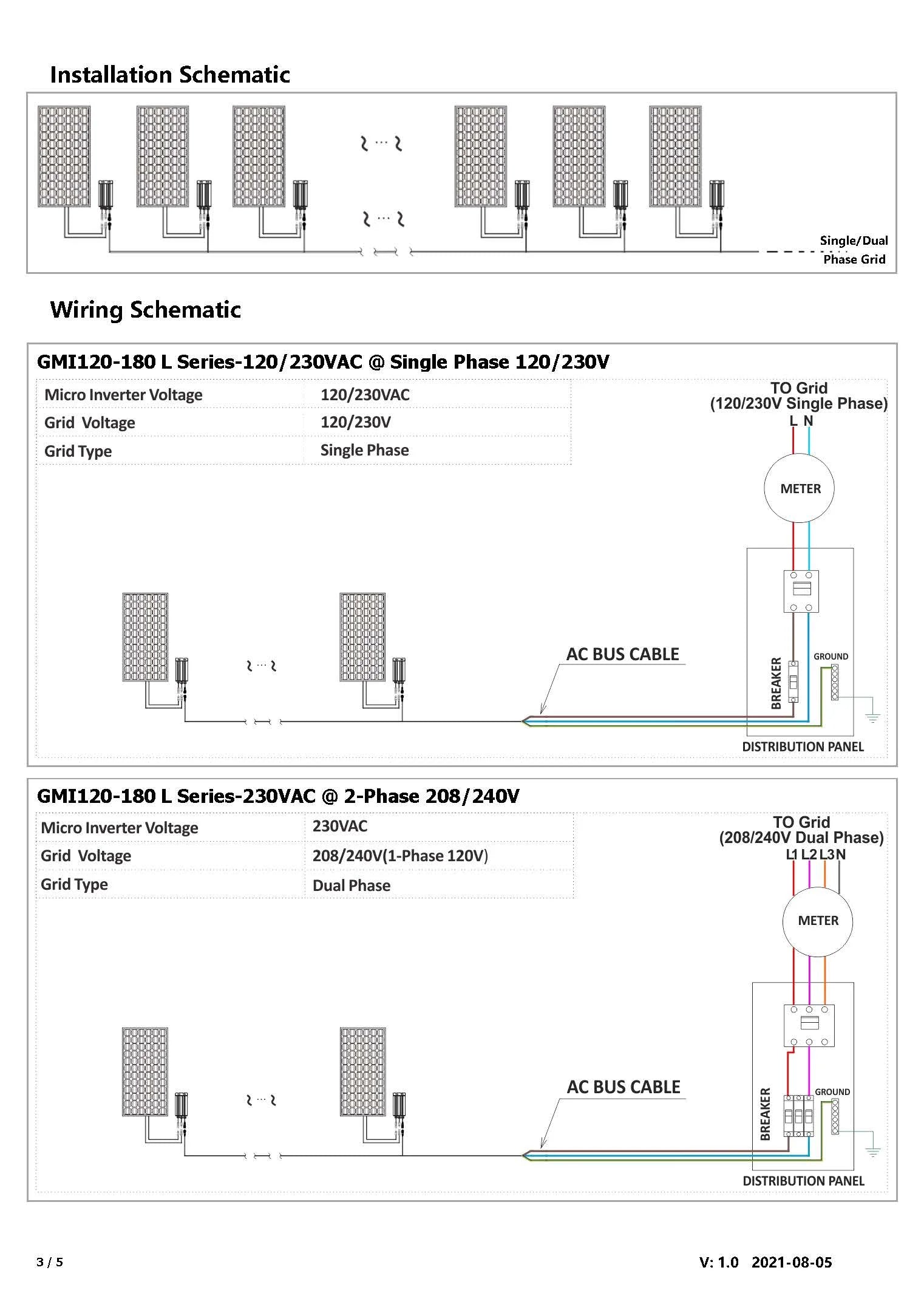

Solar PV Grid Tie Micro InverterSolar PV Grid Tie Micro InverterGMI120-180 L Series Micro Inverter: converts DC to AC, suitable for grid-tie solar applications.Solar PV Grid Tie Micro Inverter

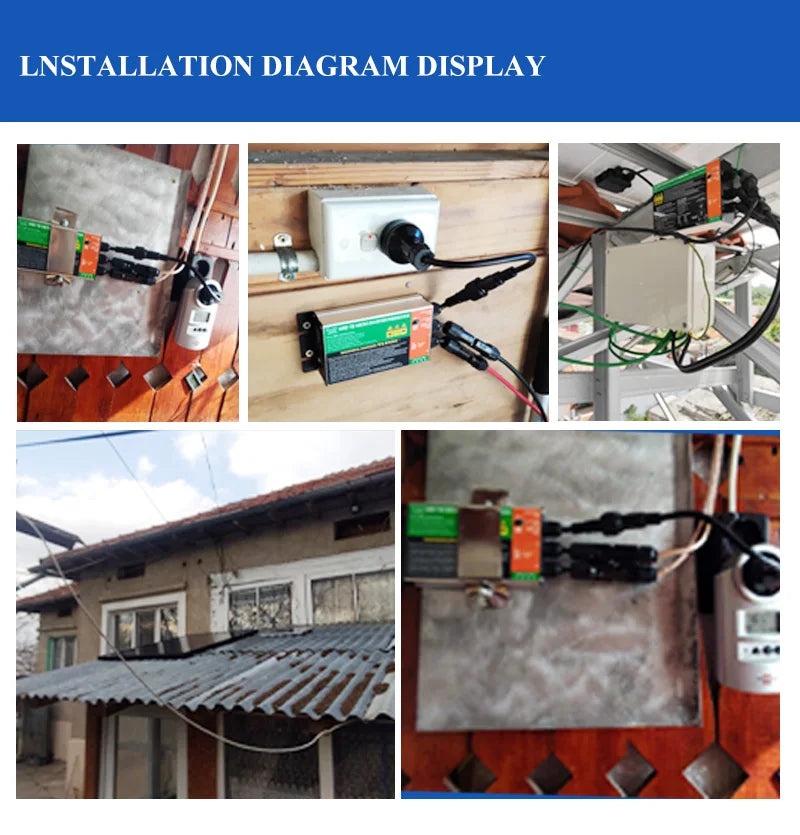

Handle with care to avoid damaging this smart microinverter.FAQ:


About voltage:


The 18- 50V grid tie micro inverter will start up at 24V, after starting, the Solar Microinverters can work in 18V-39V (Vmp).

Solar Panel Voc cannot be higher than 50V.

Vmp = solar panel working voltage; Voc = solar panel open circuit voltage.So don't think that 50V is the working voltage (Vmp)

Why not use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.

the 12V panel is just a starting voltage. If the sunlight is weak, the working voltage will be lower than 18V.

It is easy to make the Solar micro-inverters work unstable, and the inverter will start repeatedly. It is easy to damage the Smart Microinverter.


User notice:


This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,

and the power grid is working properly, When the power grid stopped working, it will also stop generating.

Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.

Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.

The positive and negative poles of the solar panel cannot be reversed.

If you extend the solar panel cable. You need to be careful about this problem.

Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
