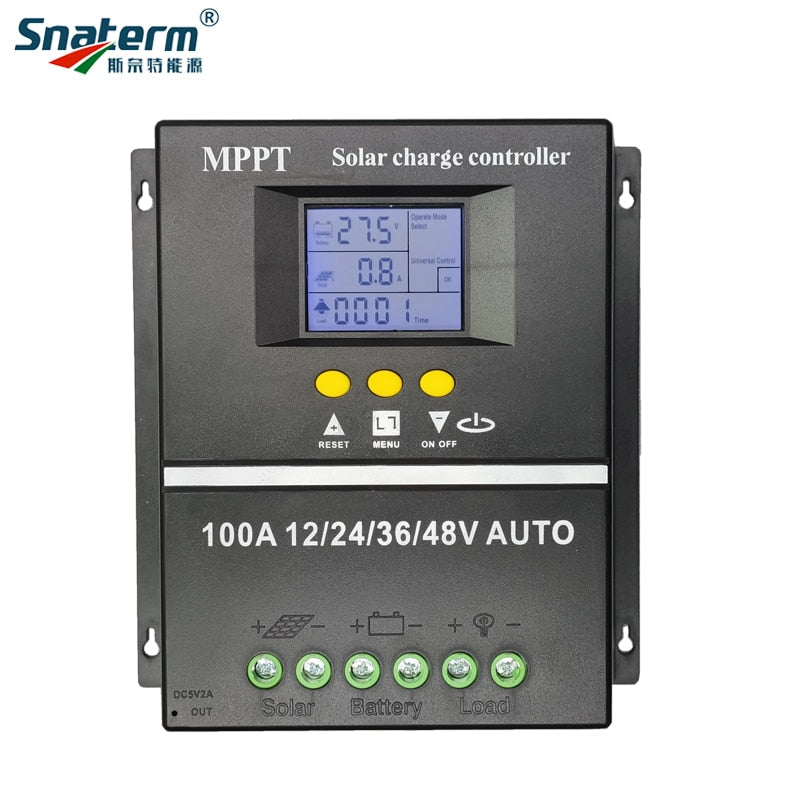

120A 60A 80A 100A Solar PV Regulators 12V 24V 36V 48V AUTO solar charge controller Solar PV Battery Charger with LCD& Dual USB

120A 60A 80A 100A Solar PV Regulators 12V 24V 36V 48V AUTO solar charge controller Solar PV Battery Charger with LCD& Dual USB

Regular price $41.19 USD
Regular price Sale price $41.19 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

function: MPPT/PWM controller

Origin: Mainland China

Model Number: SY-SLCD/ PVDW-

Maximum Current: 60A /80a/100A

Is Smart Device: No

Contact us for the wholesale price.

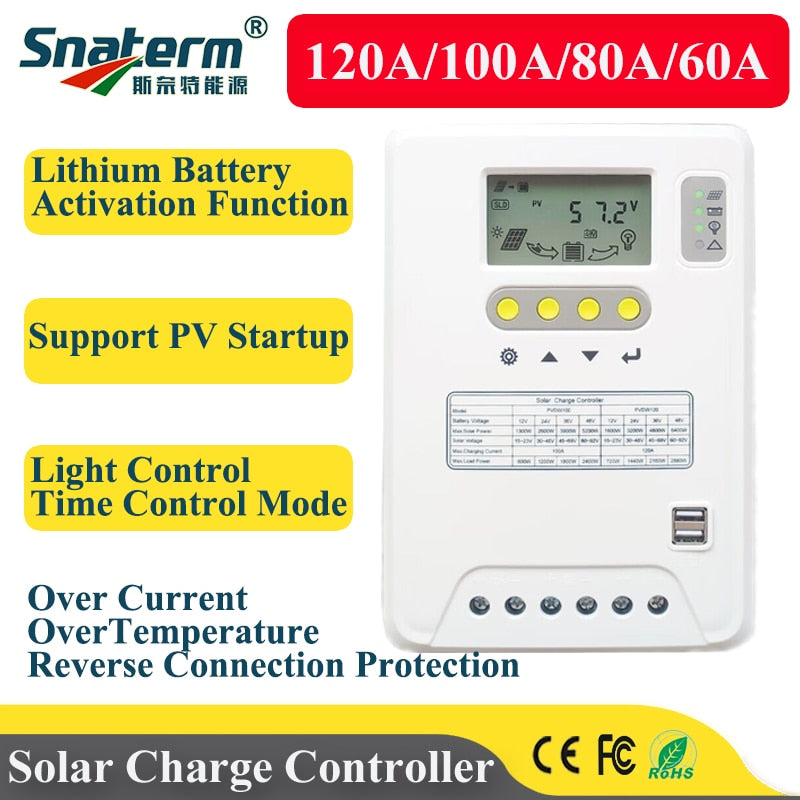

Newly Update 120A 100A 80A 60A 12V 24V 36V 48V AUTO solar charge controller Solar Battery Charger for Seal,GEL,FLD,LifePo4,Lithium


Product Features

1. High efficiency, high quality, low internal resistance large package MOS tube drive,  stable    performance.
2.Adopt Original imported chip control.
3. Battery over discharge/voltage/low voltage protection ,Overload protection of load discharge current.
4. PV panel current overcharge protection.
5. Overheating protection of the whole machine temperature.
6. Solar panel/Battery revese connet protection.
7.Seal,GEL,FLD,LifePo4,Lithium charging process can be selected.
8. 5V/2A USB with short circuit protection.
9. LCD display screen with backlight function
10.12V/24V/36V/48V lead-acid battery full automatic identification.
11. Full stage automatic "default" and manual setting of lithium battery
12. Time control mode (under manual setting of load opening time and load closing time).
13. Light control+time delay,(When the light controller is on, you can set the length of light on time).

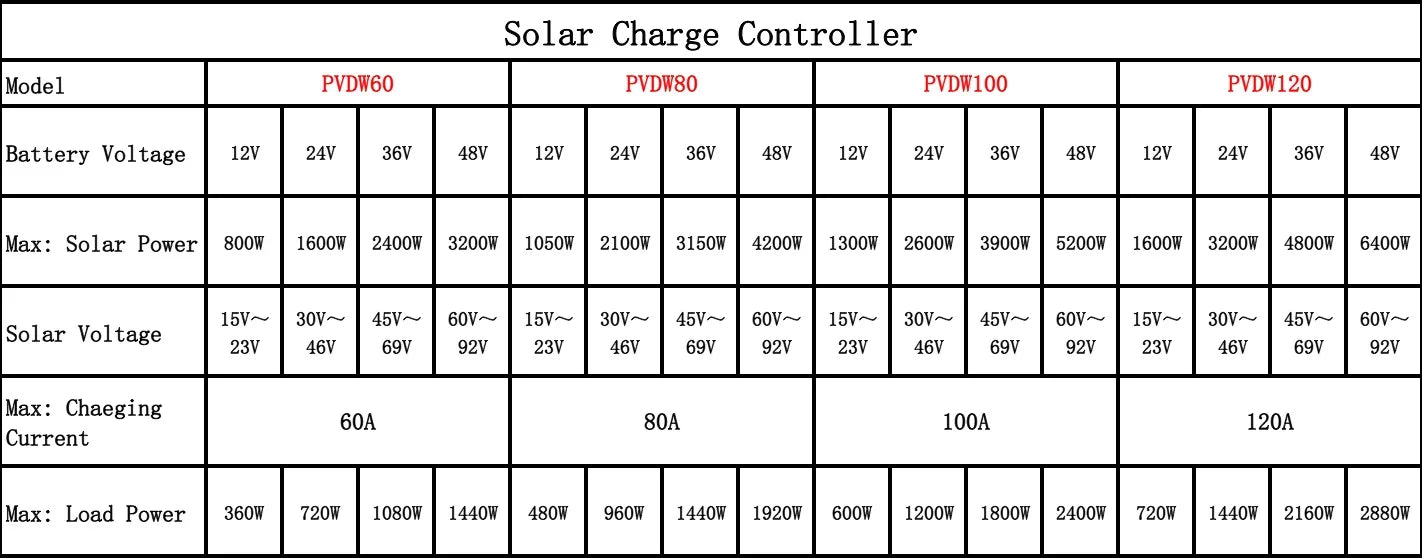

Ensuring customer satisfaction through continuous improvement and quality products.

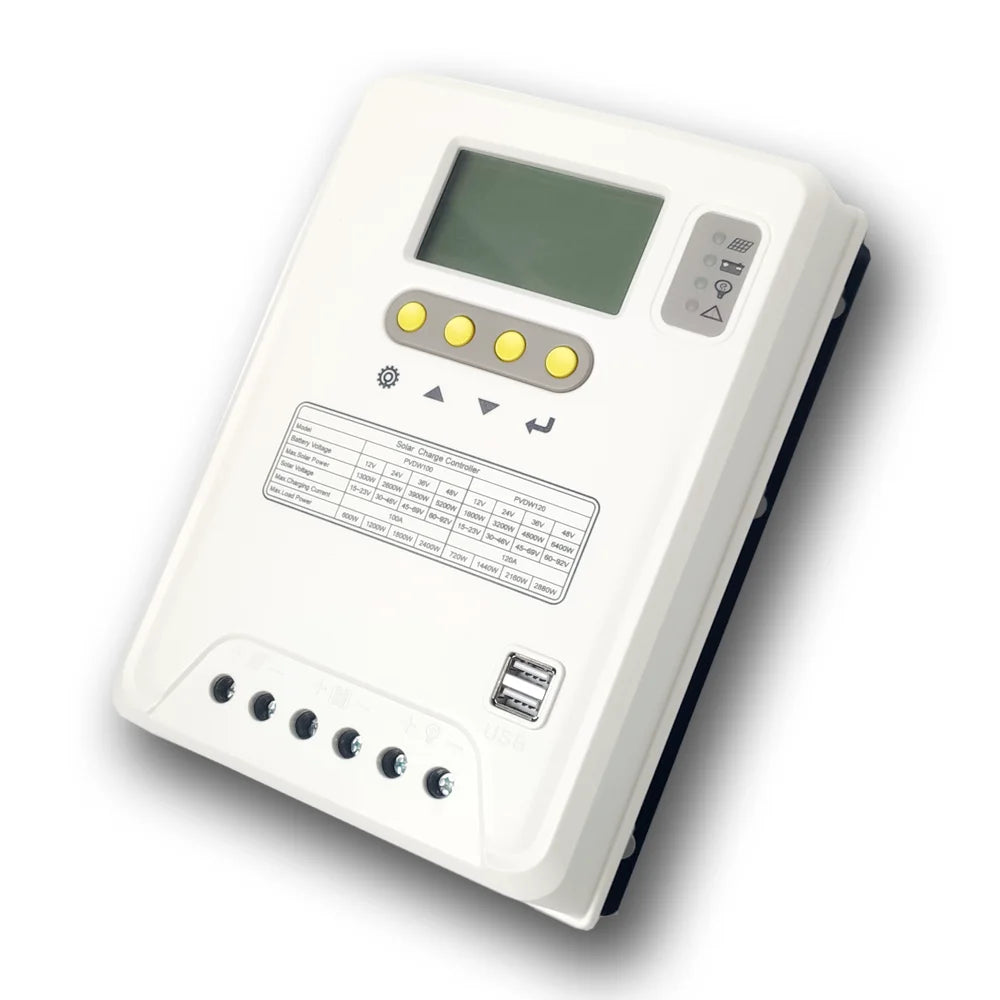

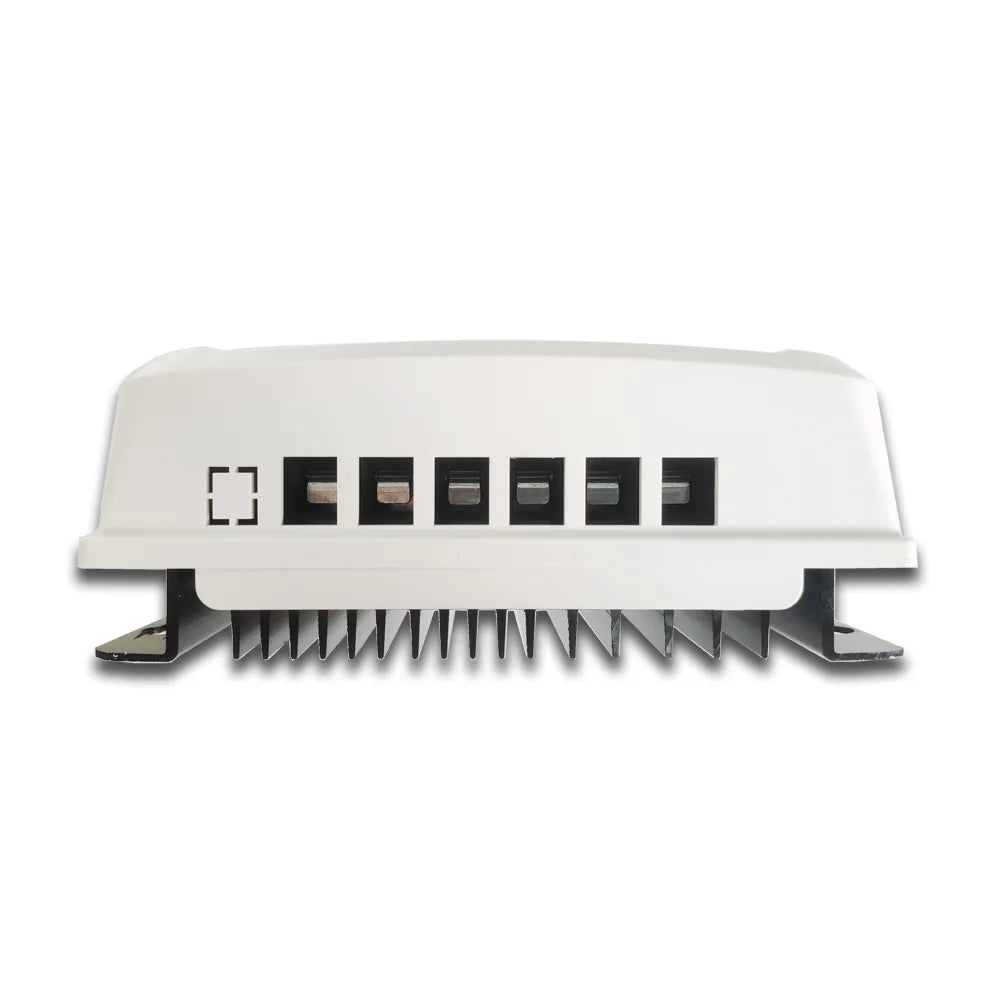

Effortlessly providing quality products for your satisfaction.Optimizing performance for your satisfactionCharge solar-powered batteries with a regulator featuring LCD display and dual USB ports.
Safety Instructions
① Get the tools and cables ready,Select the appropriate cable to ensure that the current desity is ≥6A/mm².
② This controller will be heat when working.Please install the controller in a well ventilated environment.
③ When wiring, connect all connecting wires of the battery first, and then connect other connecting wires.
④ Don't connect with solar panels that exceed the rated charging current of the controller.
⑤ Don't load too much that exceed the rated discharge current of the controller.
⑥ Please do not use AC/DC switching power supply instead of sloar panel to connet the controller.
⑦ The disassembly sequence of the circuit is opposite tothe wiring sequence.
⑧ The operation of solar panel must be 1.5 times of the battery grade voltage.



MPPT/ PWM 80A/100A 12V 24V 36V 48V AUTO solar panel charge controller Solar PV Battery Charger with LCD Display

Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT

The controller is 12/24/36/48V auto, but the voltage of the photovoltaic panels used to charge different batteries is different. For 12V batteries, use about 18V photovoltaic panels, for 24v batteries, use about 30-37V photovoltaic panels, and for 48V batteries use 60. For photovoltaic panels around -72V, the controller wiring is connected to the battery first, and then to the photovoltaic panel. Disconnect the wire on the contrary, otherwise it will easily cause damage to the controller! ! !

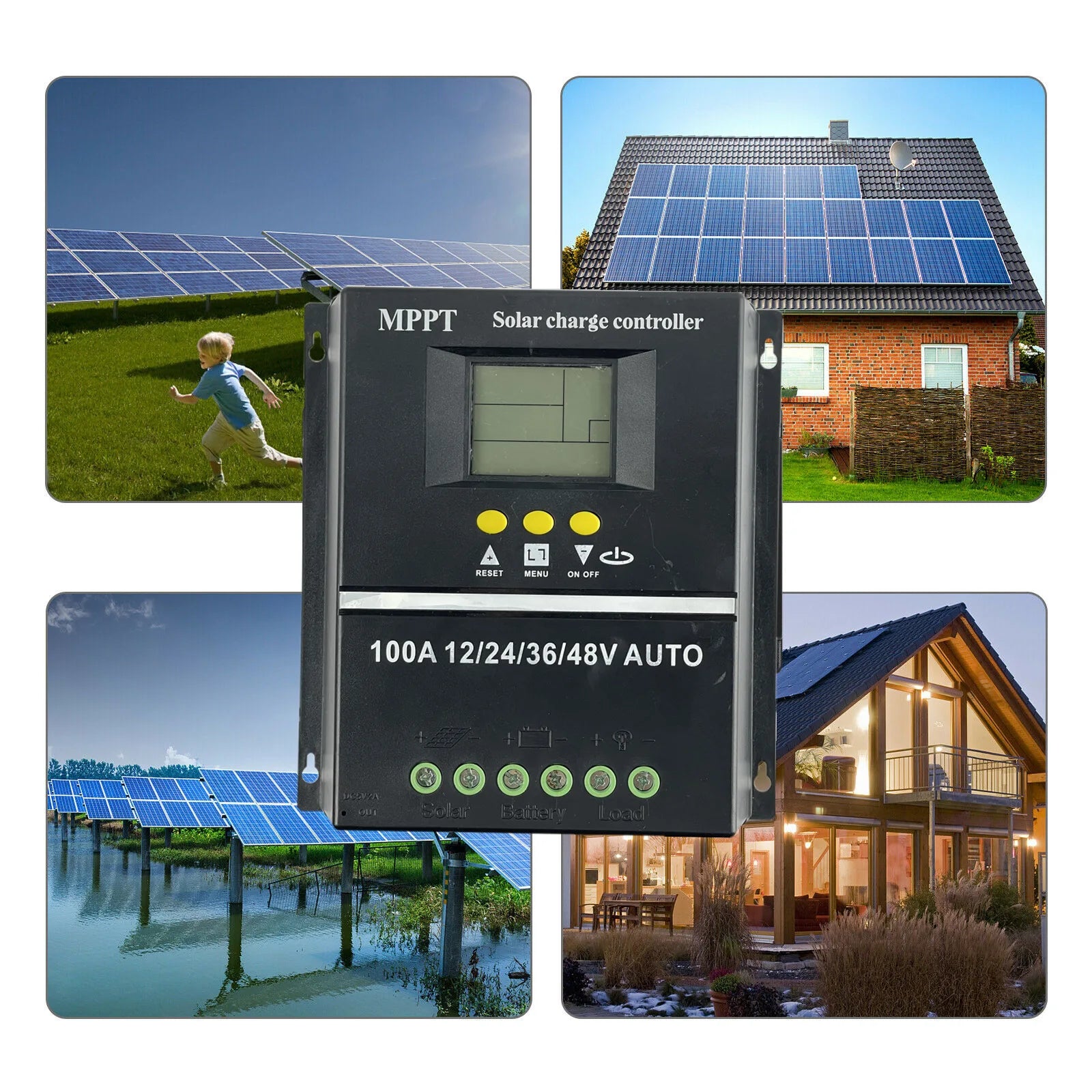

Advanced solar charger controller with LCD display, supporting 4 voltage levels and 100A charging capacity.

Advanced MPPT solar charger controller with LCD display, featuring auto reset and menu options for on/off operation. Supports 12/24/36/48V voltage levels and has 100A charging capacity.

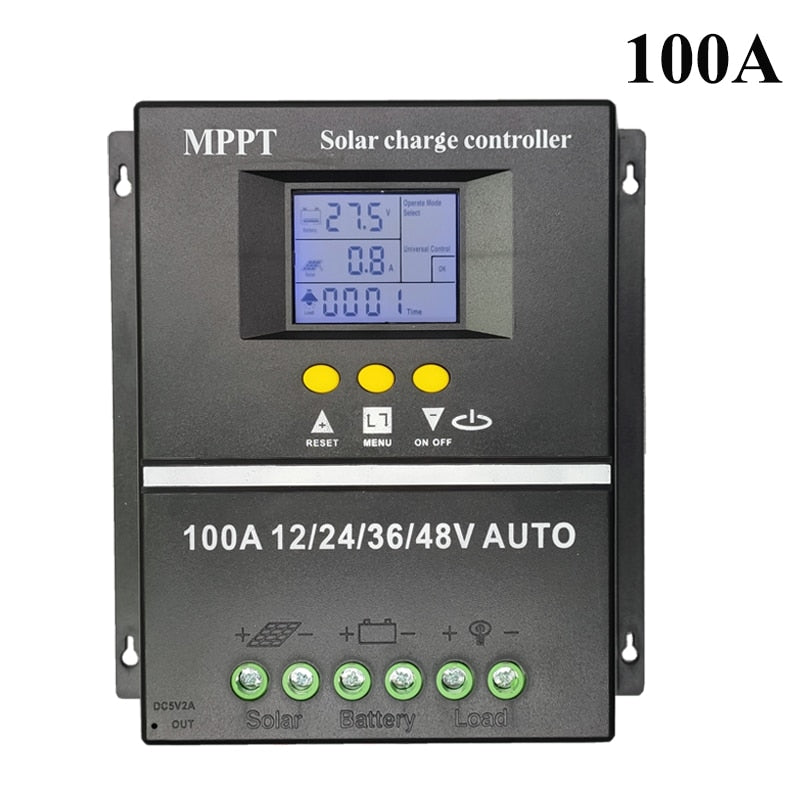

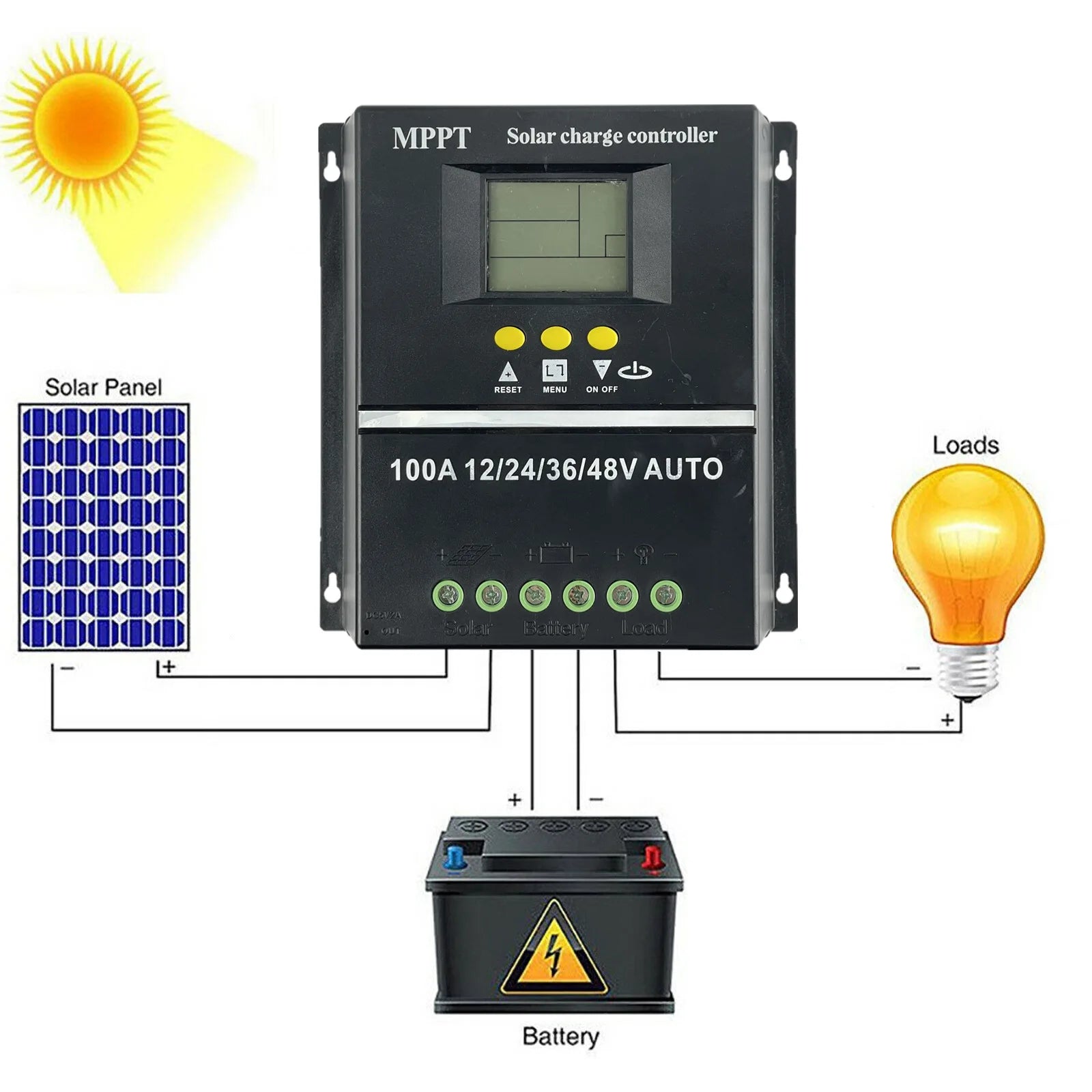

Solar charge controller for 12/24/36/48V systems with auto-tracking, LCD display, and dual USB ports.

120A-100A MPPT Solar Charge Controller for 12/24/36/48V systems. Features auto-tracking, reset, menu, and off modes. Supports loads up to 100A with LCD display and dual USB ports.

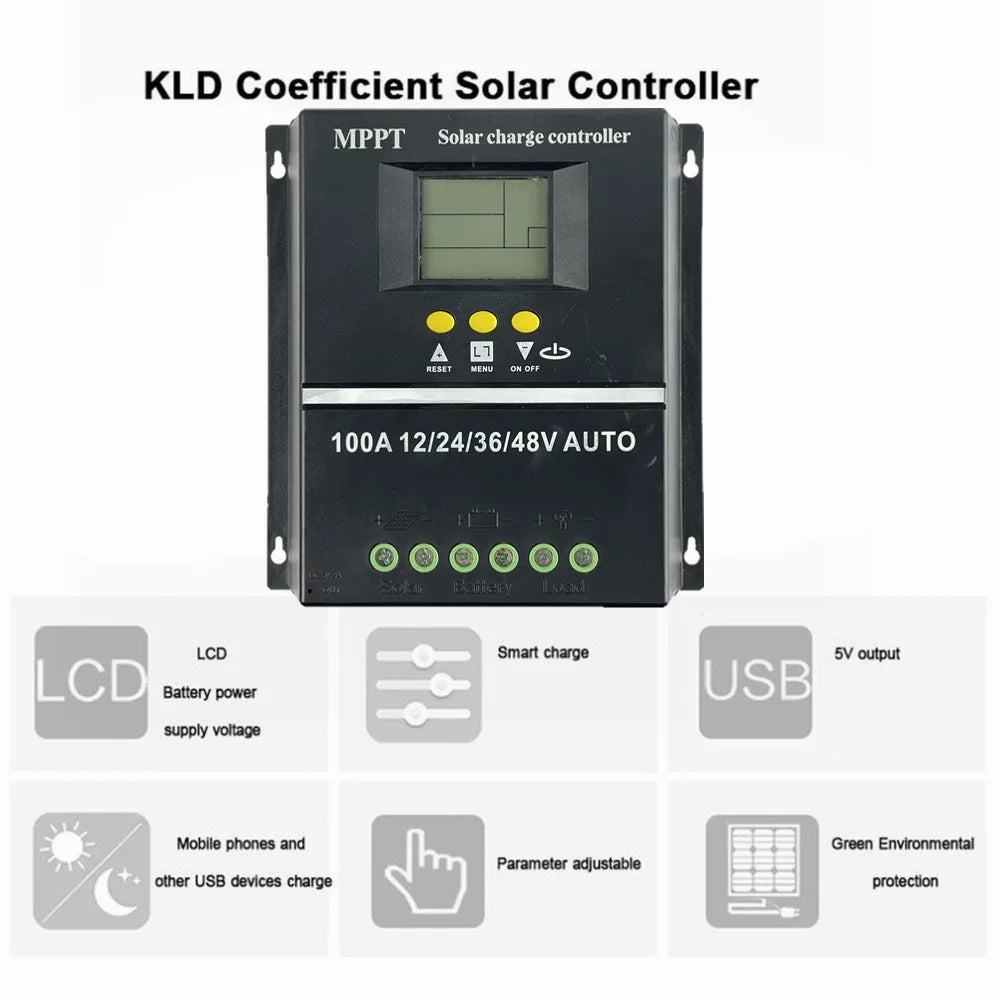

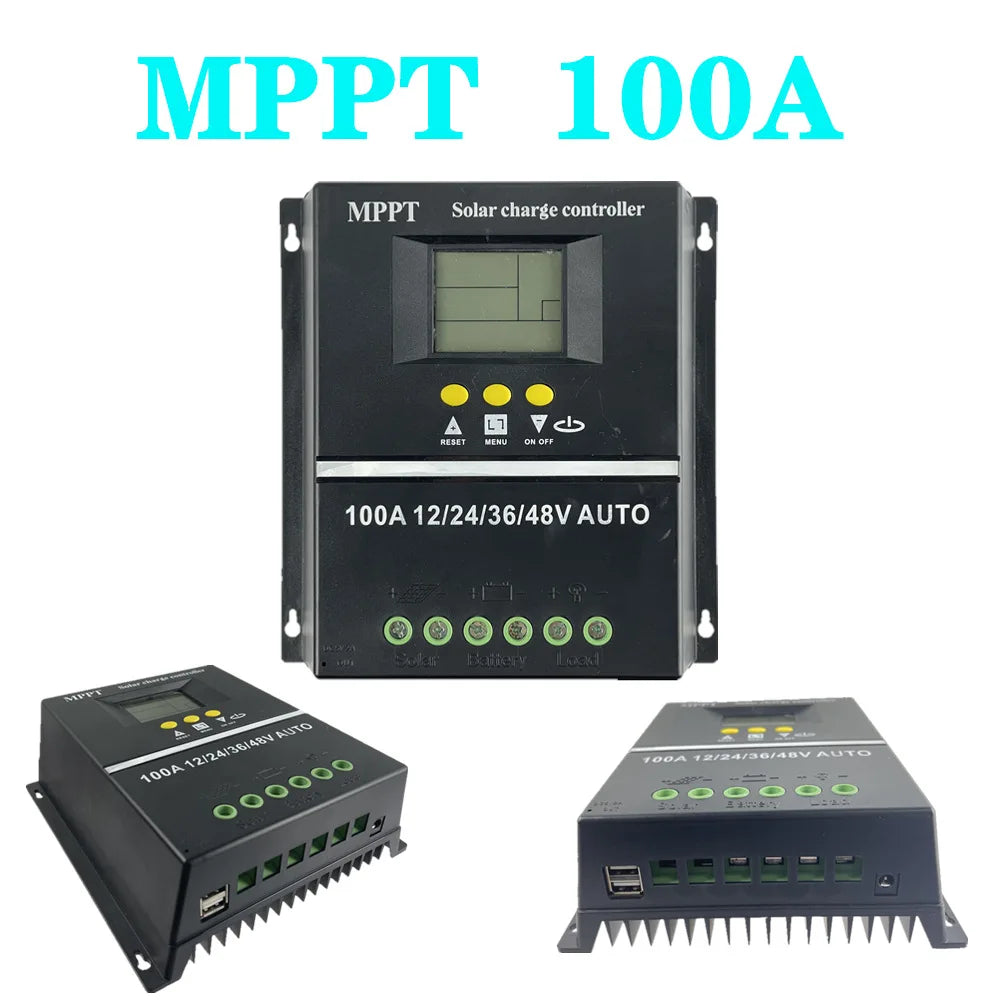

Operate solar panels at 1.5 times the battery's rated voltage to ensure proper charging.Solar controller with MPPT tech, auto-charge, LCD display, USB ports, and adjustable settings for 12V/24V/36V/48V systems.

KLD Solar Controller features MPPT technology, with auto-charge function for 12V, 24V, 36V, or 48V systems. The LCD display shows charging status, and includes dual USB ports to power mobile devices and other gadgets. Adjustable parameters include solar charge rate, battery voltage, and green environmental protection.

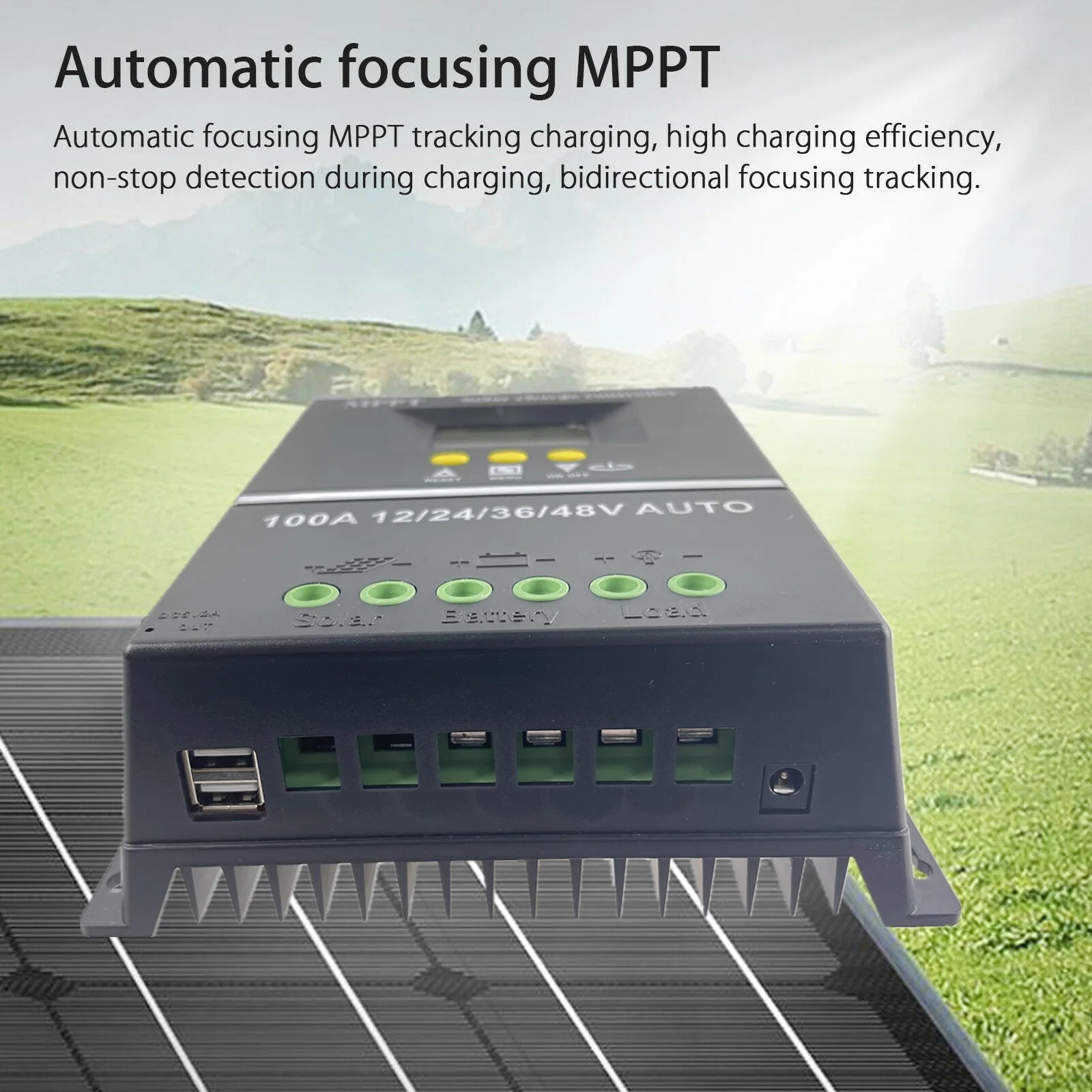

Advanced solar charge controller with automatic MPPT tracking for efficient energy harvesting.

This solar charge controller features automatic MPPT (Maximum Power Point Tracking) and high-efficiency charging. It detects and tracks changes during charging, ensuring optimal energy harvesting.

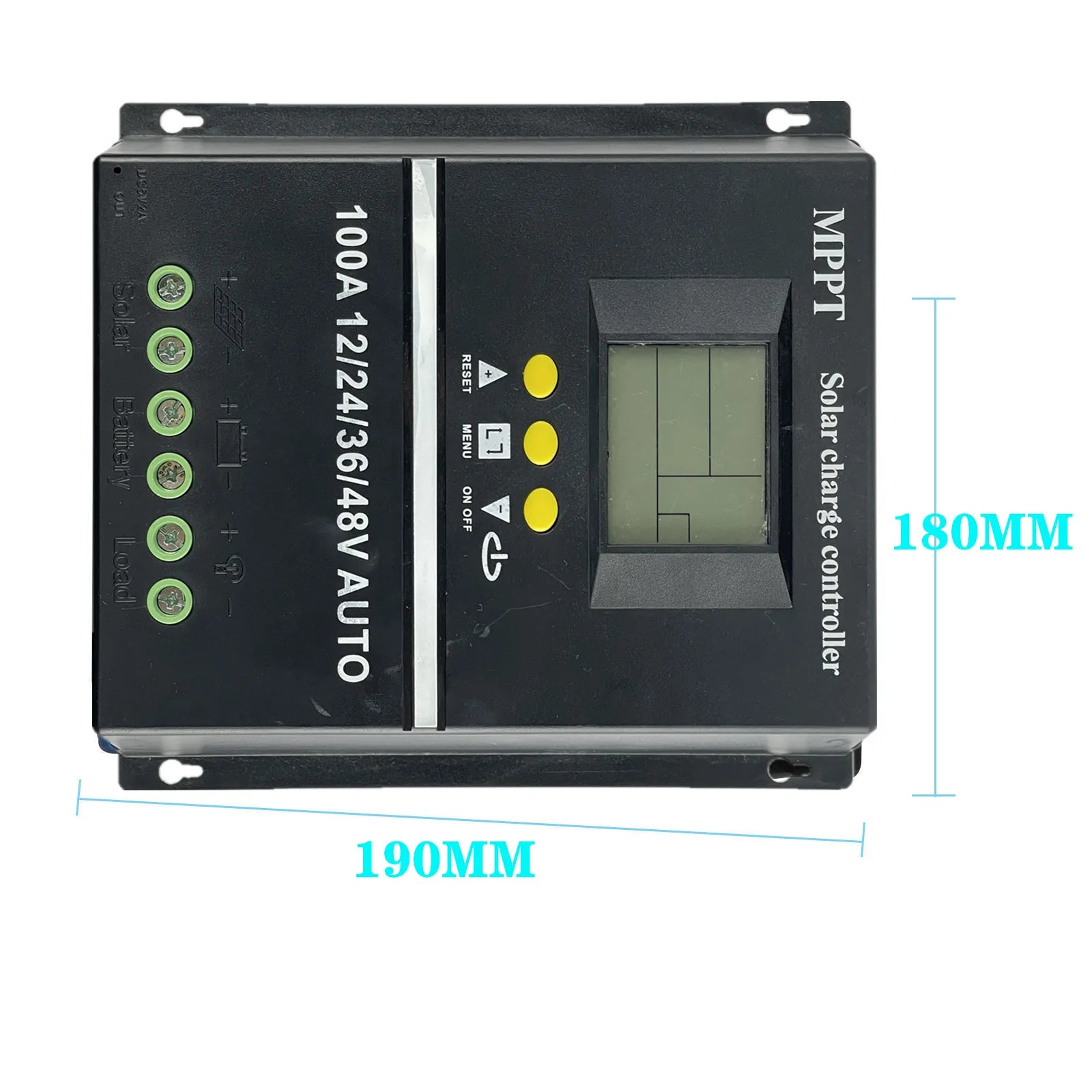

Auto solar charge controller with LCD display and dual USB ports for solar power system monitoring.

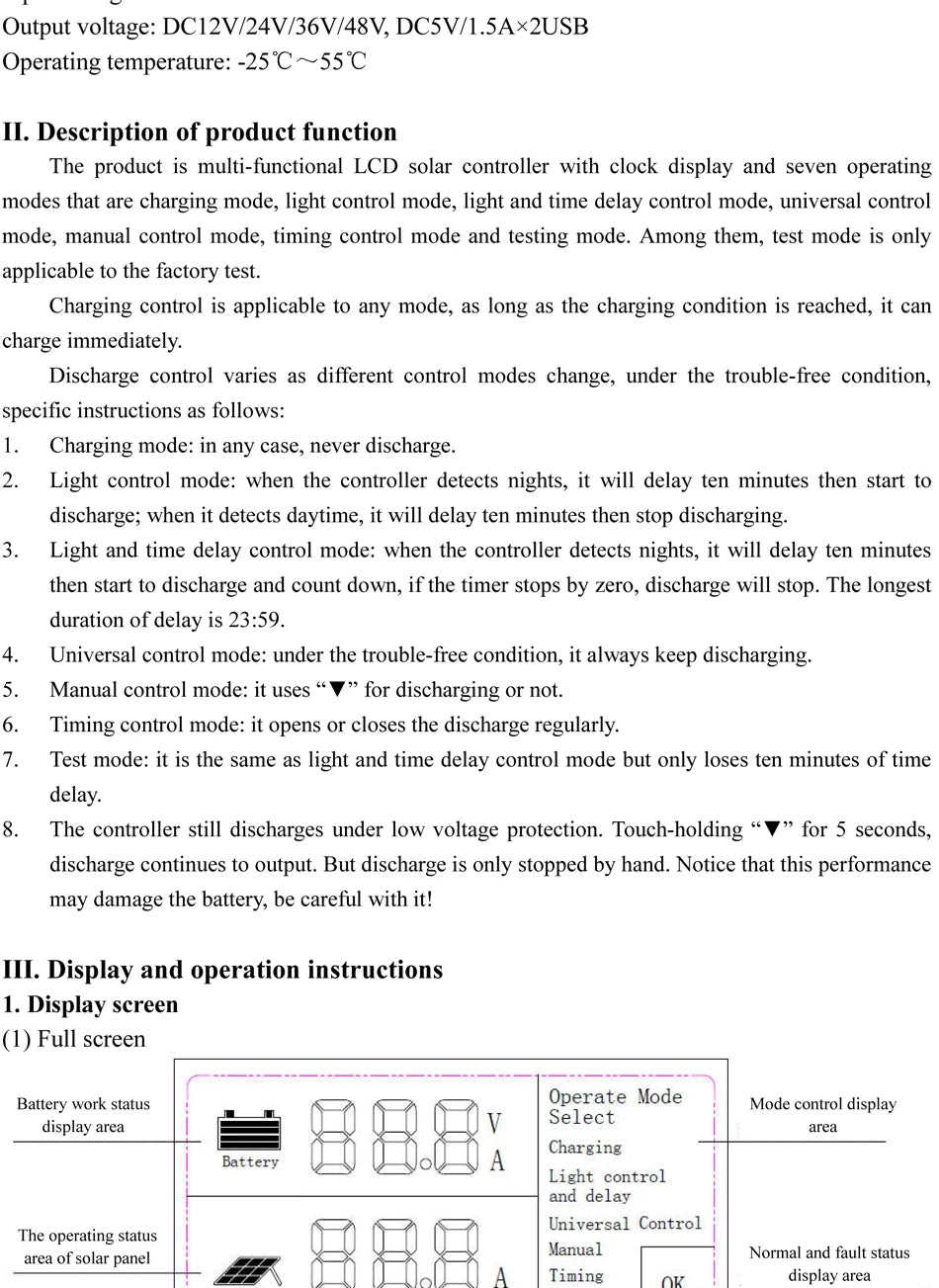

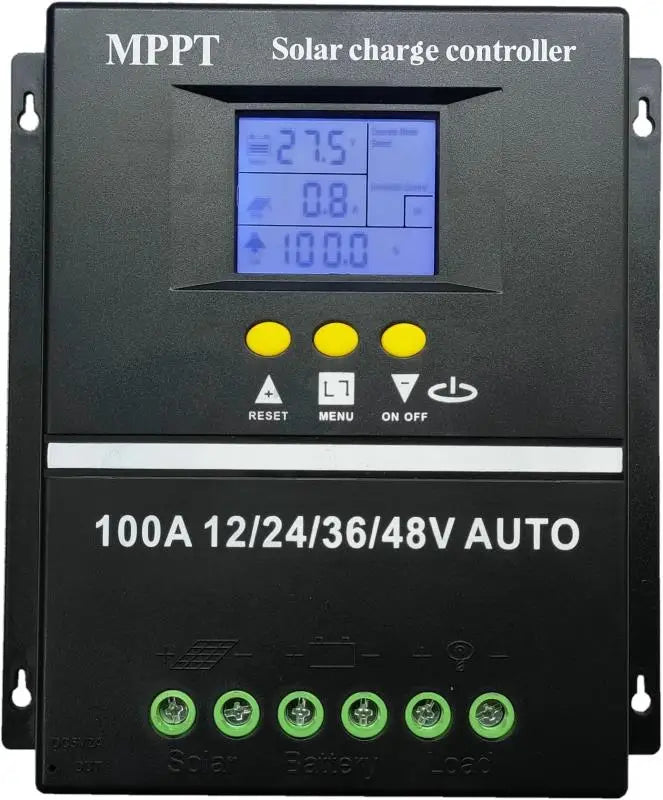

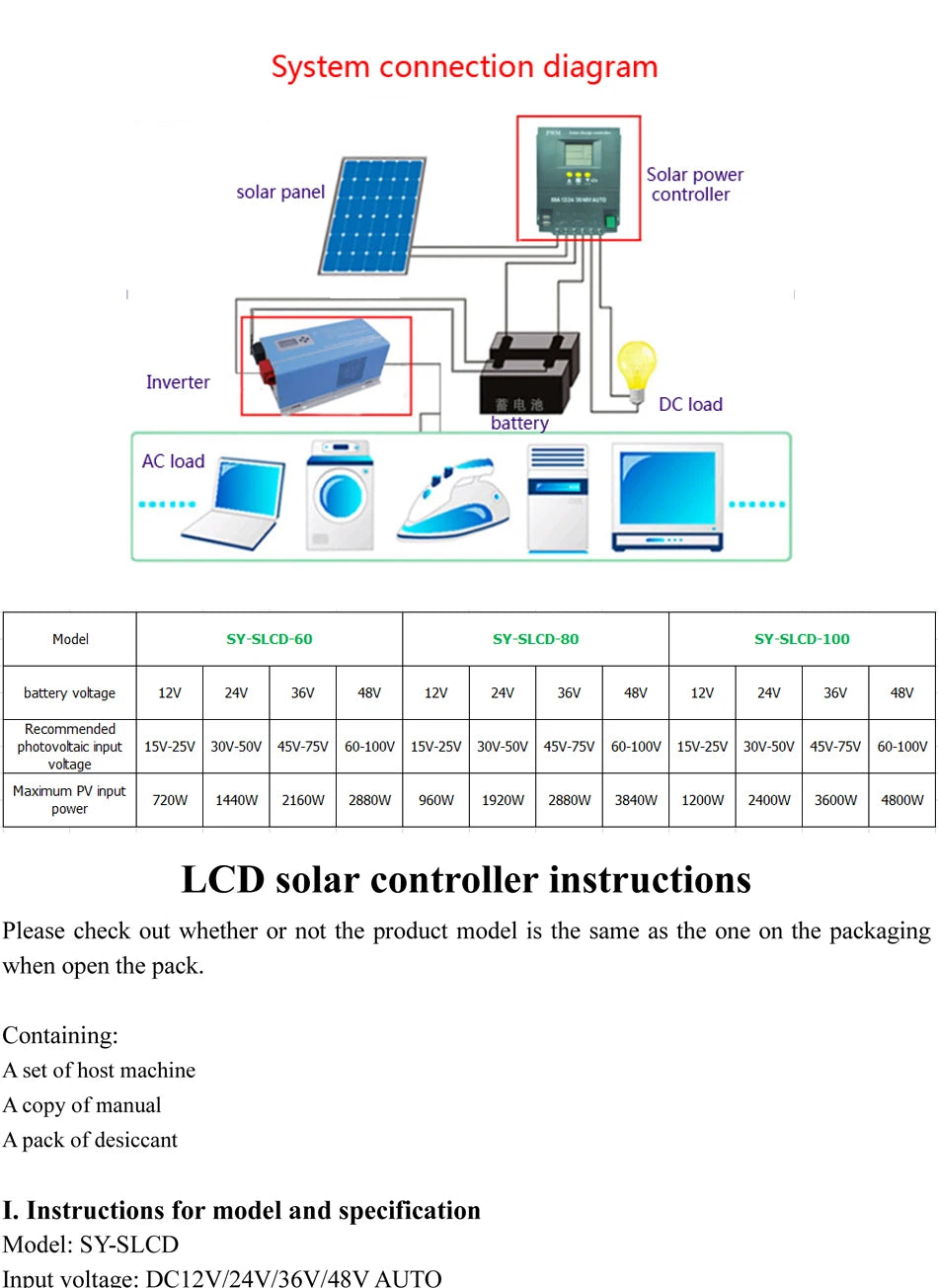

Solar PV Regulators 12V 24VSolar PV Regulators 12V 24VChargeUniversalSolar PV Regulators 12V 24VSolar charger controller with reset menu, on/off options, and auto-detection for 12V-48V systems.

MPPT solar charger controller with reset menu, on/off option, and auto detection for 12V, 24V, 36V, or 48V systems. No additional information provided.

(5) Charging voltage setting instructions: After connecting the battery, after setting the clock and saving, long press "▲" for 3-5 seconds, the screen displays L**V as the floating charge voltage, which can be adjusted by pressing "▼"; short press again "▲"H**V is to increase the charging voltage, which can be adjusted by pressing "▼"; shortly press "▲" again. F**V is the low-voltage cut-off voltage of the DC load, which can be adjusted by pressing "▼"; after setting Long press "▲" for 3-5 seconds to save and exit.

(4) Clock setting instructions: When the battery is connected, press "▲" "▼" to set the clock table, short press "■" to save.

Note: Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.

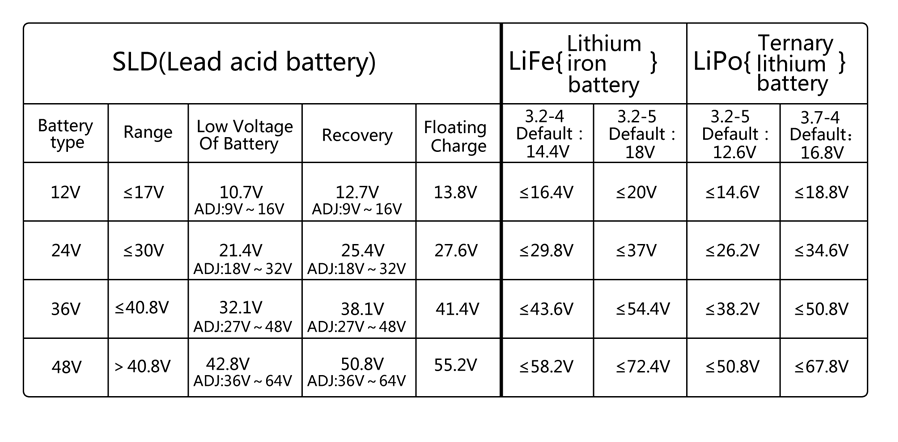

When using a 48V battery, the battery boost charging voltage is higher than 59.2V, and it changes to a floating charging voltage of 55.2V.

When using a 36V battery, the battery boost charging voltage is higher than 44.4V, and it changes to a floating charging voltage of 41.4V.

When using a 24V battery, the battery boost charging voltage is higher than 29.6V, and it changes to a float charging voltage of 27.6V.

When using a 12V battery, the boost charging voltage of the battery is higher than 14.8V, and it is converted to a floating charging voltage of 13.8V.

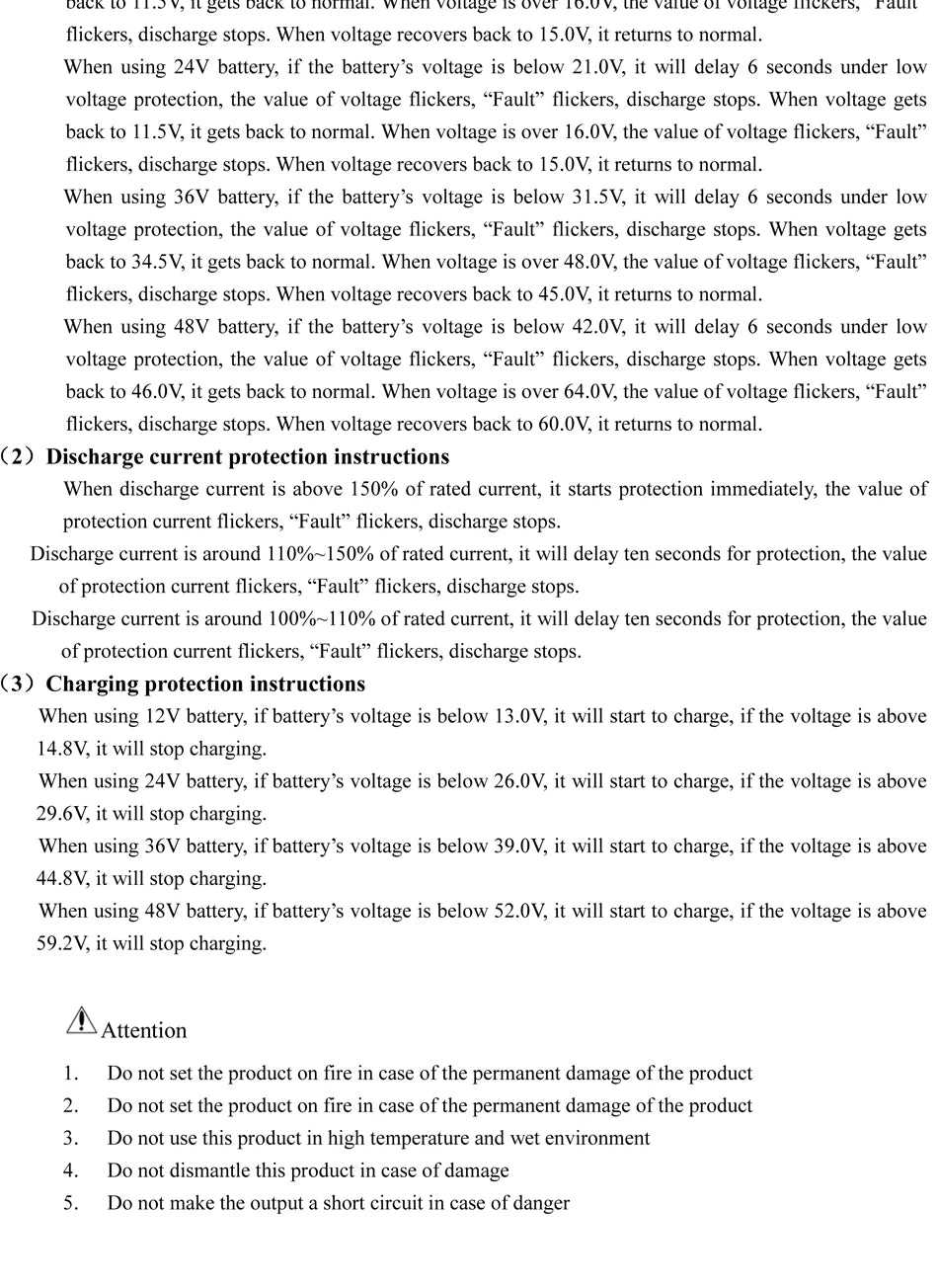

(3) Description of charging protection
