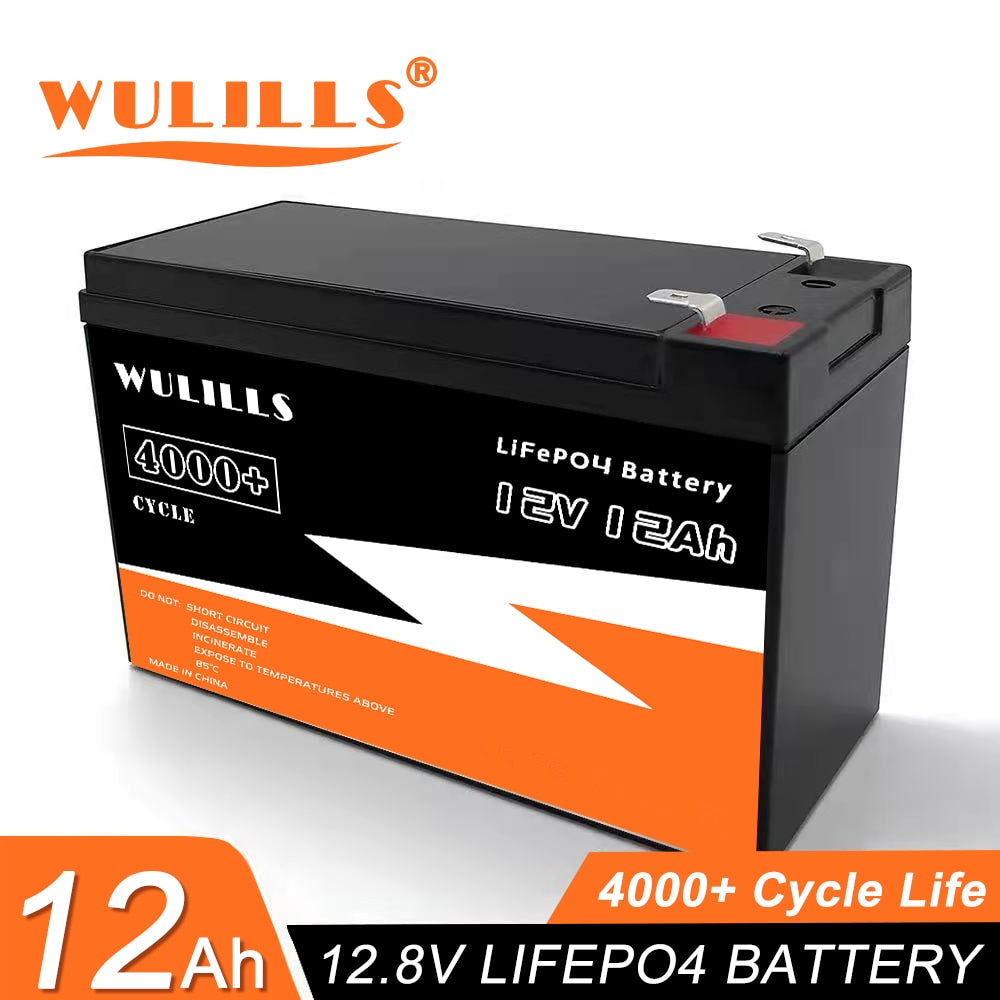

12V 12Ah LiFePo4 Battery Pack - Lithium Iron Phosphate Battery Built-in BMS 12V 24V LiFePO4 Battery for Kid Scooter Boat Motor
12V 12Ah LiFePo4 Battery Pack - Lithium Iron Phosphate Battery Built-in BMS 12V 24V LiFePO4 Battery for Kid Scooter Boat Motor
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
12V 12Ah LiFePo4 Battery Pack SPECIFICATIONS
Weight: 1.5kg
Warranty: 5 Years
Voltage: 12.8V
Voltage: 12.8V
Type: Li-Ion
Support to OEM: Yes
Support to Dropshipping: Yes
Size: 150mm*94mm*94mm
Origin: Mainland China
Nominal Capacity: 12Ah(12000mAh)
Model Number: LF6AH
Features 5: 1C 12A Continous Discharge
Features 4: 4S2P 6Ah Battery Cells
Features 3: With 4S10A Built-in BMS
Features 2: 12Ah Lithium Iron Phosphate Battery
Features 1: 12V 12Ah Lifepo4 Battery
Cycle Time: >4000 times
Certification: CE,RoHS
Brand Name: WULILLS
Battery Pack Connection: Support 4S4P
Application: Scooter, Street Bike,Solar
Amp: 12Ah
12V 12Ah Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 12Ah 0.2C
Energy: 153.6Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 2.4A
Max. Charge Current: 6A
Max. Continuous Current: 10A
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: ABS
Built-in BMS:4S10A
Dimension (L/W/H): 151*94*94 mm / L6*W3.7*H3.7in
Weight: Approx. 1.5kg
Terminal Type: F2
Wuills 12Ah 12V LiFePO4 battery pack offers over 4000 cycle life, with built-in BMS for safe operation. It has no memory effect, and can withstand high temperatures up to 40°C. Perfect for kid scooters, boats, or motors requiring reliable power.

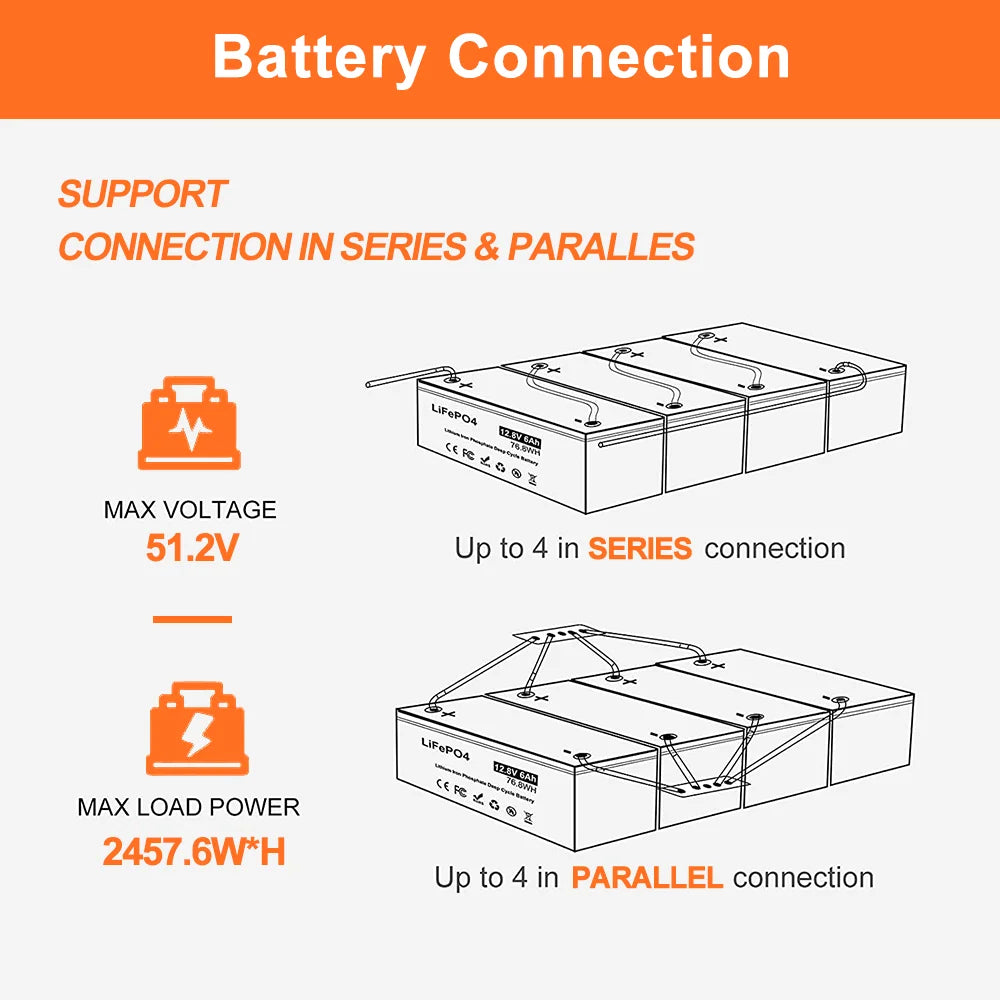

Battery Connection
Support connection in 4 series to 51.2V Voltage,up to 4 in parallel connection
This lithium iron phosphate battery pack supports up to 51.2V when connected in series and 2457.6W when connected in parallel, with a maximum load power of 24V. It's suitable for applications like kid scooters or boat motors.
DIMENSIONS
Mini and Compact
Product Specifications: Dimensions (F2 Terminal View): 3.7 inches (94mm) x 4.84 lbs (1.5 kg). Cycle Life: Up to 300 cycles. Warranty: One year. Made in China.

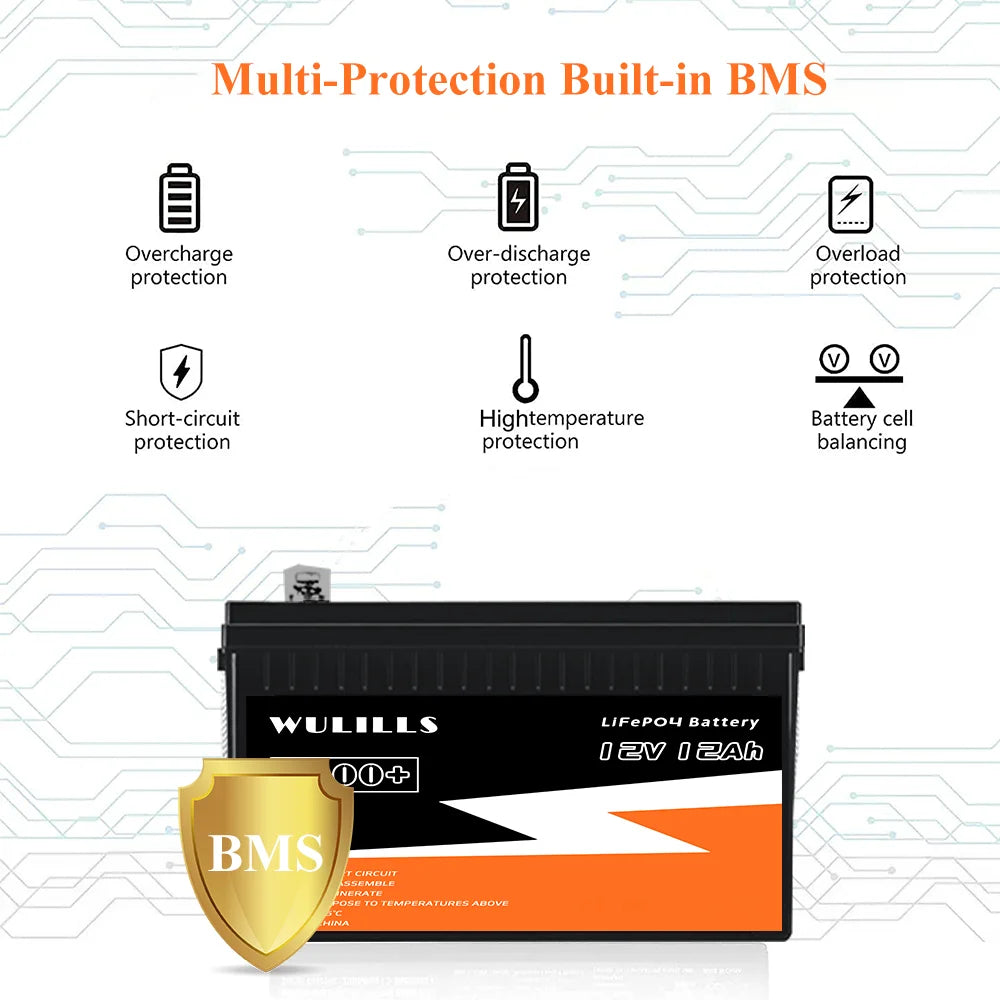

Built-in BMS Protection
Overcharge protection
overdischarge protection
overcurrent protection
short circuit protection
cell voltage self balance

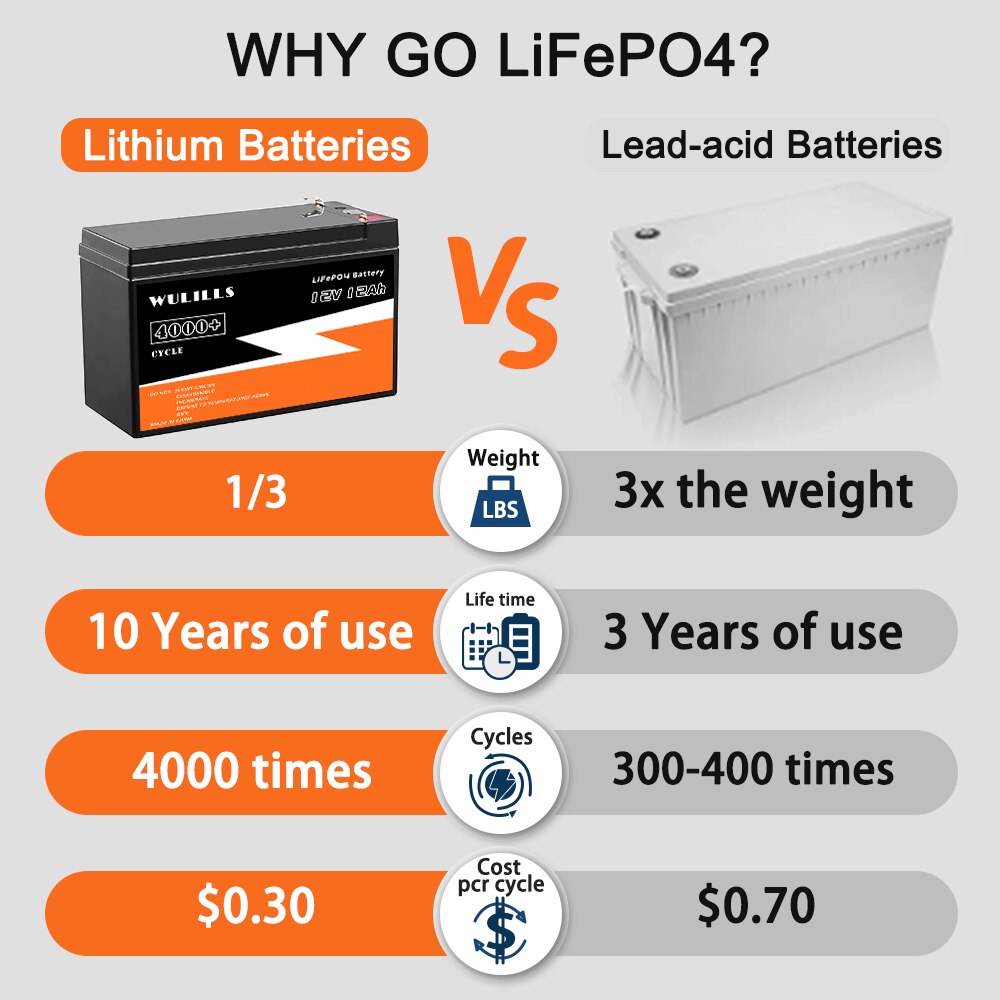

Why Choose LiFePO4?
1/3 of the weight than the lead acid batteries
10 years of use
4000 long cycle times
1/3 of cost per cycle than the lead acid batteries
Choose LiFePO4 batteries over lead-acid or lithium-ion ones for several reasons: they're lighter (only 1/3 the weight), last longer (up to 10 years vs. 3 years), and can withstand more charge cycles (4000 times vs. 300-400). Plus, they're cost-effective, with a per-cycle cost of just $0.30 compared to $0.70 for lead-acid batteries.
Our Lifepo4 Battery Application
Renewable energy storage systems
Motive Power
This 12V 12Ah LiFePo4 battery pack is suitable for various applications, including renewable energy storage systems, such as solar and wind power systems. It also powers RVs, yachts, PHEVs, wheelchairs, golf carts, and scissor lifts.
Why Choose Us?
About our WULILLS,we provie 5-year good quality warranty
Warranty: We provide a 5-year warranty for our LiFePo4 battery pack when used correctly. Our team assists in analyzing and solving customer problems, restoring optimal battery usage. If an issue cannot be resolved, we offer a new defective battery replacement. Please refer to our manual instructions for proper use.
