SPECIFICATIONS

is_customized: Yes

Shell material: Plastic

Origin: Mainland China

Name: Solar Controller

Model Number: MPPT Solar Charge Controller

Maximum Current: 60A

Maximum Current: MPPT 10-60A

Is Smart Device: No

Certification: CE,FCC,RoHS

Battery Voltage: 12/24/48V Auto

Application: Charger Controller,Voltage Controller,Solar System Controller

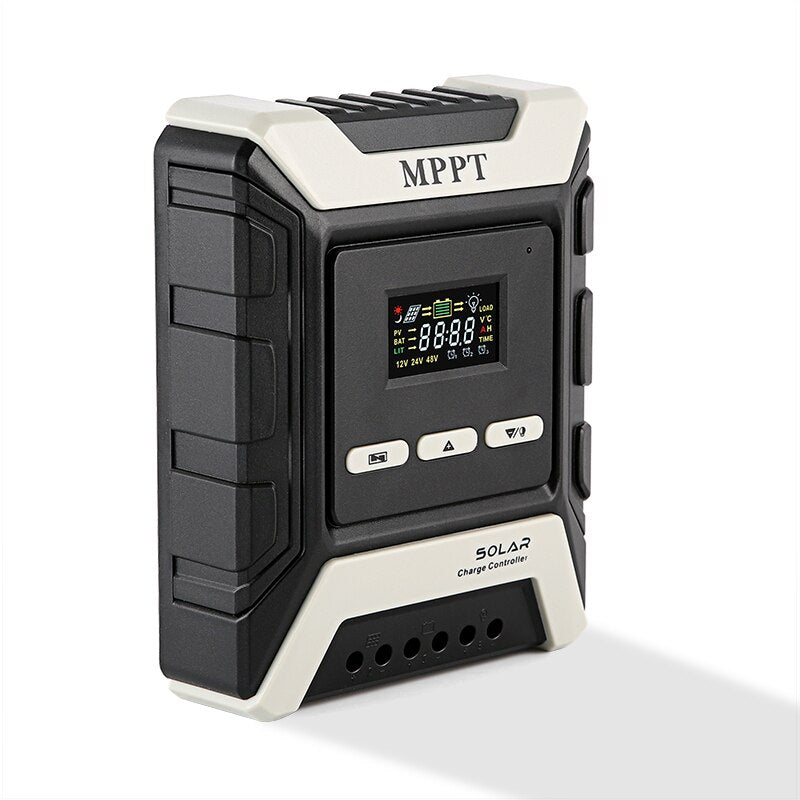

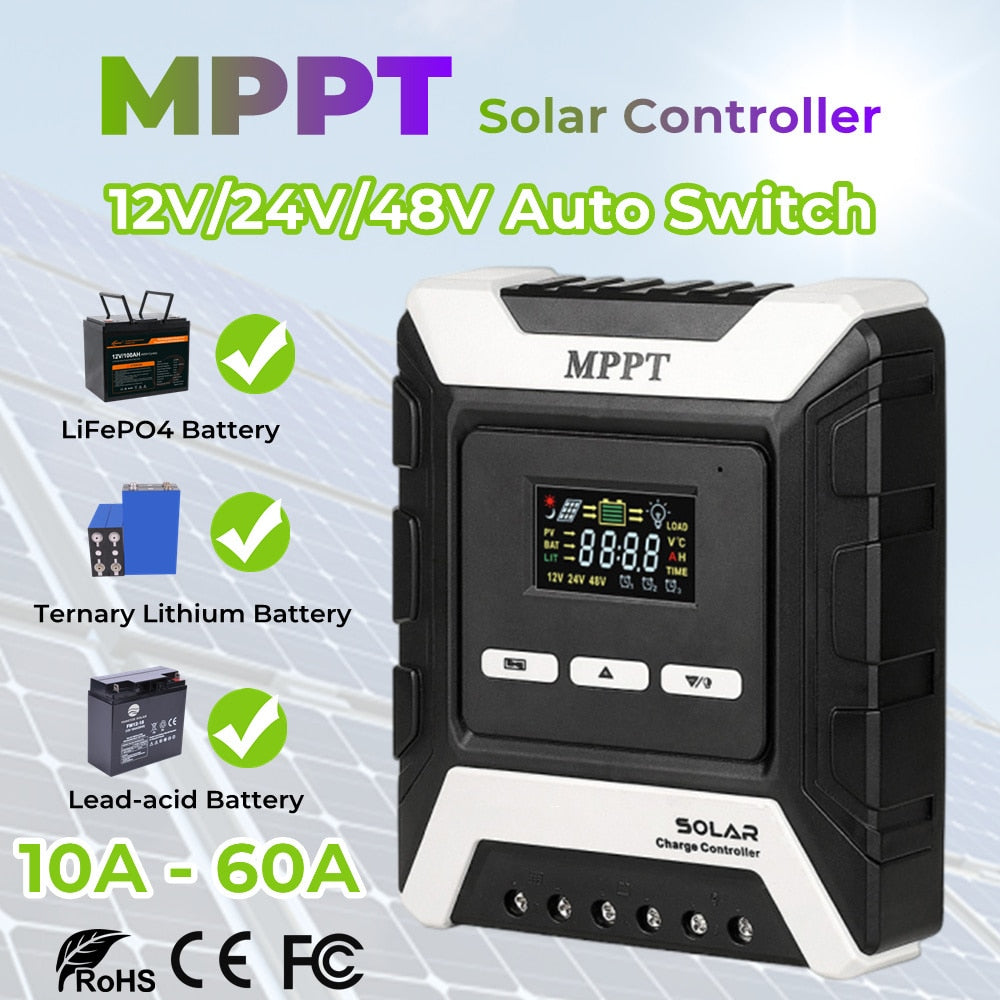

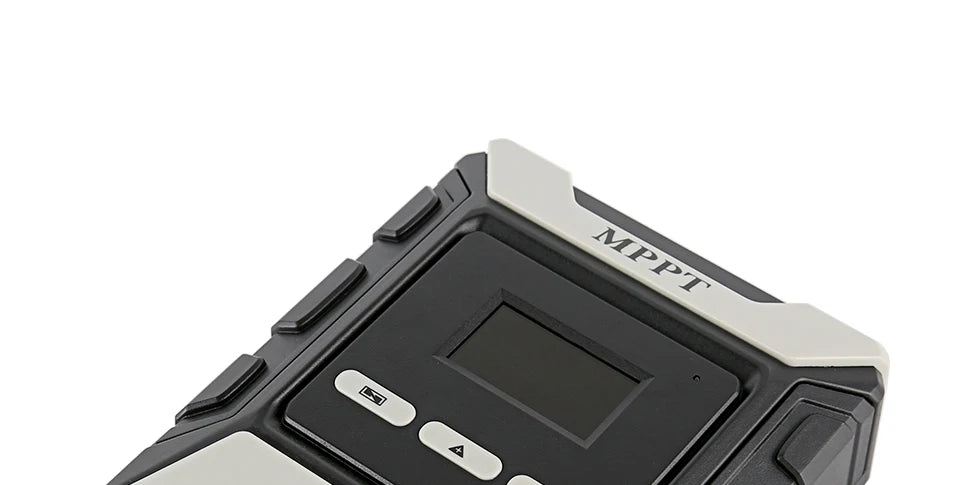

New Arrival 12V/24V/48V Auto MPPT Solar Charge Controller 60A 40A 30A 20A Solar Panel PV Regulator LCD Display Control Dual USB

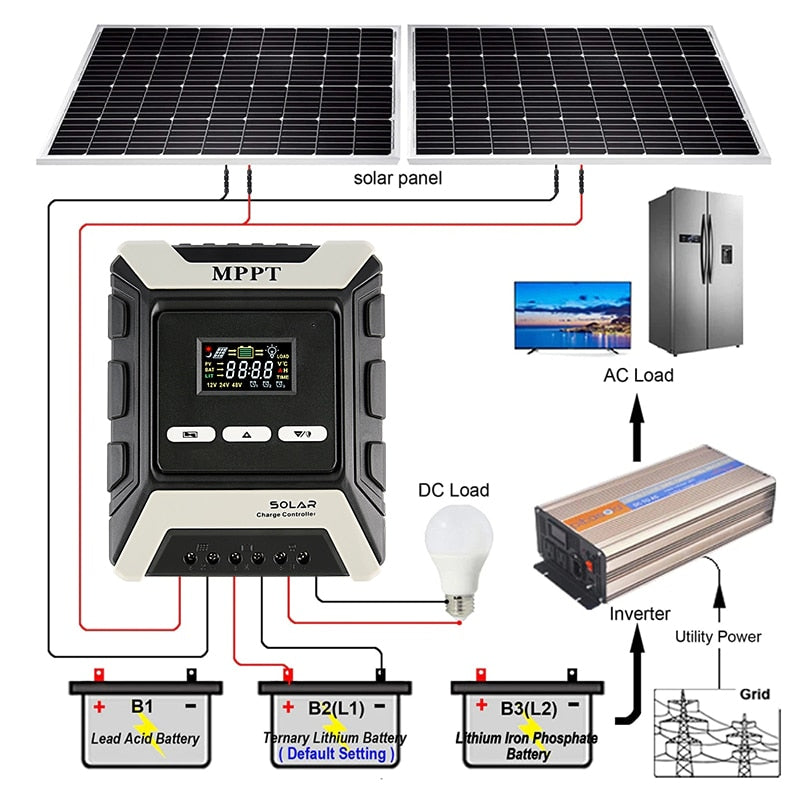

System Connection:

1.Connect the battery to the charge regulator-plus and minus.

2.Connect the photovoltaic module to the regulator-plus and minus.

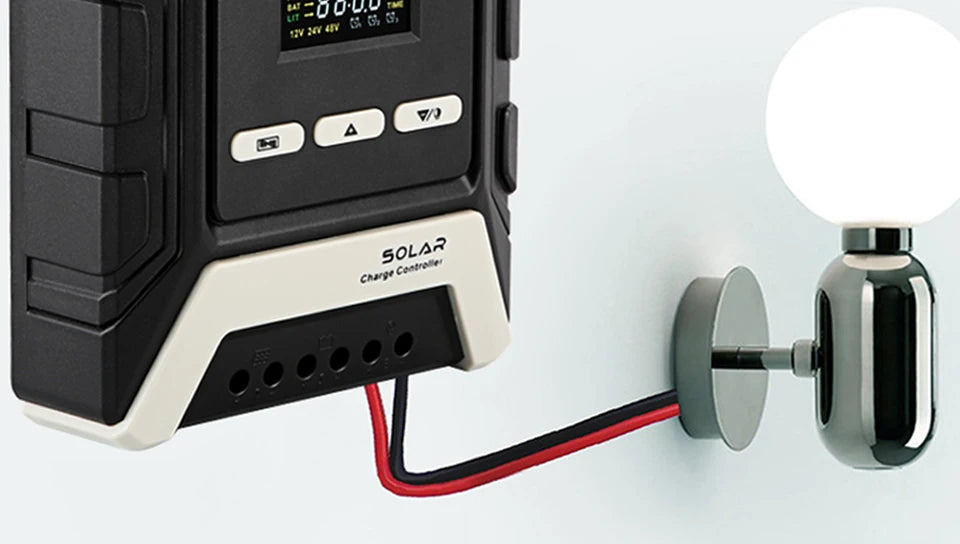

3.Connect the consumer to the regulator-plus and minus.

NOTE: The reverse order applies when deinstalling, an improper sequence order can damage the controller

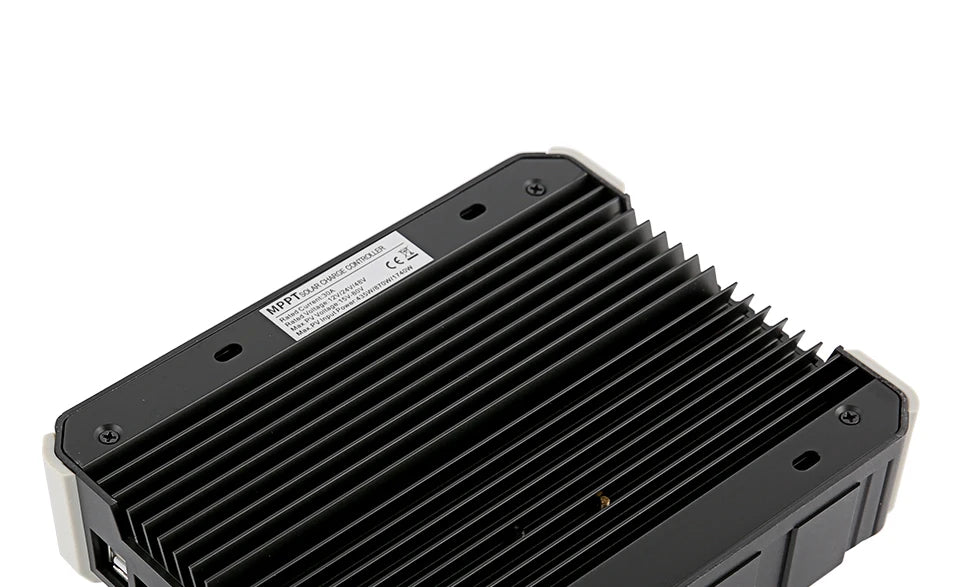

Thank you for selecting MPPT series solar charge controller with the most advanced MPPT control algorithm and the maximum power point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.

Feature：

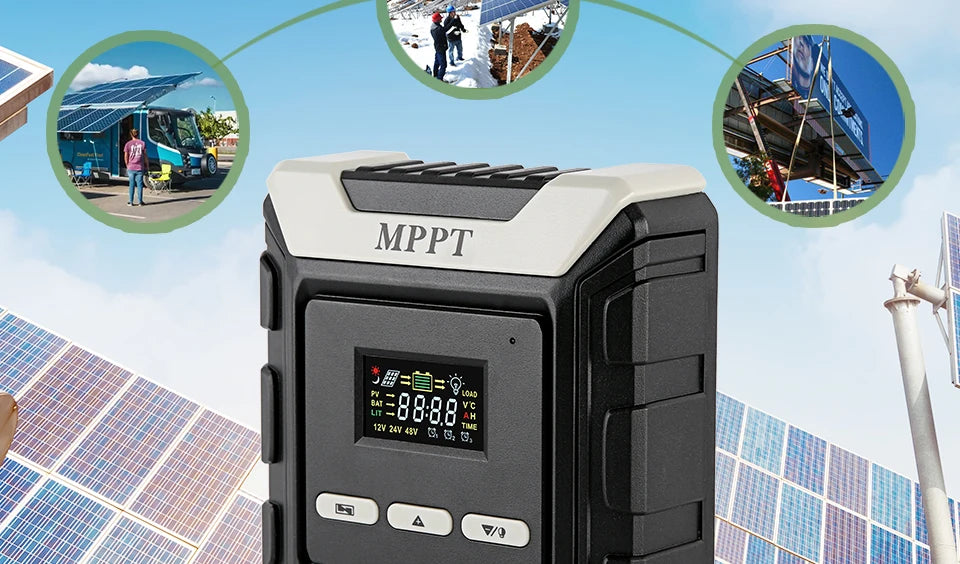

● Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.

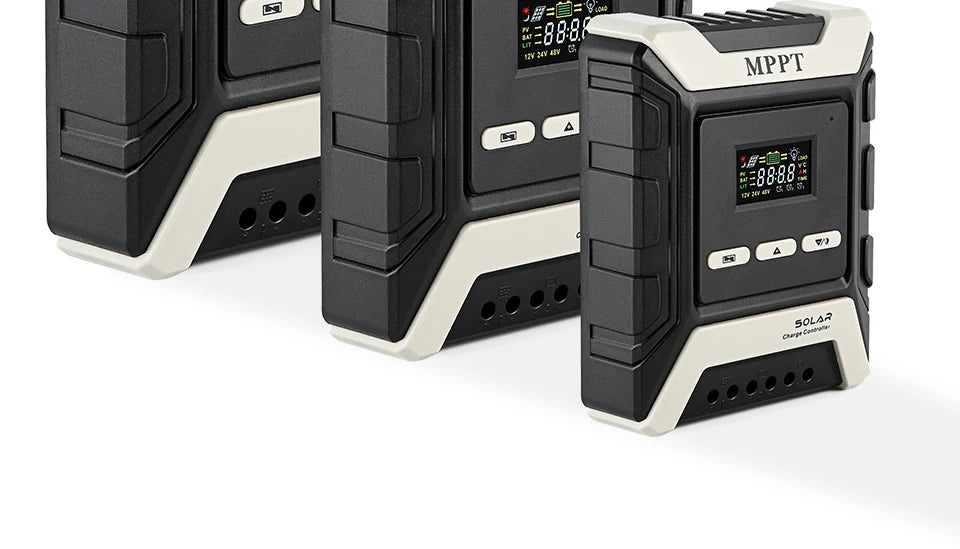

● High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.

● Super fast maximum power tracking speed while ensuring tracking efficiency.

● Accurate identification and tracking of the maximum power point of multi-wave peak.

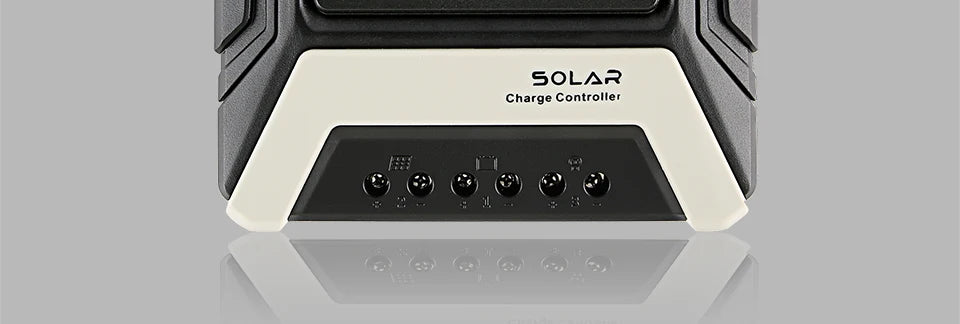

● Reliable maximum input power of pv array to ensure the safety of equipment.

● Wide pv array maximum power point operating voltage range.

● 12/24/48v automatic voltage identification

● The LCD is designed to dynamically display the operation data and working status of the equipment.

● Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.

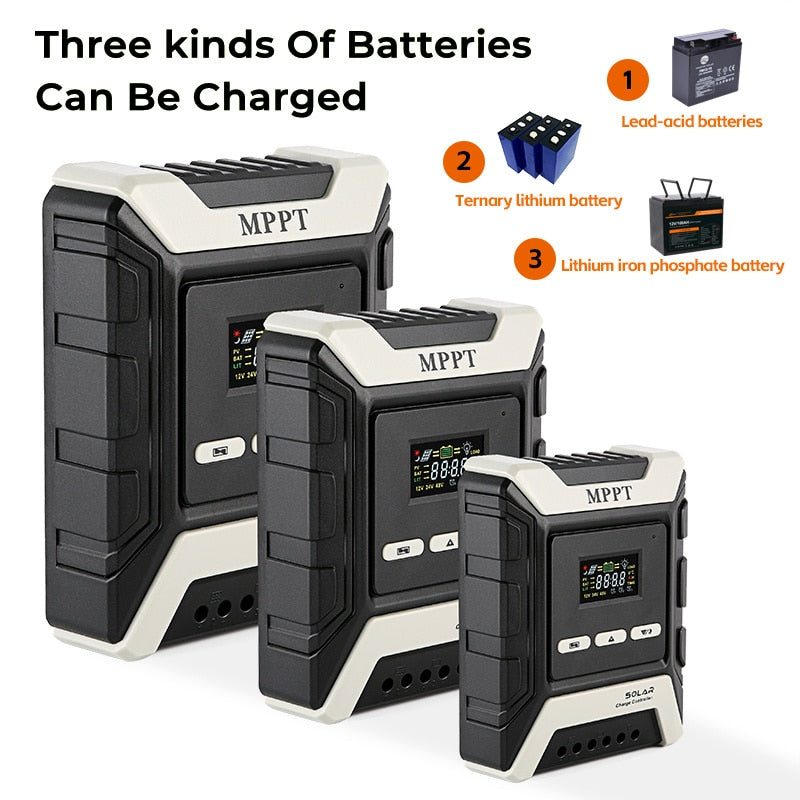

● Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.

● The function of battery temperature compensation.

● Power statistics recording function.

● External display unit and other peripherals, realize real-time data view and parameter setting function.

Safety Instruction:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation

2.The battery cable should be as short as possible to minimize loss

3.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator

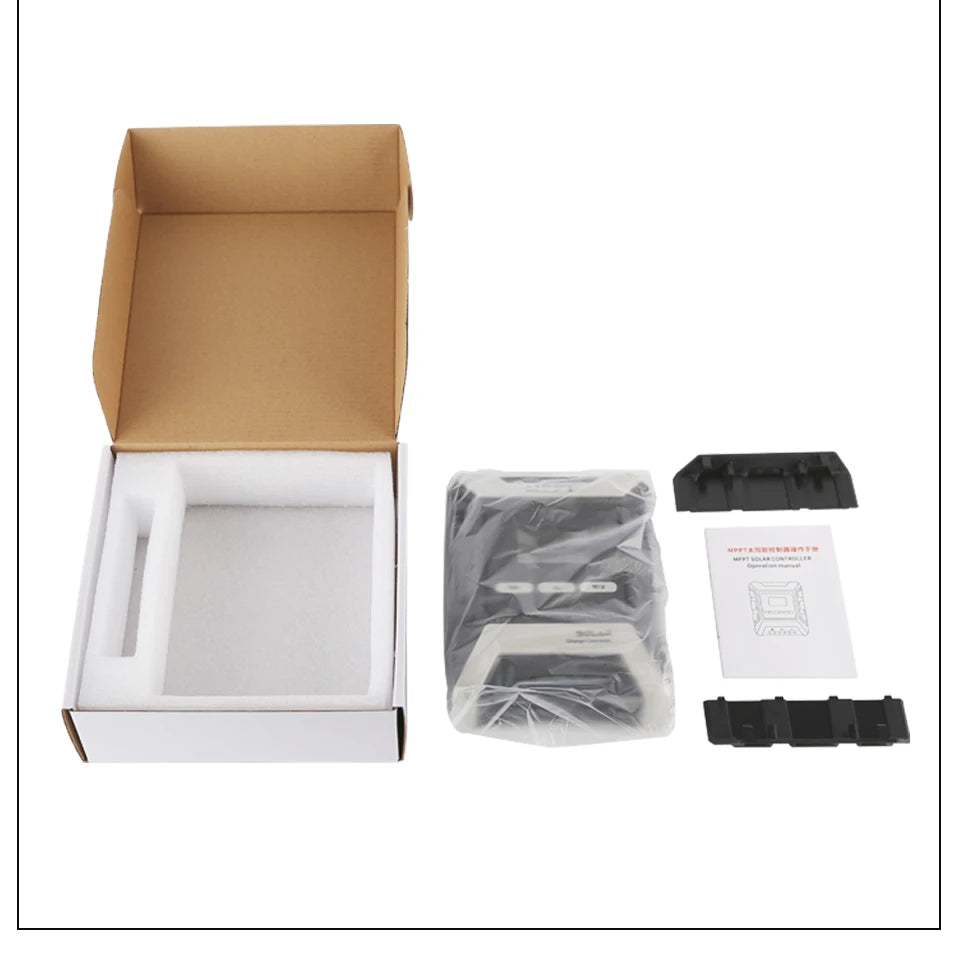

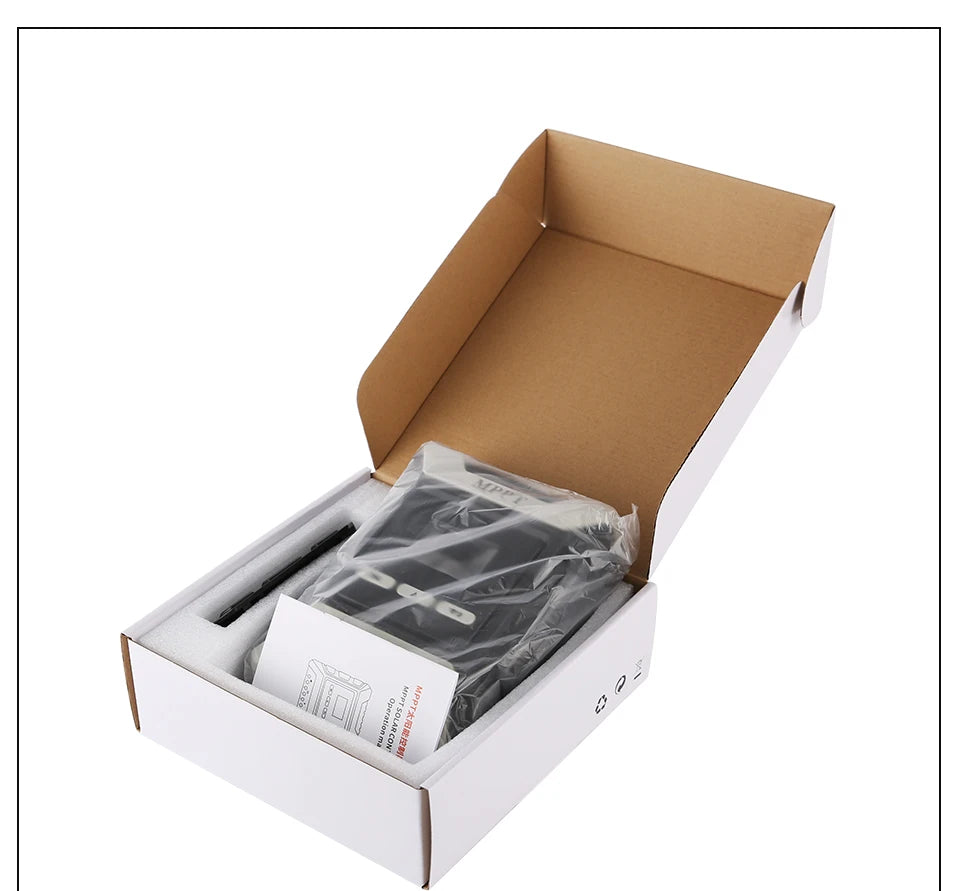

Package Included:

1X Solar Charge Controller

1X User Manual

Notice:

1.Please allow slight deviation of measurement due to manual measurement.

2.Due to different producing batches, product details might be a little different.

3.Due to different monitors and different light, the picture may not reflect the actual color of the item.

4.Please consider the actual sizes shown in the listing as the pictures are generally enlarged to show detail.

5. Indoor use only: the working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.

Upgraded MPPT Solar Charge Controller with smart technology for efficient charging.

Auto-identifies battery systems at 12V, 24V, or 48V for seamless charging and control.

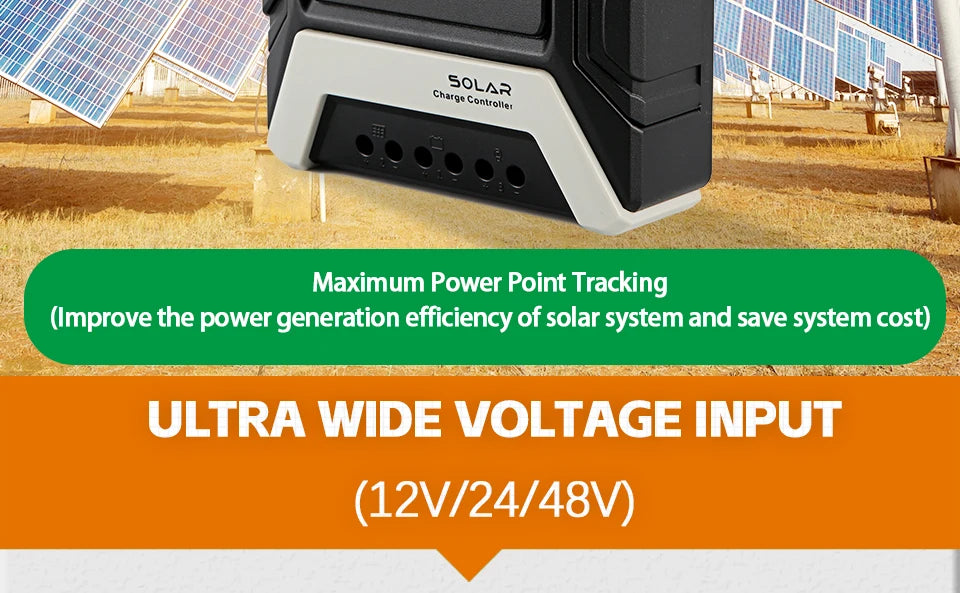

Maximize solar panel performance with our MPPT charge controller, featuring ultra-wide voltage input (12V/24V/48V) and improved power generation efficiency. Saves system cost while ensuring reliable operation.

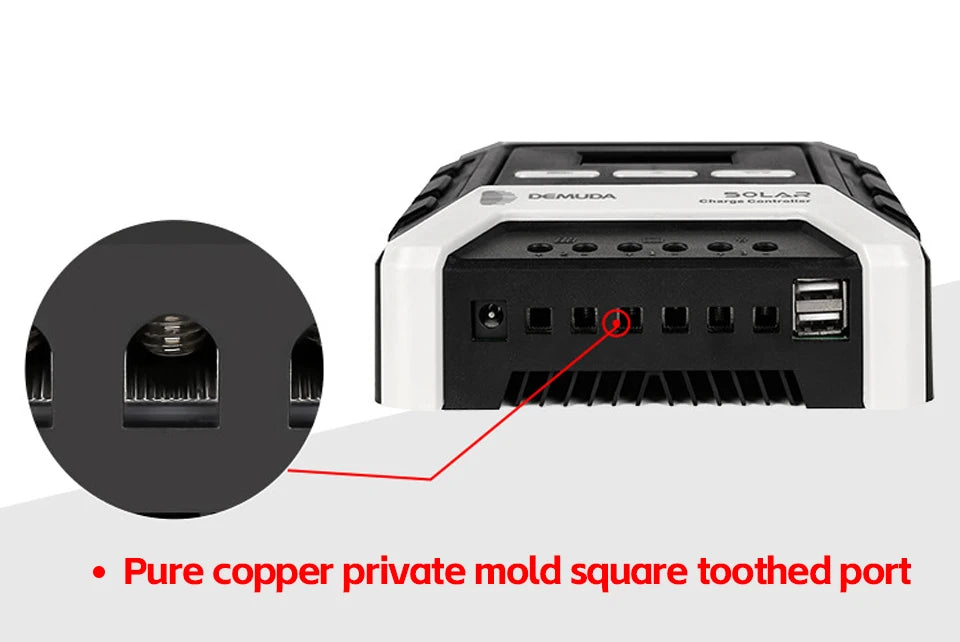

New Arrival 12V/24V/48V Auto MPPT Solar Charge Controller with LCD Display, Dual USB Ports and Adjustable Current (60A/40A/30A/20A) for solar panel charging regulation.

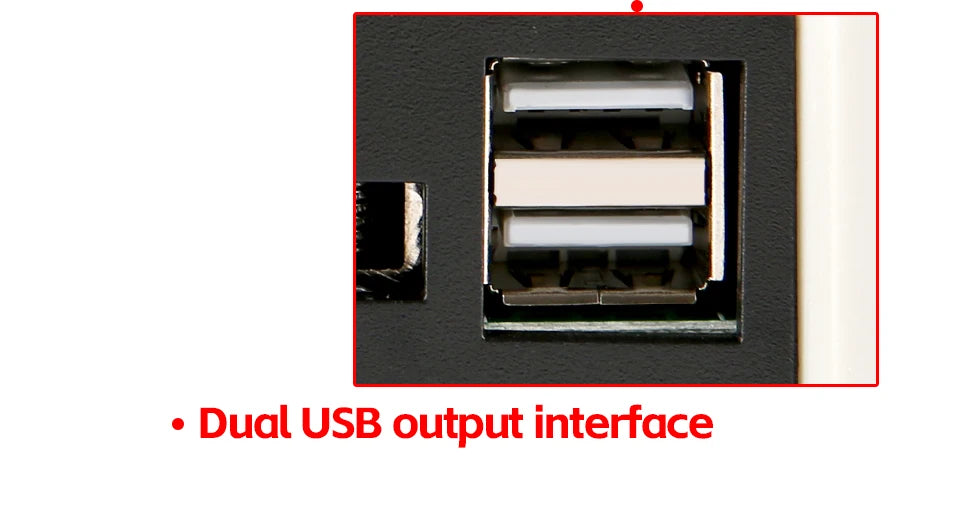

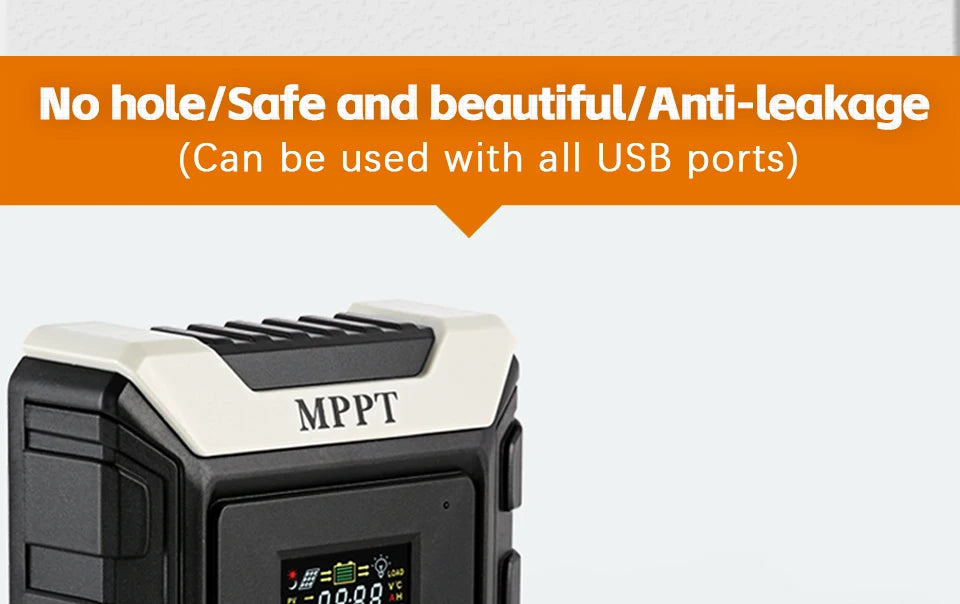

Safe and durable design. No leakage risk. Compatible with all USB ports. Easy to use.

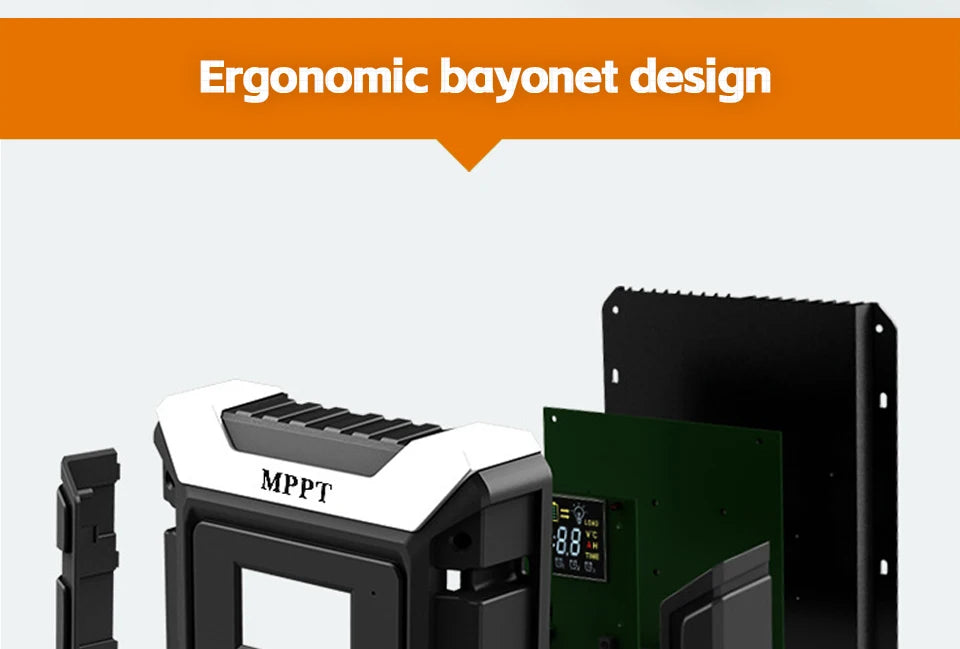

Features ergonomic bayonet design for easy installation with 88Fe MPPT technology for efficient solar charging.

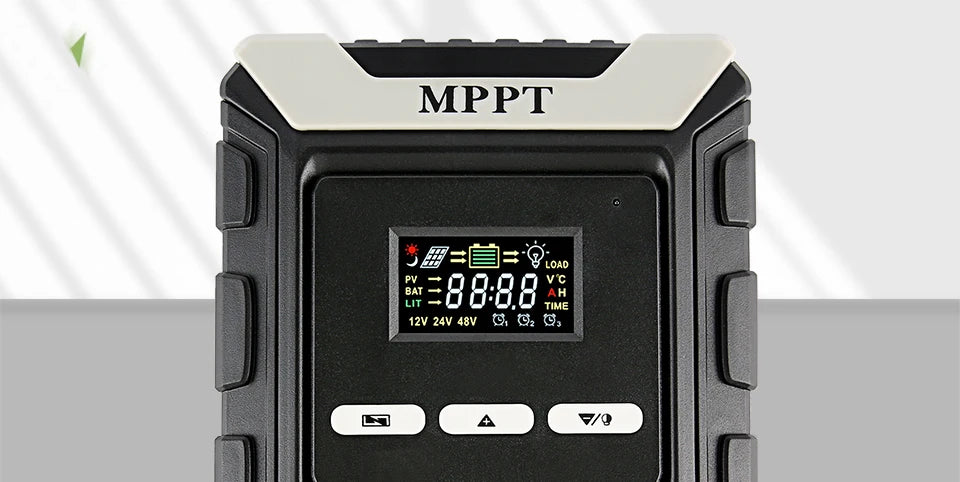

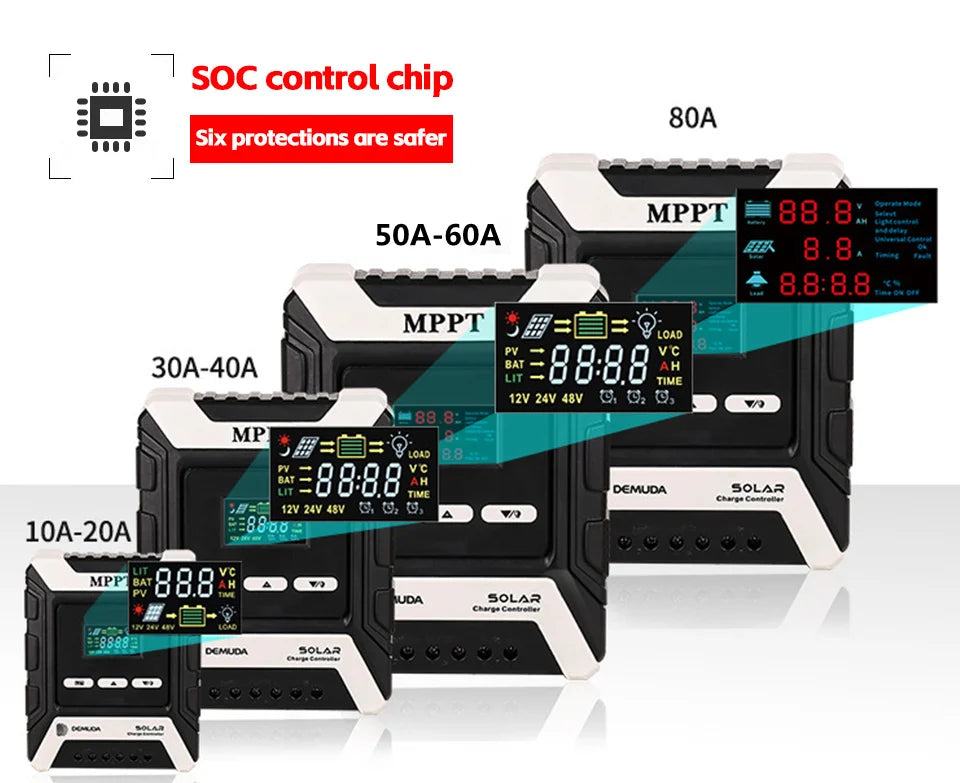

Displays key information and multiple parameters for easy adjustment, offering an intuitive visual experience.

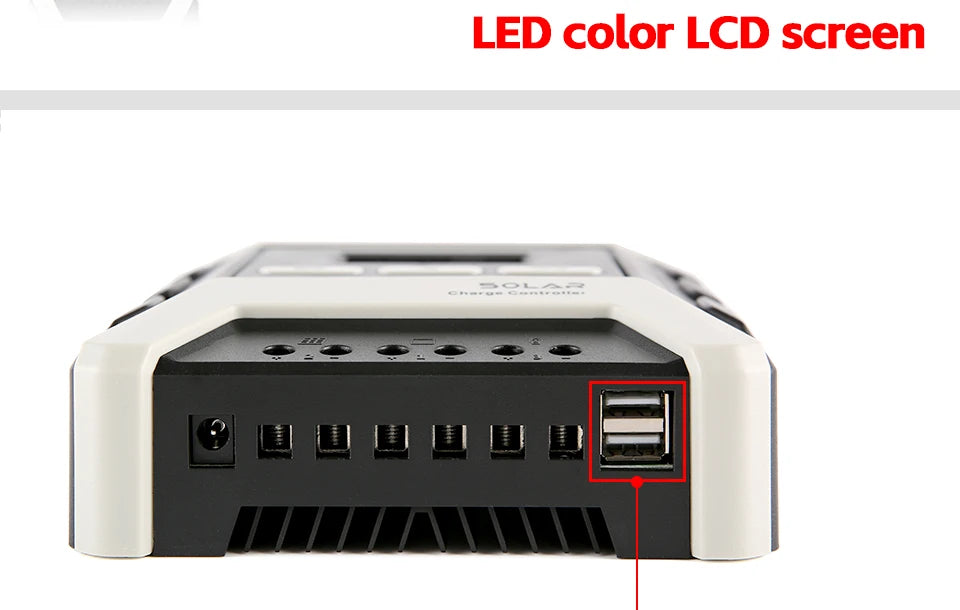

12V/24V/48V auto MPPT solar charge controller with LCD display and dual USB ports for efficient charging.

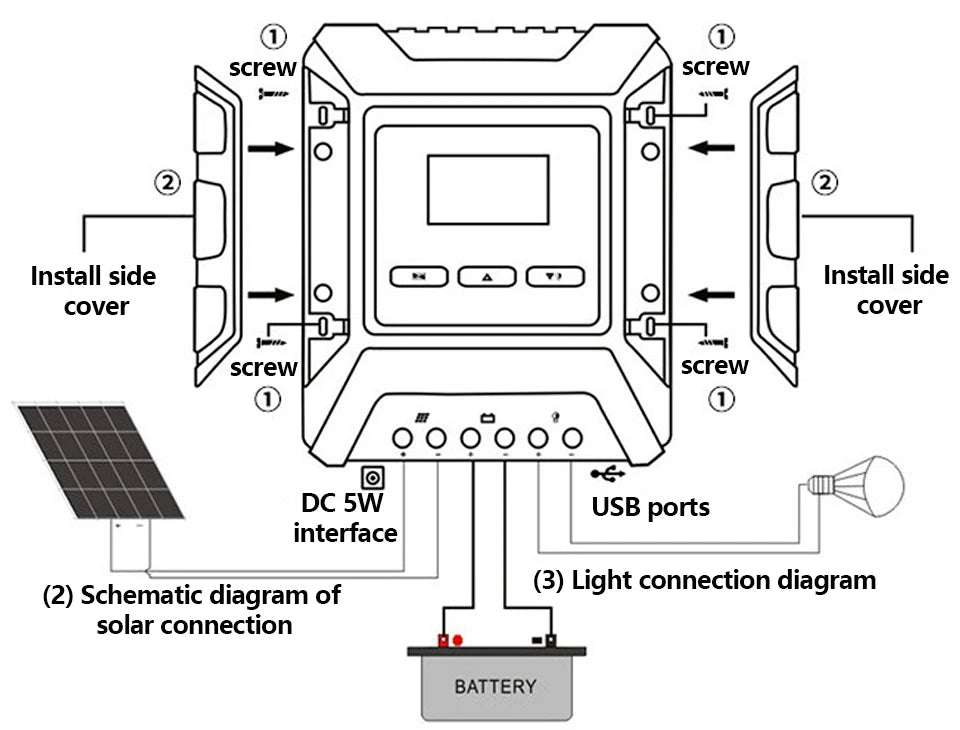

System Connection Diagram: Secure the controller using the four screw holes, which can be concealed when the side cover is installed.

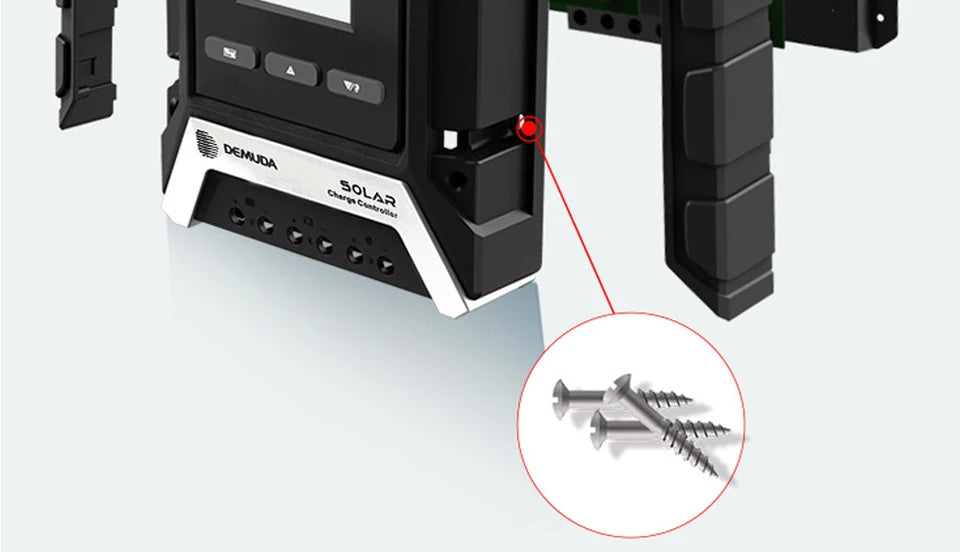

Install side screws on cover. Includes DC switch, USB ports, and schematic diagrams for solar panel connection and battery charging.

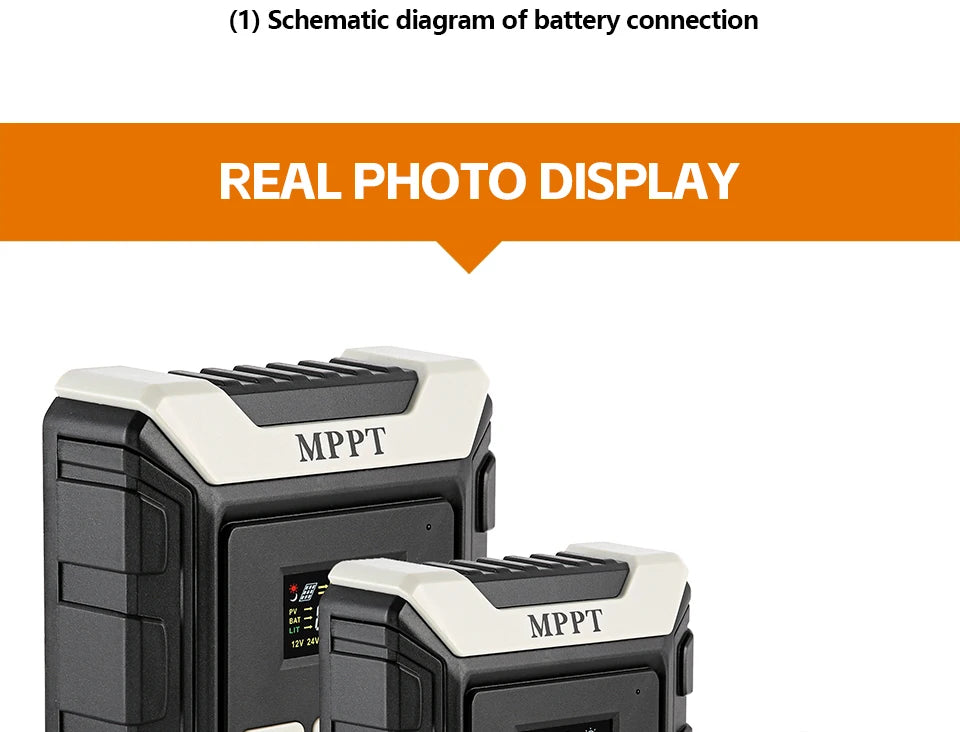

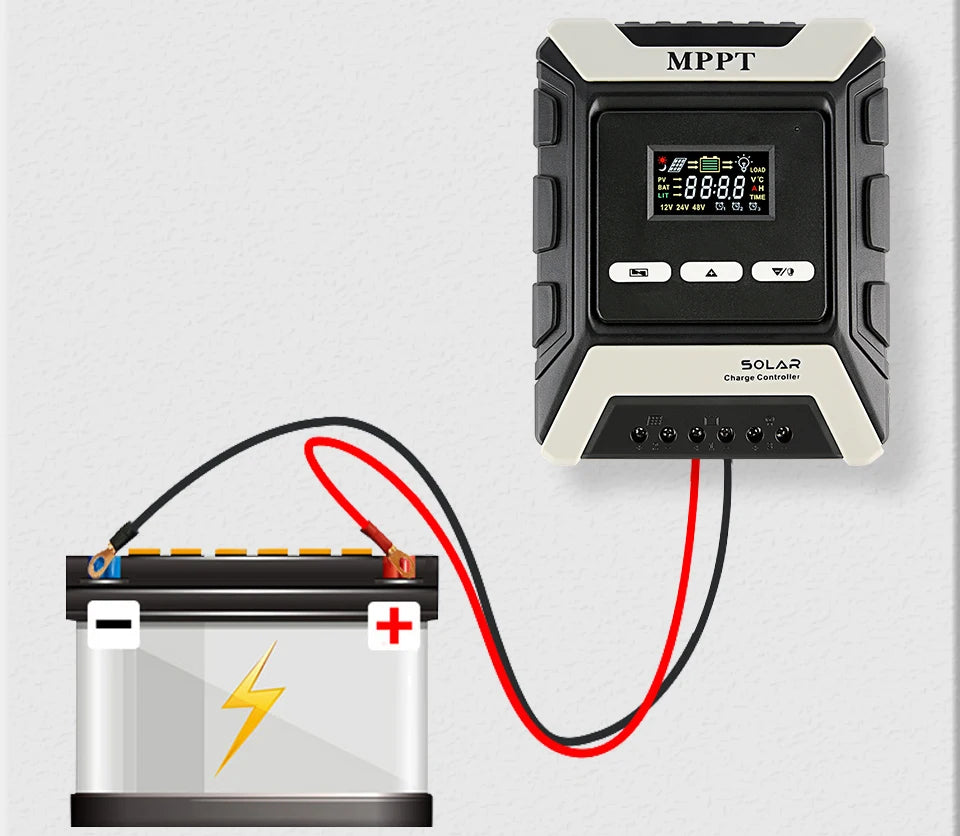

Real photo display of battery connection schematic diagram for MPPT charge controller.
