SPECIFICATIONS

Origin: Mainland China

Certification: CE

Brand Name: luxuglow

Features:

* [LED green and red work light] When the inverter is working normally, the green LED light works and tells you that it is working normally, but when it is in a protection state, such as low voltage, high voltage, over temperature or overload, the red light is on, You need to turn off the inverter, check which protection function is working, and try to solve the problem before the inverter can work again.

* [Intelligent LCD voltage screen display] The color intelligent LCD screen displays the battery input voltage and output voltage in real time. When the battery voltage is lower than 10.5V, the inverter is under low voltage protection. Please try to fully charge the battery and try again. When the battery voltage is higher than 15V, inverter high voltage protection)

* [Multiple protections] Built-in fuse, safe charging design and cooling fan to prevent the car power converter from overheating, energy saving, overvoltage, overload, overcurrent, short circuit, undervoltage, overheating, short circuit protection.

* [Lightweight design & top quality] Lightweight and compact, very suitable for vacation, camping and work trips. It can be plugged into almost any vehicle with 12V power output, providing charging opportunities anywhere.



Specification:

Inverter:

Power: 300W

Voltage: 12V to 220V/12V to 110V

Display: LCD display

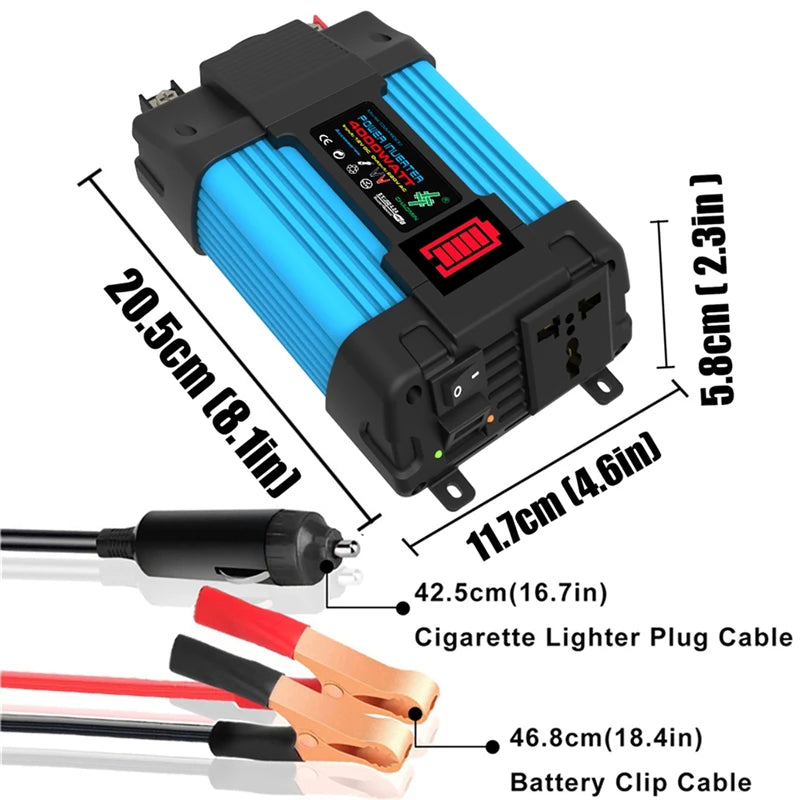

Size: 20.5 * 11.7 * 5.8cm / 8.1 * 4.6 * 2.3inch

Color: Blue

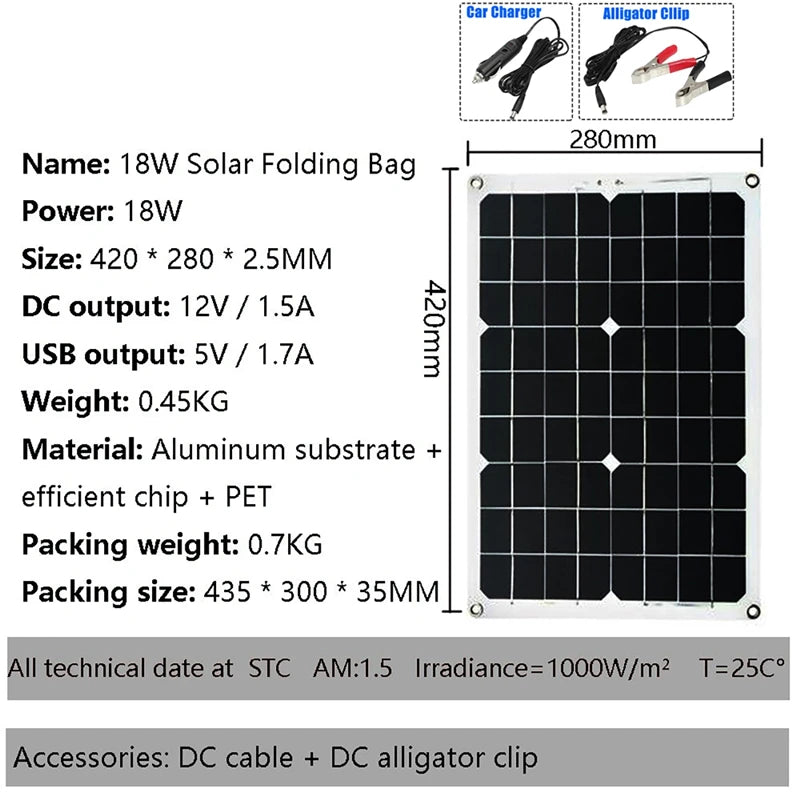

Solar panels:

Material: Aluminum substrate + efficient chip + PET

Power: 18W

DC output: 12V / 1.5A

USB output: 5V / 1.7A

Size: 420 * 280 * 2.5mm



Solar Controller:

Voltage: 12V/24V

Rated charging current: 30A

Rated discharge current: 10A

The highest photovoltaic voltage: <41V

Floating charge voltage: 13.7V (adjustable range 12.7-15V)

Discharge cut-off voltage: 10.7V (adjustable range 9-11.3V)

Discharge recovery voltage: 12.6V (adjustable range 11.5-13V)

Standby current: <10mA

USB output: 5V/2A Max

Working temperature: -35~+60℃

Size: 133.5 * 70 * 35mm



Packing included:

1 * Inverter

1 * English inverter manual

2 * Red and black battery clip

1 * Cigarette lighter

1 * Solar controller

1 * English controller manual

1 * Solar panel

1 * DC line

1 * DC alligator clip



Note:

1. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.

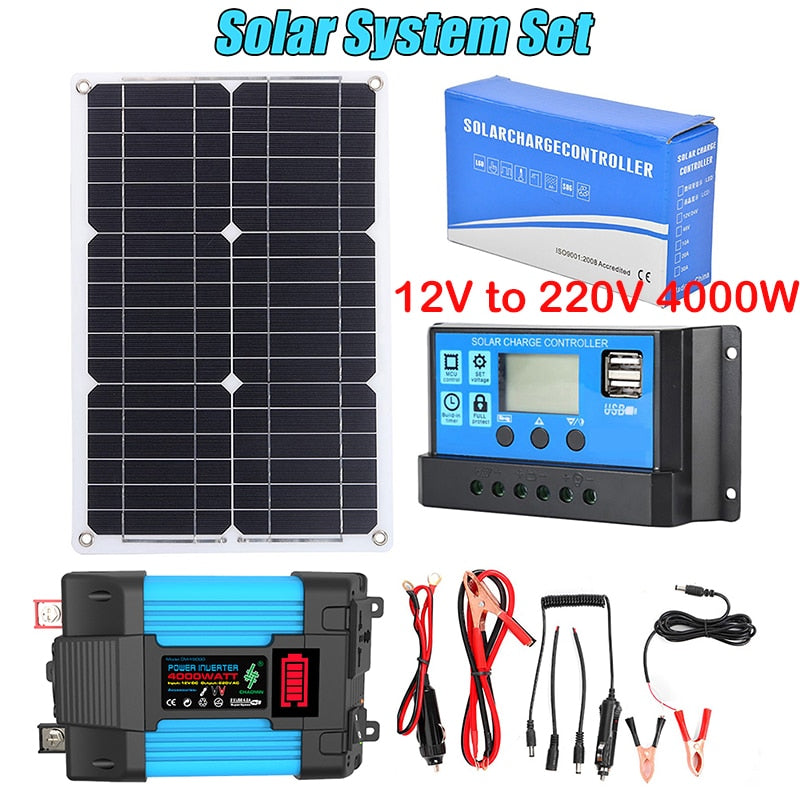

Solar Panel System: 12V to 110/220V. Includes an 18V, 18W solar panel, a 30A controller, and a modified sine wave inverter kit for generating power. USB output. Battery not included.

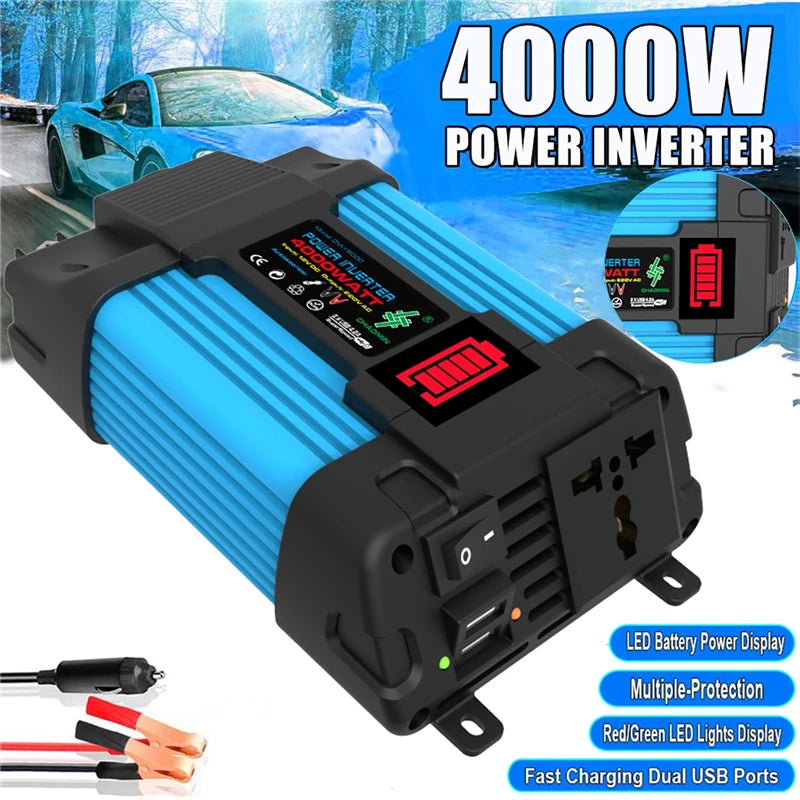

This 4000W modified sine wave inverter kit features a battery power display with multiple protection, dual USB ports, and fast charging. The red-green LED lights indicate system status.

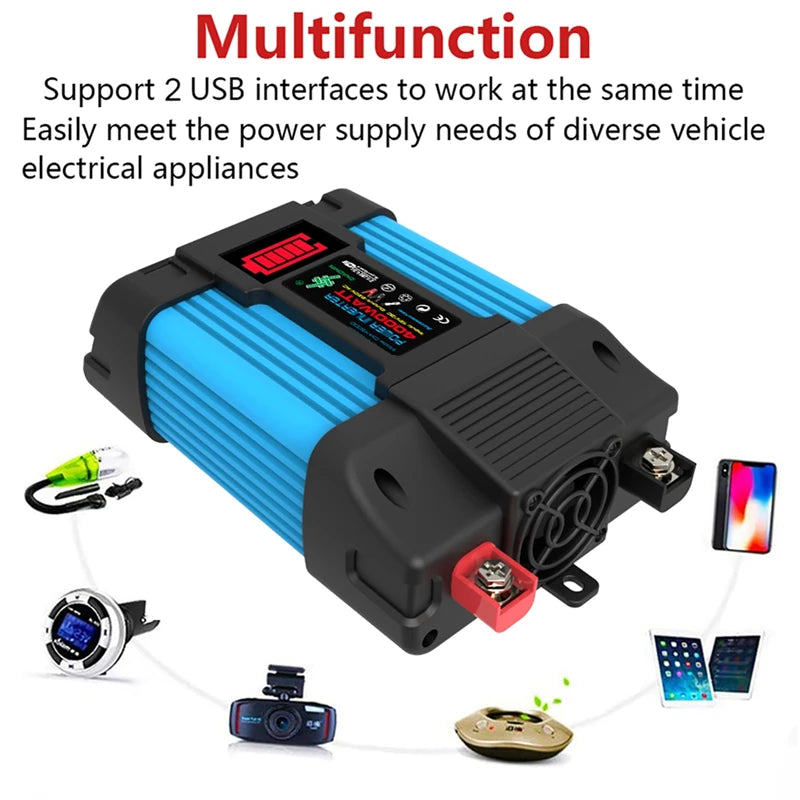

Two USB ports enable simultaneous charging for multiple devices, ensuring convenient and reliable power supply for various vehicle accessories.

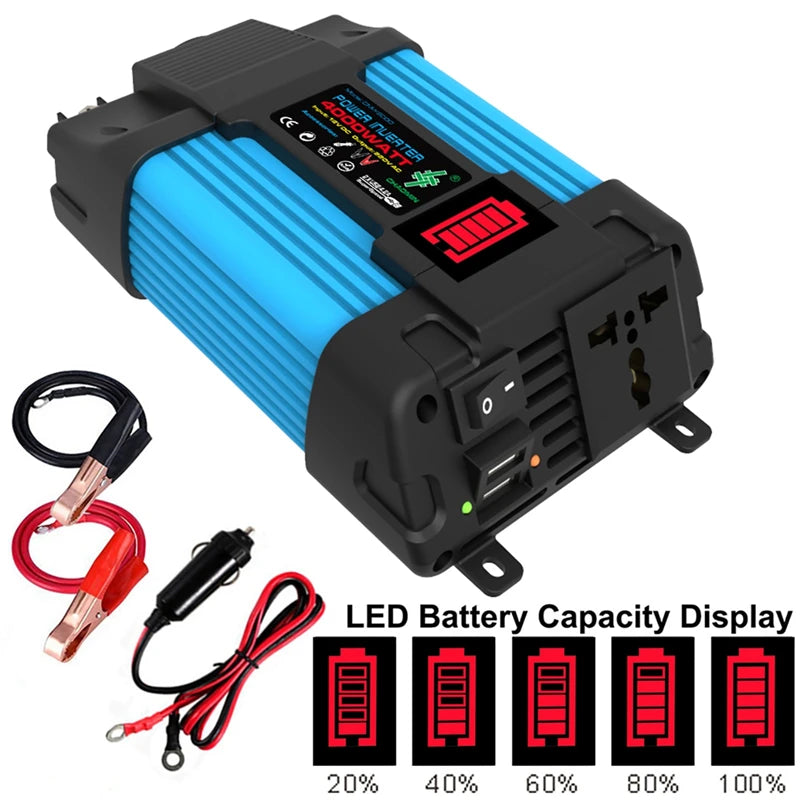

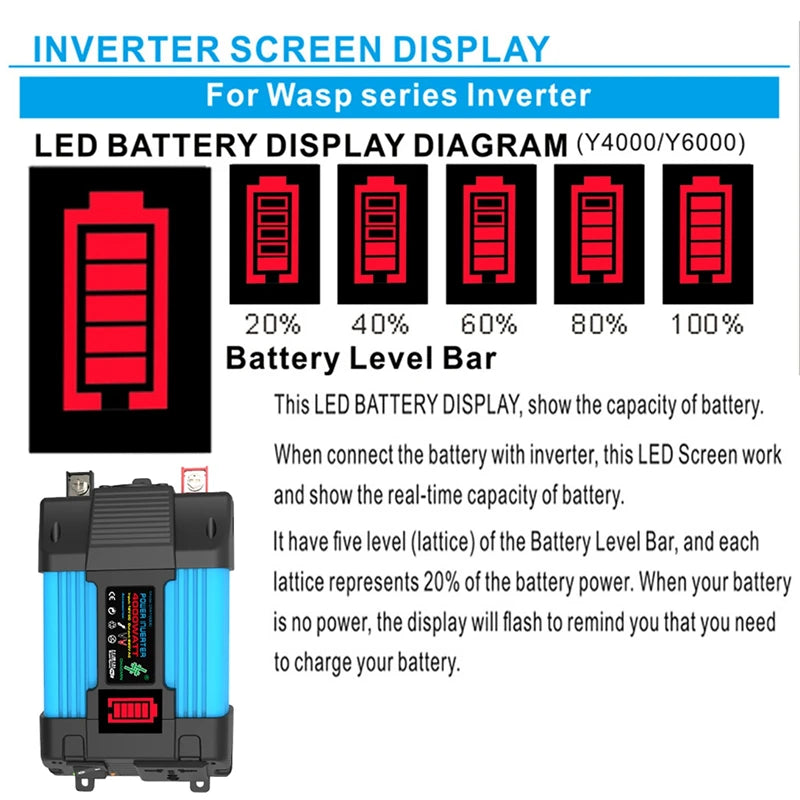

Monitor battery capacity with an easy-to-read LED display showing levels from 20% to 100%. OM

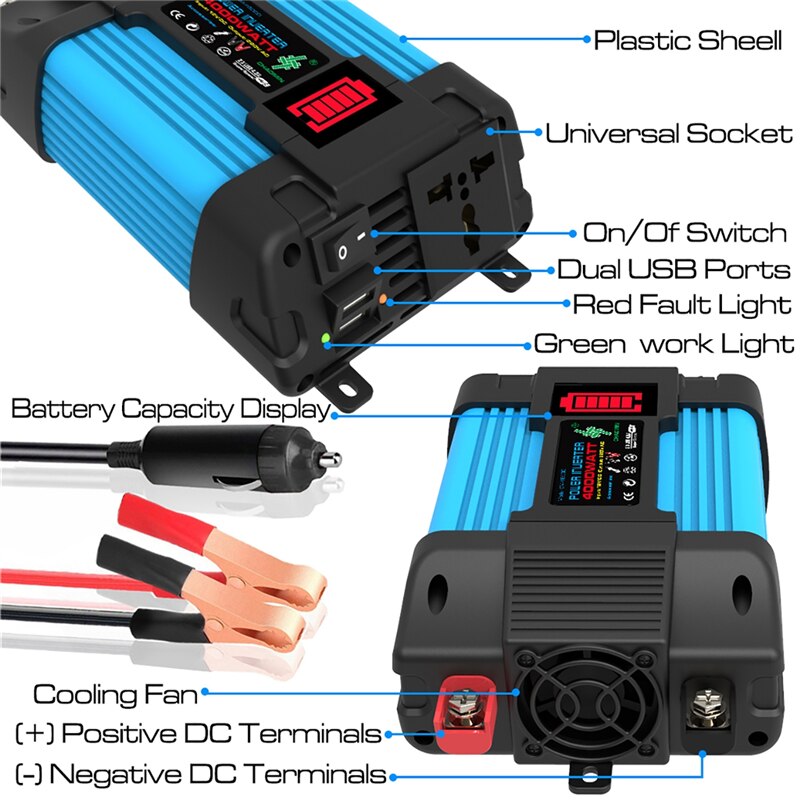

This solar power kit includes an 18V, 18W solar panel, 30A controller, and modified sine wave inverter (4000W). Features include dual USB ports, red fault light, green work light, battery capacity display, and cooling fan with positive (+) and negative (-) DC terminals.

Off-grid power kit for CPAP machines, yacht camping, or trucks; includes 12V-110/220V solar panel system.

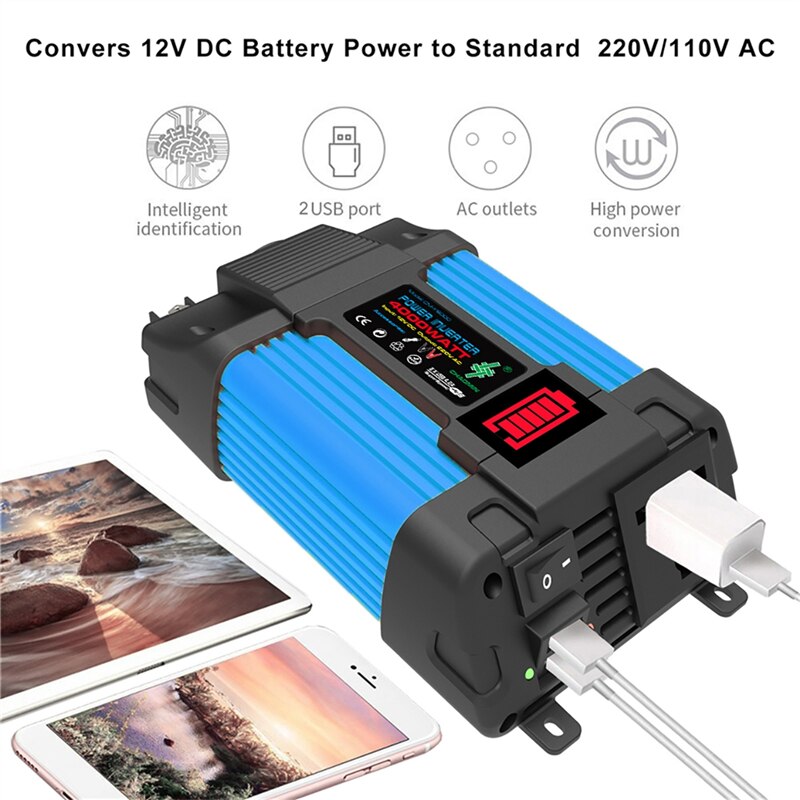

Converts 12V DC battery power to standard 110/220V AC, featuring intelligent conversion, 2 USB ports, and high-power AC outlets for reliable energy transfer.

Suitable for 12V batteries, this system powers various automotive devices like car insulation cups, driving recorders, and more. Compatible with lead-acid and lithium batteries.

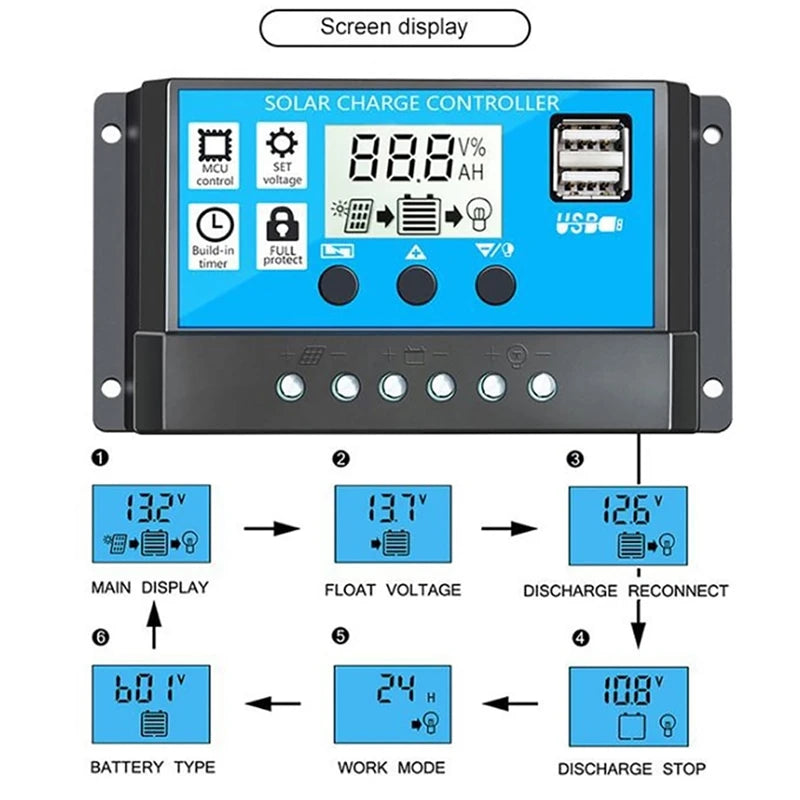

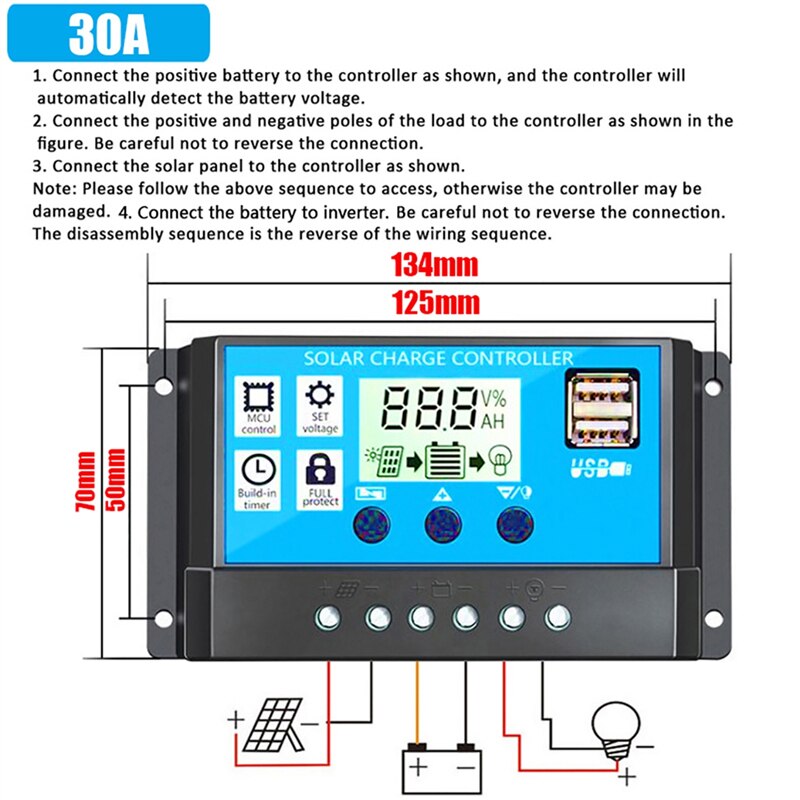

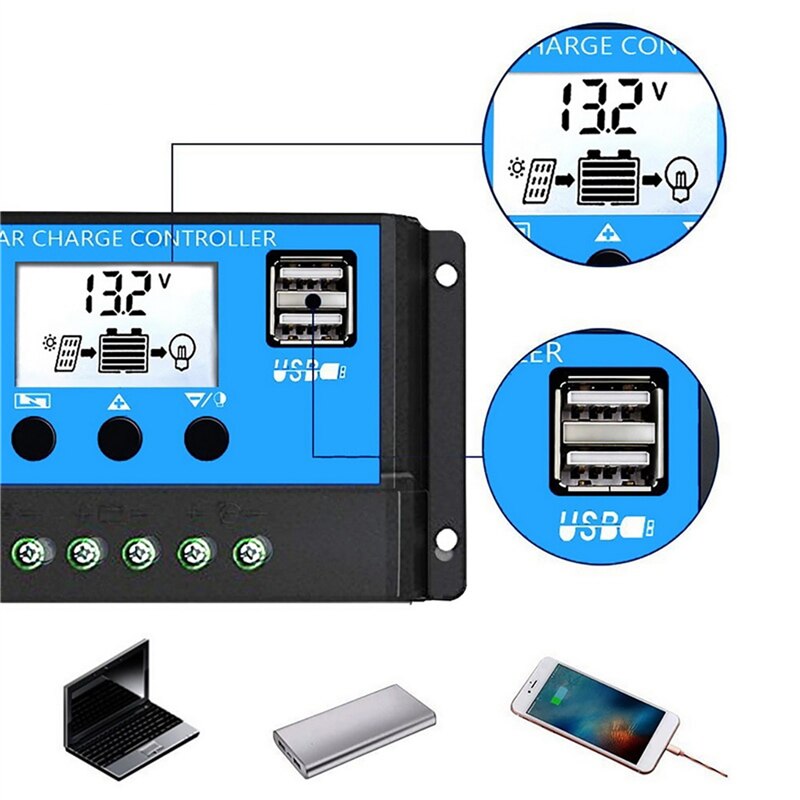

Solar Charge Controller: Set voltage % (VCU) and battery type. Main display shows float voltage, discharge reconnect settings, and work mode. Discharge stop feature available. Built-in processor ensures efficient control.

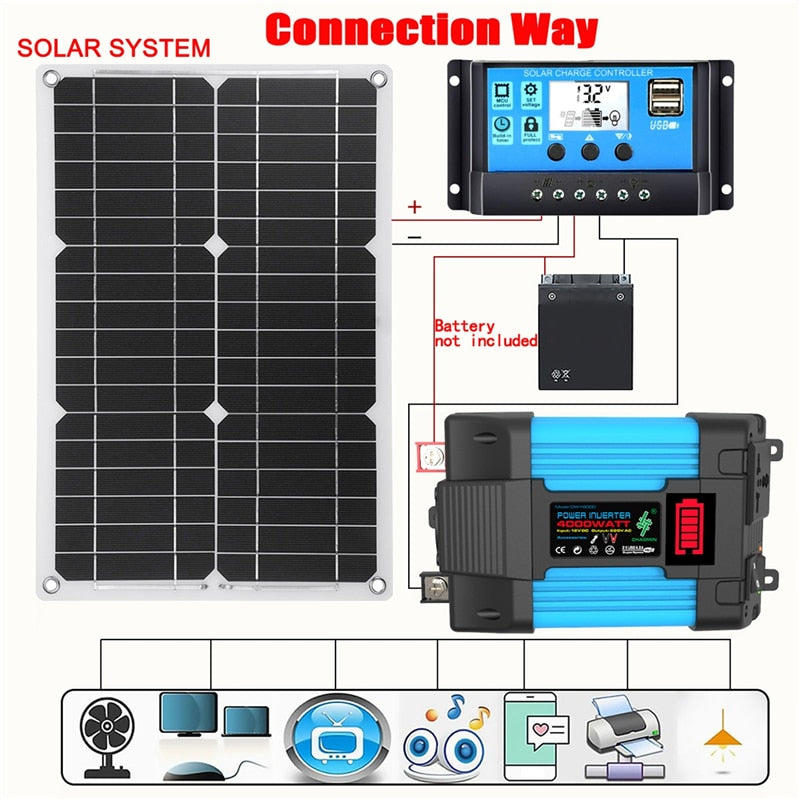

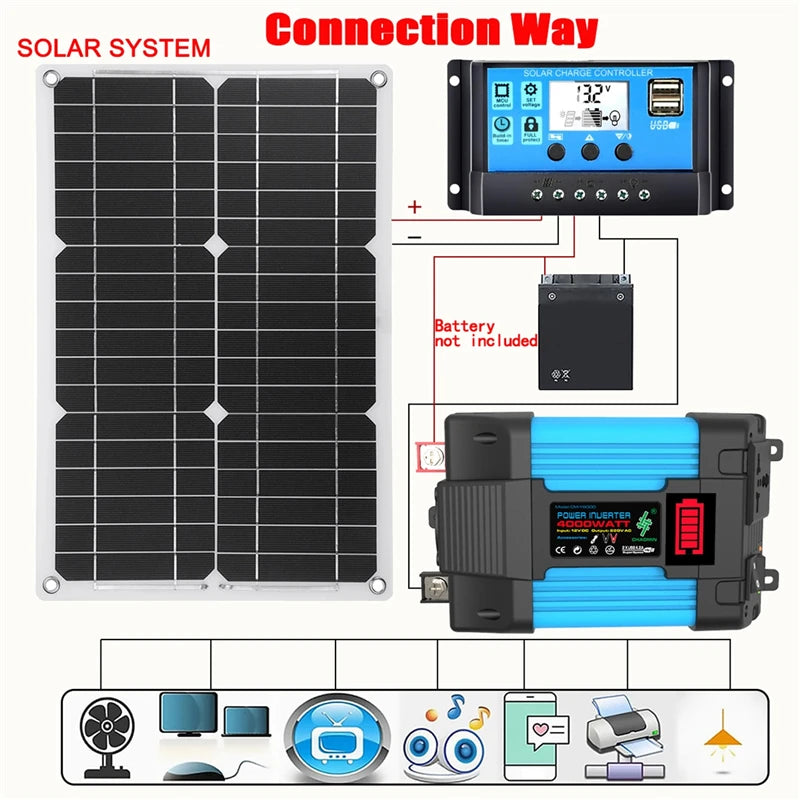

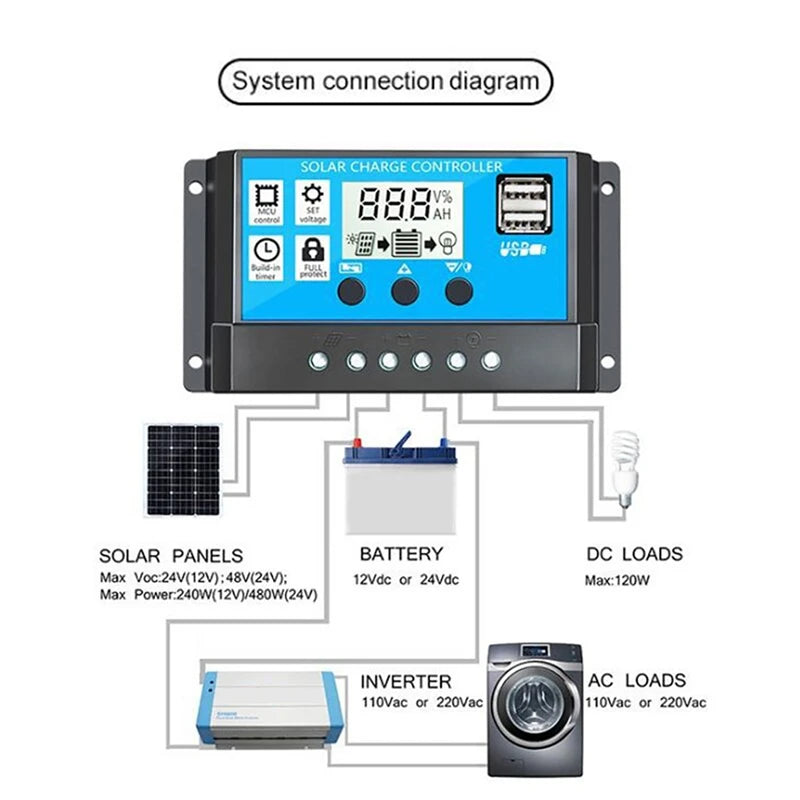

This solar panel system kit includes an 18V, 18W solar panel, a 30A controller, and a 4000W modified sine wave inverter. The system supports various connections: solar panels to a charge controller, controller to battery, battery to DC loads, and inverter to AC loads (110Vac or 220Vac). Maximum voltage ratings include 12Vdc (24V), 24Vdc (48V), and 120W (240W) maximum power.

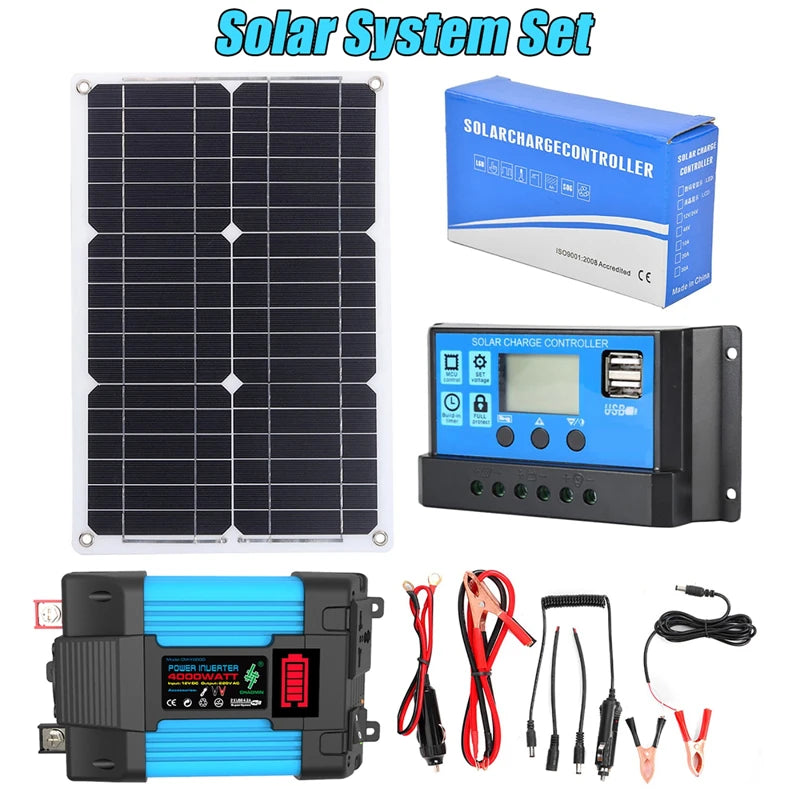

This solar panel system kit includes an 18V, 18W solar panel, 30A controller, and 4000W modified sine wave inverter. It converts 12V DC power to 110/220V AC power, suitable for small-scale power generation.

Application for permit No. 988. Effective date: August 8, 2018. Authorized by Candie #888.
