12V24V Auto. PWM Solar Charge Controller 10A20A30A40A50A60A LCD Display and 5V USB Output From PV Panels to Battery Charging

12V24V Auto. PWM Solar Charge Controller 10A20A30A40A50A60A LCD Display and 5V USB Output From PV Panels to Battery Charging

Regular price $15.50 USD
Regular price Sale price $15.50 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: 12V24V auto. 10A20A30A

Maximum Current: 10A20A30A

Is Smart Device: No

Certification: CE,RoHS

Brand Name: Jesudom

Application: Thermal Controller,Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station


12V24V Auto. PWM Solar Charge Controller 10A20A30A40A50A60A LCD Display and 5V USB Output From PV Panels to Battery Charging

Wholesale consult the service of store .


This updated controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

This is NEW Solar Controller, it can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recongize 12V and 24V Lead acid,Gel battery automatically.

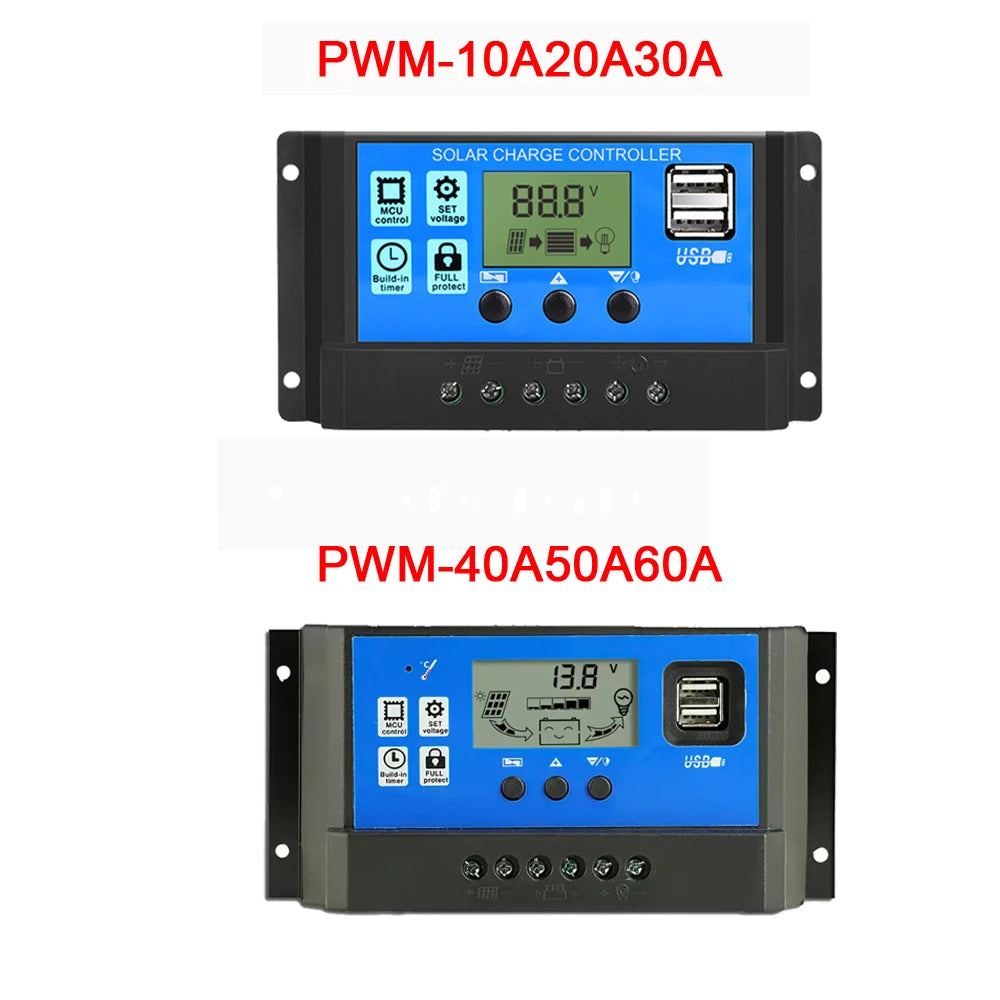

There are optional 10A 20A 30A 40A 50A 60A model

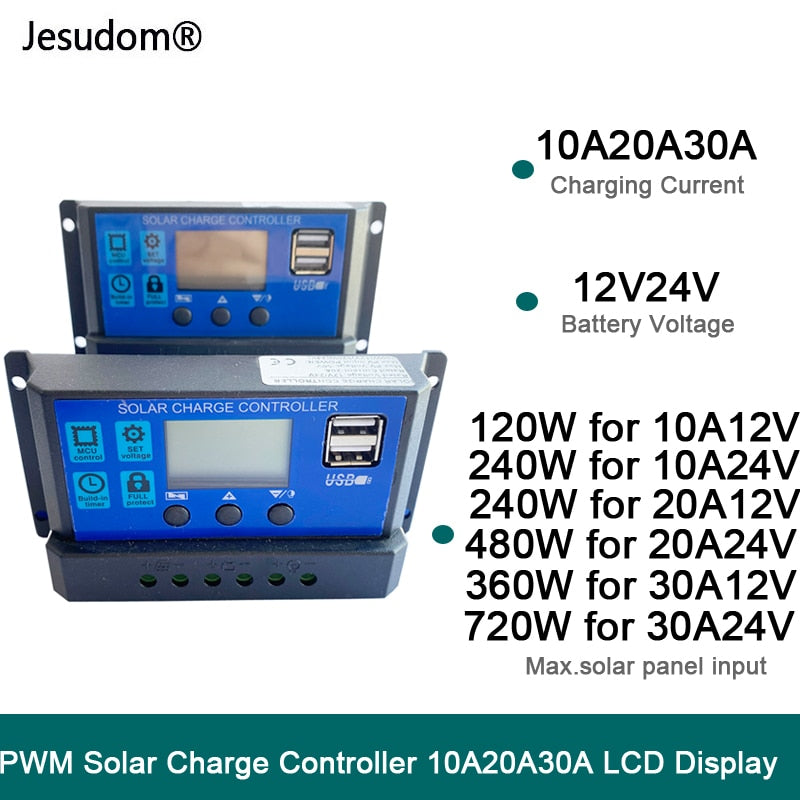

Model

Battery Voltage

Max solar panel input

10A

12V

25V  120W

24V

50V  240W

20A

12V

25V  240W

24V

50V  480W

30A

12V

25V  360W

24V

50V  720W

40A

12V

25V  520W

24V

  50V  1040W

50A

12V

 25V   650W

24V

  50V  1300W

60A

12V

 25V   780W

24V

  50V  1560W

PRODUCT FEATURES

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet reverse current protection,low heat production.

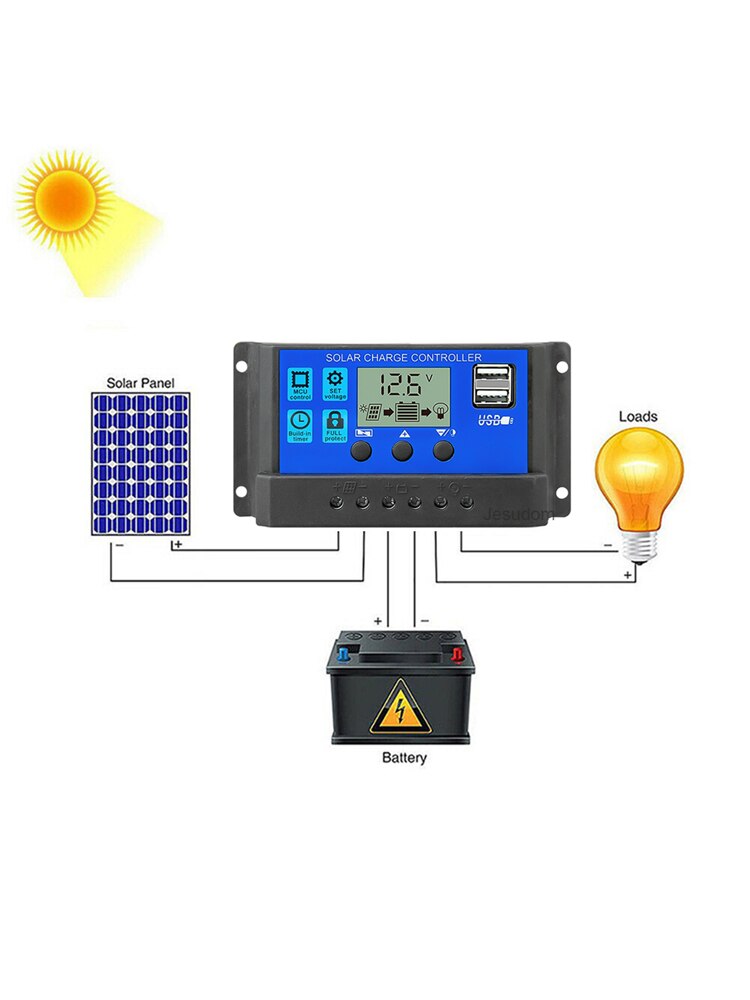

SYSTEM CONNECTION

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!



SPECIFICATON:

MODEL

10A

20A

30A

40A

50A

60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

30A

30A

30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

*all red color voltage X2 ,while using 24V system.
Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

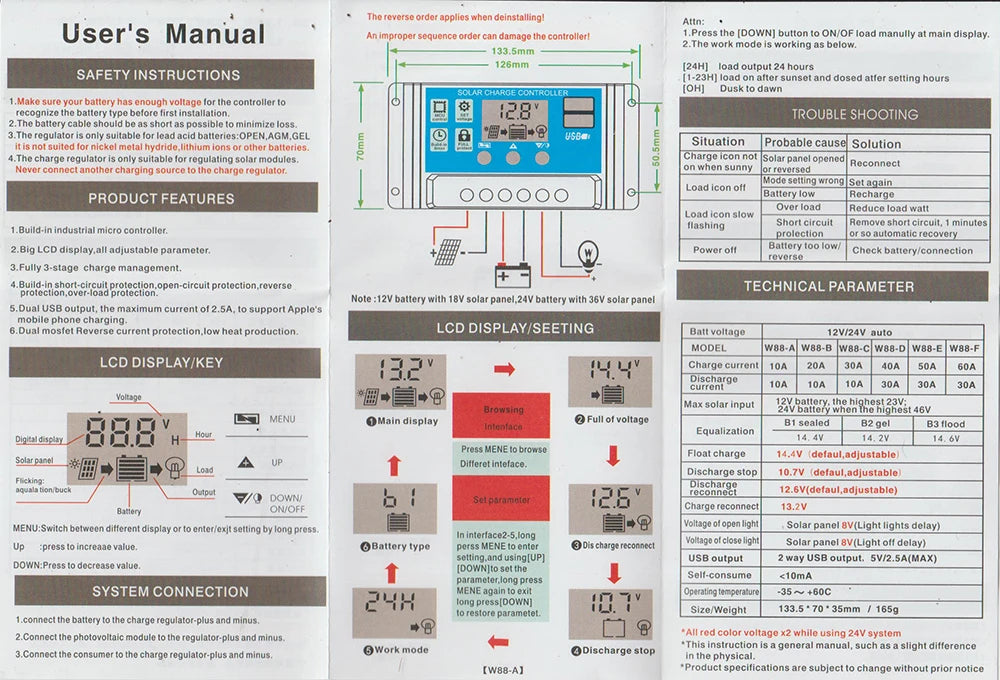

12V24V Auto. PWM Solar Charge Controller, 12V24V Auto. PWM Solar
12V24V Auto. PWM Solar Charge Controller, Solar charge controller with LCD display and USB output for charging batteries from solar panels.

12V/24V Auto. PWM Solar Charge Controller with LCD Display and 5V USB Output. Charges batteries from PV panels with adjustable PWM settings, monitoring current, voltage, and temperature. Suitable for various applications.

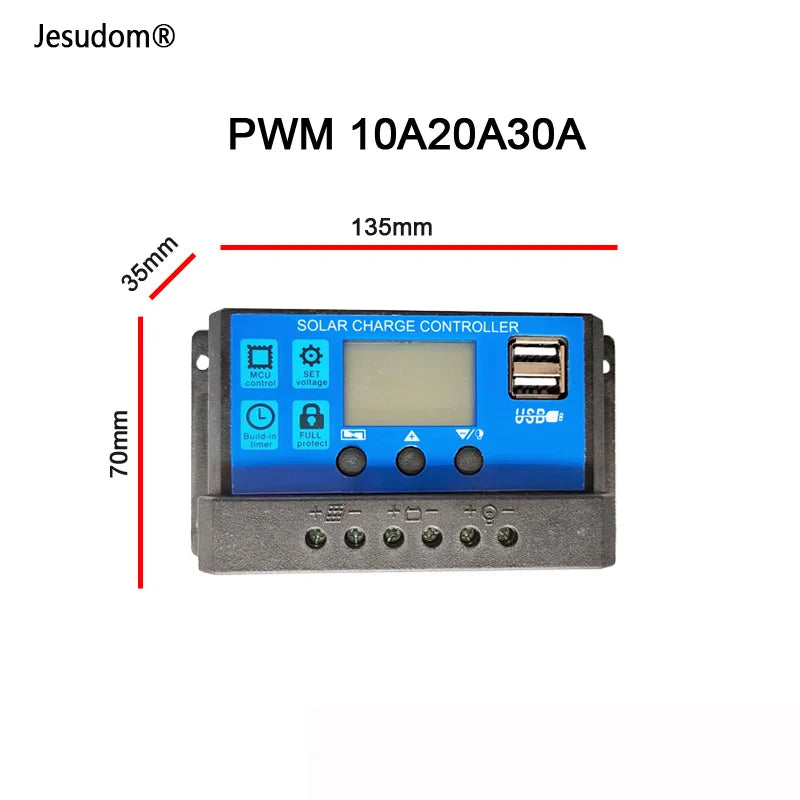

12V24V Auto. PWM Solar Charge Controller, Solar charge controller with LCD display and USB output charges batteries from PV panels at 10A-60A.

12V-24V Auto. PWM Solar Charge Controller with LCD display and 5V USB output, suitable for charging batteries from PV panels, features 10A to 60A charge rates and compact design.

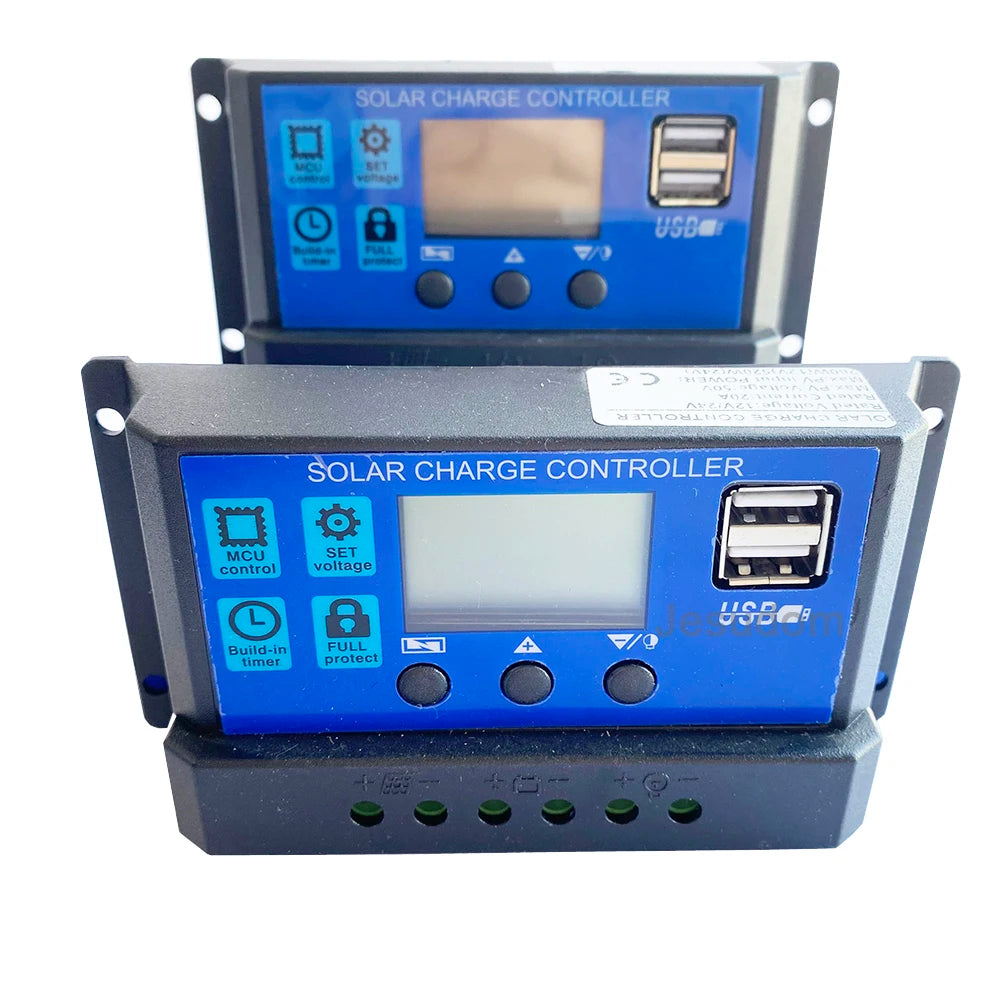

12V24V Auto. PWM Solar Charge Controller, Controller for solar-powered battery charging with adjustable current and timer protection.

Solar Charge Controller with USB output and built-in timer protection for charging batteries from PV panels, featuring 10A-60A adjustable current and automatic voltage regulation.

12V24V Auto. PWM Solar Charge Controller, Auto PWM Solar Charge Controller for 12V/24V systems with LCD display, 30A max current, and 5V USB output.

Auto PWM Solar Charge Controller for 12V or 24V systems, with a maximum current rating of 30A. It features an LCD display and 5V USB output for charging batteries from PV panels. The unit supports up to 80W input power at 12V or 390W at 24V.

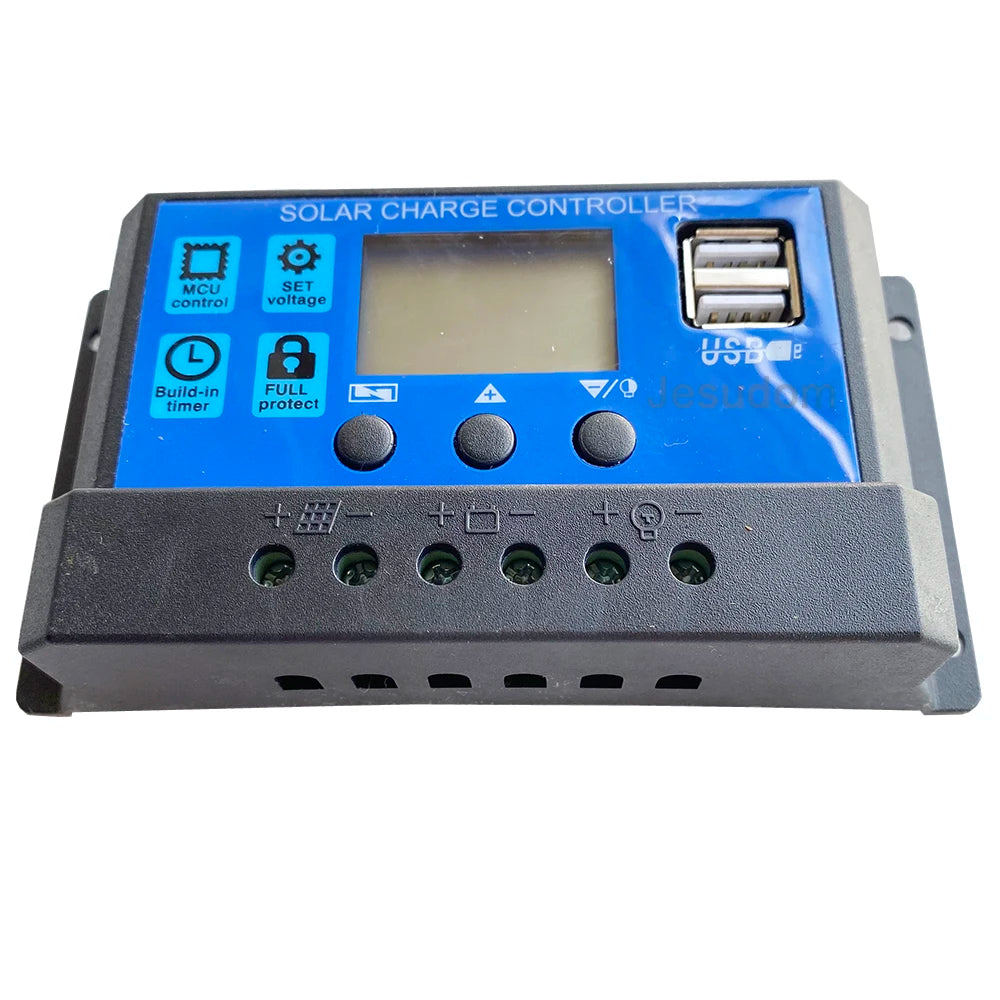

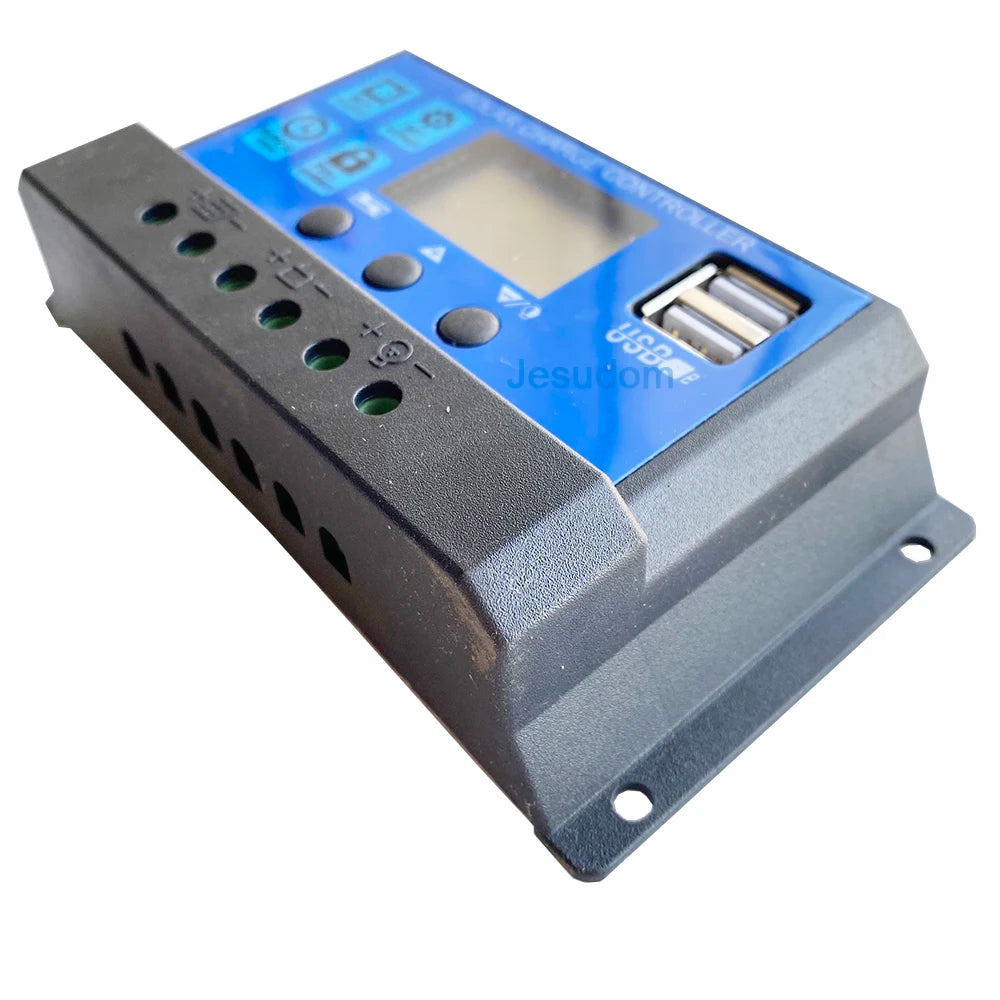

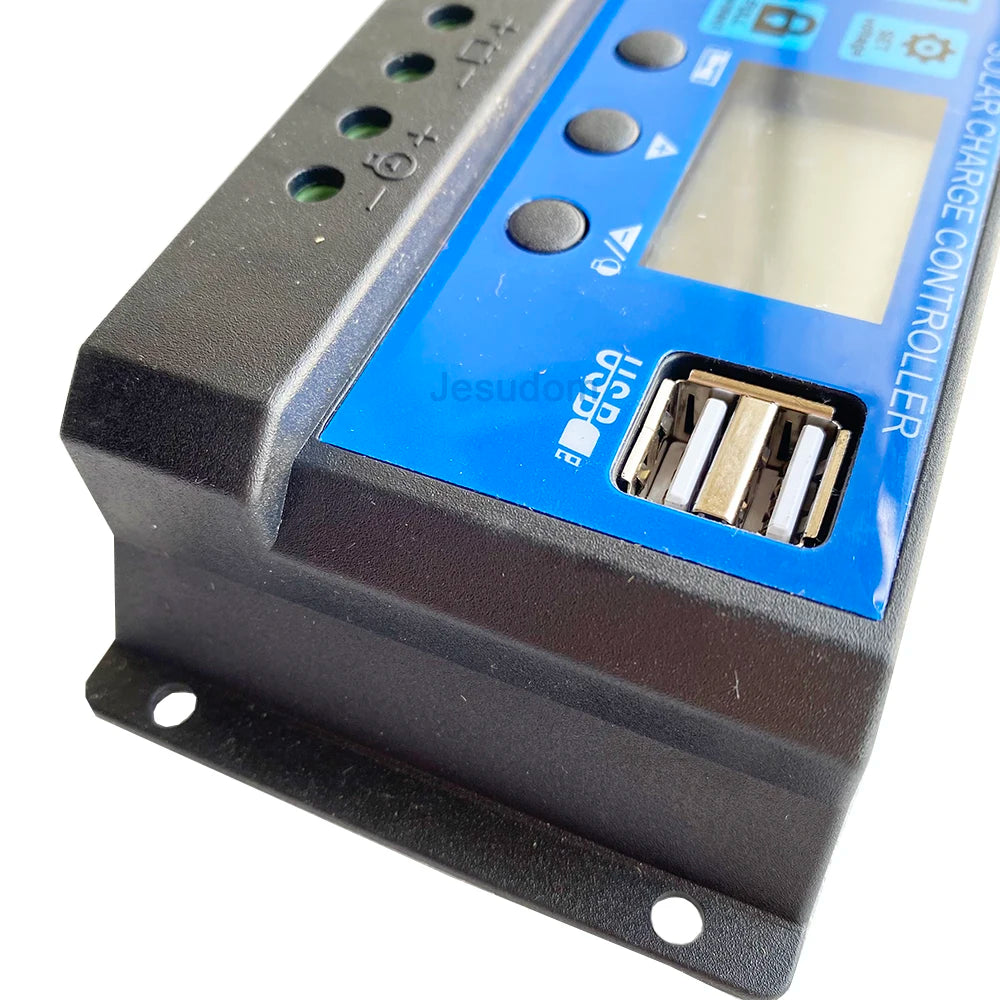

12V24V Auto. PWM Solar Charge Controller, Connect PV modules to the controller's + and - terminals for efficient charging. 12V24V Auto. PWM Solar Charge Controller, Features dual MOSFETs for reverse current protection and low heat generation. 12V24V Auto. PWM Solar Charge Controller, Solar charger controller with MCU set, USB output, and timer protection for safe PV panel to battery charging.

This solar charge controller features an MCU set, USB output, and built-in full-charge timer protection for safe battery charging from PV panels.


12V24V Auto. PWM Solar Charge Controller, ZTS ZT5 Face attendant time nearly12V24V Auto. PWM Solar Charge Controller, 12V24V Auto. PWM Solar
