1400W or 1000W Micro Solar Inverter MPPT Home On Grid Tie Inverter 30V 36V DC Pure Sine Wave Power Converter for 110V 220V Grid

1400W or 1000W Micro Solar Inverter MPPT Home On Grid Tie Inverter 30V 36V DC Pure Sine Wave Power Converter for 110V 220V Grid

Regular price $240.40 USD
Regular price Sale price $240.40 USD
Sale Sold out
Shipping calculated at checkout.
Color
Input Voltage
Output Voltage|Ships From

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Weight: 2.5

Waterproof Grade: IP65

Total Harmonic Distortion: THD <5%

Size: 250mm x 230mm x 38mm

Rated Output Power: 990W

Output Type: single

Output Power: 801 - 1000KW

Output Frequency: 50Hz / 60Hz

Output Current: 10A

Origin: Mainland China

Nominal MPPT Efficiency: 99.9%

Night Power Consumption: <700mW

Model Number: SG1000 SG1400 Series PV Smart Microinverter

Maximum Units per Branch: @120VAC : 4 units / @230VAC : 9 units

Maximum Output Power: 1000W

Is Smart Device: YES

Default Output Voltage Range: @120VAC : 80V-160V / @230VAC : 180V-280V

1400W or 1000W Micro Solar Inverter, Advanced protection features ensure safe and reliable operation with isolation, voltage regulation, frequency protection, and more.

Feature:

1.Single unit connects to one PV module

2.Maximum 1000W AC output power

3.Single-phase output, Flexible 3-phase PV systems
4.2.4G wireless communication and monitoring
5.Up to 9 units (230V) per branch
6.Customizable various input (DC, PV) voltage range
7.Integrated AC bus cable, Ready-To-Use
8.Low cost, Easy installation

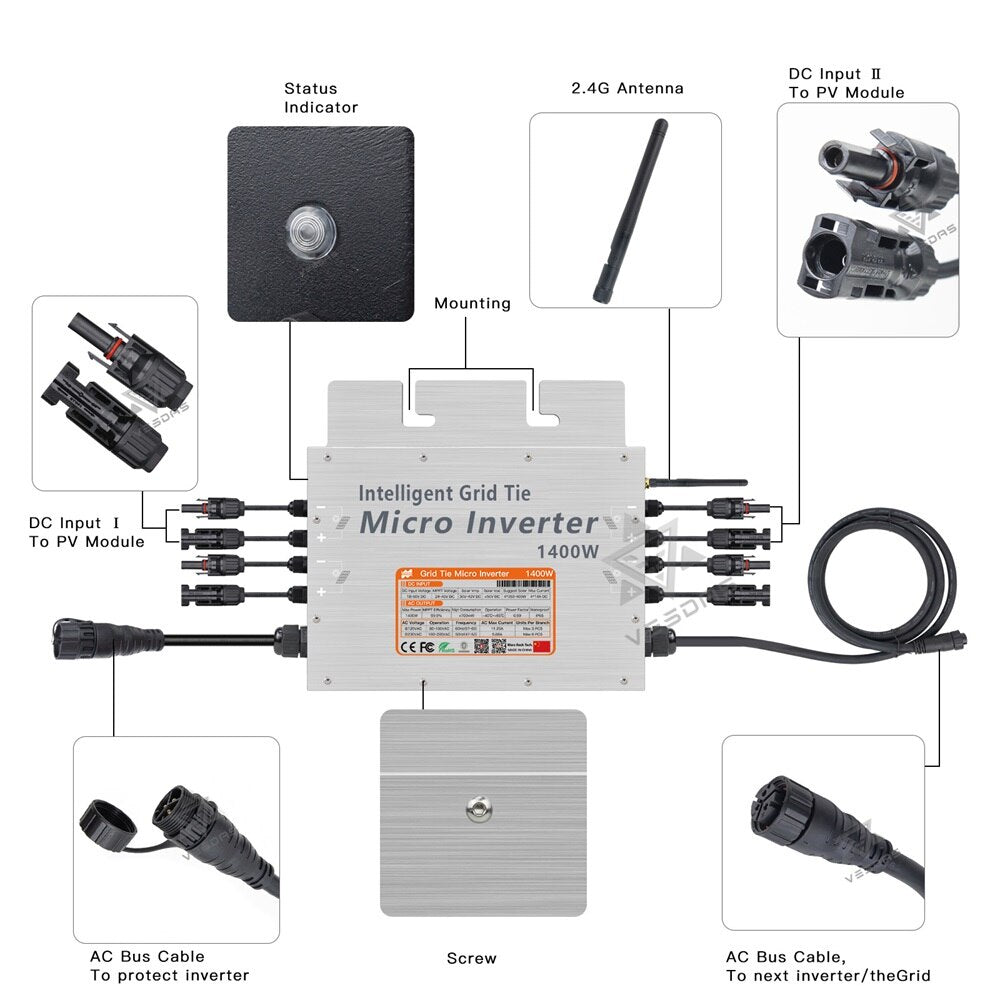

Basic Structure
1400W or 1000W Micro Solar Inverter, Built-in antenna enables remote monitoring; 1400W max output; safe connection to PV modules.

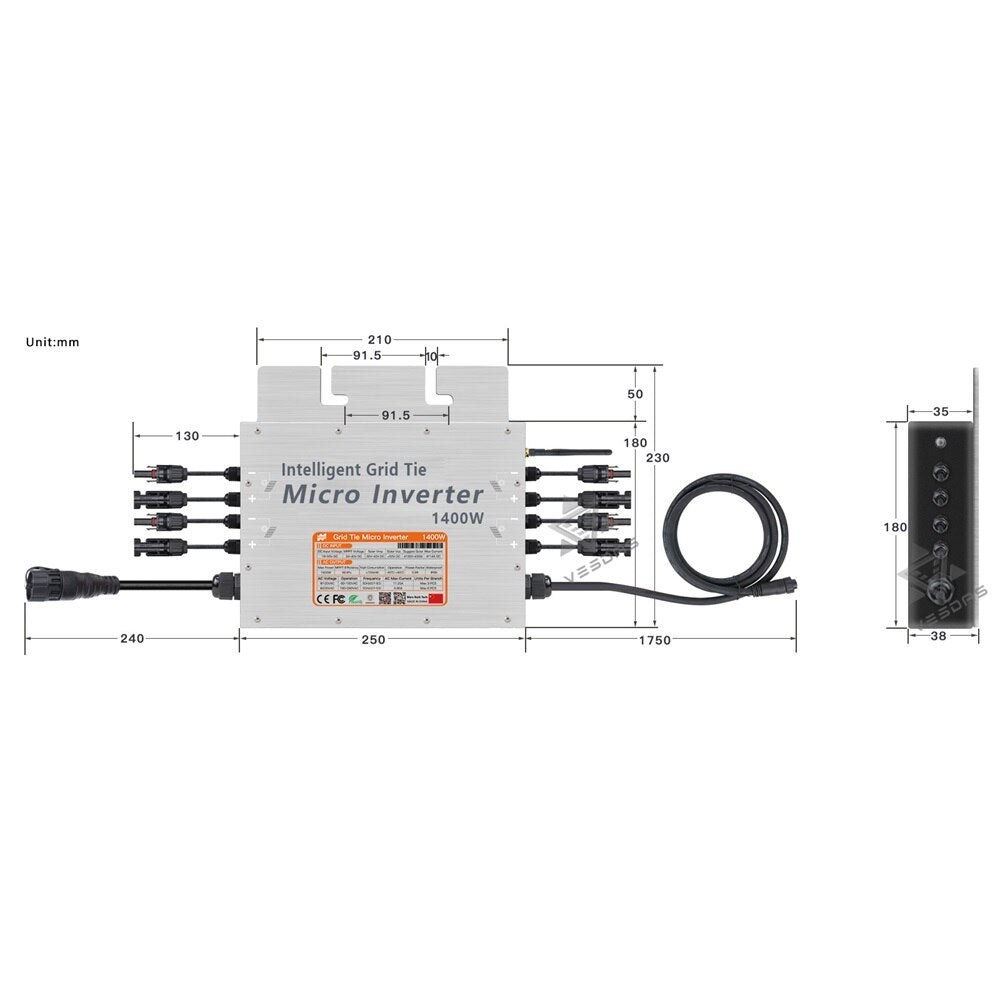

Dimensions

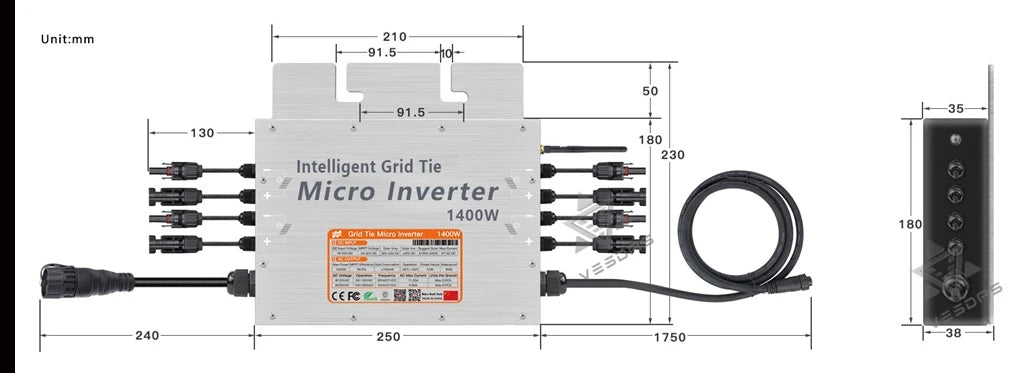

1400W or 1000W Micro Solar Inverter, Compact intelligent microinverter for grid-tied solar systems, compatible with 110V/220V grids and DC inputs up to 36V.

Intelligent grid tie micro inverter, 1400W, suitable for 110V/220V grids. Compact design: 210mm x 91.5mm x 180mm. Supports DC input of 30V-36V.


1400W or 1000W Micro Solar Inverter,

Product Series

EC700 Series

Model

EC700MD

EC700HD

EC700TD

(Regular)

(Custom-made)

(Custom-made)

Input Data(DC,PV)

Number of Input MC4 Connector

2 set

2 set

2 set

MPPT Voltage Range

24V-40V

36V-60V

80V-115V

Operation Voltage Range

18V-50V

30V-70V

70V-120V

Maximum Input Voltage

50V

70V

120V

Startup Voltage

18V

30V

70V

Maximum Input Power

2*350W

2*350W

2*350W

Maximum Input Current

2*14A

2*9.7A

2*4.3A

Output Data(AC)

Single-Phase Grid Type

120V  &  230V

Rated Output Power

650W

Maximum Output Power

700W

Nominal Output Current

@120VAC : 5.4A  /  @230VAC : 2.8A

Nominal Output Voltage

120VAC  /  230VAC

Default Output Voltage Range

@120VAC : 80V-160V  /  @230VAC : 180V-280V

Nominal Output Frequency

50Hz  /  60Hz

Default Output Frequency Range

@50Hz : 47.5Hz-52.5Hz   /  @60Hz : 57.5Hz-62.5Hz

Power Factor

>0.99

Total Harmonic Distortion

THD <5%

Maximum Units per Branch

@120VAC : 4 units   /  @230VAC : 7 units

Efficiency

Peak Efficiency

95%

CEC Weighted Efficiency

@120VAC : 92.5%  /  @230VAC : 93.5%

Nominal MPPT Efficiency

99.90%

Night Power Consumption

<700mW

Mechanical Data

Operating Ambient Temperature Range

-40°C to +65°C

Storage Temperature Range

-40°C to +85°C

Dimensions (W x H x D)

185mm x 180mm x 38.5mm (not include connectors and cable)

Weight

1.5kg

Max Current of AC Bus Cable

20A

Waterproof Grade

IP65

Cooling Mode

Natural Convection - No Fans

Other Features

Communication(Inverter to DataBox)

2.4G Wireless

Transformer Design

High Frequency Transformers, Galvanically Isolated

Integrated Ground

Equipment ground is provided by the PE in the AC cable. No additional ground is required.

Protection Functions

Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

Design Compliance

NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc.


Product Series

EC1000 Series

Model

EC1000MQ

(Regular)

EC1000MD

(Custom-made)

EC1000HD

(Custom-made)

EC1000TQ

(Custom-made)

Input Data(DC,PV)

Number of Input MC4 Connector

4 set

2 set

2 set

4 set

MPPT Voltage Range

22V-40V

22V-40V

36V-60V

80V-115V

Operation Voltage Range

18V-50V

18V-50V

30V-70V

70V-120V

Maximum Input Voltage

50V

50V

70V

120V

Startup Voltage

18V

18V

30V

70V

Maximum Input Power

4*250W

2*500W

2*500W

4*250W

Maximum Input Current

4*10A

2*20A

2*13.8A

4*3.1A

Output Data(AC)

Single-Phase Grid Type

120V  &  230V

Rated Output Power

990W

Maximum Output Power

1000W

Nominal Output Current

@120VAC : 8.25A  /  @230VAC : 4.3A

Nominal Output Voltage

120VAC  /  230VAC

Default Output Voltage Range

@120VAC : 80V-160V  /  @230VAC : 180V-280V

Nominal Output Frequency

50Hz  /  60Hz

Default Output Frequency Range

@50Hz : 47.5Hz-52.5Hz   /  @60Hz : 57.5Hz-62.5Hz

Power Factor

>0.99

Total Harmonic Distortion

THD <5%

Maximum Units per Branch

@120VAC : 4 units   /  @230VAC : 9 units

Efficiency

Peak Efficiency

95%

CEC Weighted Efficiency

@120VAC : 92.5%  /  @230VAC : 93.5%

Nominal MPPT Efficiency

99.9%

Night Power Consumption

<700mW

Mechanical Data

Operating Ambient Temperature Range

-40°C to +65°C

Storage Temperature Range

-40°C to +85°C

Dimensions (W x H x D)

250mm x 230mm x 38mm (not include connectors and cable)

Weight

2.5kg

Max Current of AC Bus Cable

40A

Waterproof Grade

IP65

Cooling Mode

Natural Convection - No Fans

OtherFeatures

Communication(Inverter to DataBox)

2.4G Wireless

Transformer Design

High Frequency Transformers, Galvanically Isolated

Integrated Ground

Equipment ground is provided by the PE in the AC cable. No additional ground is required.

Protection Functions

Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

Design Compliance

NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc.


Product Series

EC1400 Series

Model

EC1400MQ

EC1400HQ

(Regular)

(Custom-made)

Input Data(DC,PV)

Number of Input MC4 Connector

4 set

4 set

MPPT Voltage Range

24V-40V

36V-60V

Operation Voltage Range

18V-50V

30V-70V

Maximum Input Voltage

50V

70V

Startup Voltage

18V

30V

Maximum Input Power

4*350W

4*350W

Maximum Input Current

4*14A

4*9.7A

Output Data(AC)

Single-Phase Grid Type

120V  &  230V

Rated Output Power

1350W

Maximum Output Power

1400W

Nominal Output Current

@120VAC : 11.25A  /  @230VAC : 5.86A

Nominal Output Voltage

120VAC  /  230VAC

Default Output Voltage Range

@120VAC : 80V-160V  /  @230VAC : 180V-280V

Nominal Output Frequency

50Hz  /  60Hz

Default Output Frequency Range

@50Hz : 47.5Hz-52.5Hz   /  @60Hz : 57.5Hz-62.5Hz

Power Factor

>0.99

Total Harmonic Distortion

THD <5%

Maximum Units per Branch

@120VAC : 3 units   /  @230VAC : 6 units

Efficiency

Peak Efficiency

95%

CEC Weighted Efficiency

@120VAC : 92.5%  /  @230VAC : 93.5%

Nominal MPPT Efficiency

99.90%

Night Power Consumption

<700mW

Mechanical Data

Operating Ambient Temperature Range

-40°C to +65°C

Storage Temperature Range

-40°C to +85°C

Dimensions (W x H x D)

250mm x 230mm x 38mm (not include connectors and cable)

Weight

2.5kg

Max Current of AC Bus Cable

40A

Waterproof Grade

IP65

Cooling Mode

Natural Convection - No Fans

Other Features

Communication(Inverter to DataBox)

2.4G Wireless

Transformer Design

High Frequency Transformers, Galvanically Isolated

Integrated Ground

Equipment ground is provided by the PE in the AC cable. No additional ground is required.

Protection Functions

Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

Design Compliance

NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc.

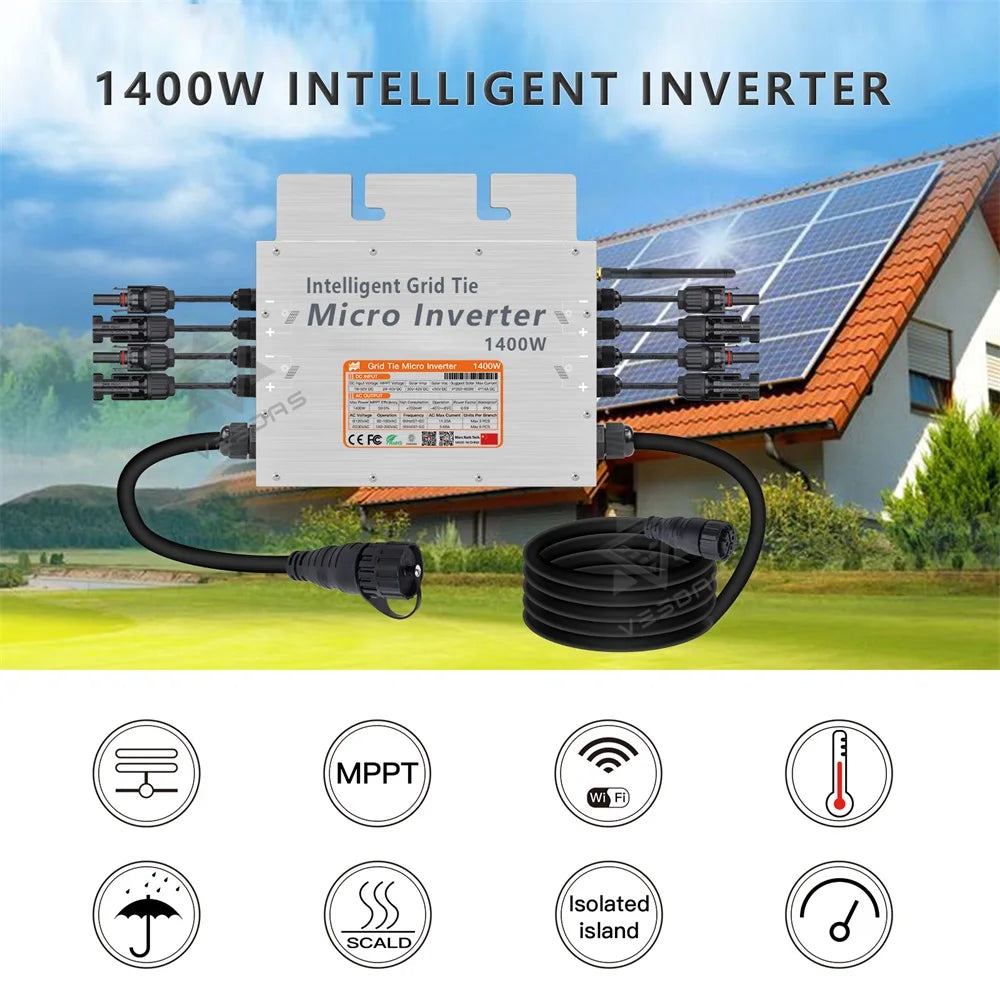

1400W or 1000W Micro Solar Inverter, Compliant with safety regulations for safe and reliable operation.1400W or 1000W Micro Solar Inverter, Advanced solar inverter with 1400W power output and smart features for safe off-grid and on-grid energy harvesting.

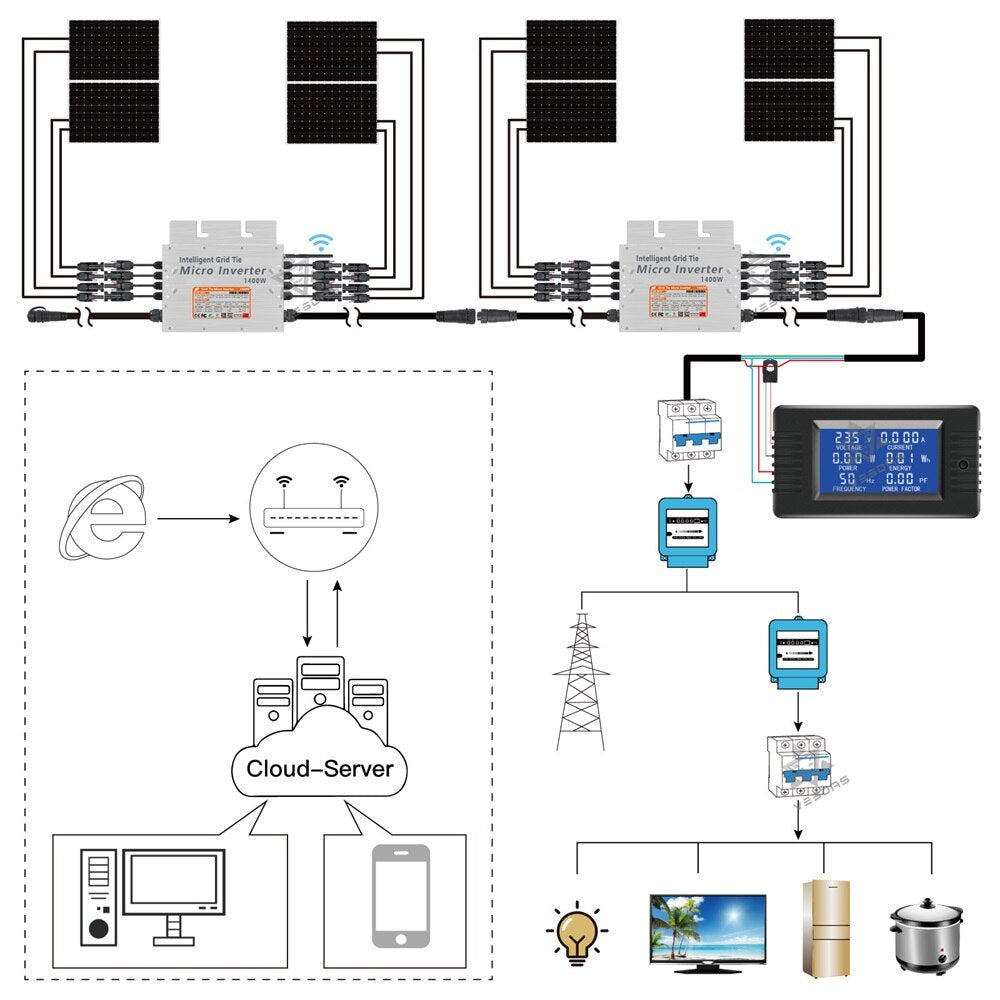

Intelligent grid tie micro inverter with 1400W power output, featuring MPPT technology and isolated island mode for safe operation. Suitable for off-grid and on-grid applications.

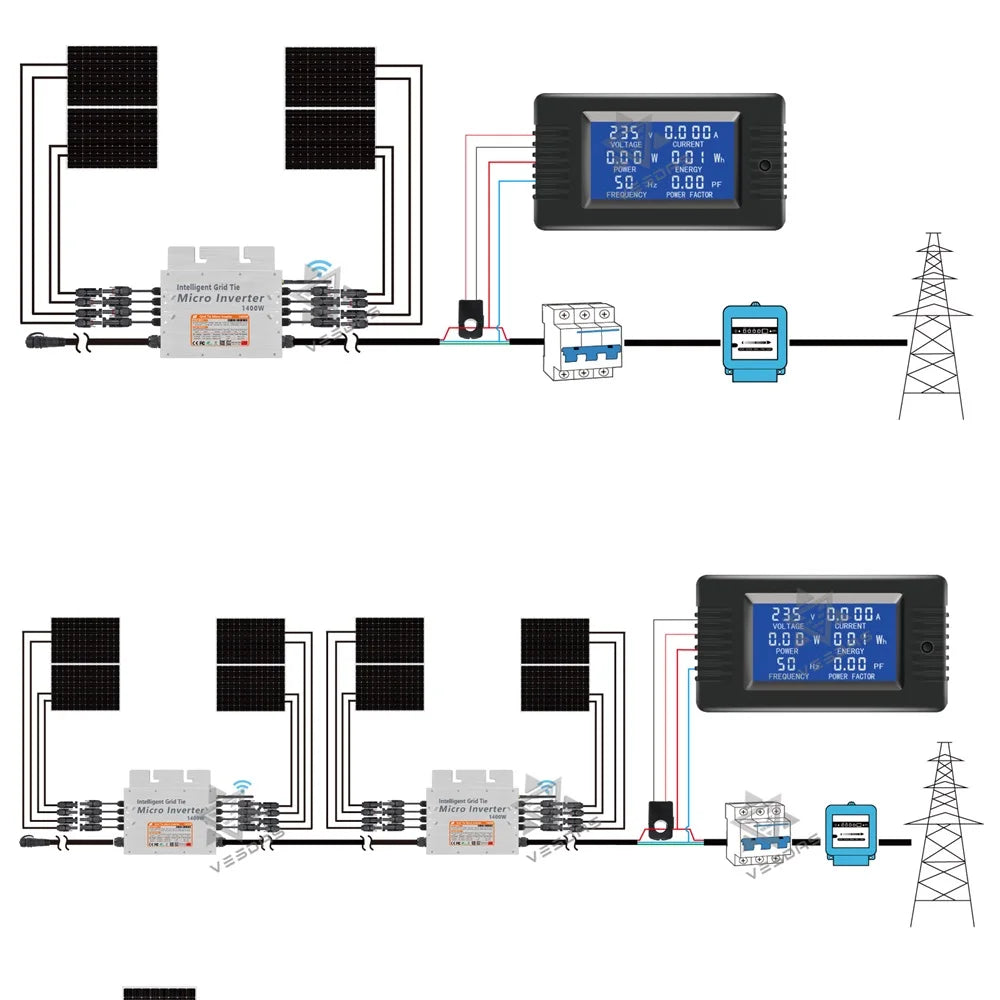

1400W or 1000W Micro Solar Inverter, Monitor island detection, voltage, frequency, temperature, and current for safe and efficient power operation.1400W or 1000W Micro Solar Inverter, Grid Tie Micro Inverter for 1400W or 1000W solar power, converting DC to AC for grid connection.

Meet our Grid Tie Intelligent Micro Inverter, designed for 1400W or 1000W solar power conversion. It converts 30V to 36V DC pure sine wave output for 110V/220V grid connection.

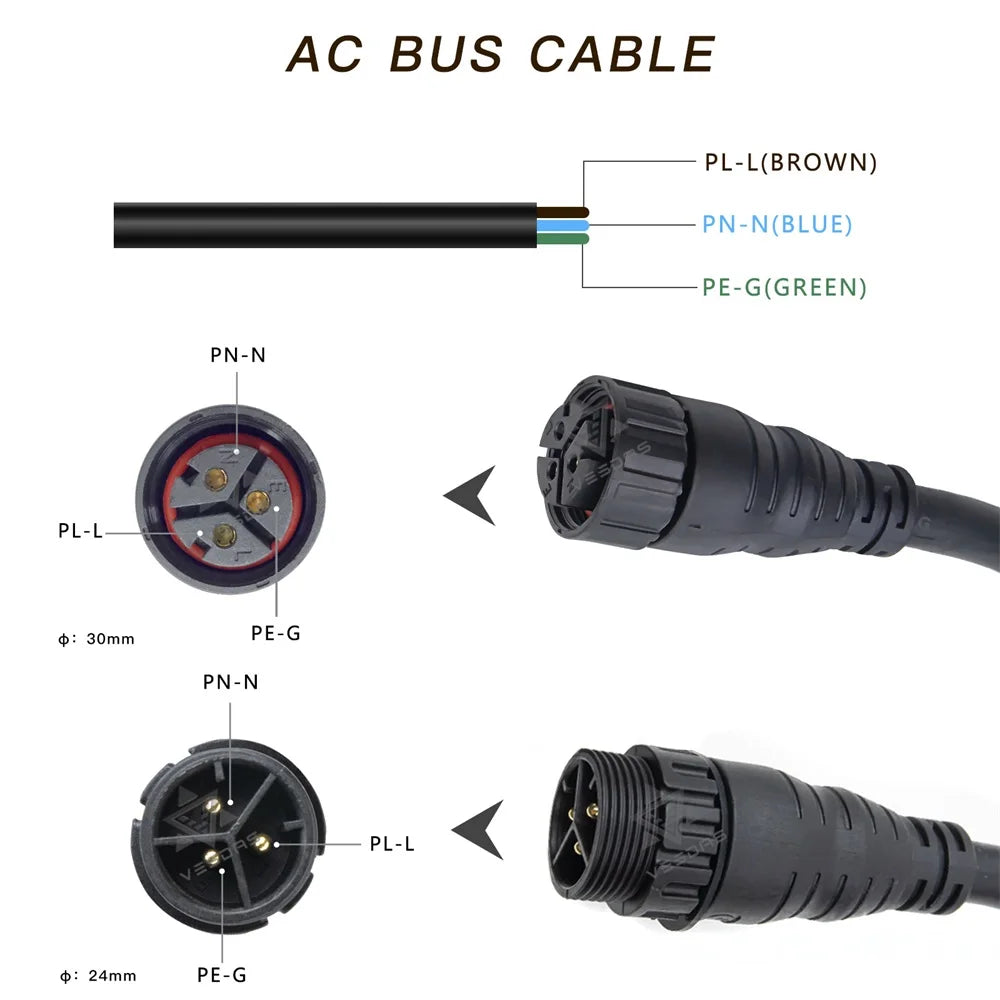

1400W or 1000W Micro Solar Inverter, Meets international safety and performance standards for safe and reliable operation.1400W or 1000W Micro Solar Inverter, Cable specs: Ac BUS cable with brown and blue wires and green ground wire; 30mm/24mm dimensions.

Cable specifications: Ac BUS cable with PL-L (brown) and PN-N (blue) wires, along with PE-G (green) ground wire. Dimensions: 30mm for PL-L and PN-N wires, and 24mm for PE-G ground wire.

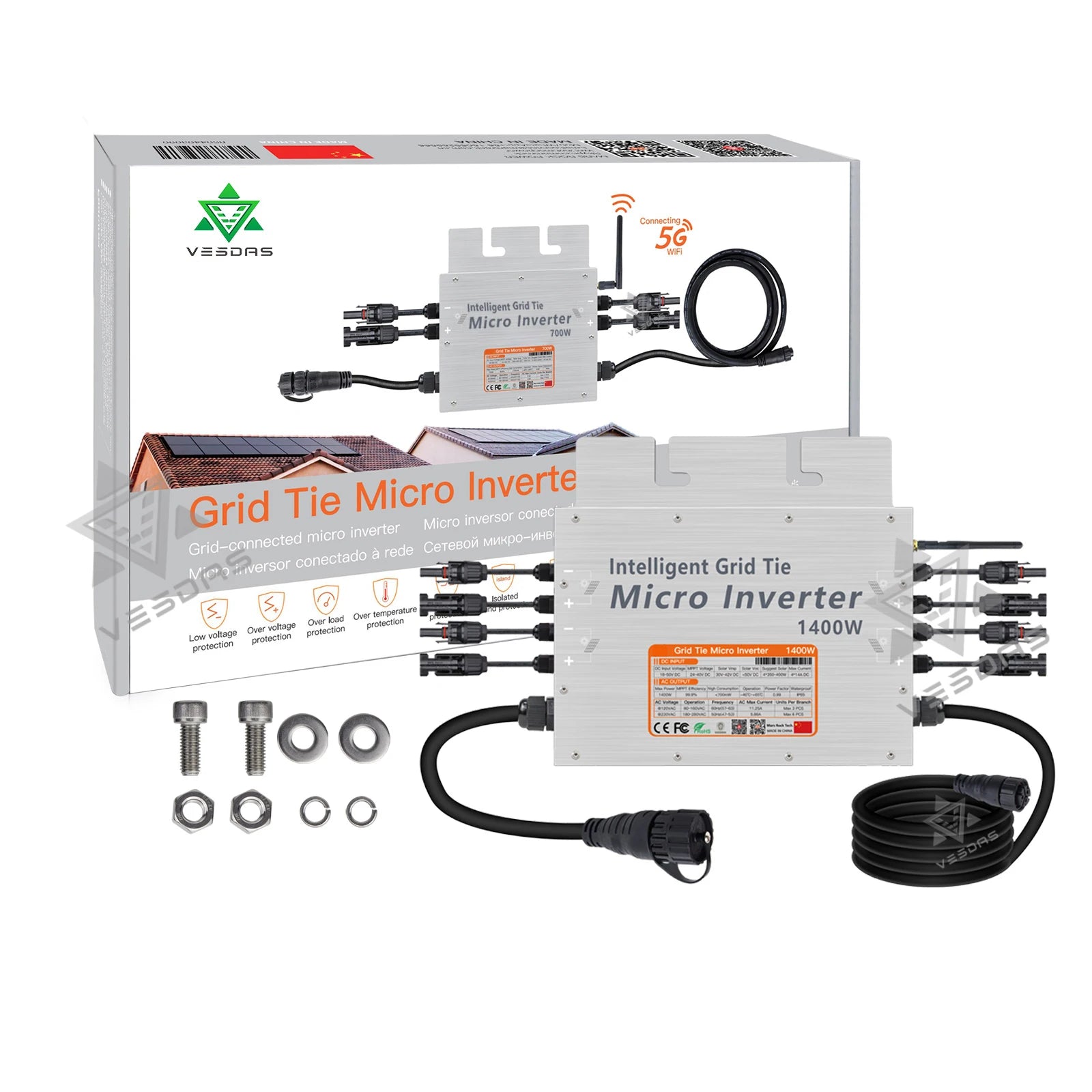

1400W or 1000W Micro Solar Inverter, 1400W or 1000W Micro Solar In
