20A MPPT Solar Battery Charger LCD 12V/24V Solar Regulator Charge Controller for Load Light Lighting System and Timer Control

20A MPPT Solar Battery Charger LCD 12V/24V Solar Regulator Charge Controller for Load Light Lighting System and Timer Control

Regular price $26.45 USD
Regular price Sale price $26.45 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

item: 20A solar charge controller

is_customized: Yes

Temperature compensation: -4mV/Cell/°C

Solar panels maximum voltage: 48V

Origin: Mainland China

Model Number: T20

Maximum Current: MPPT 20A

Is Smart Device: YES

Certification: CE

Brand Name: PowMr

Battery under voltage) protection: 10.6V 12V system /21.2V 24V system

Battery float voltage: 13.8V 12V system /27.6V 24V system

Battery (under voltage) recovery voltage: 12.6V 12V

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

20A MPPT Solar Battery Charger LCD 12V/24V Solar Regulator Charge Controller for Load Light Lighting System and Timer Control


Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Please contact us for checking more details if needed.Thank you.

Overviwe:

This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
MPPT 20A
MPPT 20A Solar Panel Charge Controller Regulator Solar panel 260W/12V 520W/24V (Without USB Output)
Compatible with 520W(24v) solar panel with dark activated function, Max current is 20A Timer Intigrated (Lighting function)

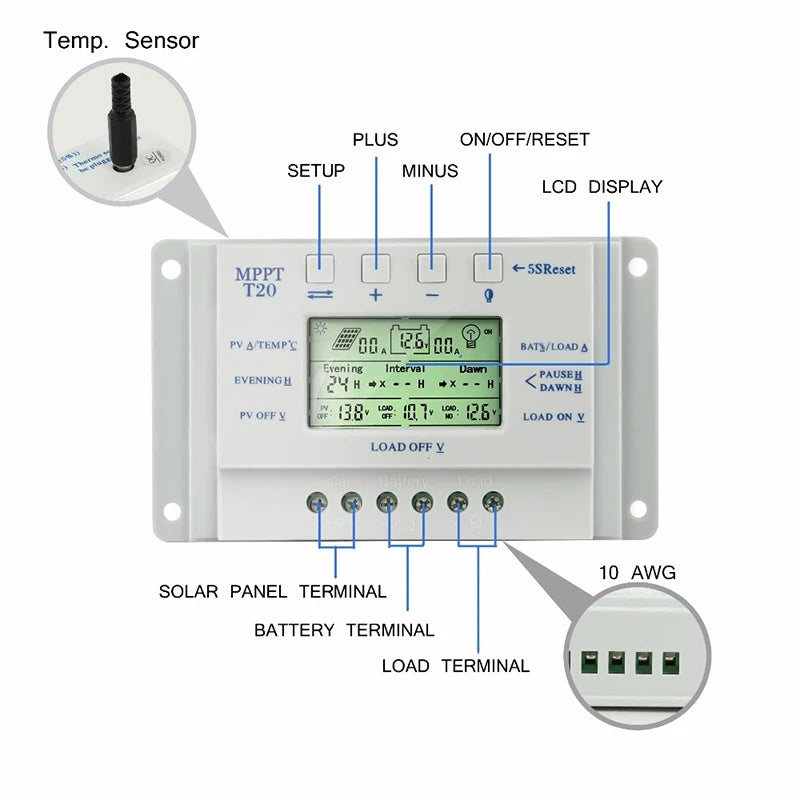

MPPT solar battery charger with LCD display, temperature sensor, and adjustable settings.

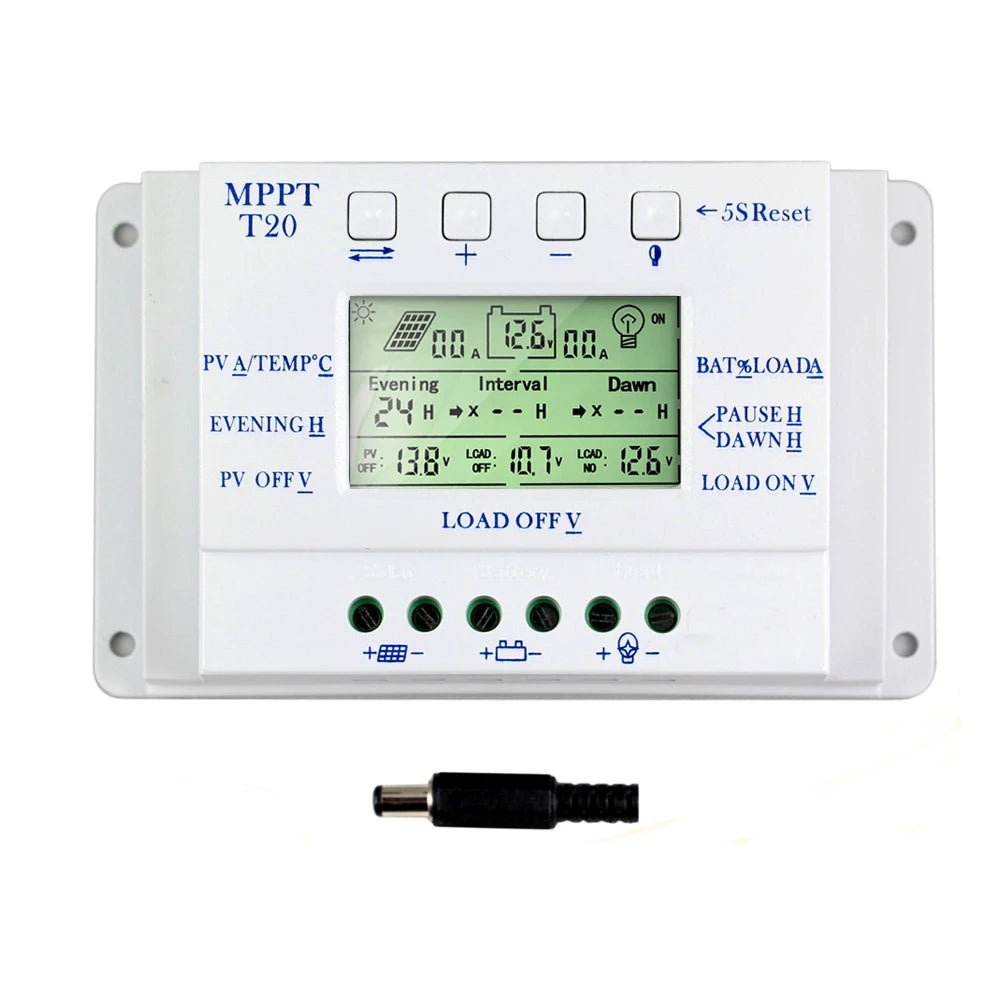

Only One Screen to show all the charging information.

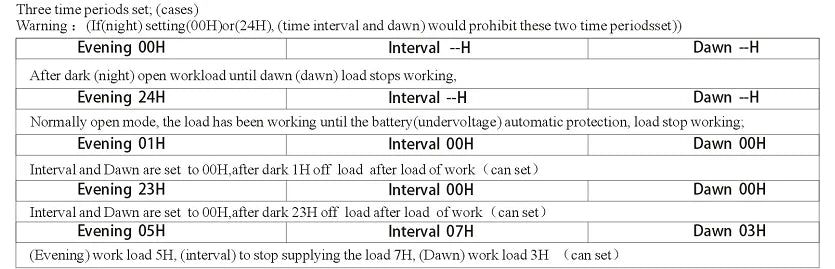

T10,T20 10A 20A Solar Charge Controller Dual timer
This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time.


LCD screen display

Battery reverse discharge protection

Easy operation interface

Battery reverse polarity protection

MPPT+ PWM charging mode

Battery under voltage protection

Parameter user can reset Overload

Short-circuit protection

A key to restore the factory settings

USB 5V charging (for 500mA) for mobile phone(Only for T30)

A key to open and close the load

Automatic temperature compensation function

MPPT Solar Battery Charger LCD 12V


Product Details:


Parameters / Model

T10

T20

T30

T40

Maximum power current

12A

20A

30A

40A

Installation  Lin mm2

4mm2

8mm2

10mm2

12mm2

Installation Line(AWG)

10(AWG)

8(AWG)

7(AWG)

6(AWG)

Weight

280g

300g

475g

480

Dimensions

143×89×46 mm

187*97*61 mm

System load loss

≤13mA

Loop Buck

≤100mV

Specification

Battery float voltage

13.8V 12V system /27.6V 24V system

Battery  under voltage) protection

10.6V  12V system /21.2V 24V system

Battery (under voltage) recovery voltage

12.6V 12V system /25.2V 24V system

Charge mode

MPPT+PWM MODE

Operating Temperature

-10~60°C

Storage Temperature

-30~70°C

Humidity requirements

≤90%, No condensation

Temperature compensation

-4mV/Cell/°C

Temperature Probe (built components)

NTC 100K  thermistats

Maximum open circuit voltage of the solar panel

18V-24V 12V system 36V-48V 24V system)

Solar panels maximum open circuit voltage (V)

≤48V

(Cases) 12V system standard configuration

The peak voltage of the solar cell panel

18V-25V

18V-25V

18V-25V

18V-25V

Peak power of solar cell panel

50W-130W

100W-260W

200W-380W

≤500W

Model

T10

T20

T30

T40

Battery standard voltage

12V

12V

12V

12V

Battery capacity

≥100AH

≥200AH

≥300AH

≥400AH

Installation  Lin mm2

4mm2

8mm2

10mm2

12mm2

Installation Line(AWG)

10(AWG)

8(AWG)

7(AWG)

6(AWG)

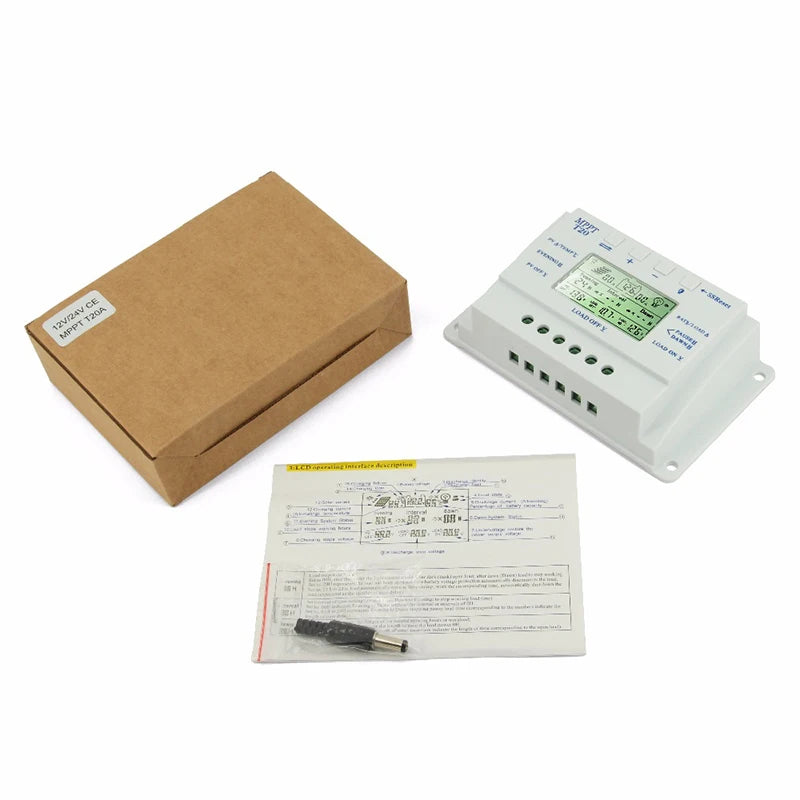

Package including:

1.1PCS 20A Solar Contorller T20
2.1PCS User Manual
3. Temperature Sensor

Programmable timer for solar charging with customizable work and rest periods.

Product Photo:

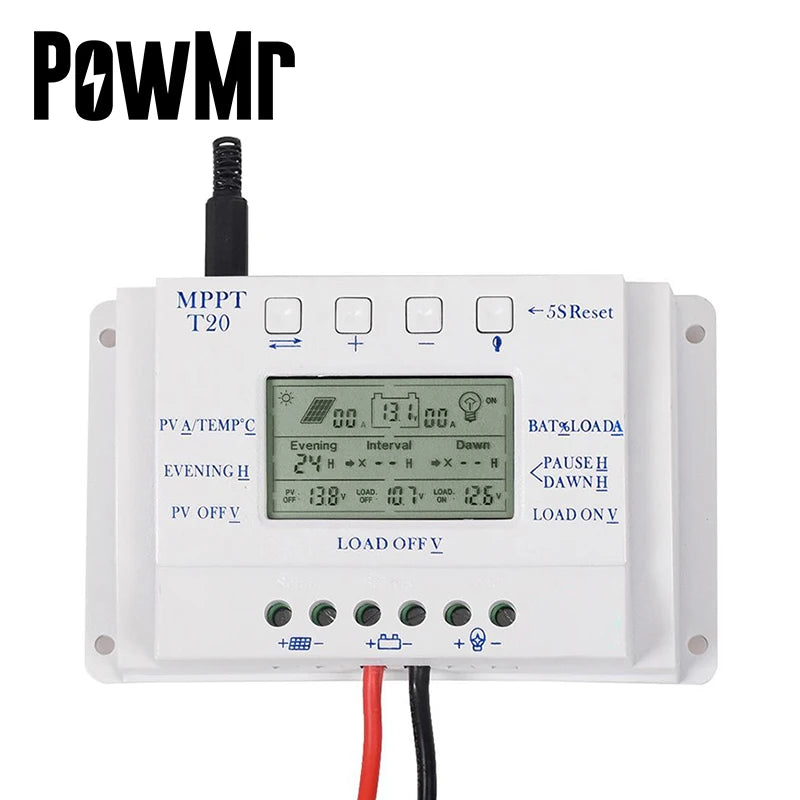

MPPT Solar Charger with LCD Display for 12V/24V Systems, featuring timer control and load lighting.

MPPT solar battery charger with LCD display for charging 12V/24V systems. Features: timer control, load light lighting system, pause function (evening interval, dawn, and off).

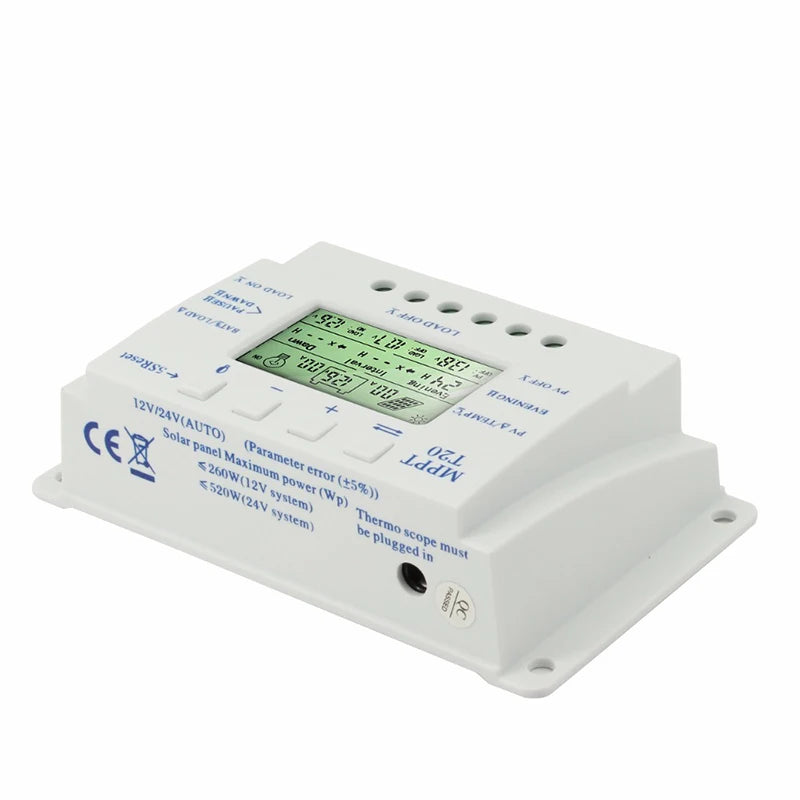

MPPT Solar Charger with LCD display for 12V/24V systems, auto-ranges up to 260W or 520W.

20A MPPT Solar Battery Charger with LCD display for charging 12V or 24V systems. This auto-ranging solar regulator charges batteries up to 260W at 12V or 520W at 24V. It features timer control and load lighting, making it suitable for various applications such as RVs, boats, and off-grid power systems.


Regulates solar power for lighting systems with LCD display and overcharge protection.

Product: 20A MPPT Solar Battery Charger. This controller regulates 12V/24V solar power for lighting systems and timers, featuring LCD display and overcharge protection. It can charge batteries efficiently while preventing overcharging and undercharging. The timer control allows for scheduled charging and discharging. Suitable for load lighting applications.
