260W 300W350W MPPT Solar PV Grid Tie Micro Inverter GMI series Input 18V-50V DC Output 110V-240V Waterpoof IP65 Solar PV invert
260W 300W350W MPPT Solar PV Grid Tie Micro Inverter GMI series Input 18V-50V DC Output 110V-240V Waterpoof IP65 Solar PV invert
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ

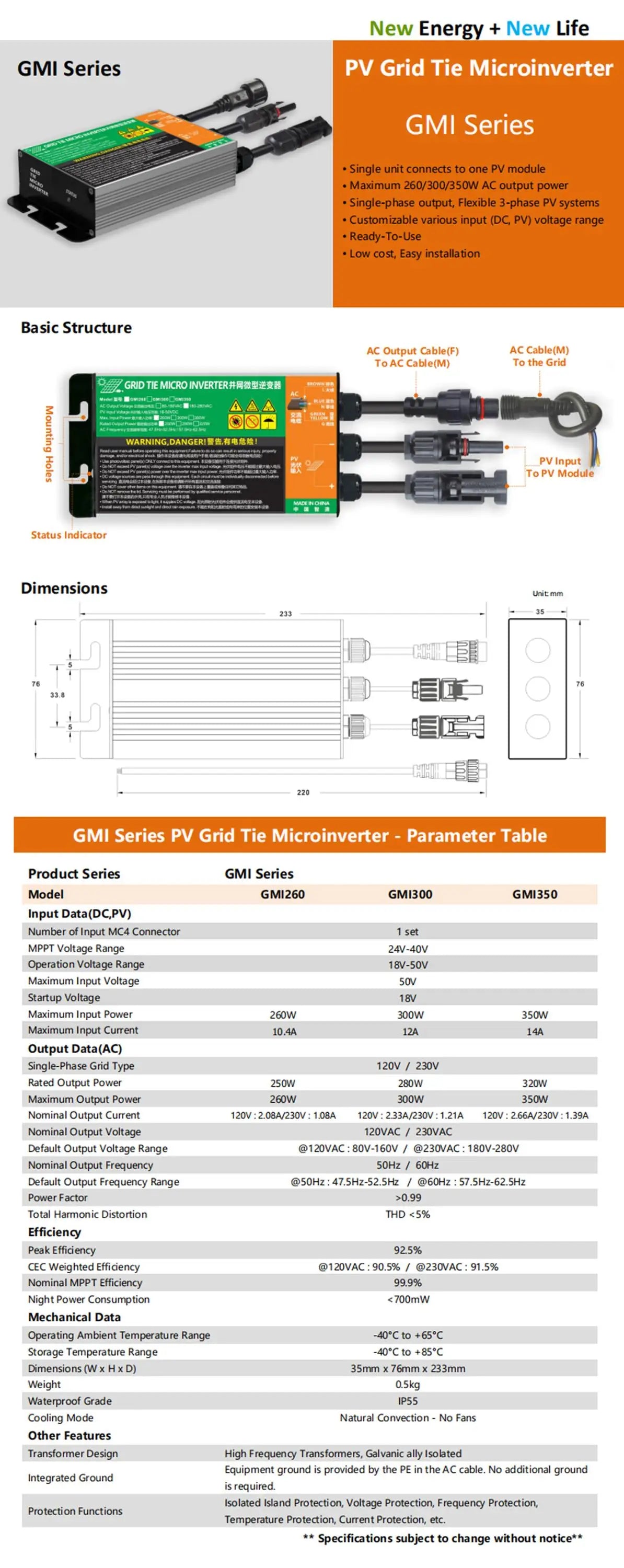

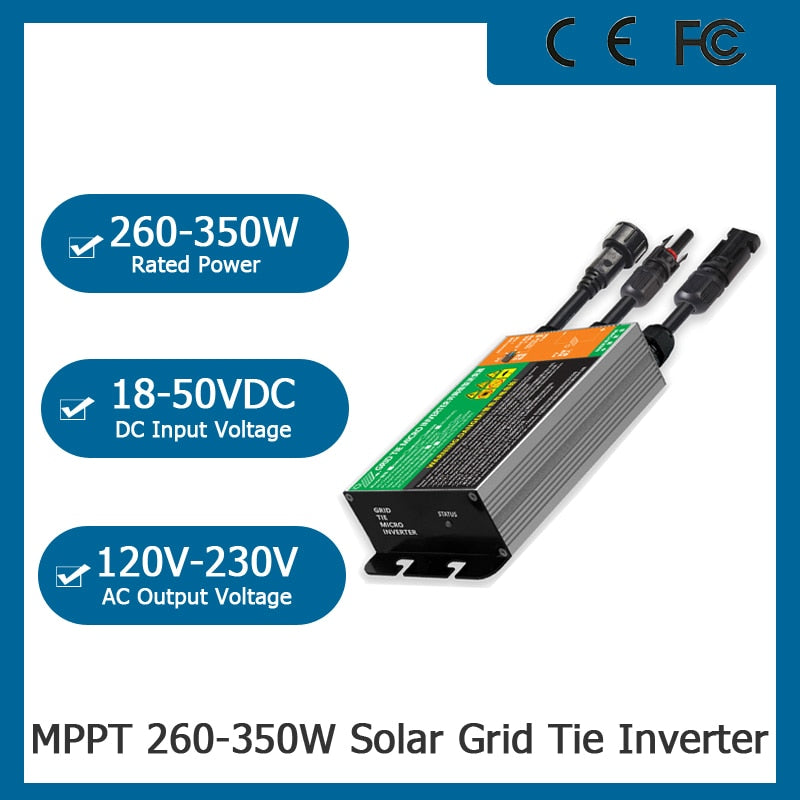

260W 300W350W MPPT Solar PV Grid Tie Micro Inverter SPECIFICATIONS
is_customized: Yes
Weight: 0.5KG
Waterproof Grade: IP65
Type: DC/AC Inverters
Size: 35mm x 76mm x233mm
Output Type: single
Output Power: 301 - 400W
Output Frequency: 50-60Hz
Origin: Mainland China
Operation Voltage Range: 18V-50V
Nominal Output Voltage: 120V/230VAC
Nominal Output Frequency: 50HZ60HZ
Model Number: GMI260/300/350
Max. Input Power: 260W/300W/350W
MPPT Voltage Range: 22V-40V

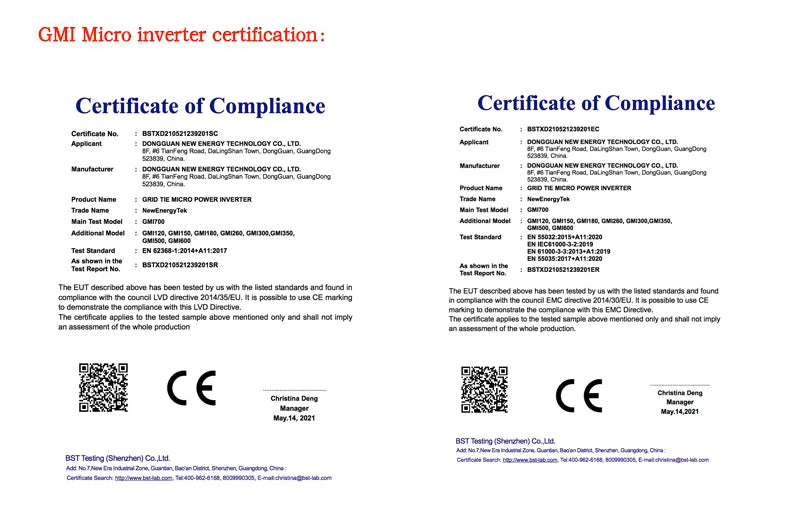

Certification: CE,RoHS
260W 300W350W MPPT Solar PV Grid Tie Micro Inverter GMI series Input 18V-50V DC Output 110V-240V Waterpoof IP65 Solar PV invert
Wholesale consult the service of store .
Features:
1.Use photovoltaic panel(s) ONLY connect to this equipment.

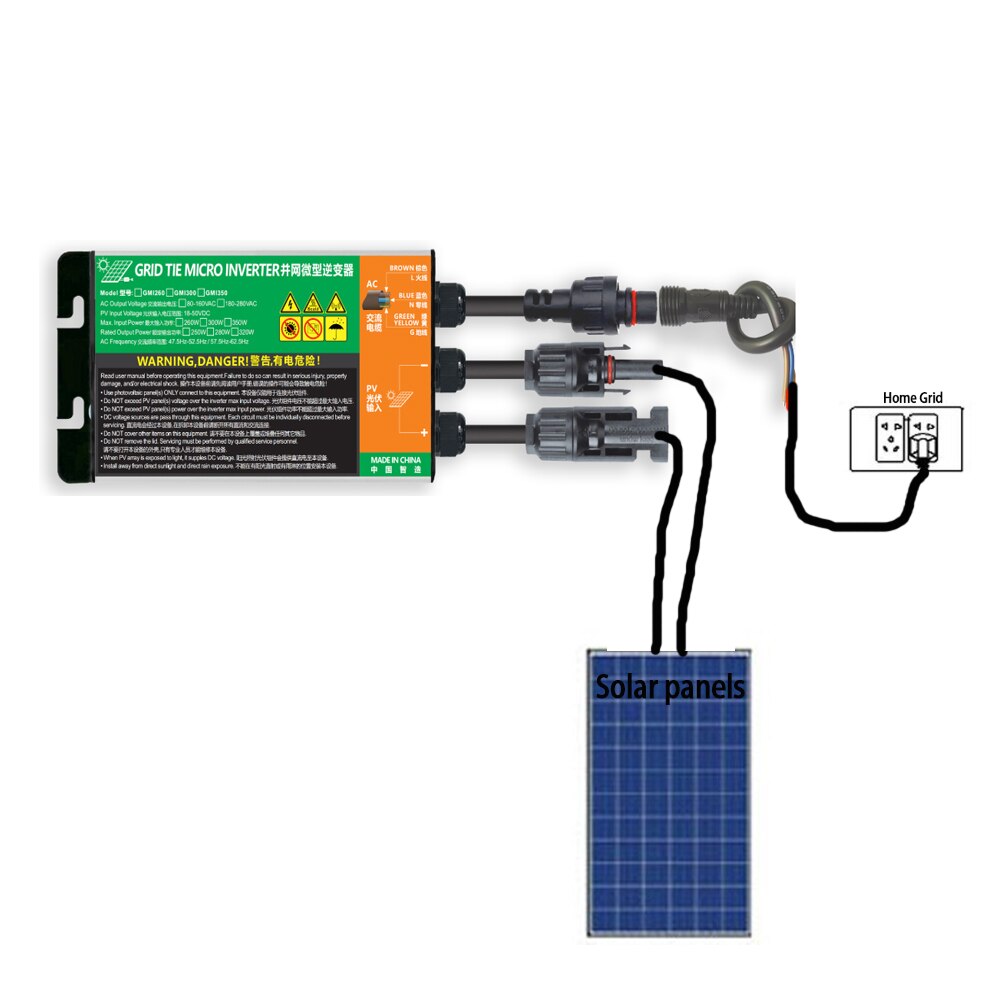

2.This equipment is ON-GRID Microin verter,To make it work properly,it must be connected to the power grid correctly,and the power grid is working properly,When the power grid stopped working,it will also stop generating.
3.Do NOT exceed PV panel(s) voltage over the inverter max input voltage.
4.Do NOT exceed PV panel(S) power over the inverter max input power.
5.Do voltage sources are pass through this equipment,Each circuit must be individually disconnectec before servicing.
6.Do NOT cover other items on this equipment.
7.Do NOT repove the lid.Servicing must be performed by qualified service personnel.
8.When pv array is exposed to light,it supples DC voltage to this equipment.

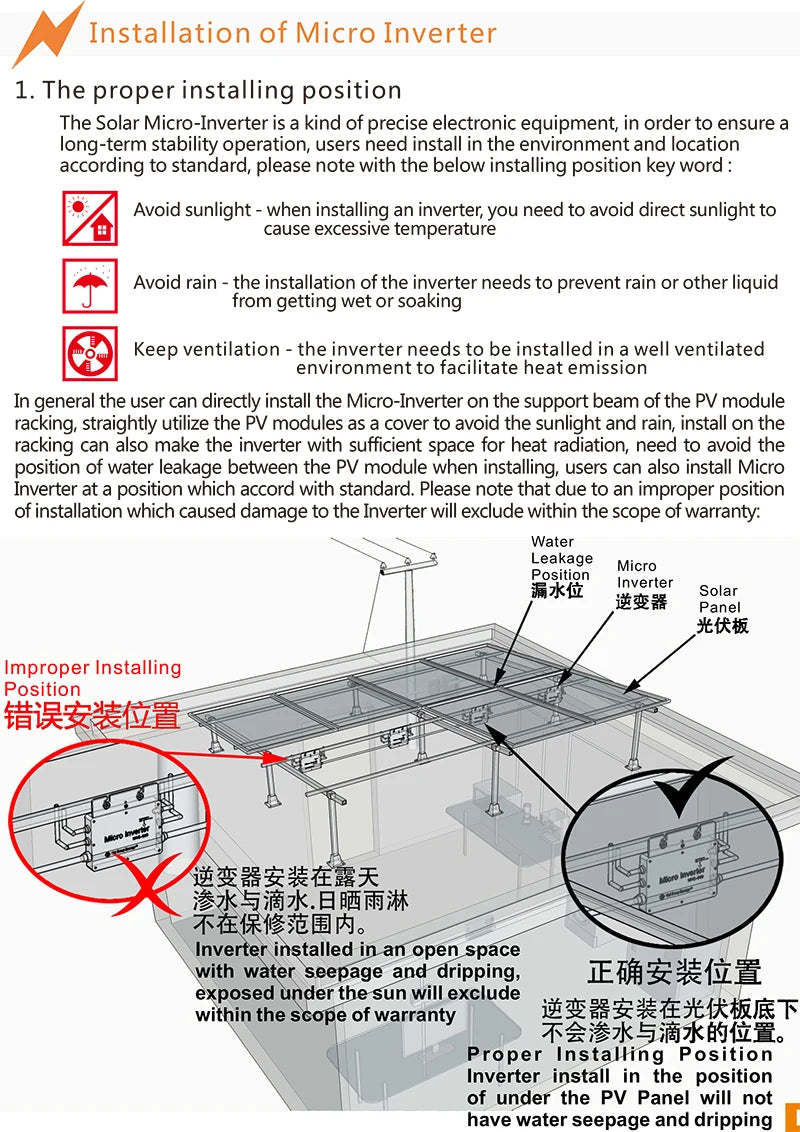

9.Install away from direct sunlight and direct rain exposure.
LED DISPLAY:
1.Green light steady=Microinverter in generating.
2.Red flash=Microinverter in waiting.
3.Red light steady=
a.Island protection.
b.Over-temperature protection.
c.Over/low AC voltage protection.
d.Over/low DC voltage protection.
e.Over/low AC frequency protection.
f.Fault.

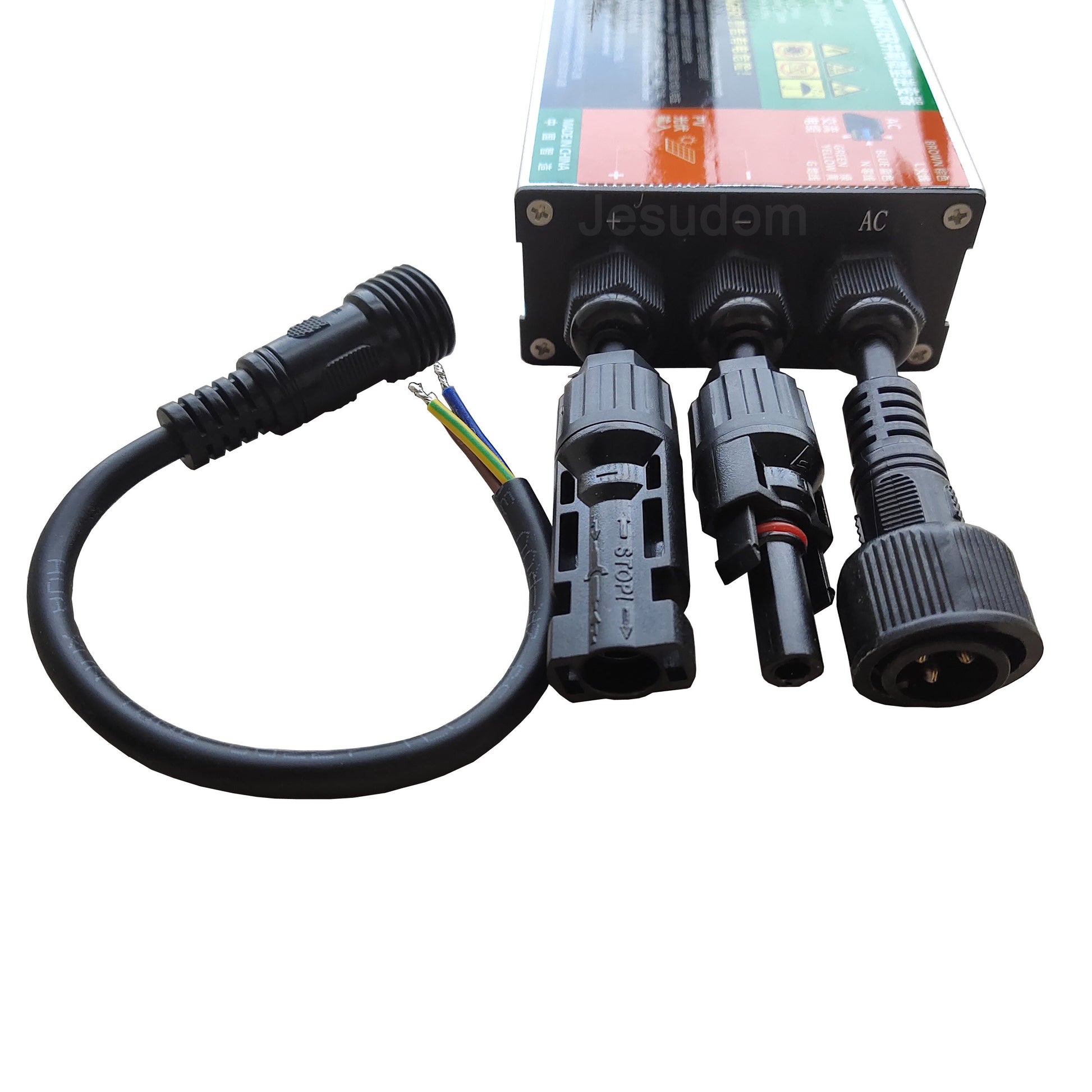

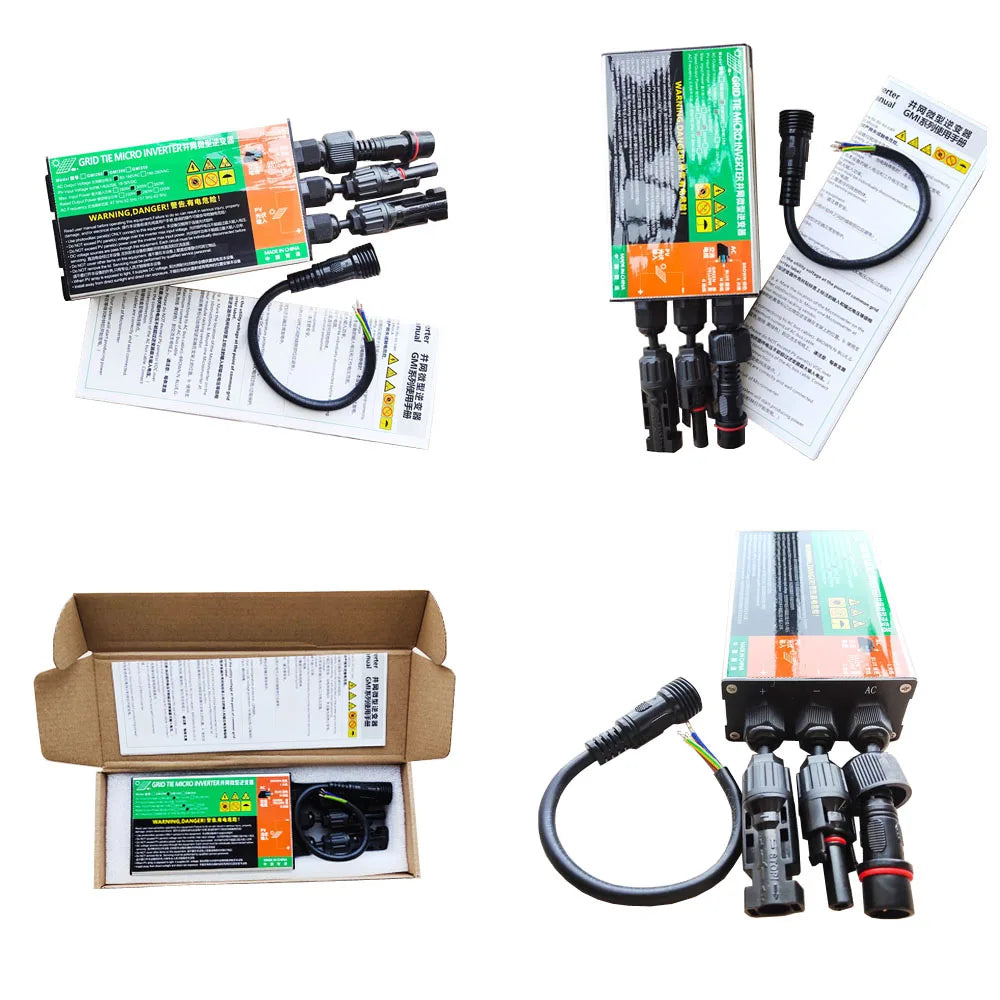

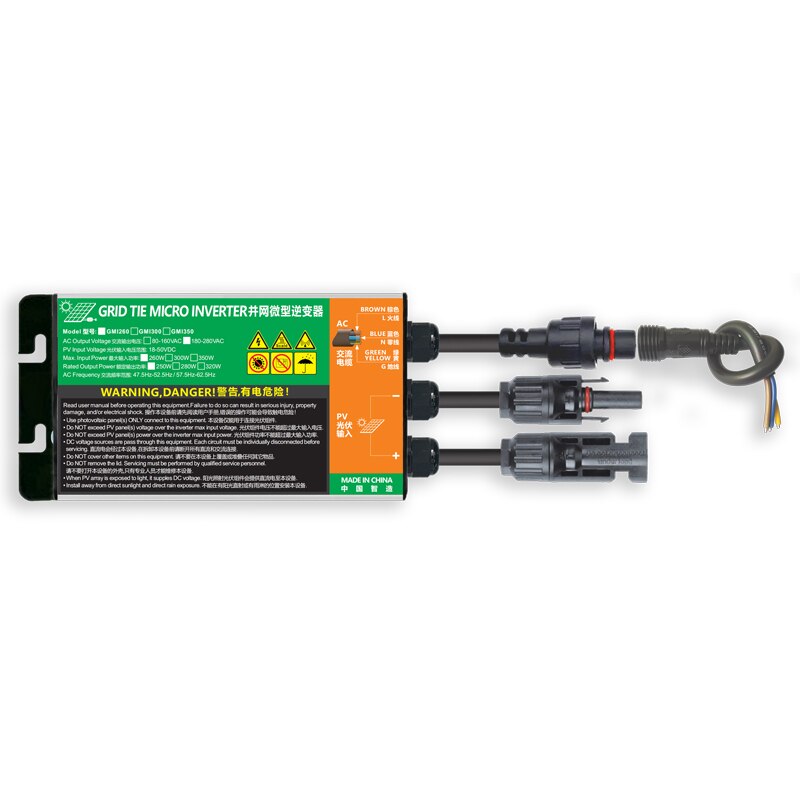

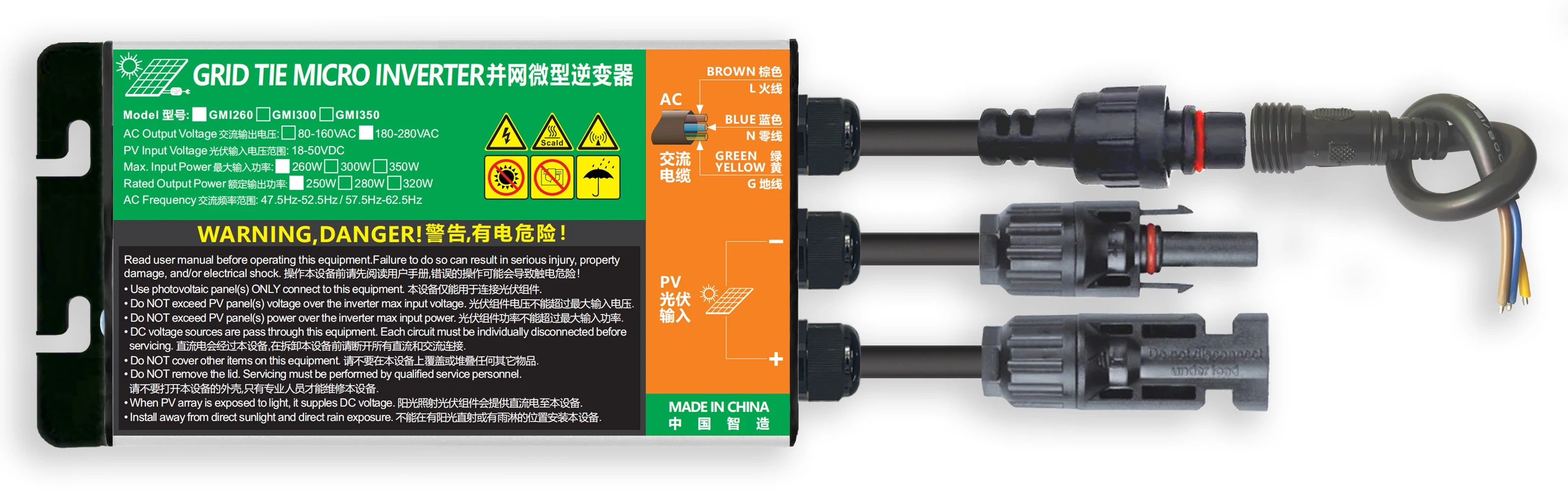

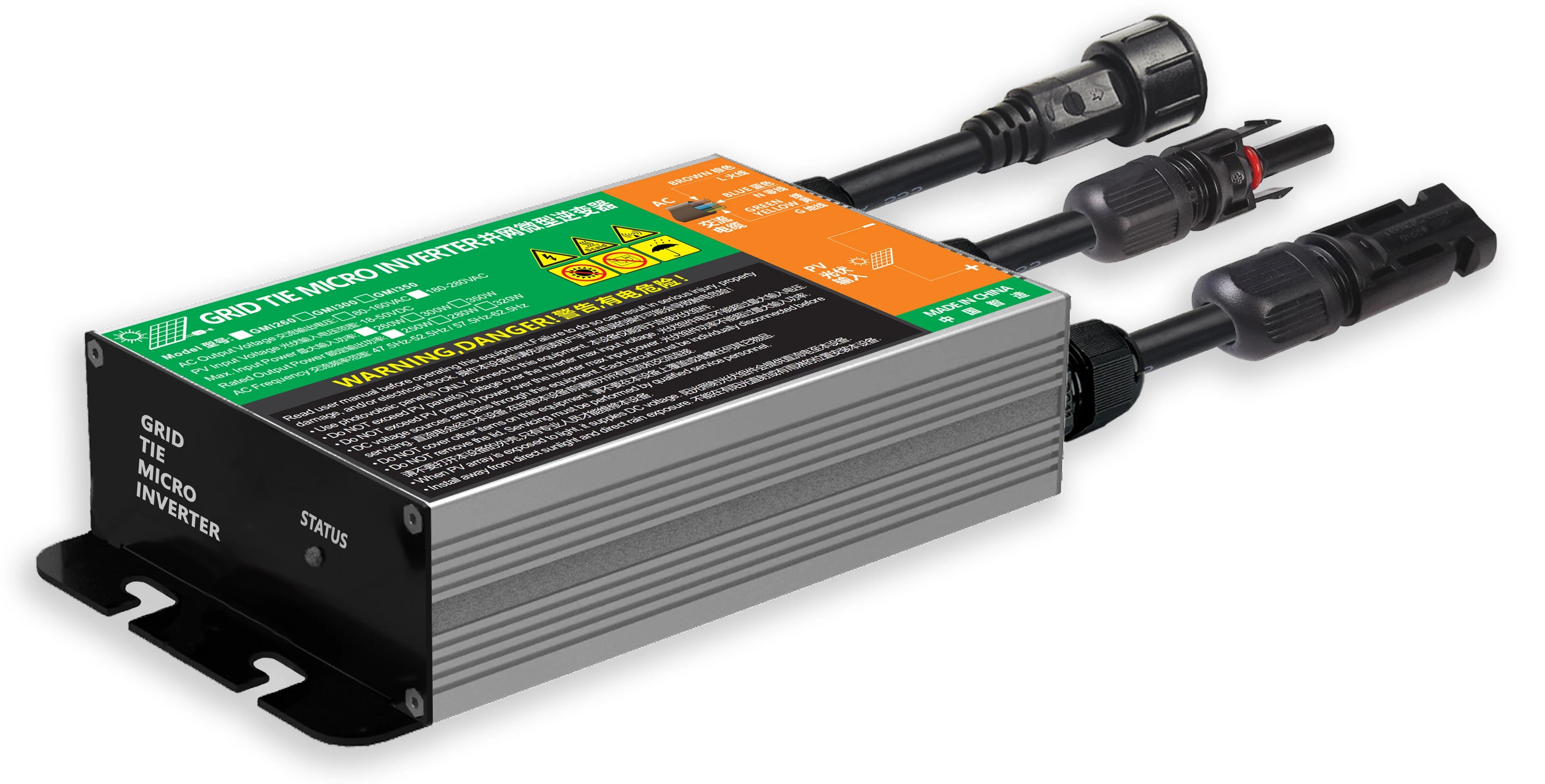

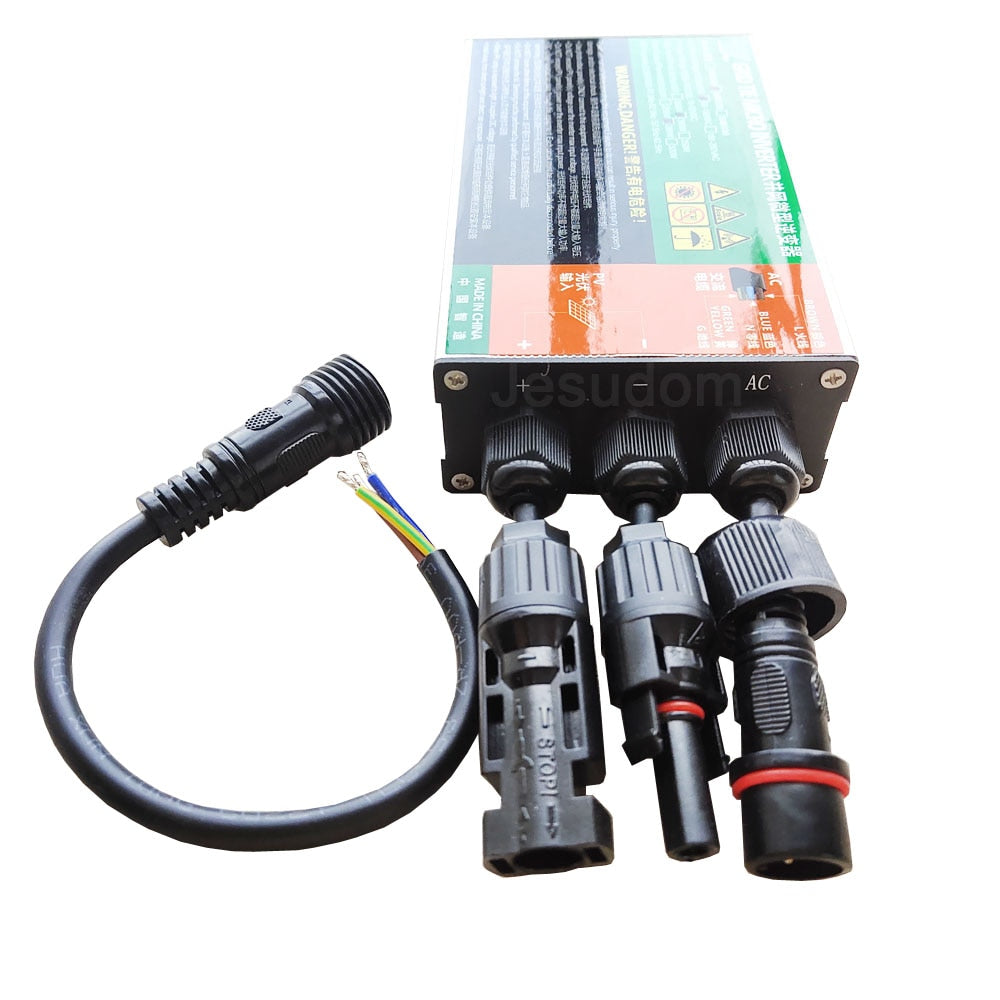

Product pictures :
