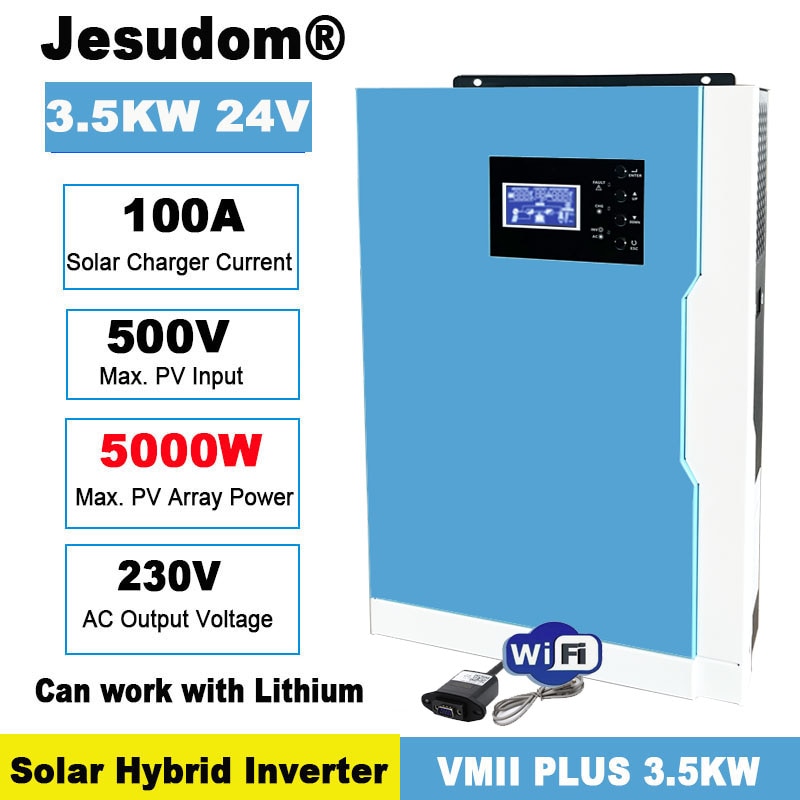

3.5KW Solar Hybrid Inverter Pure Sine Wave with 100A MPPT Solar Charge Controller 24VDC to 220VAC With WiFI Modle
3.5KW Solar Hybrid Inverter Pure Sine Wave with 100A MPPT Solar Charge Controller 24VDC to 220VAC With WiFI Modle
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 12.5KG
Type: DC/AC Inverters
Solar Charger control range: 120-450Vdc
Size: 100*300*440MM
Rated Output Power: 3500W
Output Wave: Pure Sine Wave
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50hz60hz
Origin: Mainland China
No-load loss: Less 35W
Model Number: VMII-PLUS-3.5KW
Max. PV Open Circuit Voltage: 500Vdc
Certification: CE,RoHS
Certificate: CE/ISO9001/Rohs
Built-in MPPT solar charger: 24V100A
Brand Name: Jesudom
3.5KW Solar Hybrid Inverter Pure Sine Wave with 100A MPPT Solar Charge Controller 24VDC to 220VAC With WiFI
Wholesale consult the service of store.

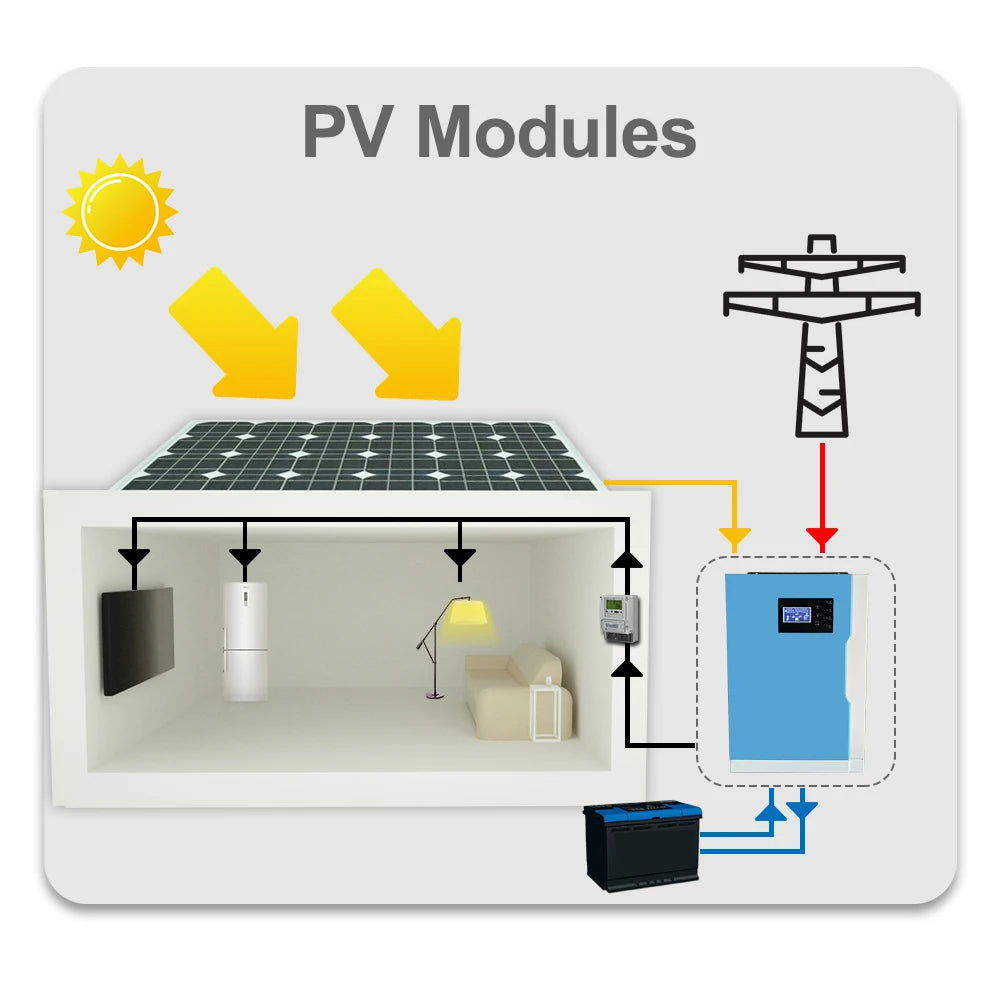

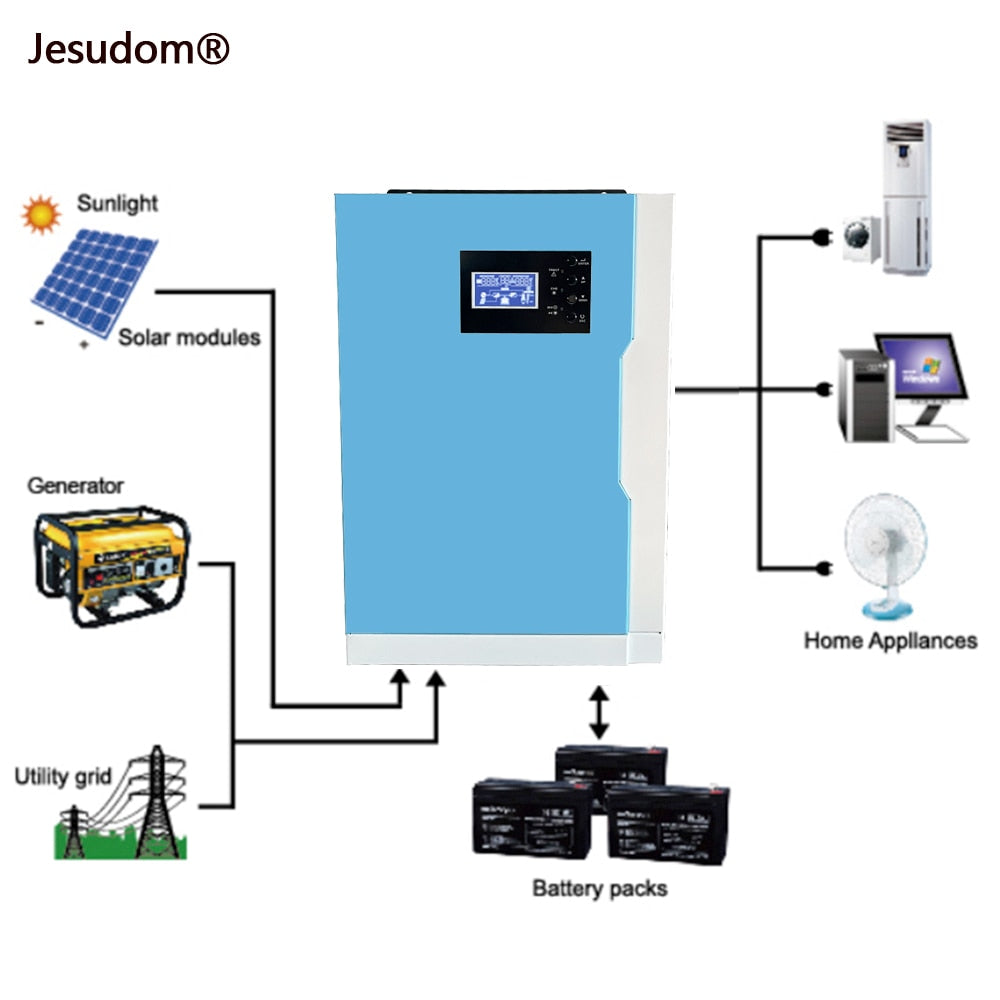

This all in one solar system is the perfect go-to solution for off-grid, backup power for homes , small business and it also delivers a value added, easy to install system that provides efficient power globally for every need.
• High efficiency pure sine wave inverter(PF=1);

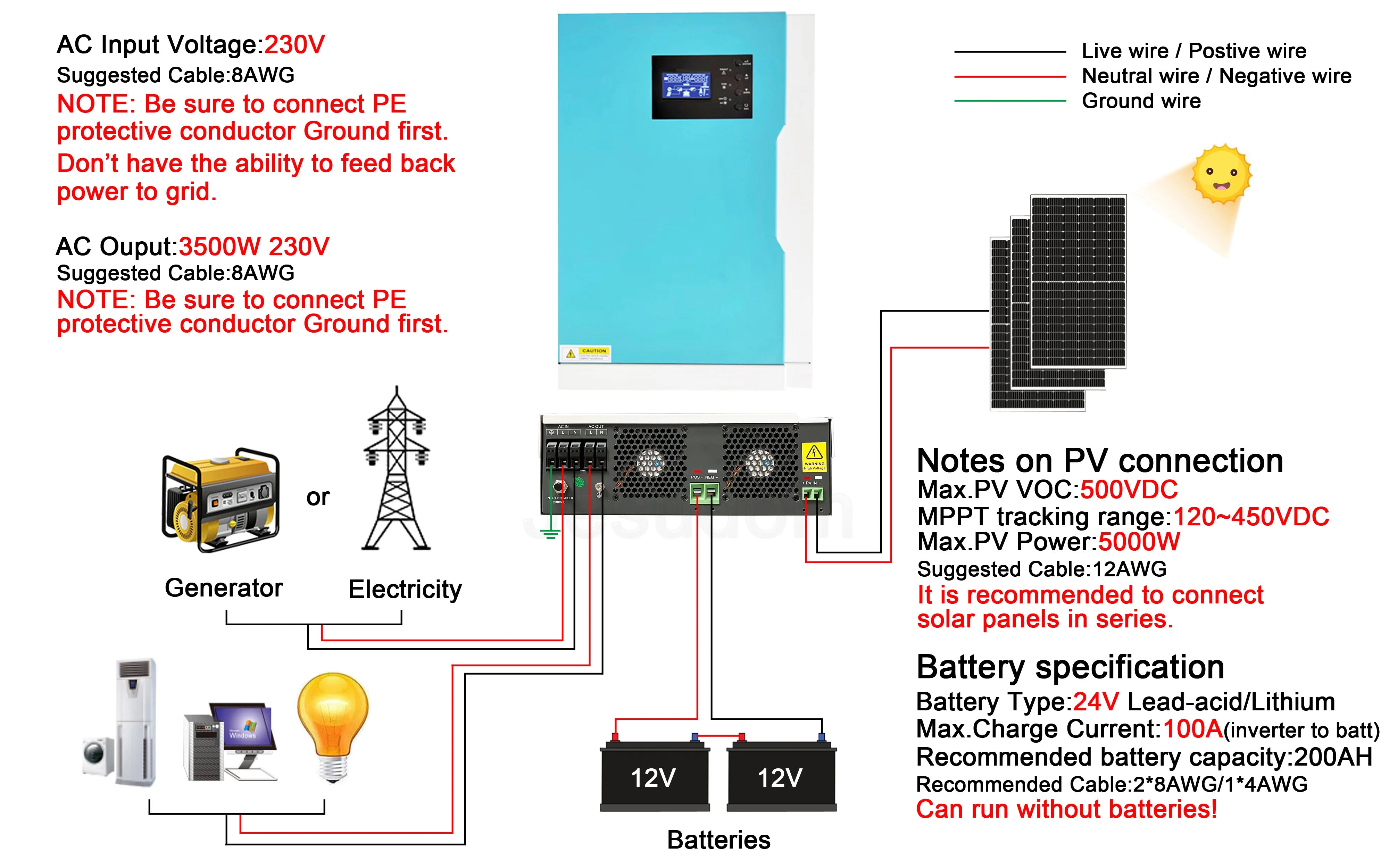

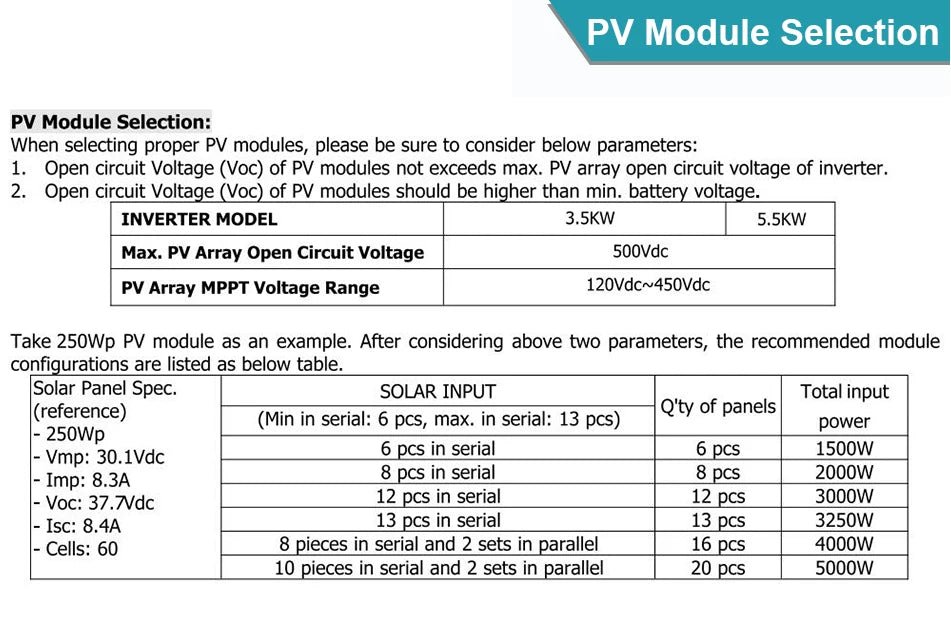

• Wide PV input range(120Vdc--500Vdc),150VDCfor starting voltage, 240VDC is the best for 3500W.360VDC is the besr for 5500W.100A MPPT SCC;
• Surges to 2X continuous power for 5 seconds for motor loads.
• Intelligent functionality enables utility and solar input prioritization
• Wide utility input range(90Vac--280Vac)for unreliable grid even
• In the most challenging environments.
• Field serviceable with replacement boards and spare parts.

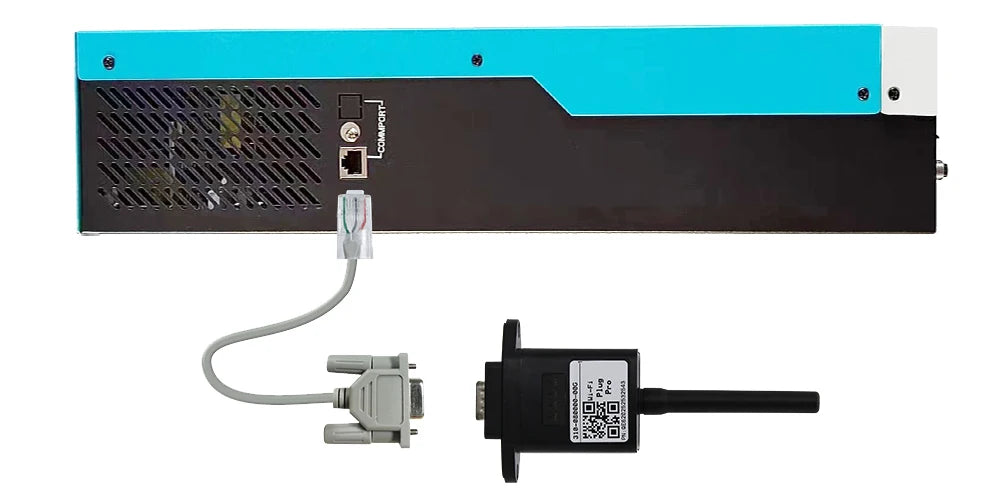

• Monitor,troubleshoot,or communication with USB/RS232.

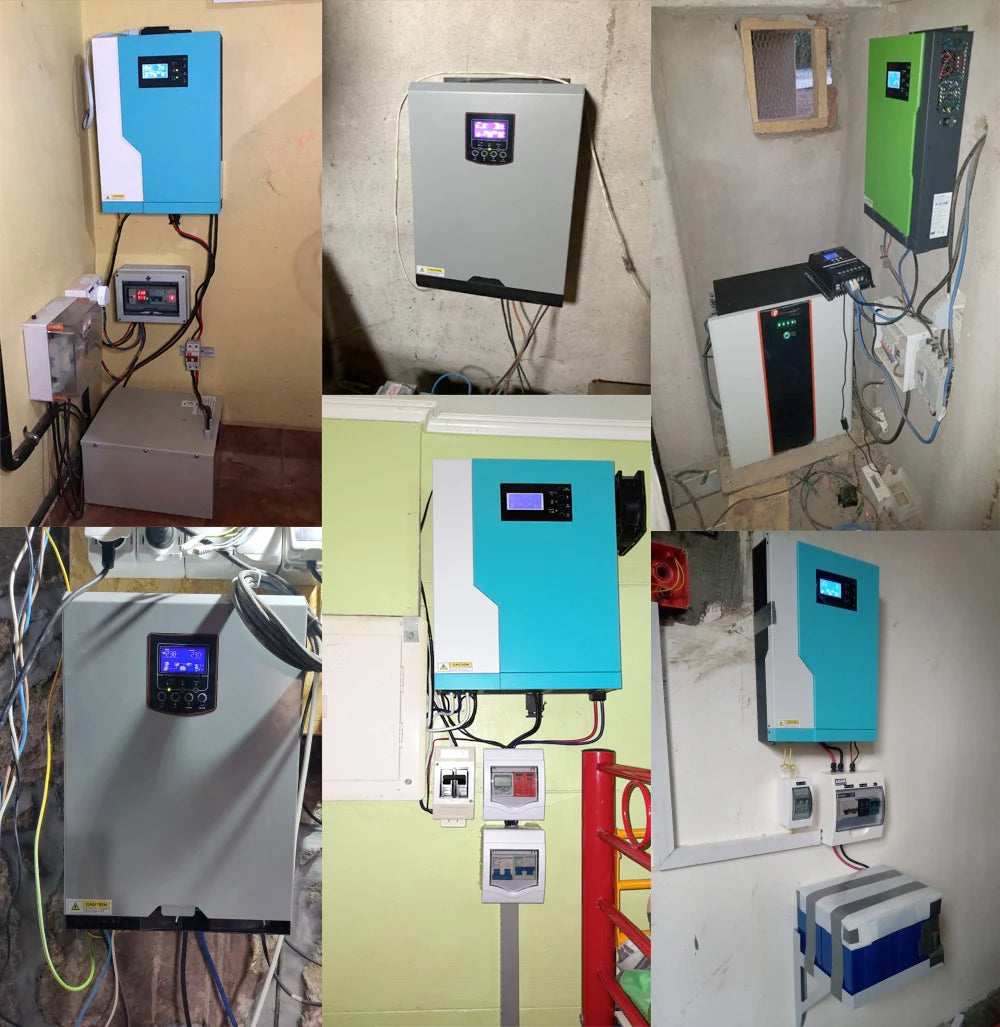

• System configures quickly into compact,wall-mounted system.
• Workingwithout batteriesin sun day
• Can work withLithiumbattery/Lead-acid battery/Gel battery
Model |
VMII PLUS - 3.5KW |
VMII PLUS - 5.5KW |
Rated Power |
3500VA/3500W |
5500VA/5500W |
Input |
||
Voltage |
230VAC |
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
|
90~280VAC(For Home Appliances) | ||
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
Output |
||
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|
Surge Power |
7000VA |
11000VA |
Efficiency(Peak)PV to INV |
97% |
|
Efficiency(Peak)Battery to INV |
94% |
|
Transfer Time |
10ms(For Personal Computers);20ms(For Home Appliances |
|
Battery & AC Charger |
||
Battery Voltage |
24VDC |
48VDC |
Floating Charge Voltage |
27VDC |
54VDC |
Overcharge Protection |
33VDC |
63VDC |
Maximum Charge Current |
80A |
80A |
Solar Charger |
||
Maximum PV Array Power |
5000W |
6000W |
MPPT Range @ Operating Voltage |
120~450VDC(150V is the start PV voltage) |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum Charging Current |
100A |
100A |
Maximum Efficiency |
98% |
|
Physical |
||
Dimension,D*W*H(mm) |
100*300*440 |
|
Net Weight(kgs) |
11 |
12 |
Communication Interface |
USB/RS232/GPRS/WIFI |
|
Operating Environment |
||
Humidity |
5% to 95% Relative Humidity(Non~condensing) |
|
Operating Temperature |
0℃~55℃ |
|
Storage Temperature |
-15℃~60℃ |

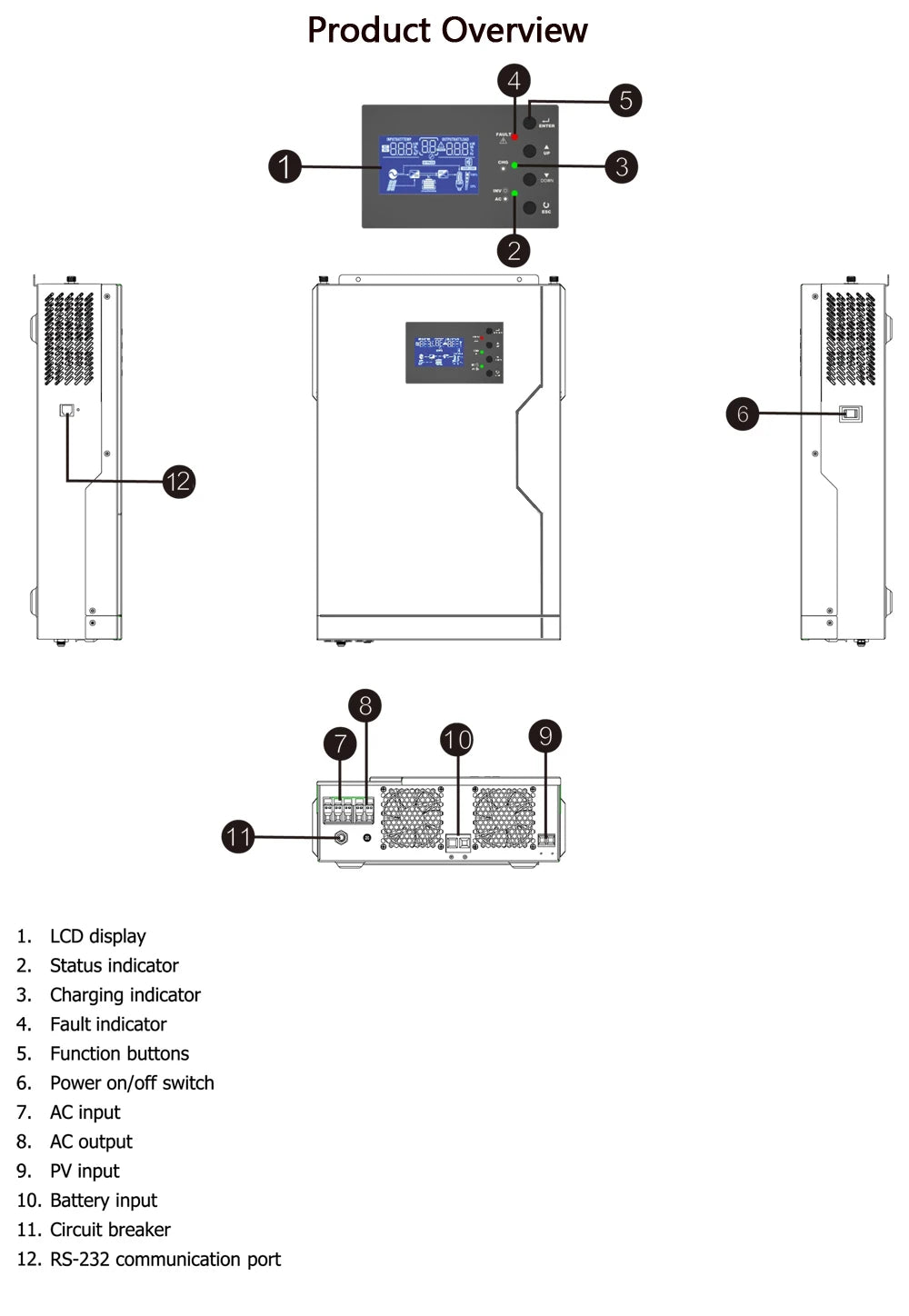

Features include a 3.5-inch LCD display, five function buttons, and indicators for status, charging, and faults. The unit also has power on/off, AC inputs/outputs, PV input, battery input, circuit breaker, and an RS-232 communication port.

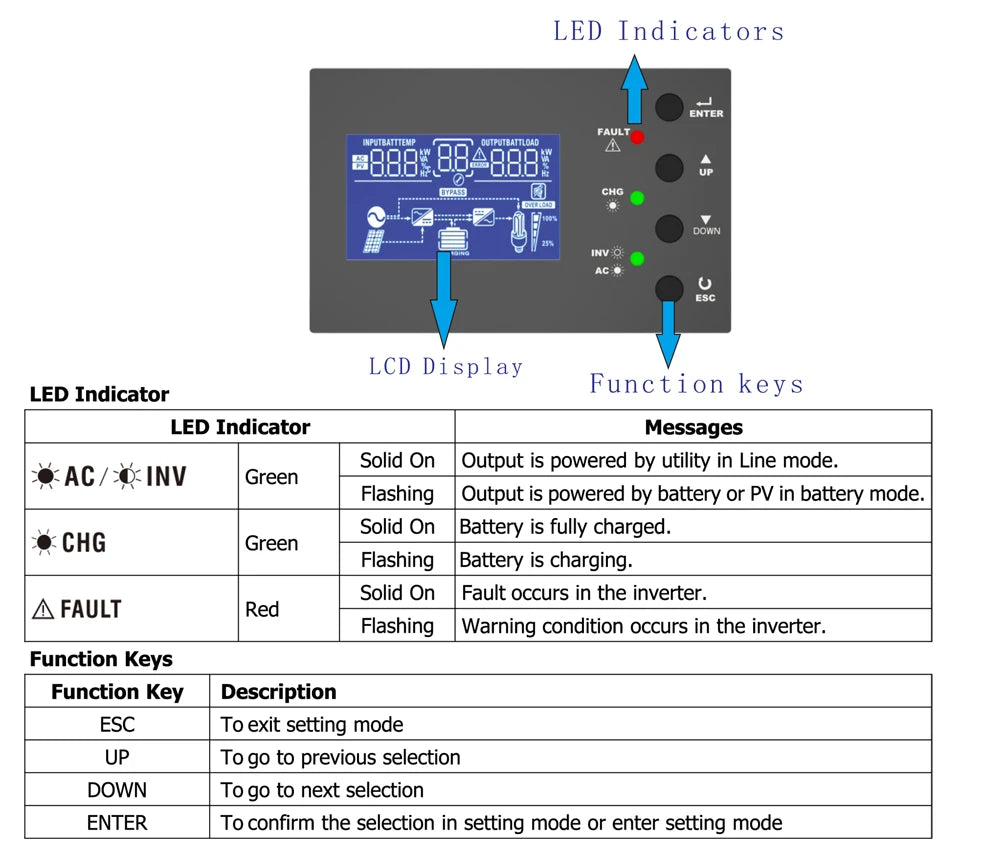

This solar hybrid inverter features a Pure Sine Wave output and includes a 100A MPPT solar charge controller. It has a Wi-Fi module for remote monitoring. The LCD display shows LED indicators for battery status, charging progress, and fault conditions. The inverter can operate in two modes: Line mode (powered by the utility grid) and Battery mode (powered by the battery or PV array). In Battery mode, the output is powered when the battery is fully charged. The LED indicators also provide warning messages for system faults. The function keys allow you to navigate through settings menus and confirm selections.

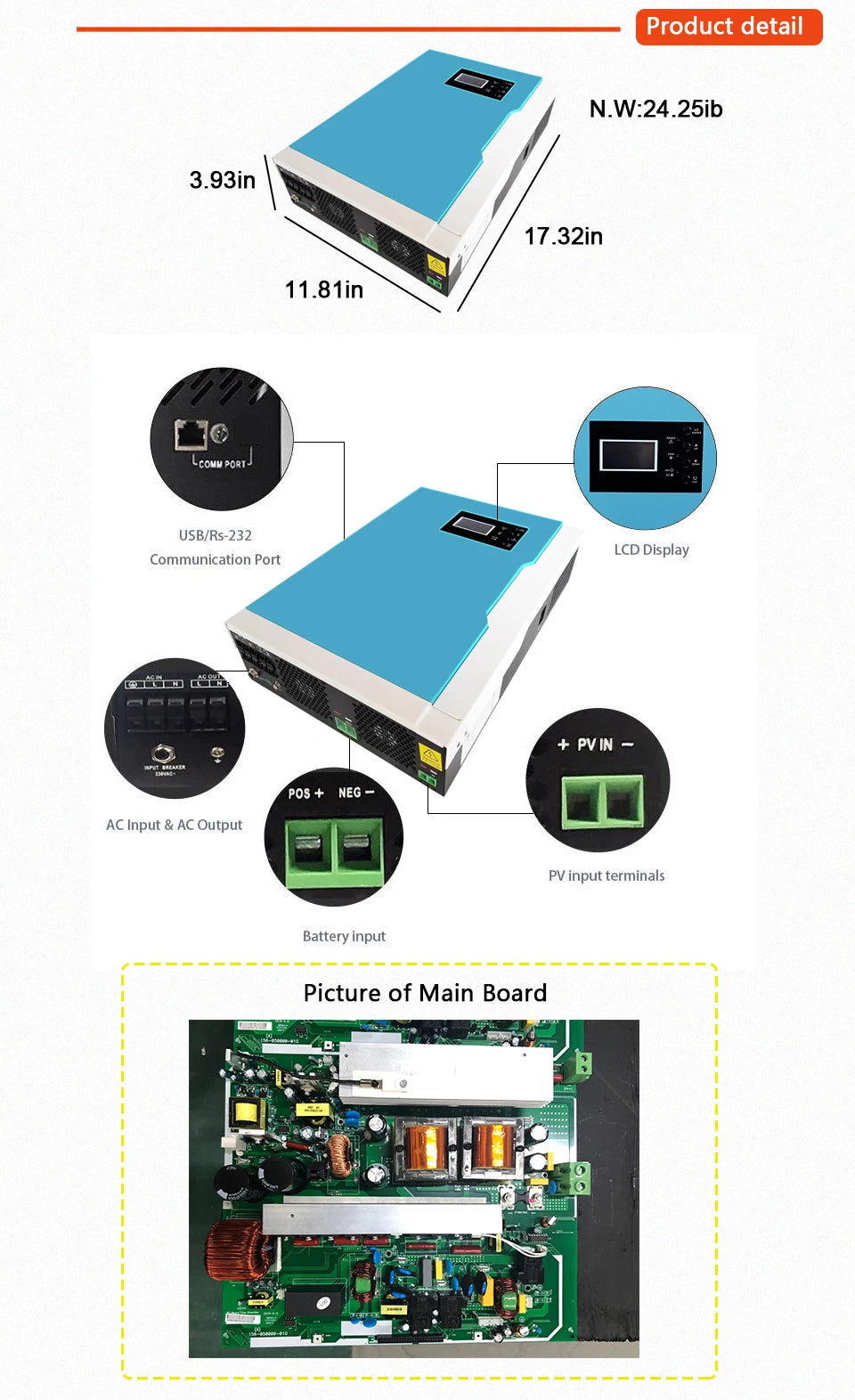

Product details: Compact size (24.25 inches, 3.93 inches, 17.32 inches, and 11.81 inches), featuring USB-232 communication port, LCD display, and PV input terminals. Also includes AC input and output, as well as battery input.
