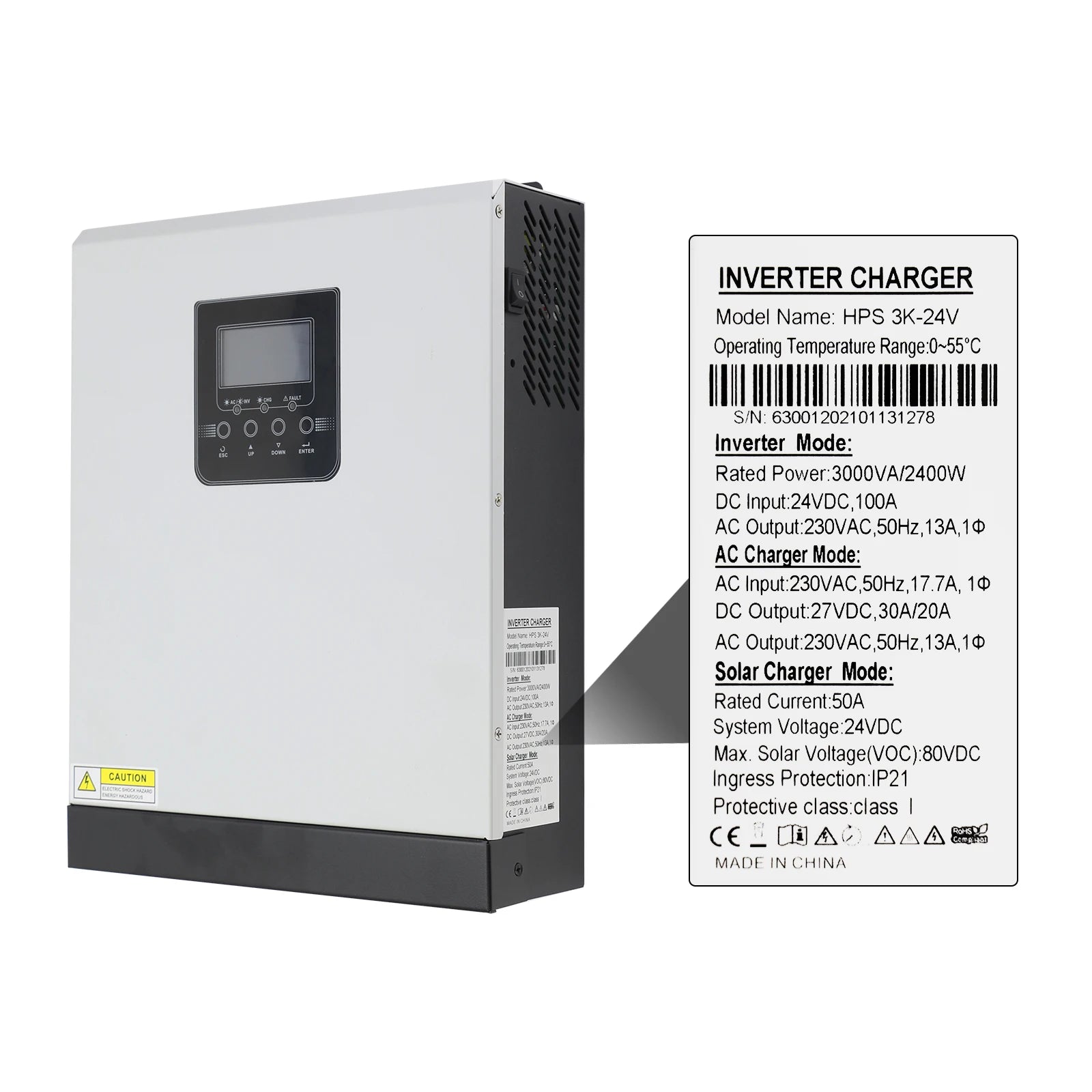

3000VA 2400W Solar Inverter Pure sine wave PWM 50A 24VDC Charger with 230V VAC Output High PV Input 80VDC Solar Charger
3000VA 2400W Solar Inverter Pure sine wave PWM 50A 24VDC Charger with 230V VAC Output High PV Input 80VDC Solar Charger
10 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
item: Hybrid Off Grid Solar Inverter
is_customized: Yes
Rated power: 3000VA/2400W
Rated out power: 24V
Peak Efficiency: 90%
Output Type: single
Output Power: 1 - 200KW
Out put valtage waveform: Pure Sine Wave
Origin: Mainland China
Maximum charge current: 20A/30A
Max.PV Array Open Circuit Voltage: 80VDC
Function: Solar Inverter
Display: LCD Display
Certification: CE
Brand Name: XMSJ
Battery Voltage: 24VDC
3000VA 2400W Hybrid Solar Inverter Pure sine wave PWM 50A 24VDC Charger with 230V VAC Output High PV Input 80VDC Solar Charger
To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, when you order before, please contact us first, thank you.
Inverter Use NOTE: The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

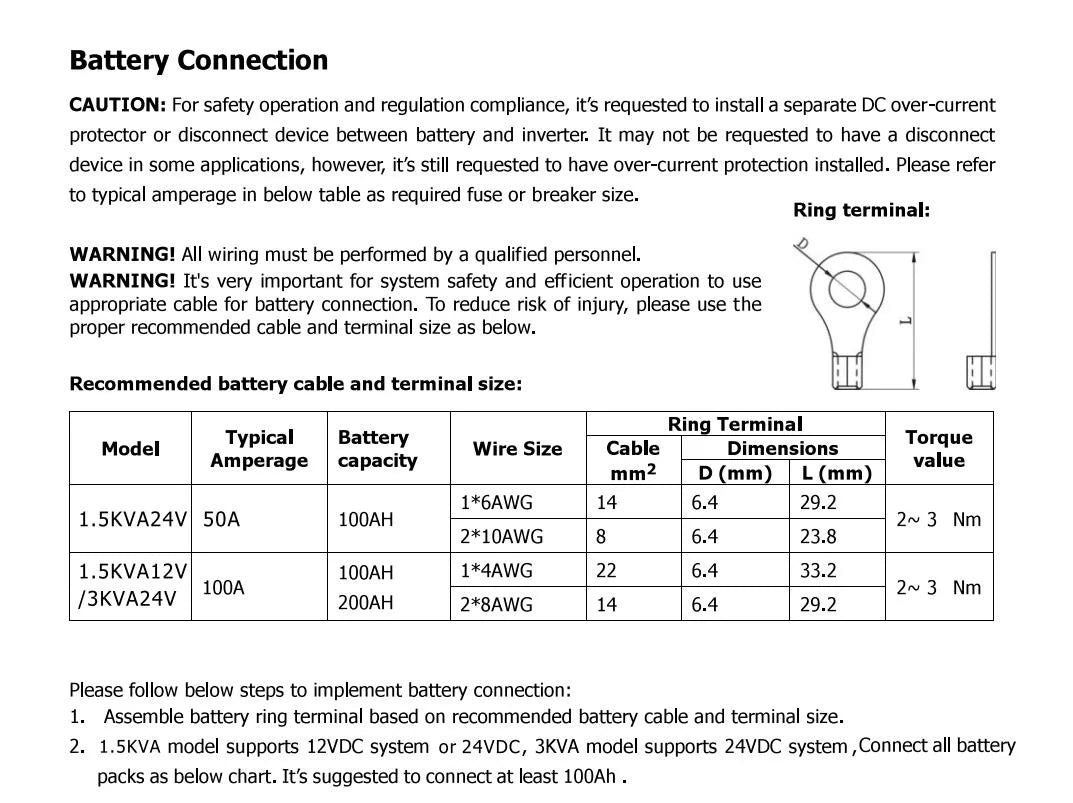

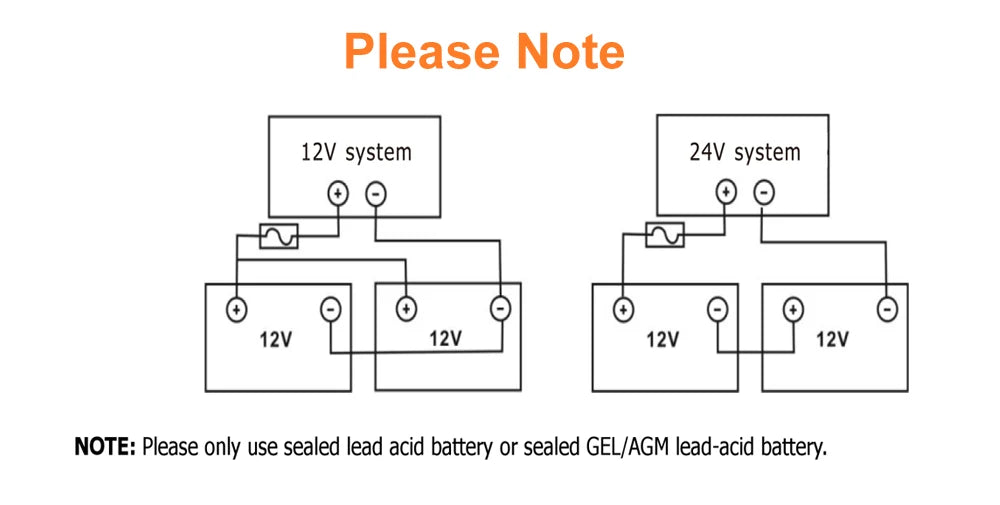

Note: For compatibility, please use sealed lead-acid batteries (12V or 24V) only. This product is designed specifically for these types of batteries.

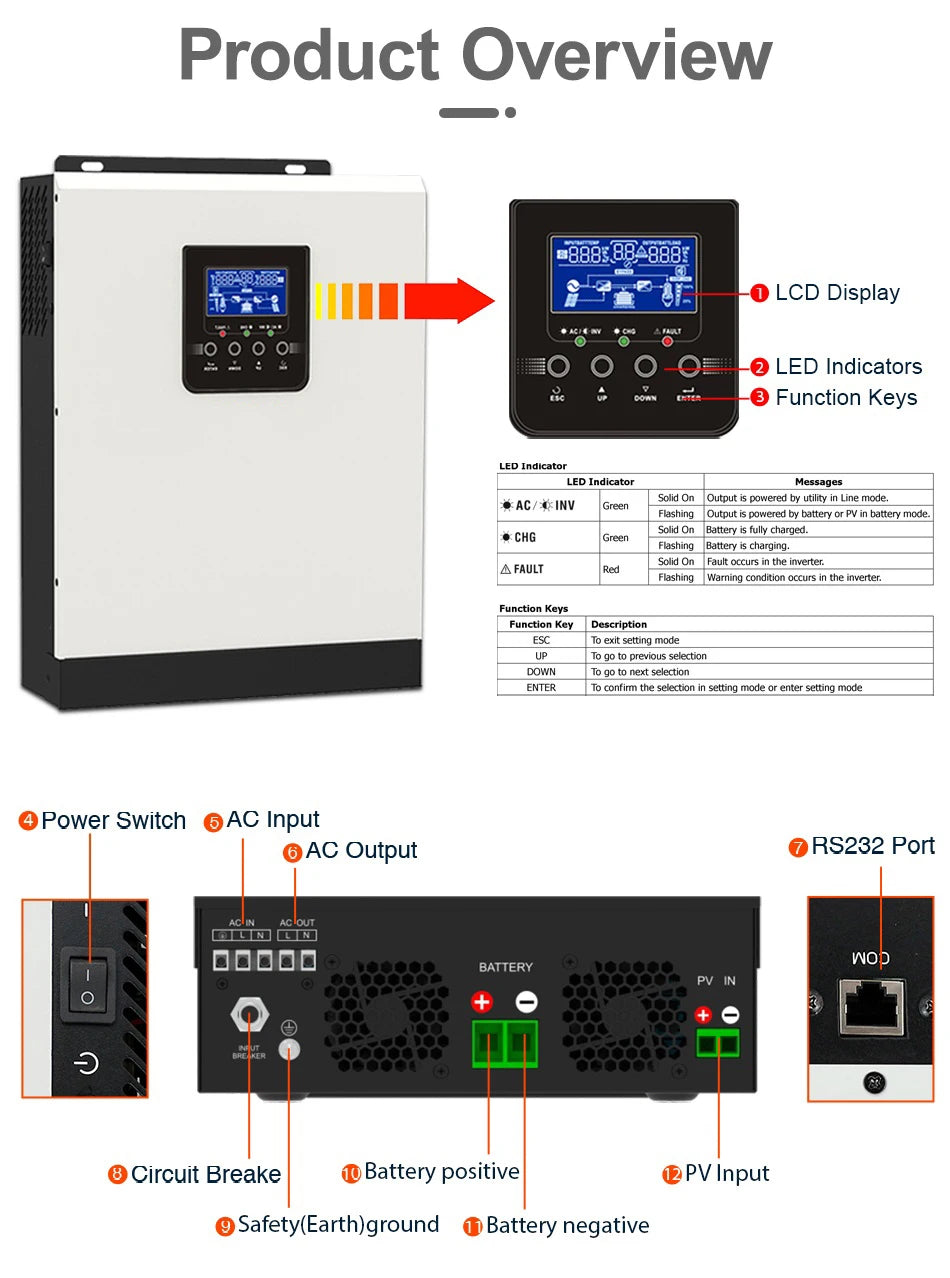

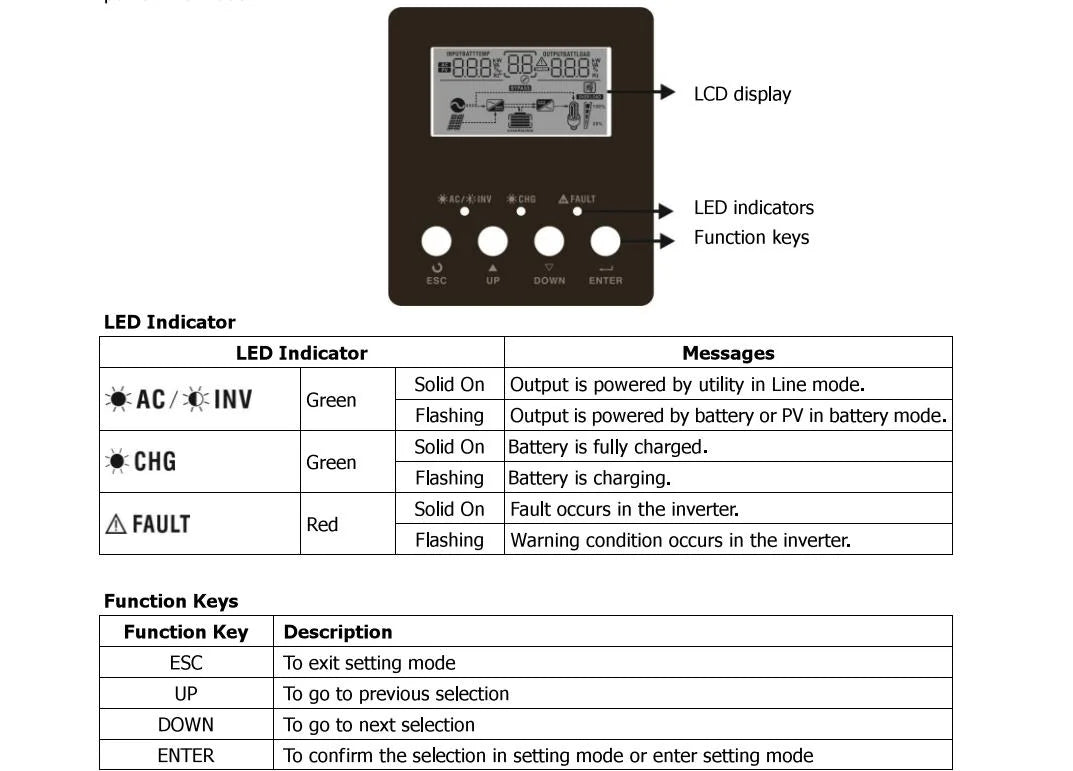

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
· Pure sine wave inverter
· Configurable input voltage range for home appliances and personal computers via LCD setting
· Configurable battery charging current based on applications via LCD setting
· Configurable AC/Solar Charger priority via LCD setting
· Compatible to mains voltage or generator power
· Auto restart while AC is recovering
· Overload/Over temperature/short circuit protection
· Smart battery charger design for optimized battery performance
· Cold start function

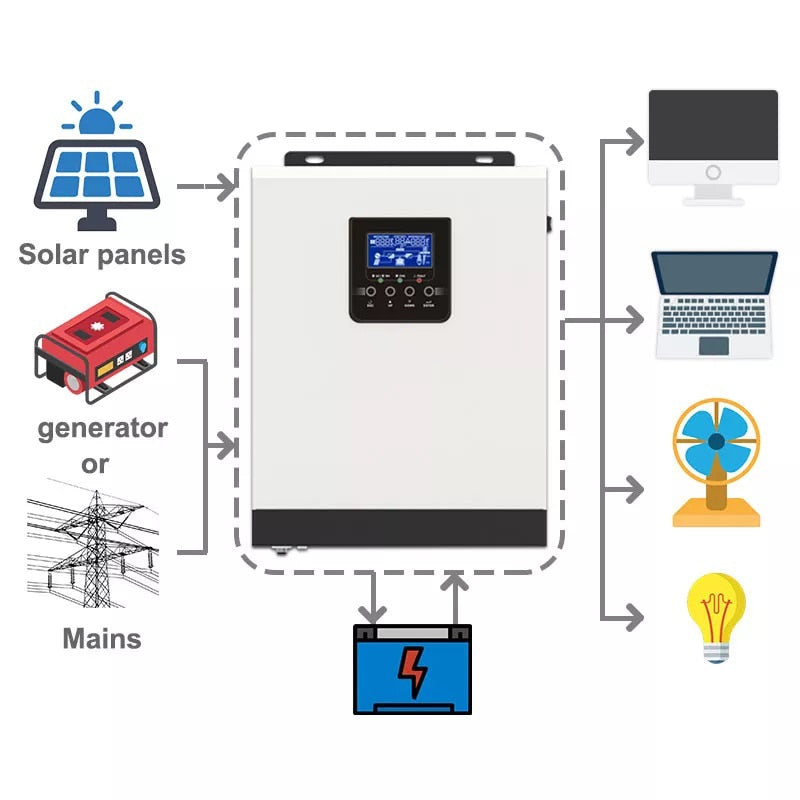

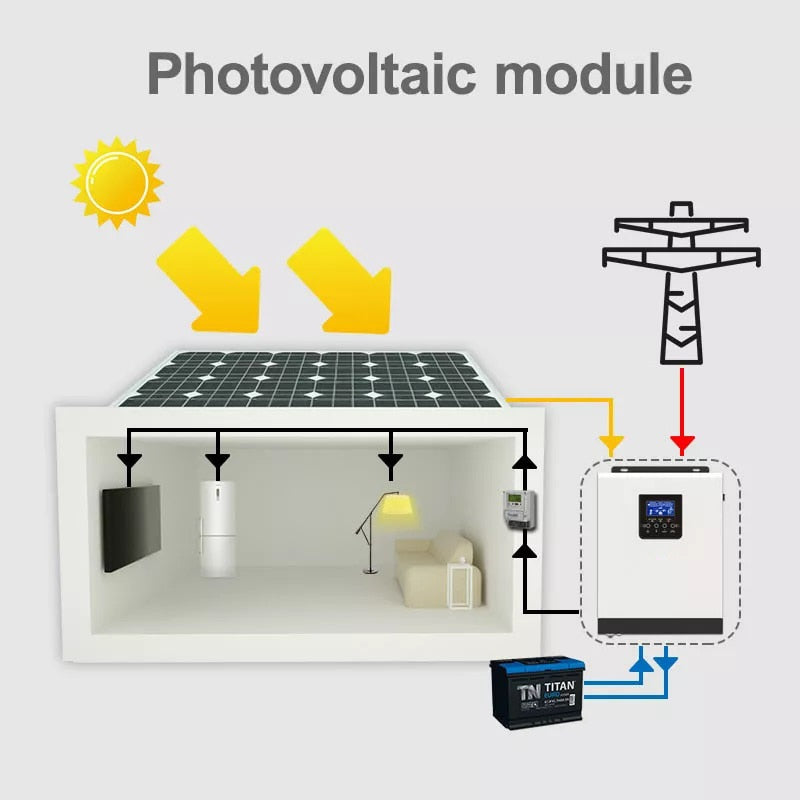

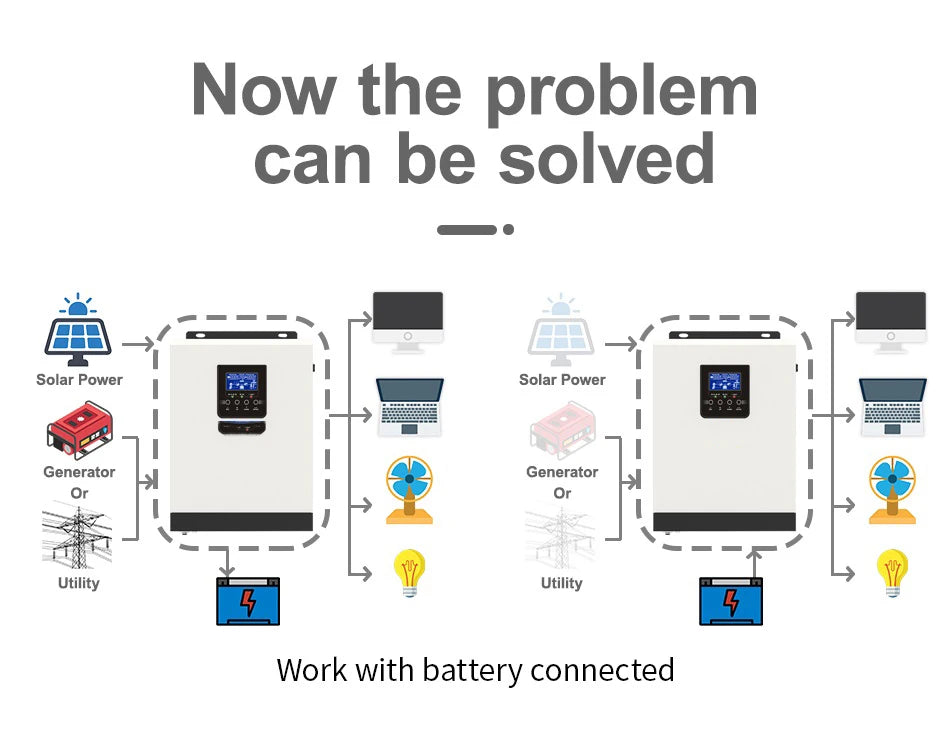

The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
· Generator or Utility.

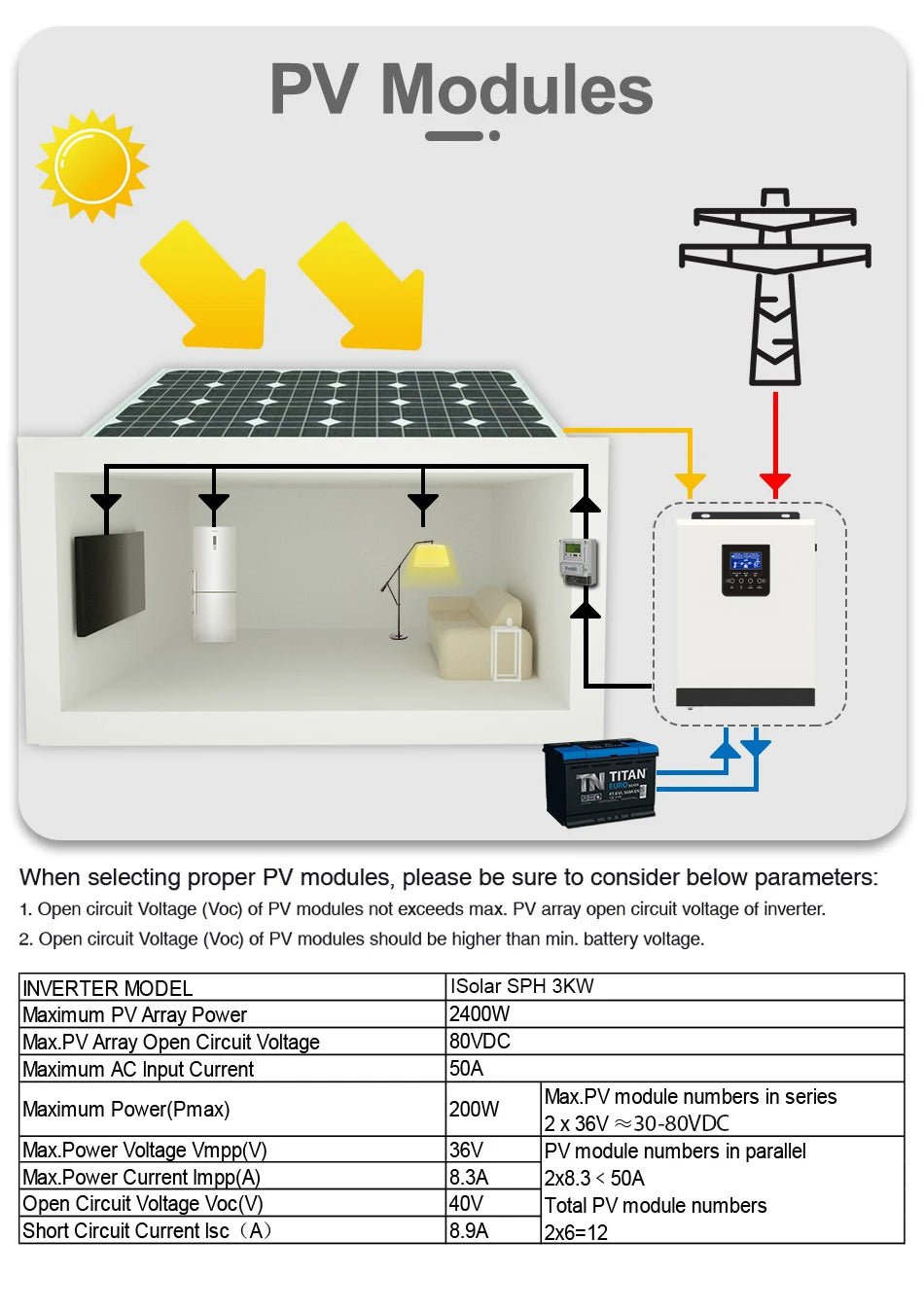

· PV modules(option)
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
MODEL |
HPS-3K-24V |
Rated power |
3000VA/2400W |
INPUT | |
Valtage |
230VAC |
Selectable Voltage Range |
170-280VAC((for personal computers)
90-280VAC(for home appliances) |
Frequency Range |
5oHz/60Hz(Auto sensing) |
OUTPUT | |
AC Voltage Regulation(Batt. Mode) |
230VAC±5% |
Super Power |
6000VA |
Efficiency (peak) |
93% |
Transfer Time |
10ms(for personal computers)
20ms(for home appliances)
|
Wave form |
pure Sine wave |
BATTERY | |
Battery Voltage |
24VDC |
Floating Charge Voltage |
27VDC |
Overcharge Protection |
30VDC |
SOLAR CHARGER & AC CHARGER | |
Maximum PV Array Open Circuit Voltage |
80VDC |
PV Range @ Operating Voltage| |
30-40VDC |
Maximum Solar Charging Current |
50A |
Maximum AC charging current |
20A/30A |
Maximum Charging Current cuwalty cnarging+solar charging) |
80A |
standby Power Consumption |
2W |
PHYSICAL | |

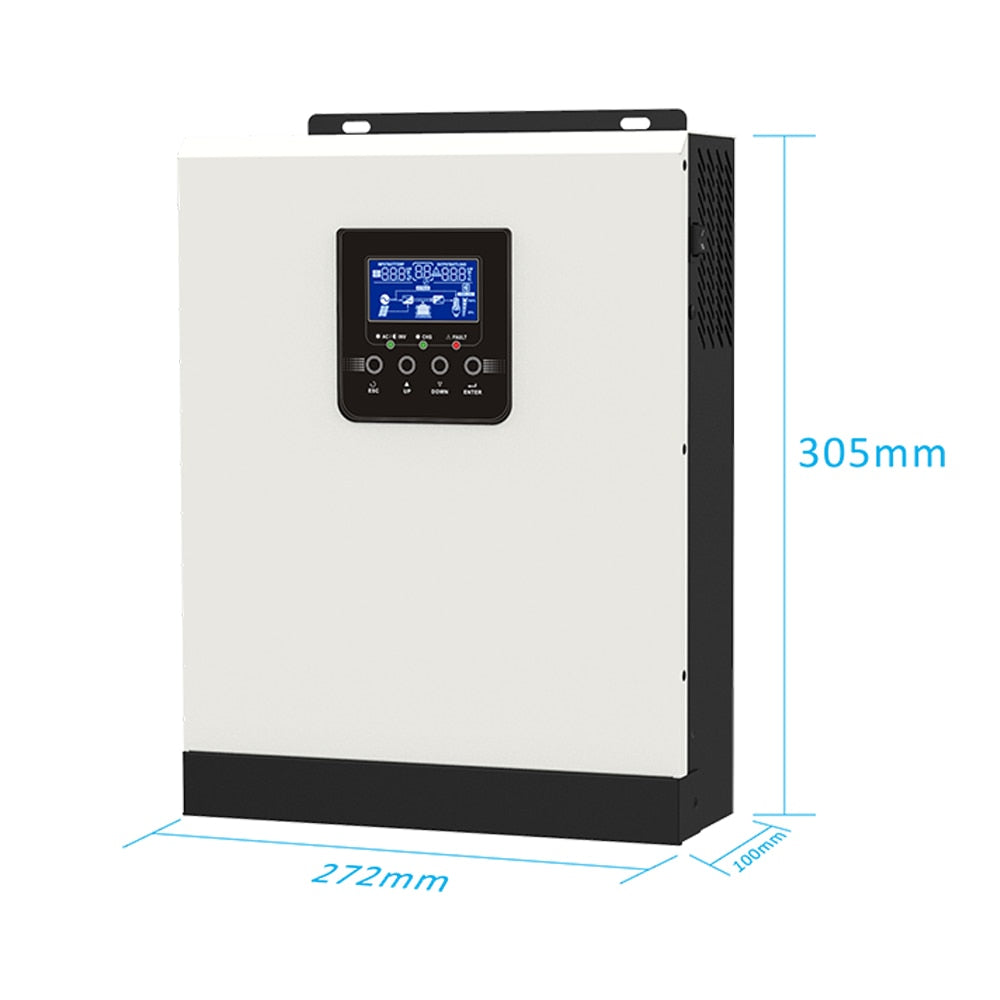

Dimension.D*W*H(mm) |
305*272*100mm |
Net weight(KGS) |
5.2KG |
OPERATING ENVIRONMENT | |
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature |
-15℃to 60℃ |

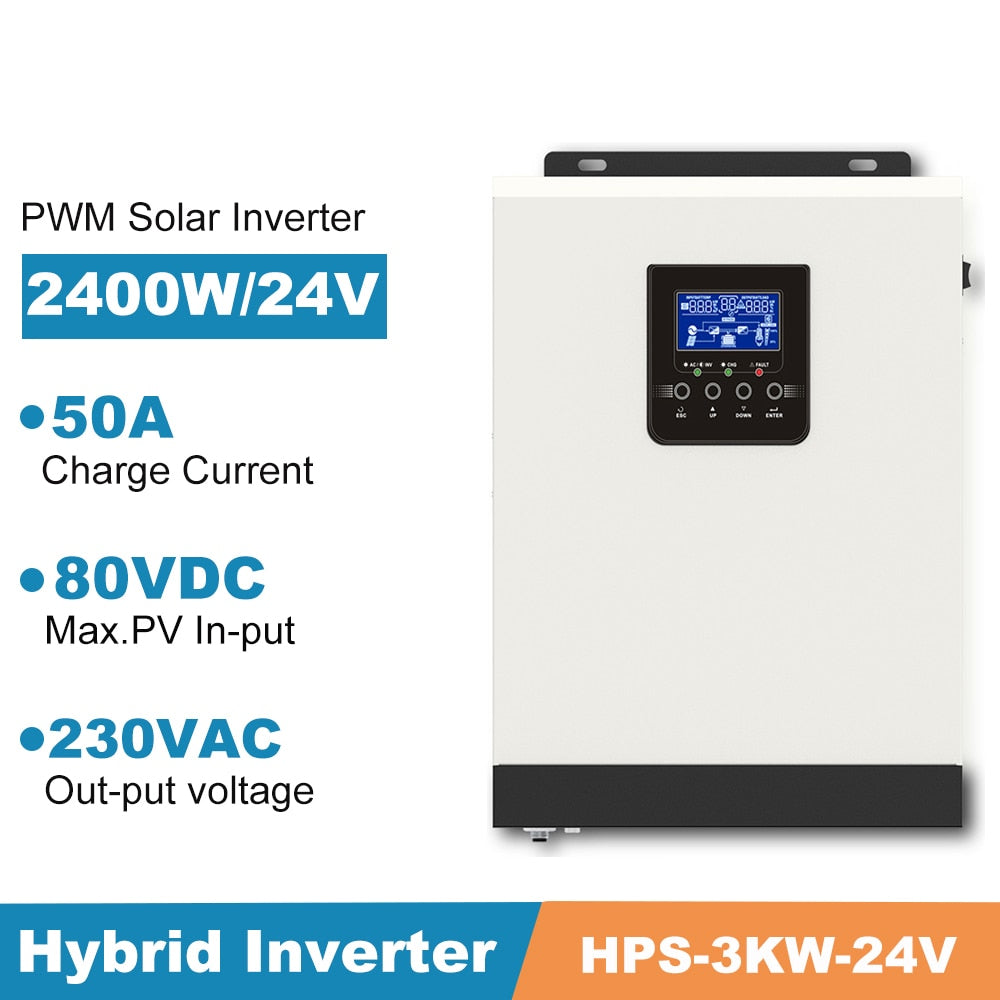

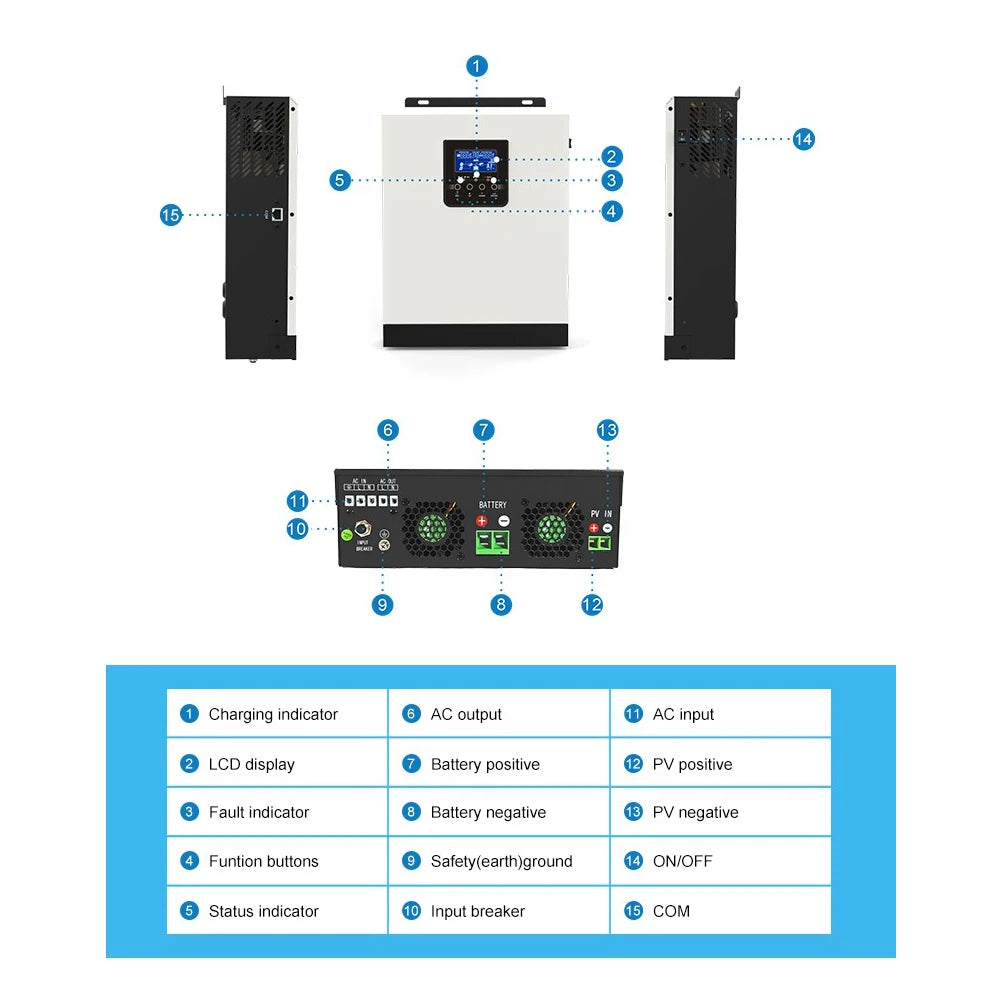

This solar inverter features a pure sine wave PWM charger, 50A current, and 24VDC input. It has an LCD display, AC output, and AC input with a high PV input limit of 80VDC. The unit includes indicators for charging status, fault detection, and input/output voltage levels.

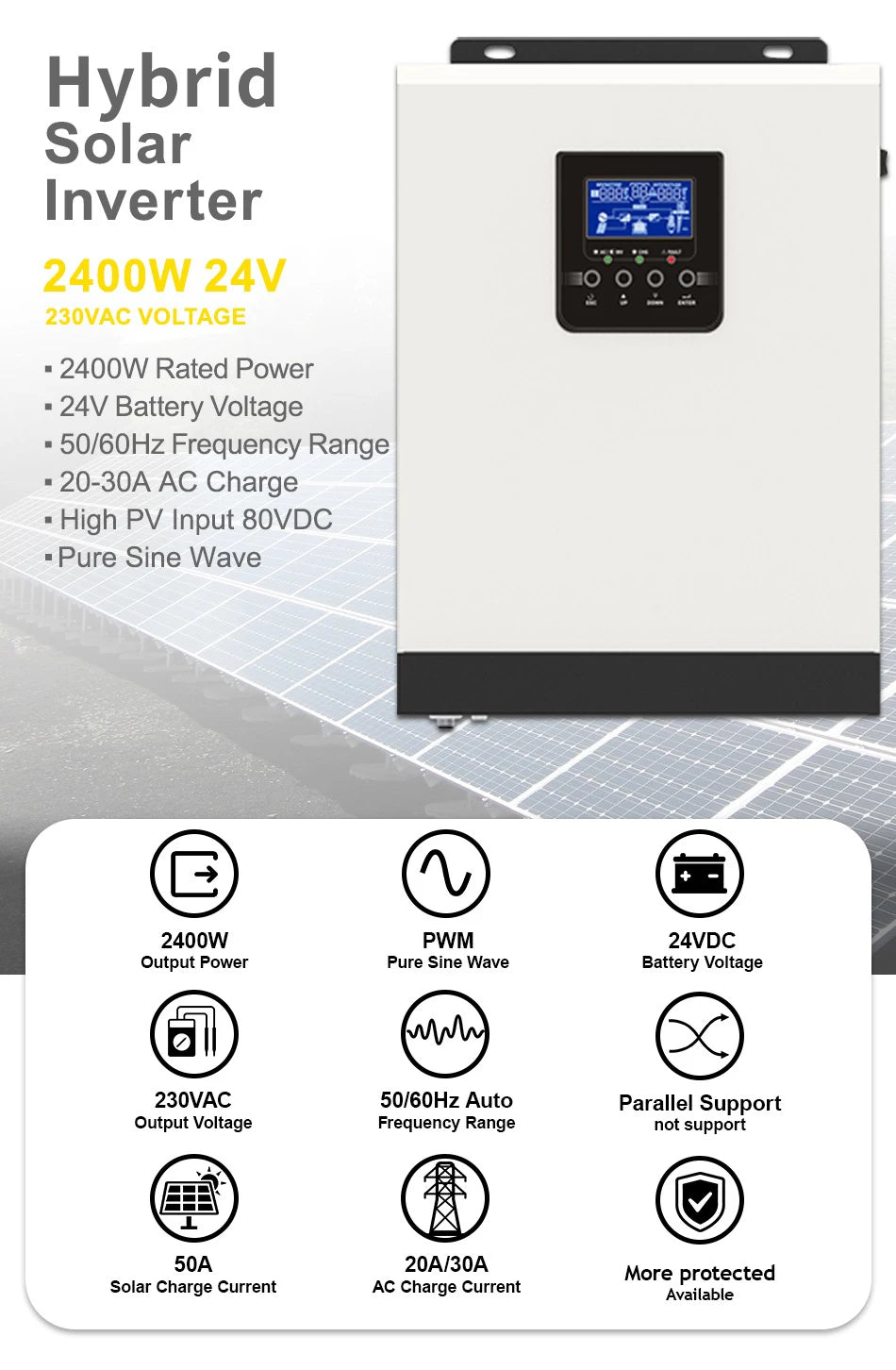

Introducing our 3000VA Solar Inverter, featuring a pure sine wave PWM output with 2400W rated power and 24V battery voltage. It supports high PV input up to 80VDC, and has a frequency range of 50/60Hz. The inverter can charge batteries at 20-30A AC and has a maximum solar charger current of 50A. With an output power of 2400W and pure sine wave technology, it's ideal for homes and businesses looking to harness the power of solar energy.
This solar inverter generates pure sine wave power, suitable for utility-grid tie-in and off-grid applications with battery backup.
