300W Solar Panel- Solar Panel Kit System Set Manufacturer Monocrystalline | Best Solar

300W Solar Panel- Solar Panel Kit System Set Manufacturer Monocrystalline | Best Solar

Regular price $199.00 USD
Regular price Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ



300WSolar Panel Parameters

Cell size: 158.75mmx158.75mm
Type: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, Standard Solar Panel
Panel Dimensions: 1640*992*40mm
Panel Efficiency: 20%
Name: Mono 300w solar panel
Certificate: ETL/TUV/CE/ISO9001/14001
Frame: Anodized aluminium alloy
Backing Color: White, Black, Transparent
Junction Box: Ip 65 Rated/Past connector
Front Cover: 3.2mm high transimissiion,low Iron tempered glass
Frame Color: Silvery, Black
OEM: Acceptable
Place of Origin: Anhui, China
Brand Name: Bluesun
Model Number: BSM300M-60



Product Details

Moduel
BSM290M-60
BSM295M-60
BSM300M-60
BSM305M-60
BSM310M-60
Rated Maximum Power at STC
290
295
300
305
310
Open Circuit Voltage(Voc/V)
38.9
39.6
39.8
40.0
40.2
Maximum Power Voltage(Vmp/V)
32.2
32.5
32.6
329
33.1
Short Circuit Current(Isc/A)
9.66
9.68
9.77
9.85
9.94
Maximum Power Current(Imp/A)
9.01
9.08
9.19
9.28
9.37
Module Efficiency(%)
17.7
18.0
18.3
18.6
18.9
Power Tolerance
-0~+3%
Standard Test Condition(STC)
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

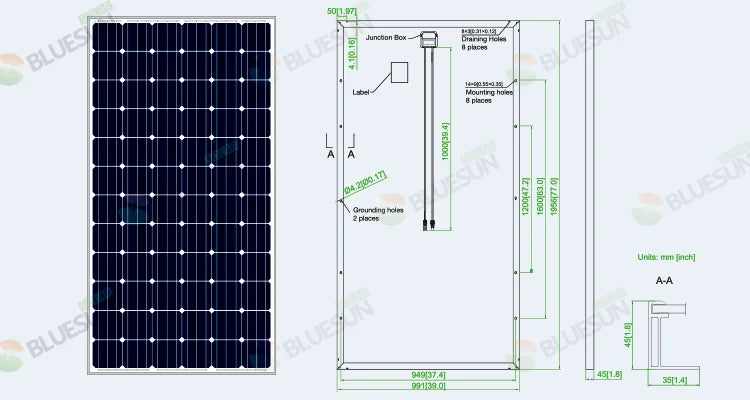

300W Solar Panel, Junthon's 8-inch monocrystalline solar panel kit produces 300W power with 15 connectors and 54V voltage.

Junthon manufactures an 8-inch monocrystalline solar panel kit system set with a power output of 300W, featuring 15 connectors and a voltage of 54V. The product includes 1 x 4501BL module and 35 x 1.4m cable.

Detailed&Production
300W Solar Panel,

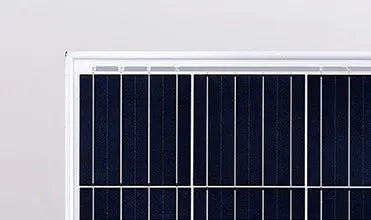

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

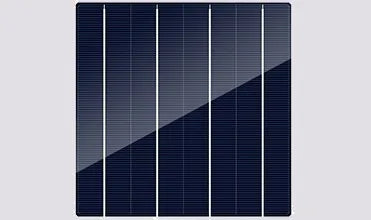

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

300W Solar Panel,
300W Solar Panel,

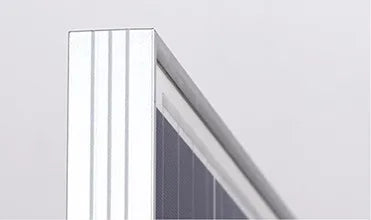

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life

> Serrated-clip design tensile strength

> Seal-lip designglue injection

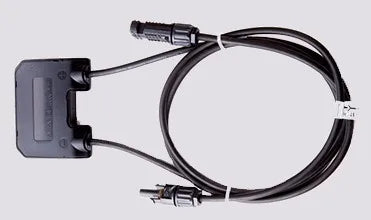

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

300W Solar Panel,

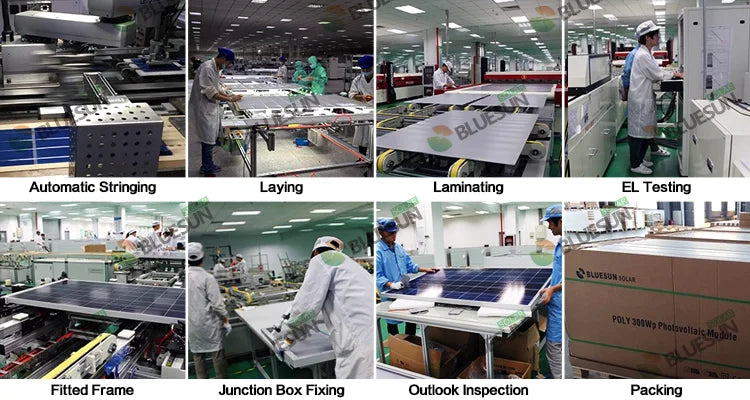

300W Solar Panel, Effortless cable installation kit with auto-stringing, laying, lamination, and testing features.

Kit includes automatic stringing, laying, laminating, and testing for efficient setup. Features poly-fitted frame, junction box, and outlook inspection for easy installation.

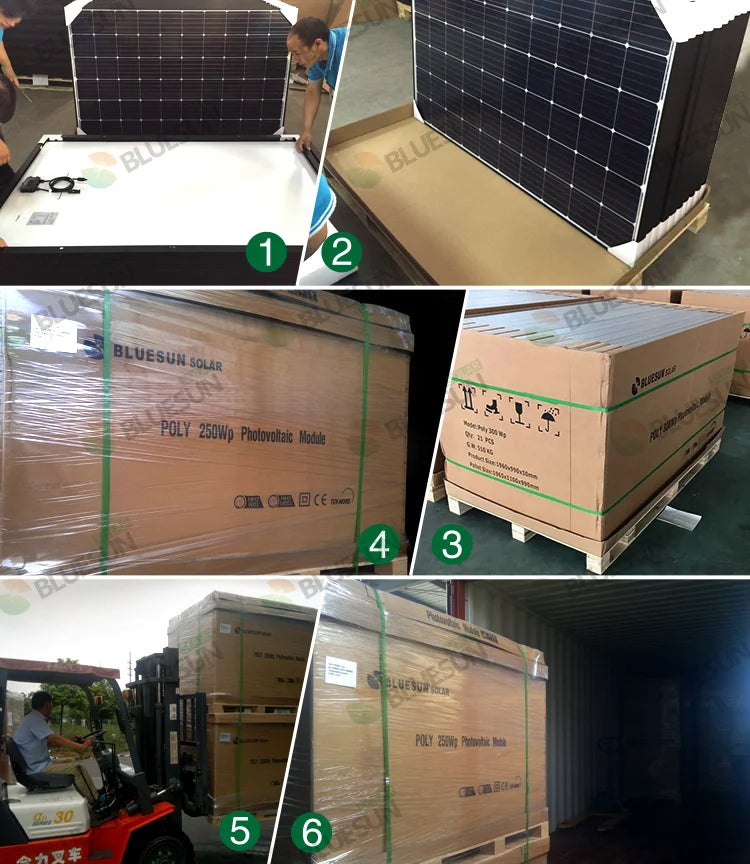

Packing & Delivery
300W Solar Panel,
