SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: SL03 Series
Maximum Current: 30A
Certification: CE
Brand Name: PowMr
Application: Charger Controller,Solar System Controller,Collector Controller,Voltage Controller,Lighting Controller
30A 10A 20A Solar Charge Controllers 12V 24V 36V 48V 60V LCD Solar Charger Regulator Li Li-ion lithium LiFePO4 Batteries SL03

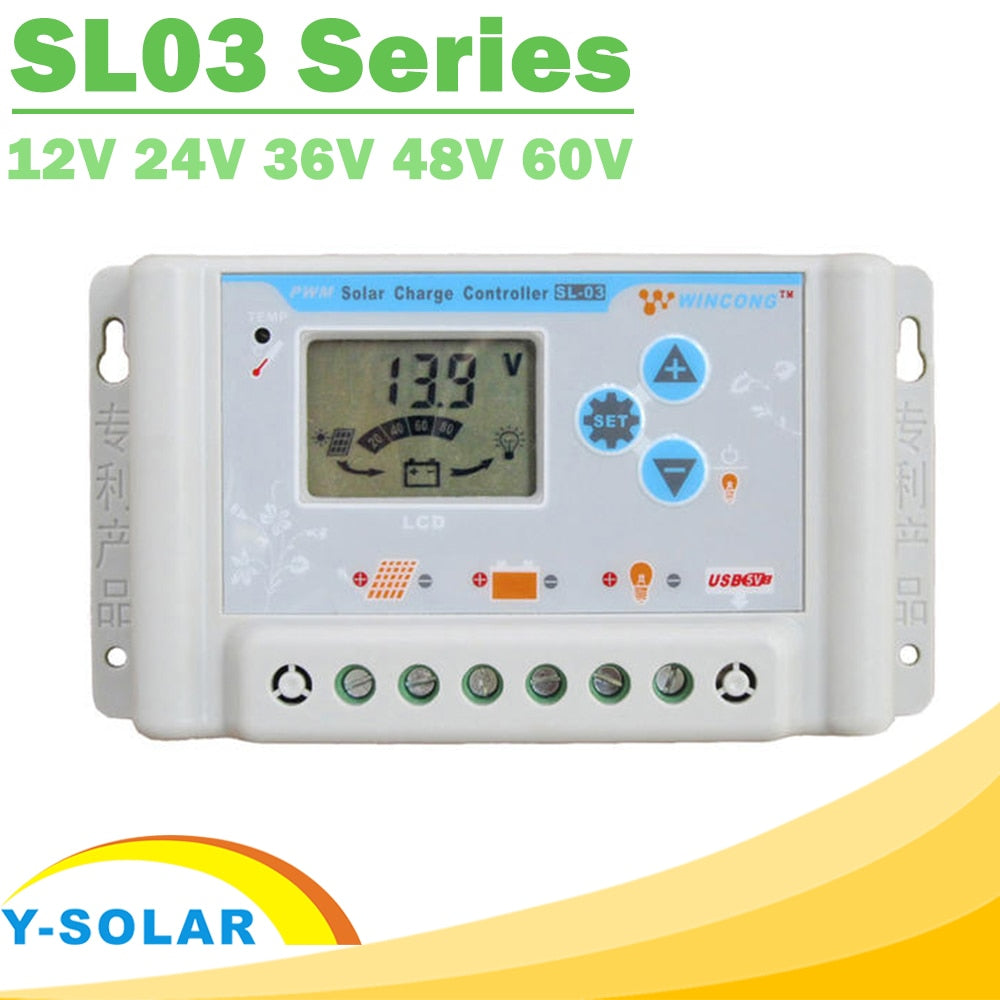

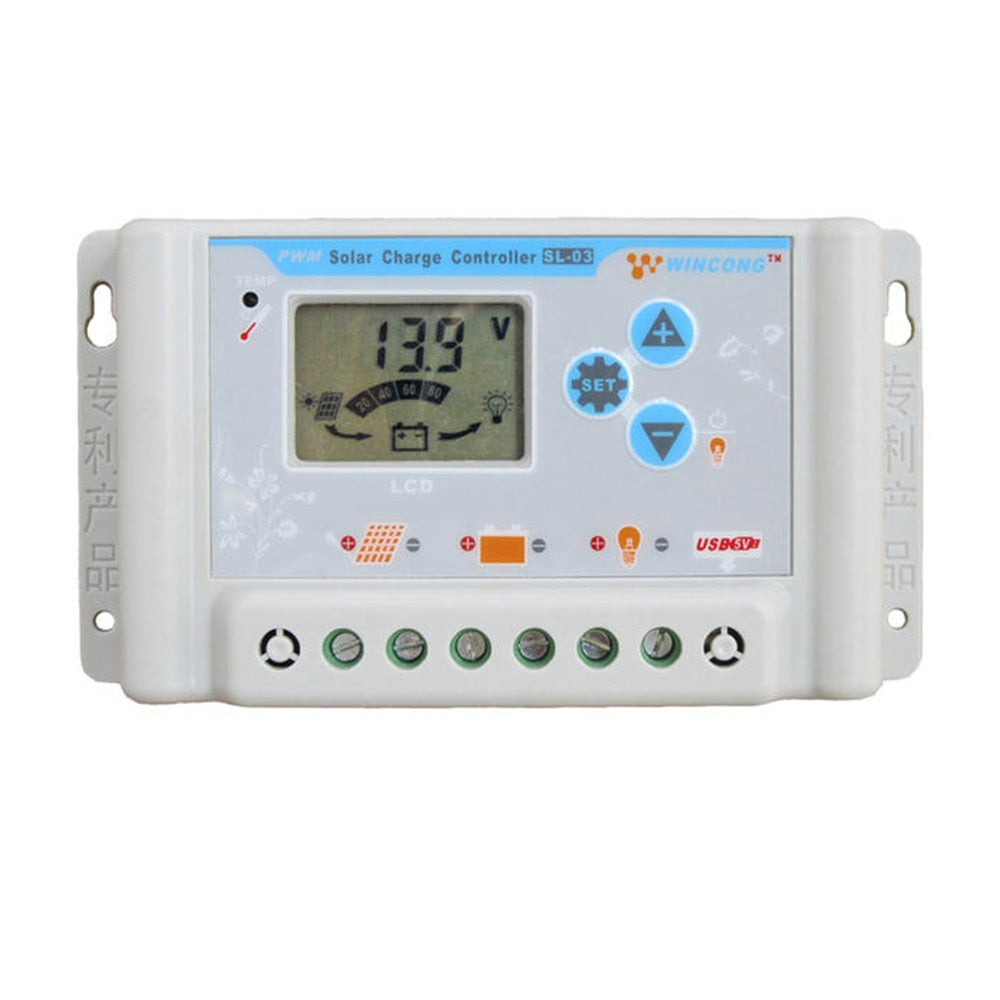

SL03 series controllers are kinds of intelligent multi-functional solar charge and discharge controller. This series adopts thenew 32bit microprocessor to collect and compute various parameters, which is much more accurate and speedy than the former 8bit microprocessor. The customized LCD with wide temperature range is with vivid operation interface; the latest proprietary technology solves the problem of voltage display of solar panel. Nearly all parameters can be shown and set up flexibly. All of the multi-meter and other voltage and current instruments can be replaced by this controller, which can satisfy your various demands.

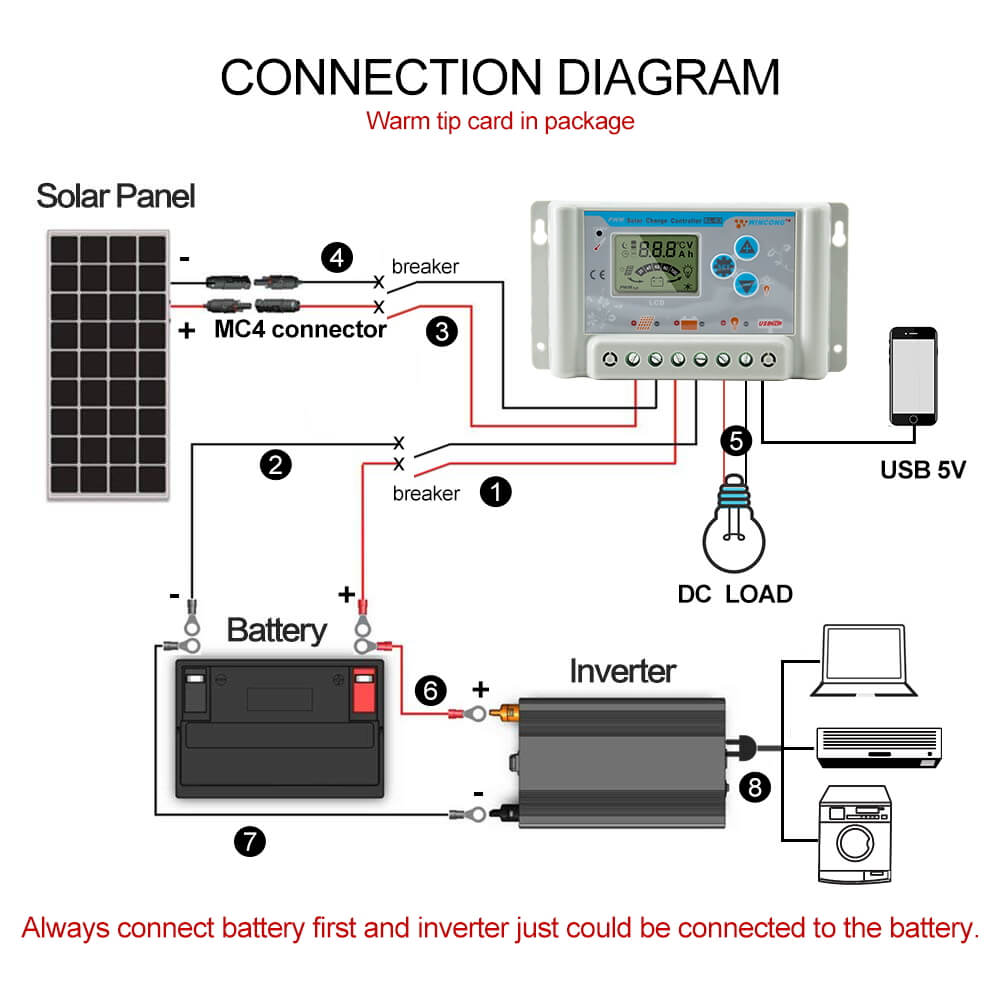

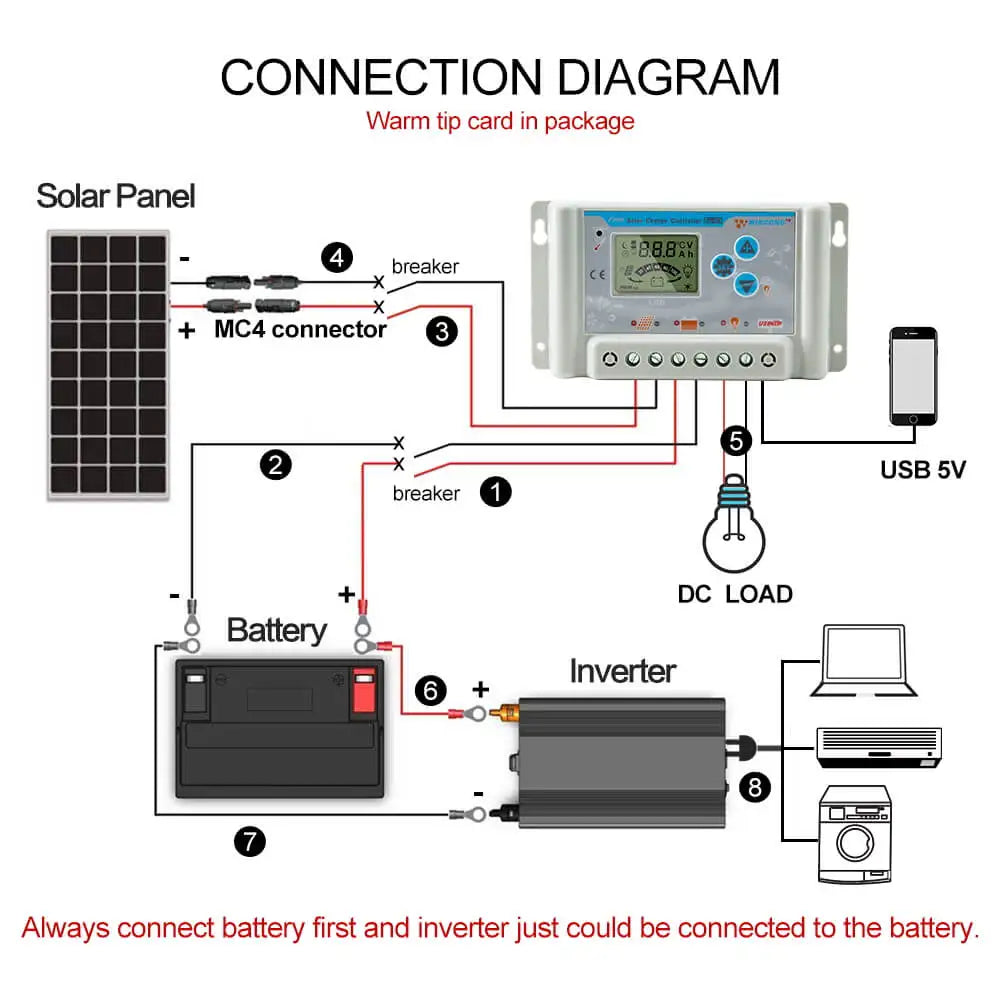

Important connection diagram note: Connect battery first, then inverter. Use the USB port and SV breaker for solar panel input. Always follow this order to ensure safe and efficient charging.
Newly Upgraded: Data collection by 32bit microprocessor with 4096 resolution ratio is much more accurate than the
former 8bit microprocessor with 1024 resolution ratio.
Newly Upgraded: The voltage of solar panel can be shown and checked.
Newly Upgraded: The results and states of each monitoring parameters can be automatically showed by turns
(automatic-scanning).
Newly Upgraded: Light-operated sensitivity is set flexibility which can recognize day and night reliably according to the
voltage of solar panel.
Newly Upgraded: Floating charge voltage can also be set, which can be especially applied to charge and discharge at the
same time, controlling the voltage of battery flexibly
Newly Upgraded: The protected USB5V voltage-stabilized source output, for other 5V load like mobile phone charging
that compatible USB. The energy consumption will automatically reduce when non-loaded, we don’t need to control it by hand
switch, realizing the plug and play.
Newly Upgraded: The charge-discharge parameters of wide range can be adjusted flexibly, which is suitable for various
kinds of battery, such as lithium battery,gel battery,car battery .The old and new battery can all be applied to.
Newly Upgraded: Automatic temperature compensation and adjustable compensating parameter, for example, the lithium
battery can choose the closing temperature compensation.
Newly Upgraded: Flame-retardant plastic shell

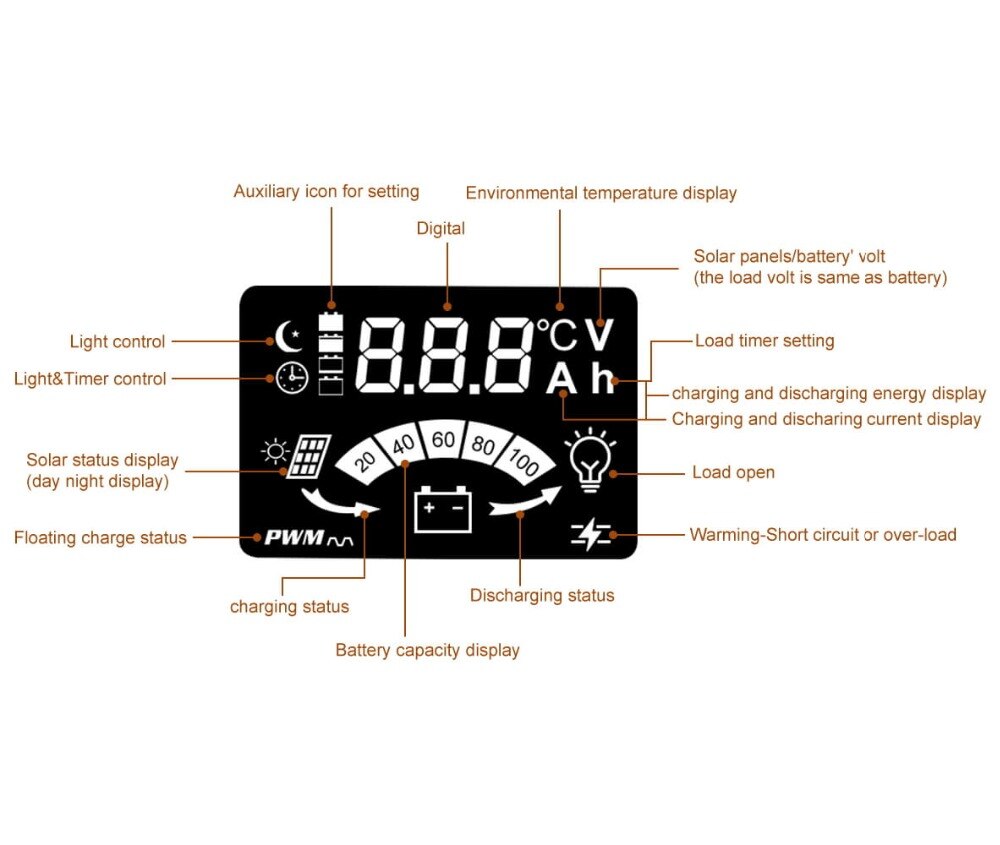

Newly Upgraded: LCD display screen with wide temperature range is with visual graphic symbol display.
compact keys operation
automatic identification of system voltage classes
intelligent PWM charge mode
Configurable load operating mode
accumulative function of charge-discharge AH
telecommunication monitoring function
(The function needs to WINCONG order)
back discharge protection of battery
low-voltage protection of battery
transposition protection of battery
overload and short-circuit protection

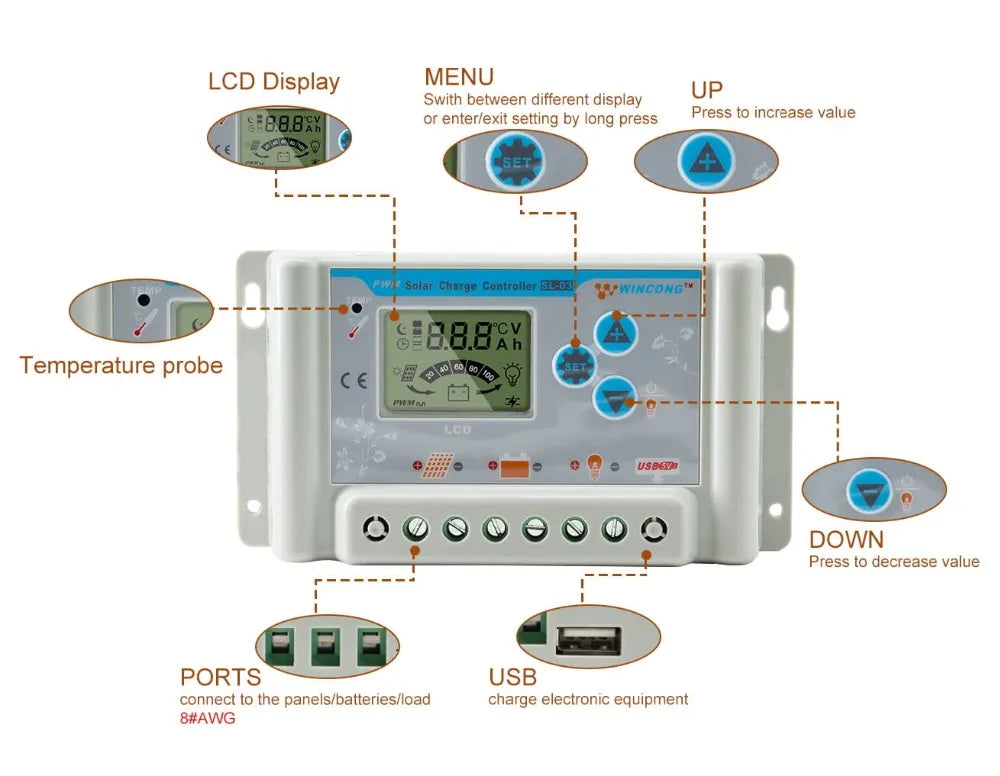

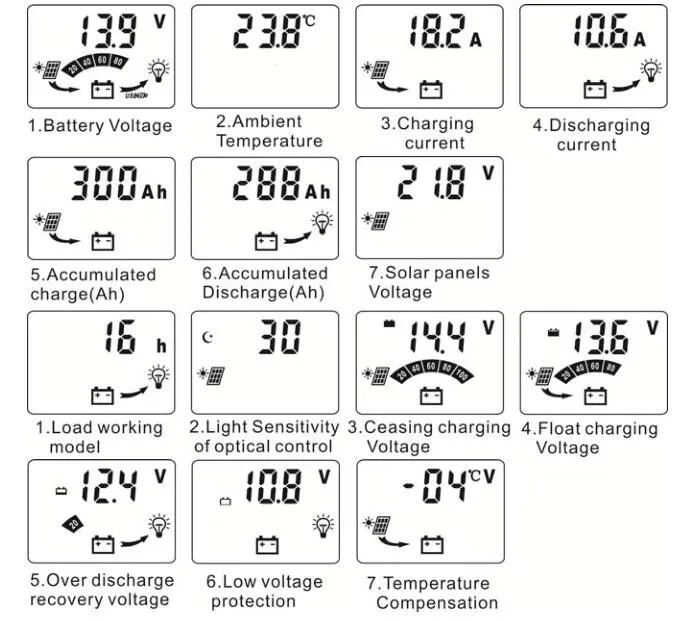

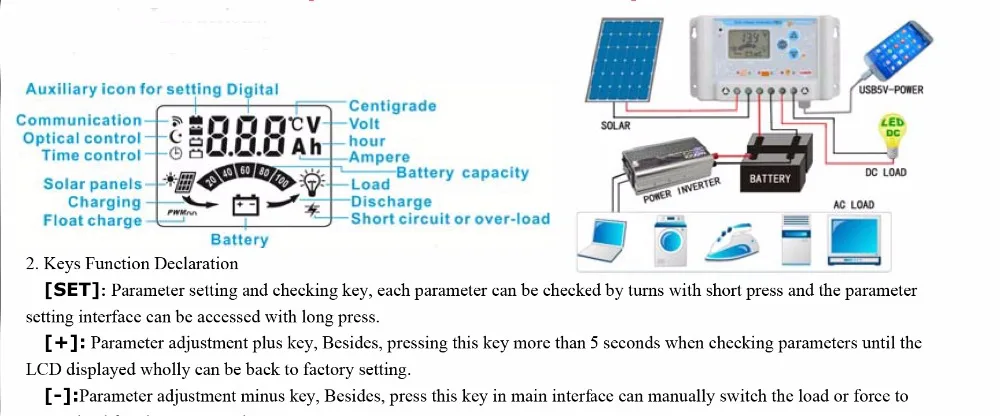

Features an LCD display with menu options. Use the switch to toggle between displays or adjust settings by long pressing. Increase/decrease values using UP/DOWN buttons. The Solar Controller BL-03 (Wincong) includes temperature probes, USB connectivity for panel/solar battery charging, and 8AWG charging ports.
Model |
SL03-10A |
SL03-20A |
SL03-30A |
SL03-4810A |
SL03-4830A |
Max charge current |
10A |
20A |
30A |
10A |
30A |
Max load current |
10A |
20A |
30A |
10A |
30A |
Max Voltage of solar panel |
<=50V |
<=100V |
|||
Voltage of battery |
12V/24V Auto Discriminating |
36V/48V/60V Auto Discriminating |
|||
Stop-Charge-Voltage |
default 14.4V/28.8V(can setting9V-35V) |
default43.2/57.6/72.0V(can setting28V-78V) |
|||
Float-charge-voltage |
default 13.6V/27.2V(can setting9V-35V) |
default40.8/54.4/68.0V(can setting28V-78V) |
|||
Low Voltage Reconnected |
default40.8/54.4/68.0V(can setting28V-78V) |
default37.2/49.6/62.0V(can setting28V-78V) |
|||
Low Voltage Disconnection |
default 10.8V/21.6V(can setting9V-35V) |
default32.4/43.2/54.0V(can setting28V-78V) |
|||
No load losses current |
<=15mA |
<=10mA |
|||
Over-load and short circuit |
1.1 times of max current, works for 5 seconds or Short circuit,,the load is off at once and the indicator icon flashing,Then wait 30 seconds, it will automatically restart to work. |
||||
Charging circuit voltage drop |
<=0.26V |
||||
Load circuit voltage drop |
<=0.17V |
||||
Temperature compensation |
(0~-5mv)/2V/°C |
||||
Working temperature |
-25 ~ +60°C |
||||
Storage Temperature |
-30 ~ +75°C |
||||
Humidity Requirements |
<=90% ,no condensation |
||||
Protection grades |
IP30 |
||||
Weight |
260g |
||||
Outline |
143*77*40mm |
||||
Mounting Hole Spacing |
134*55mm |
||||
Installation Cable area |
<=8mm⊃2; ( 8#AWG) |

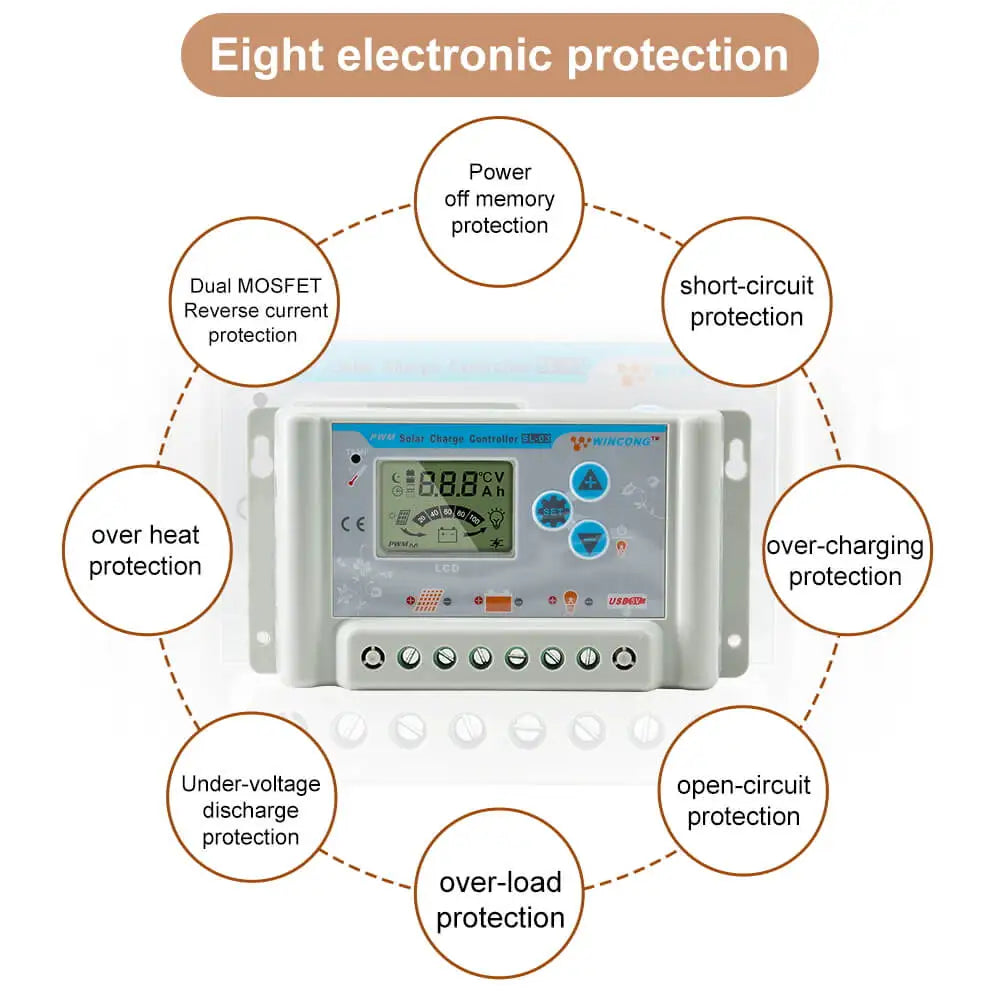

This solar charge controller features eight electronic protections: power-off memory, dual MOSFET short-circuit protection, reverse current protection, and more. It includes overheat, overcharge, and under-voltage open-circuit discharge protections, as well as overload protection.
10A 20A:
30A:
